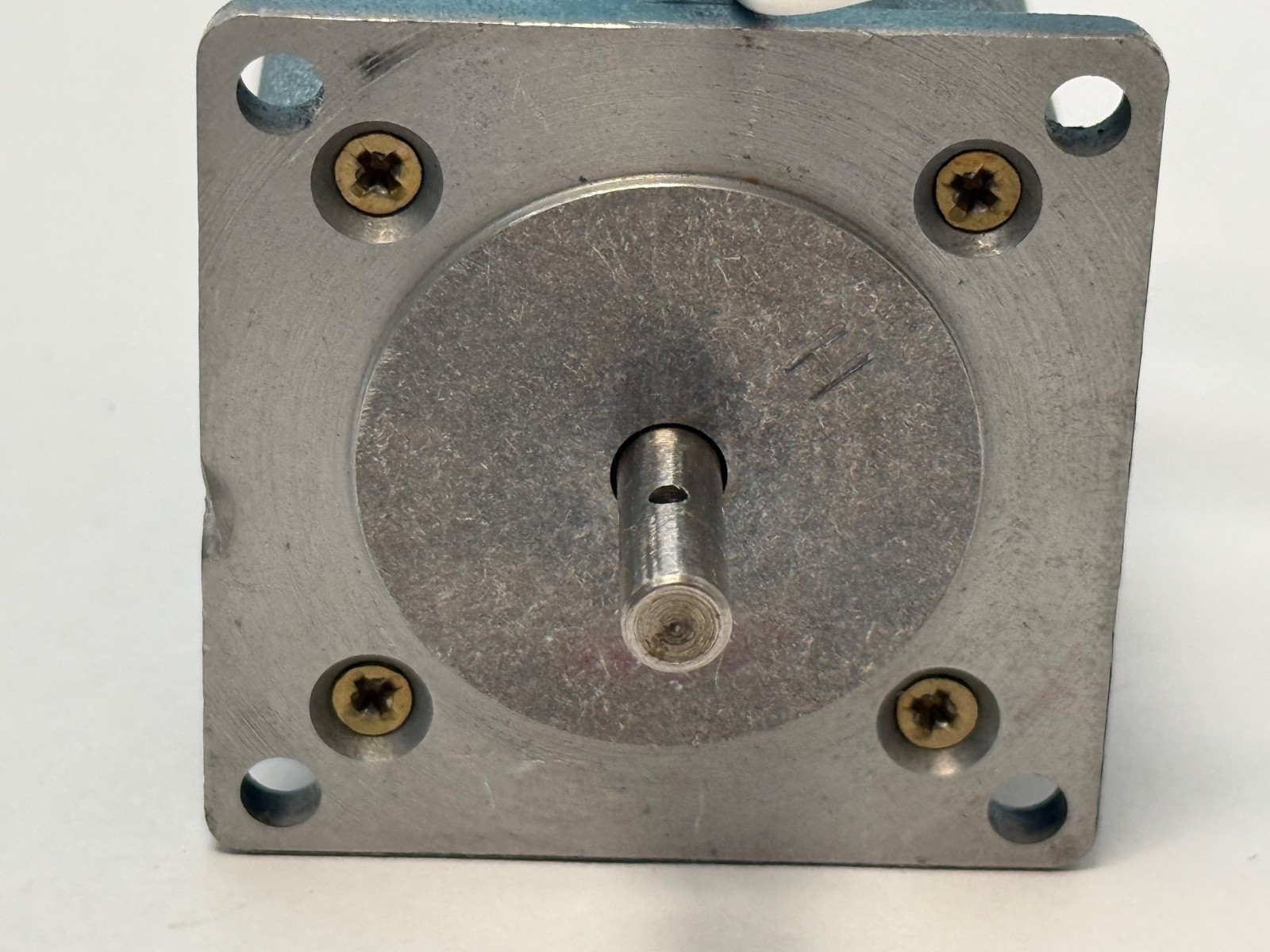

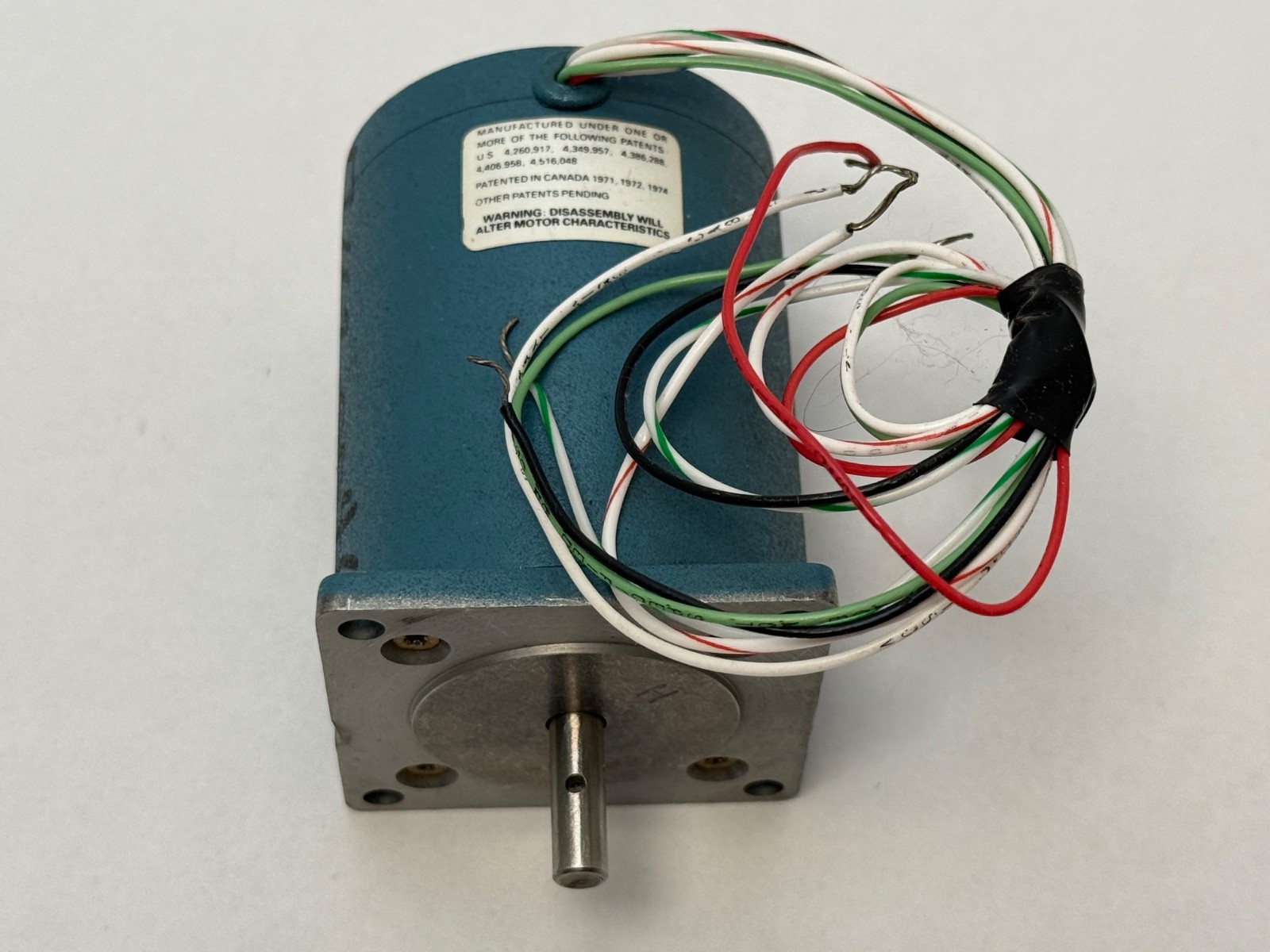

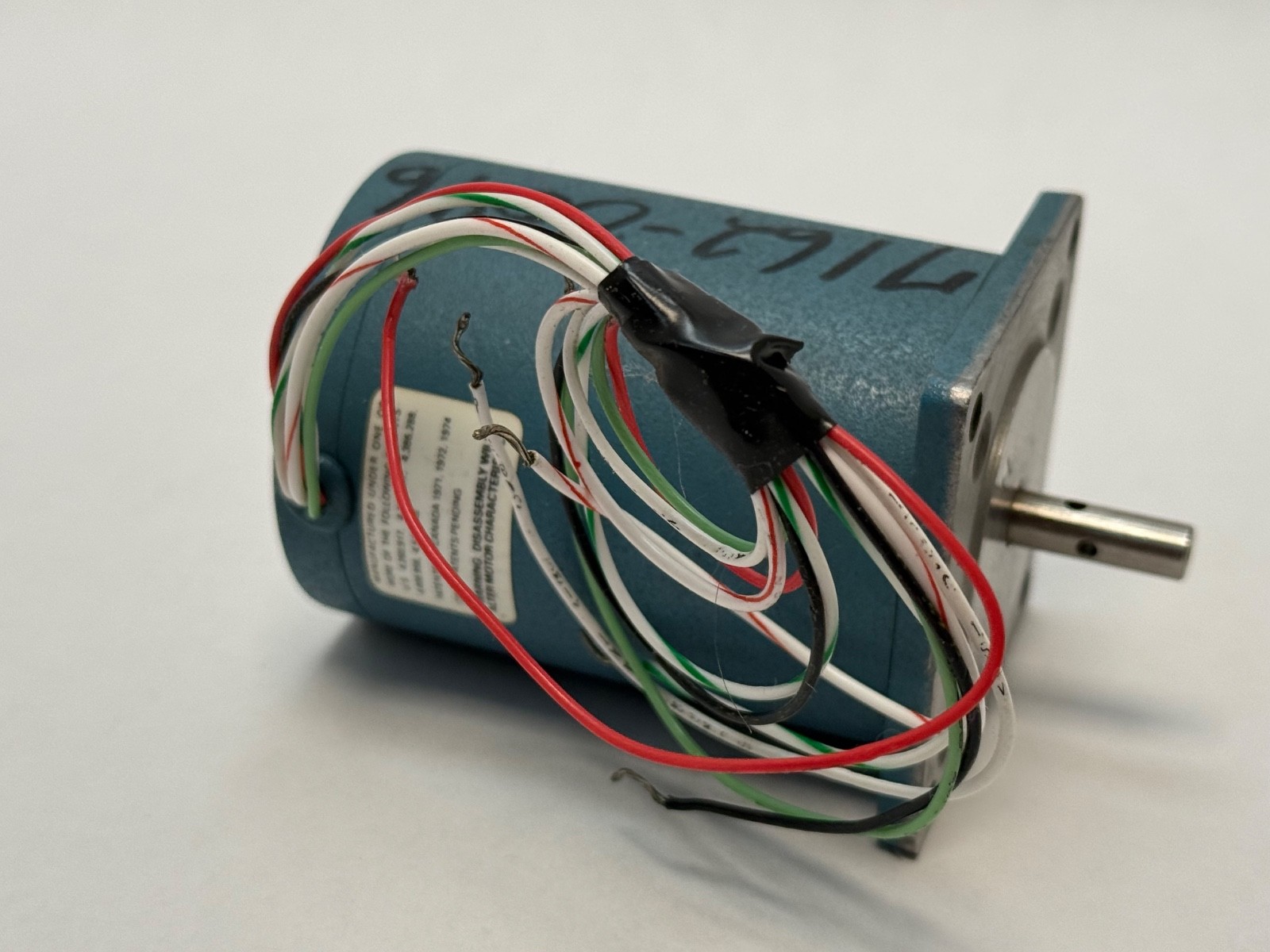

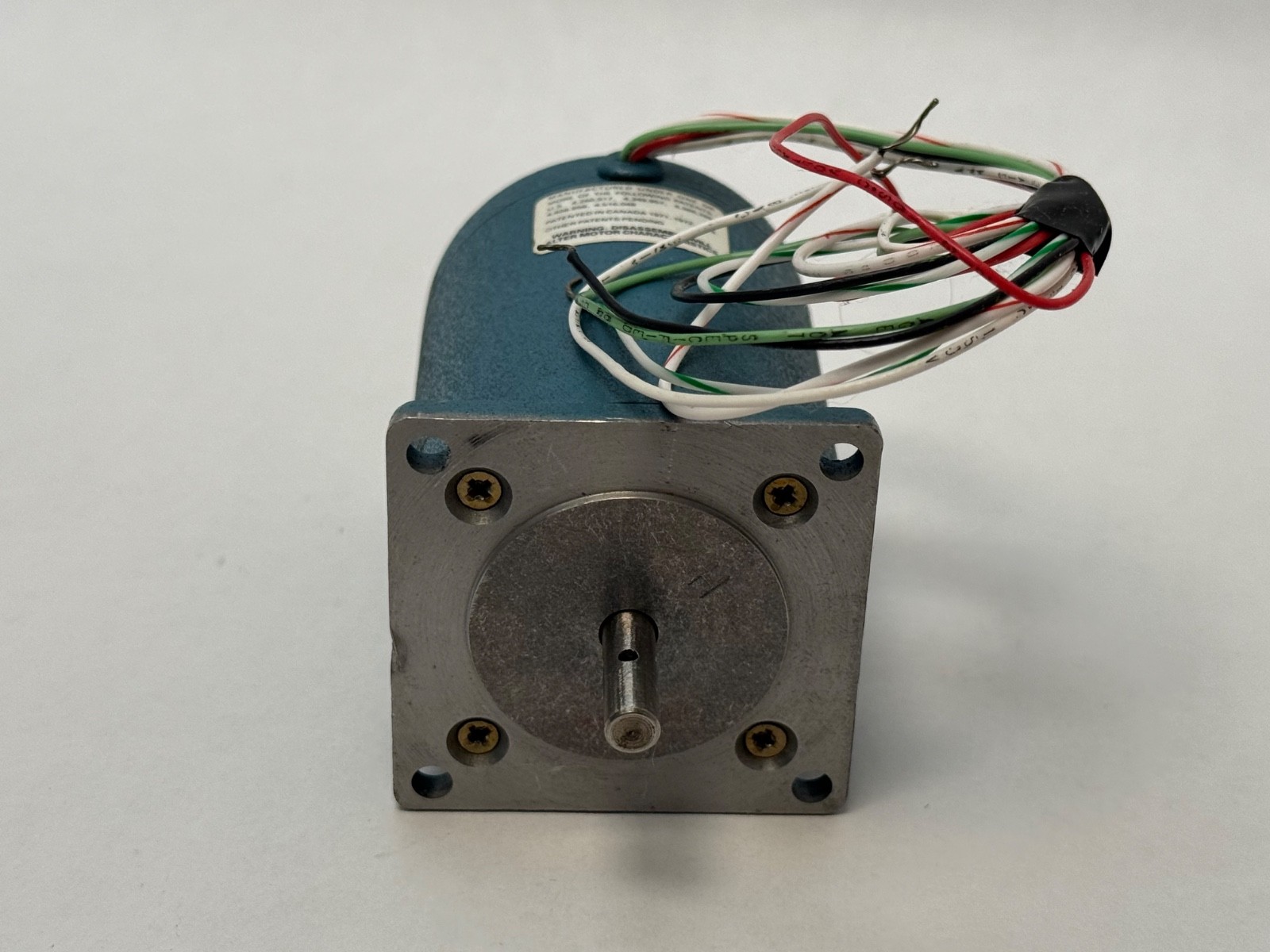

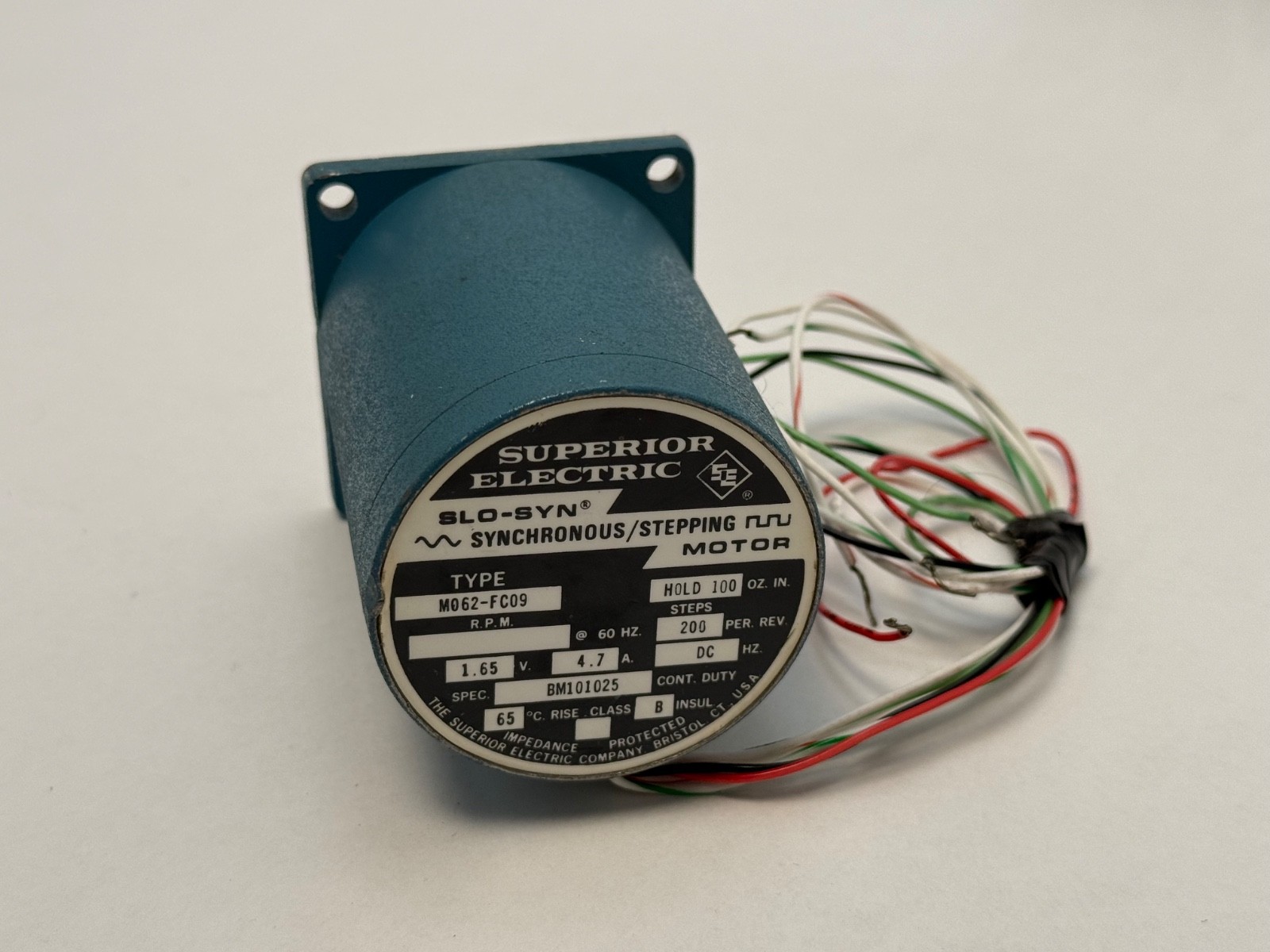

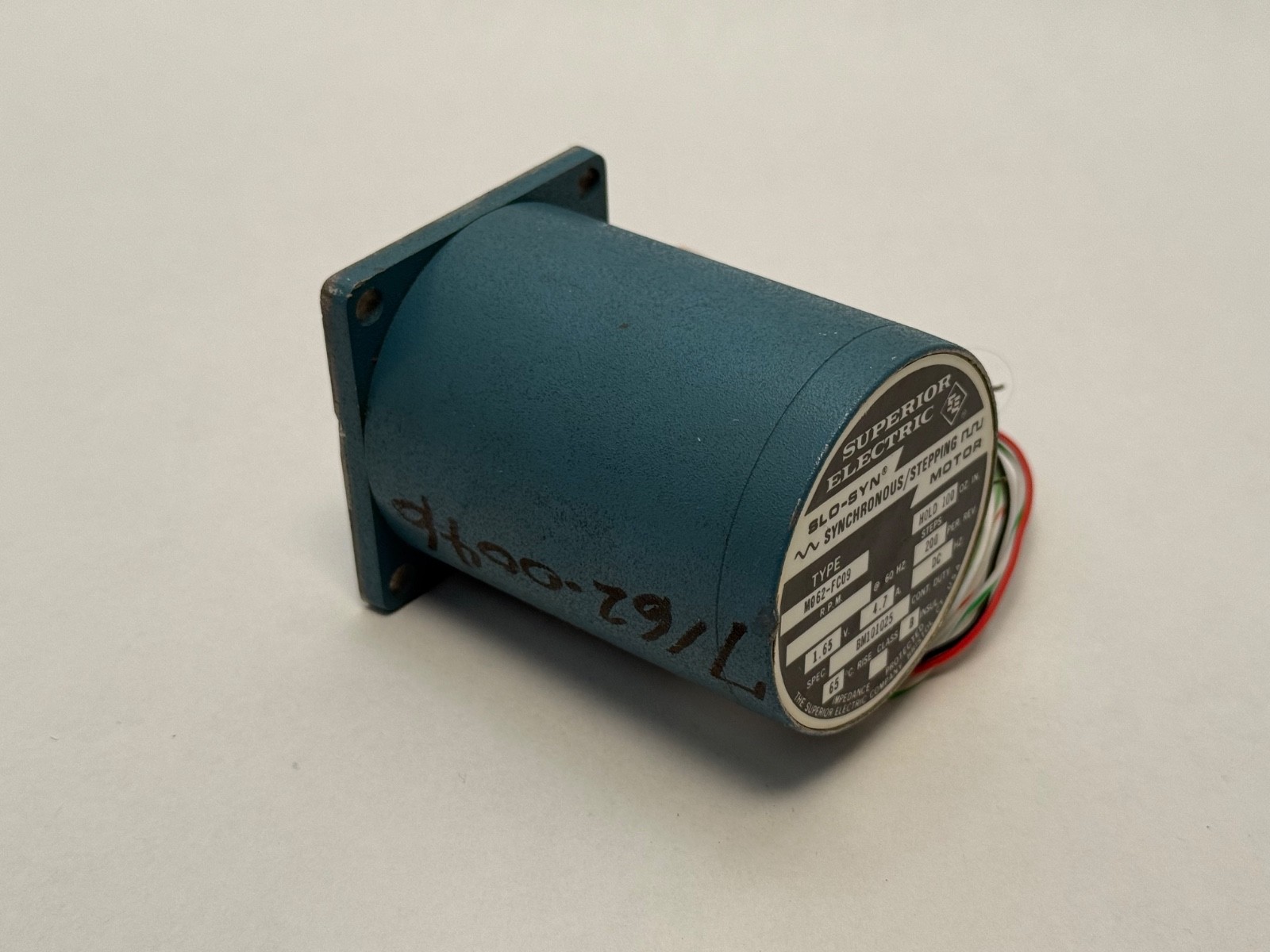

Superior Electric SLO-SYN M062-FC09 NEMA 23 double-stack stepping motor, 1.8 degree step, 125 oz-in bipolar holding torque, 1/4 in shaft. New old stock.
List Price
$127.13
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Superior Electric |
|---|---|
| MPN | M062-FC09 |
| Model | M062-FC09 |
| Additional Attributes | Frame: NEMA 23 / 60 mm; Stack: double; Step angle: 1.8 deg (200 steps/rev); Min holding torque: 100 oz-in (71 Ncm) unipolar, 125 oz-in (88 Ncm) bipolar; Rotor inertia: 0.0034 oz-in-s2 (0.24 kg-cm2); Shaft: 1/4 in |
|---|---|
| Item Weight | 0.91 kg (2.0 lb) |
| Base Number | M062 |
| Industry Terms | stepper motor; step motor; synchronous stepping motor; NEMA 23 stepper; hybrid stepper; SLO-SYN motor |
| Common Misspellings | Superior-Electric M062; SLOSYN; Slo Syn M062FC09; M062-FCO9; M62-FC09 |
| Application Types | CNC and indexing tables; packaging machinery; positioning stages; valve and damper actuation; printing equipment |
| Mpn Variants | M062-FC09; M062FC09; M062 FC09; M062-FC-09 |
| Compatible With Replaces | Fits NEMA 23 mounts for SLO-SYN M062 stepping motors |
| Series | SLO-SYN M06 |

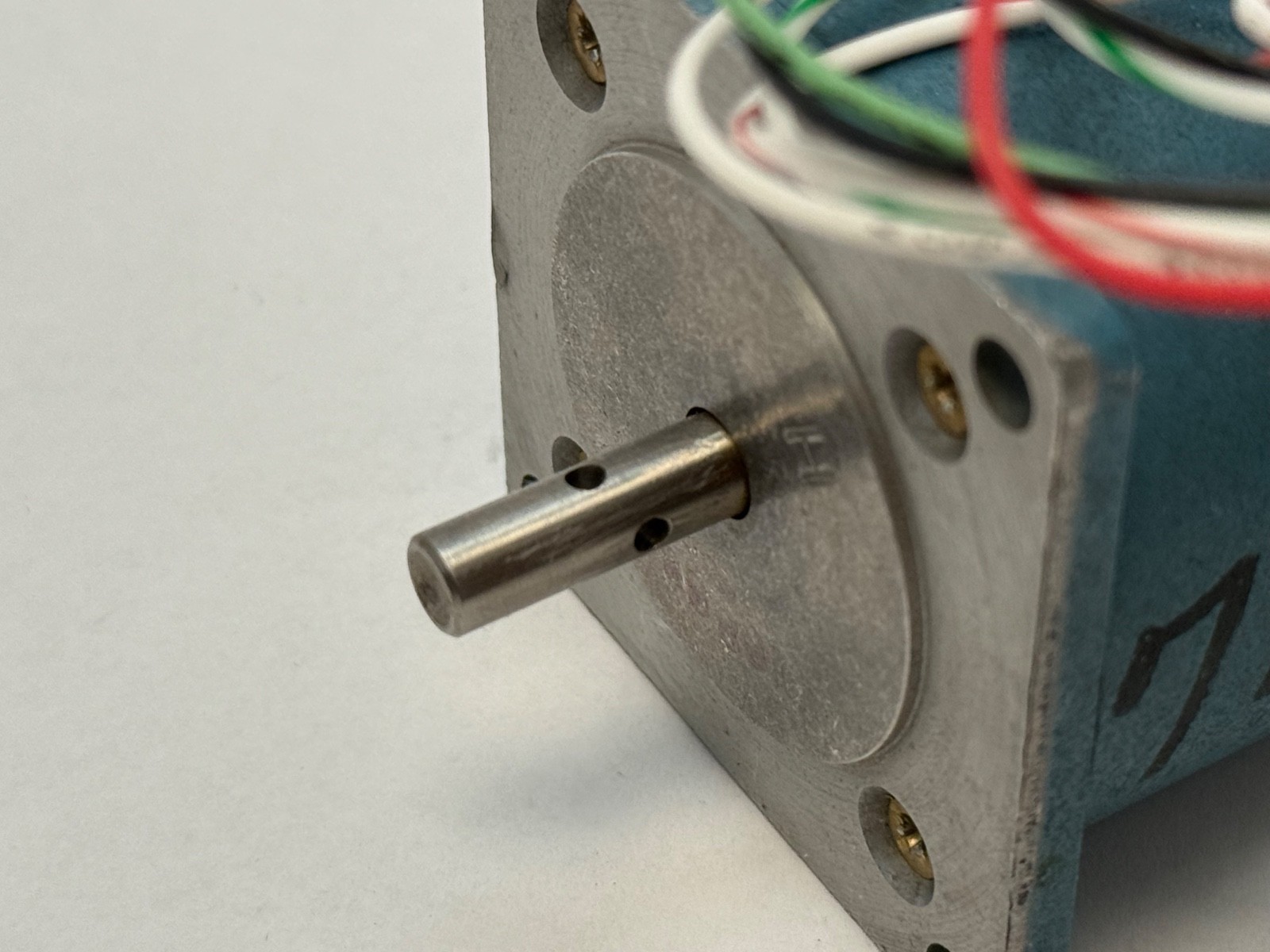

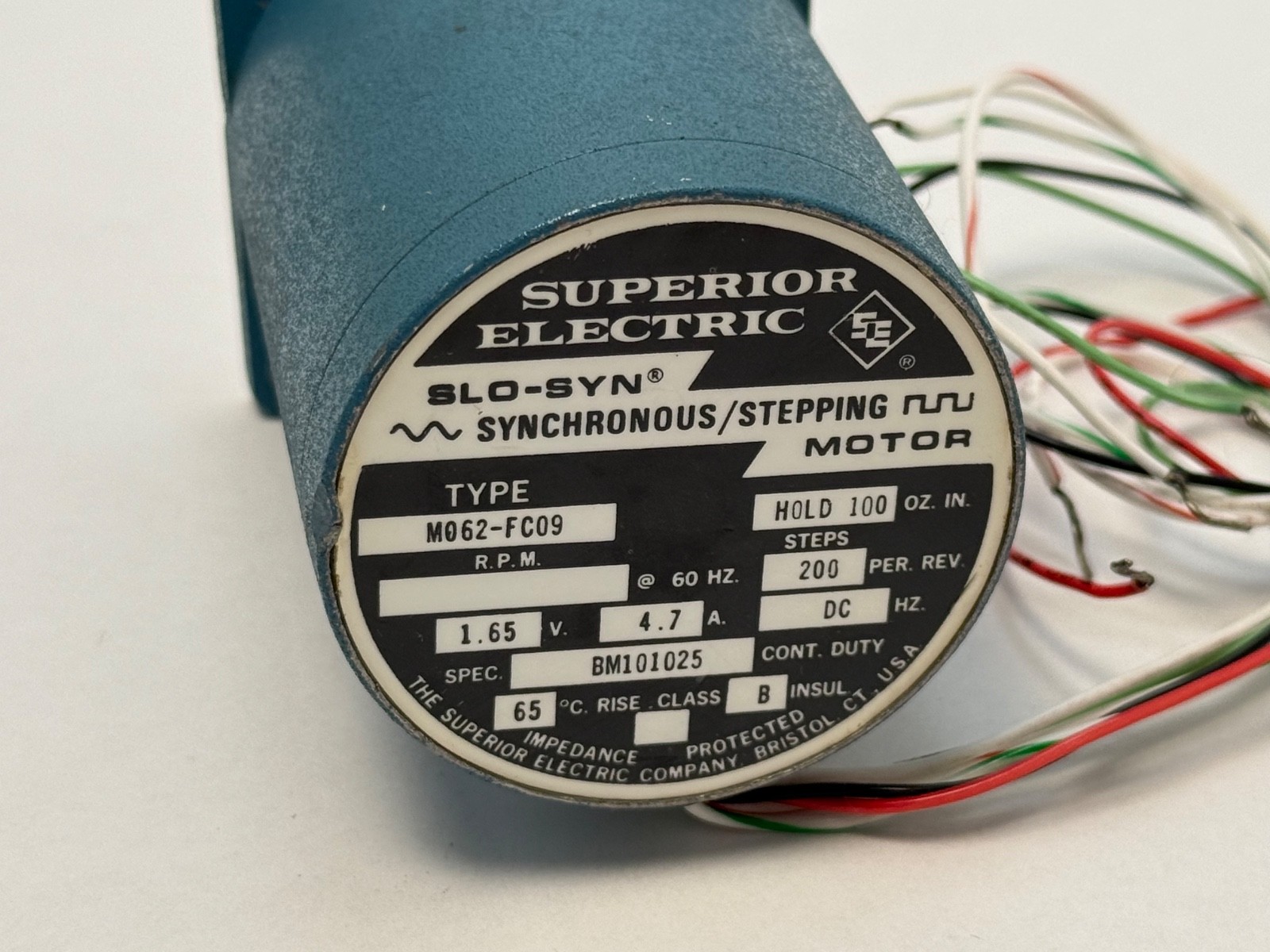

The Superior Electric M062-FC09 is a SLO-SYN synchronous stepping motor from the M06 series, the standard NEMA 23 (60 mm frame) range. Series: SLO-SYN M06. Frame Size: NEMA 23, 60 mm. Stack Length: Double stack (M062). Step Angle: 1.8°, 200 steps per revolution. Shaft Diameter: 1/4 in.
M06 — SLO-SYN standard stepping motor, NEMA 23 / 60 mm frame.
2 — double stack, the higher-torque M06 length.
M062 series figures from the Superior Electric SLO-SYN catalogue: Minimum Holding Torque: 100 oz-in (71 Ncm) unipolar, 125 oz-in (88 Ncm) bipolar, 2 phases on. Rotor Inertia: 0.0034 oz-in-s² (0.24 kg-cm²). Item Weight: 0.91 kg (2.0 lb). Step Accuracy: ±3 % typical. Torque Reserve: up to 150 % of rated torque.
Unit Quantity: 1 Pc.
Fits NEMA 23 stepper mounts built for the SLO-SYN M062. The SLO-SYN line passed to Danaher Motion and then Kollmorgen. The KM062 is the high-torque NEMA 23 double-stack model in the same family.
