Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
List Price
$1,189.99
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Siemens |
|---|---|
| MPN | 1FT7044-5AF71-1DA2-Z |
| Model | 1FT7044-5AF71-1DA2-Z |
| Shaft Type | Keyed |
|---|---|
| Insulation Class | F |
| Series | SIMOTICS S 1FT7 |
| Type | AC Servo Motor |
| Ip Rating | IP67 |
| No Load Rpm | 3000 |
| Brake | None |
| Stall Torque | 5 Nm |
| Continuous Torque | 4.3 Nm |
| Power Kw | 1.35 |
| Encoder | IC22DQ Incremental, DRIVE-CLiQ |
| Stall Current | 2.8 A |

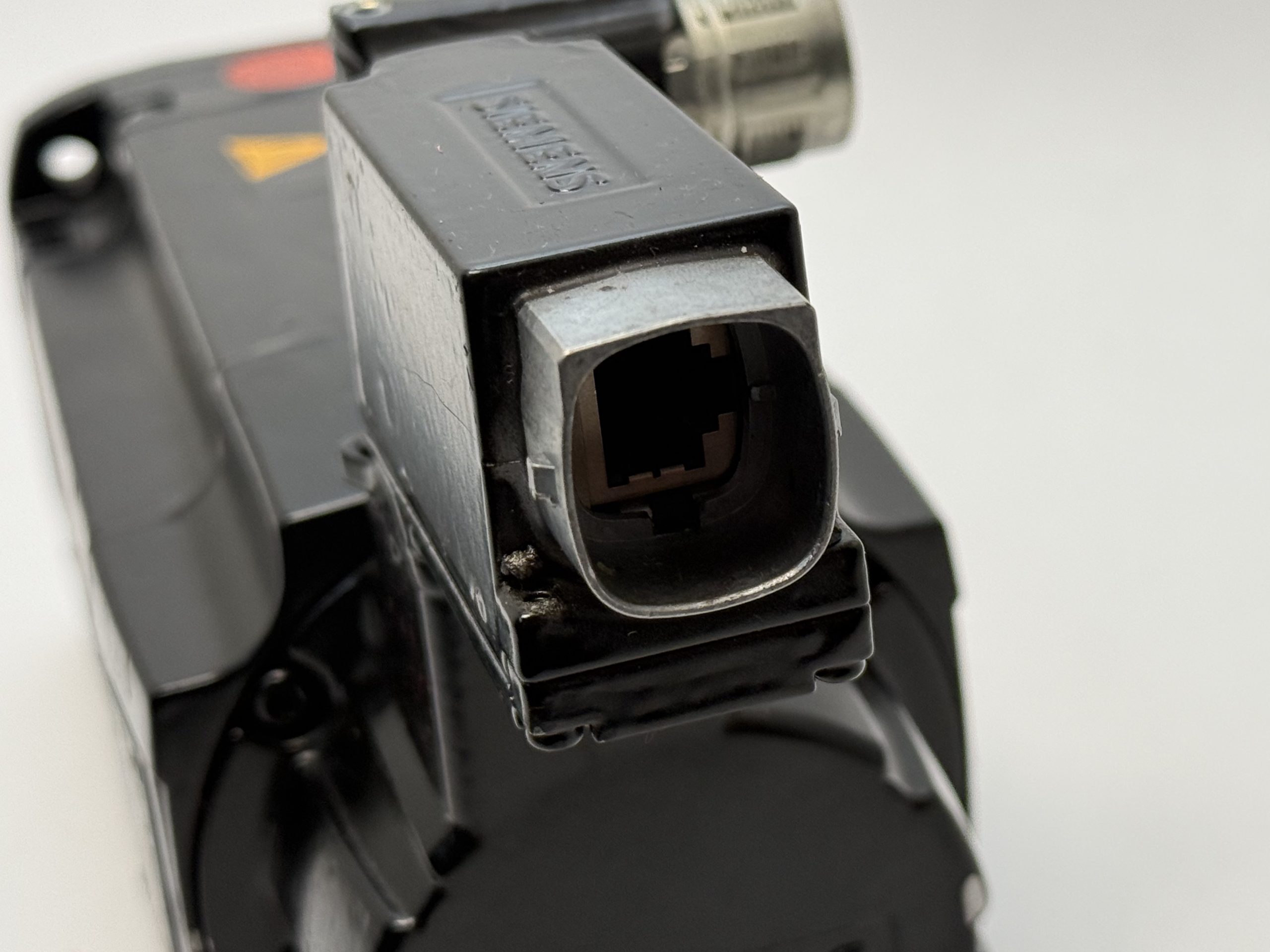

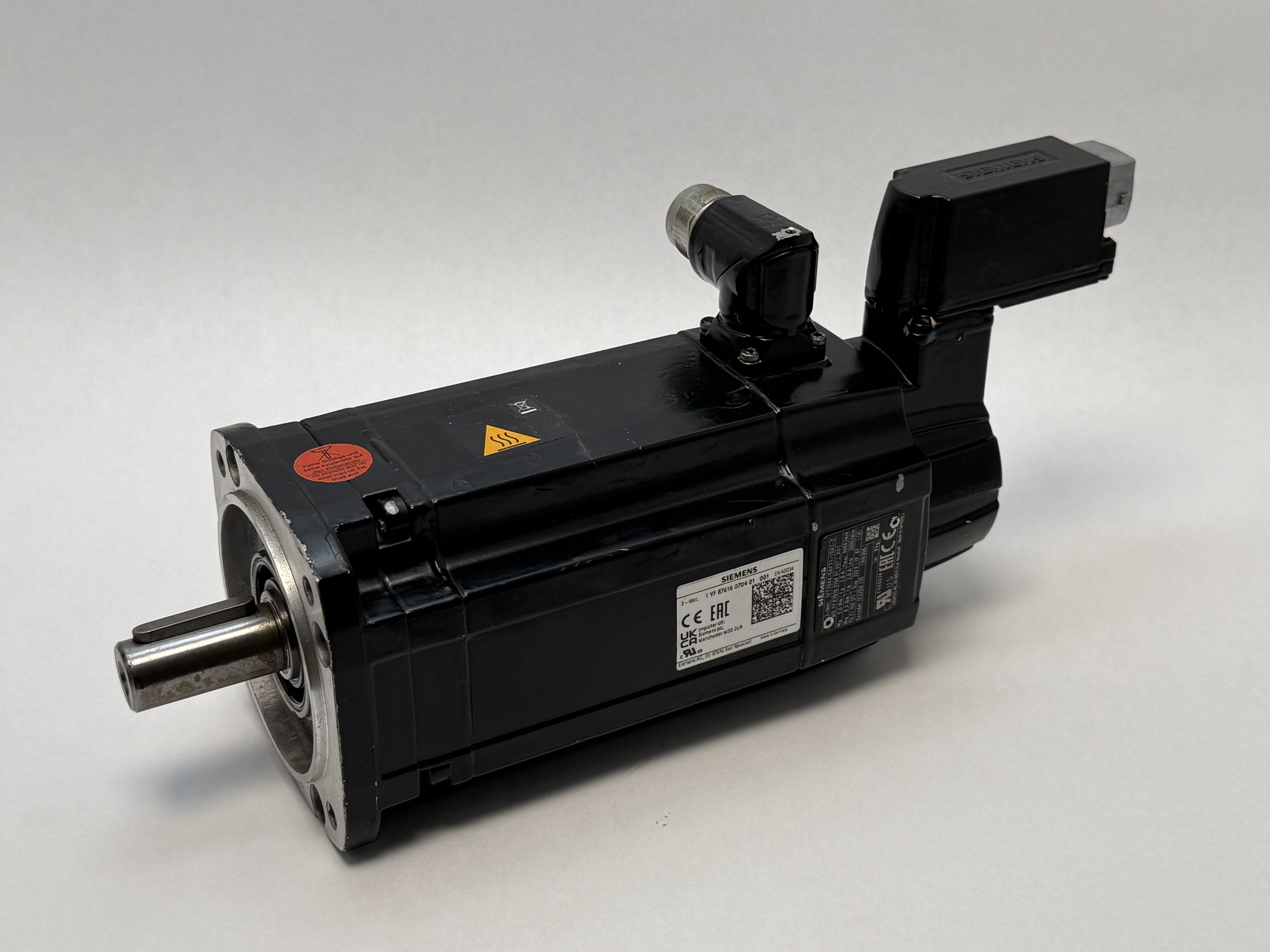

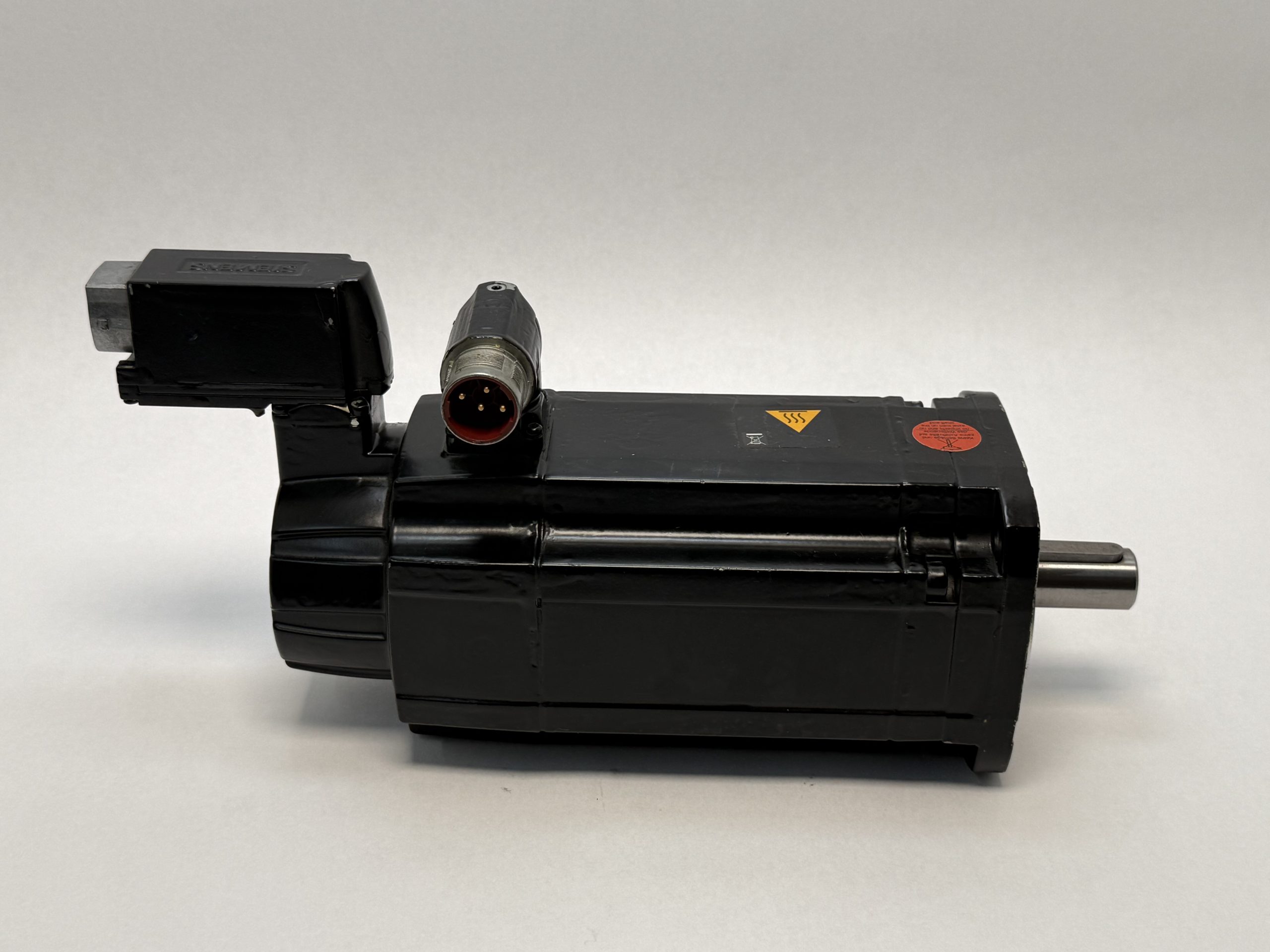

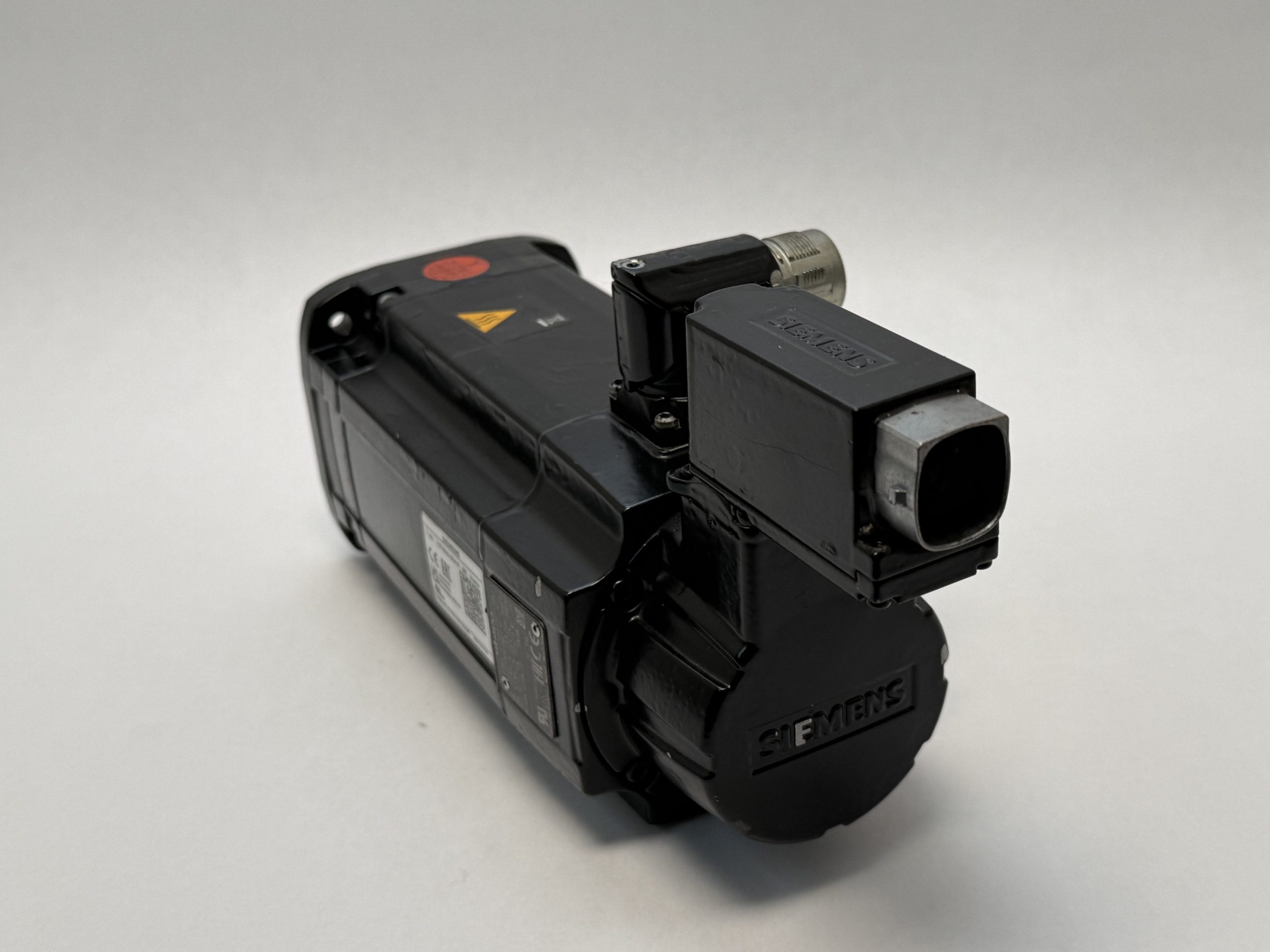

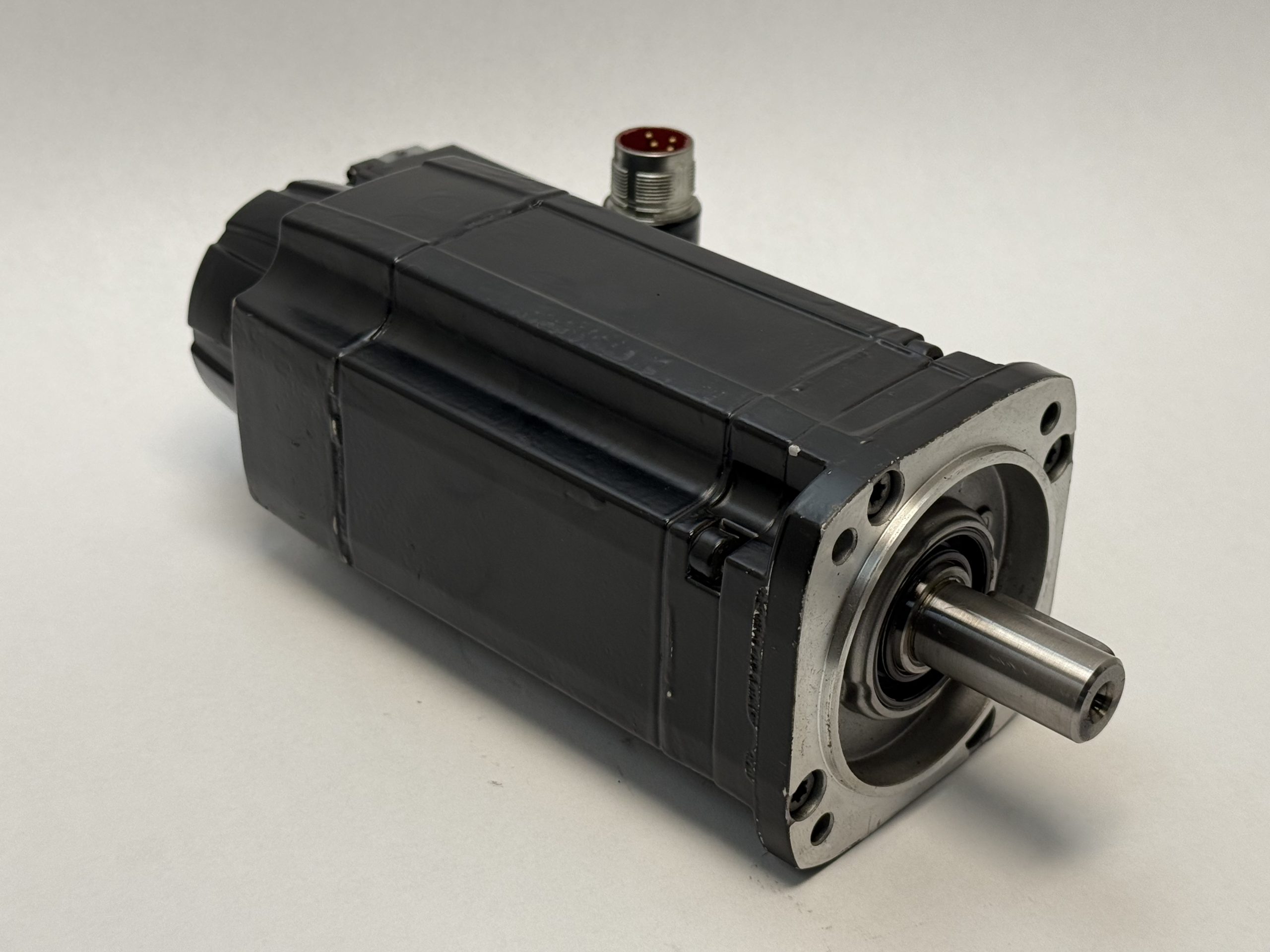

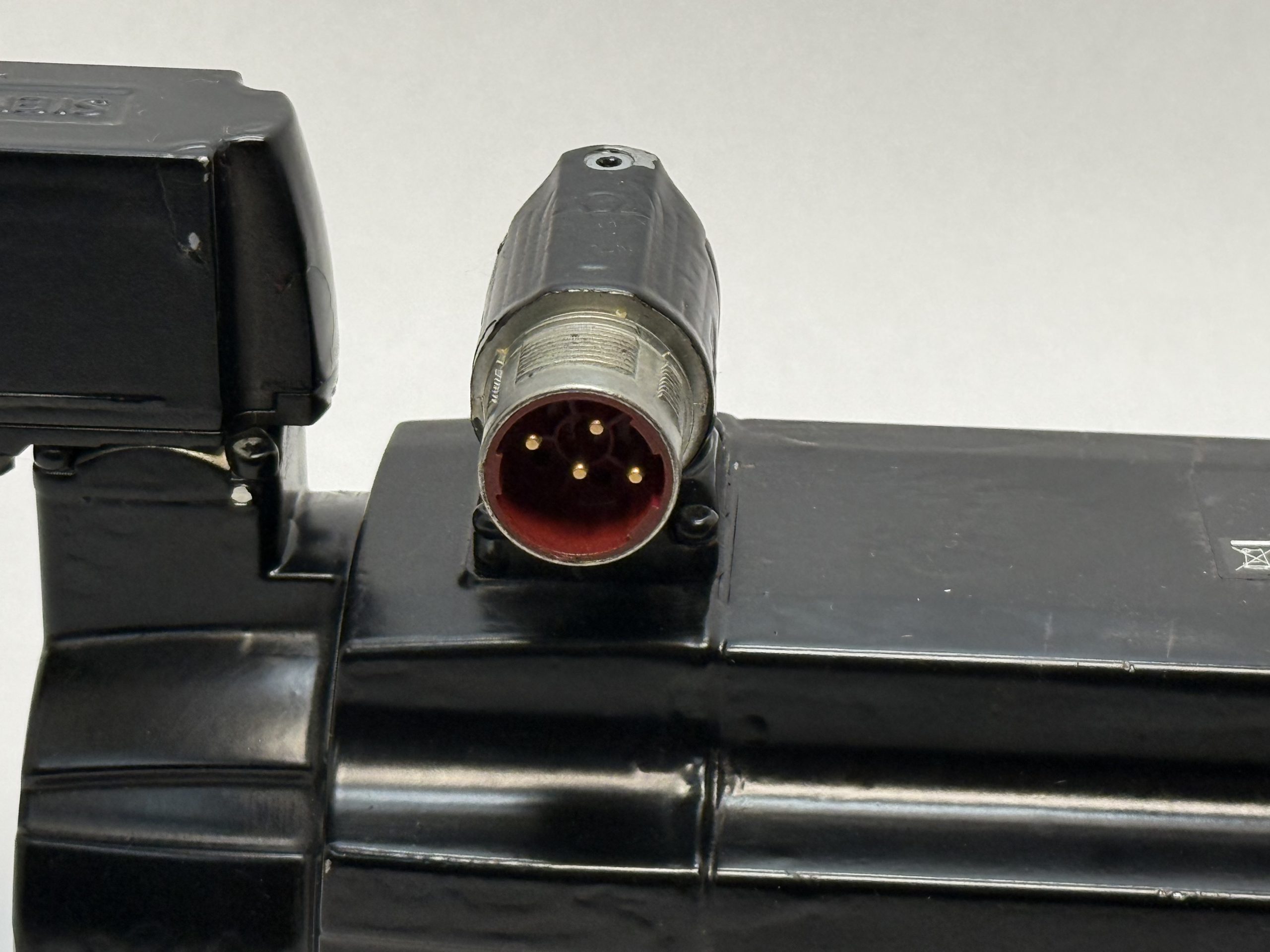

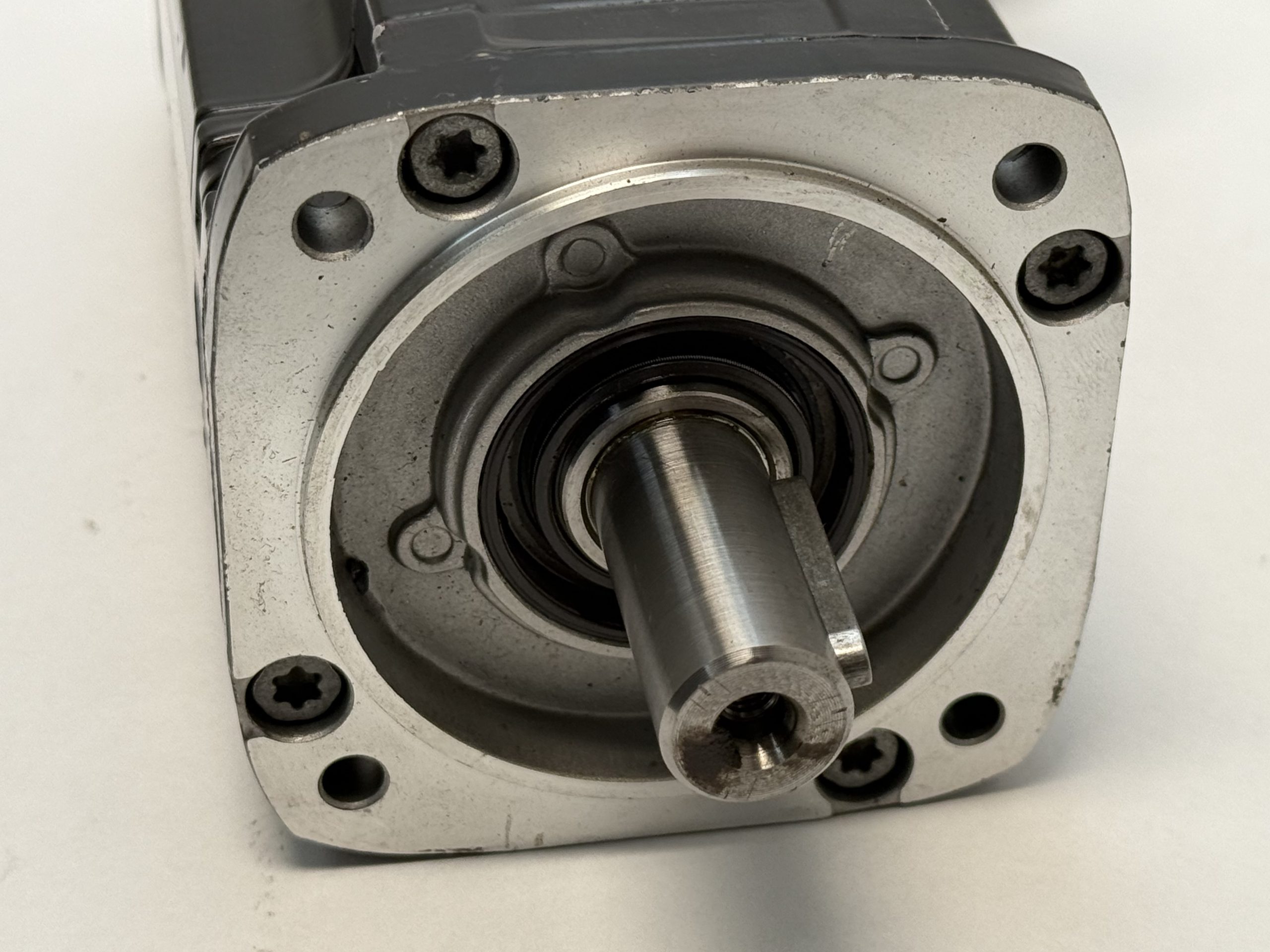

What this isOne (1) Siemens SIMOTICS S 1FT7044-5AF71-1DA2-Z synchronous servo motor from the 1FT7 Compact range, for SINAMICS S120 drives: 5 Nm stall torque, 3000 rpm rated, 1.35 kW, naturally cooled, IM B5 mount with the conventional flange (1FT6 and 1FK7 compatible). It has an incremental encoder with DRIVE-CLiQ interface and a rotatable power connector. Shaft with fitted key, no holding brake.

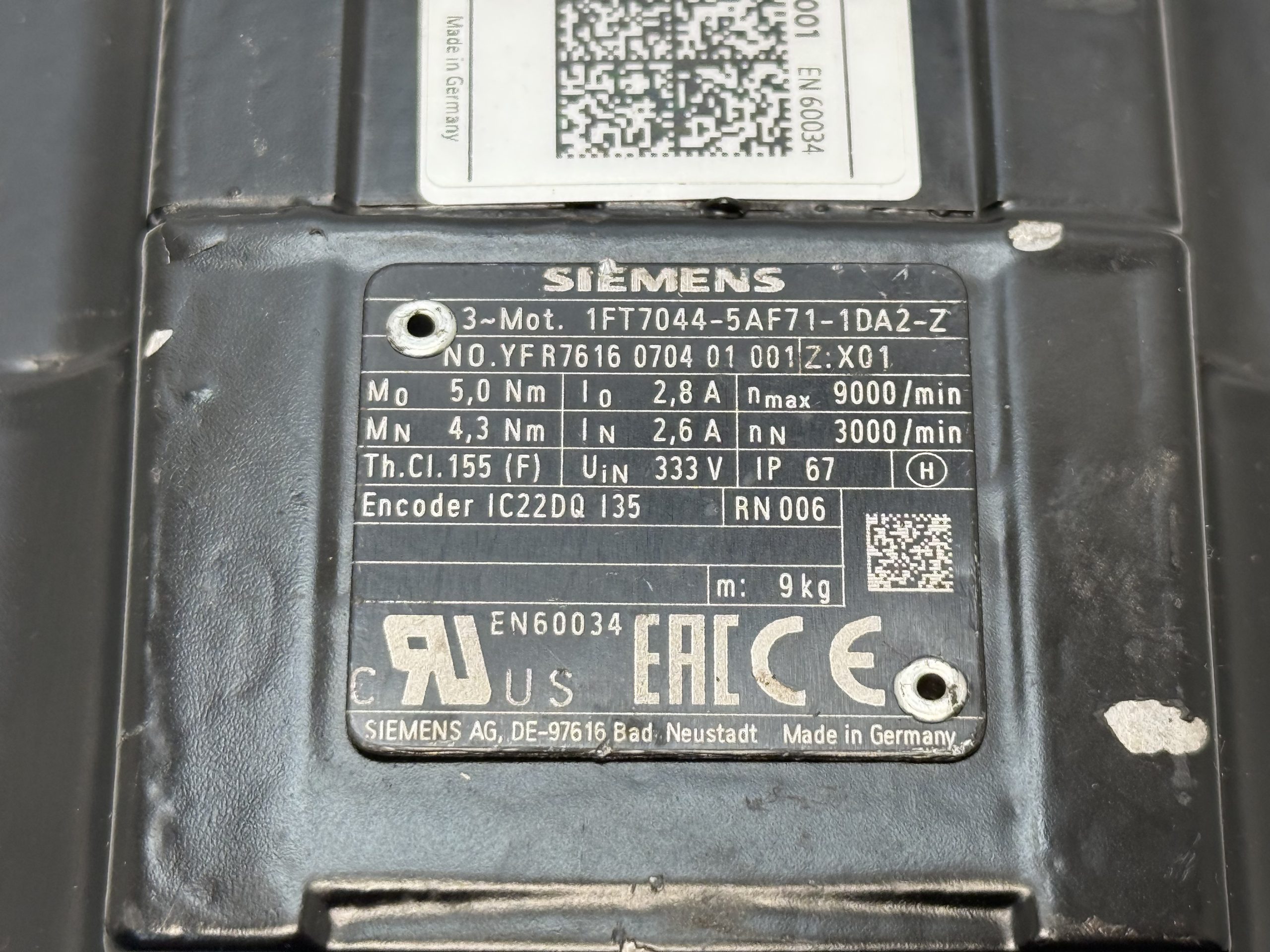

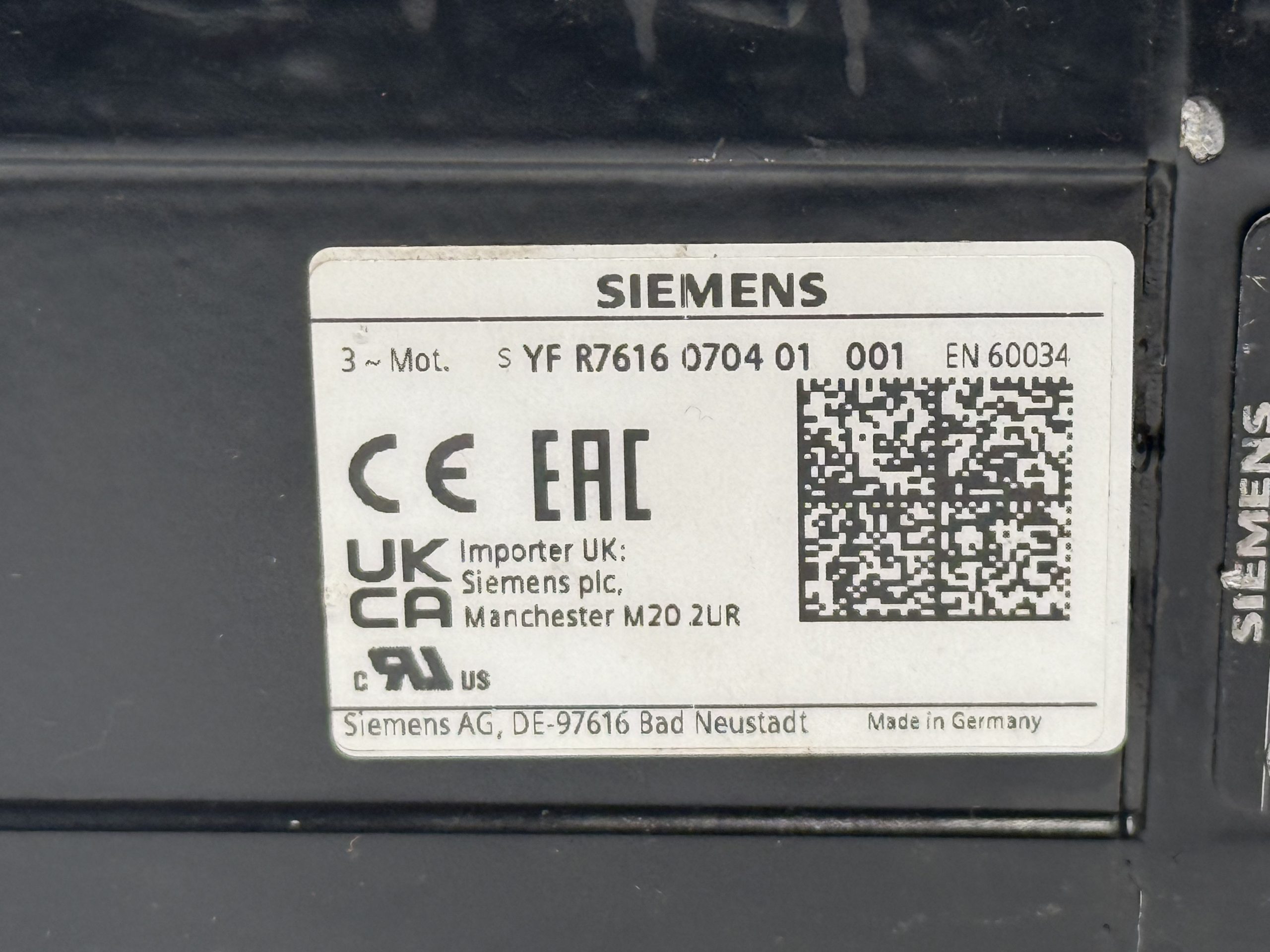

Made in Germany per the nameplate, which also lists Z option X01. No original box; there are light paint marks on the housing, shown in the photos.
How the part number breaks down1FT7 — SIMOTICS S 1FT7 synchronous servo motor series.
044 — frame size and length within the series.
AF — 3000 rpm rated speed.
1DA2 — the option block. Siemens’ own order description for this code is: incremental encoder with DRIVE-CLiQ, connector rotatable, shaft with fitted key, without holding brake, tolerance N, vibration severity grade A, IP67.
-Z — ordered with special options; the nameplate shows Z: X01.
Also sold and searched as 1FT70445AF711DA2 and 1FT7044-5AF71-1DA2.
Item SpecificationsBrand: SiemensModel: 1FT7044-5AF71-1DA2-ZSeries: SIMOTICS S 1FT7 CompactStall torque M0: 5.0 NmRated torque MN: 4.3 NmRated speed: 3000 rpmMaximum speed: 9000 rpmRated power: 1.35 kWStall current I0: 2.8 ARated current IN: 2.6 AInduced voltage UiN: 333 VEncoder: IC22DQ incremental, DRIVE-CLiQ (per nameplate)Brake: NoneInsulation: Thermal class 155 (F)Cooling: NaturalProtection: IP67Shaft: With fitted keyMounting: IM B5 (IM V1, IM V3), conventional flangeWeight: 9 kg per nameplateCountry of origin: Germany
