Availability:
1 in stock
Inductive proximity sensor, M12 x 1 brass housing 38 mm long, 5.5 mm sensing range, PNP normally open, 10-36 VDC, 800 Hz, IP67, 2 m PVC cable. ifm IF6014.
List Price
$30.06
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | IFM |
|---|---|
| MPN | IF6014 |
| Model | IFB35,5-BPKG/2M |
| Industry Terms | inductive sensor, proximity switch, prox sensor, M12 proximity sensor, PNP sensor |
|---|---|
| Common Misspellings | IF 6014, IFB355-BPKG, IFB 35,5 BPKG |
| Application Types | machine position detection, restricted-space mounting, industrial automation |
| Output Type | PNP, Normally Open |
| Sensor Type | Inductive Proximity Sensor |
| Mpn Variants | IF6014, IFB35,5-BPKG/2M, IFB35,5-BPKG/2M/PVC/OLED, IF-6014 |
| Additional Attributes | Real sensing range Sr 5.5 mm +/-10%; operating distance 0-4.45 mm; current consumption 15 mA at 24 V; voltage drop 2.5 V max; hysteresis 1-15% of Sr; switch-point drift -10 to 10% of Sr; correction factors steel 1, stainless 0.7, brass 0.5, aluminum 0.4, copper 0.3; protection class III; short-circuit protection non-latching; MTTF 2531 years; EMC EN 60947-5-2, EN 55011 class B |
| Series | IF |
| Ip Rating | IP67 |
| Housing Material | Brass, white bronze coated; sensing face PBT |
| Mounting Type | Non-flush |
| Thread Size | M12 x 1 |
| Output Current | 150 mA |

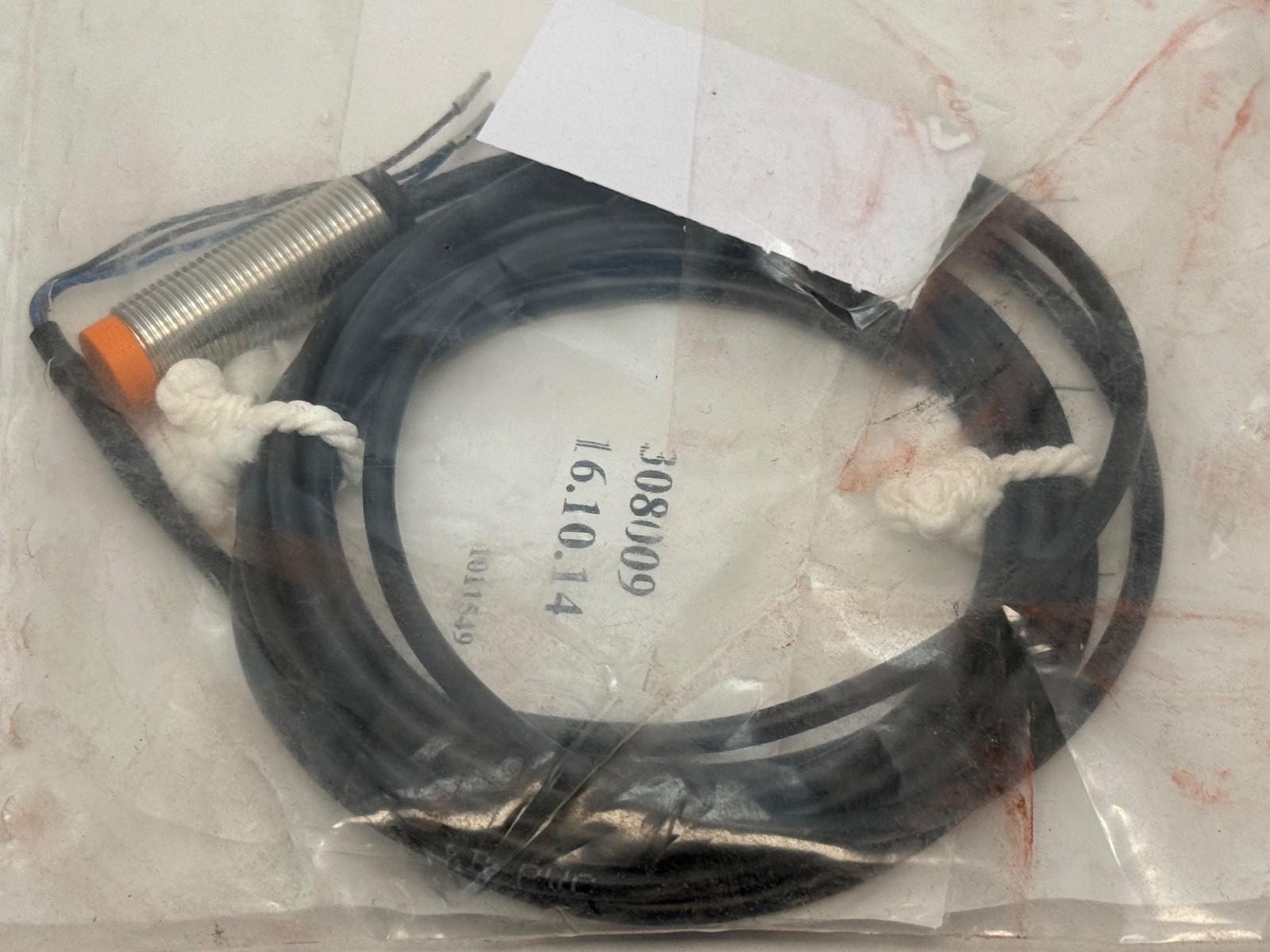

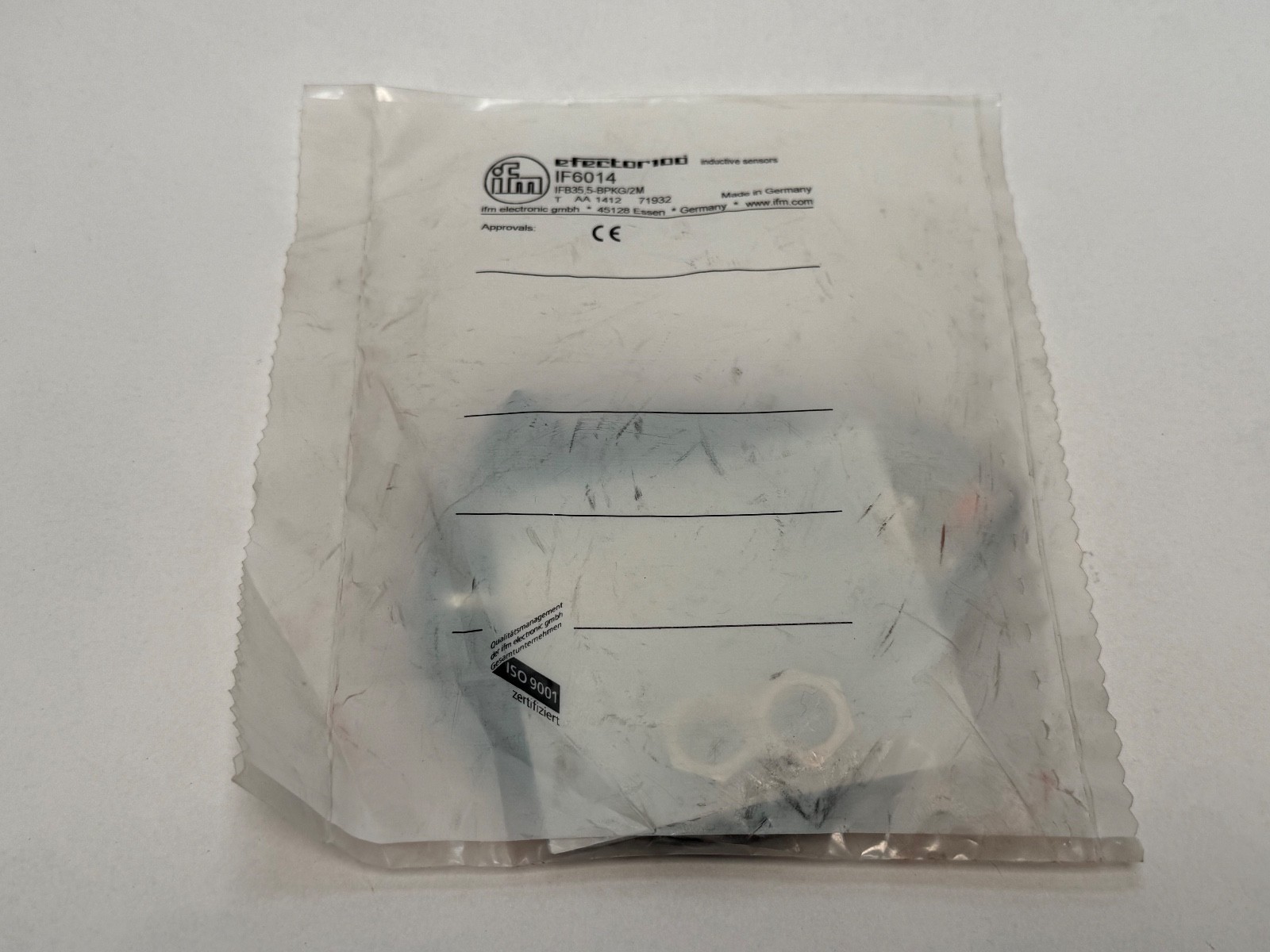

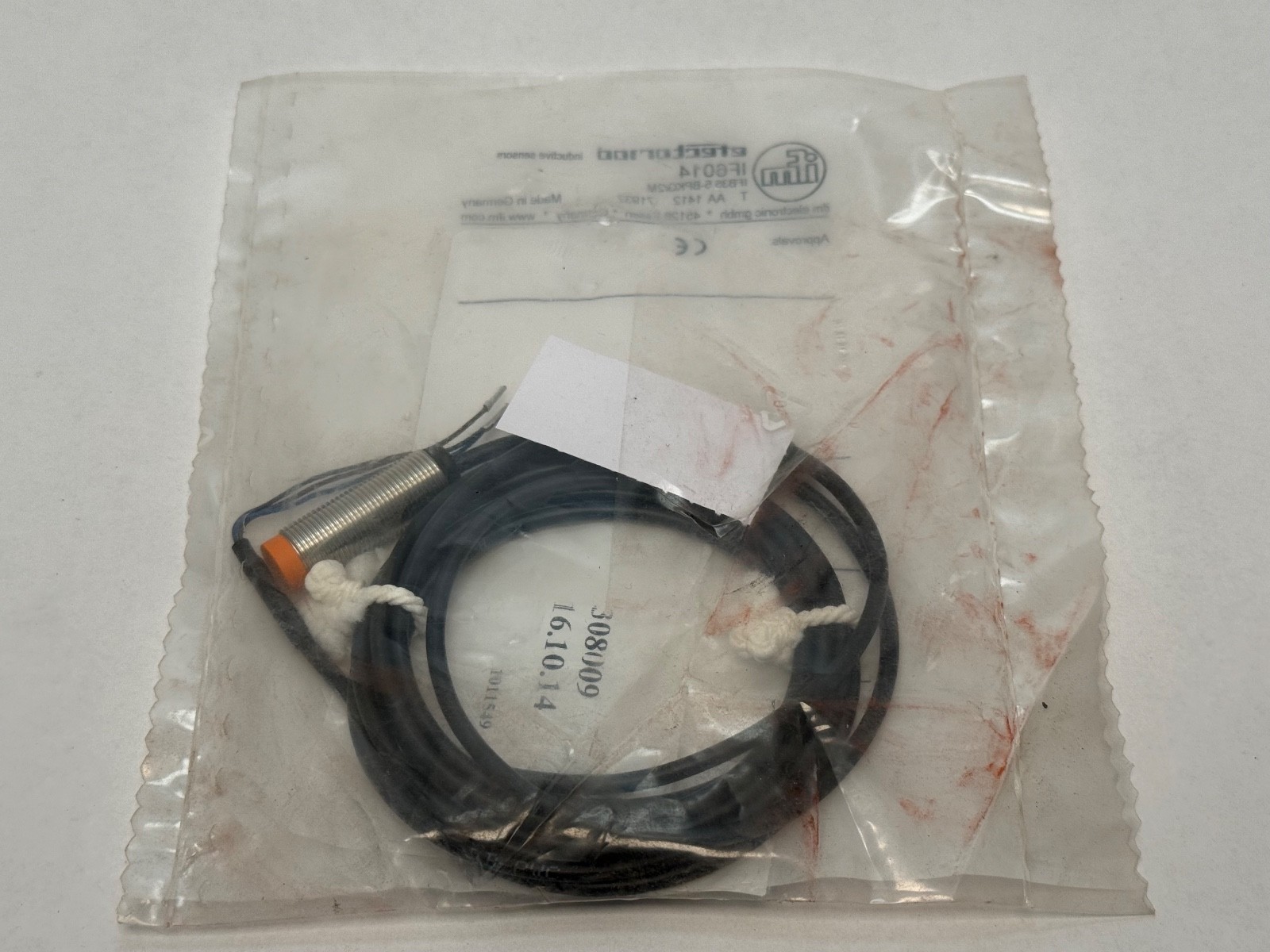

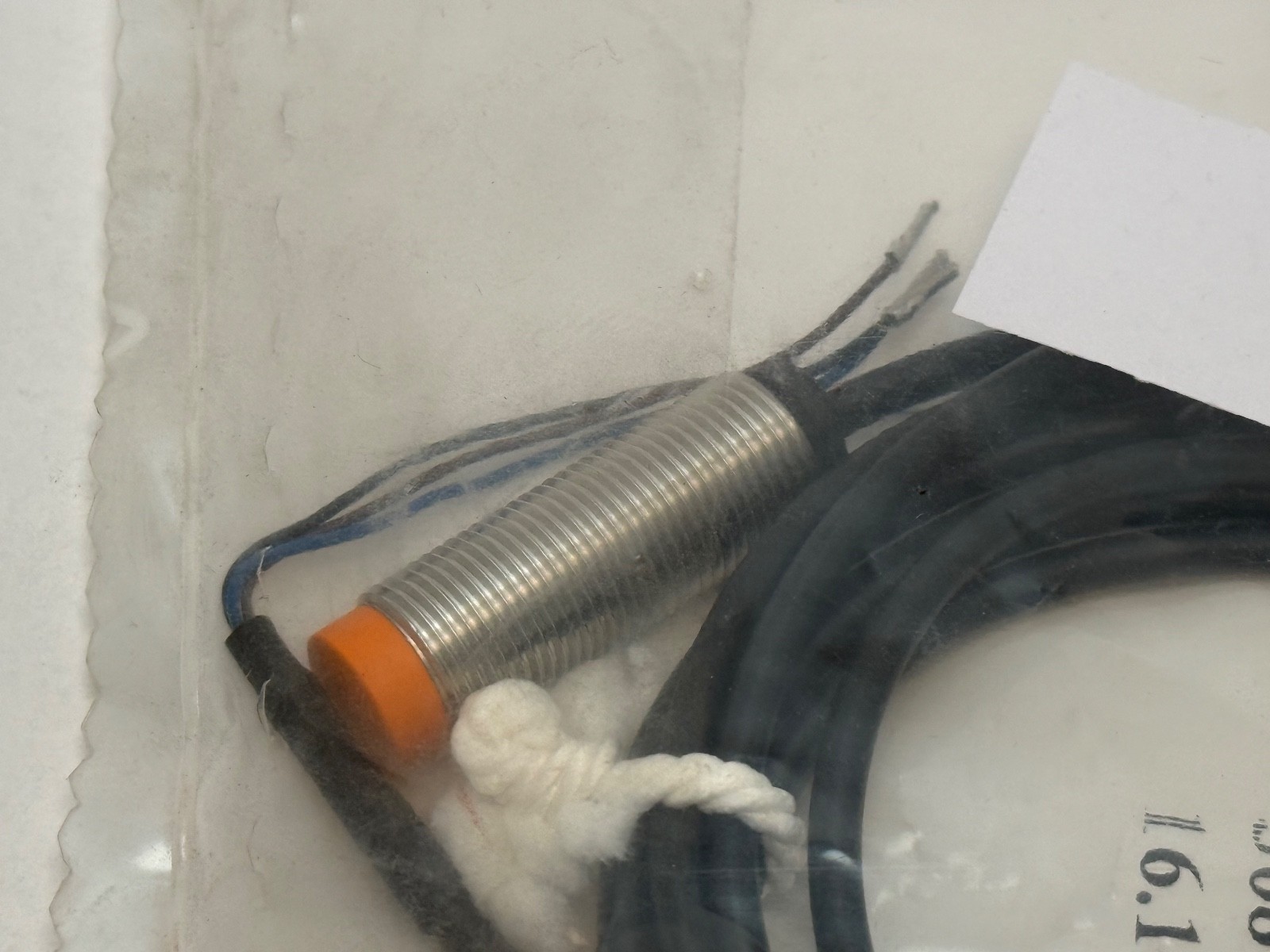

The ifm IF6014 is an inductive proximity sensor in a particularly short M12 x 1 threaded brass housing, built for position detection on machines where mounting space is restricted. Its type designation is IFB35,5-BPKG/2M.

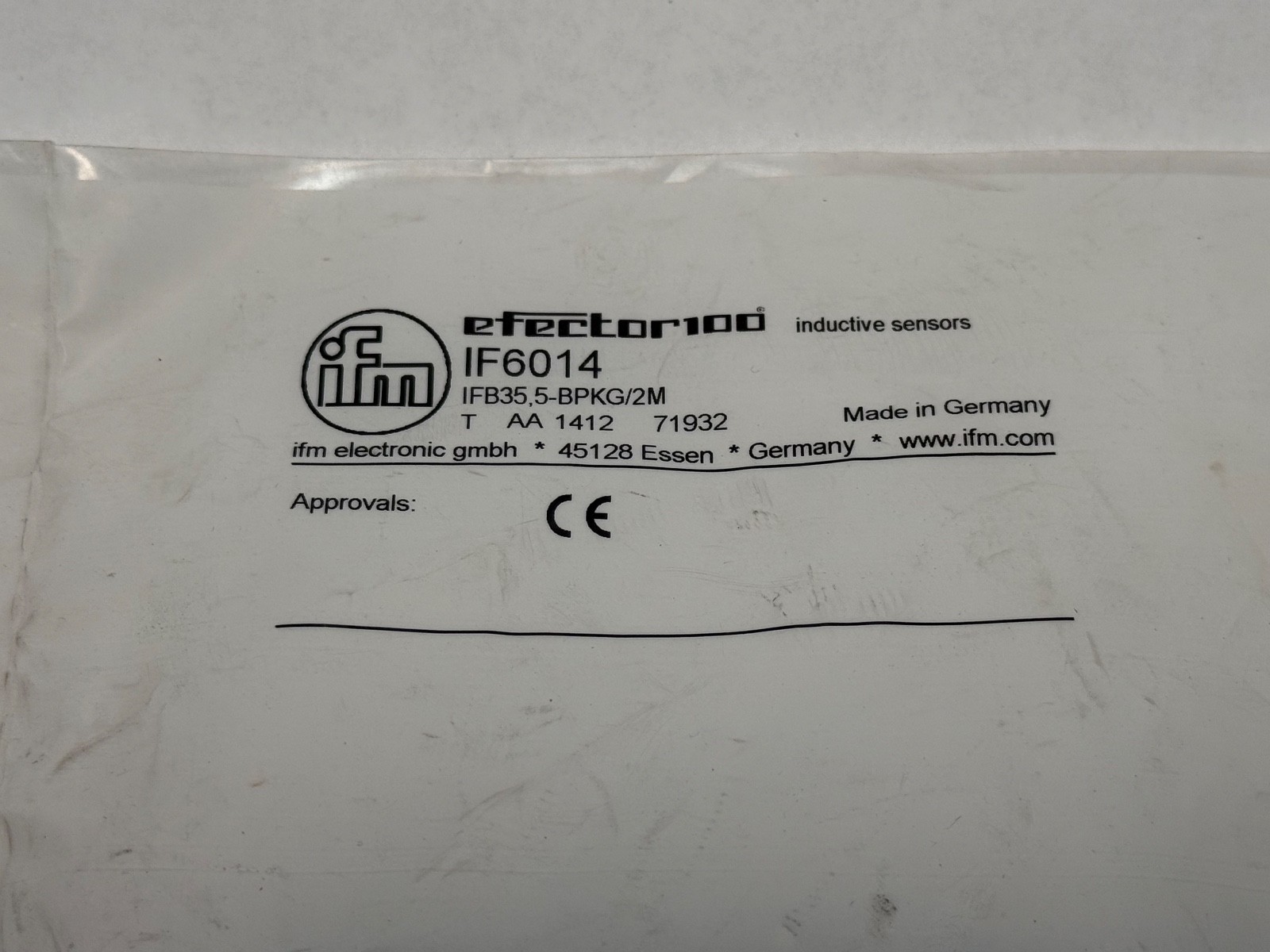

IF6014 — ifm article number.
IFB35,5-BPKG/2M — ifm type designation: IF-series M12 inductive sensor, 5.5 mm sensing range, PNP normally open output, 2 m cable.
Sensor Type: Inductive. Sensing Range: 5.5 mm. Real Sensing Range Sr: 5.5 mm ± 10 %. Operating Distance: 0 to 4.45 mm. Electrical Design: PNP. Output Function: Normally open. Operating Voltage: 10 to 36 VDC. Current Consumption: 15 mA at 24 V. Output Current Rating: 150 mA. Max Voltage Drop: 2.5 V. Switching Frequency: 800 Hz. Protection: IP67. Protection Class: III. Short-Circuit Protection: Yes, non-latching. Overload Protection: Yes. Reverse Polarity Protection: Yes. Hysteresis: 1 to 15 % of Sr. MTTF: 2531 years.
Thread: M12 x 1. Housing Length: 38 mm. Mounting: Non-flush. Housing Material: Brass, white bronze coated. Sensing Face: PBT. Connection: 2 m PVC cable, 3 x 0.14 mm². Items Supplied: 2 lock nuts. Weight: 57.1 g.
ifm IF6014, type IFB35,5-BPKG/2M; full ifm type string IFB35,5-BPKG/2M/PVC/OLED. Correction factors: steel 1, stainless steel 0.7, brass 0.5, aluminum 0.4, copper 0.3. Conforms to EN 60947-5-2.
CAD model and data sheet: available from ifm (ifm.com).
5.5 mm nominal, with an operating distance of 0 to 4.45 mm.
PNP, normally open, rated 150 mA.
10 to 36 VDC.
