Siemens6SC6100-0GB12Simodrive 610 / 210 Power Supply and Voltage-Clamping Module PCB, Stand-Off Mount

Product Description

What this part is

A Siemens 6SC6100-0GB12 — the power supply / voltage-clamping module PCB for the Simodrive 610 / 210 drive system used on Siemens-controlled CNC machine tools. It generates the internal supply rails the drive electronics run on and carries the DC-link voltage-clamping function. It mounts on stand-offs inside the drive chassis rather than being a free-standing supply.

Decoding the order code

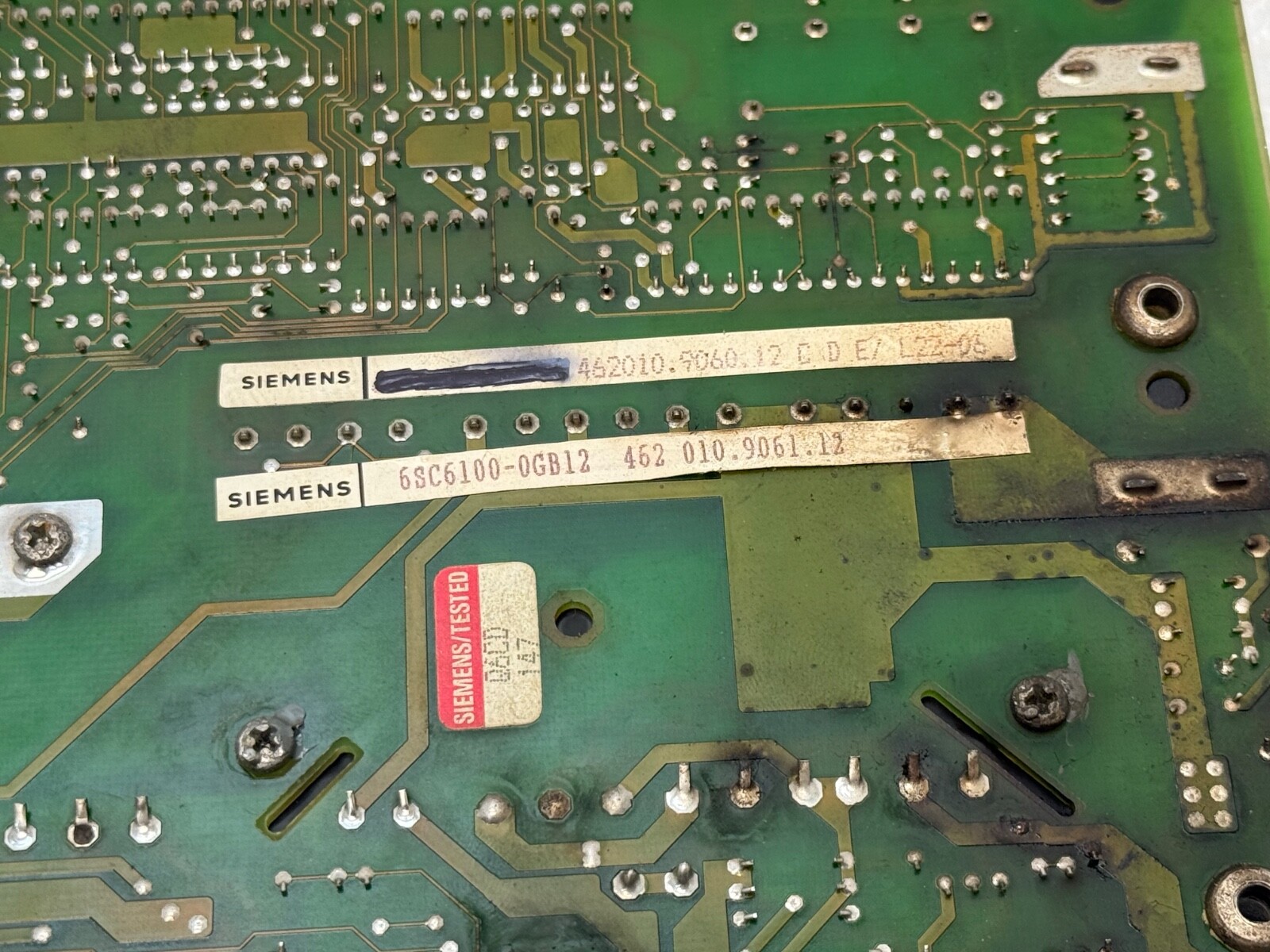

6SC61 — Siemens Simodrive 610 AC drive family (6RB2 is the Simodrive 210 DC family; boards in the 0G group serve both).

0GB12 — power supply and voltage-clamping module, stand-off mount, this configuration.

6SC6100-0GA12 — the sibling number carried on the same nameplate; the 0GA and 0GB groups are the power-supply / clamping variants within the family.

Published specifications

Type: power supply and voltage-clamping module (PCB).

Drive system: Simodrive 610 / 210.

Mounting: stand-off mount within the drive chassis.

Application: Siemens Simodrive 610 drives on CNC machine tools.

Manufacturer status: withdrawn from the Siemens catalogue 30 September 2012.

Origin: Germany (Siemens nameplate).

What these specs mean in practice

Because the supplies in a Simodrive rack are coupled, a failing supply board rarely announces itself cleanly — it shows as intermittent drive faults, axis dropouts or a control that will not enable, across more than one axis. That is also why substituting a board from a differently configured chassis can appear to work and then fault under load: the order number and the board drawing number are what identify a match, not the connector layout.

What is not included

Board only. No drive chassis or rack, no power module or output stage, no control / regulator board, no pulsed (braking) resistor, no installation material or stand-off hardware, no ribbon or signal cables, no connector kits or terminal boards, and no documentation.

Quantity and configuration

Sold as one board.

Interchange guidance
