FANUCAlpha Power Supply Module PSM-30, 3-Phase 200-230 V AC 127 A In, 283-325 V DC 35 kW Out

Product Description

What this part is

Fanuc A06B-6087-H130, the Alpha series Power Supply Module model PSM-30. In a Fanuc Alpha drive rack this is the front-end converter, not a servo amplifier. It rectifies incoming three-phase mains into the common DC bus, and supplies the 24 V DC control voltage, that the servo amplifier modules (SVM) and spindle amplifier modules (SPM) beside it draw from. The amplifiers turn that DC into motor current; the PSM does not drive a motor itself.

Decoding the order code

A06B: Fanuc servo and spindle products, covering drives, amplifiers and power supplies. 6087: the Alpha PSM power supply module family. H130: the size within that family, PSM-30, 35 kW class.

Suffixed forms of this number exist and mean build or service history rather than a different rating: -R and #R denote a unit refurbished by Fanuc, and #RS, #A, #CE and #EM appear on regional and CE builds. All are the same PSM-30.

Published specifications

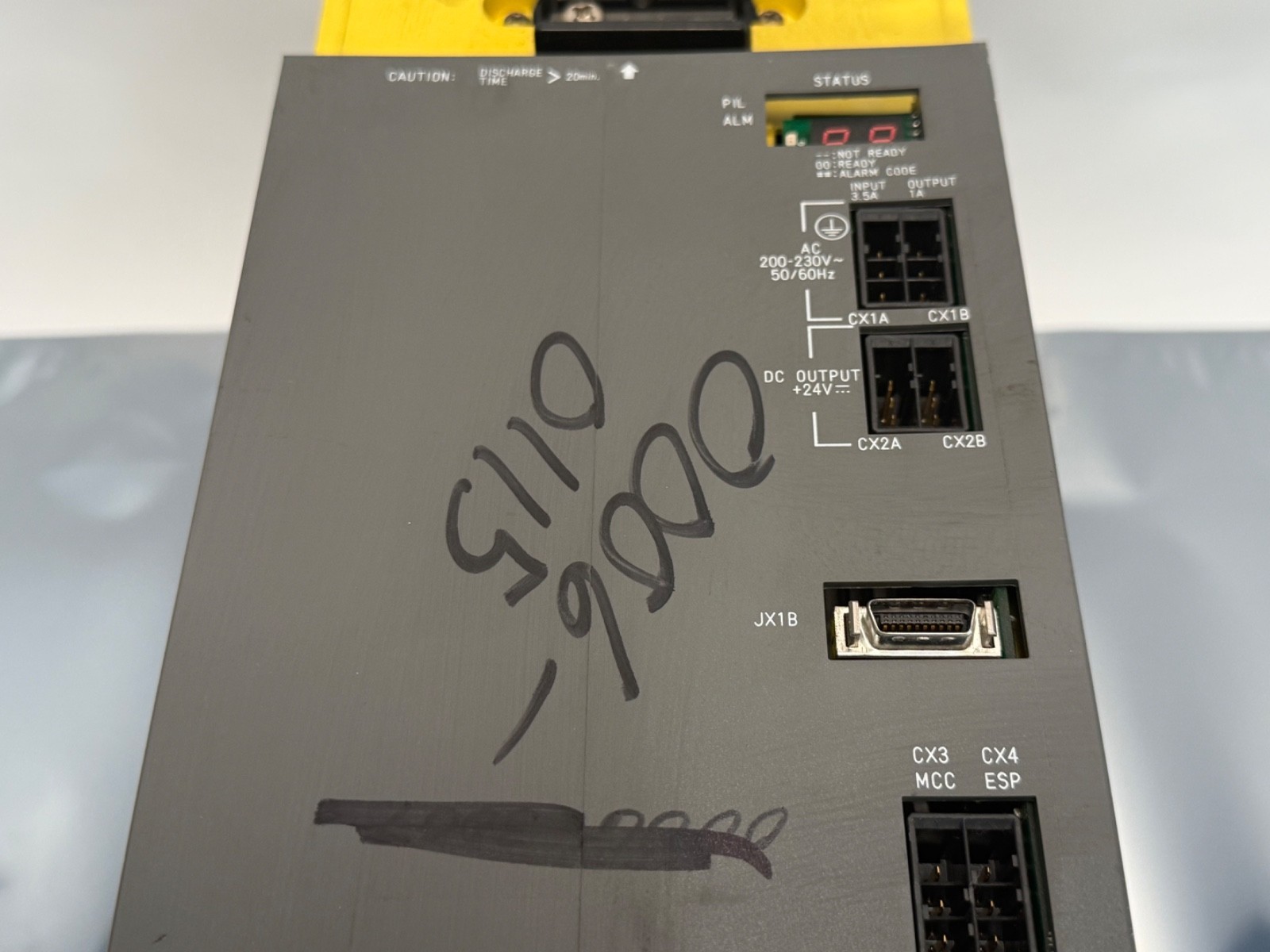

Model: Alpha PSM-30. Rated input: 200–230 V AC, three phase, 50/60 Hz. Rated input current: 127 A at 200 V. Rated output: 283–325 V DC bus. Rated output power: 35 kW. Also supplies 24 V DC control power to the connected amplifier modules. Front panel: 7-segment status and alarm display. Fanuc manual reference: B-65162. Internal boards used in this model: A20B-1006-0472 wiring board and A16B-2202-0421 control board. Approximate weight: 24 lb.

Condition

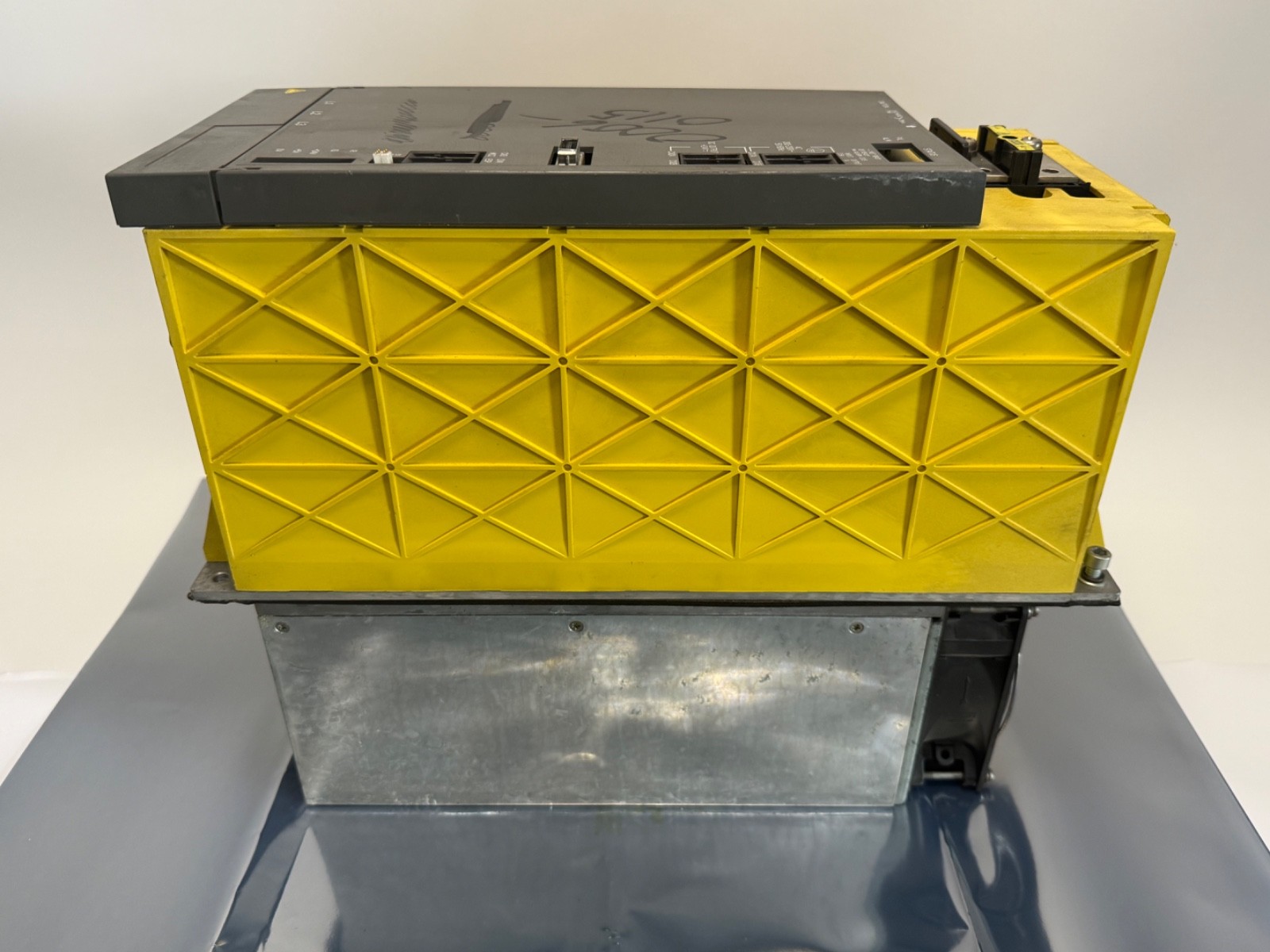

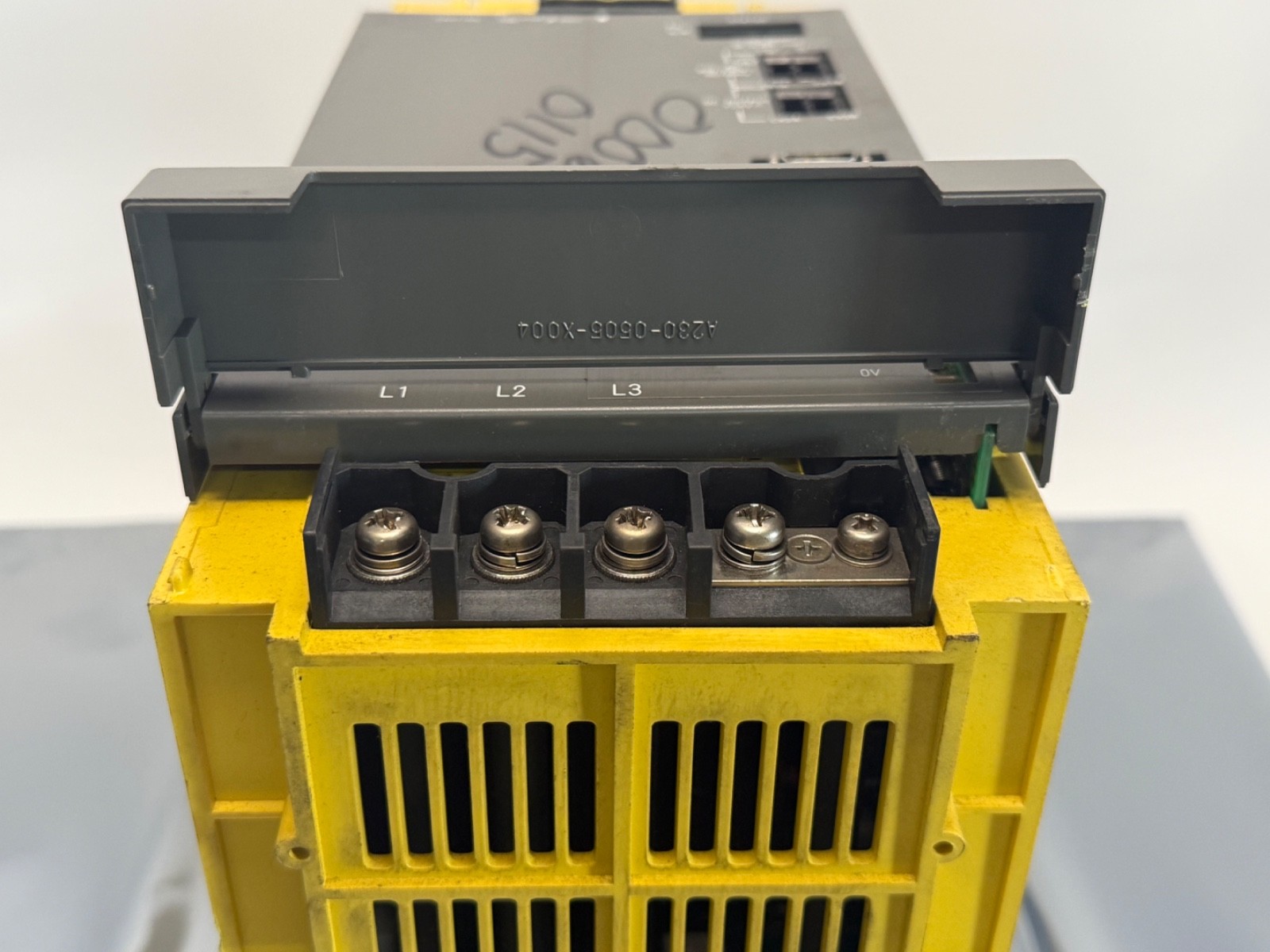

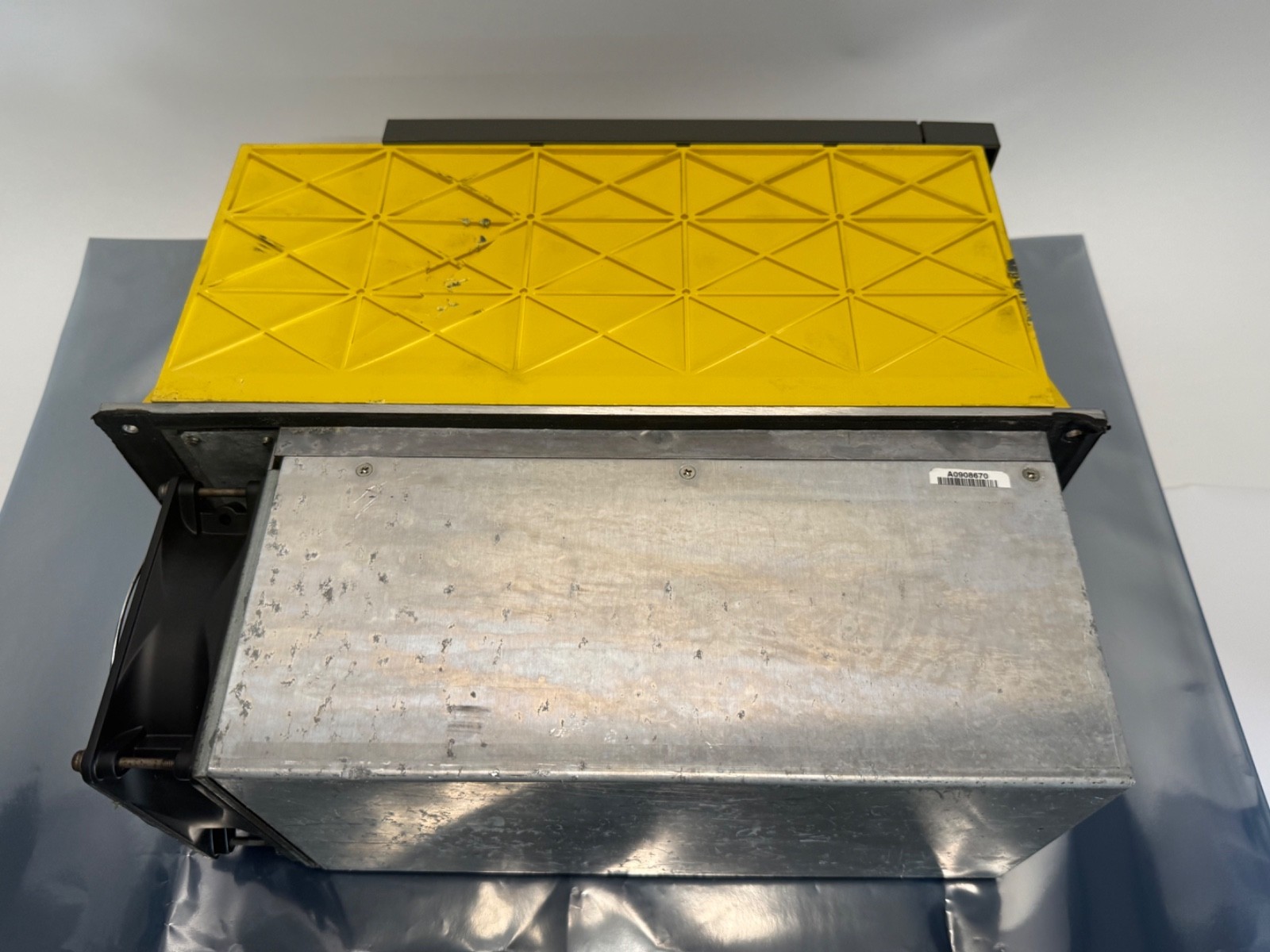

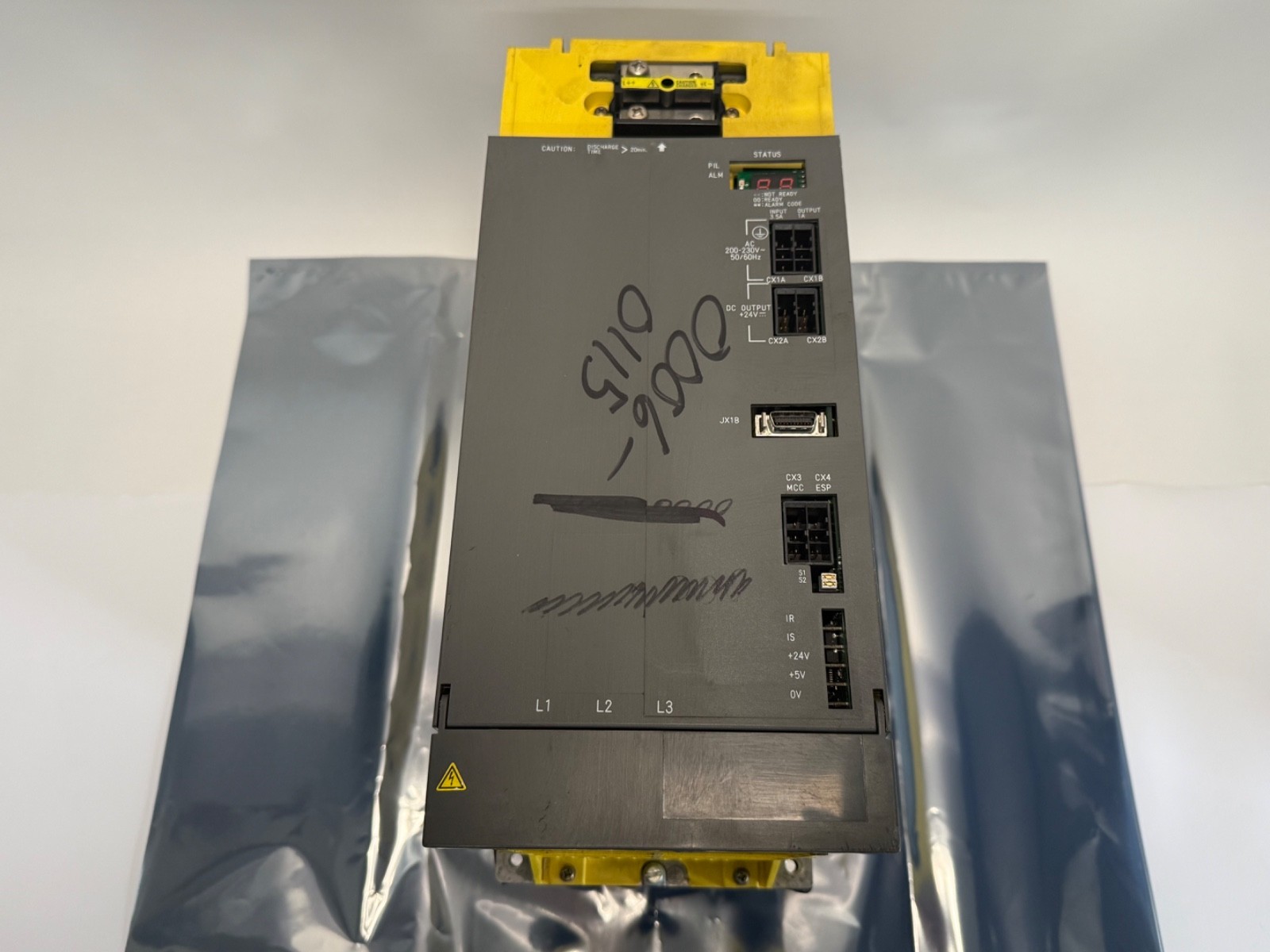

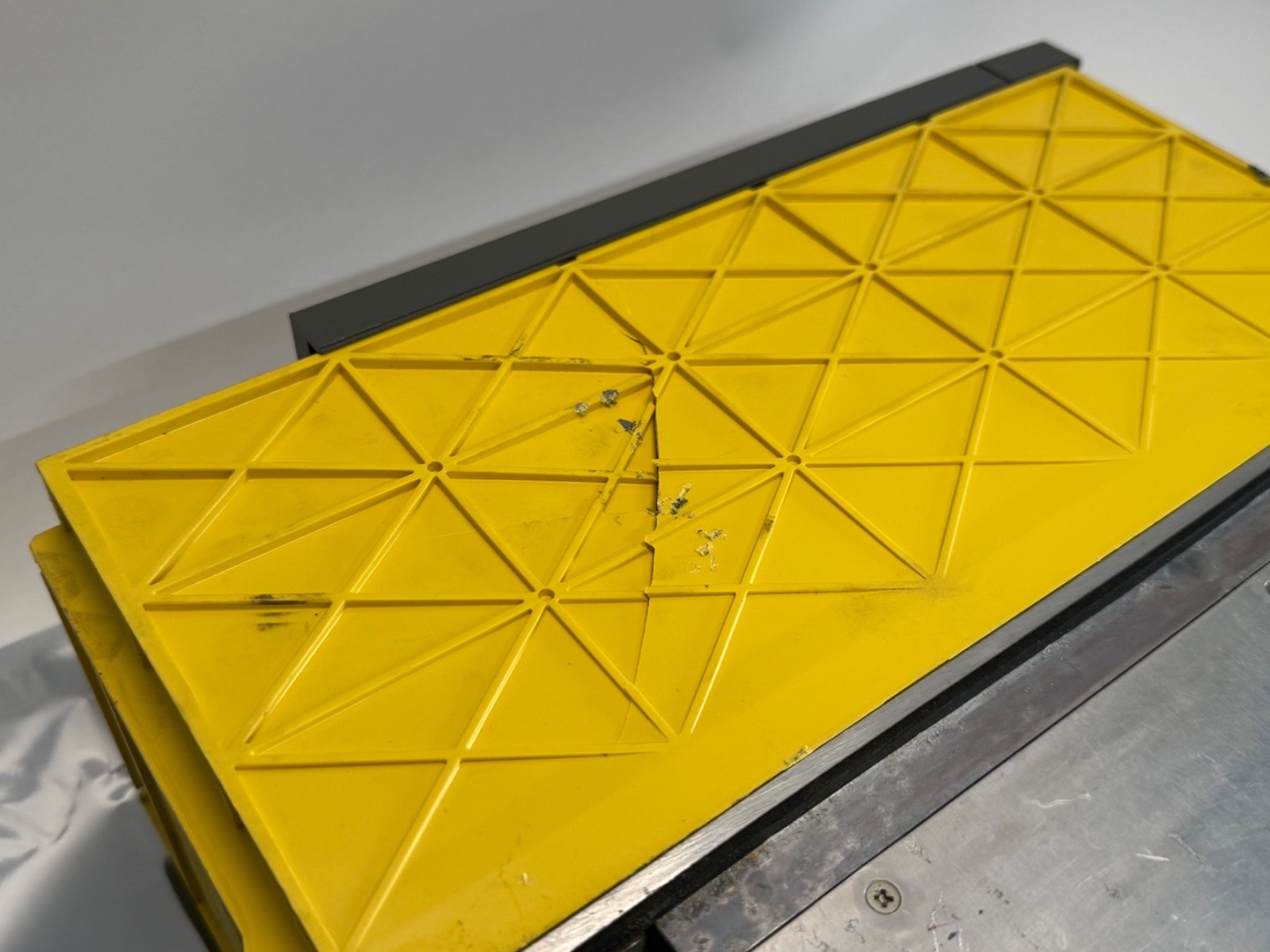

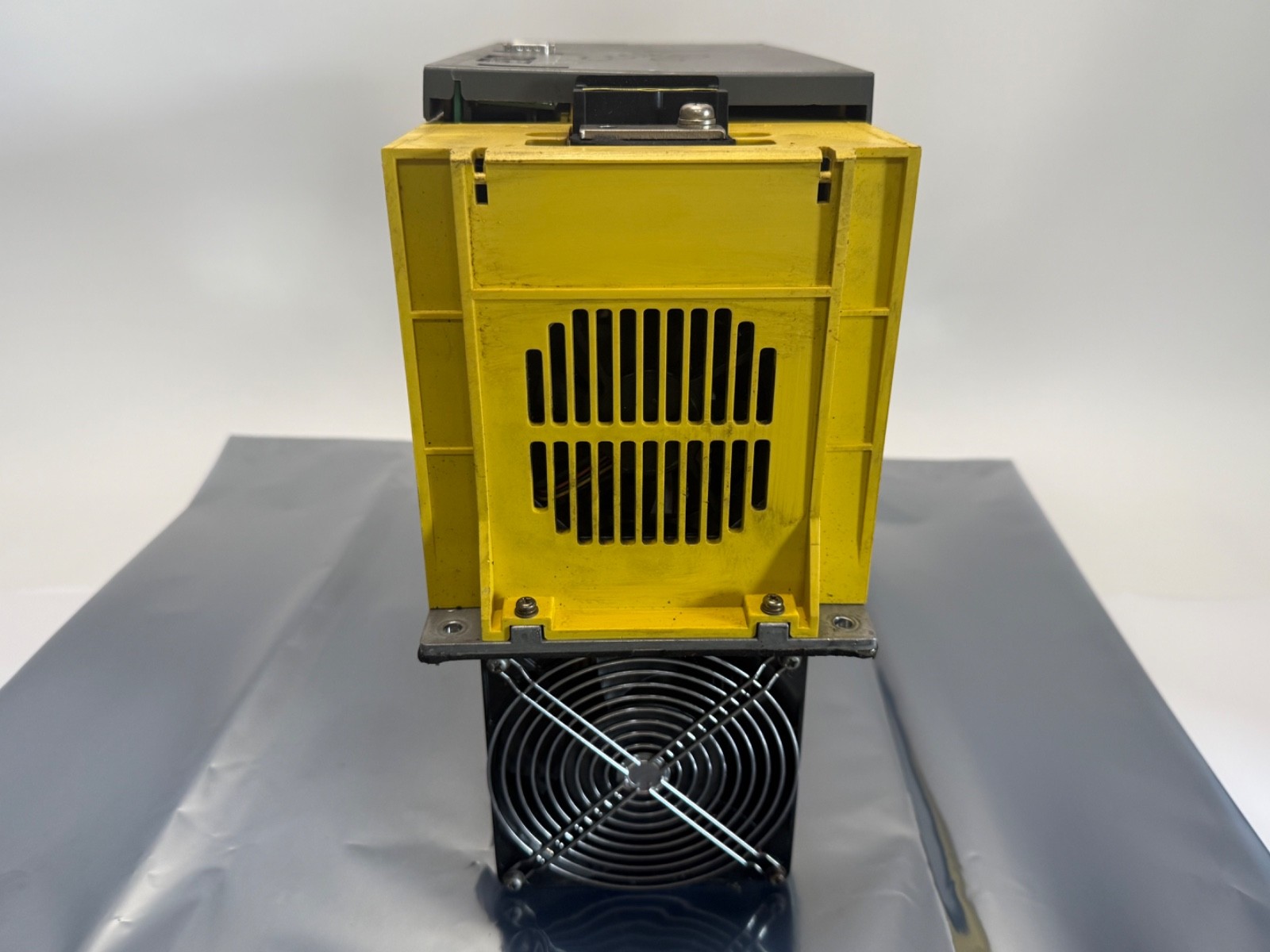

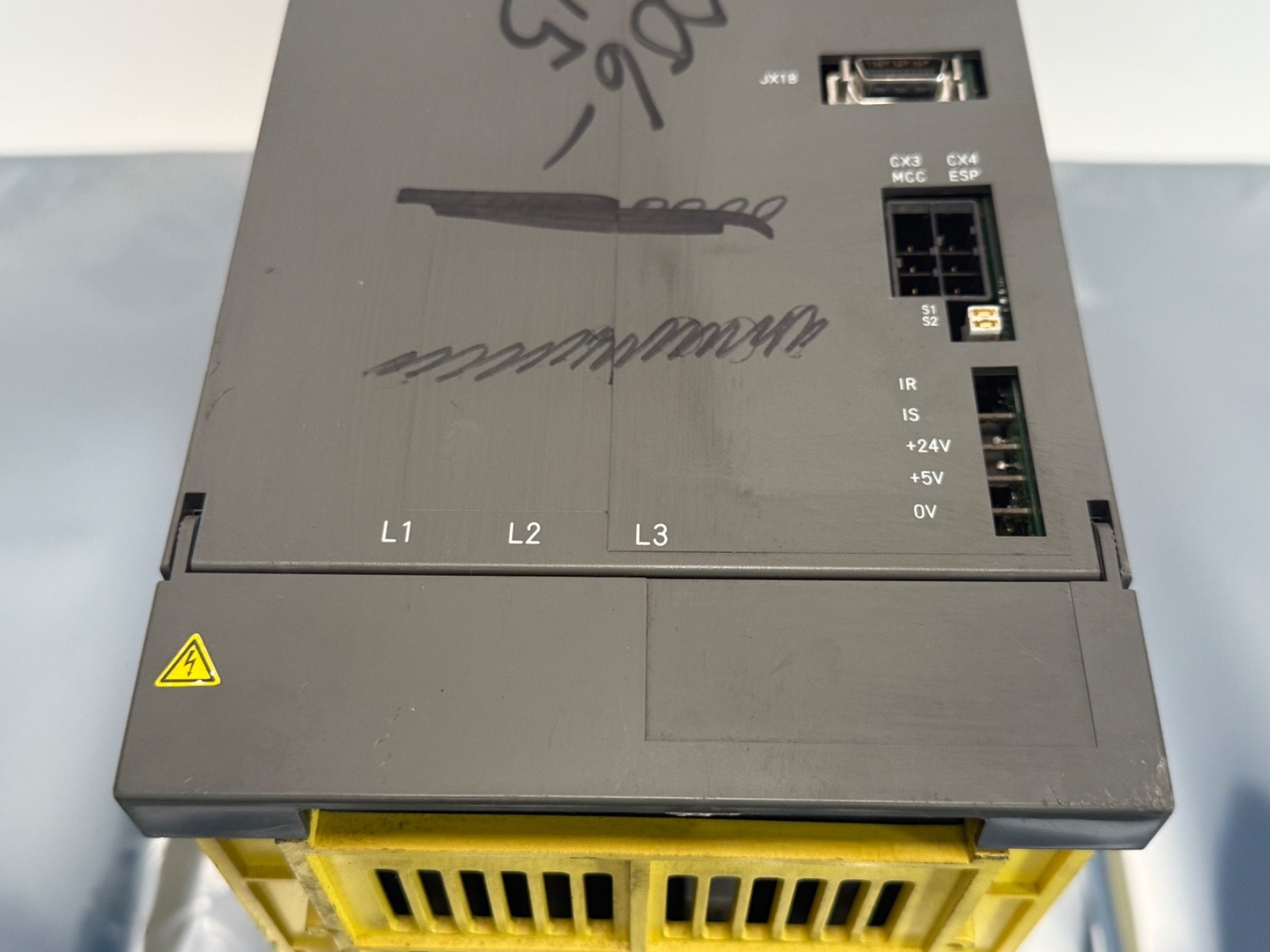

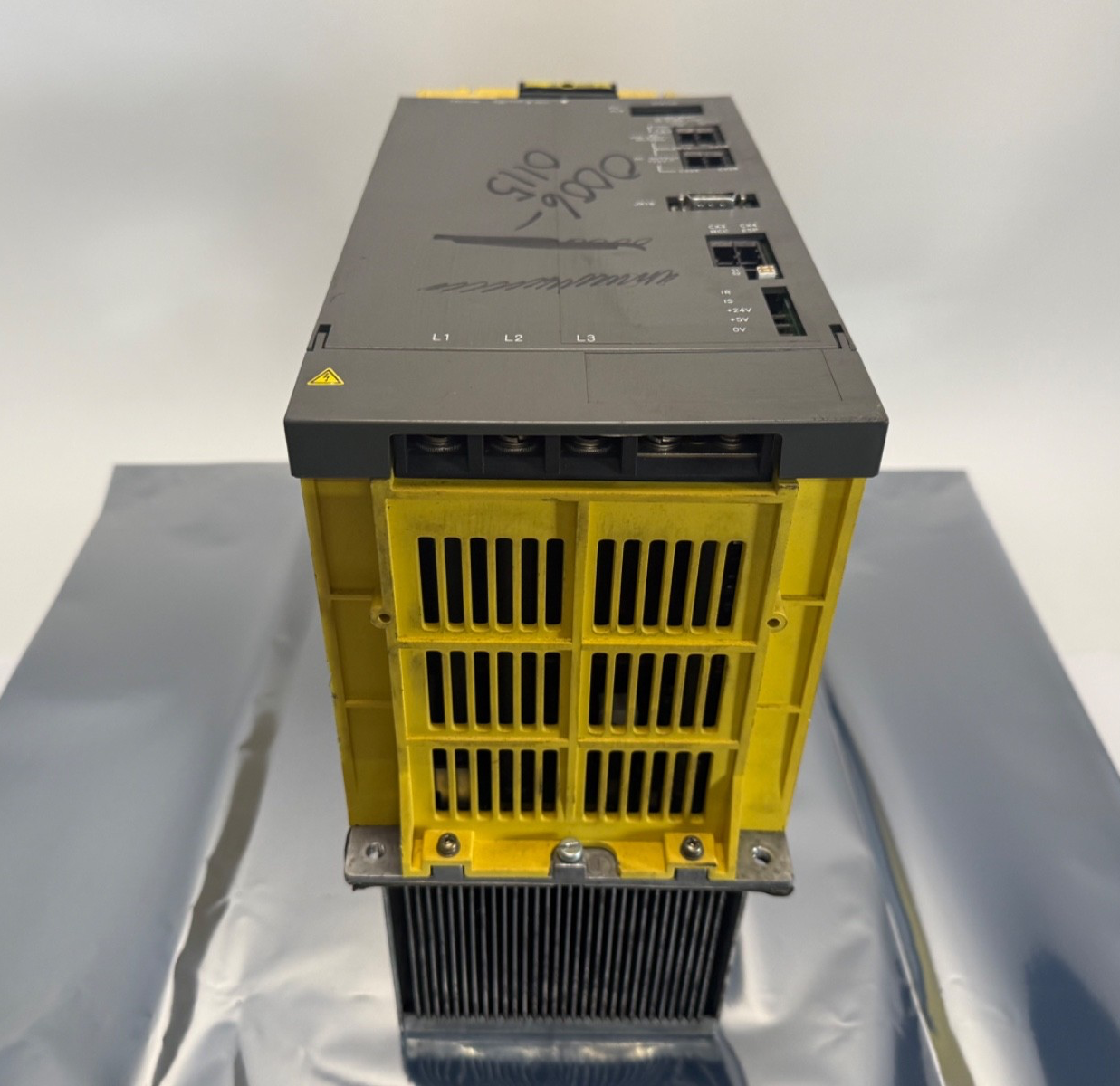

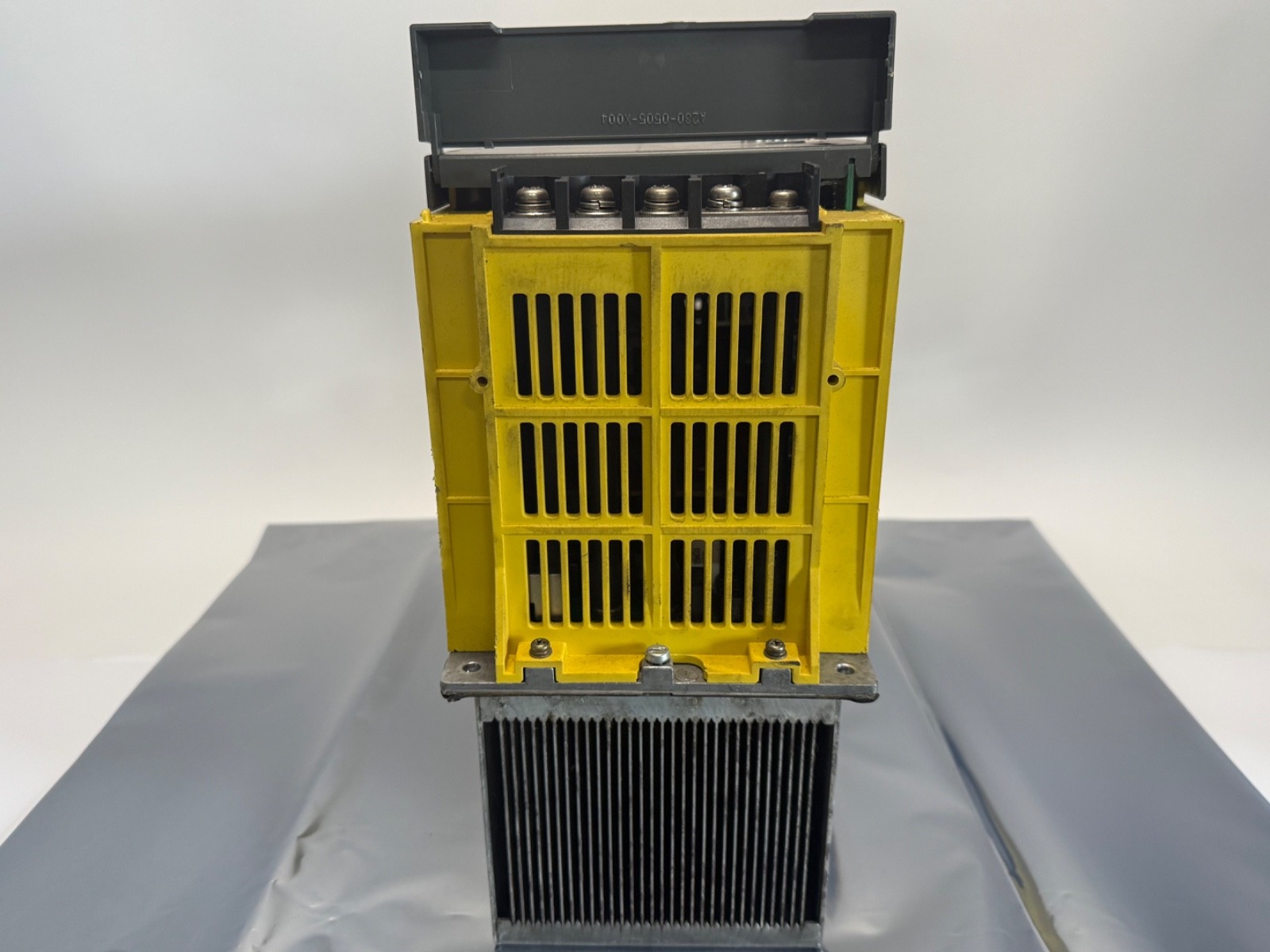

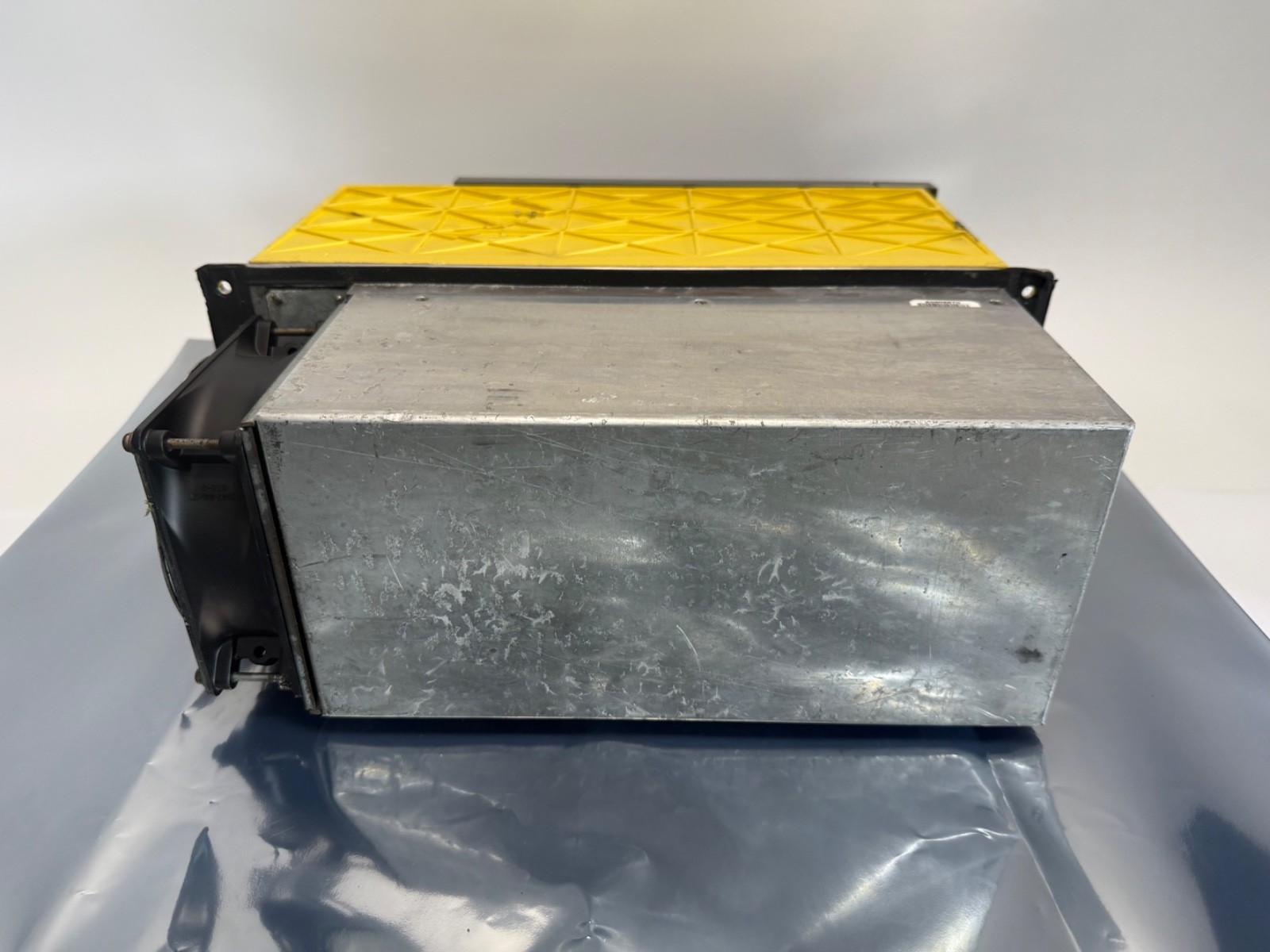

This is a tested takeout unit and it is missing plastics: one or more of the moulded covers or trim pieces is absent, as shown in the photographs. The electrical assembly is complete and the unit has been tested; what is short is cosmetic and guarding plastic.

What these specs mean in practice

35 kW puts the PSM-30 at the larger end of the Alpha PSM range; typical duty is a medium to large machining centre or lathe where a spindle amplifier and several axis amplifiers all hang off one DC bus. The PSM rating covers the sum of what the amplifiers on the bus draw at the same time, not any single one. A smaller PSM than the machine was built with will trip on heavy simultaneous acceleration even though everything appears correctly wired.

The 127 A figure is input current at 200 V. The input is three phase only; there is no single-phase option.

The Alpha PSM is a regenerative front end: on deceleration the amplifiers push energy back into the DC bus and the PSM returns it to the mains rather than dissipating it in a resistor. That is why an Alpha system generally carries no braking resistor, and why supply quality matters — the module needs a healthy three-phase mains to regenerate into.

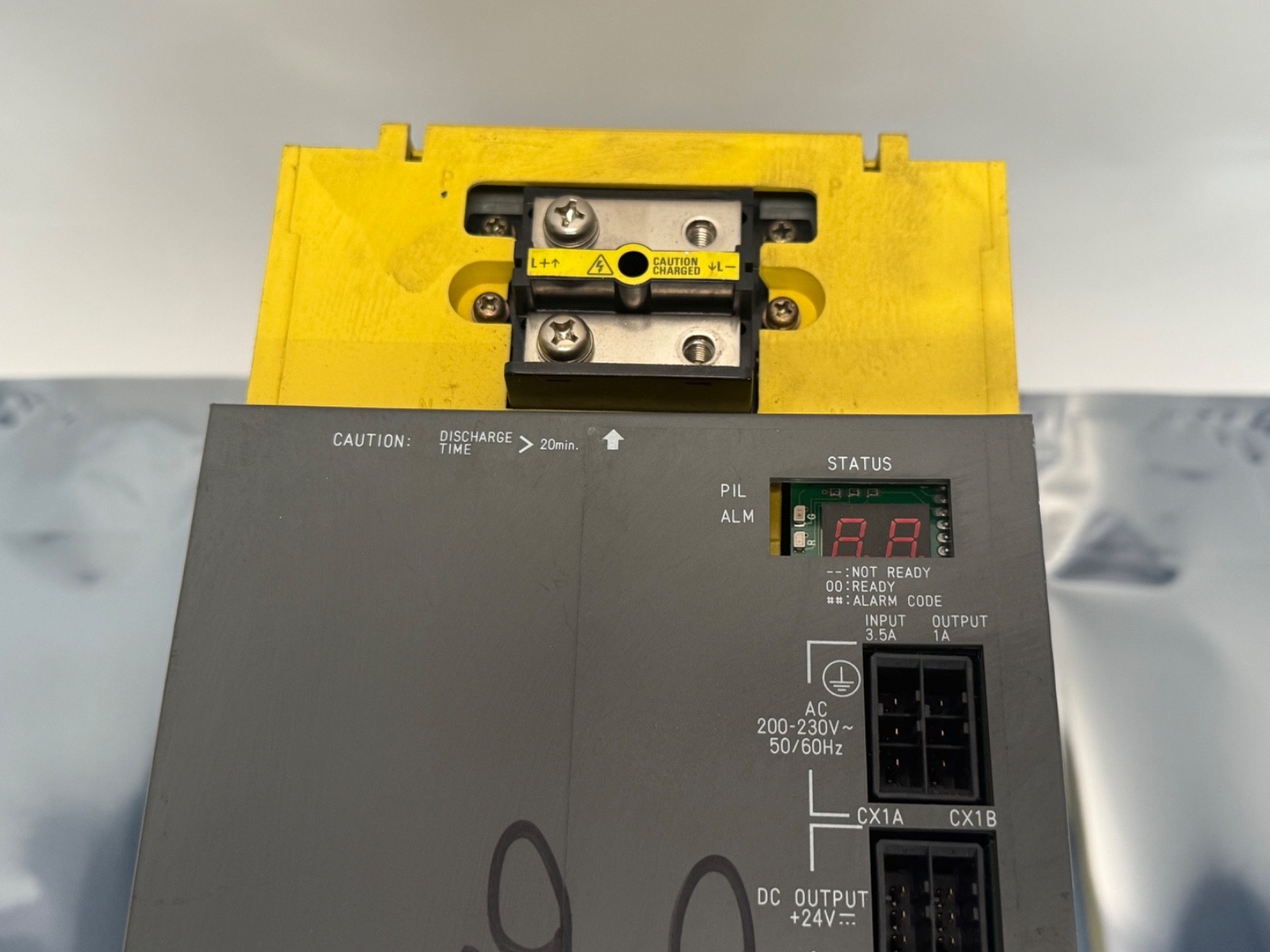

The 7-segment display is the first diagnostic stop. Many apparent PSM faults are bus, amplifier or supply-side problems that the PSM is merely reporting.

What is included

Power supply module only, as pictured, less the missing plastics noted above. Not included: servo amplifier modules (SVM) or spindle amplifier modules (SPM); DC bus link bars or bus connection kits; input contactor, line filter, AC reactor or fuses; connector kit or any control and interface cables; a battery; a braking resistor (an Alpha PSM is regenerative and does not normally use one); a rack, cabinet or mounting hardware; or documentation.

Interchange guidance
