NC-to-PLC coupling module for Siemens Sinumerik 3 CNC controls, 8 MHz. Plug-in card that carries the data link between the numerical control and the machine PLC. Card only, no rack or cables.
List Price
$152.23
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Siemens |
|---|---|
| Model | 6FX11222AD02 |
| Type | NC/PLC Coupling Module |
|---|---|
| Base Number | 6FX1122 |
| Industry Terms | coupling module, NC PLC coupling, interface board, communications card, Sinumerik card, CNC interface module |
| Application Types | CNC machine tool control repair, legacy Sinumerik spares, retrofit |
| Controller Platform | Siemens Sinumerik 3 |
| Mpn Variants | 6FX1122-2AD02; 6FX11222AD02; 6FX1 122-2AD02; 6FX1122 2AD02 |
| Manufacturer Status | Legacy / discontinued, surplus and refurbished supply only |
| Compatible With Replaces | Siemens Sinumerik 3 CNC control racks |
| Part Number | 6FX1122-2AD02 |
| Mounting Type | Plug-in card, Sinumerik control rack |
| Communication Standard | Siemens Sinumerik internal NC/PLC coupling bus |

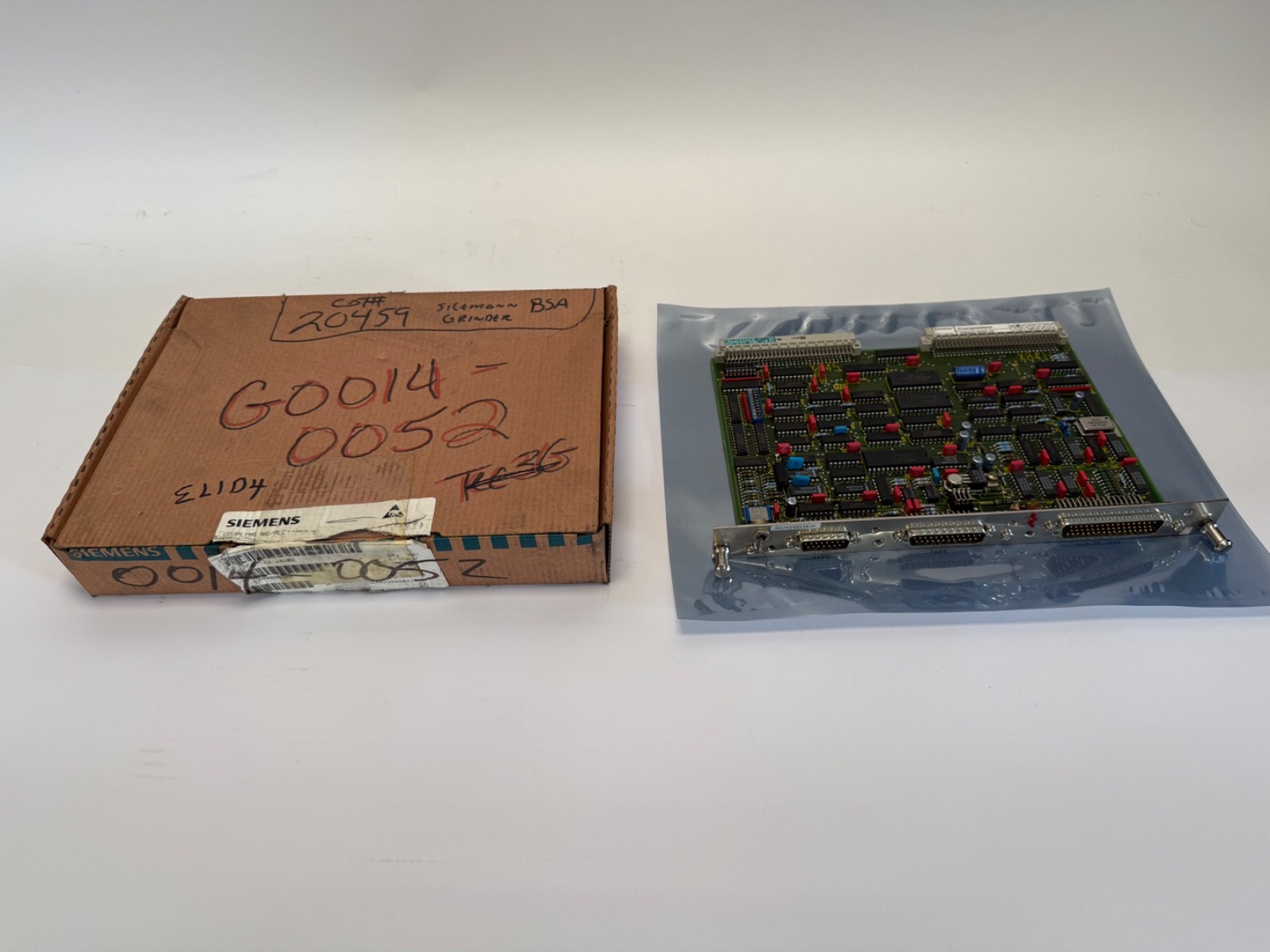

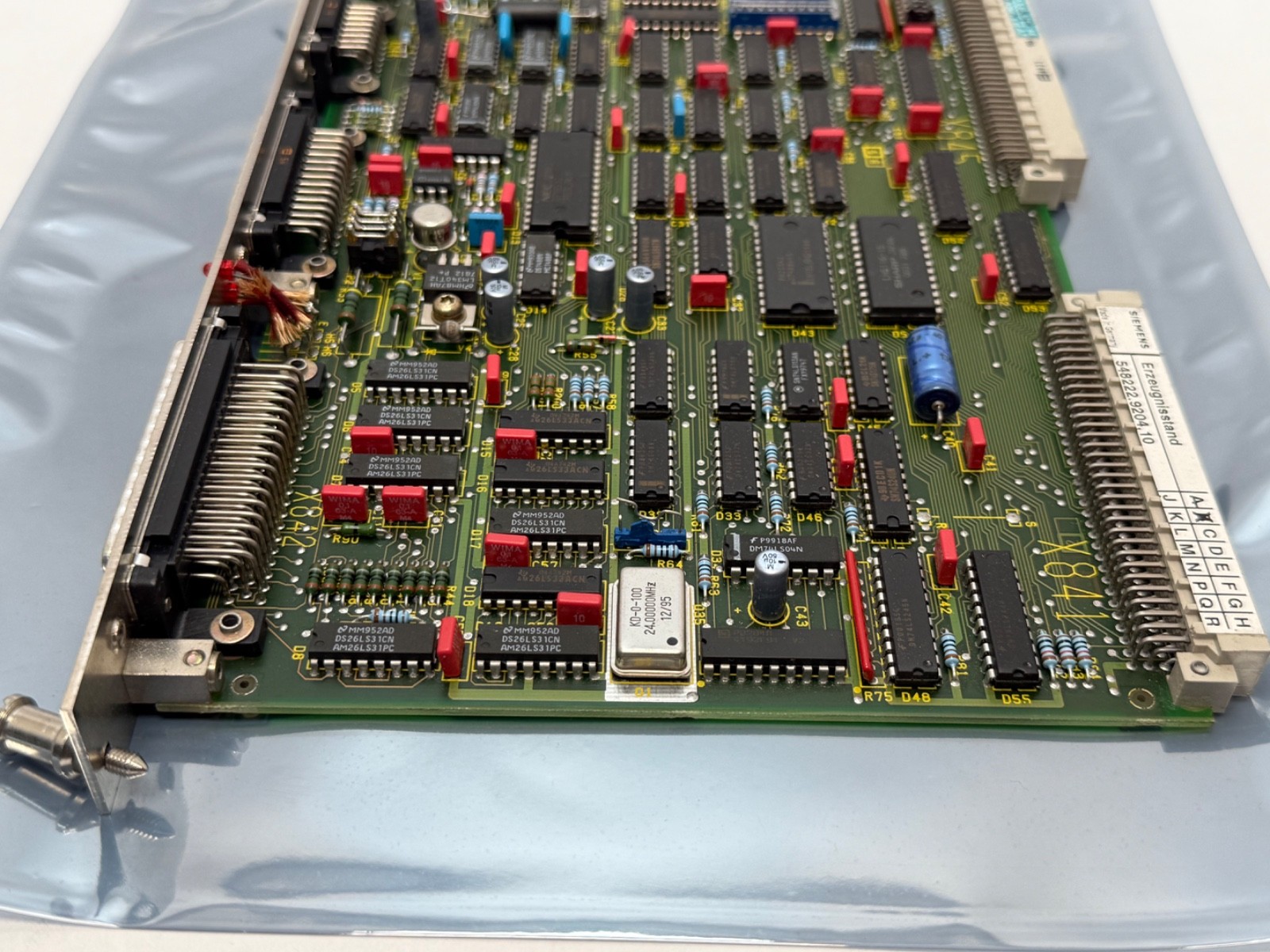

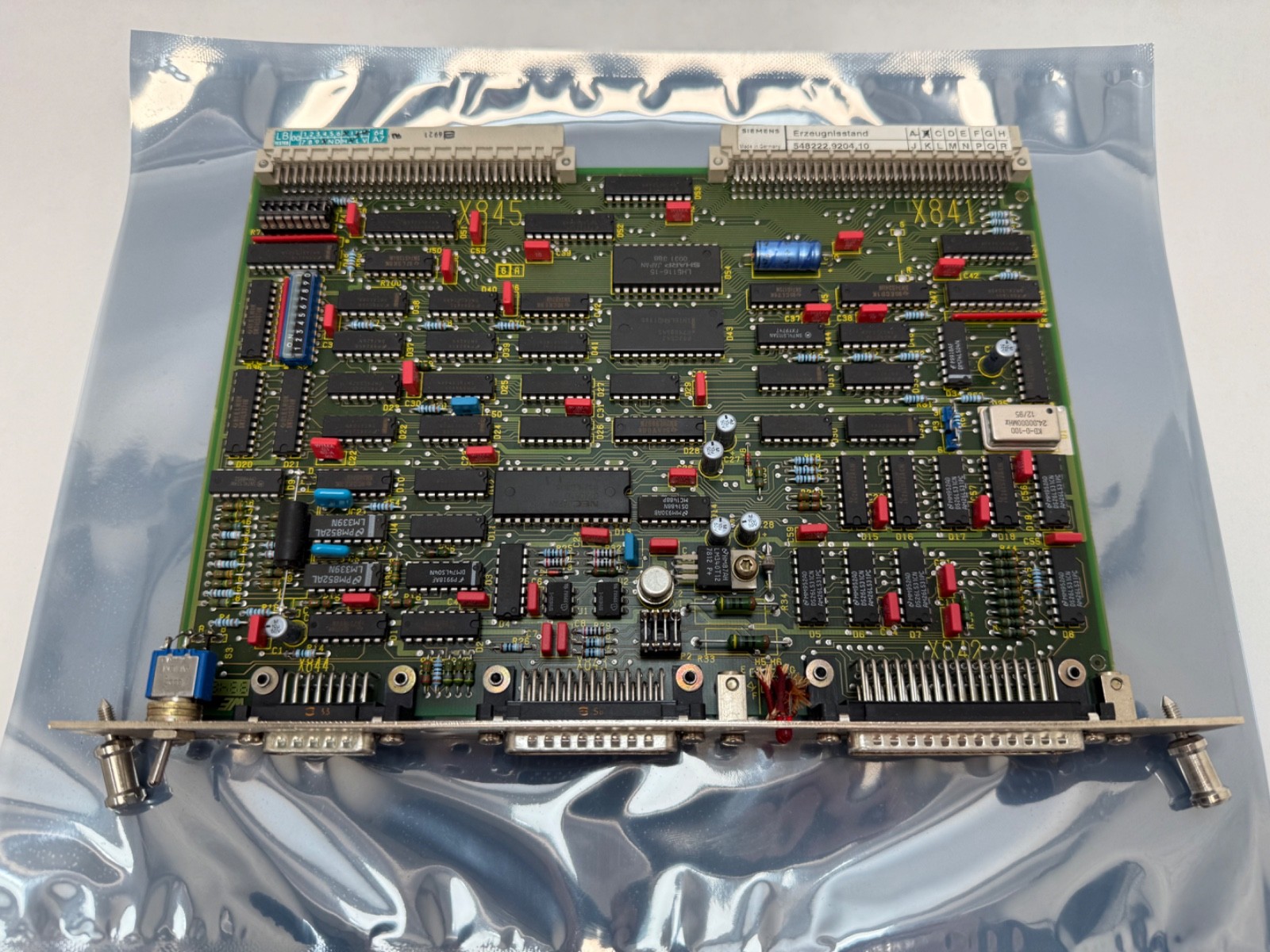

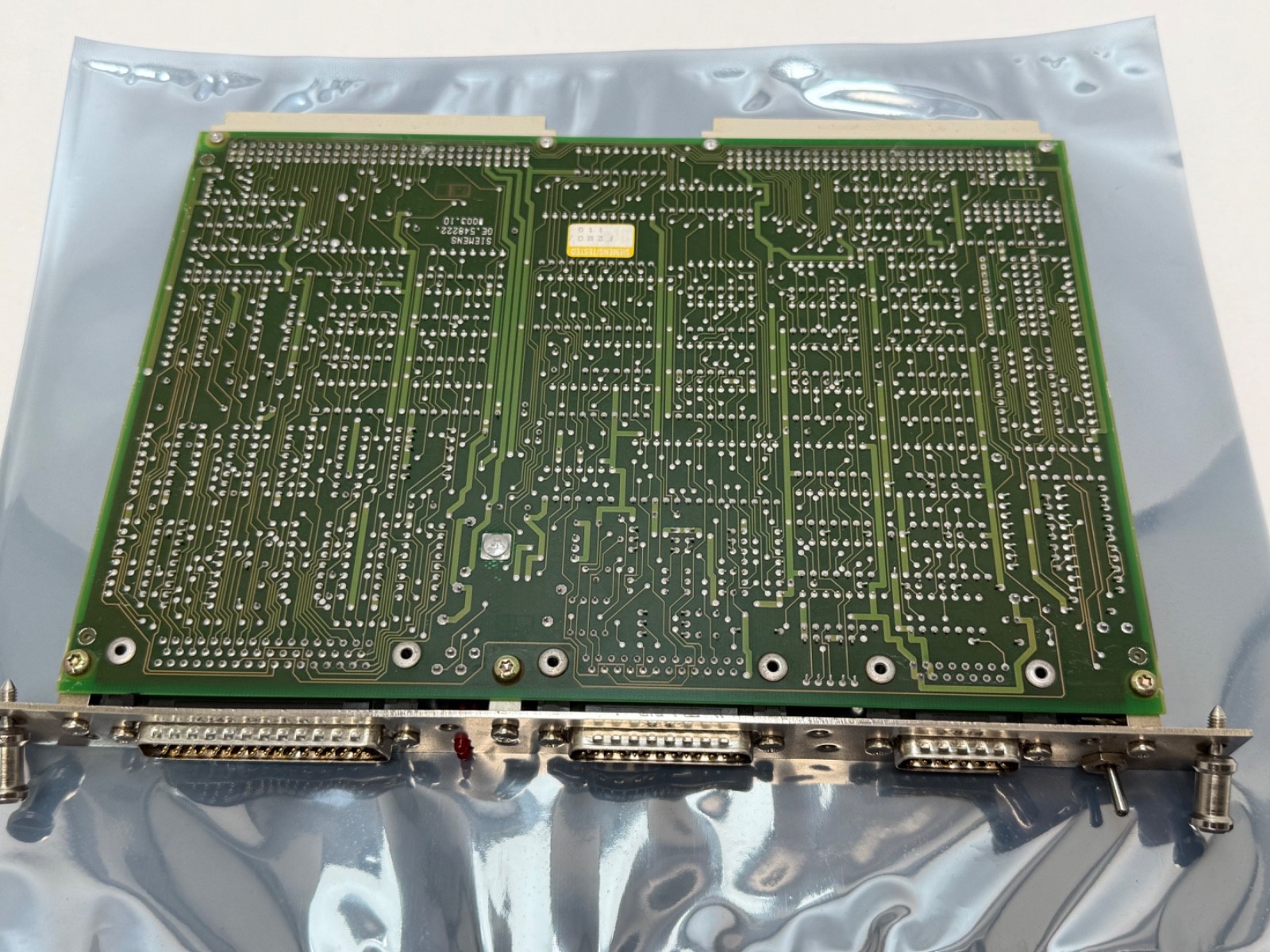

A Siemens 6FX1122-2AD02 — the NC/PLC coupling module for the Sinumerik 3 CNC control, running at 8 MHz. It is the communications interface between the numerical-control side and the machine PLC side of the control: signals, interlocks and status pass across this card. Functionally it is a coupling / interface board, not an I/O module, not an output module and not a CPU.
6FX — Siemens Sinumerik CNC control and interface hardware.
1122 — the NC/PLC coupling board group.
2AD02 — the 8 MHz Sinumerik 3 configuration; the leading digit denotes the hardware generation and the AD group the coupling variant.
Type: NC to PLC coupling / interface module (plug-in card).
Control platform: Siemens Sinumerik 3.
Clock: 8 MHz.
Function: data link between the numerical control and the machine PLC.
Form: plug-in card in the Sinumerik control rack.
Origin: Germany (Siemens nameplate).
When this coupling fails, the symptom is a control that powers up and shows a screen but will not talk to the machine: interlocks stay unsatisfied, the machine will not enable and PLC status looks dead from the NC side. That is a different fault picture from an I/O card failure, which affects specific signals rather than the whole exchange. The 8 MHz rating is part of the identity — slower and faster variants of the coupling exist and are matched to the control’s CPU generation.
Card only. No Sinumerik rack, card cage or control cabinet, no CPU or memory cards, no PLC modules or I/O cards, no power supply, no operator panel, no ribbon or signal cables, no connector kits or terminal boards, no software or ladder program and no documentation.
Sold as one card.
6FX1122-2AD02, 6FX11222AD02 and 6FX1 122-2AD02 are the same card. 6FX1122-1AD02 is an earlier generation of the same coupling function and 6FX1122-2AM02 a related variant — both are different parts, not confirmed equivalents. Sinumerik 3 cards do not fit Sinumerik 800 / 8 series or Sinumerik 840 racks.
