Availability:
1 in stock

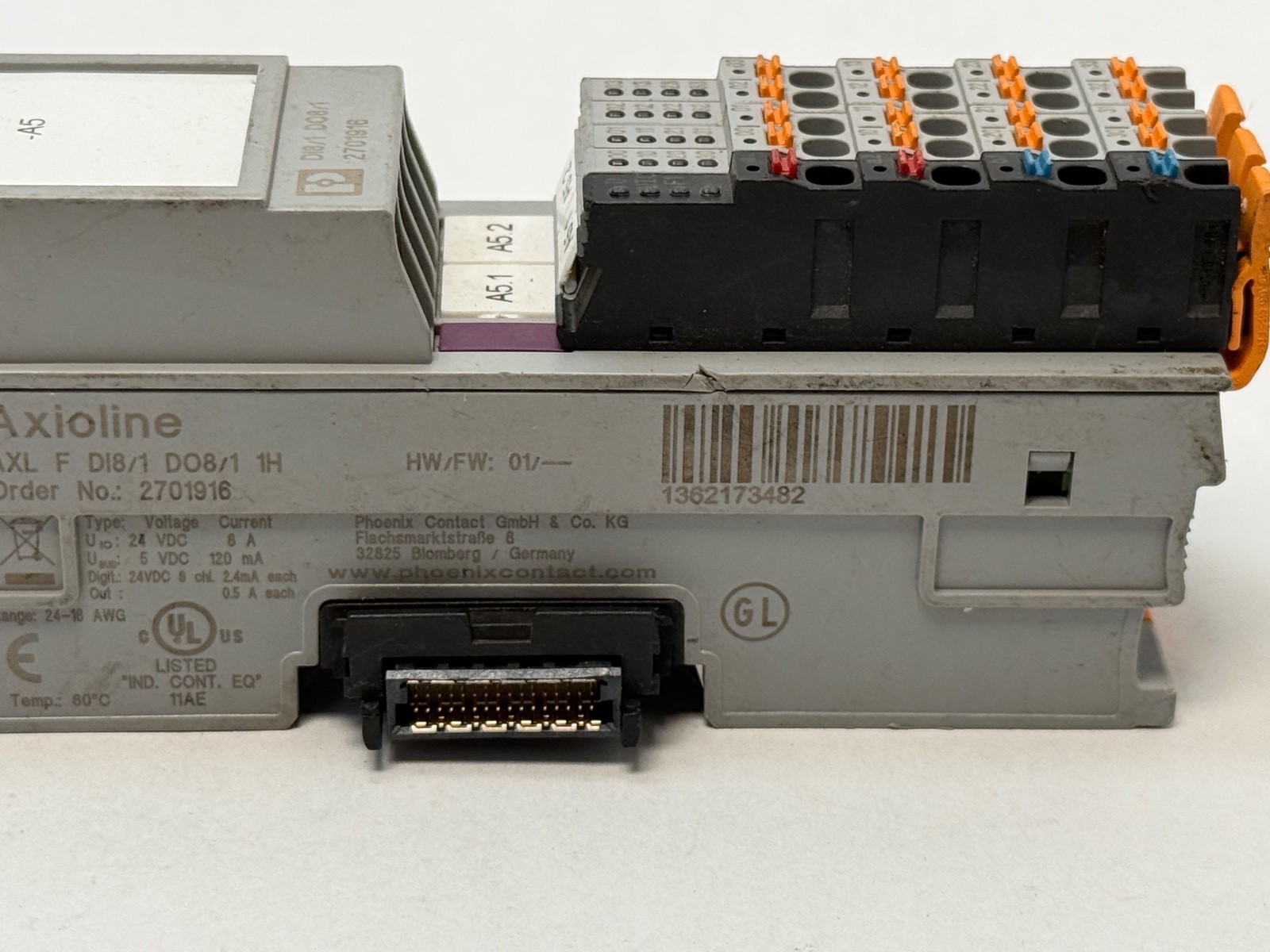

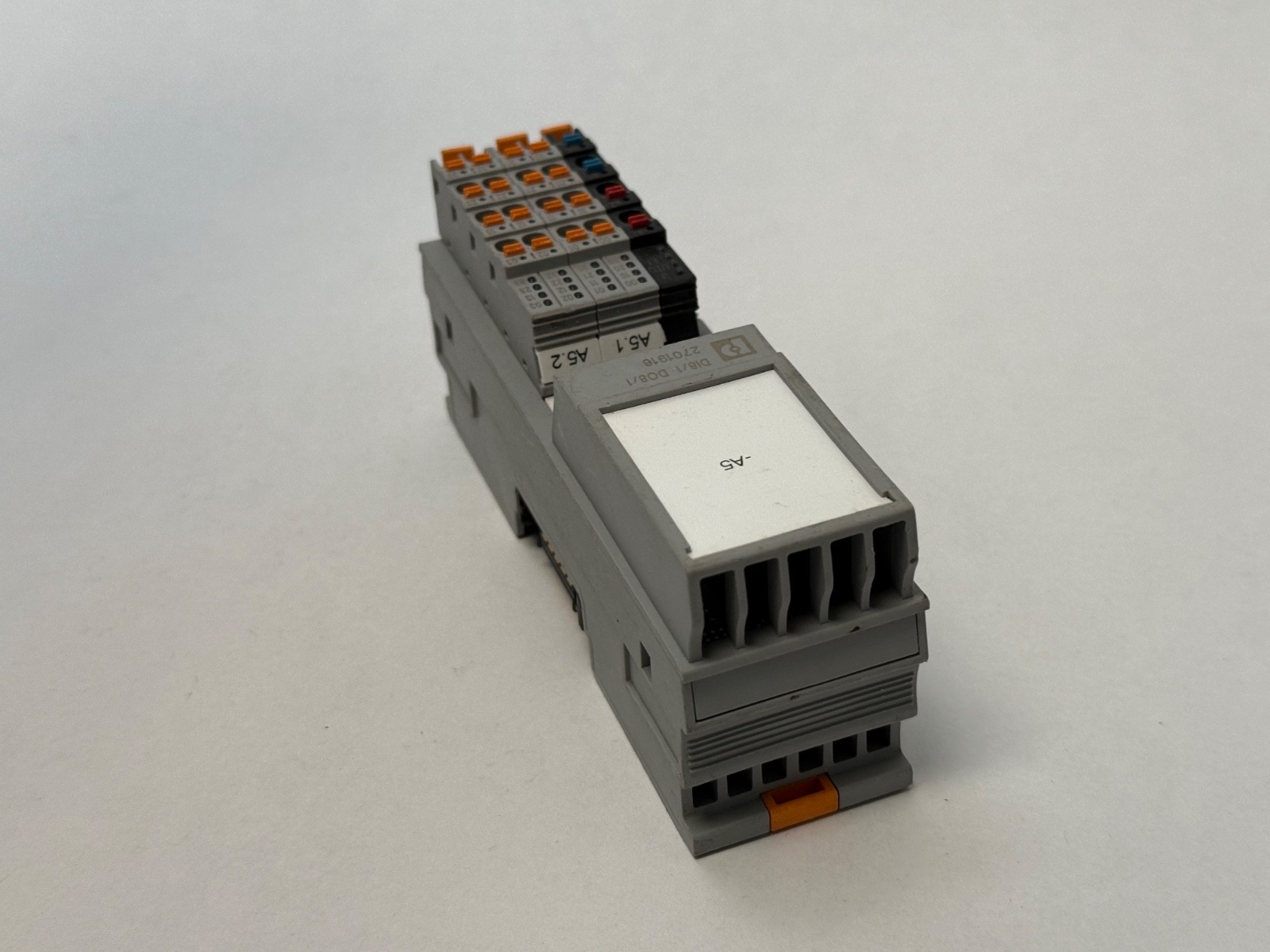

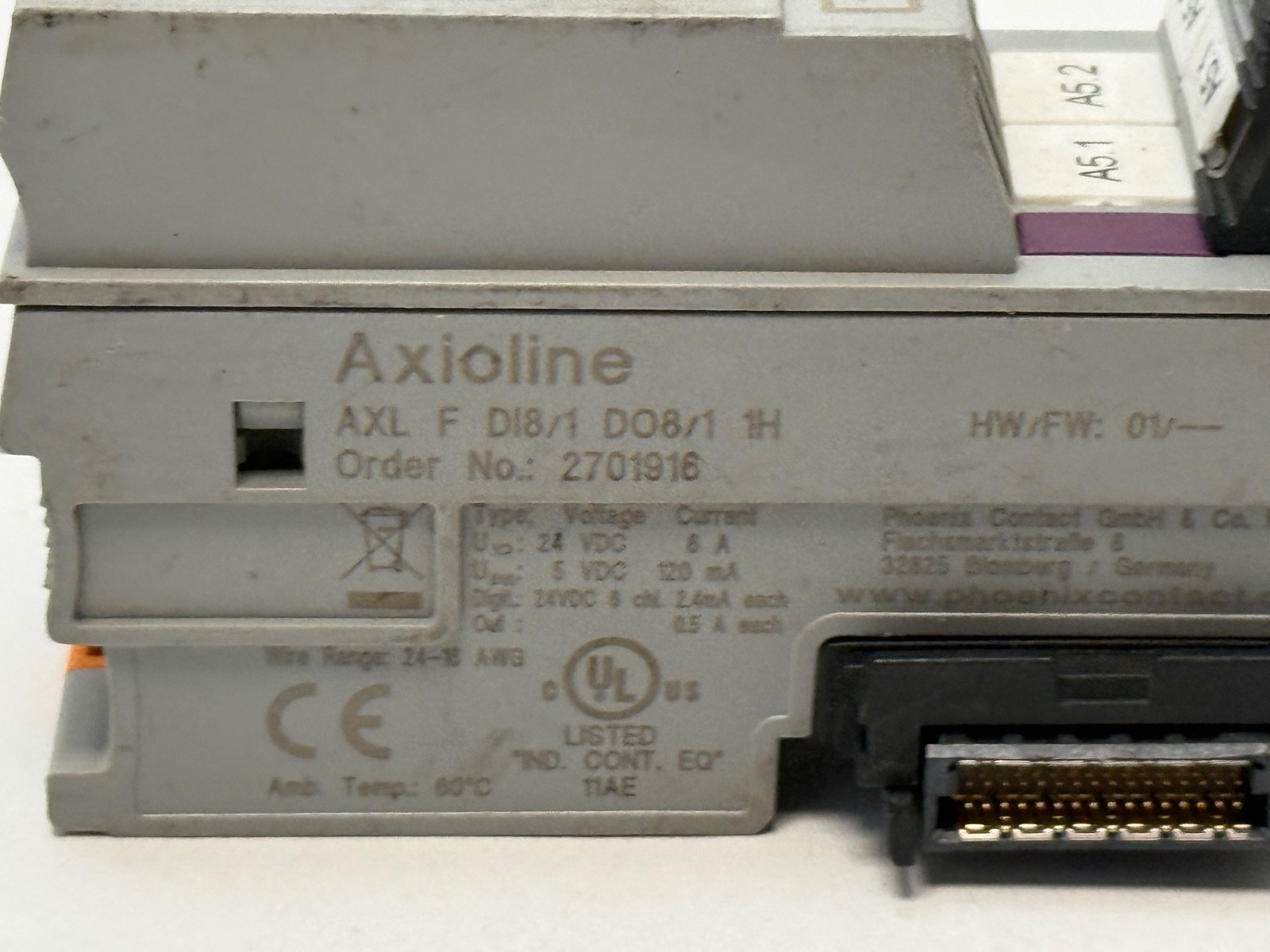

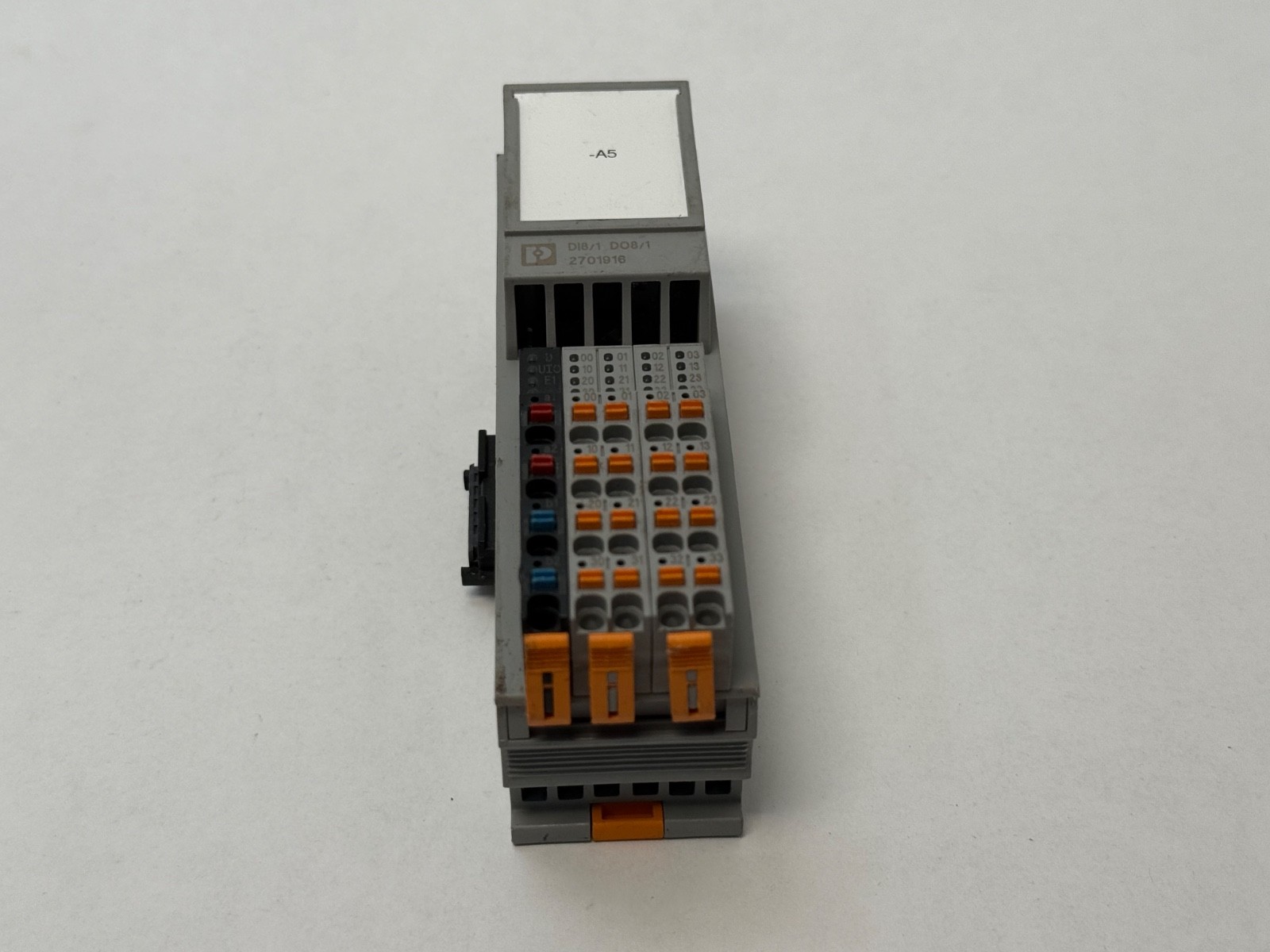

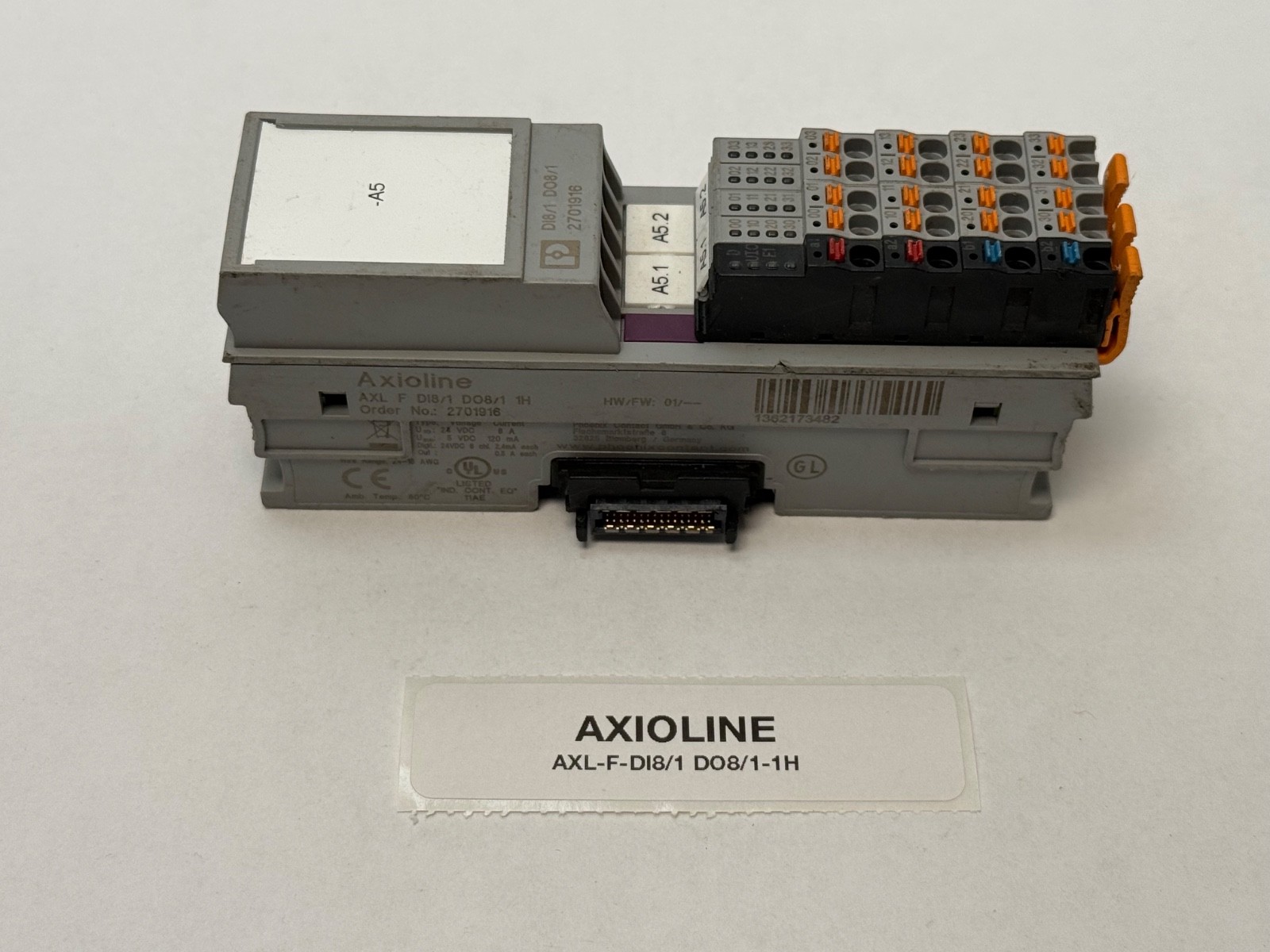

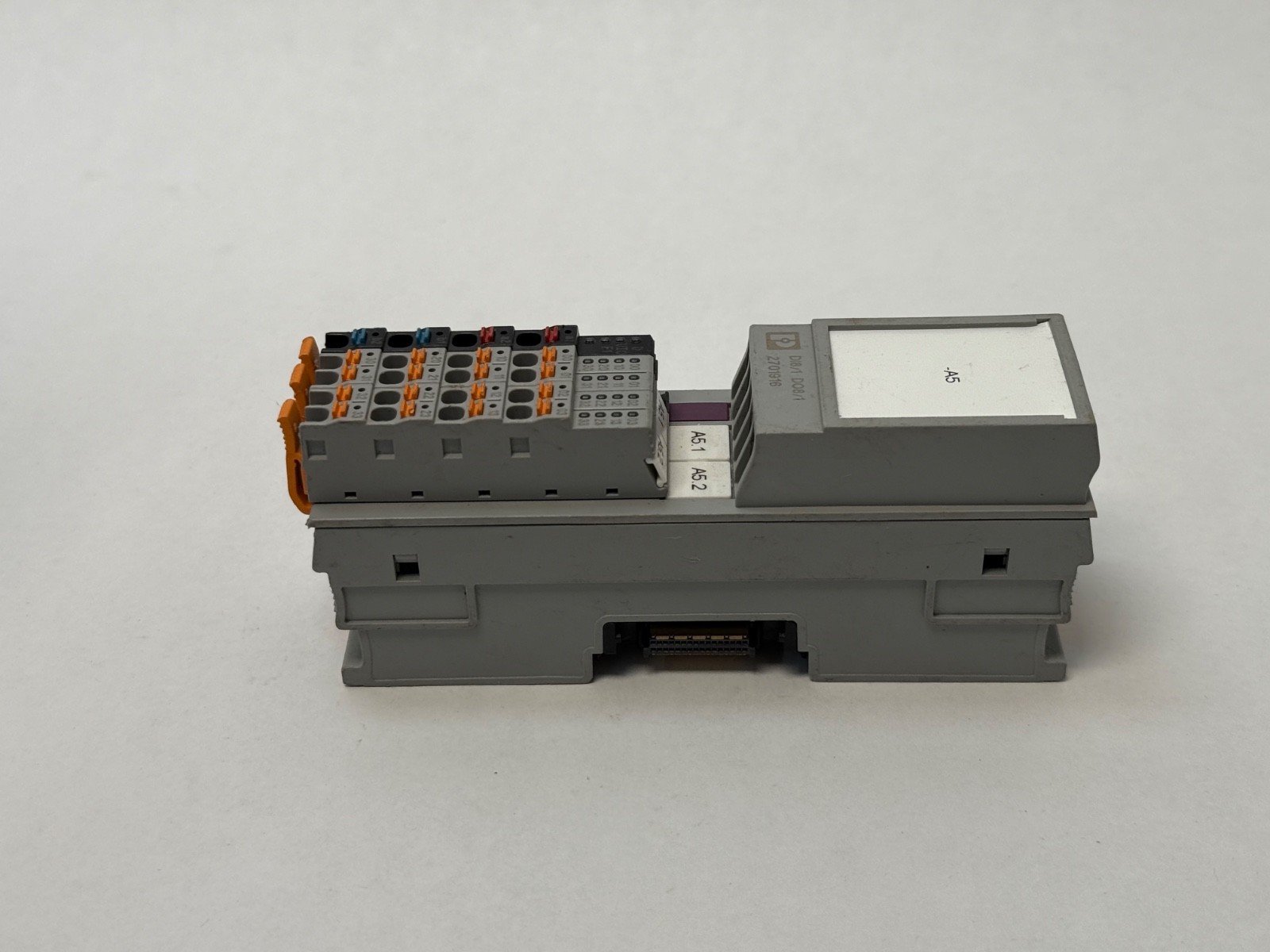

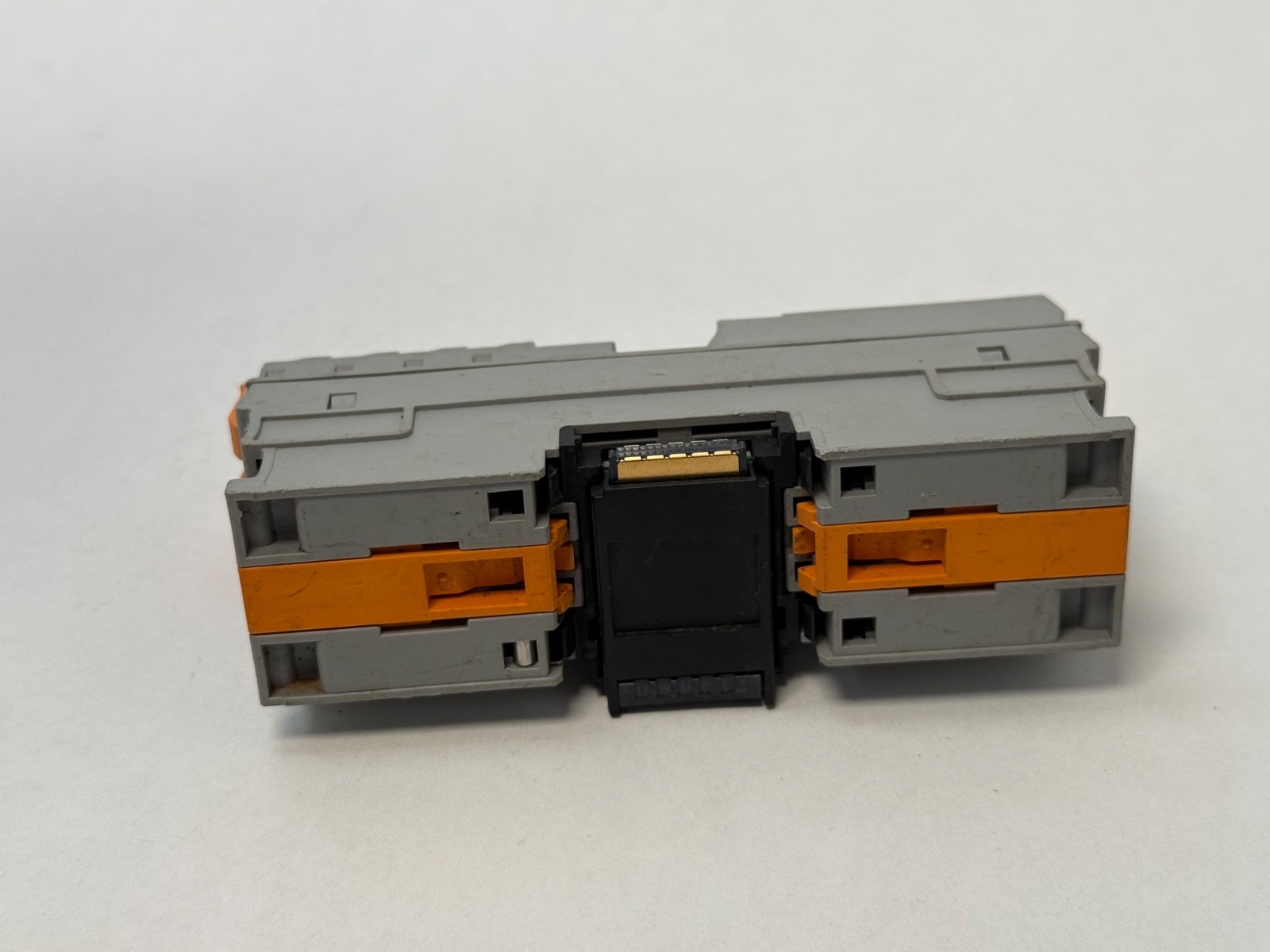

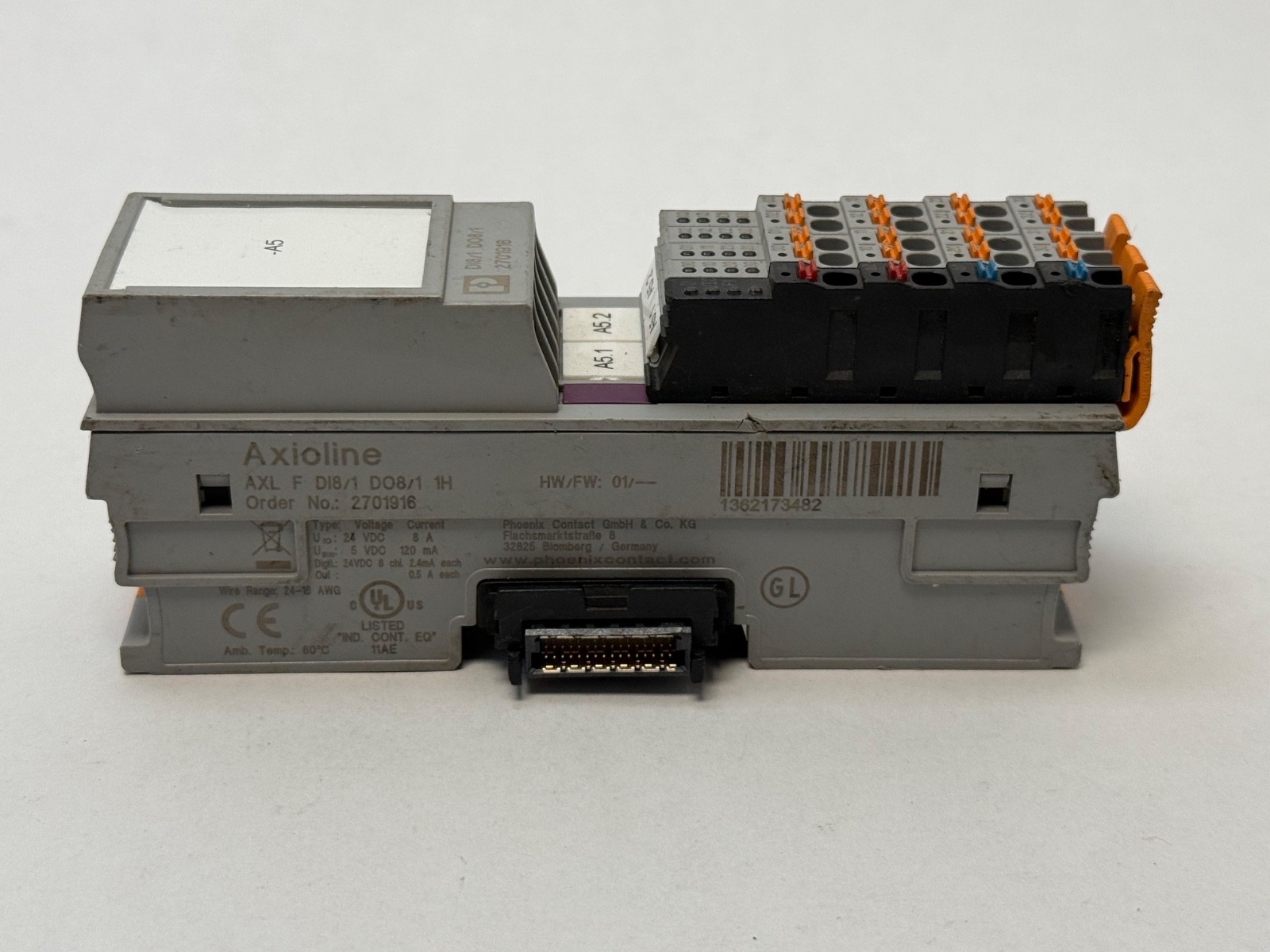

Phoenix Contact AXL F DI8/1 DO8/1 1H (2701916) Axioline F digital I/O module, 8 inputs and 8 outputs 24 V DC, 500 mA outputs, 100 Mbps local bus, IP20.
List Price
$118.79
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Phoenix Contact |
|---|---|
| MPN | 2701916 |
| GTIN | 4046356872935 |
| Model | AXL F DI8/1 DO8/1 1H |
| Additional Attributes | Order no.: 2701916; Inputs: 8 x 24 V DC, EN 61131-2 type 1/3, 2.4 mA, filter less than 100 us / 1000 us / 3000 us, max 5 kHz; Outputs: 8 x 24 V DC, 500 mA; Connection: 1-conductor; Local bus: 100 Mbps; Update time: less than 100 us; IP20; Includes bus base module and connectors |
|---|---|
| Base Number | 2701916 |
| Industry Terms | remote I/O module; digital I/O; PLC I/O module; Axioline; mixed digital input output module; fieldbus I/O |
| Common Misspellings | Phoenix-Contact 2701916; AXL F DI 8/1 DO 8/1 1H; Axiolin; 270196; AXLF DI8 DO8 |
| Application Types | Machine building; factory automation; process skids; control cabinet I/O stations |
| Output Amperage | 500 mA per output |
| Mpn Variants | 2701916; AXL F DI8/1 DO8/1 1H; AXL-F-DI8/1 DO8/1-1H; AXLFDI81DO811H; AXL F DI8/1 DO8/1 |
| Compatible With Replaces | Fits Axioline F stations; accessories AXL F BS H 2700992, AXL F BS CAP 2702275 |
| Series | Axioline F |
| Nominal Rated Input Voltage | 24 V DC |
The Phoenix Contact AXL F DI8/1 DO8/1 1H, order number 2701916, is an Axioline F digital I/O module with 8 inputs and 8 outputs at 24 V DC. It ships with its bus base module and Axioline F connectors. Series: Axioline F. Digital Inputs: 8, 24 V DC. Digital Outputs: 8, 24 V DC, 500 mA. Local Bus Speed: 100 Mbps. Degree of Protection: IP20. GTIN: 4046356872935.
AXL F — Axioline F remote I/O system.
DI8/1 — 8 digital inputs, 1-conductor connection.
DO8/1 — 8 digital outputs, 1-conductor connection.
Input Standard: EN 61131-2 type 1 and type 3. Input Current: 2.4 mA at 24 V DC. Input Filter Time: adjustable, less than 100 µs, 1000 µs or 3000 µs. Maximum Input Frequency: 5 kHz. Output Current: 500 mA per channel. Minimum Update Time: less than 100 µs. The device rating plate is stored electronically in the module.
Unit Quantity: 1 Pc, module with bus base and connectors.
Fits Axioline F stations on an AXL F bus coupler or controller. Related accessories: AXL F BS H bus connector 2700992, AXL F BS CAP protective cap 2702275.
What is the Phoenix Contact 2701916?
It is the AXL F DI8/1 DO8/1 1H, an Axioline F digital I/O module with 8 inputs and 8 outputs at 24 V DC, IP20, supplied with its bus base module and connectors.
What are the output and input ratings?
Output Current is 500 mA per channel. Inputs meet EN 61131-2 type 1 and type 3, draw 2.4 mA at 24 V DC and accept up to 5 kHz.
What system does it connect to?
It fits Axioline F stations on an AXL F bus coupler or controller, with a 100 Mbps local bus.
