Opto 22G4IAC5G4 AC Input Module 120 VAC Input 5V Logic G4 IAC5 Lot Of 10

Product Description

What this is:

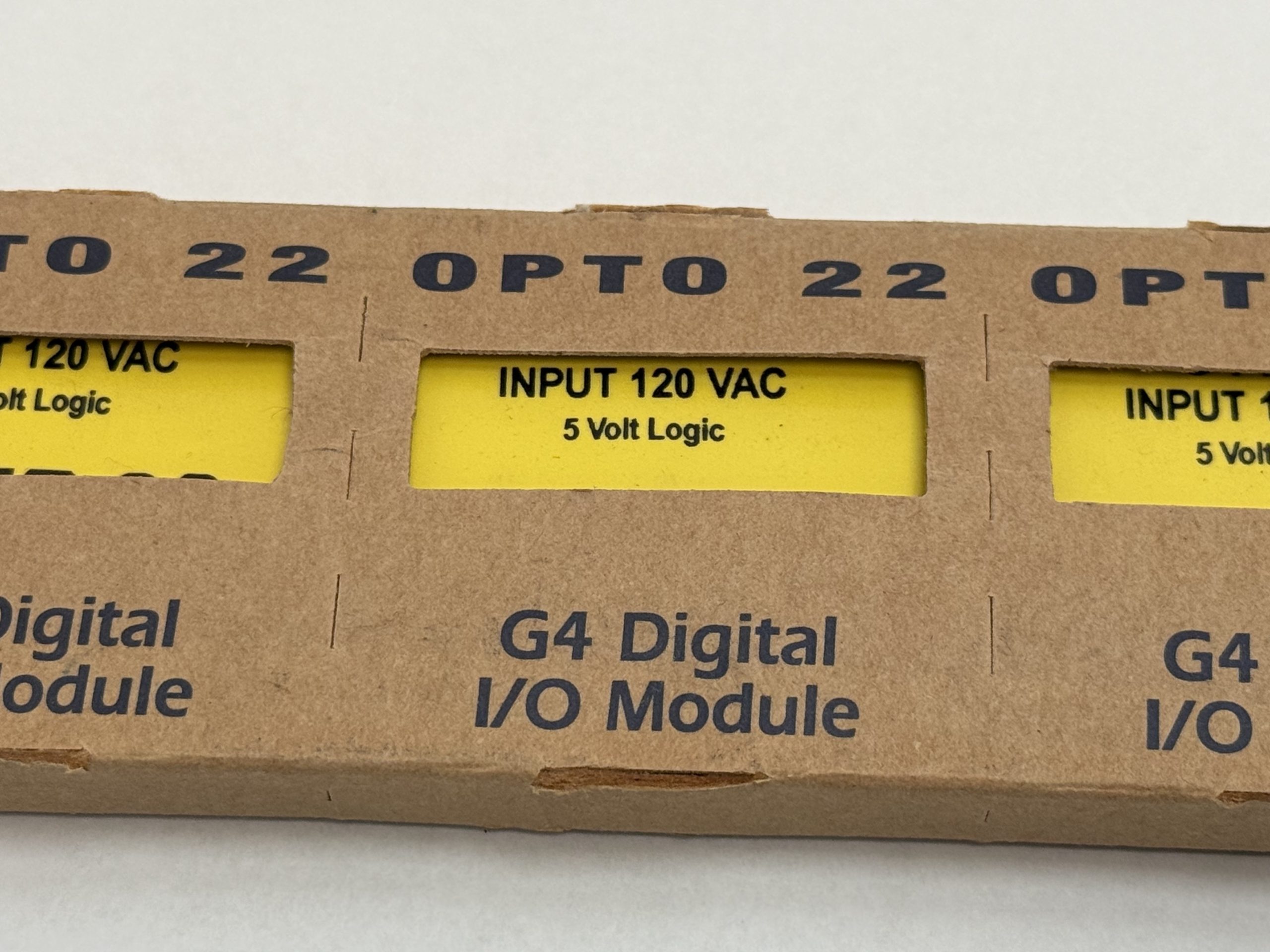

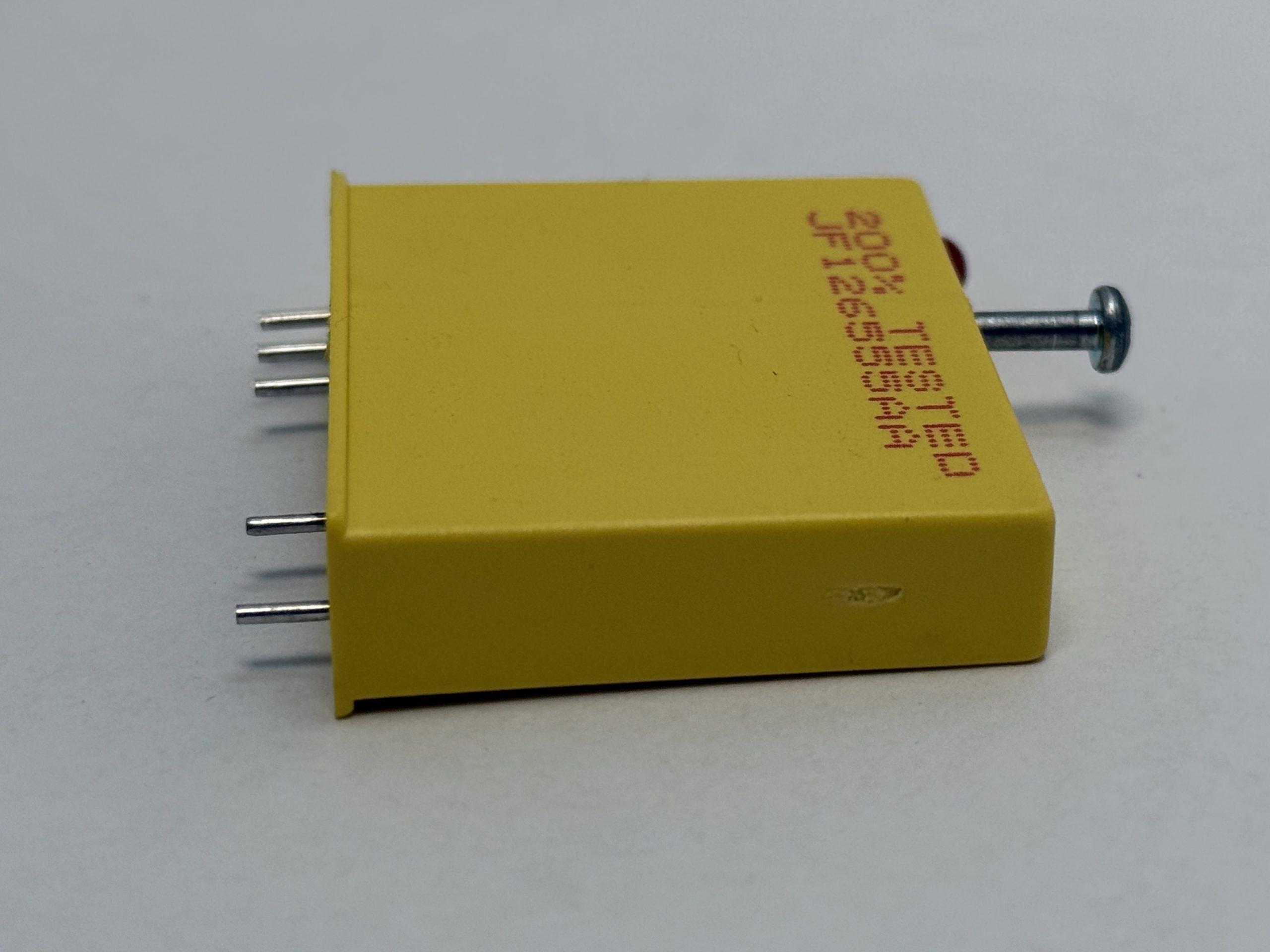

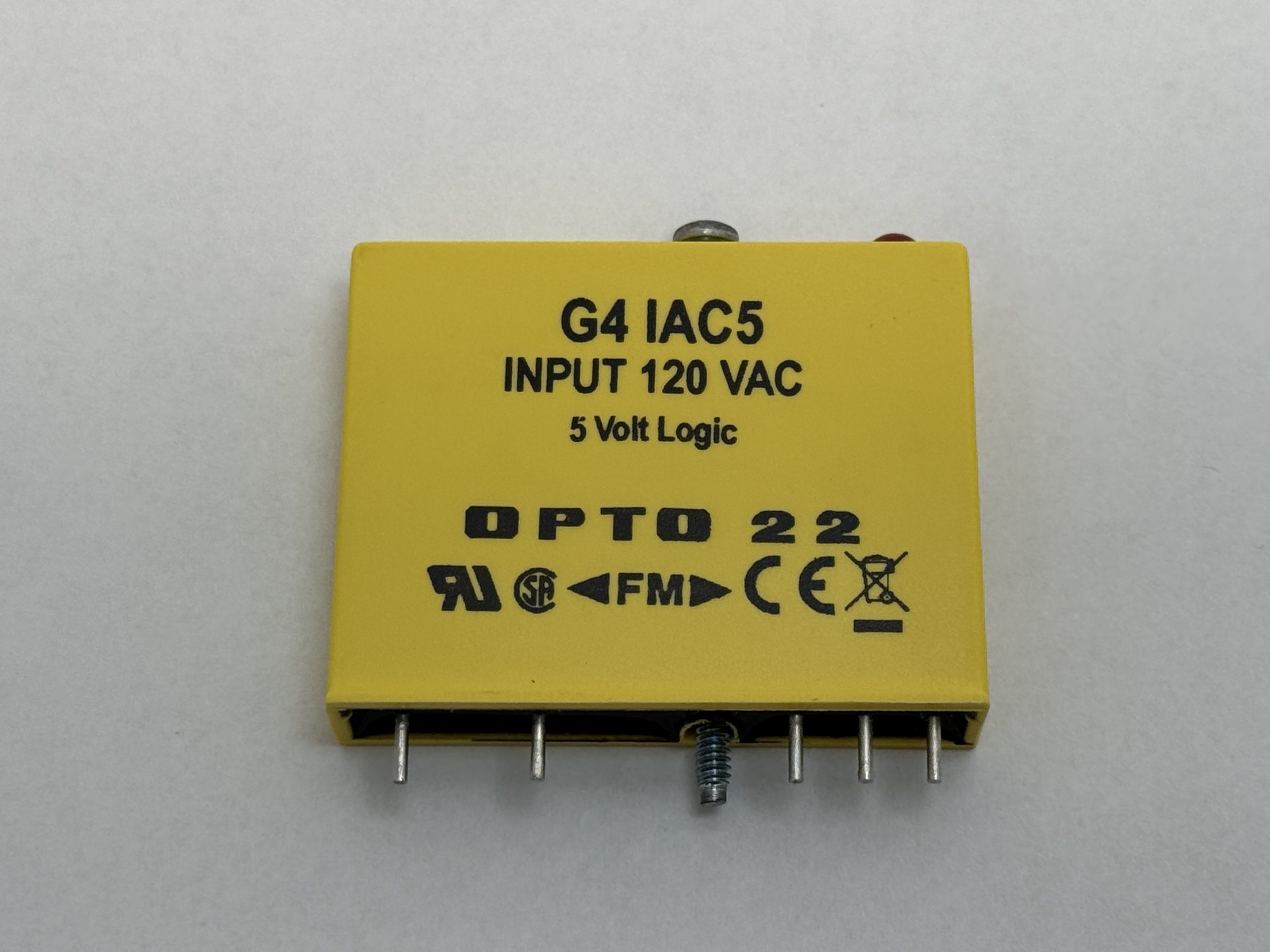

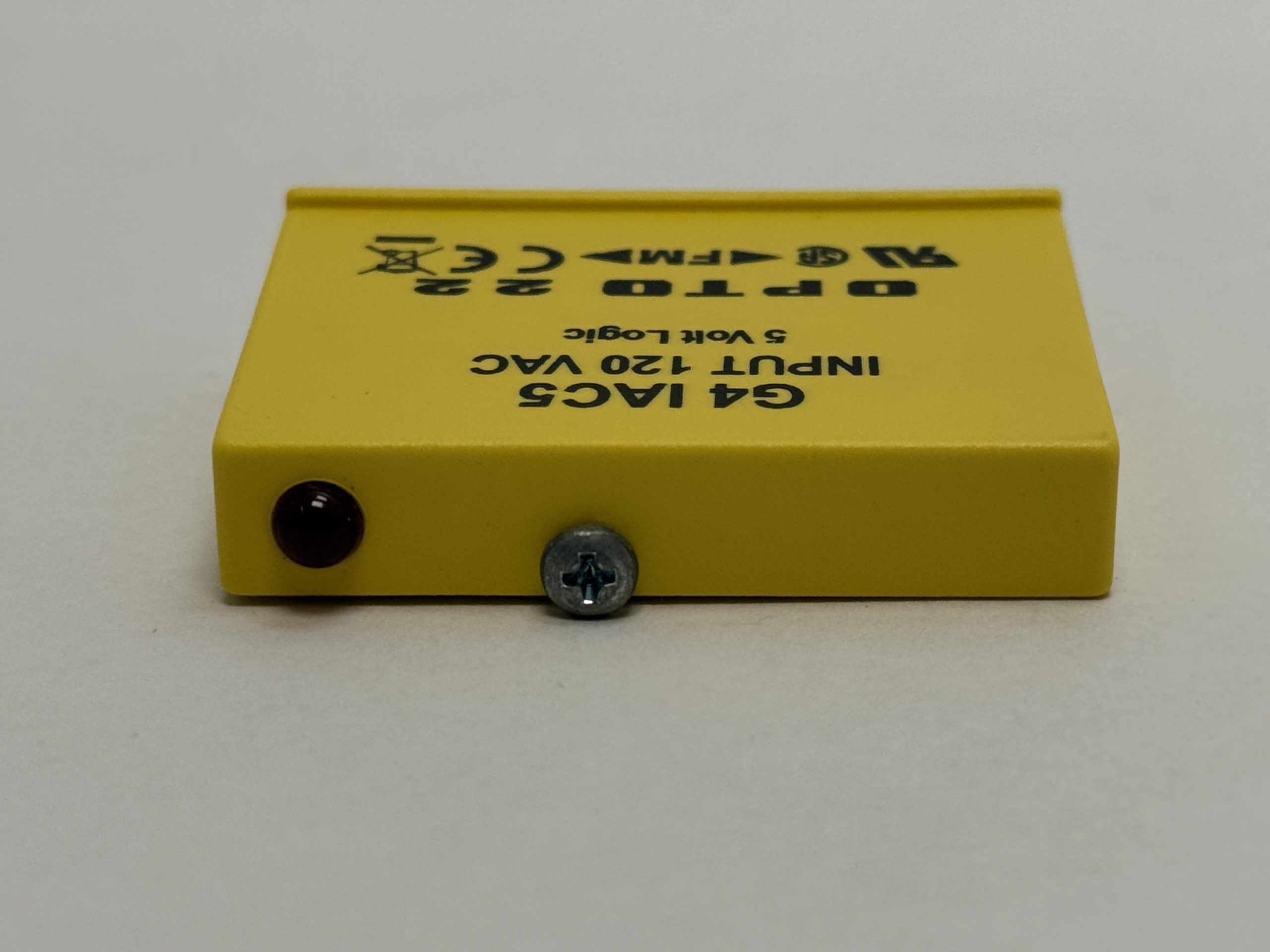

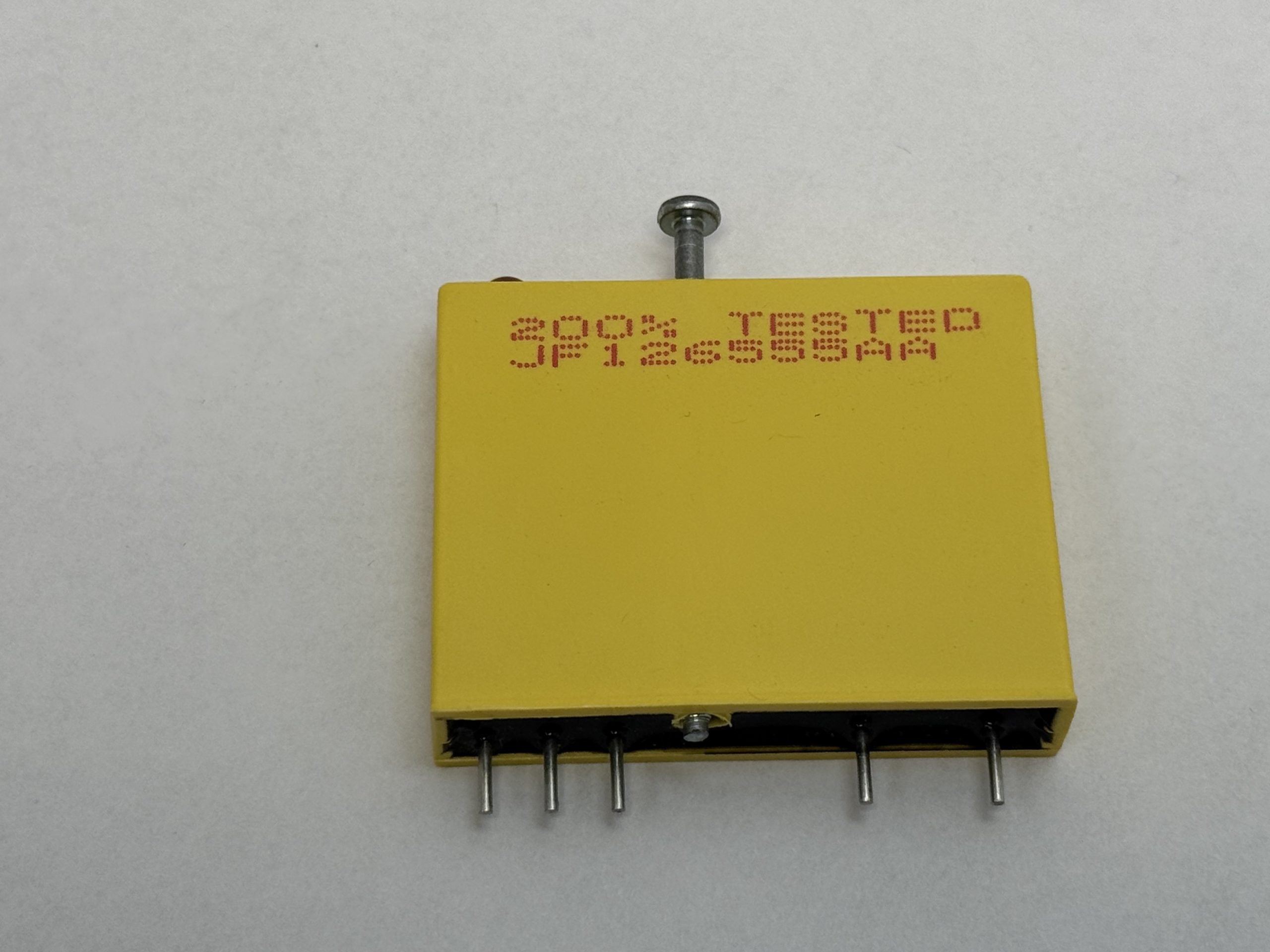

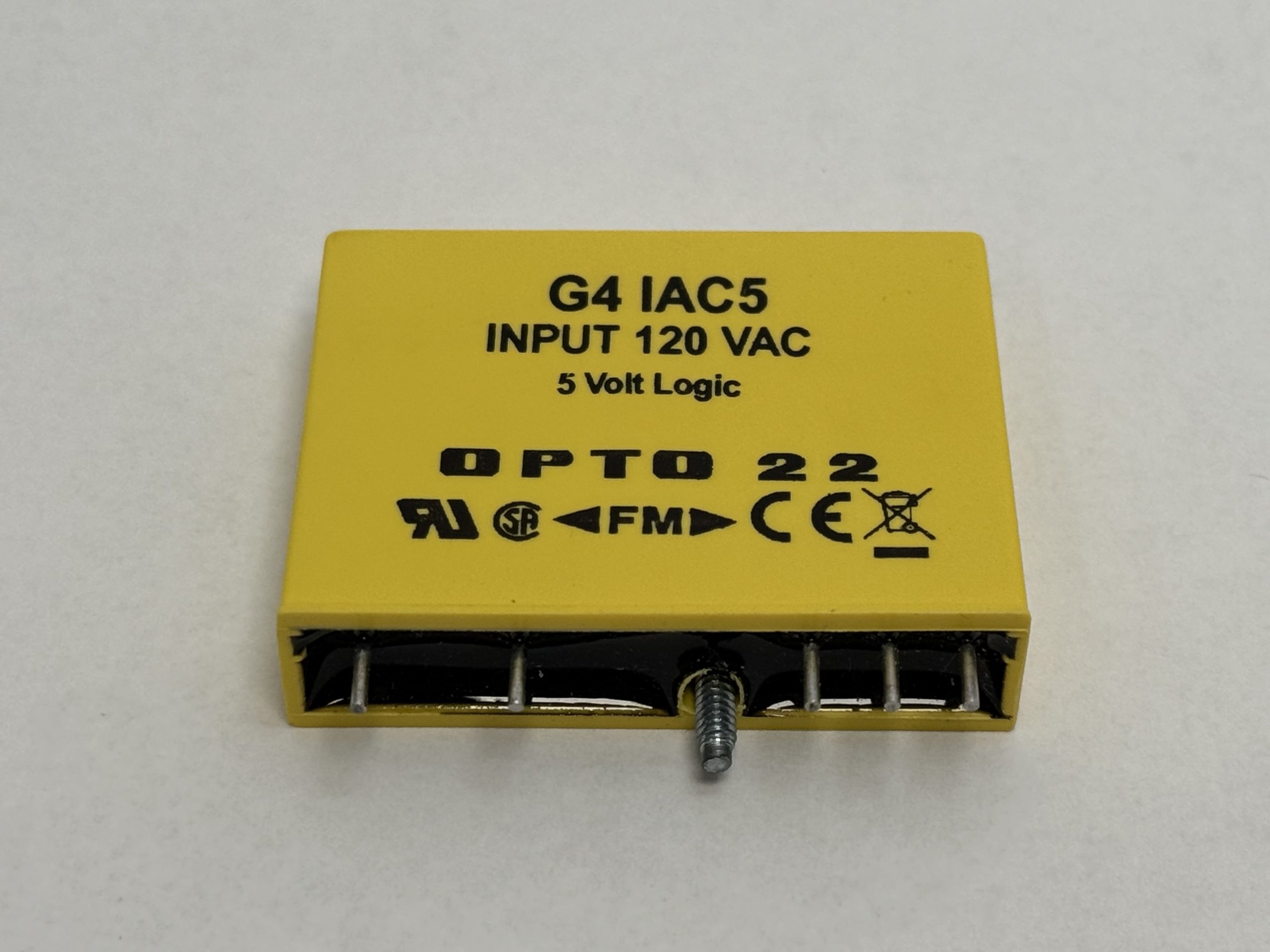

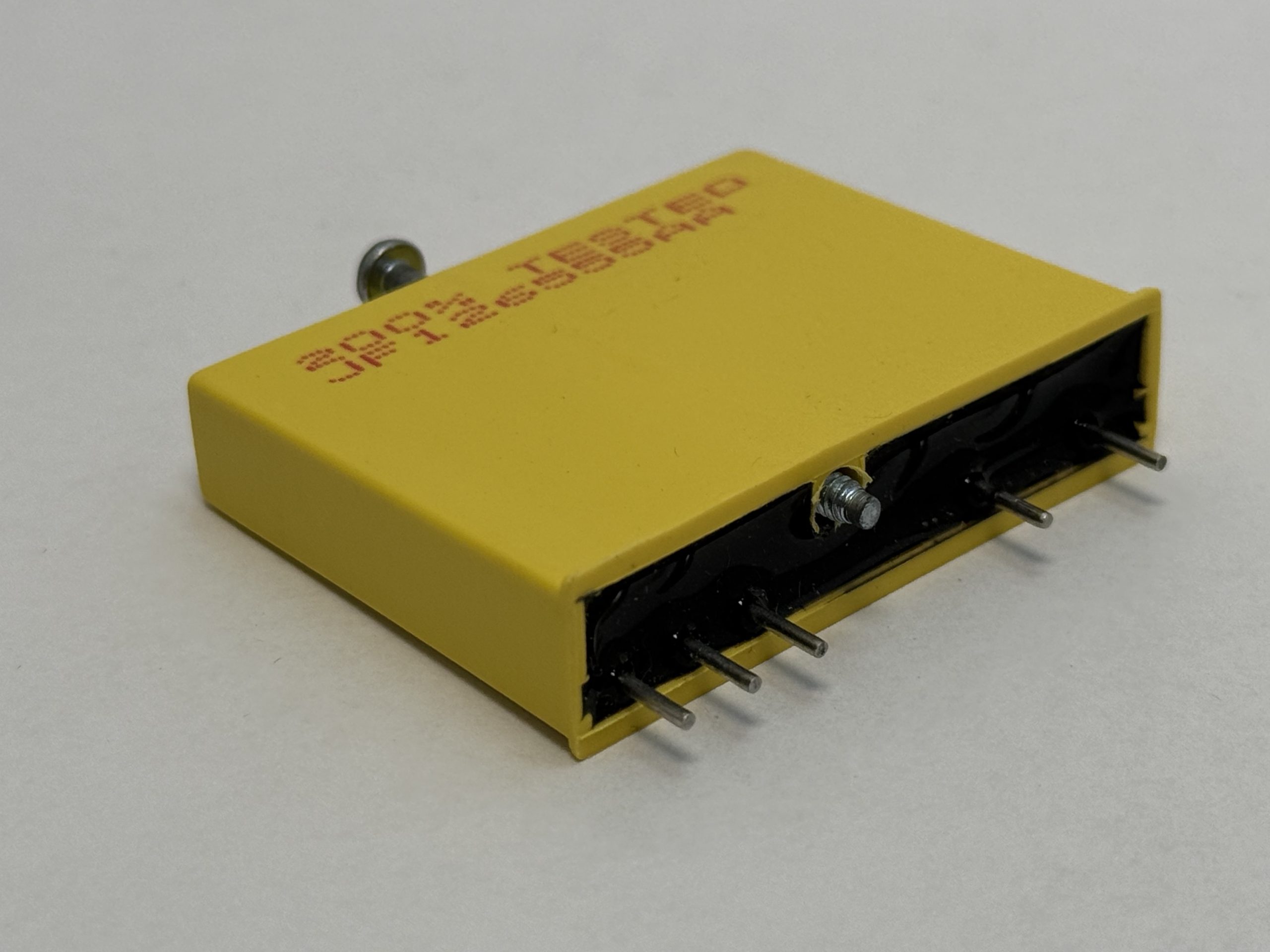

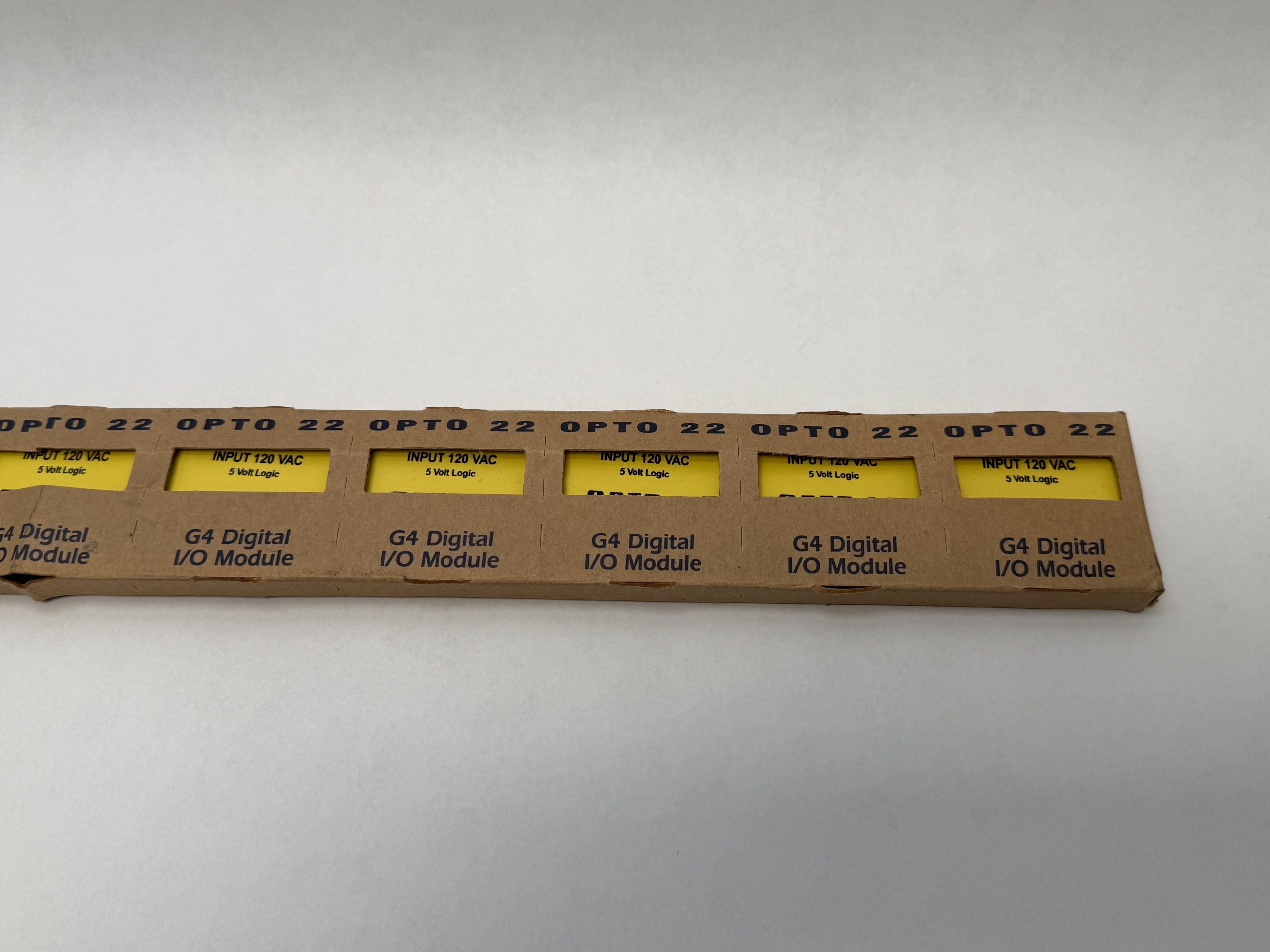

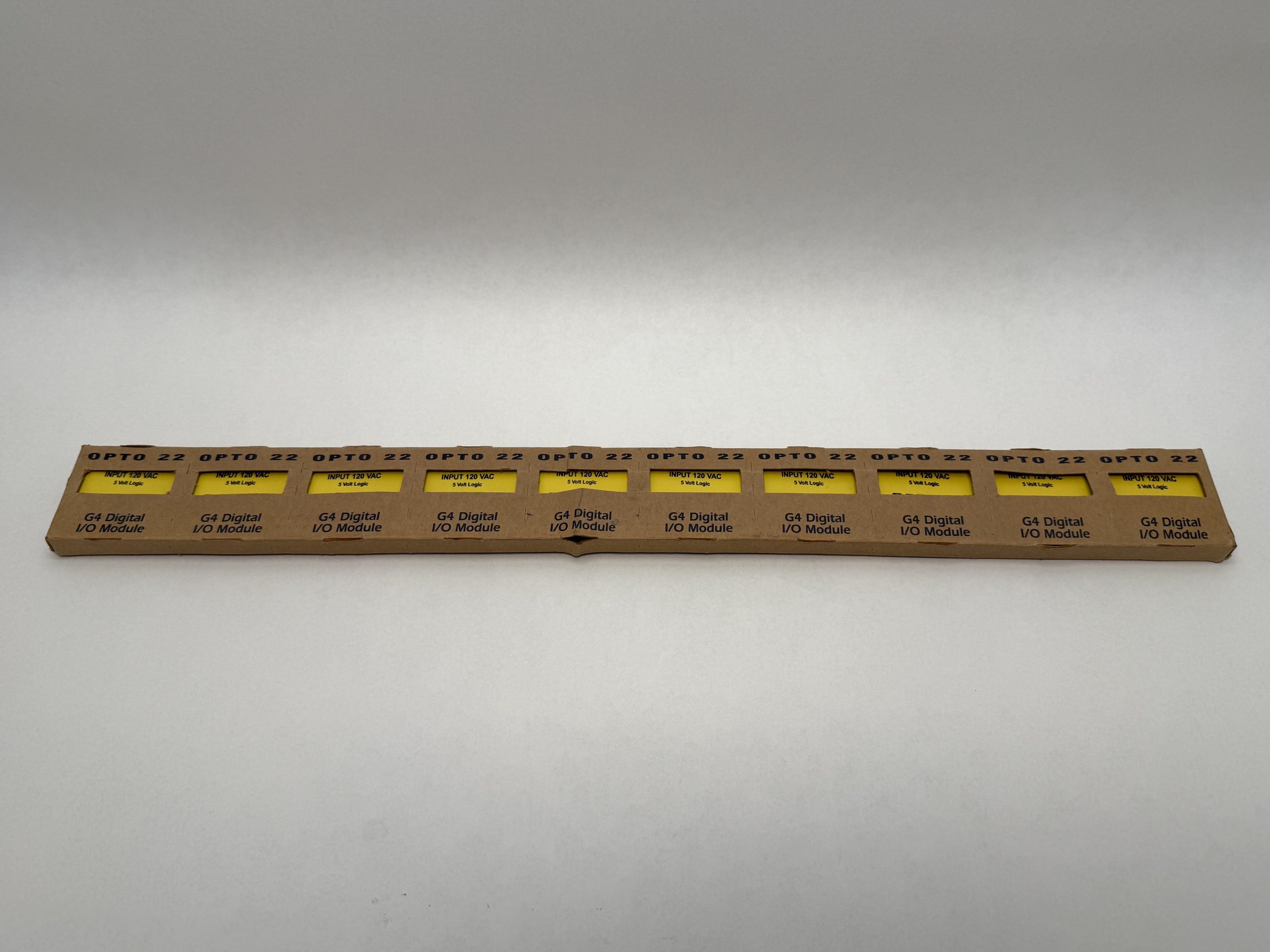

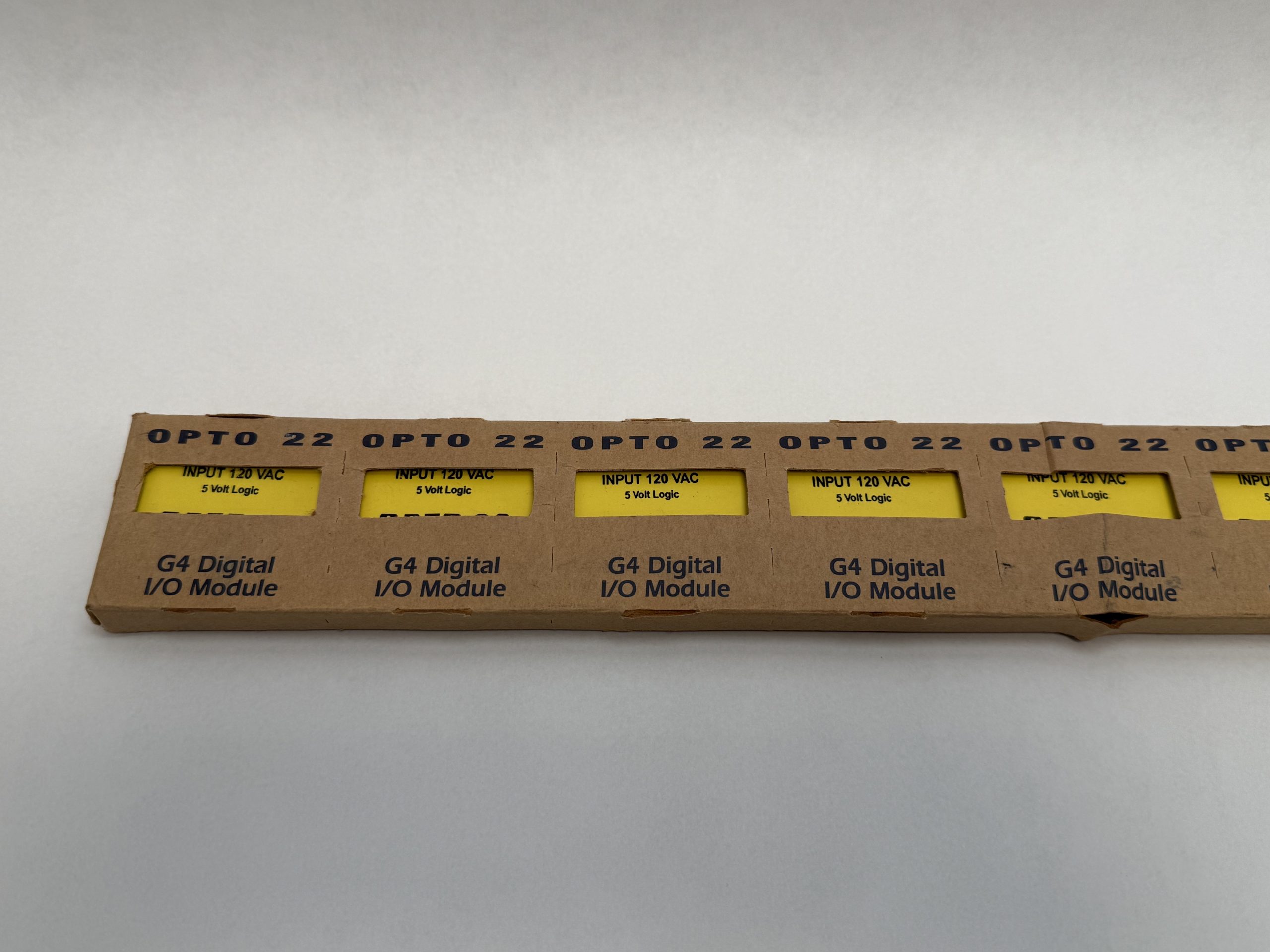

A lot of 10 Opto 22 G4IAC5 G4 digital AC input modules, in the original Opto 22 cardboard strip packaging. Each module is labeled G4 IAC5, INPUT 120 VAC, 5 Volt Logic, and has a status LED.

How the part number breaks down:

• G4: Opto 22 G4 digital I/O module family
• I: input module
• AC: AC input
• 5: 5 VDC logic
• Also written as G4 IAC5, G4-IAC5

Item Specifications:

• Type: G4 digital AC input module
• Input voltage range: 90-140 VAC/VDC (120 VAC nominal)
• Input current at max line: 5 mA
• Logic supply: 5 VDC nominal (4.5-6 VDC)
• Output current (sinking): 50 mA
• Isolation, input to output: 4,000 Vrms
• Turn-on / turn-off time: 20 ms
• Operating temperature: -30 to +70 °C
• Markings: UL, CSA, FM, CE
• Quantity: 10 modules
