Analog input and output printed wiring board for the DCP 7700 ramp/soak programmer-controller, carrying analog input conditioning and analog retransmission output.
List Price
$472.73
3 in stock
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Honeywell |
|---|---|
| MPN | 30735680-501 |
| Condition | New |
|---|---|
| Type | PLC Input/output Module |
| Industry Terms | PWB, PWA, printed wiring assembly, analog I/O card, analog board, retransmission output card, programmer controller board |
| Common Misspellings | 30735860-501; 3073568-501; Honywell 30735680-501 |
| Application Types | Furnace and oven ramp/soak control, autoclaves, environmental chambers, heat-treat recipe control |
| Analog Digital | Analog |
| Controller Platform | Honeywell DCP 7700 Digital Control Programmer |
| Mpn Variants | 30735680-501; 30735680501; 30735680 501; 30735680501R; 3073568-0501 |
| Manufacturer Status | Obsolete - DCP 7700 line discontinued; superseded instrument families are DCP 551 / DCP 550 and Honeywell UDC series, which do not accept this board |
| Compatible With Replaces | Honeywell DCP 7700 / DCP7700 Digital Control Programmer chassis |
| Part Number | 30735680-501 |
| Mounting Type | Internal plug-in printed wiring board, DCP 7700 chassis |

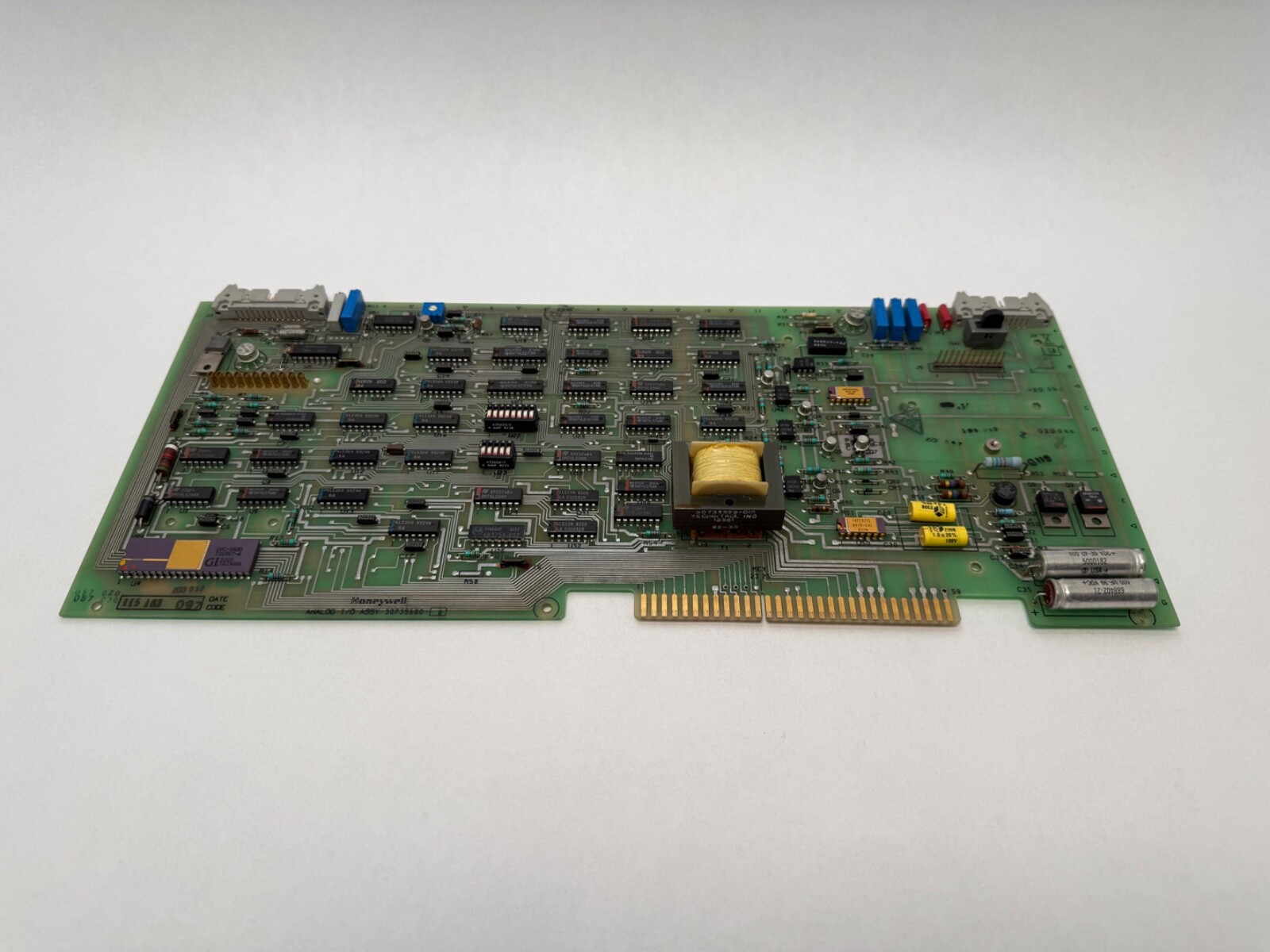

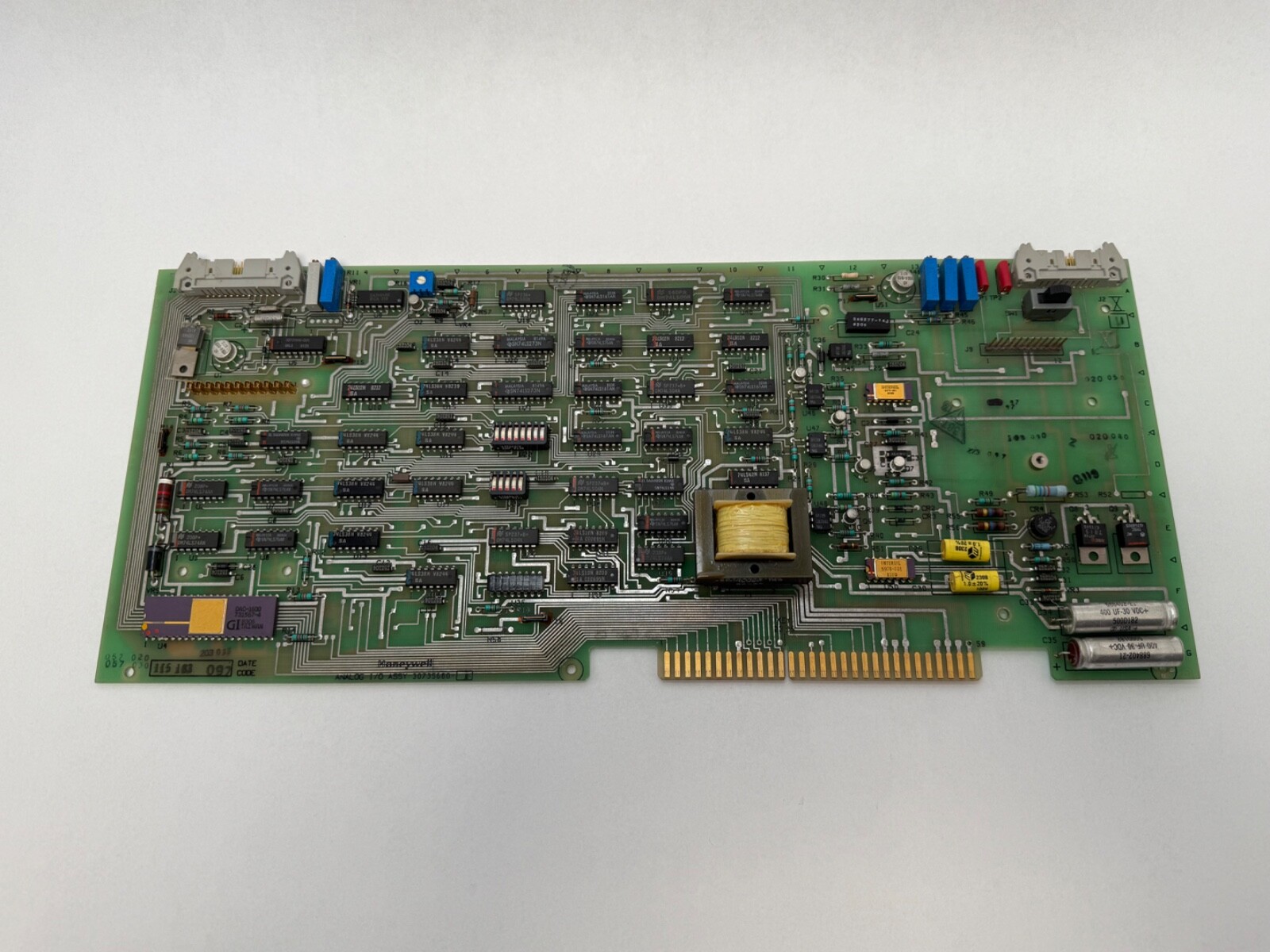

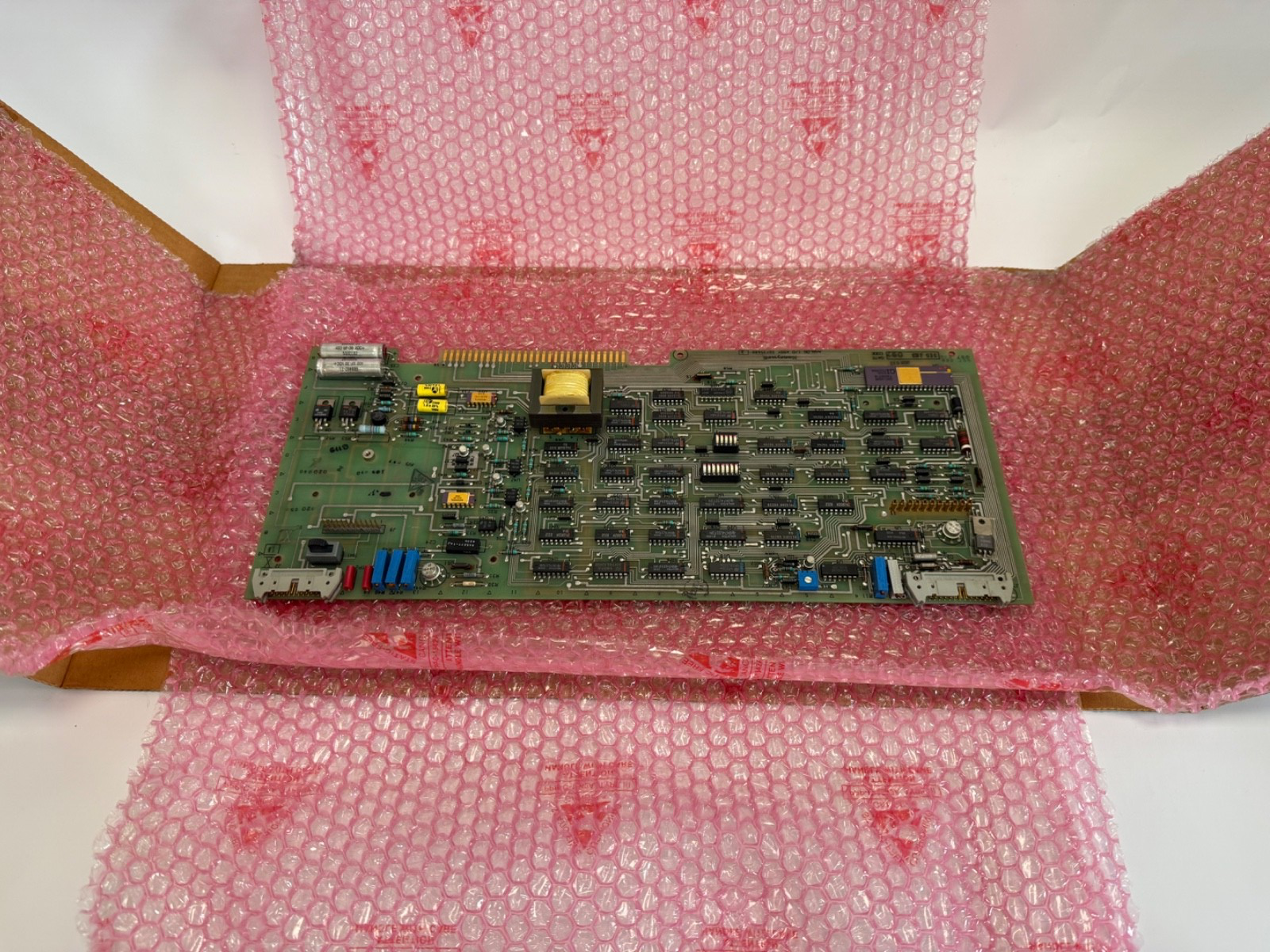

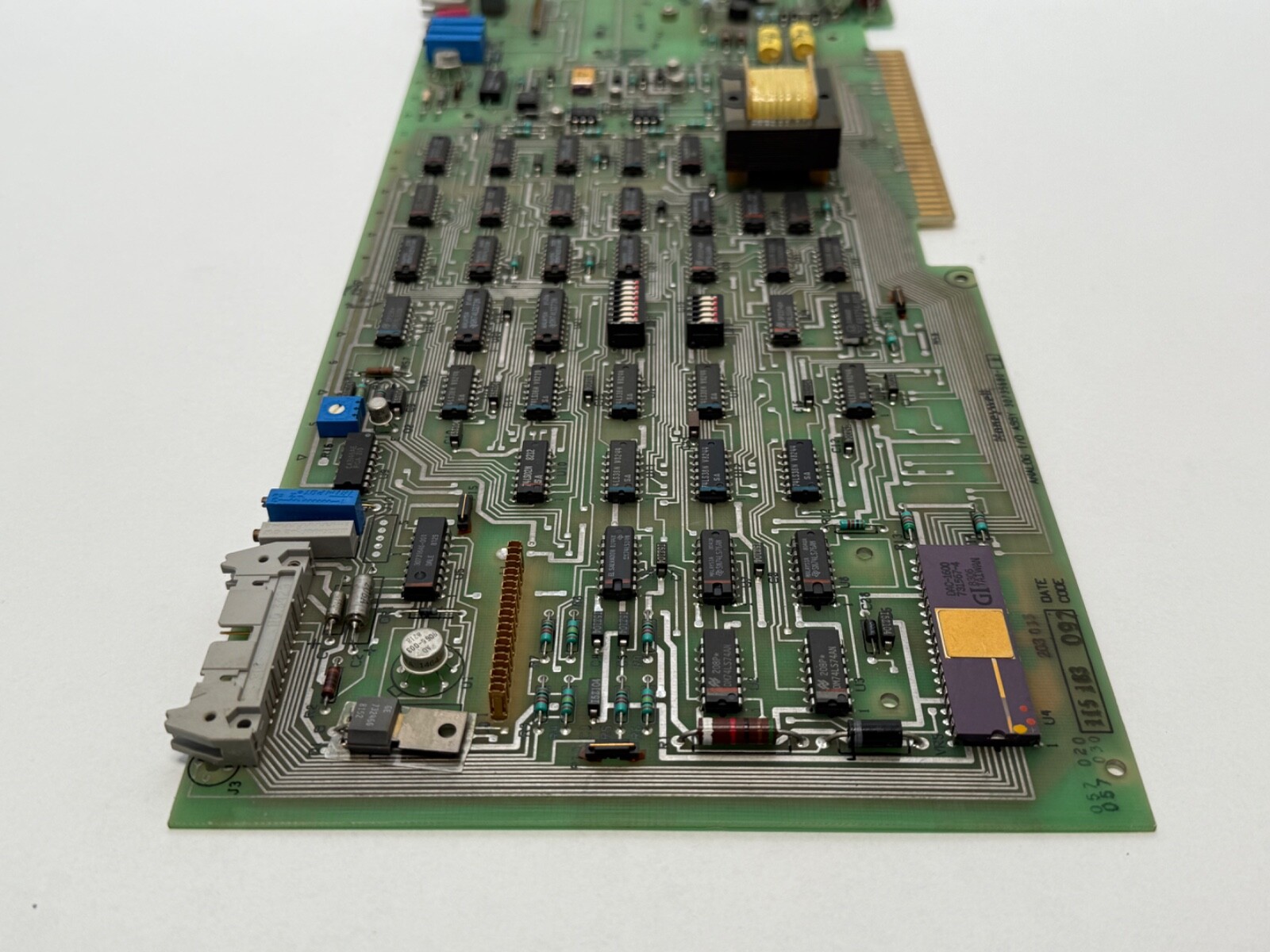

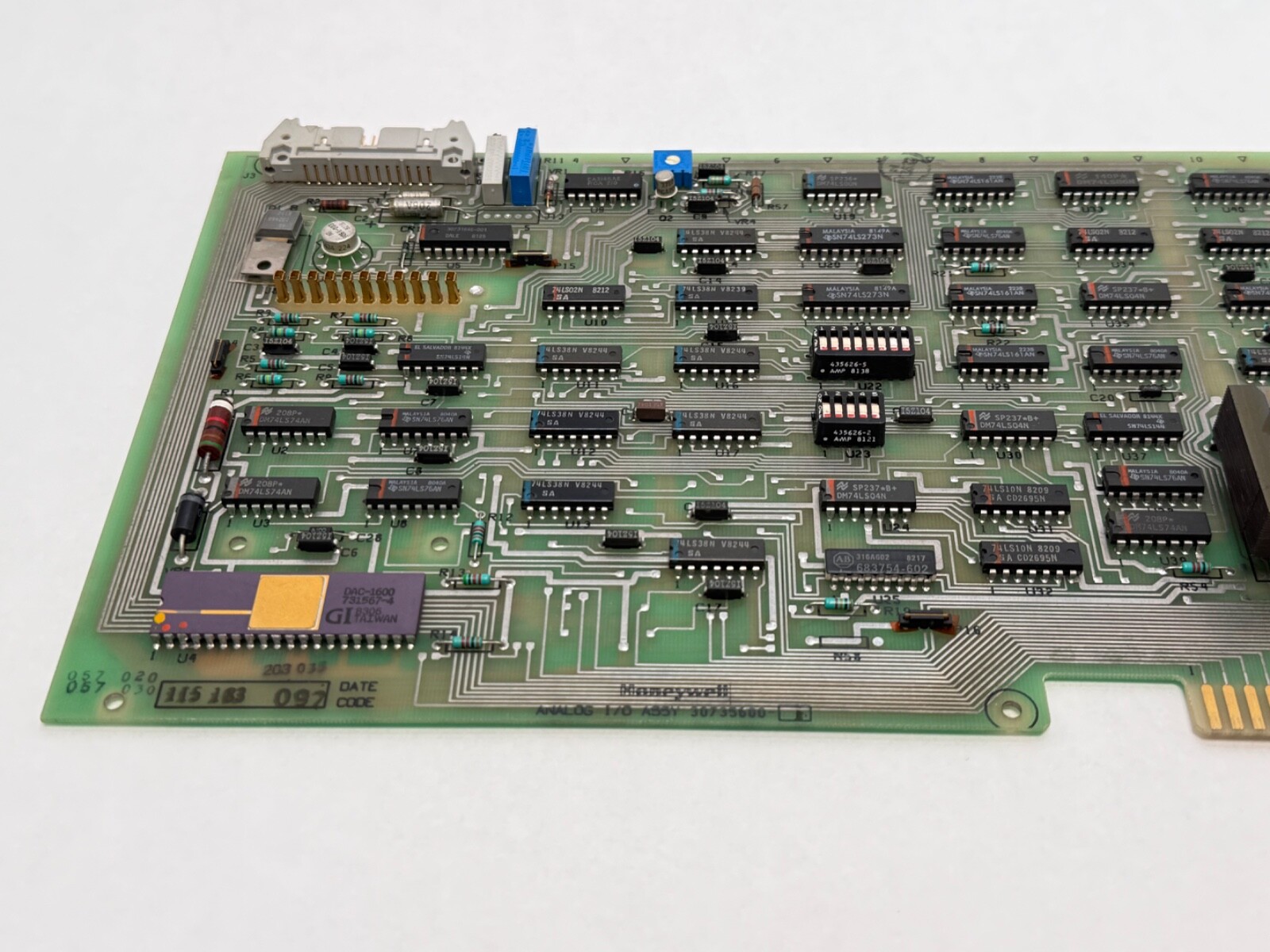

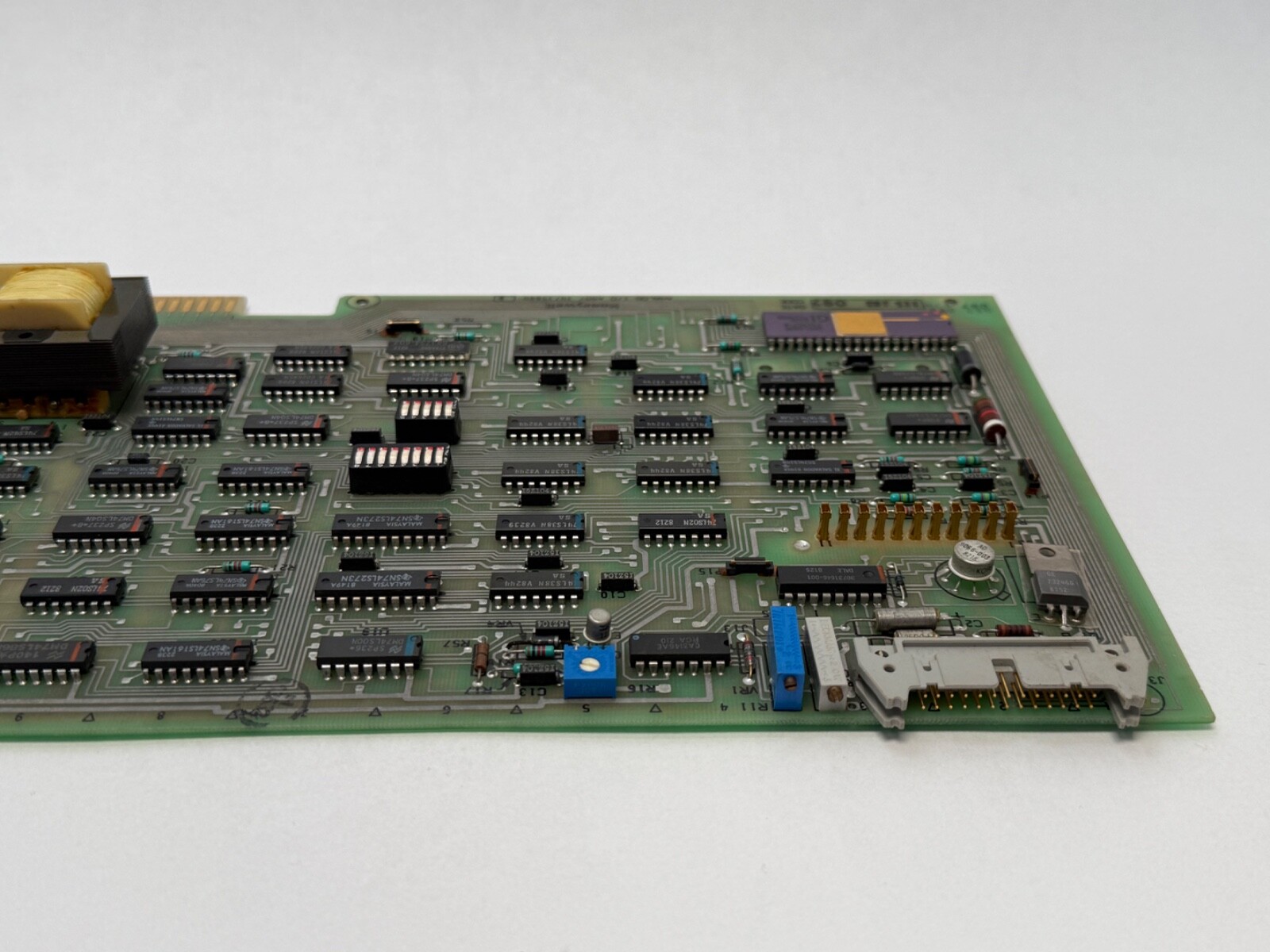

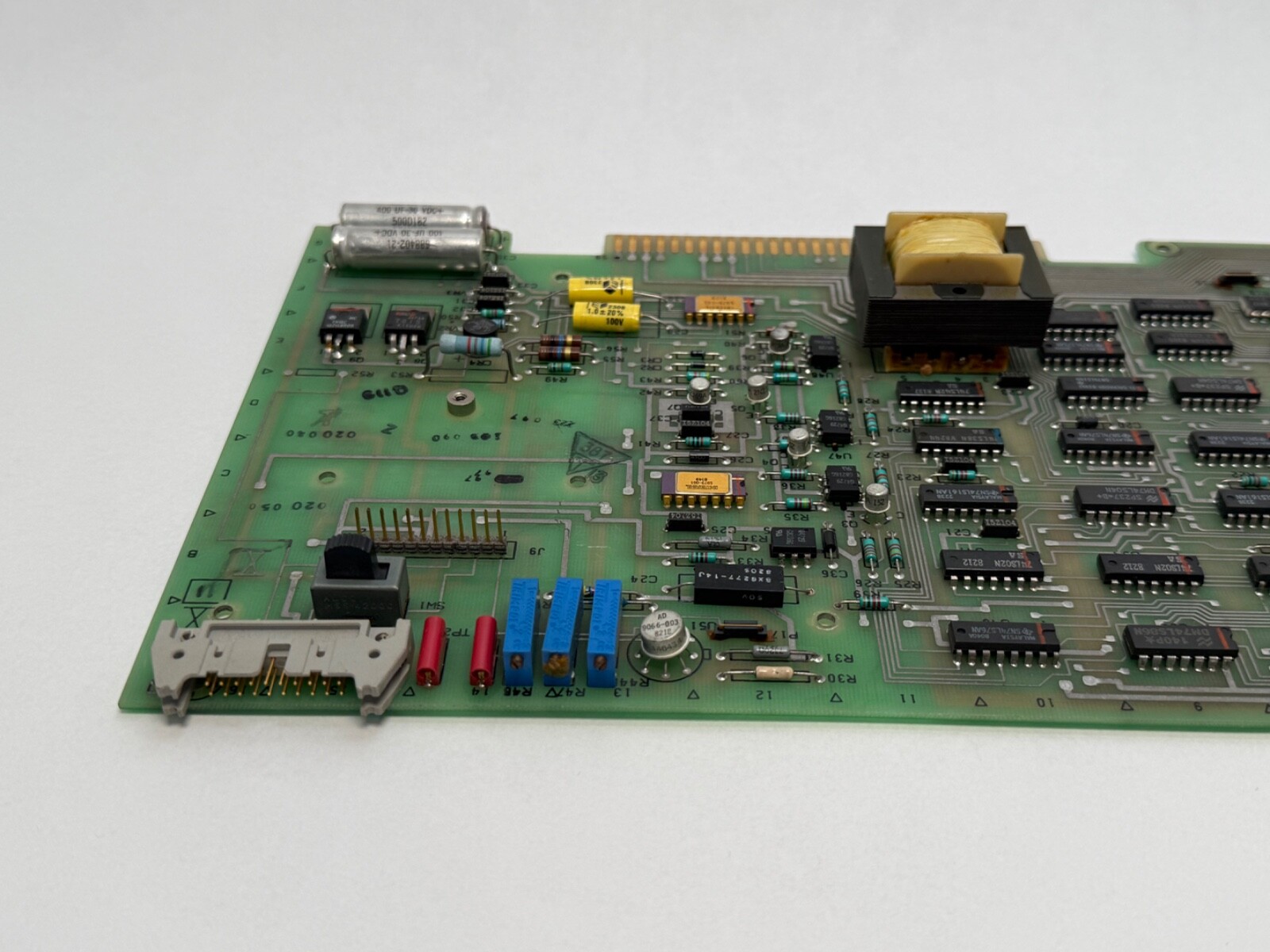

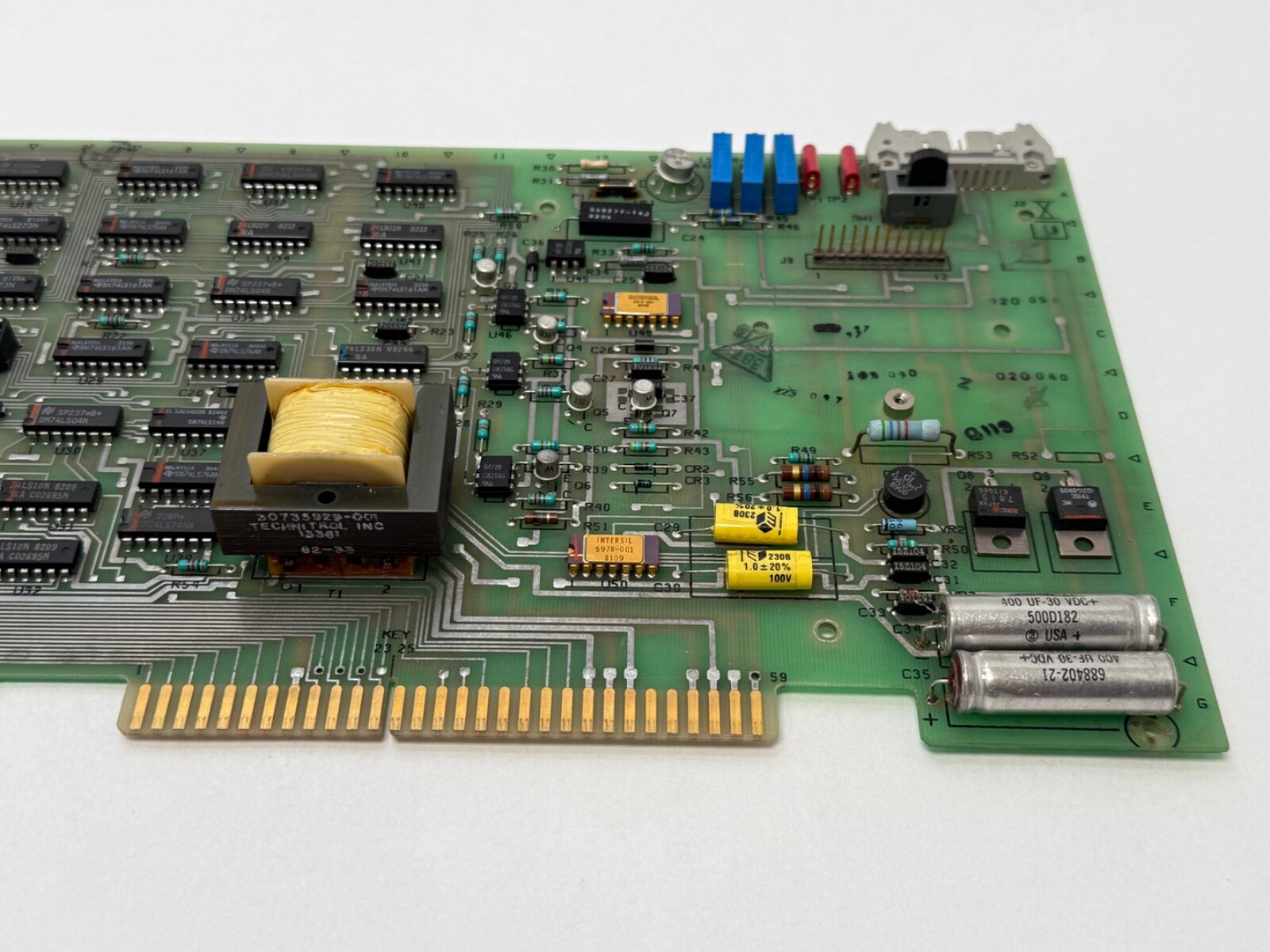

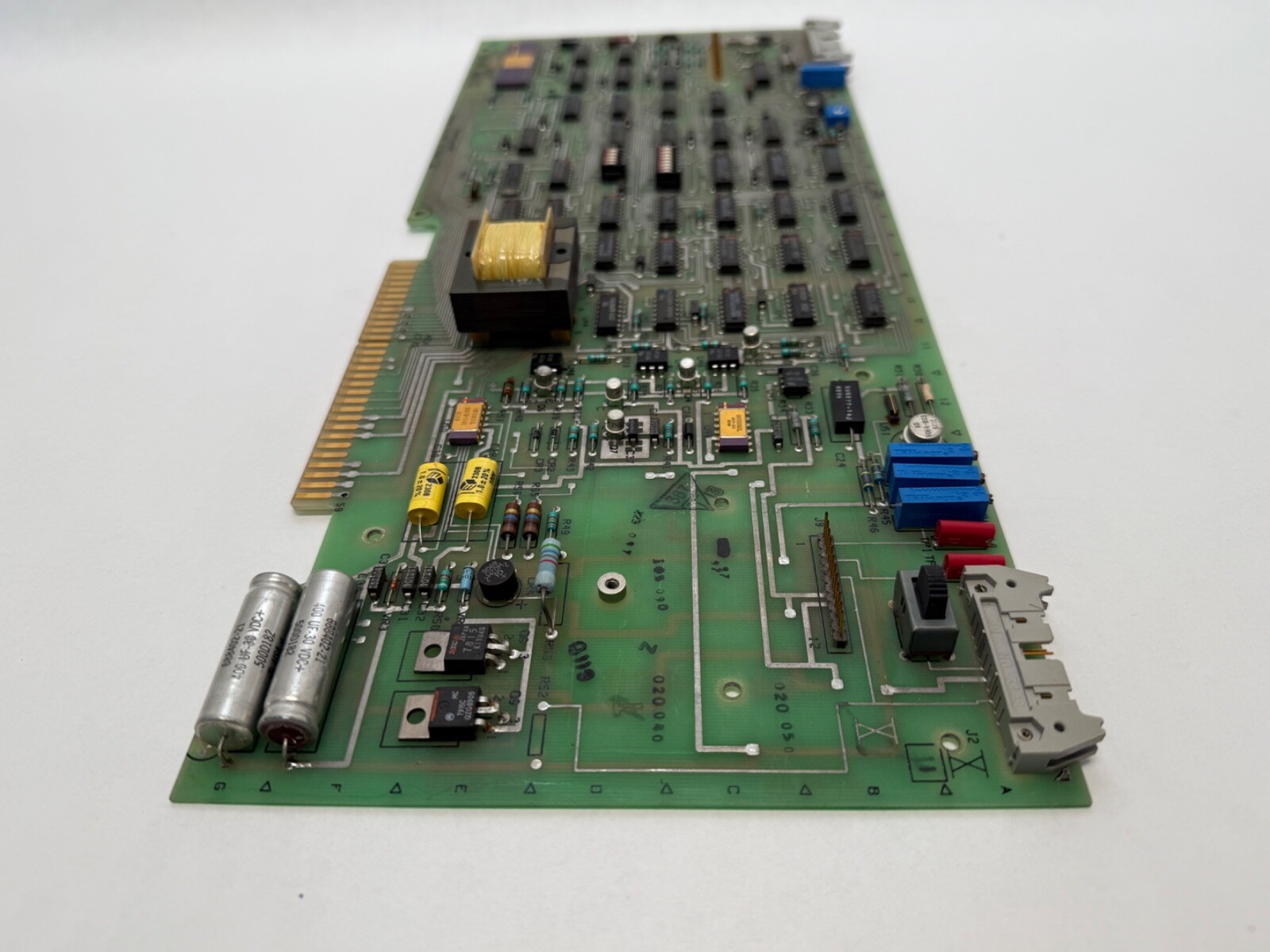

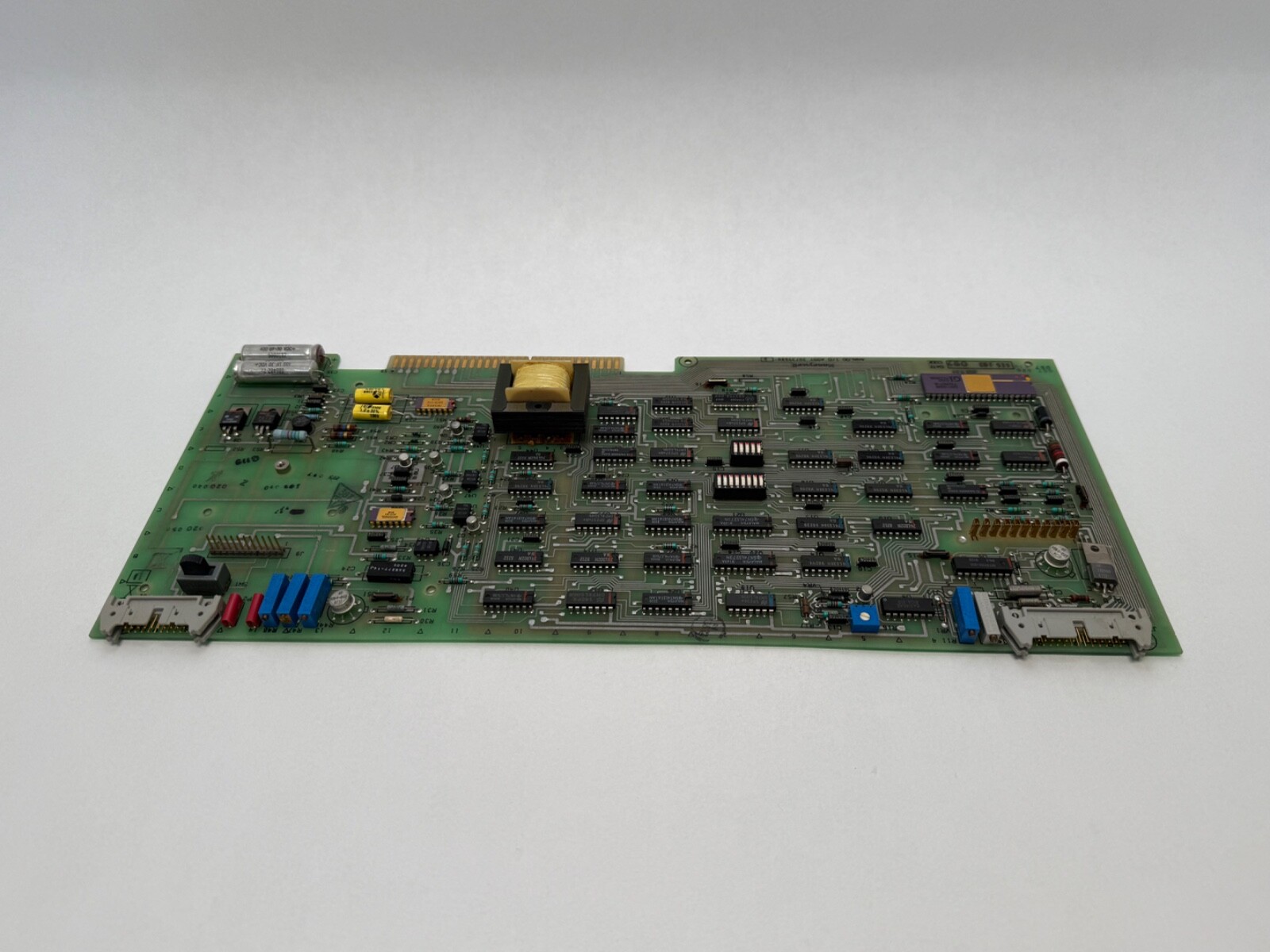

Honeywell 30735680-501 analog I/O printed wiring board, the internal analog card from a DCP 7700 Digital Control Programmer. It carries the instrument’s analog input conditioning and its analog retransmission and control output stage. Board-level spare that fits inside a DCP 7700 chassis.

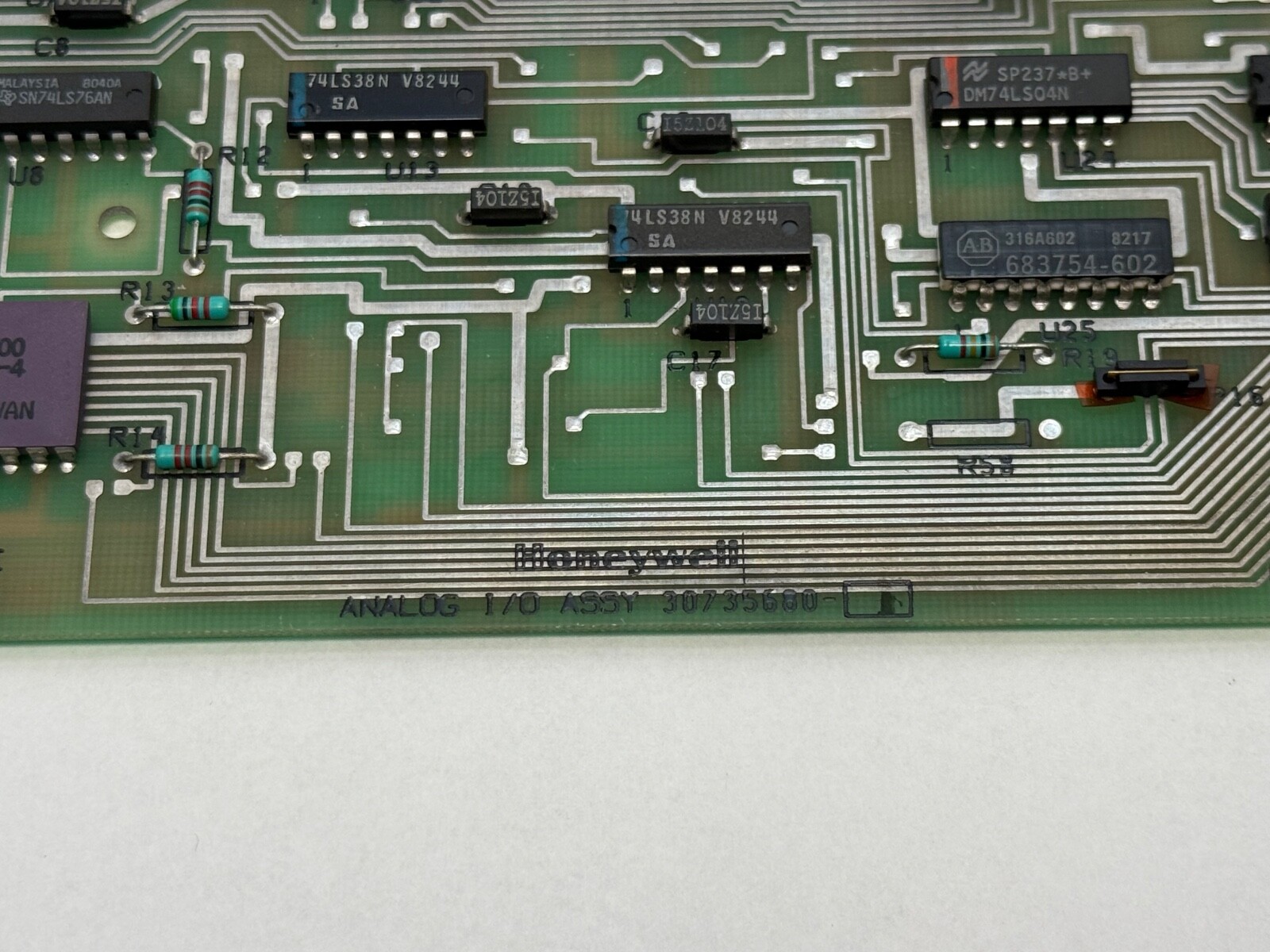

Assembly Number: 30735680, the Honeywell drawing and assembly number for the analog I/O board.
Build Variant Suffix: -501, Honeywell’s -5xx range for the released production build of a printed wiring assembly.
PWB / PWA: Honeywell’s terms for printed wiring board and printed wiring assembly. Boards are catalogued under both.
The DCP 7700 is a ramp/soak setpoint programmer used on furnaces, ovens, autoclaves and environmental chambers, where a recipe of temperature segments runs unattended. Replacing the card retains the existing recipe programming, tag number and panel cutout.
Unit Quantity: one board.
Brand: Honeywell
Part Number: 30735680-501
Series: DCP 7700 Digital Control Programmer
Signal Type: Analog
Mounting Type: Internal plug-in printed wiring board, DCP 7700 chassis
Controller Platform: Honeywell DCP 7700 Digital Control Programmer
Country of Origin: United States
Manufacturer Status: Obsolete, DCP 7700 line discontinued. Superseded instrument families are the DCP 551 / DCP 550 range and the Honeywell UDC series.
Compatible With: Honeywell DCP 7700 / DCP7700 Digital Control Programmer chassis
MPN Variants: 30735680-501; 30735680501; 30735680 501; 30735680501R; 3073568-0501
PWB, PWA, printed wiring assembly, analog I/O card, analog board, retransmission output card, programmer controller board.
