FANUCA16B-2200-0510/15CSeries 15 Graphic Board, Edition 08C, Colour CRT Video and Toolpath Graphics Card for 15M/15T/15P/15G

Product Description

What this part is

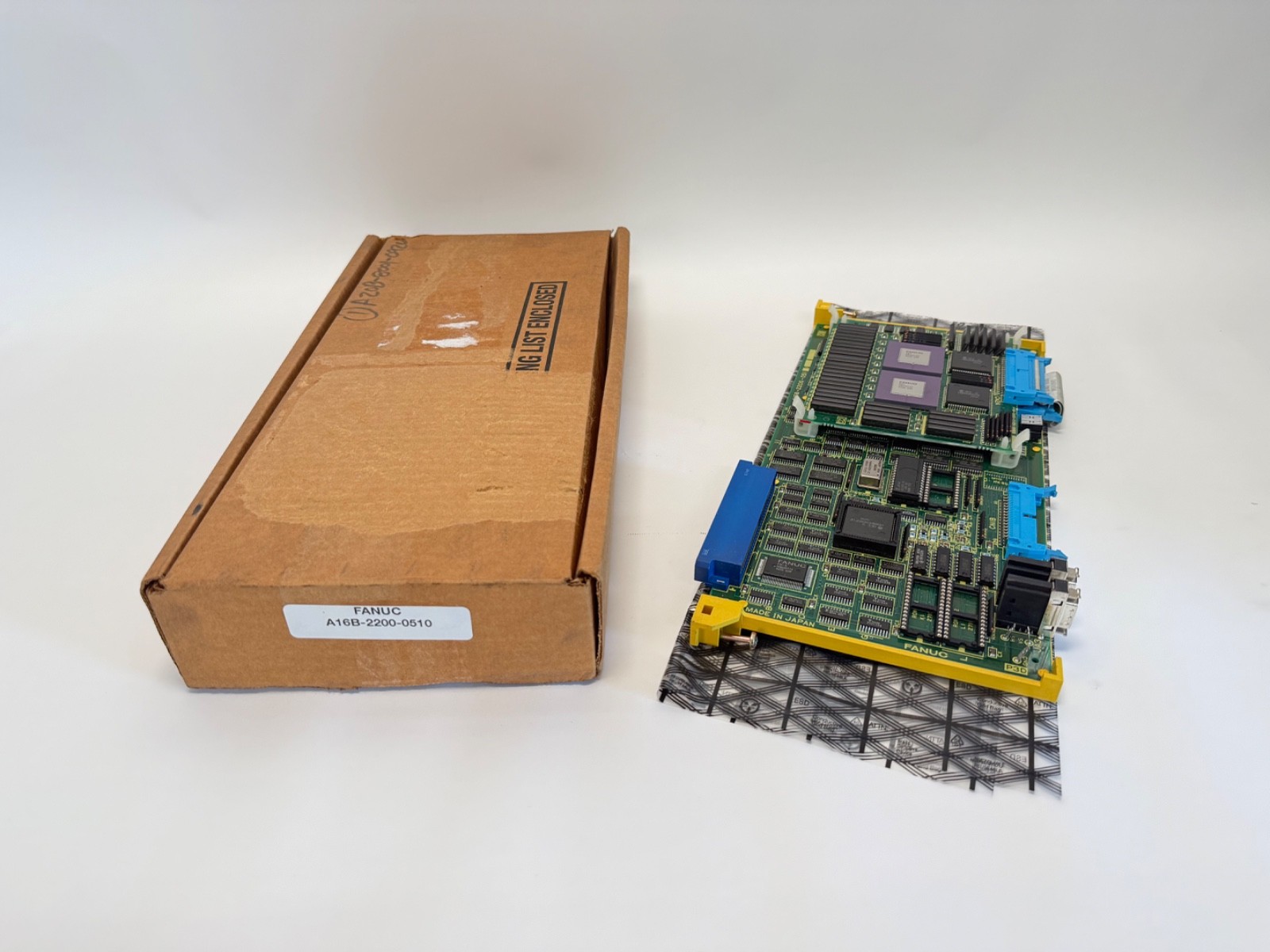

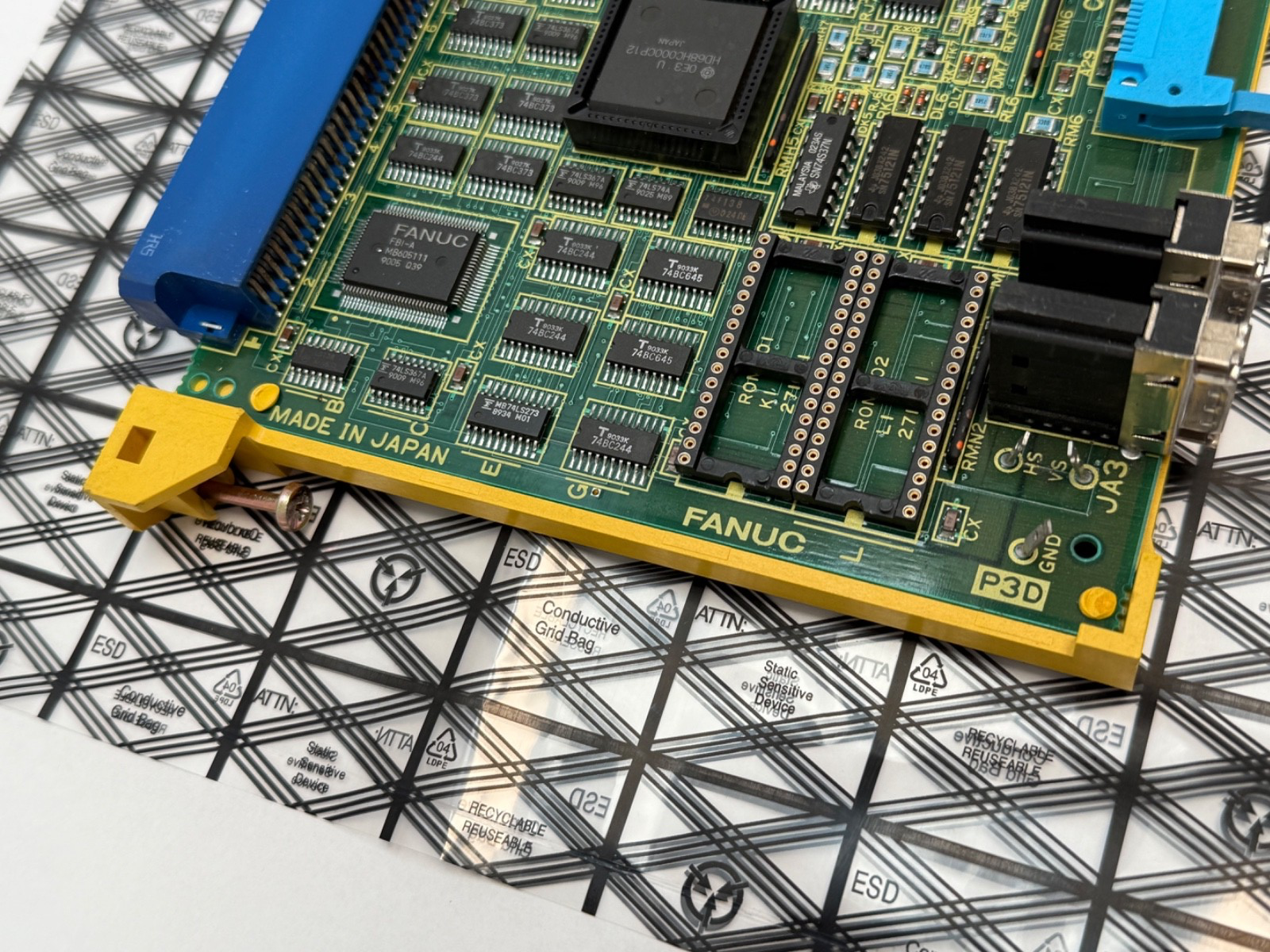

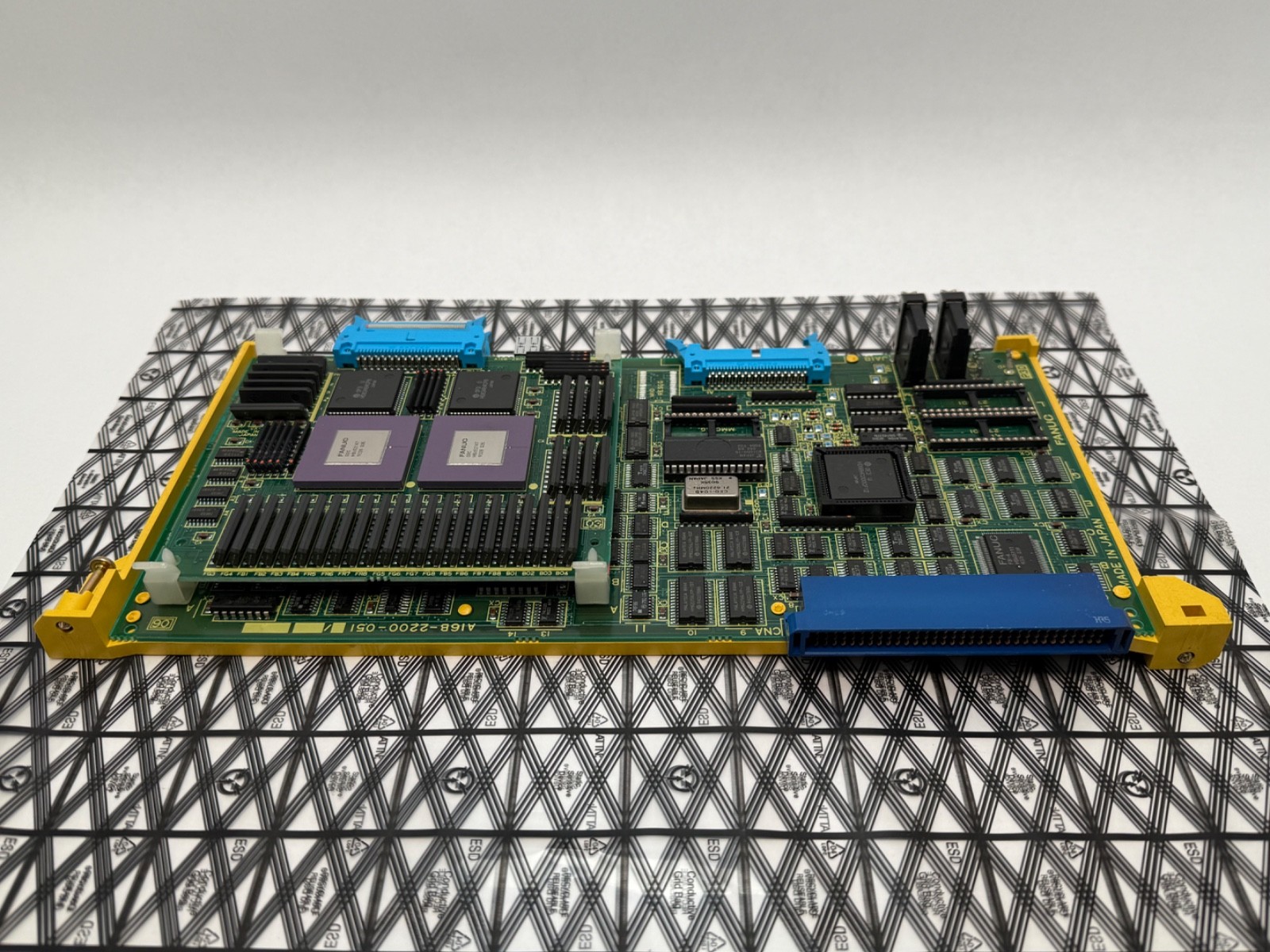

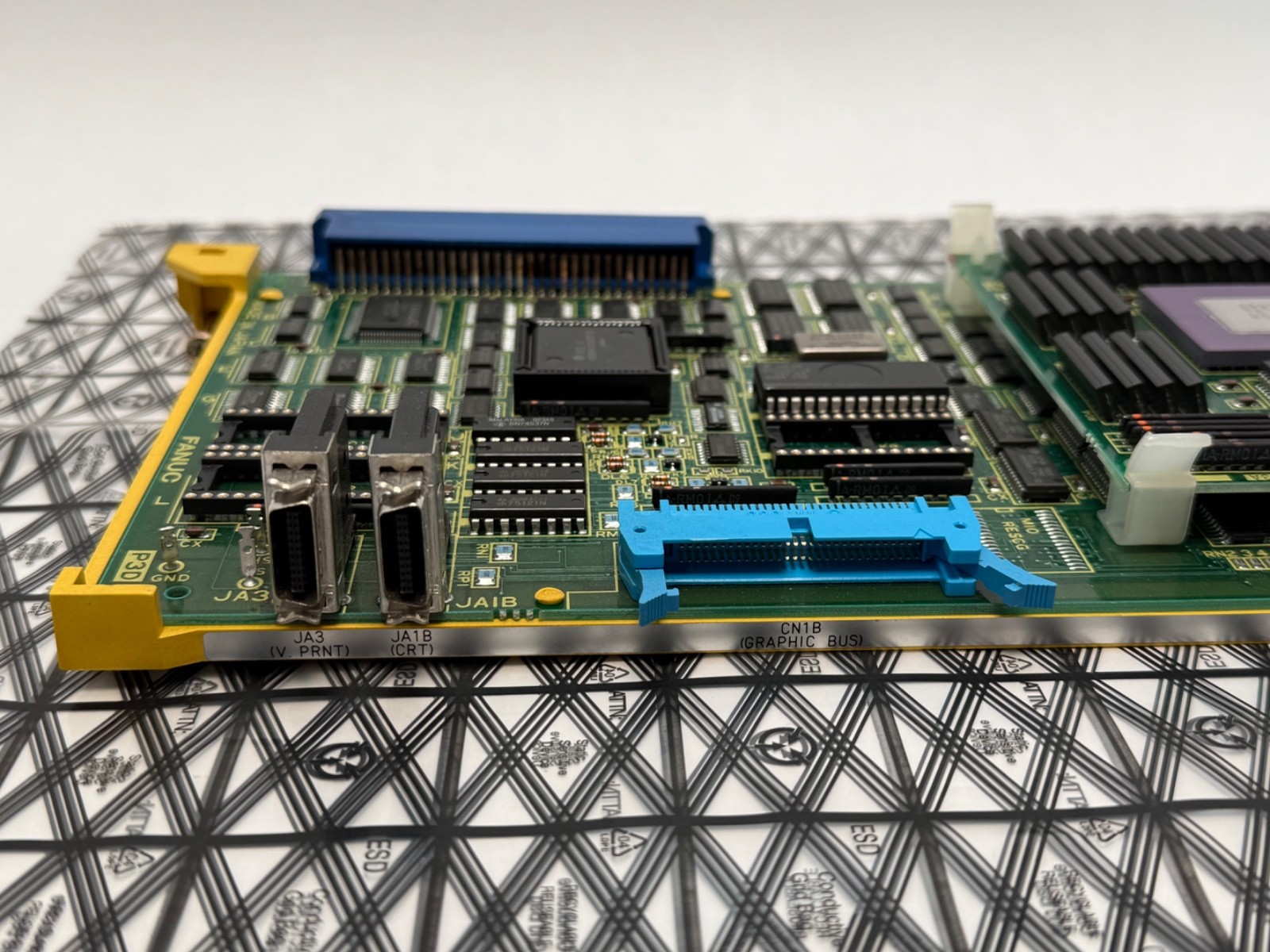

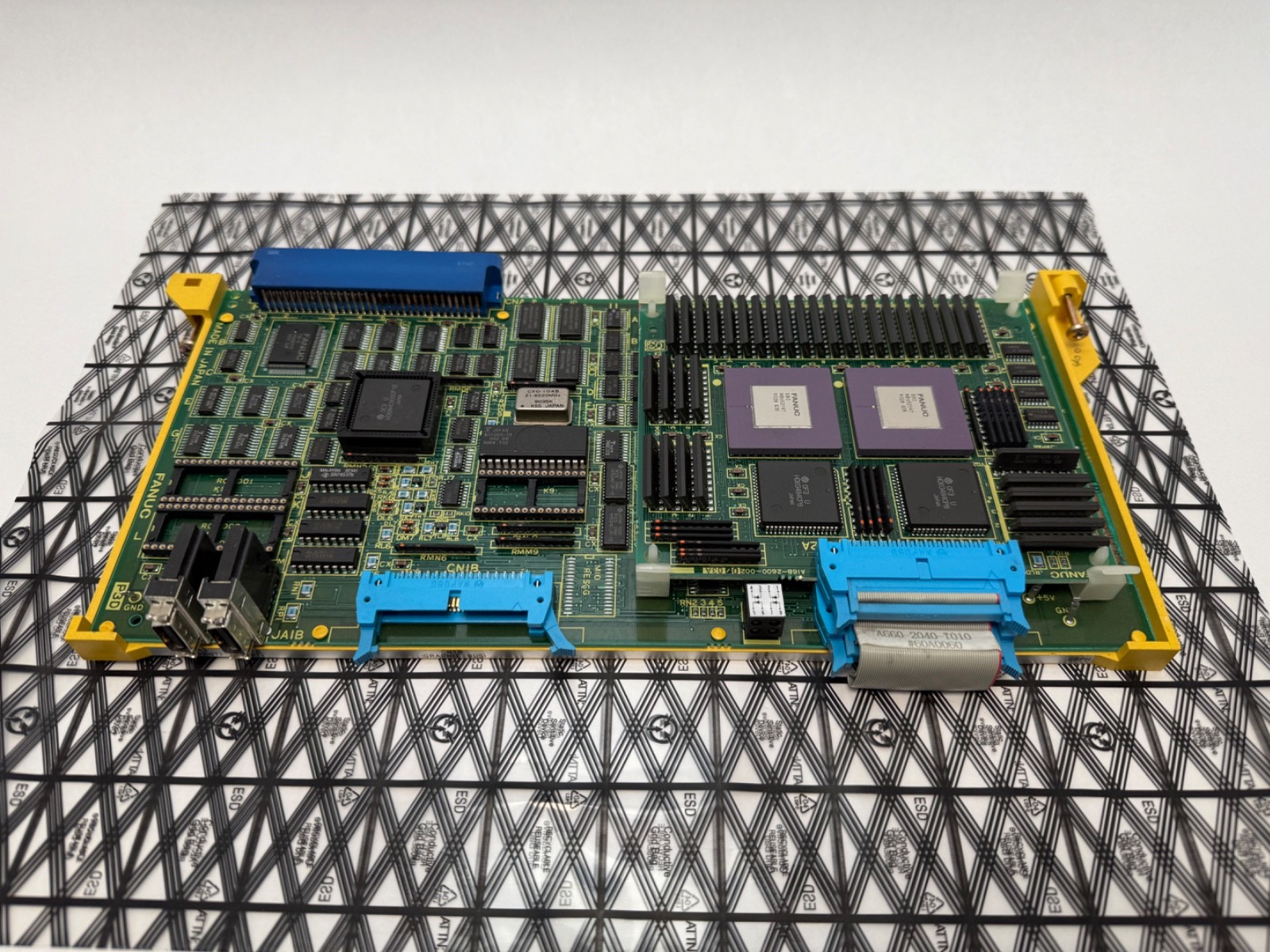

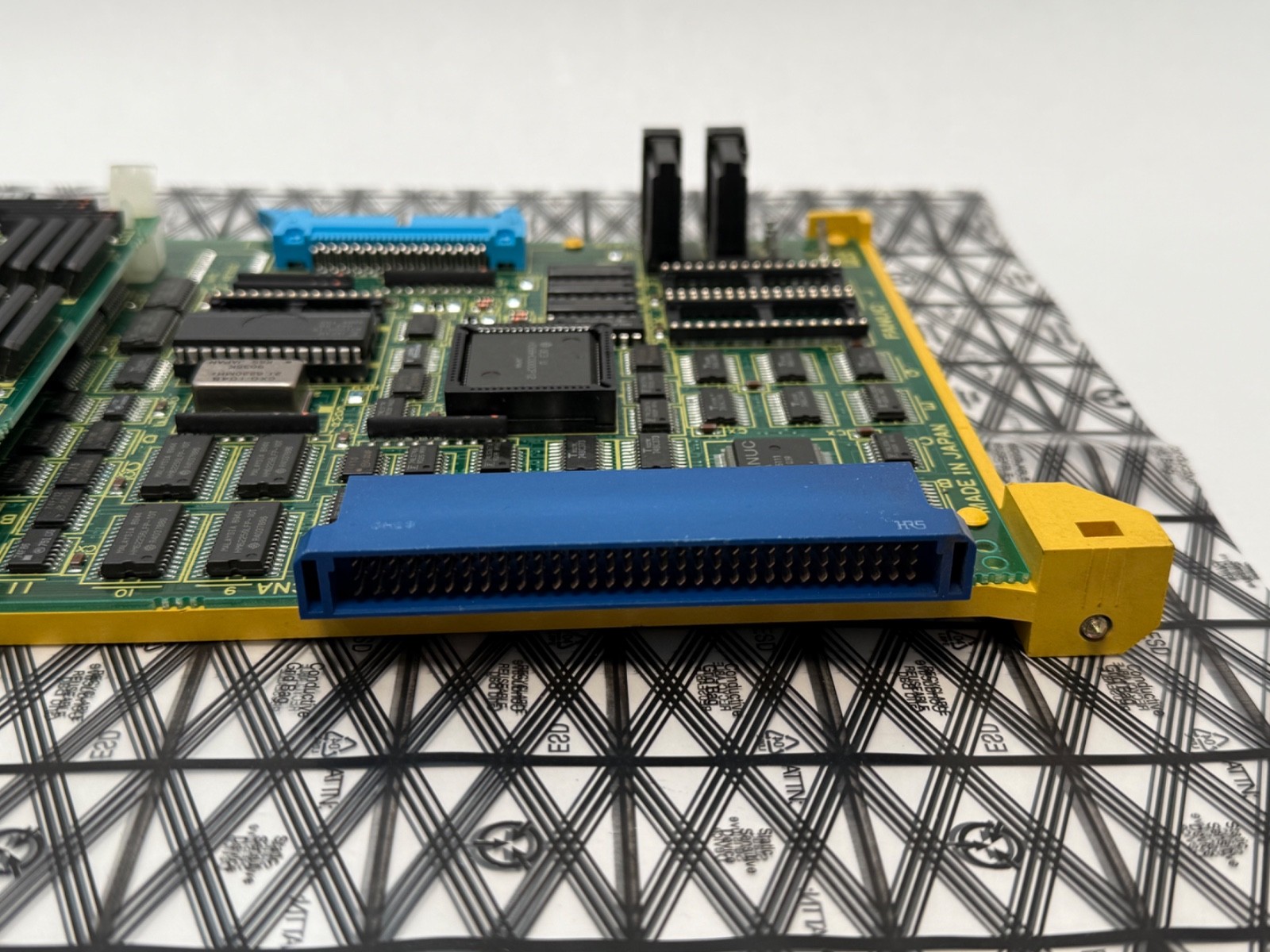

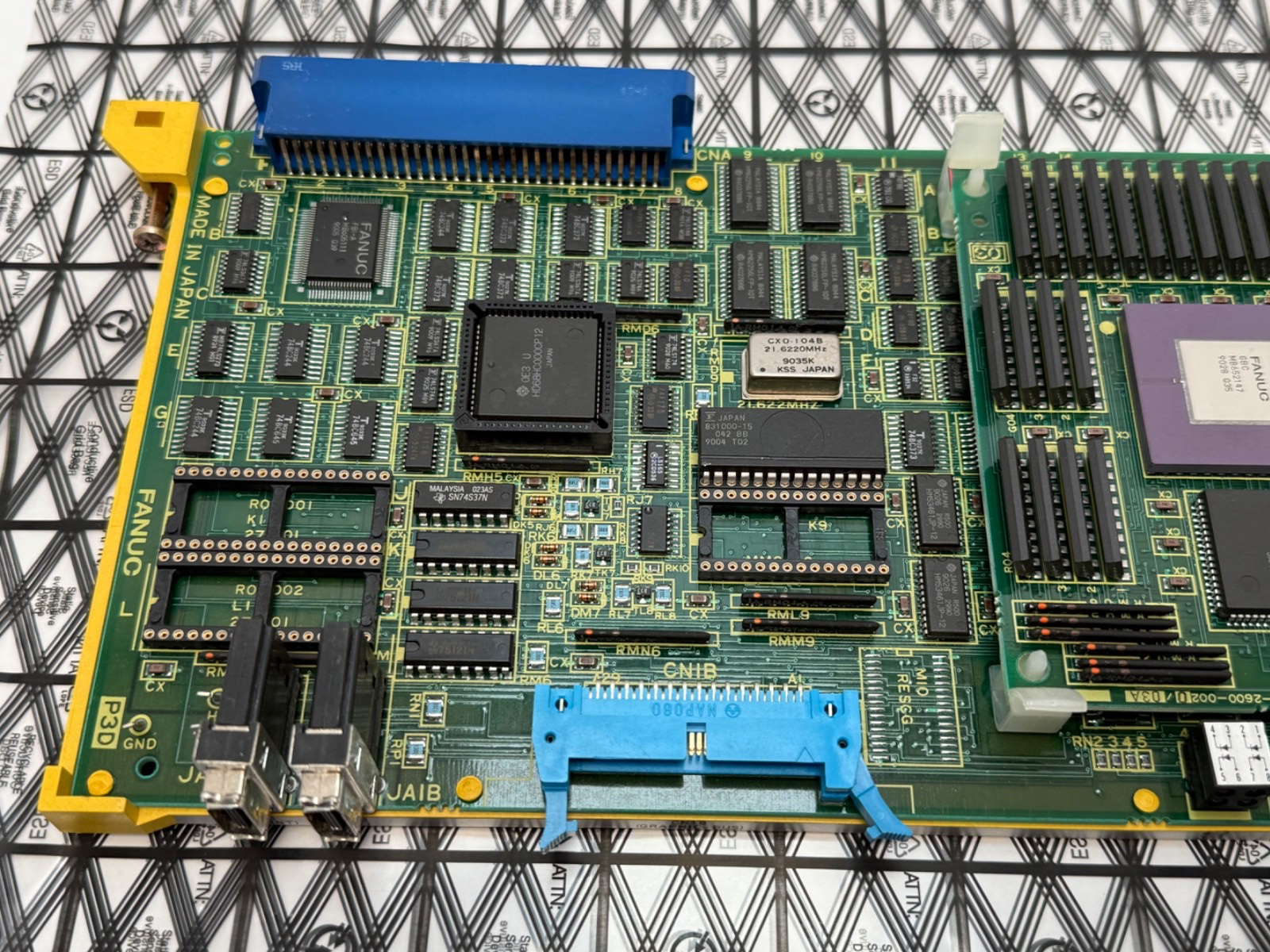

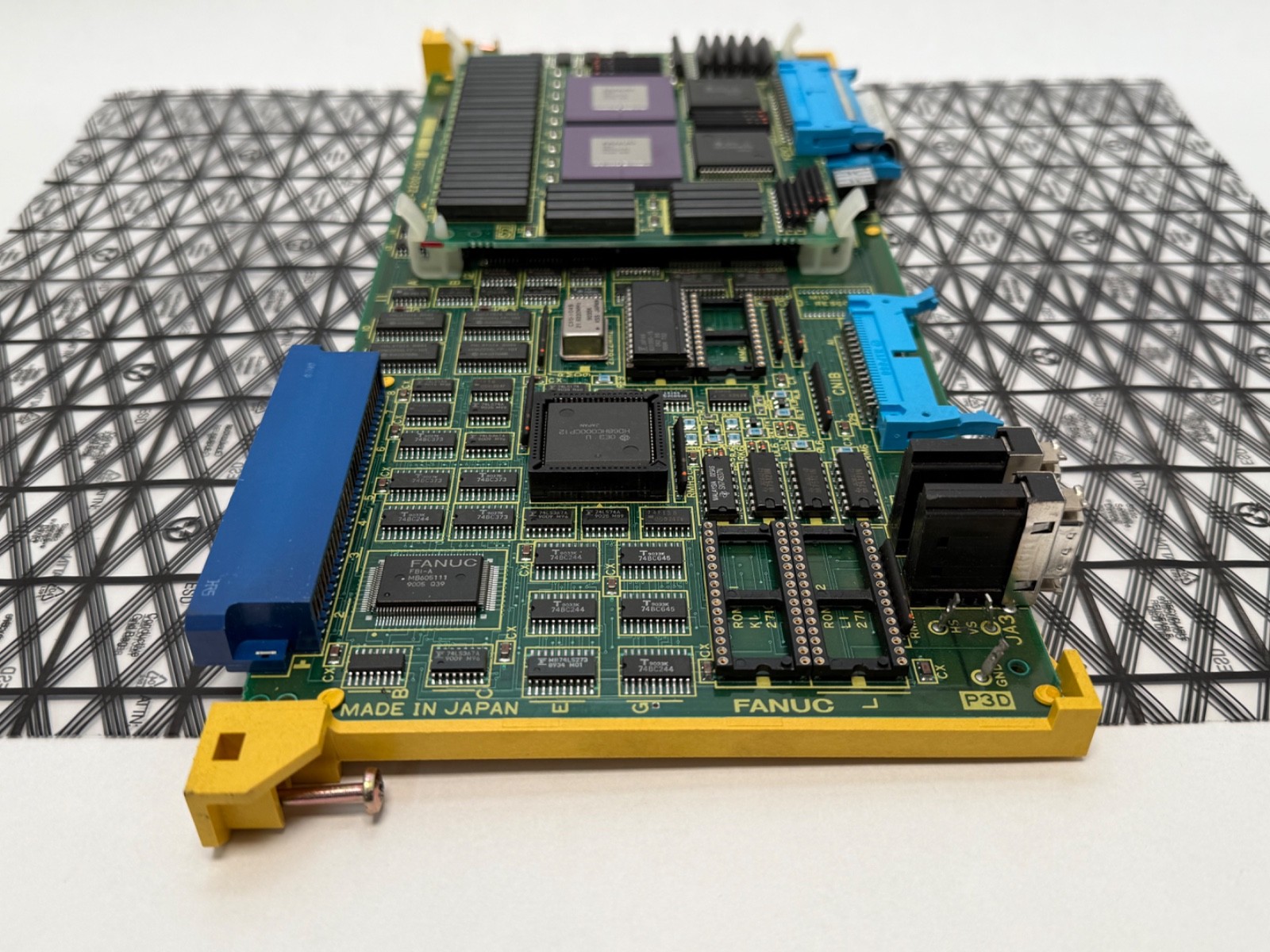

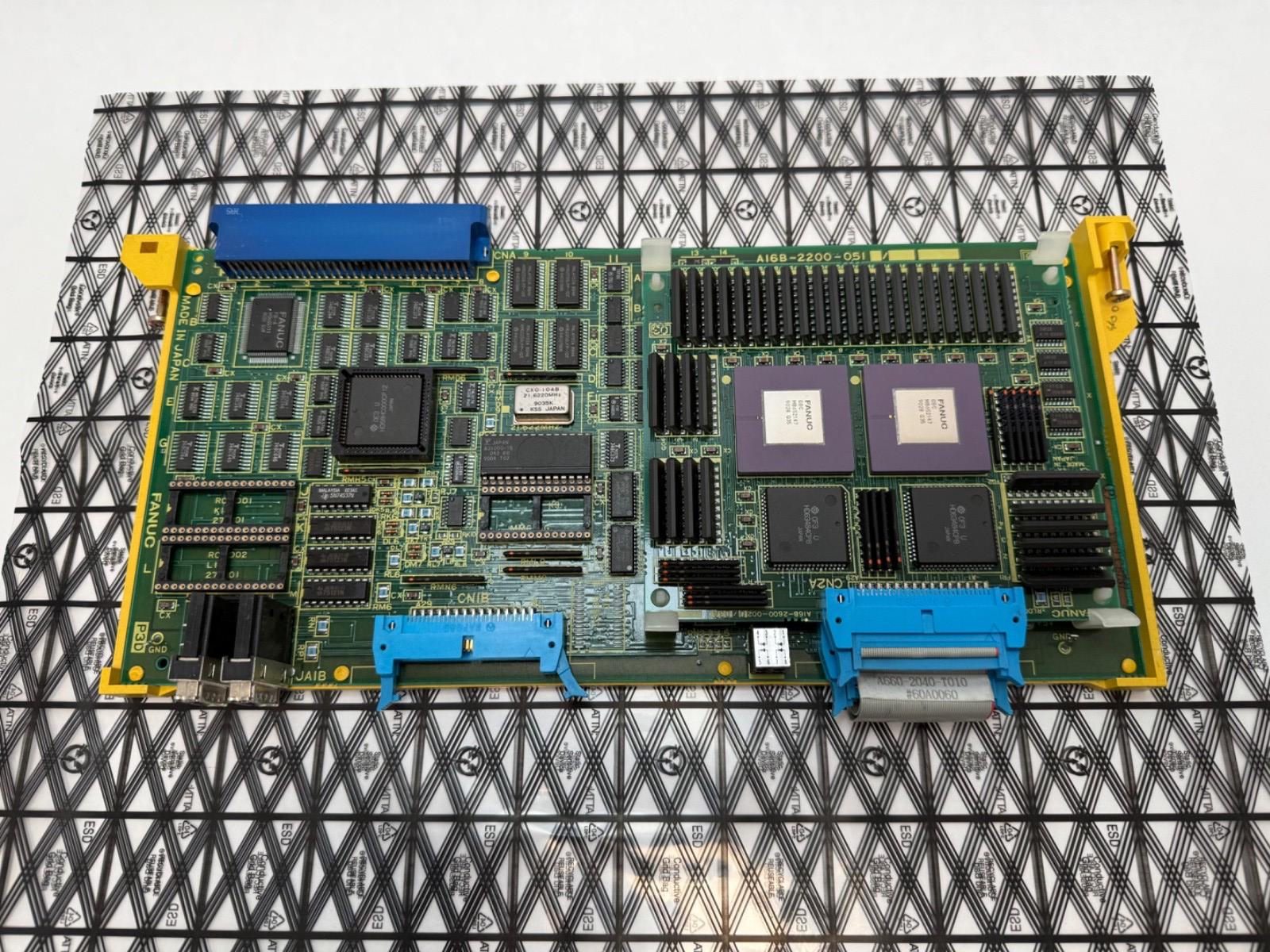

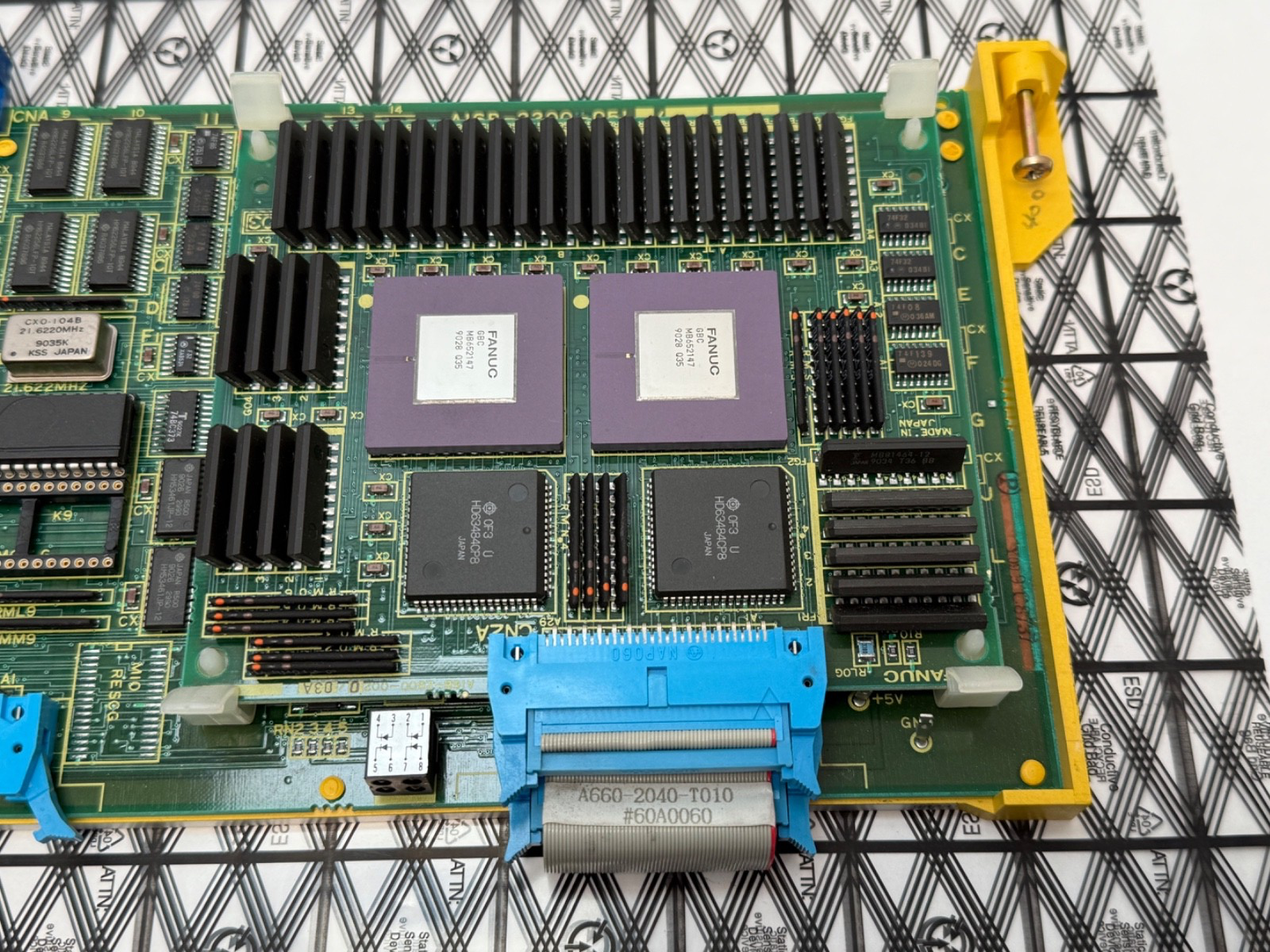

A Fanuc graphic printed circuit board for the Series 15 CNC family (15M, 15T, 15P, 15G), hardware edition 08C. It is the video and graphics processing card: it generates the colour CRT signal and does the drawing work for toolpath graphics, tool path check, waveform diagnostic traces and the graphical operator screens. It mounts as a plug-in peripheral card alongside the main CPU board. This is the card that produces the picture — it is not a display unit and there is no screen, CRT tube or LCD in this listing.

Decoding the order code

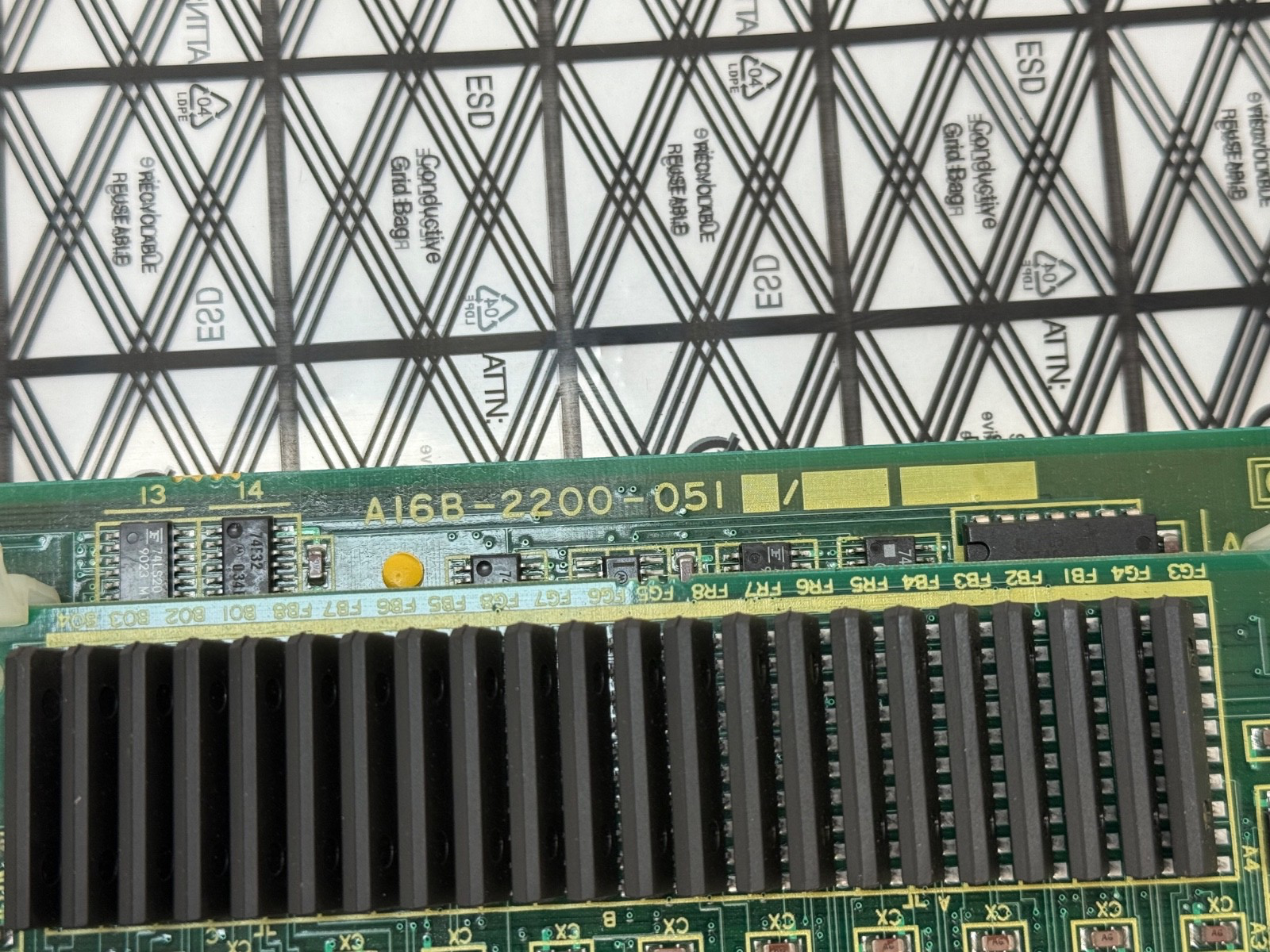

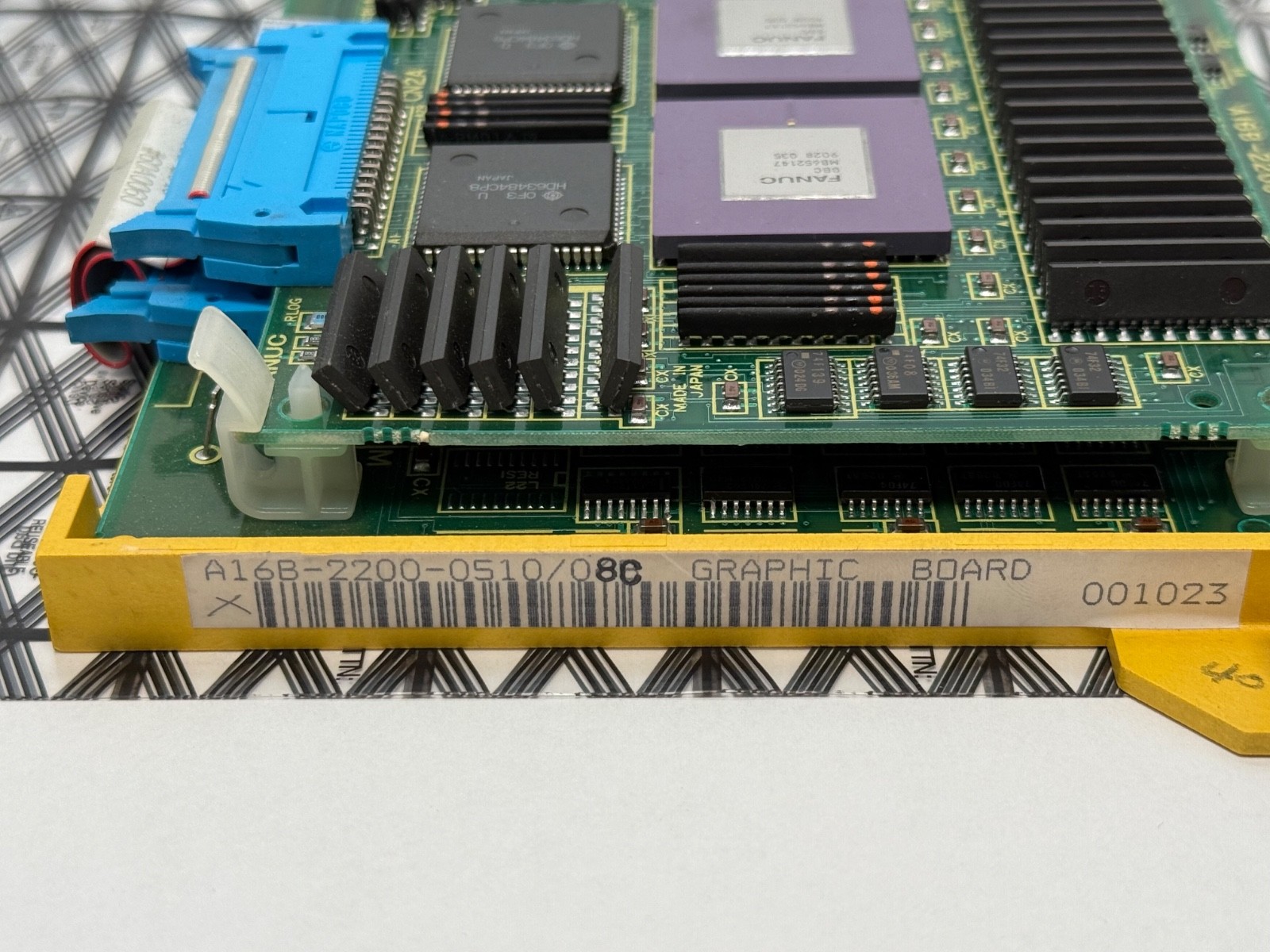

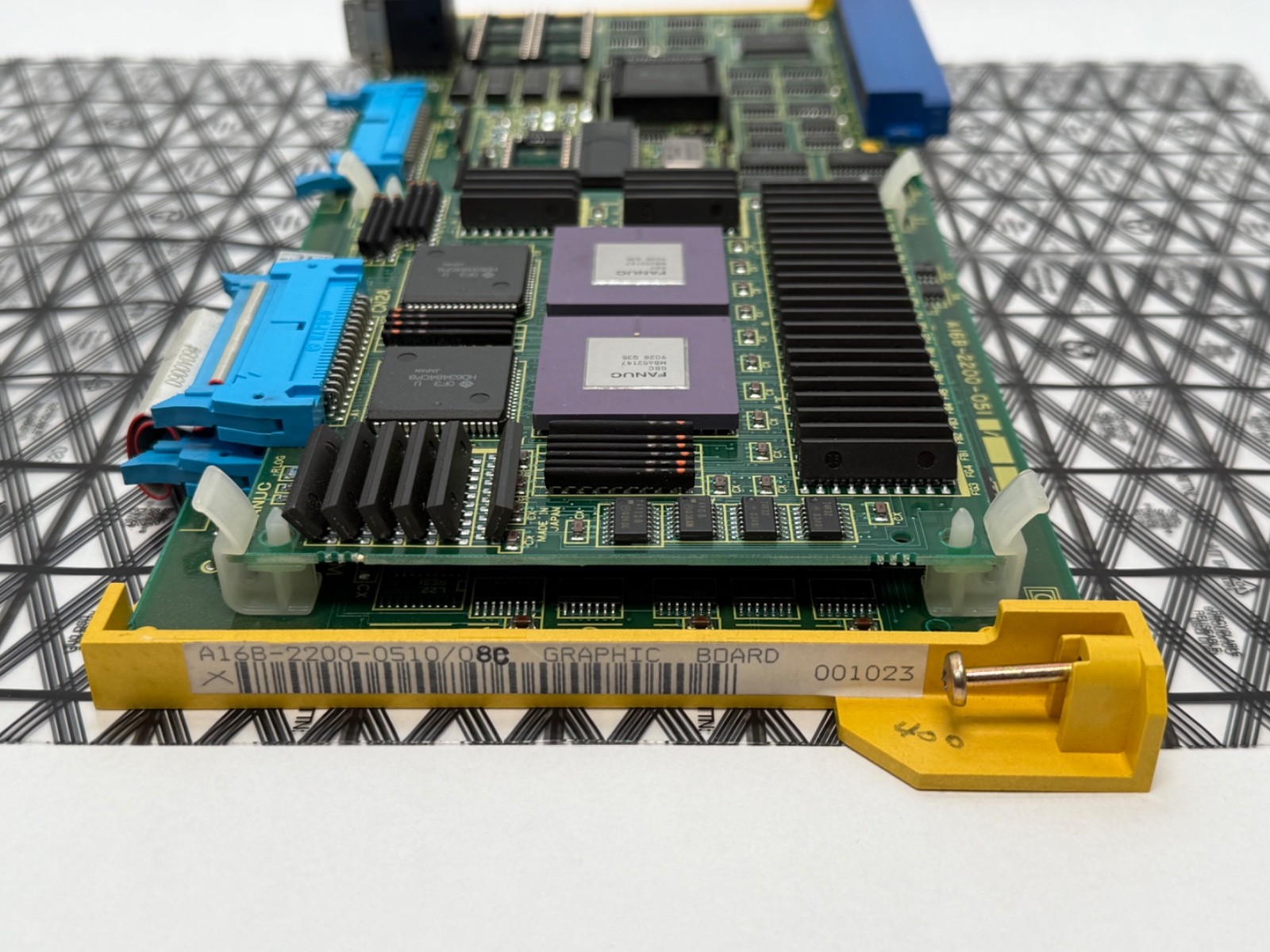

A16B — Fanuc populated printed circuit board family2200 — board group for Series 15 / 15A processor and peripheral cards0510 — the specific card: graphic (colour video) board/08C — hardware edition, stamped on the board

What these specs mean in practice

A base Series 15 with a 9 inch monochrome CRT does not need this card. The graphic board is fitted on larger FS-15 controls with colour CRTs and multi-axis configurations, and on machines where the graphics, tool path check or waveform diagnostic options were ordered. That means two things when you buy: if your control has never had a graphic board, adding one usually also needs the corresponding option to be enabled in the CNC, and if you are replacing a failed one, symptoms are typically a blank or garbled colour display while the control itself is still alive and alarming normally. Edition is worth matching — Series 15 peripheral cards are edition-sensitive.

Published specifications

Type: graphic / colour video processing printed circuit boardPlatform: Fanuc Series 15 CNC — 15M, 15T, 15P, 15GFunction: colour CRT drive, toolpath and tool path check graphics, waveform diagnostic display, graphical operator screensOrder code: A16B-2200-0510, hardware edition 08CFormat: rack-mounted plug-in peripheral card, backplane edge connectorApproximate weight: 1.5 lbs

Quantity and configuration

One printed circuit board.

What is not included

Board only. No CRT, LCD, monitor or display unit of any kind. No control rack, backplane or card cage. No main CPU board or buffer board. No video, ribbon or signal cables and no connector kits. No option cards, ROM or memory modules, no memory cartridge, no battery. No documentation.

Installation and setup notes

Power down and discharge the cabinet, and observe ESD precautions. Note the slot position and any jumper or DIP settings on the outgoing card. Check that the graphic option is enabled in the CNC parameters and that the CRT fitted to the machine is the colour unit this card expects; driving a monochrome 9 inch CRT from a colour graphic card is not a supported combination. Verify the display on power-up before running a cycle.

Interchange guidance

A16B-2200-0510, A16B22000510 and A16B 2200 0510 are the same order code. Edition variants such as /08C and /15C share the order code; distributors also list this card under graphics board, colour graphic board and OIT board. A16B-2200-0410 is the Buffer 2 board and A16B-2200-0200 the RG2 main CPU — different functions, not substitutes. Fanuc control boards are proprietary with no cross-brand equivalent.
