Availability:
1 in stock
Plug-in printed circuit assembly for ELB card-rack machine control cabinets, keyed gold-finger edge card, seats in its designated rack slot. New open box.
List Price
$566.07
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | ELB |
|---|---|
| MPN | TSC-401 |
| Industry Terms | controller board; control PCB; machine control card; plug-in card; printed circuit assembly; grinder control board |
|---|---|
| Application Types | ELB grinding machine controls; legacy card-rack machine tool control cabinets; board-level spares and repair exchange |
| Connector Style | PCB edge connector (gold fingers) |
| Item Width | 6 |
| Item Height | 6 |
| Item Length | 6 |
| Controller Platform | ELB TSC card-rack machine control |
| Mpn Variants | TSC-401; TSC401; TSC 401; ELB TSC-401; ELB-TSC401 |
| Manufacturer Status | Obsolete |
| Compatible With Replaces | ELB machine control card racks using TSC-series boards; ELB surface and profile grinding machines |
| Part Number | TSC-401 |
| Mounting Type | Card rack / edge connector |

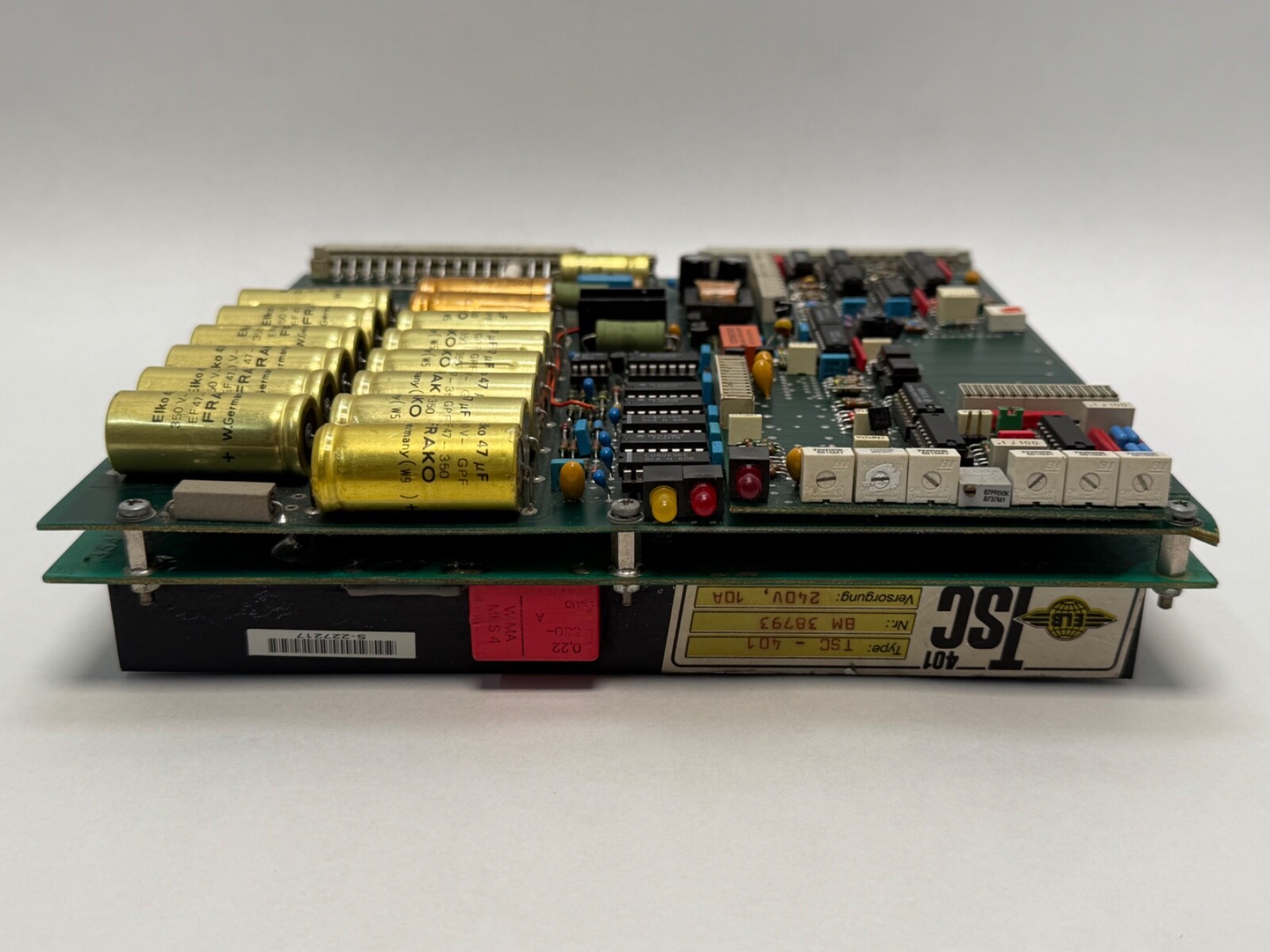

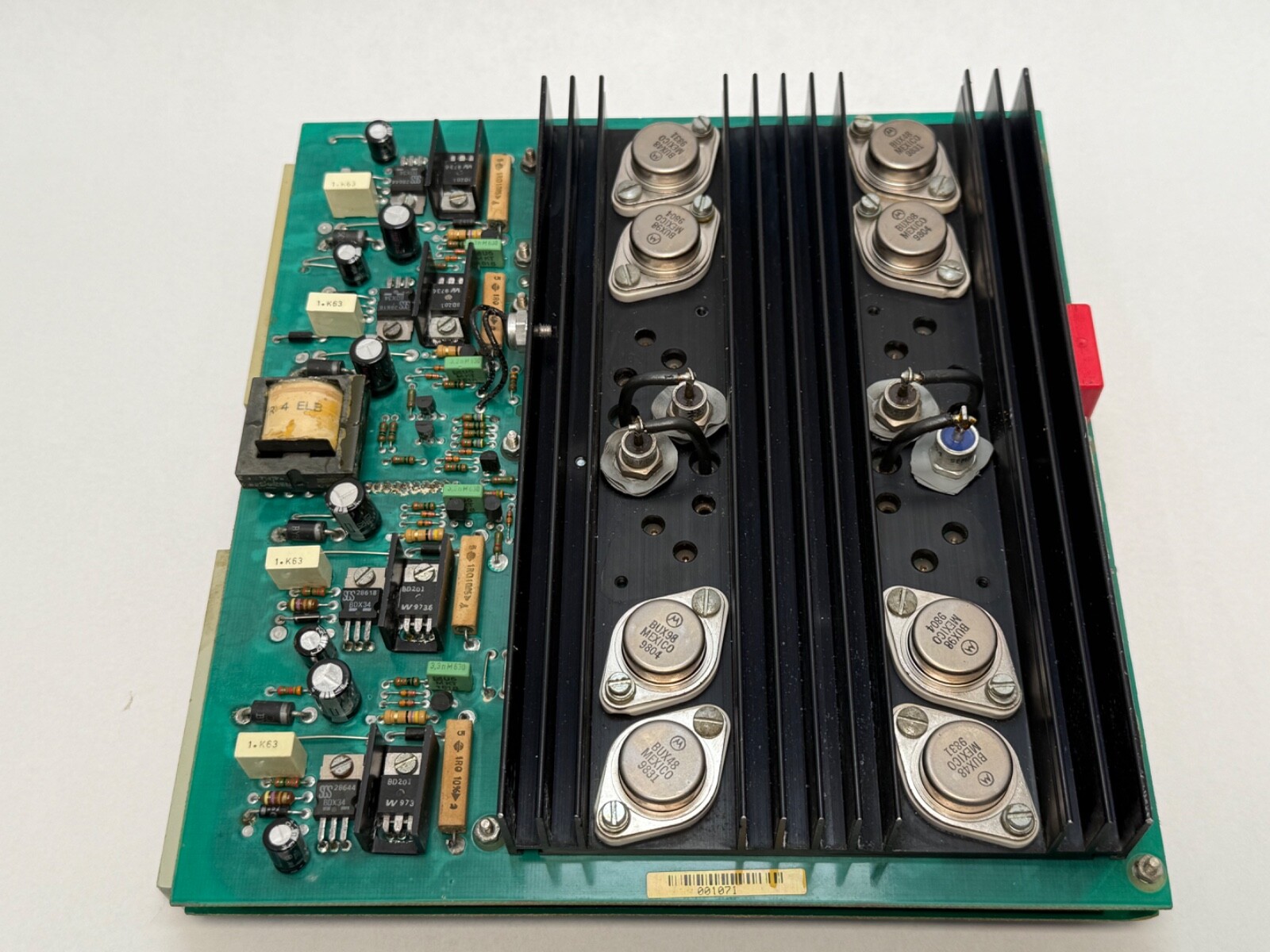

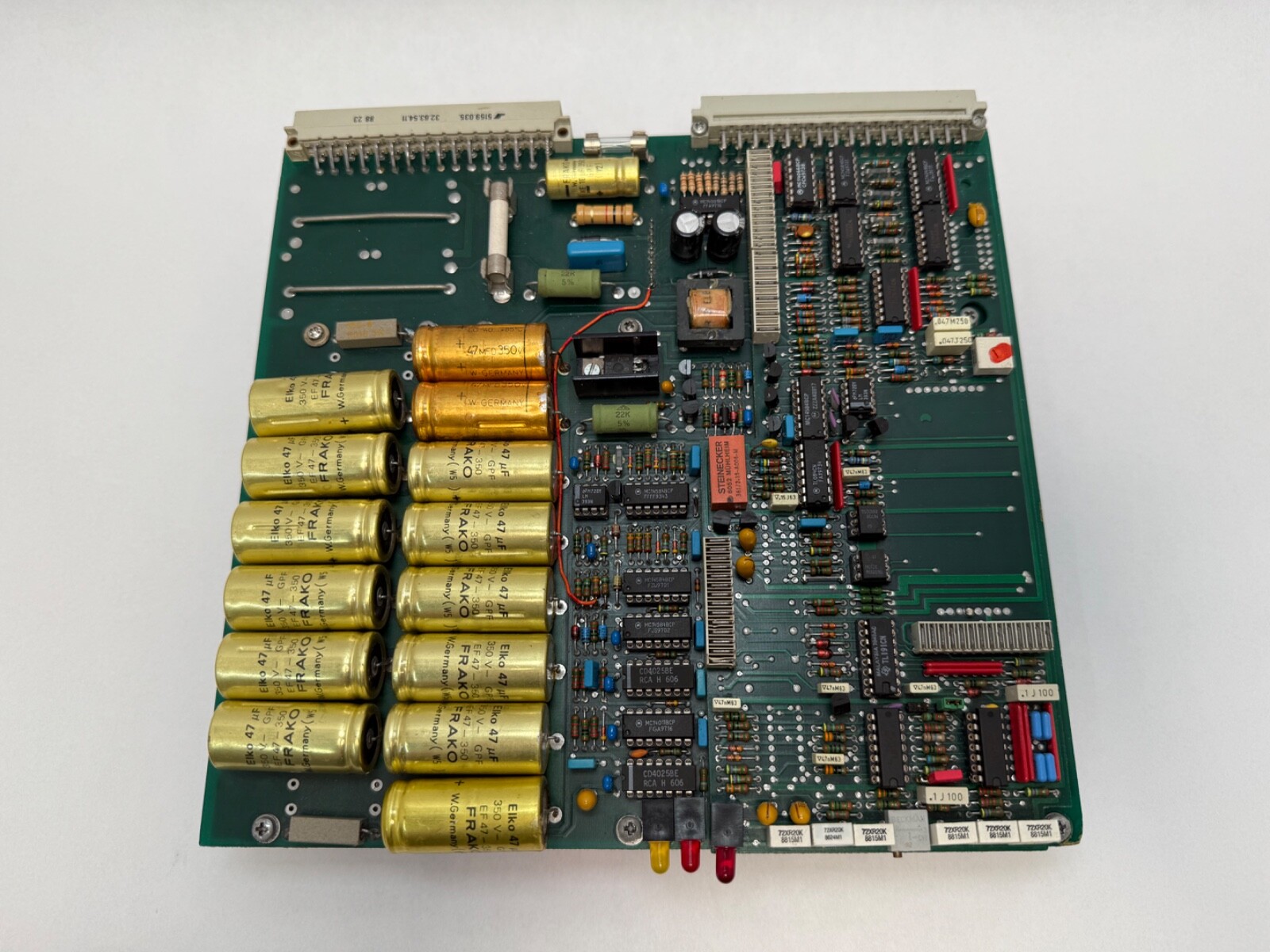

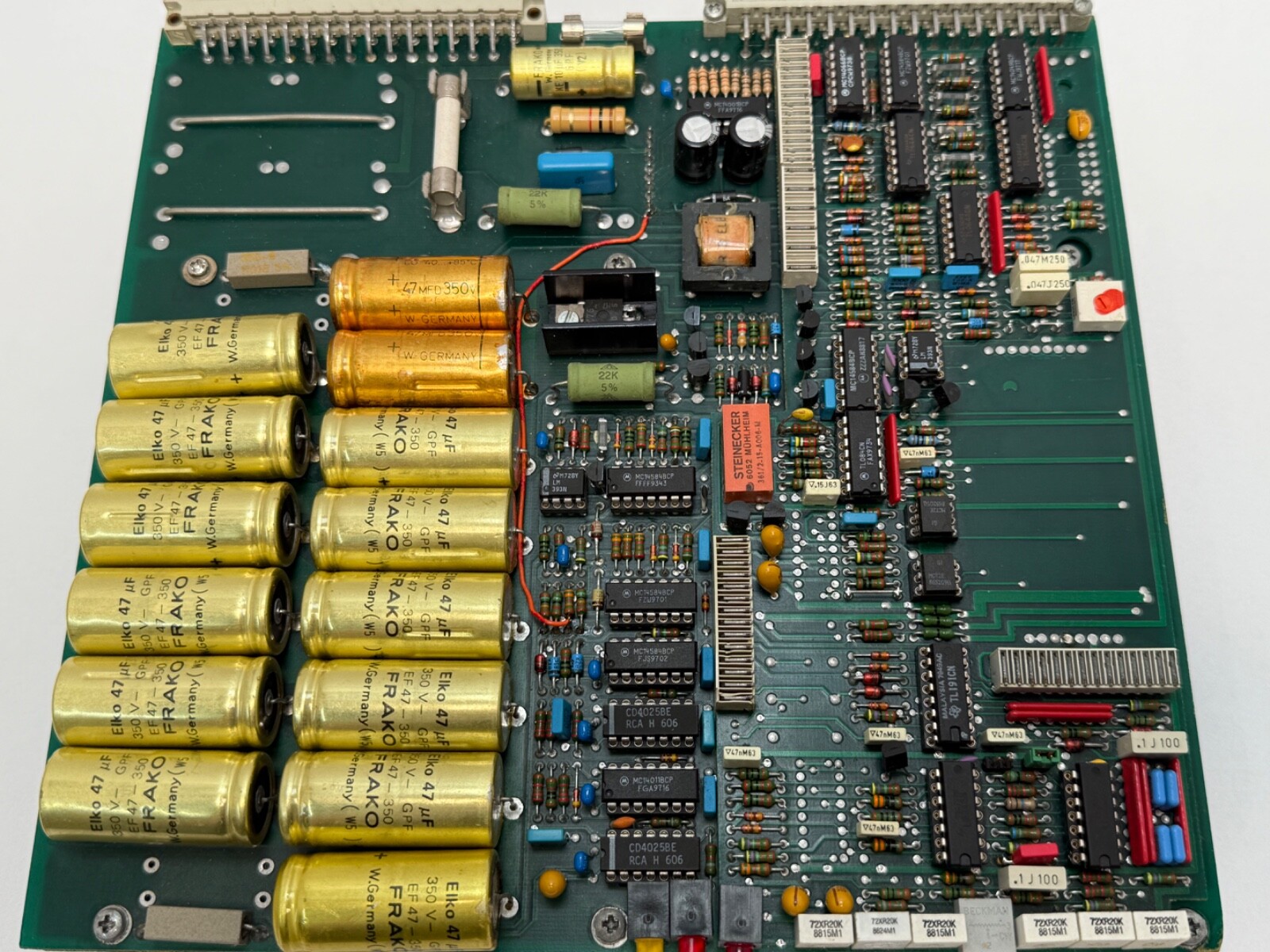

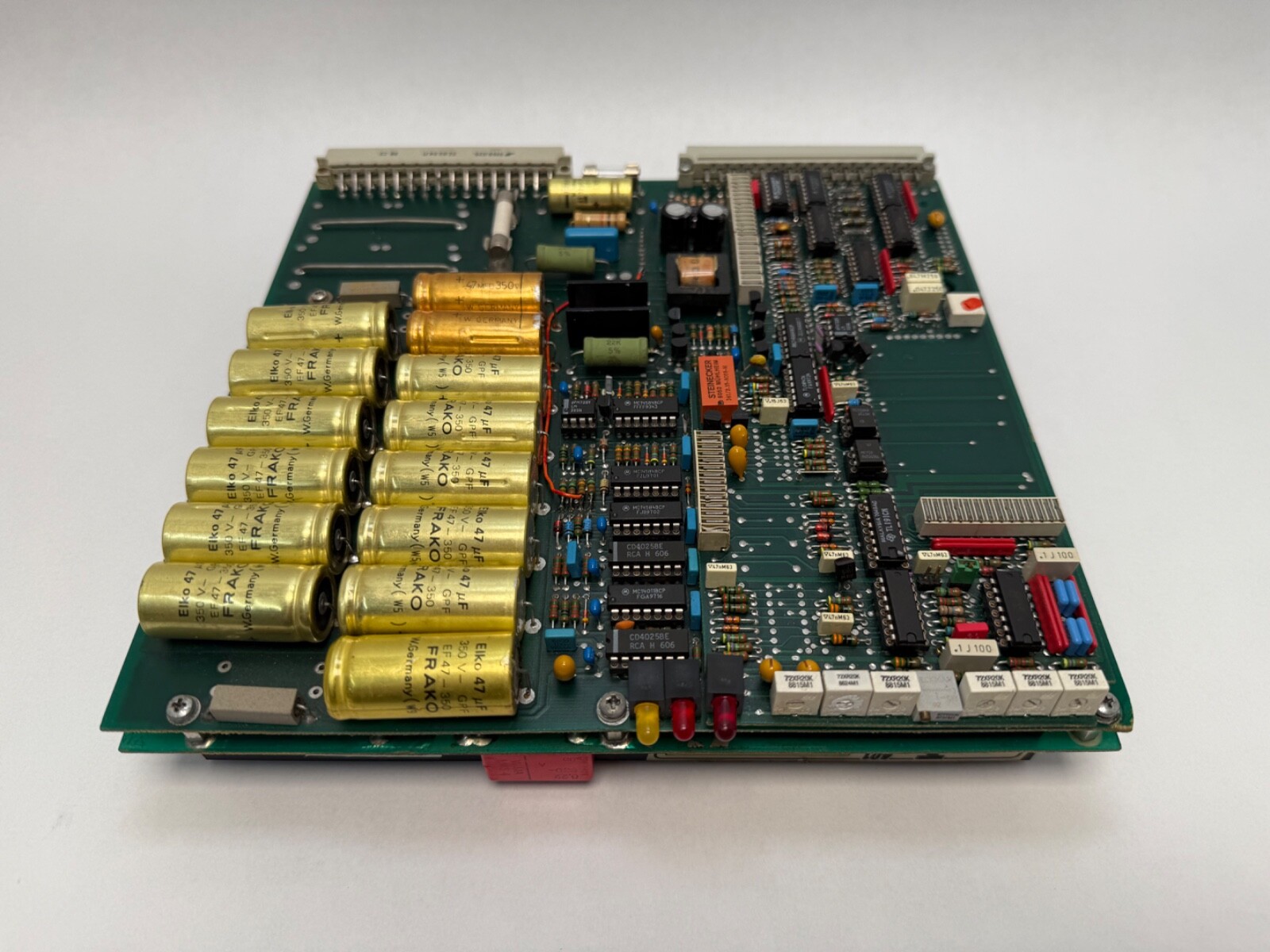

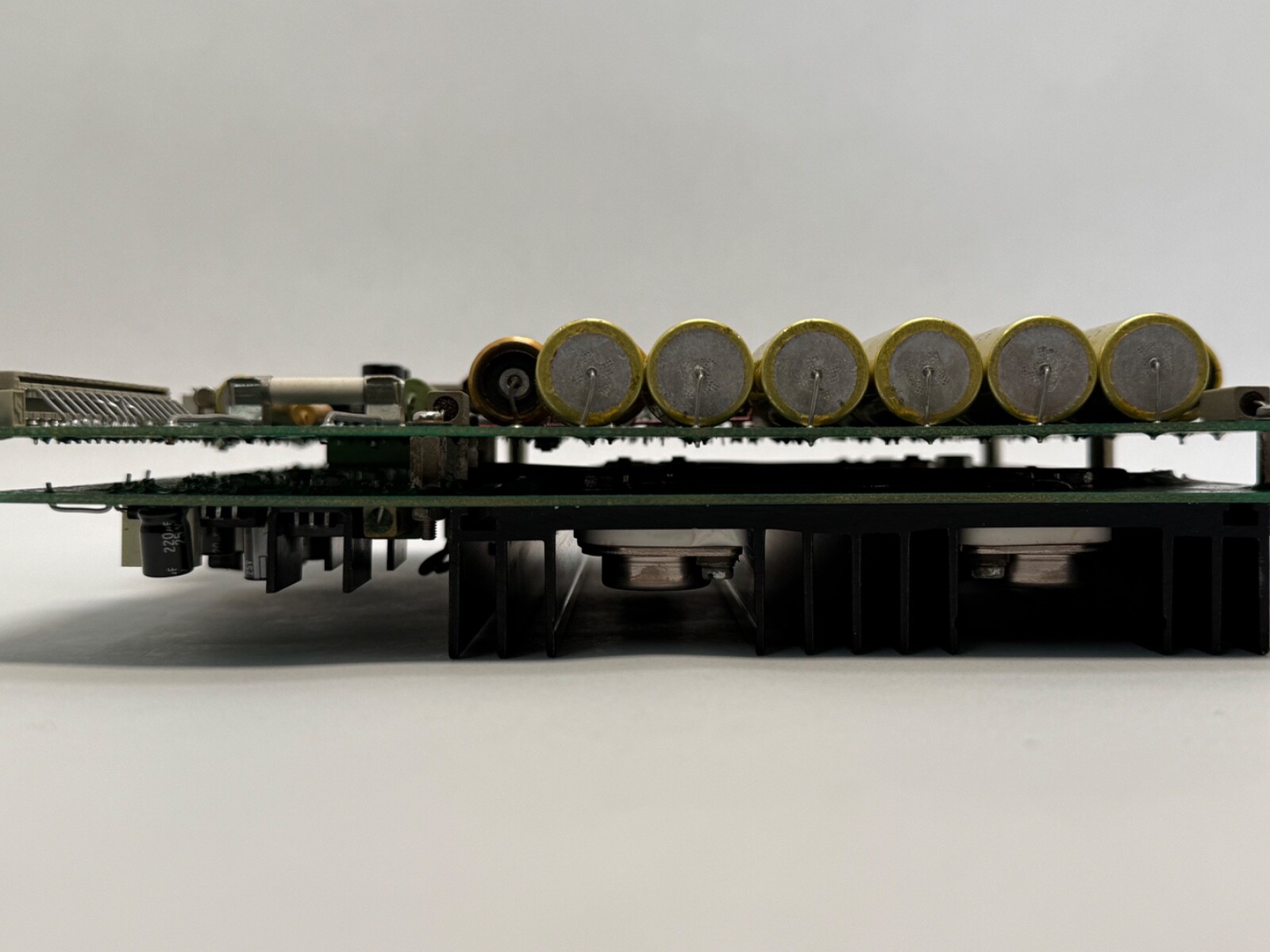

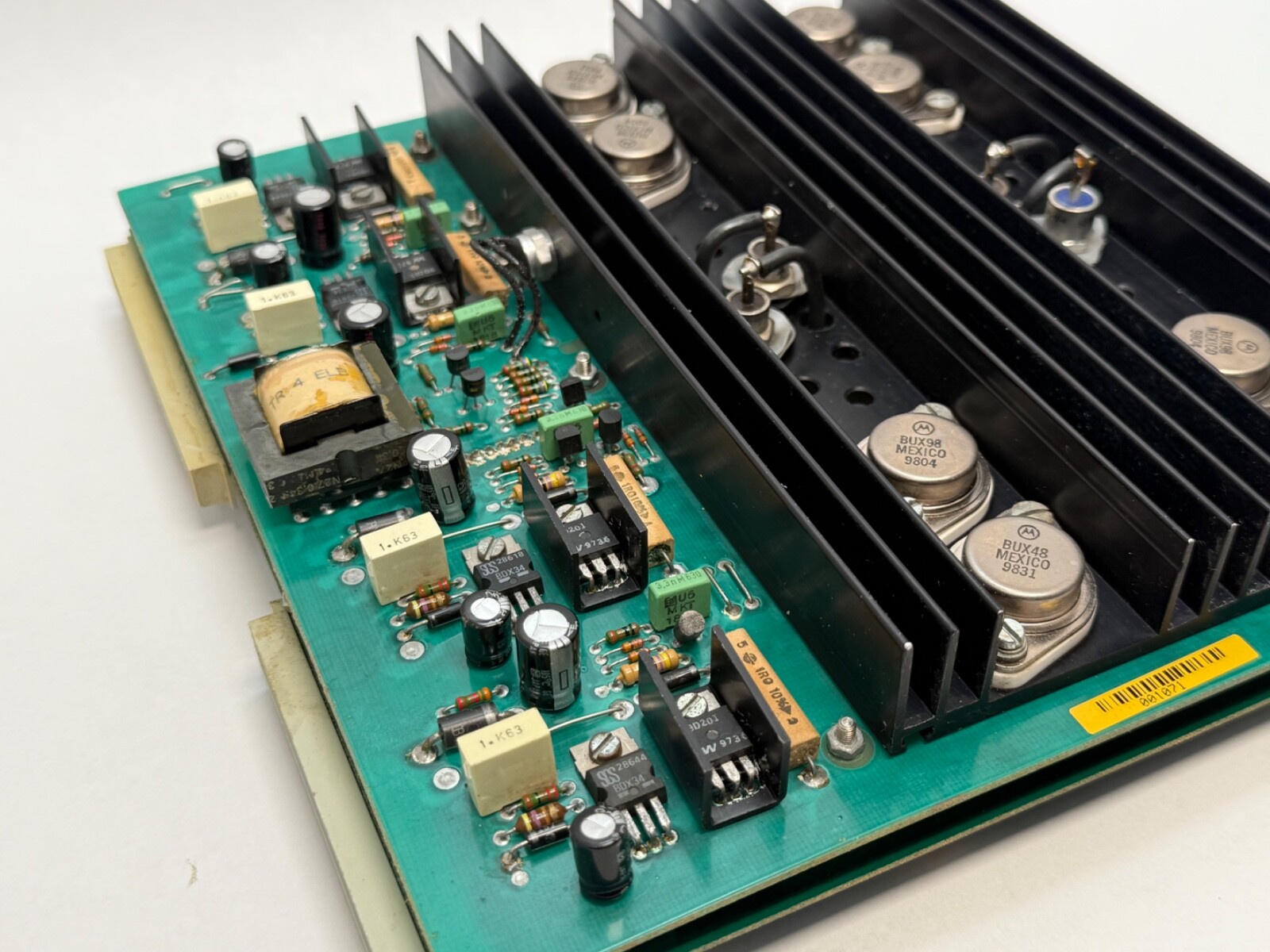

One ELB TSC-401 machine control circuit board — a plug-in printed circuit assembly from an ELB machine control cabinet, most commonly found in ELB surface- and profile-grinding machines. It plugs into a card rack that provides its backplane power and interconnect.
TSC-401: the ELB board designation, also written TSC401 and TSC 401. It is the number that matches the machine’s card-rack schedule.

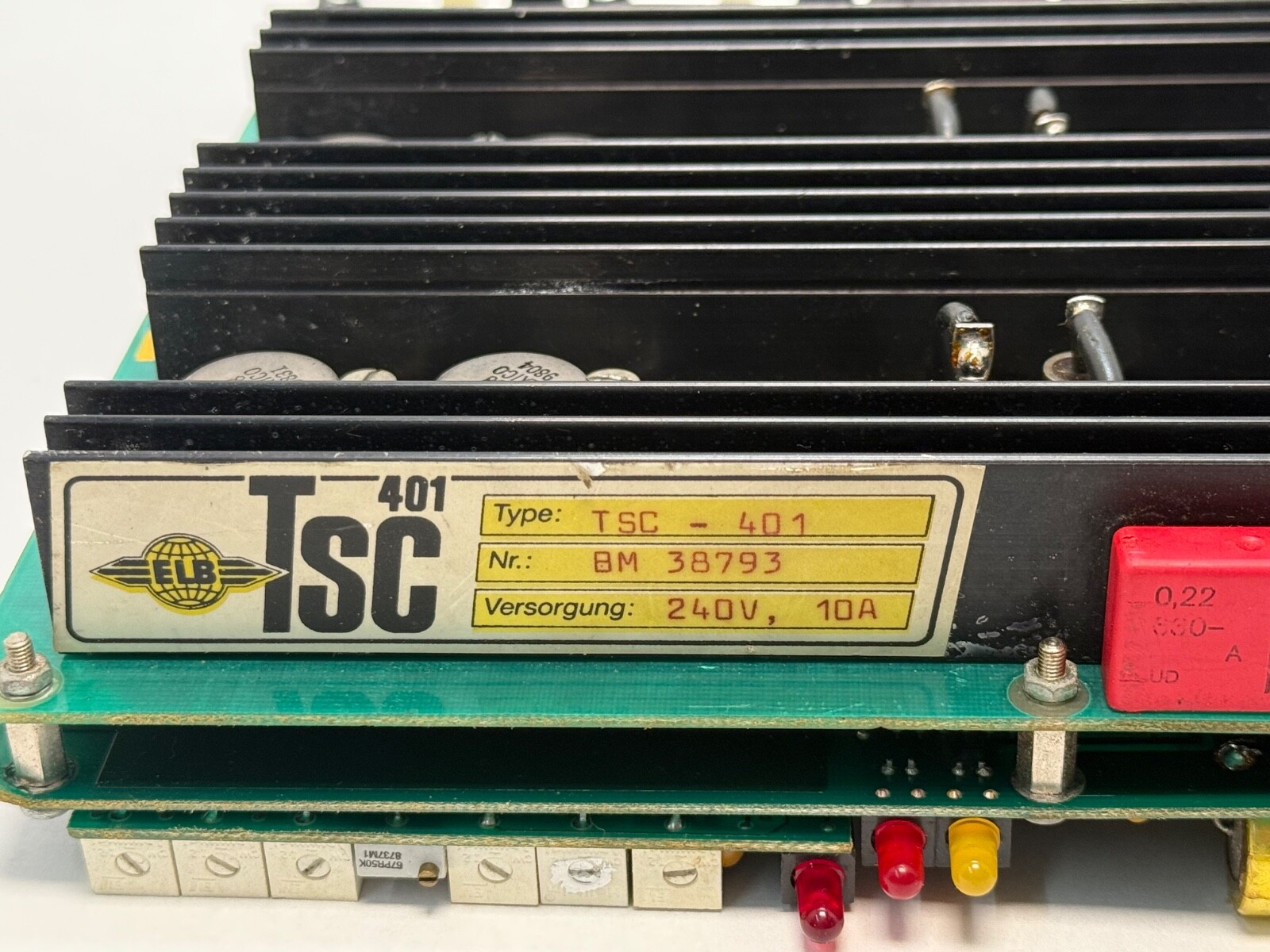

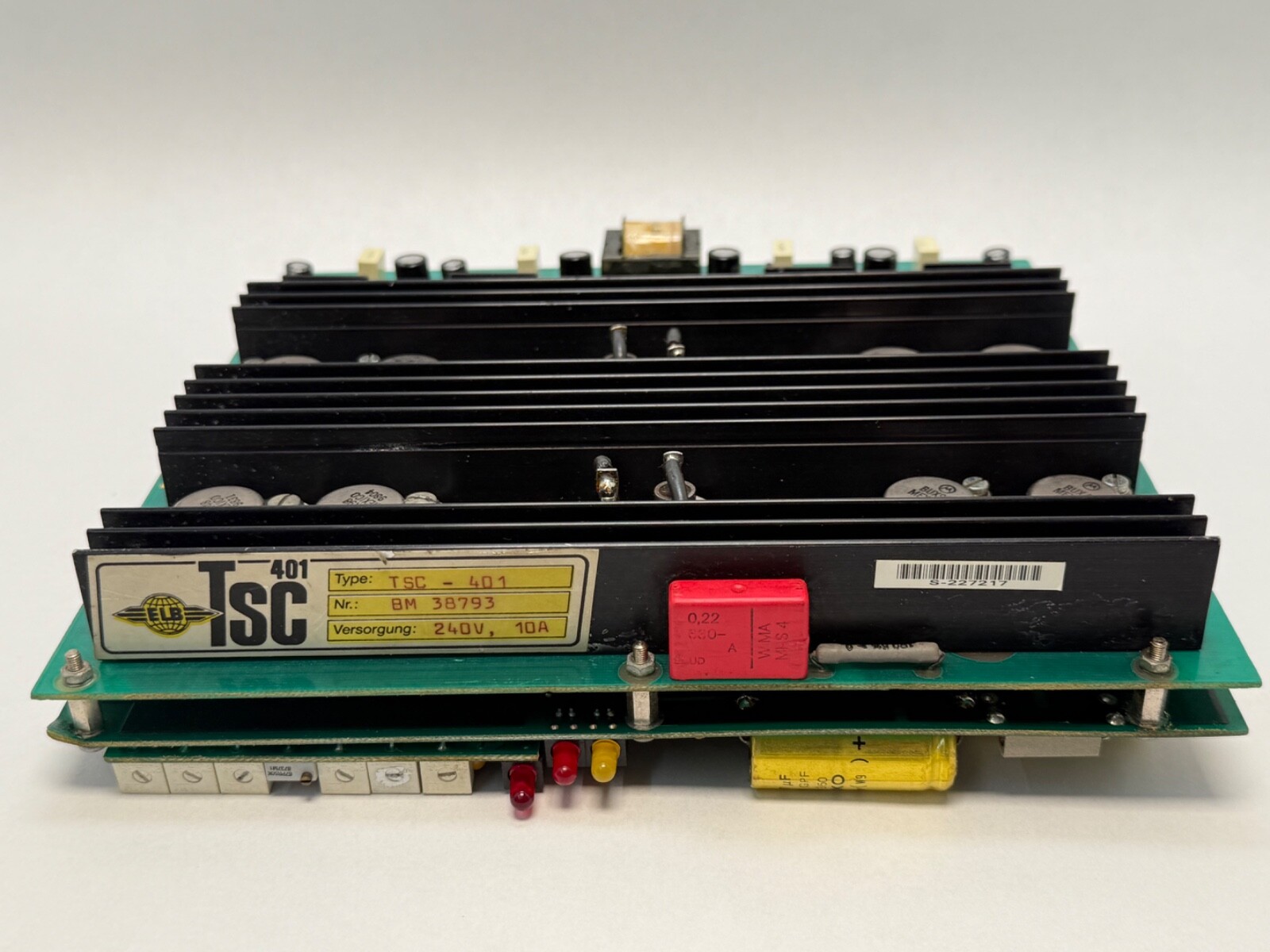

BM-38793: the assembly and drawing number silkscreened on the PCB. Boards are frequently catalogued and searched under this number instead of the TSC designation.

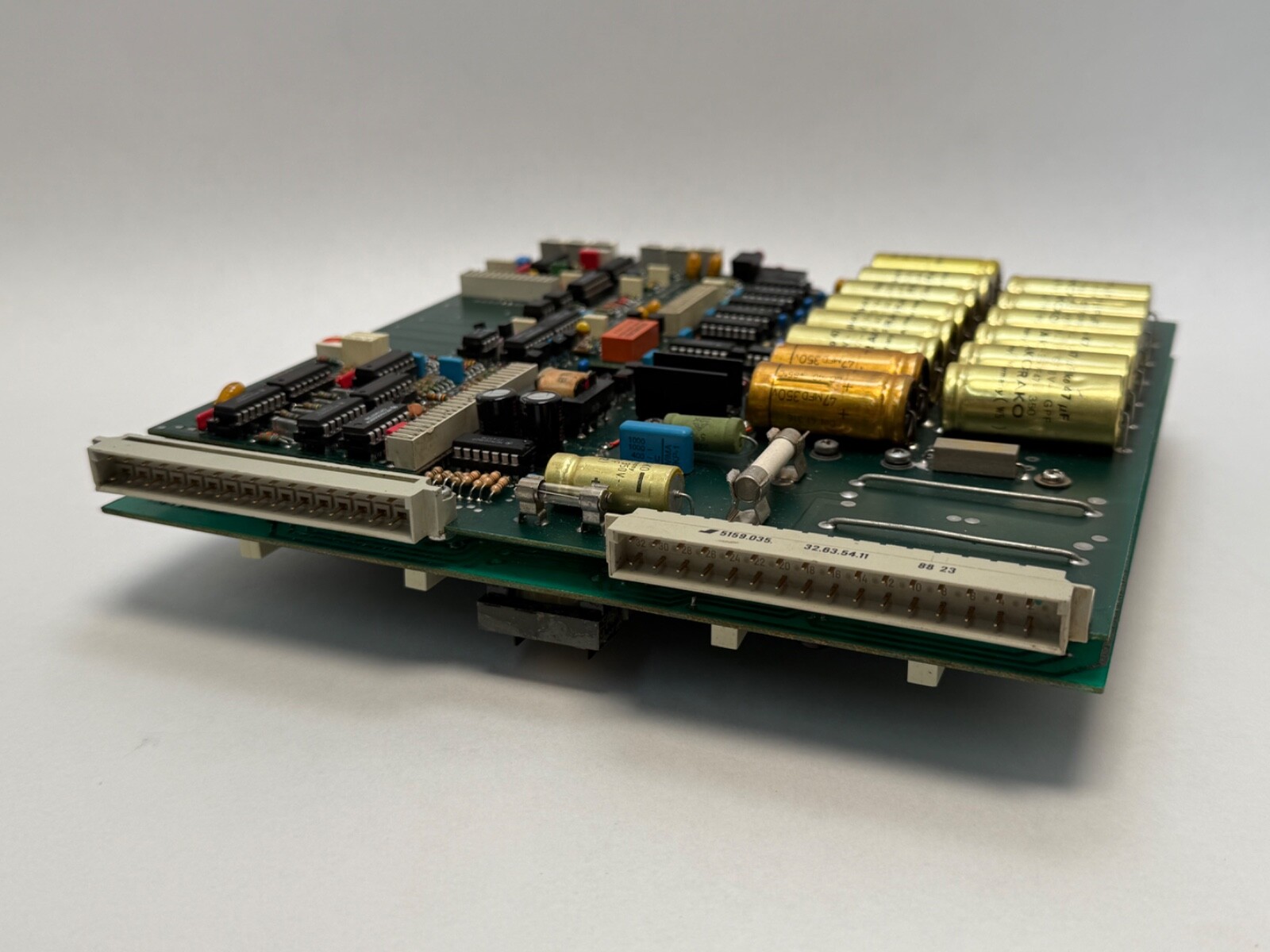

On card-rack machine controls, slot position and card revision decide whether a board works. The TSC-401 is a keyed, edge-connector card and seats in its designated slot only.

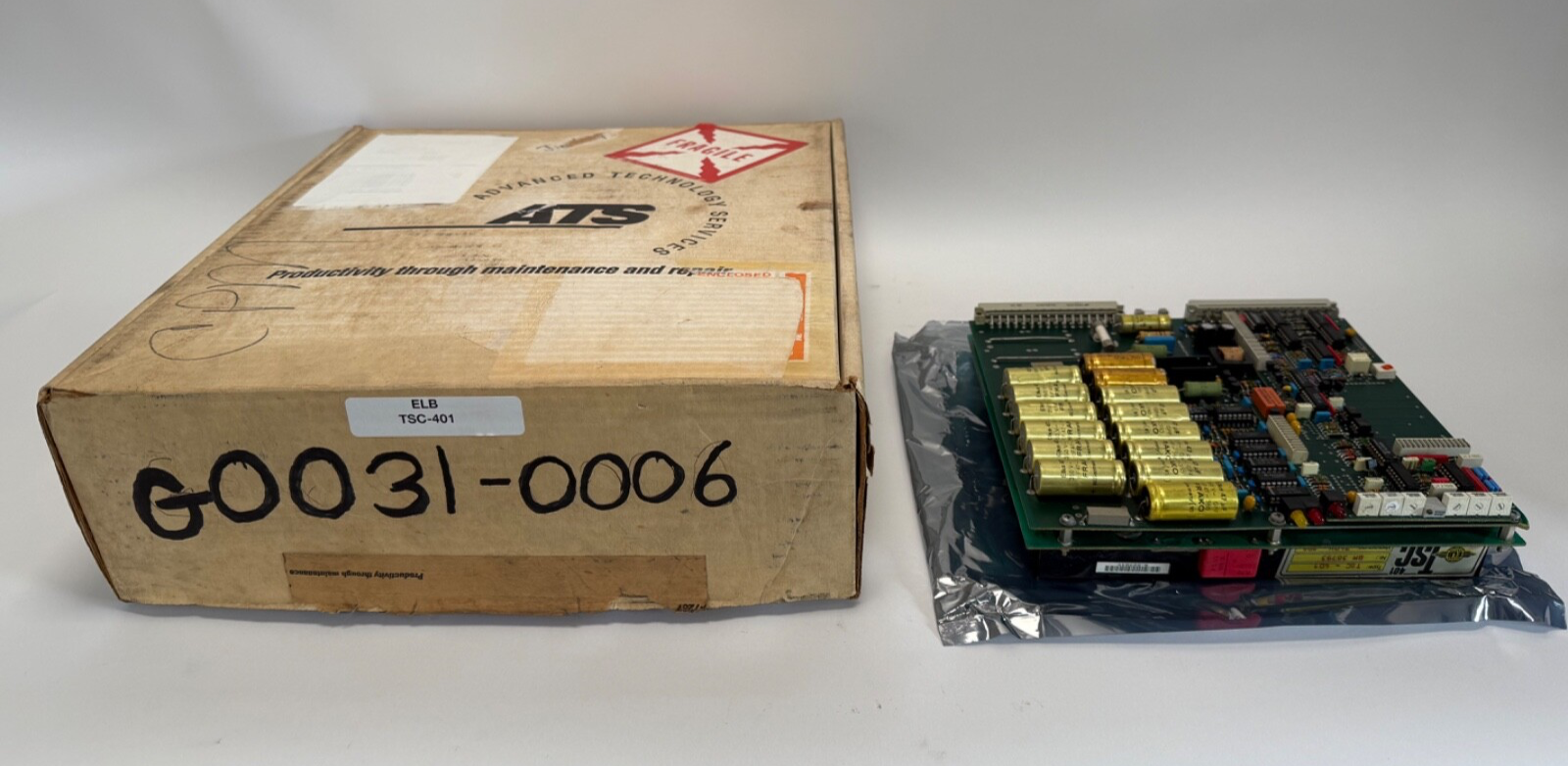

One ELB TSC-401 plug-in machine control board.
Brand: ELB
Manufacturer: ELB
Part Number: TSC-401
Assembly Number: BM-38793
Series: ELB TSC
Mounting Type: Card rack / edge connector
Connector Style: PCB edge connector (gold fingers)
Controller Platform: ELB TSC card-rack machine control
Condition: New – Open box
Searched as TSC-401, TSC401, TSC 401, ELB TSC-401 and BM-38793 / BM38793.
