ABBDSTC-452MasterFieldbus FSK Modem Communication Unit, 230 V AC 47-63 Hz, for ABB Master / Advant OCS

Product Description

What this part is

An ABB DSTC 452 communication unit — the FSK (frequency-shift keying) modem used on the MasterFieldbus of ABB’s legacy Master / Advant OCS control platform. Its job is to put the field bus’s digital traffic onto a twisted-pair line as shifting audio-band tones, which is what lets a MasterFieldbus segment run long distances through an industrial plant without the signal degradation a baseband link would suffer. It is a bus-media device, not a controller and not an I/O unit: it carries traffic, it does not execute logic.

Decoding the designation

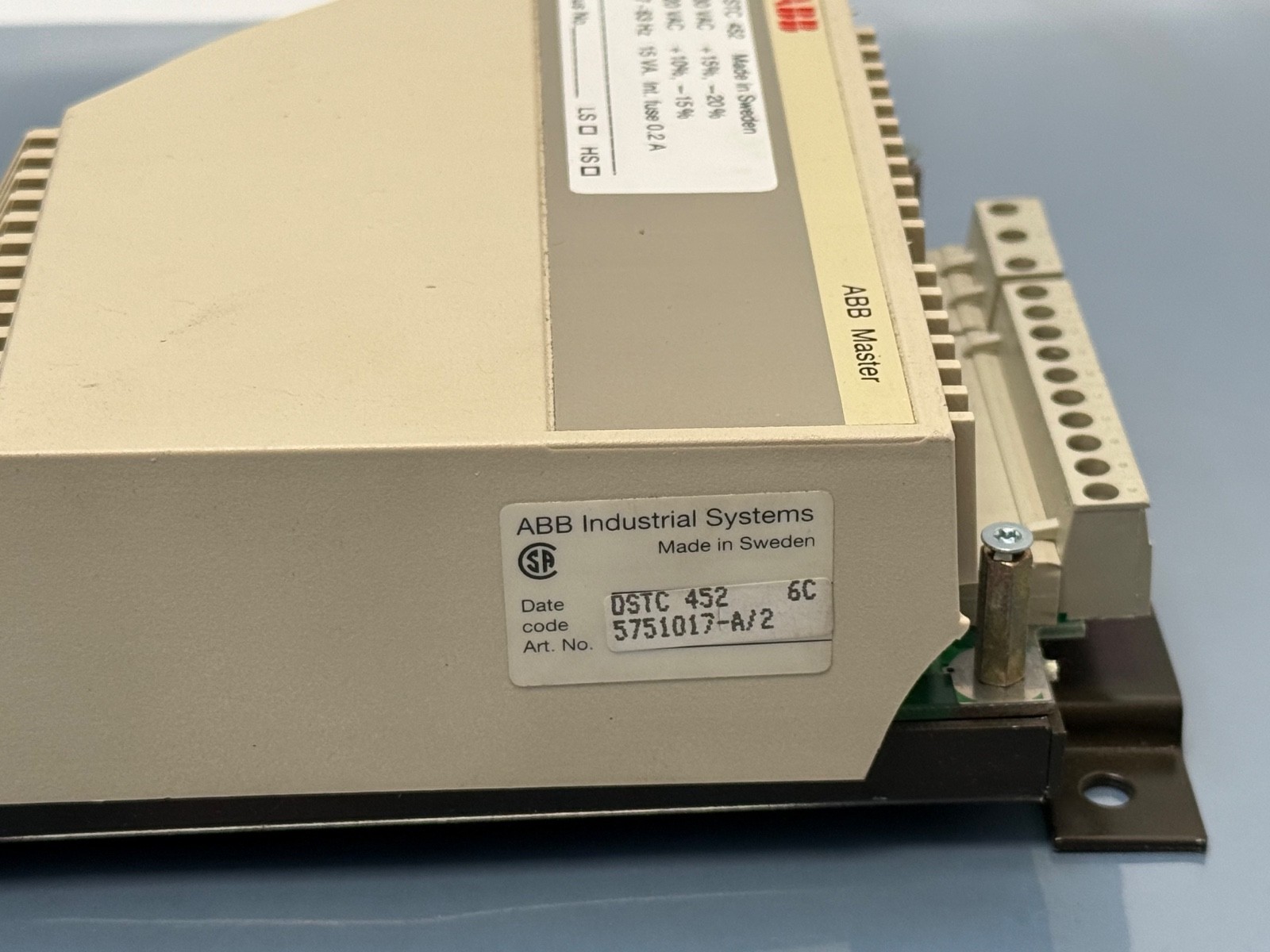

DS — ABB’s prefix range for Master-family control system hardware.TC — the communication (transmission/coupling) unit group within that range, as distinct from the DSAI/DSAO analogue and DSDI/DSDO digital I/O groups and the DSPC processor boards. Getting this group letter right matters: a DSTC is never a substitute for a DSDI or a DSPC and vice versa.452 — the specific unit within the communication group.5751017-A/2 is ABB’s article/identity number for this unit, marked on the label. Machine documentation and spares lists of this era quote either number, and either will find the part.

Published nameplate data

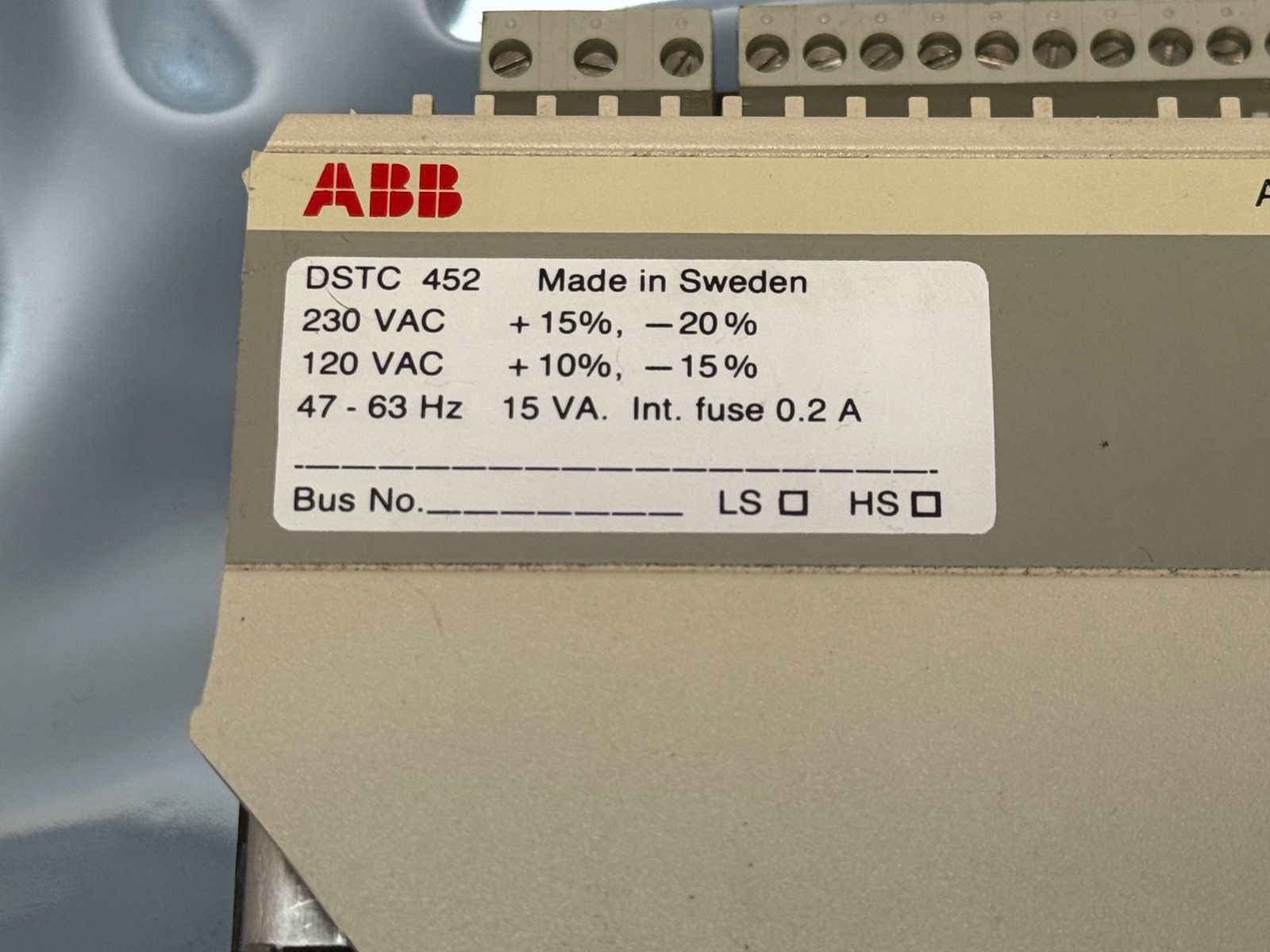

Function: MasterFieldbus FSK modem / communication unitSupply: 230 V AC, 47–63 Hz — read directly from the unit’s rating labelPlatform: ABB Master series (MasterPiece / MasterView era) and Advant OCSCountry of manufacture: Sweden, per the unit’s own markingManufacturer status: obsolete; the Master/Advant generation is supported through surplus, refurbishment and migration rather than new supply

What this means in practice

If you are running a Master or early Advant system, you already know that the difficulty is not diagnosis — it is finding parts. FSK modems sit at the ends of long field-bus runs, often in hot or dirty locations, and they are among the units that go. There is no current ABB product that drops into the same place: the migration path is a wholesale move to 800xA, which is a project, not a repair. A same-designation spare on the shelf is the difference between keeping a plant running and forcing that project on your own worst schedule.

Verify the designation against your installed unit before ordering. The Master range used many superficially similar communication units, and a DSTC 452 is not interchangeable with a DSTC of another number, nor with the DSCS/DSCA-series units. Read the label on the unit you are replacing, not the machine drawing, which may predate a modification.

Condition and configuration reality

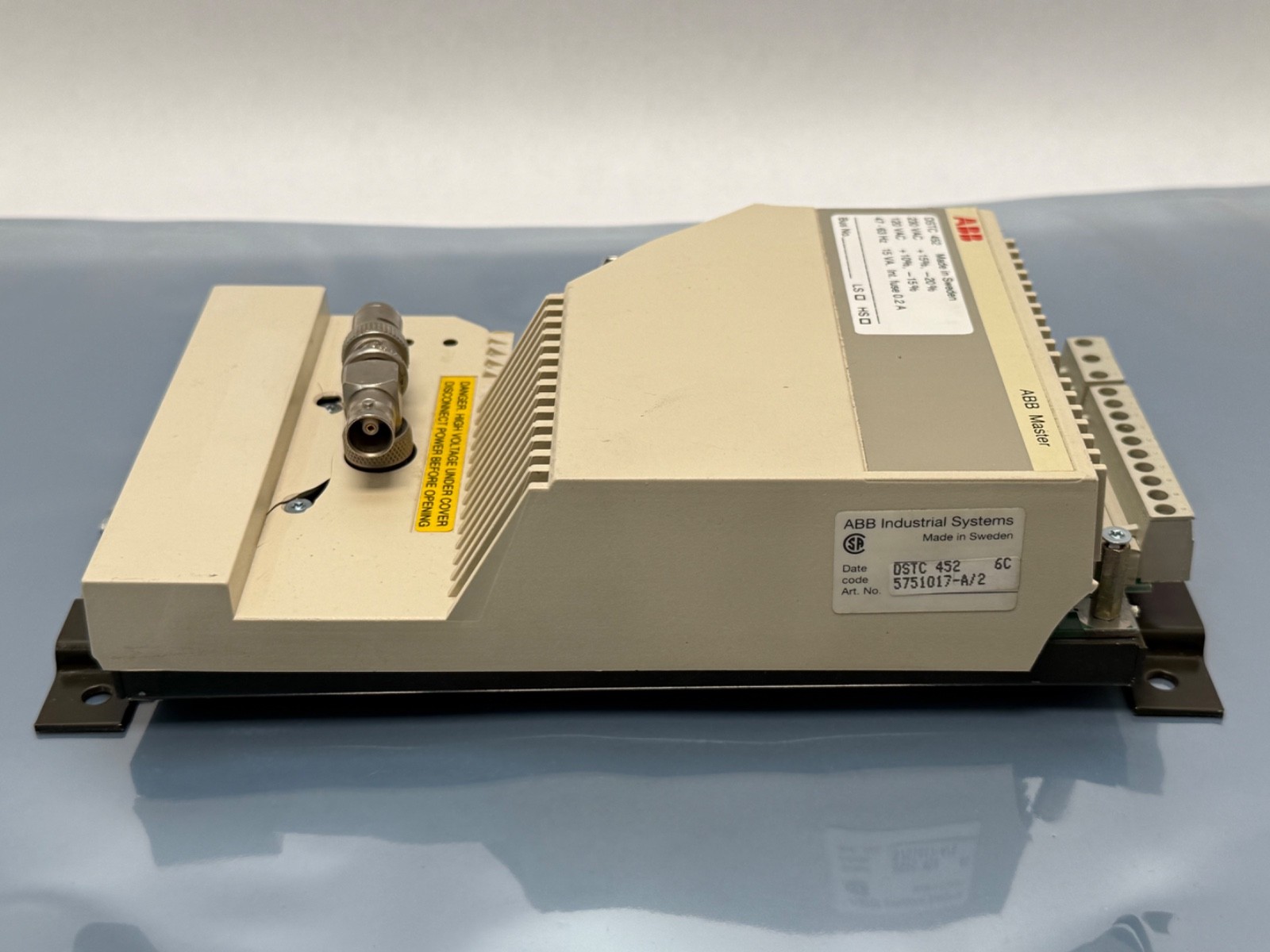

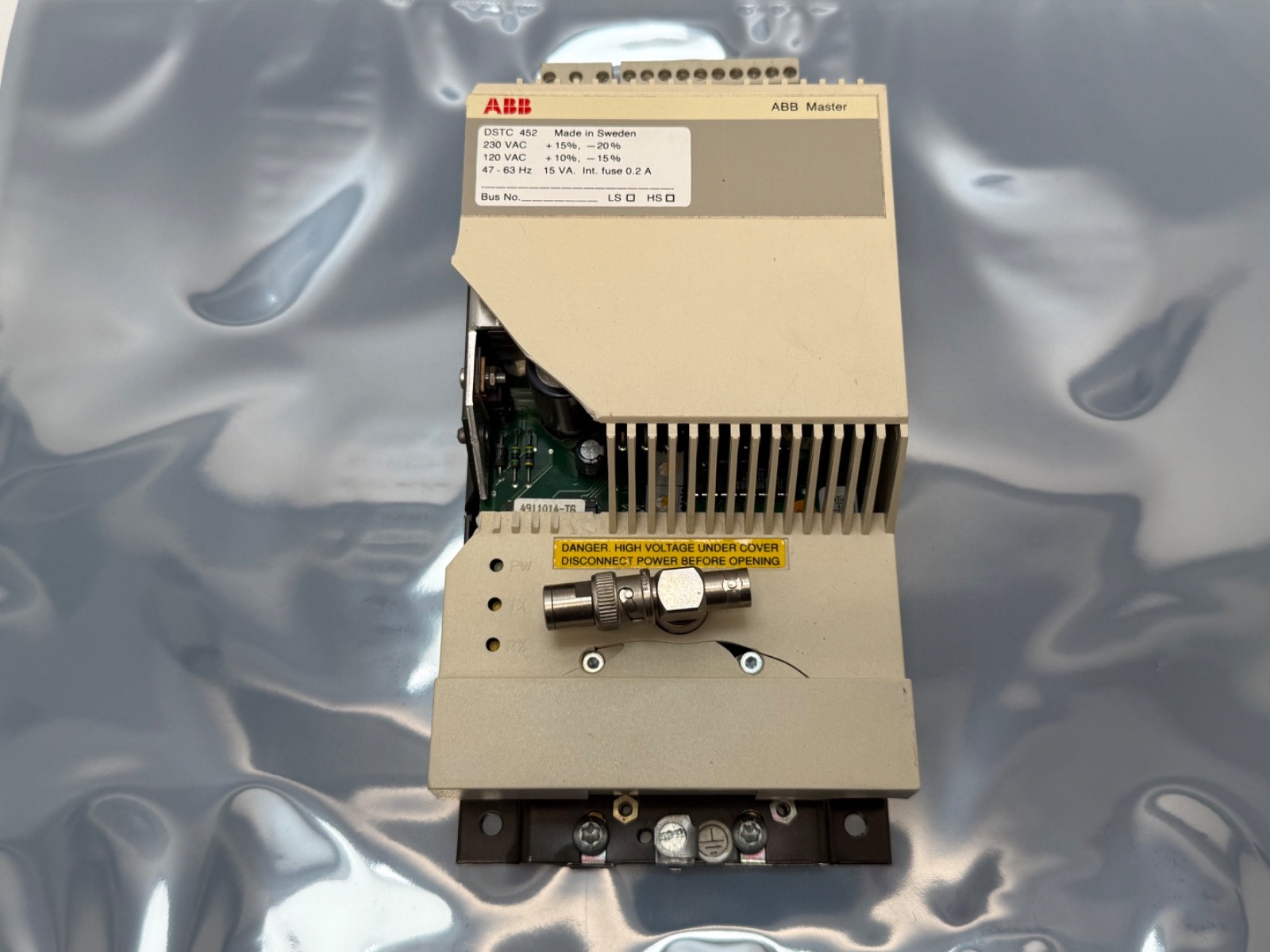

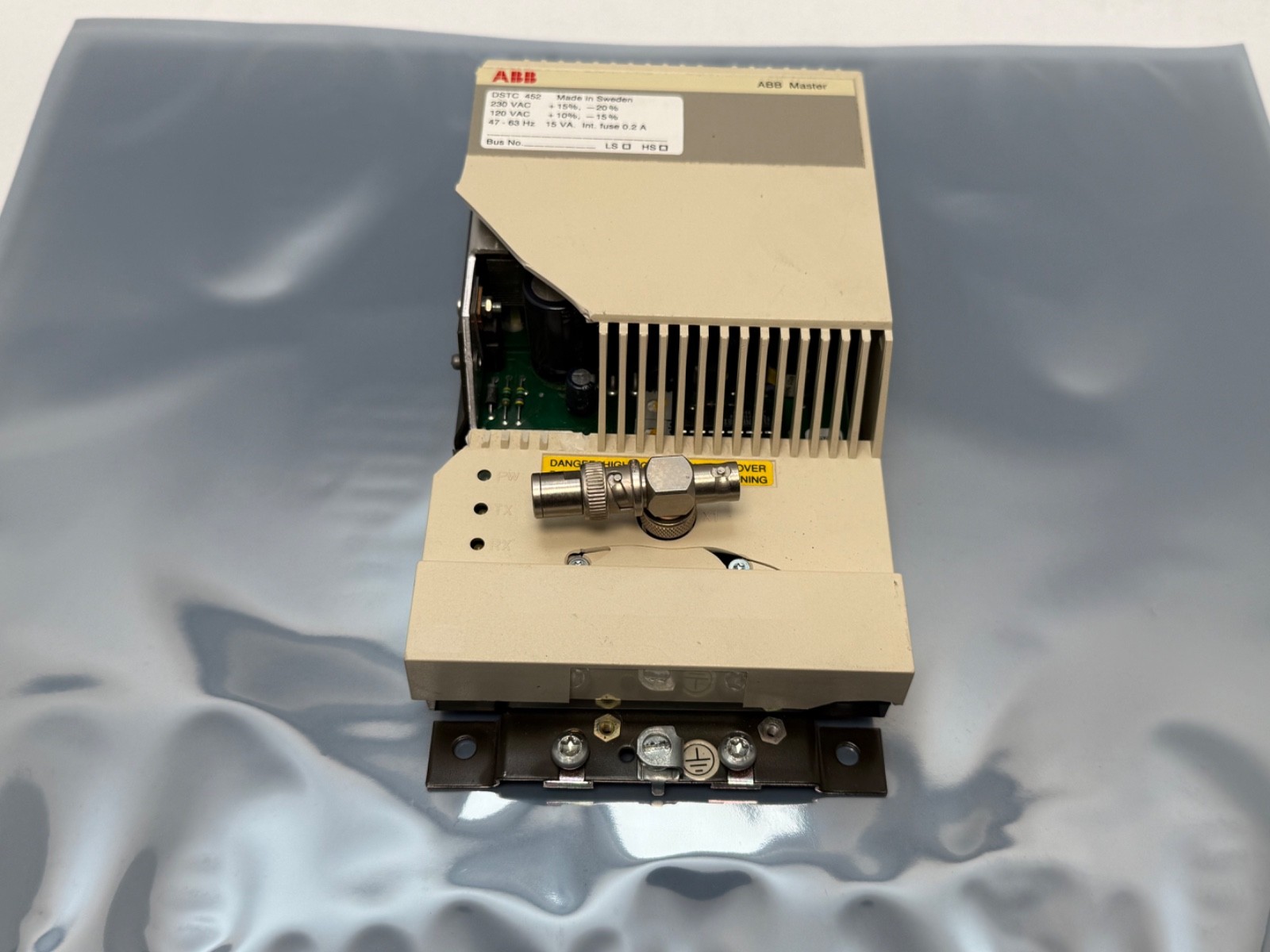

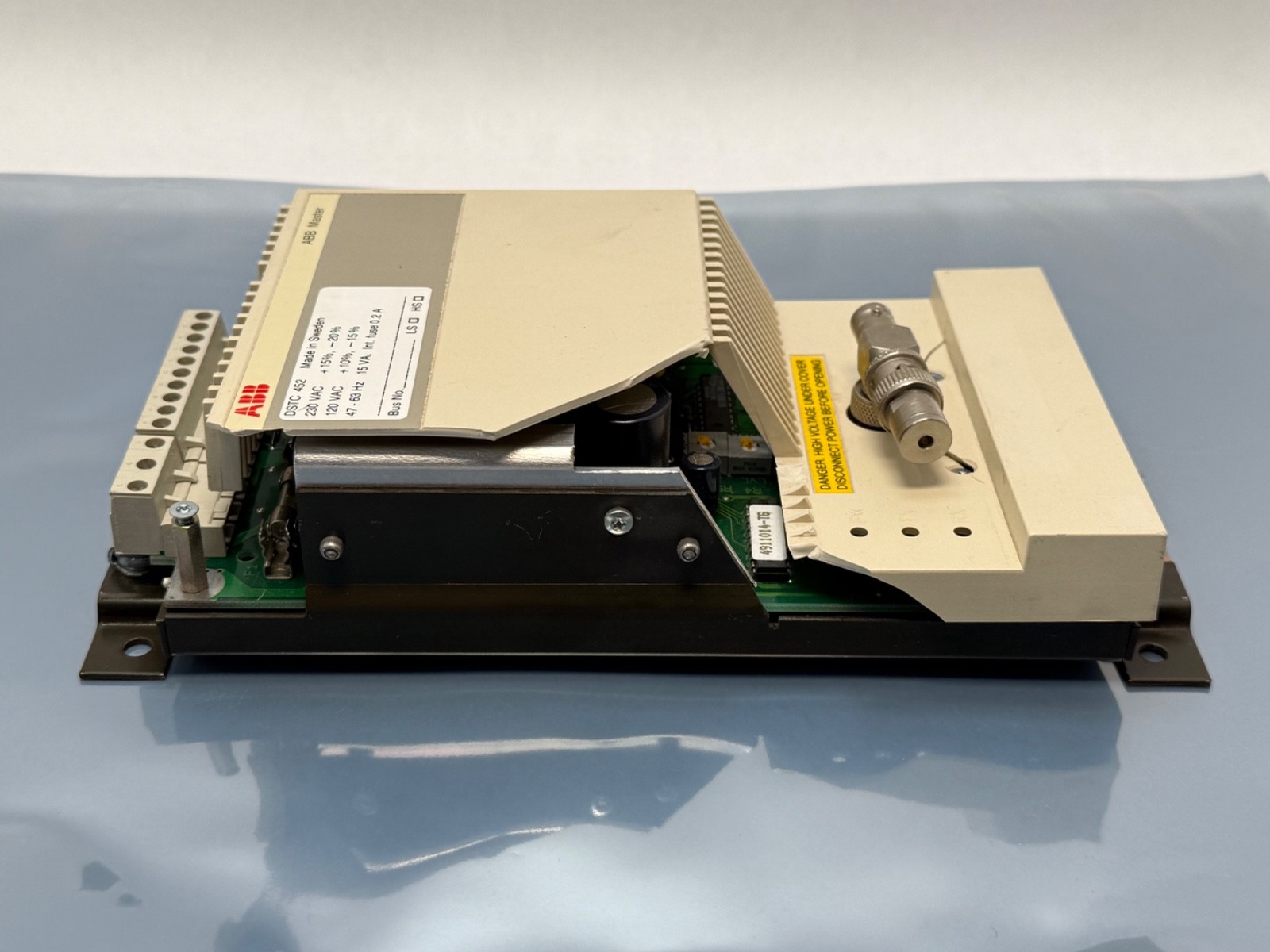

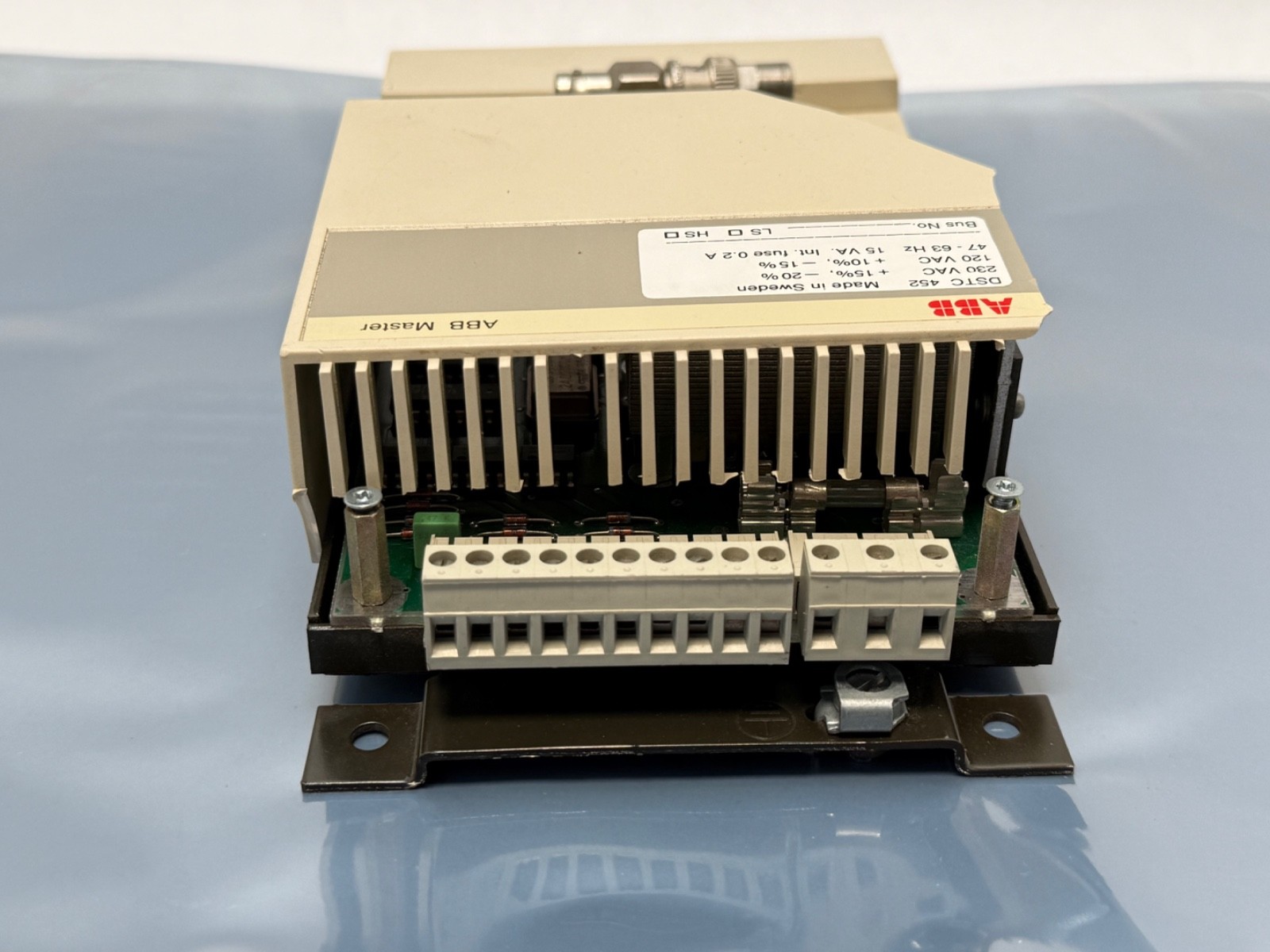

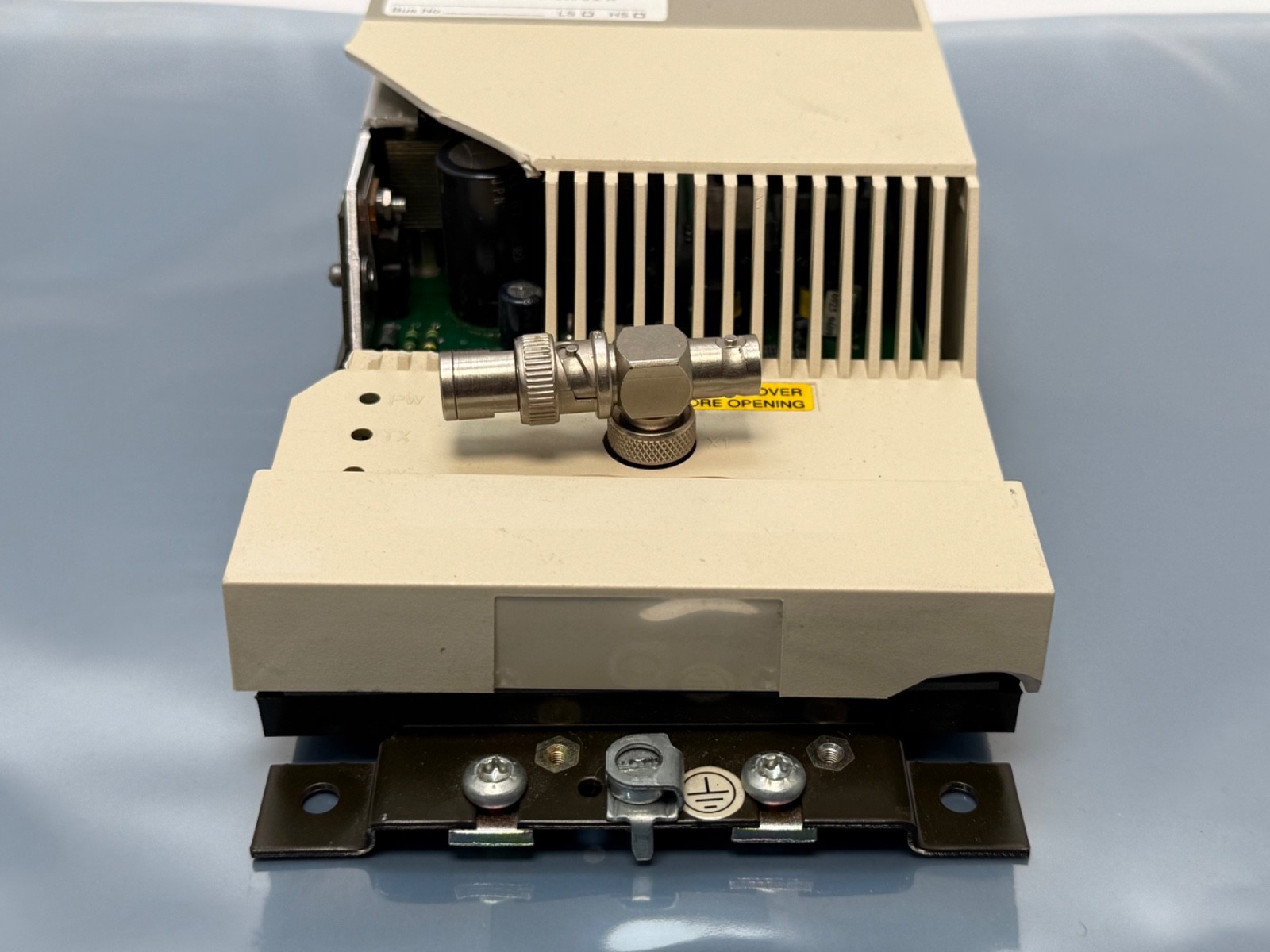

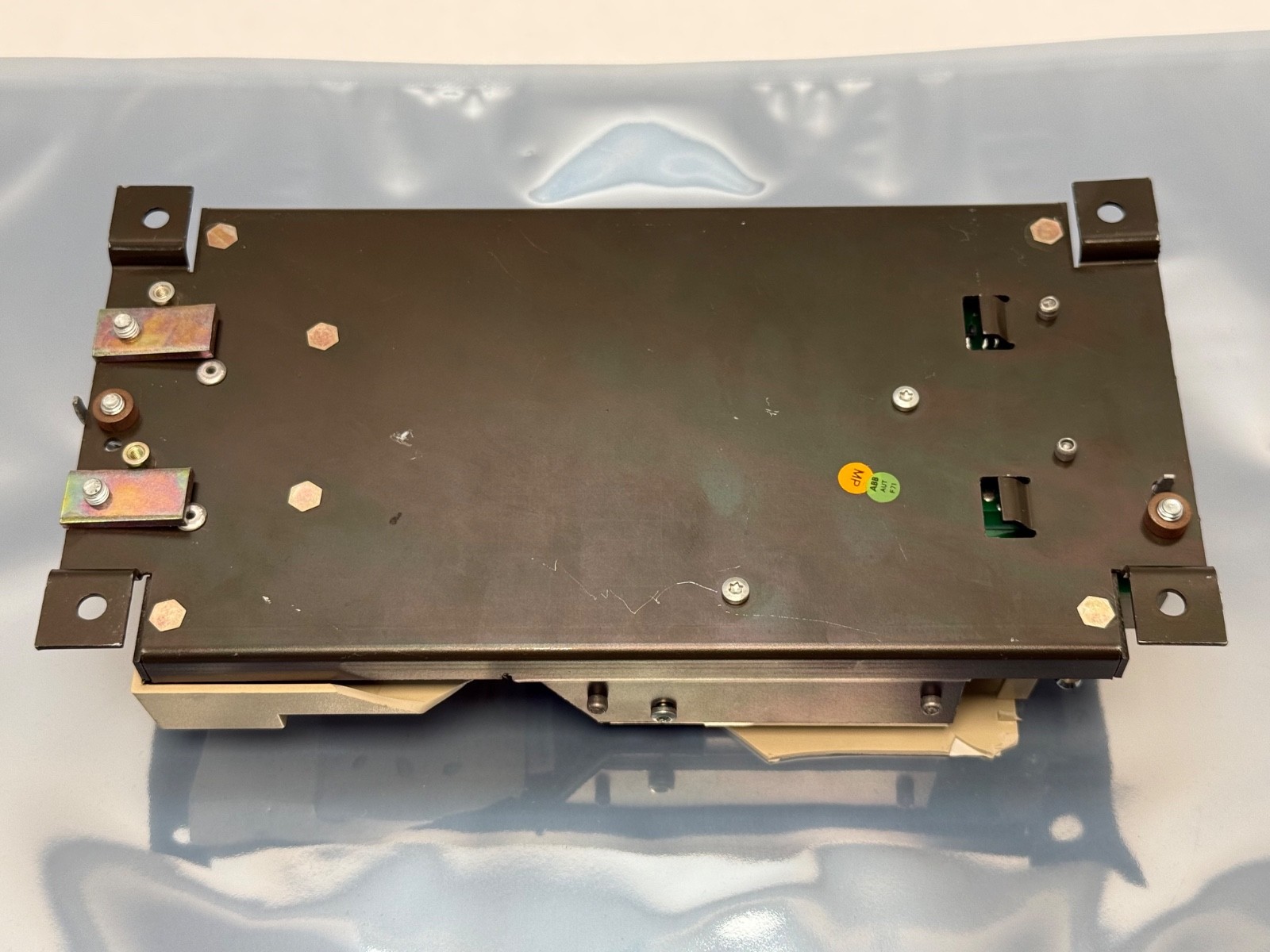

The plastics on this unit are broken — see the photographs before ordering. That is the honest state of it: the casework and/or front-face mouldings are damaged. Buy it as a functional and board-level spare, or where the casework is not what is holding your system up, rather than as a cosmetically presentable unit. Everything visible in the photographs is what is supplied.

What is not included

Rack, subrack or cabinet, backplane, mating connectors and connector kits, field-bus cable, terminating resistors, mains cord or supply terminals beyond those fitted, mounting rails or hardware, replacement plastics or front panel, configuration data, and documentation. No system software, address setting or engineering database is supplied.

Installation notes

Isolate before working — this is a mains-connected unit at 230 V AC. Confirm the incoming supply matches the 230 V rating and that the frequency is within 47–63 Hz. Field-bus segments must be correctly terminated at both physical ends; an unterminated segment produces intermittent, wandering communication faults that get blamed on modems long before anyone checks the terminators. Land the protective earth and the cable screens properly — FSK on twisted pair is robust, but only if the screen is doing its job. Given the damaged plastics, check clearances and mechanical retention before energising in a live cabinet.

Interchange guidance

Direct interchange with other DSTC 452 / 5751017-A/2 units. Not interchangeable with other DSTC numbers, or with DSCS, DSCA or DSPC-series units, all of which serve different functions in the same racks despite the shared DS prefix. There is no modern ABB drop-in equivalent; ABB’s supported path for Master and Advant systems is migration to 800xA, which replaces the architecture rather than the module.
