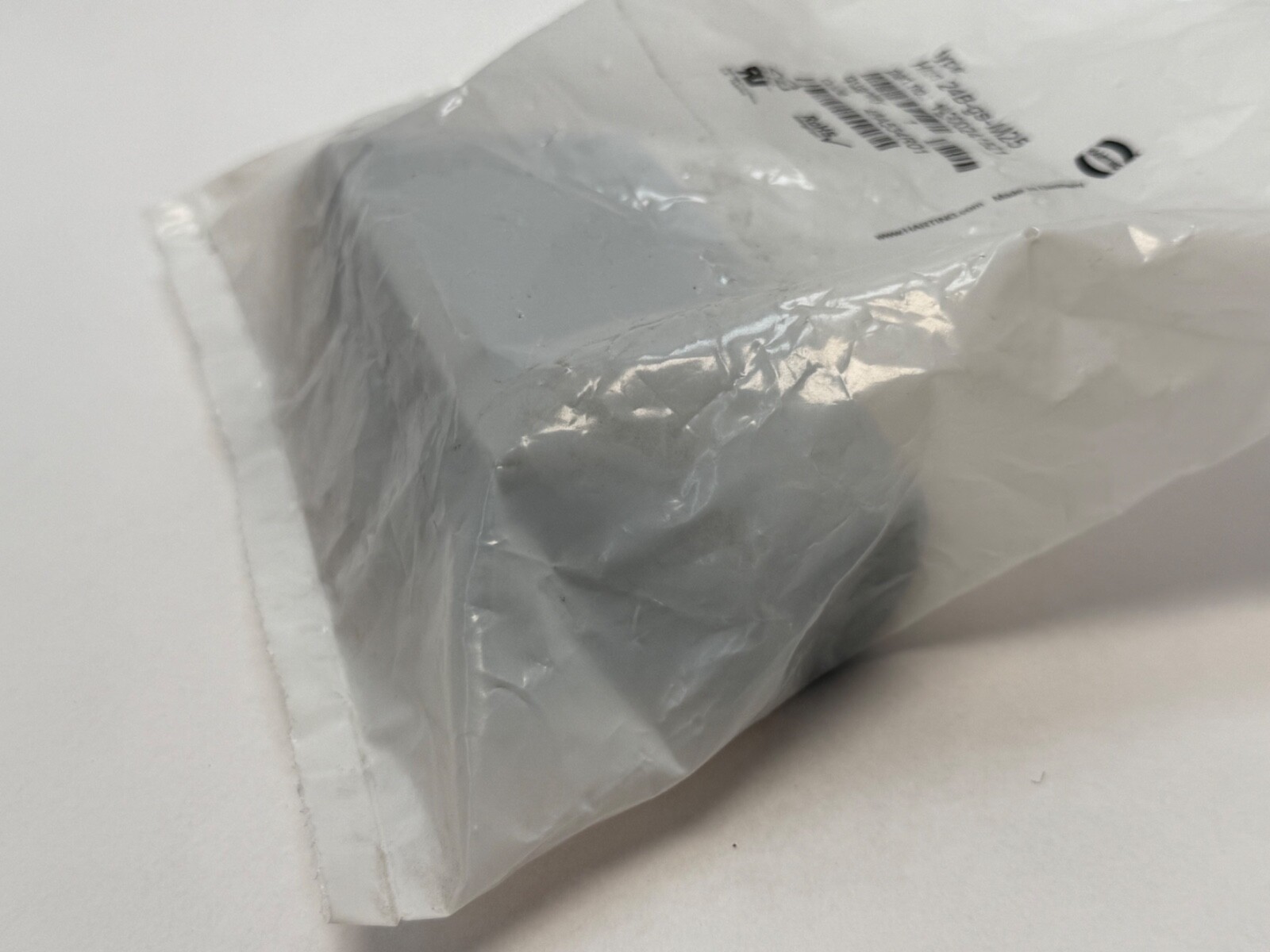

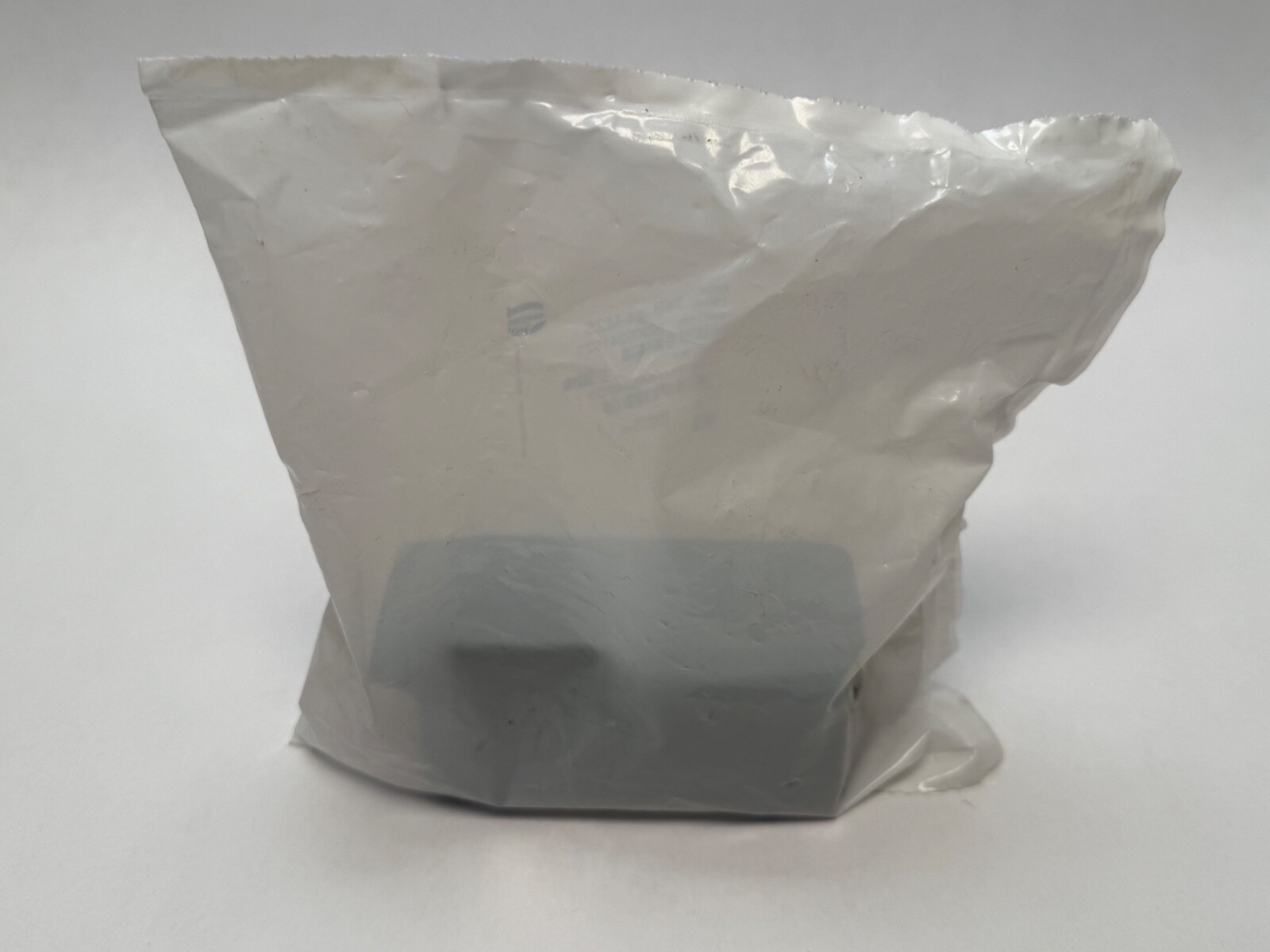

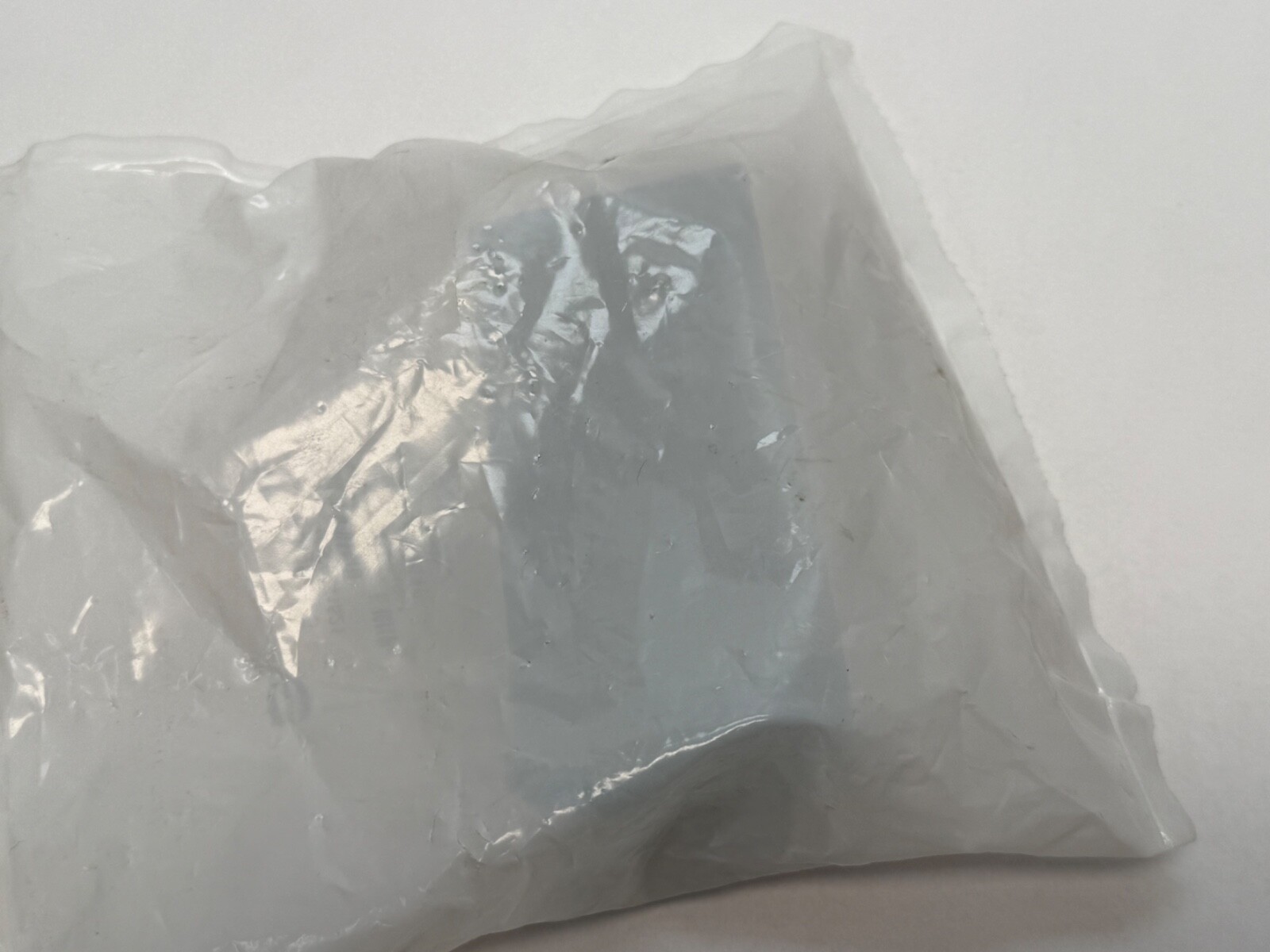

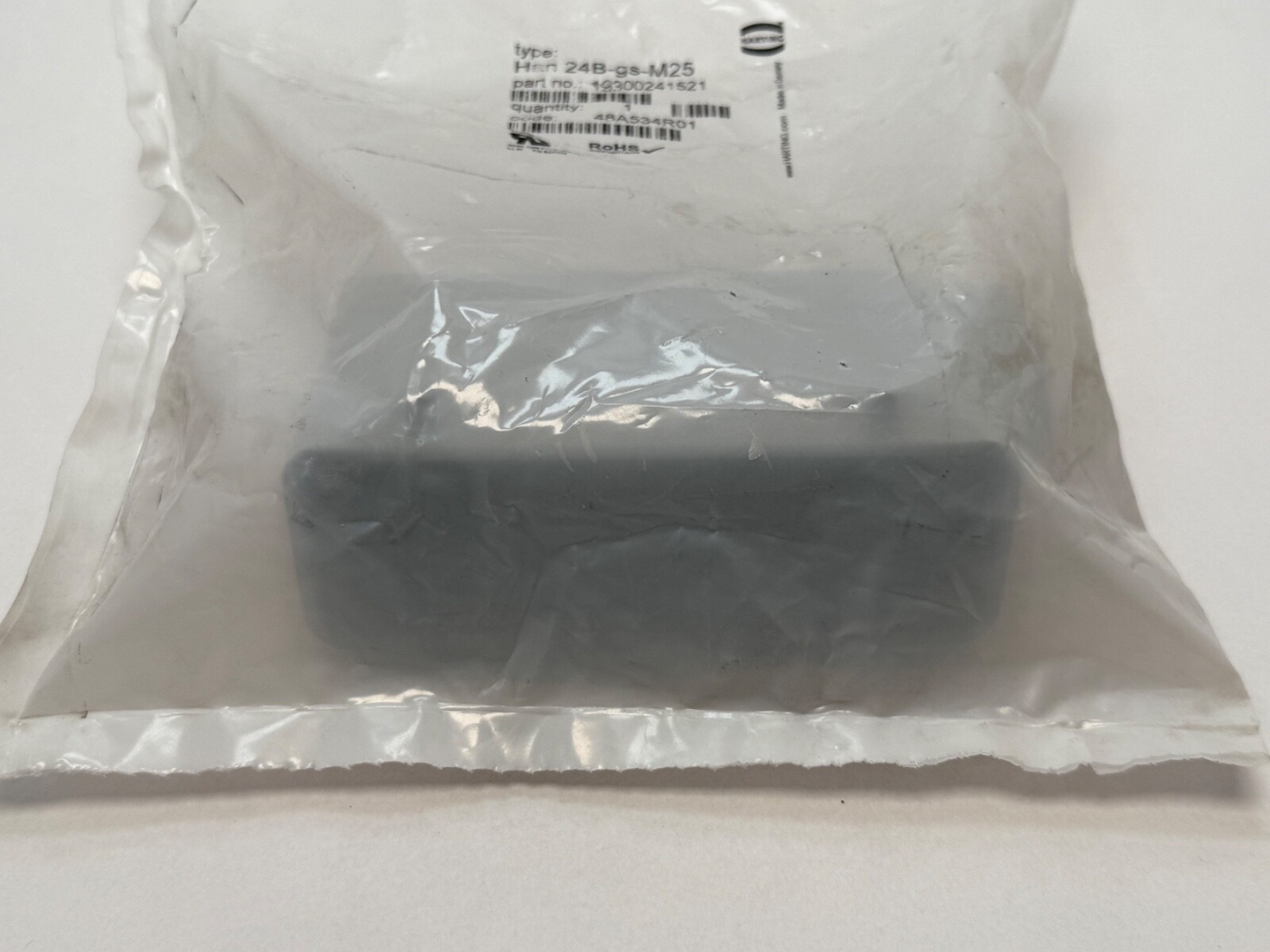

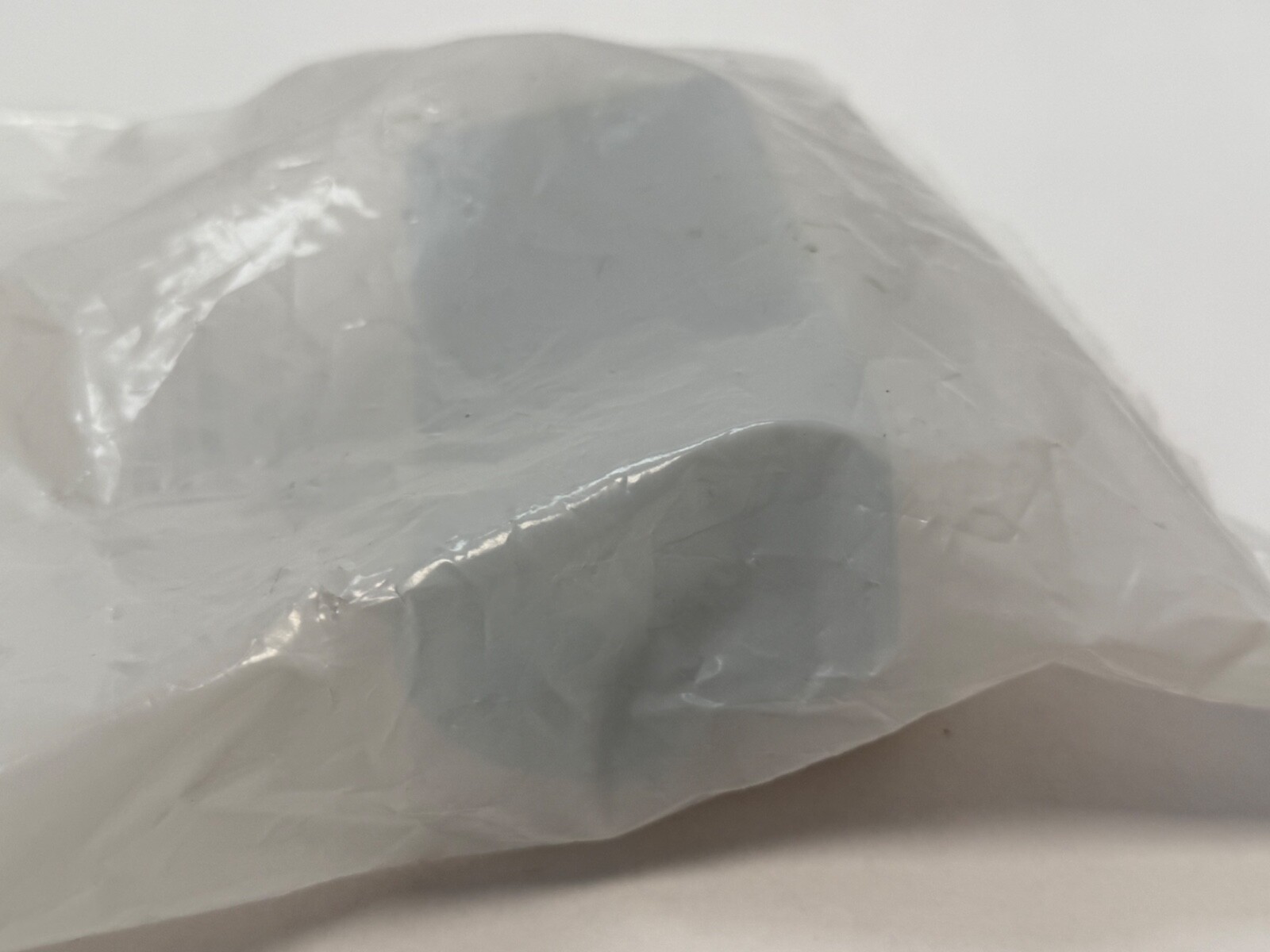

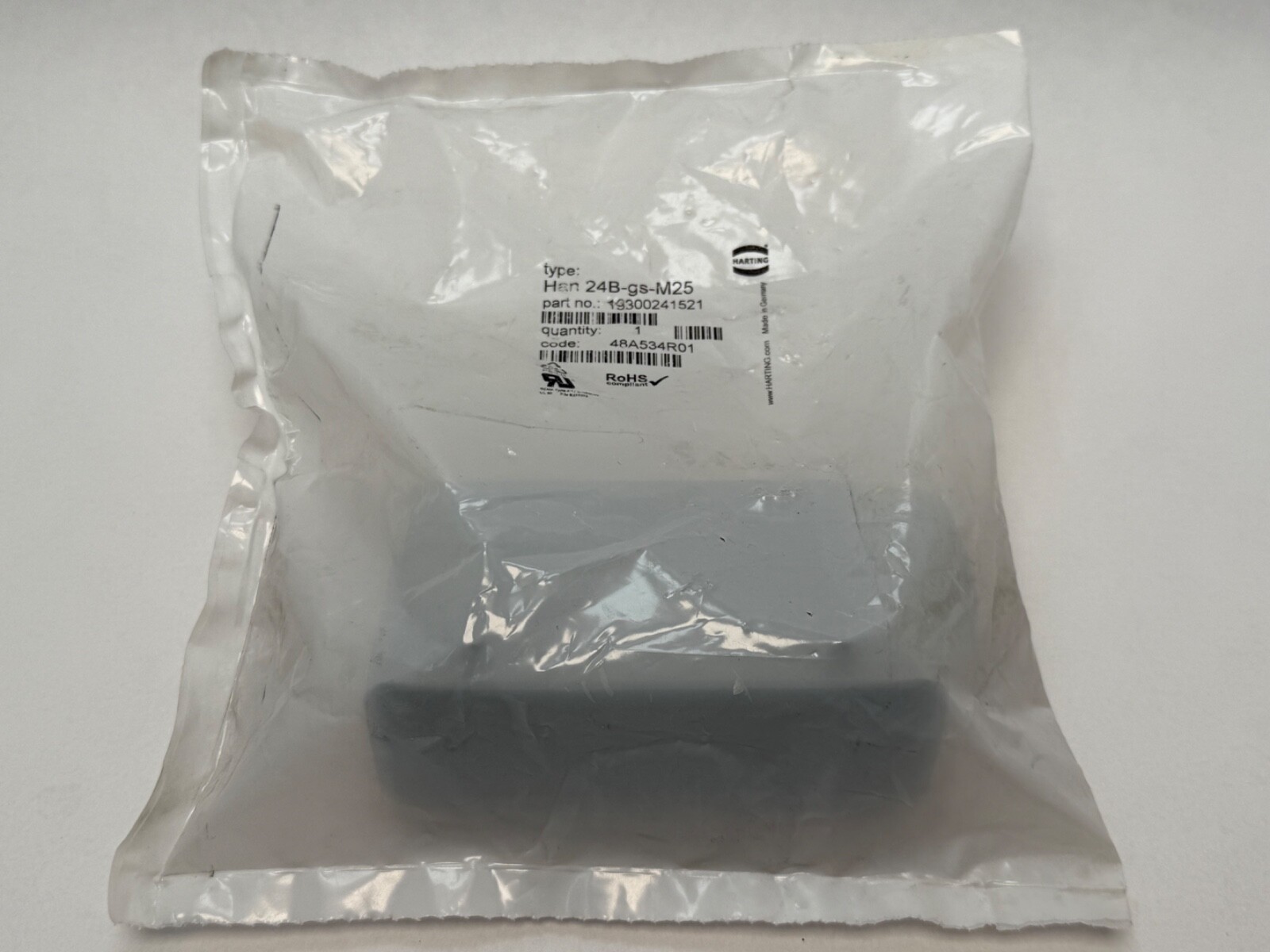

HARTING Han 24 B hood 19 30 024 1521, low construction, side entry, 1x M25 cable entry, aluminium die-cast, IP65/IP66/IP67, for double locking lever housings.
List Price
$25.48
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | HARTING |
|---|---|
| MPN | 19 30 024 1521 |
| GTIN | 5713140127227 |
| Model | 19 30 024 1521 |
| Type | Connector Hood |
|---|---|
| Item Length | 9 |
| Industry Terms | connector hood, Han hood, heavy duty connector hood, rectangular connector housing |
| Mpn Variants | 19300241521, 19 30 024 1521, Han 24B-gs-M25, HAN24B-GS-M25, 24B-GS-M25 |
| Additional Attributes | Mating Cycles: 500 min; UL 50 Type: 4, 4X, 12; UL 1977 ECBT2.E235076; CSA-C22.2 No. 182.3; CE; DNV GL; RoHS compliant; ETIM EC000437; eCl@ss 27440202 |
| Material | Aluminium die-cast, powder-coated RAL 7037 |
| Series | Han B |
| Ip Rating | IP65, IP66, IP67 |
| Item Weight | 0.17 kg (0.37 lb) |
| Harmonization Code | 85389099 |
| Common Misspellings | Hartin 19300241521; Harting Han 24-B; Han24B-GS-M25; Harting 19 30 024 1521 hood |
| Application Types | Industrial machinery; control cabinets; machine-to-machine interconnects; heavy-duty rectangular connector housings |
| Locking Type | Double locking lever |
The HARTING 19 30 024 1521 is a Han® B series hood, size 24 B, in low construction with a side cable entry. It is the upper shell of a Han 24 B rectangular industrial connector: the insert mounts inside, the cable enters through the M25 side entry, and four pegs engage the double locking lever of the mating housing. Unit Quantity: 1 Pc.
Han 24 B — HARTING Han B hood/housing series, size 24 B.
gs — side entry hood with locking pegs, for a housing with double locking lever.
M25 — one M25 threaded cable entry.
Series: Han B. Type: Hood, low construction. Size: 24 B. Version: Side entry. Number Of Cable Entries: 1. Cable Entry: M25. Locking Type: Double locking lever (pegs on hood). Material: Aluminium die-cast. Surface: Powder-coated. Colour: RAL 7037 (dust grey). Limiting Temperature: -40 to +125 °C. Mating Cycles: 500 minimum. Degree Of Protection: IP65, IP66, IP67 (IEC 60529). UL 50 Type Rating: 4, 4X, 12. Net Weight: 170 g. GTIN: 5713140127227.
Size 24 B hood, mates with Han 24 B housings carrying a double locking lever. Cable Entry: 1x M25, side entry.

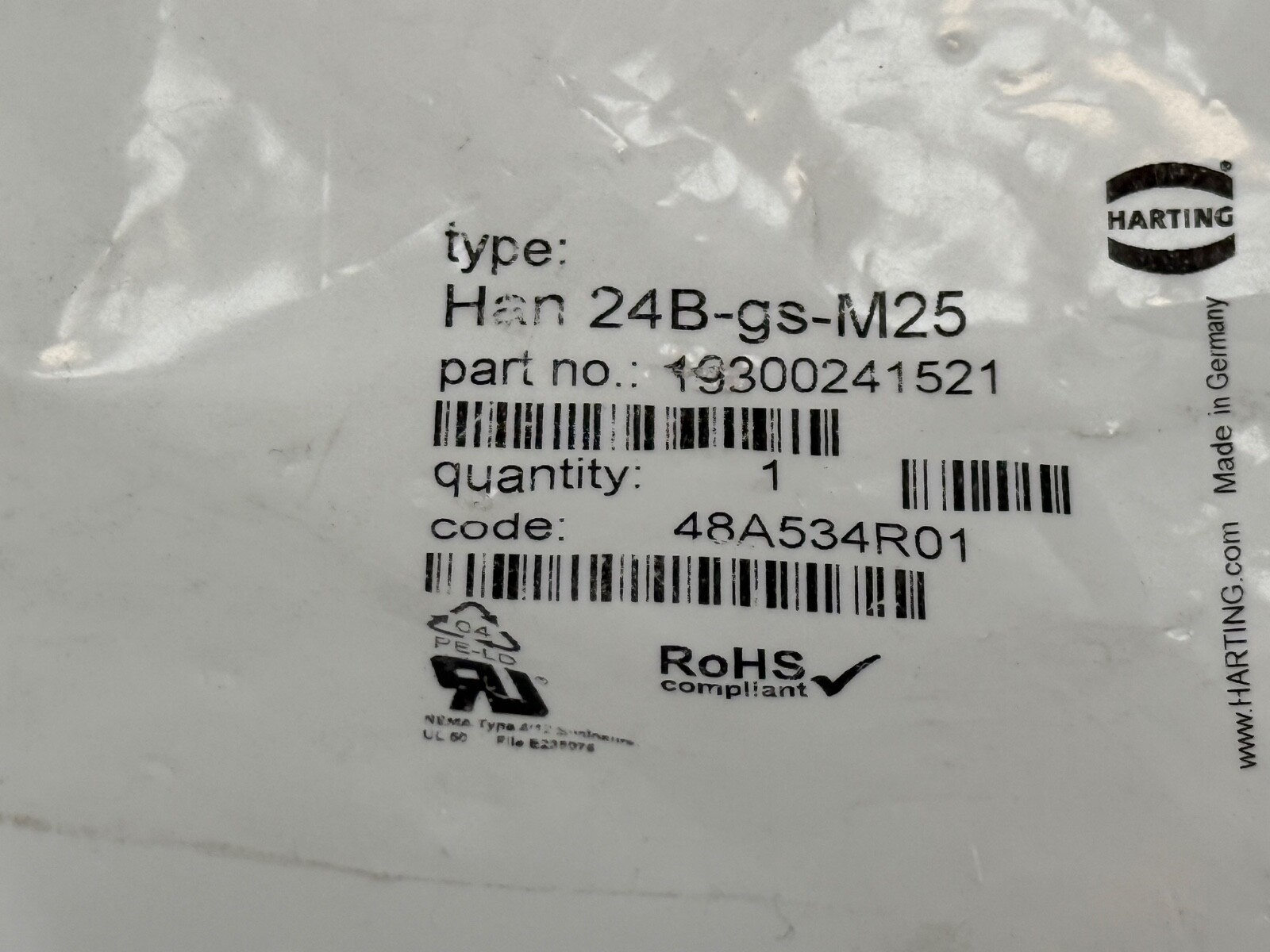

HARTING short designation: Han 24B-gs-M25. Also written 19300241521, HAN24B-GS-M25 and 24B-GS-M25. Approvals: UL 1977 ECBT2.E235076, CSA-C22.2 No. 182.3, CE, DNV GL. CAD model and data sheet: available from HARTING.
Han 24 B.
M25, one side entry.
IP65, IP66 and IP67 to IEC 60529.
