SKFTSN-516-CFelt Housing Seal – 70 mm Shaft, 101 mm Seal Groove, 10 mm Wide, SNL 516 / SE 516 Housings

Product Description

What this part is

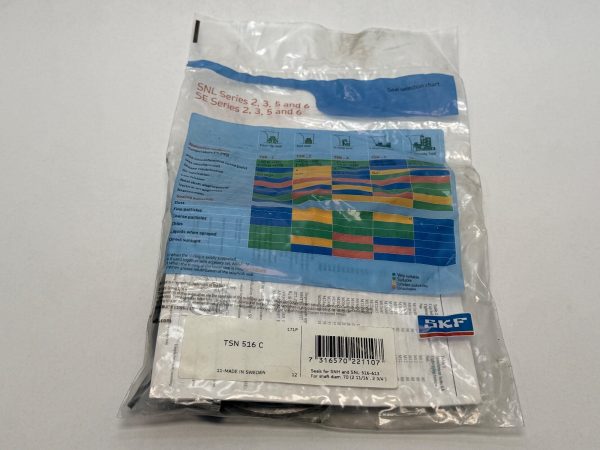

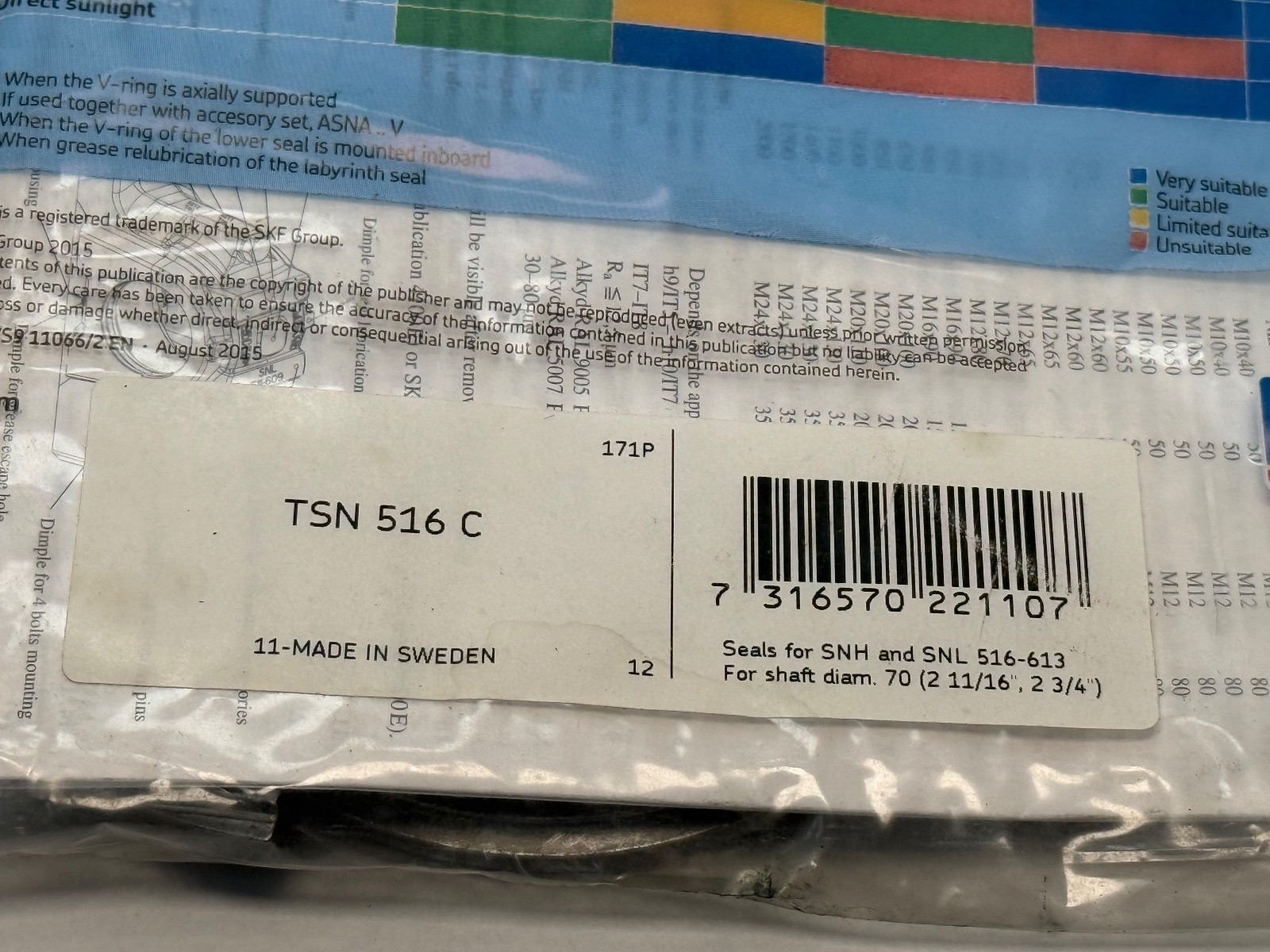

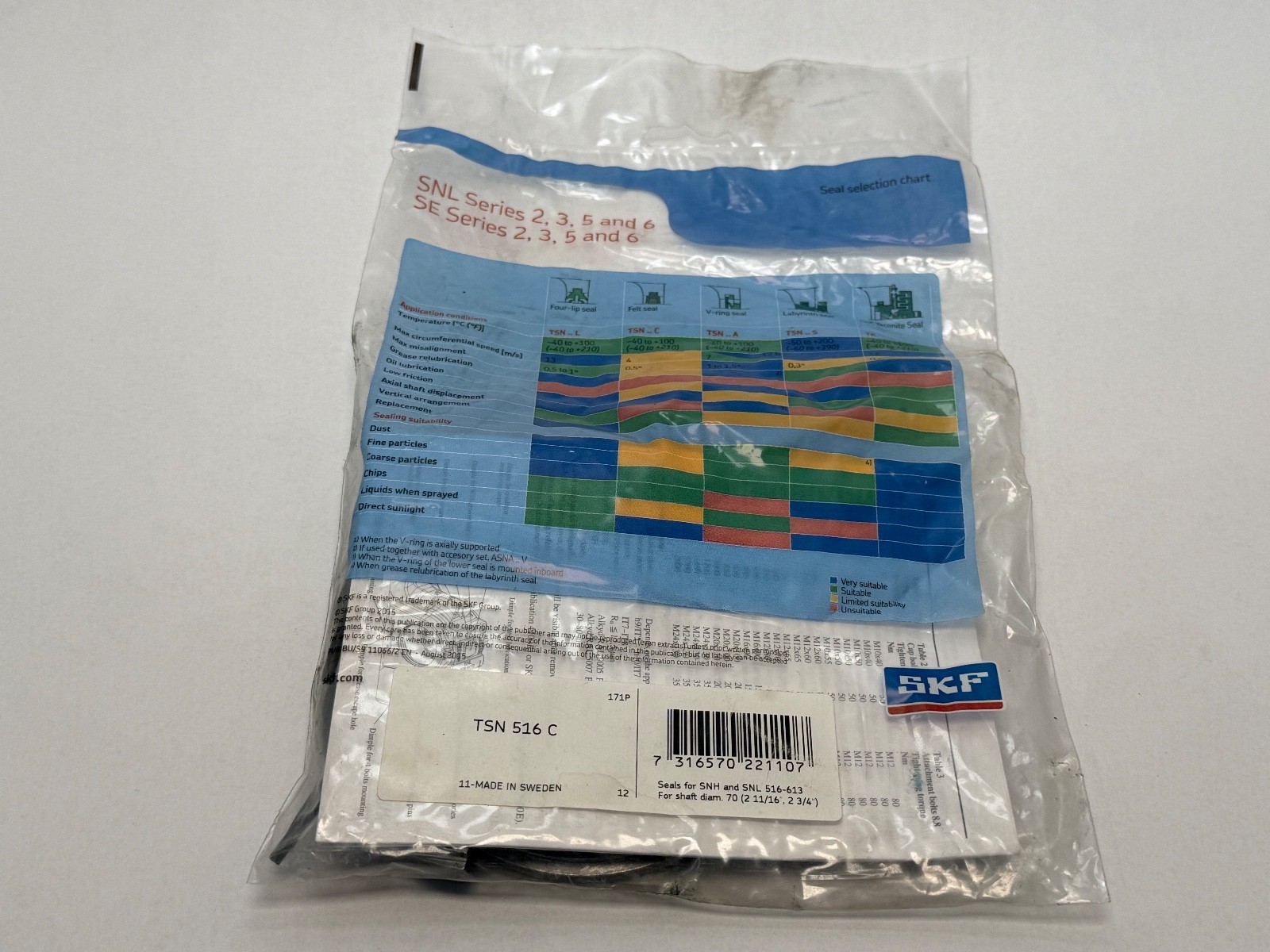

SKF TSN 516 C felt housing seal for split plummer block housings. Bore Diameter: 70 mm shaft. Outside Diameter: 101 mm seal groove diameter. Overall Width: 10 mm. Material: Felt. Series: TSN. Base Number: TSN 516 C. GTIN: 7316570221107.

Decoding the designation

TSN is SKF’s housing seal family for split plummer blocks. 516 is the housing size, matching the SNL 516 and SE 516 blocks. C is the felt strip seal execution. Written as TSN-516-C, TSN516C and TSN 516 C.

What these specs mean in practice

A felt seal runs with a small gap that opens up between the felt and the shaft as the shaft turns, so above low speed it behaves as a non-contact gap seal. That keeps friction and heat down and lets it work at higher shaft speeds than a rubbing lip seal, and it leaves the shaft free to move axially inside the housing — which is what a non-locating bearing position needs. The felt also holds a charge of oil and acts as a wiper against dust and coarse airborne dirt.

Quantity and configuration

Unit Quantity: 1 Pc. One seal per sale unit.

Mounting data

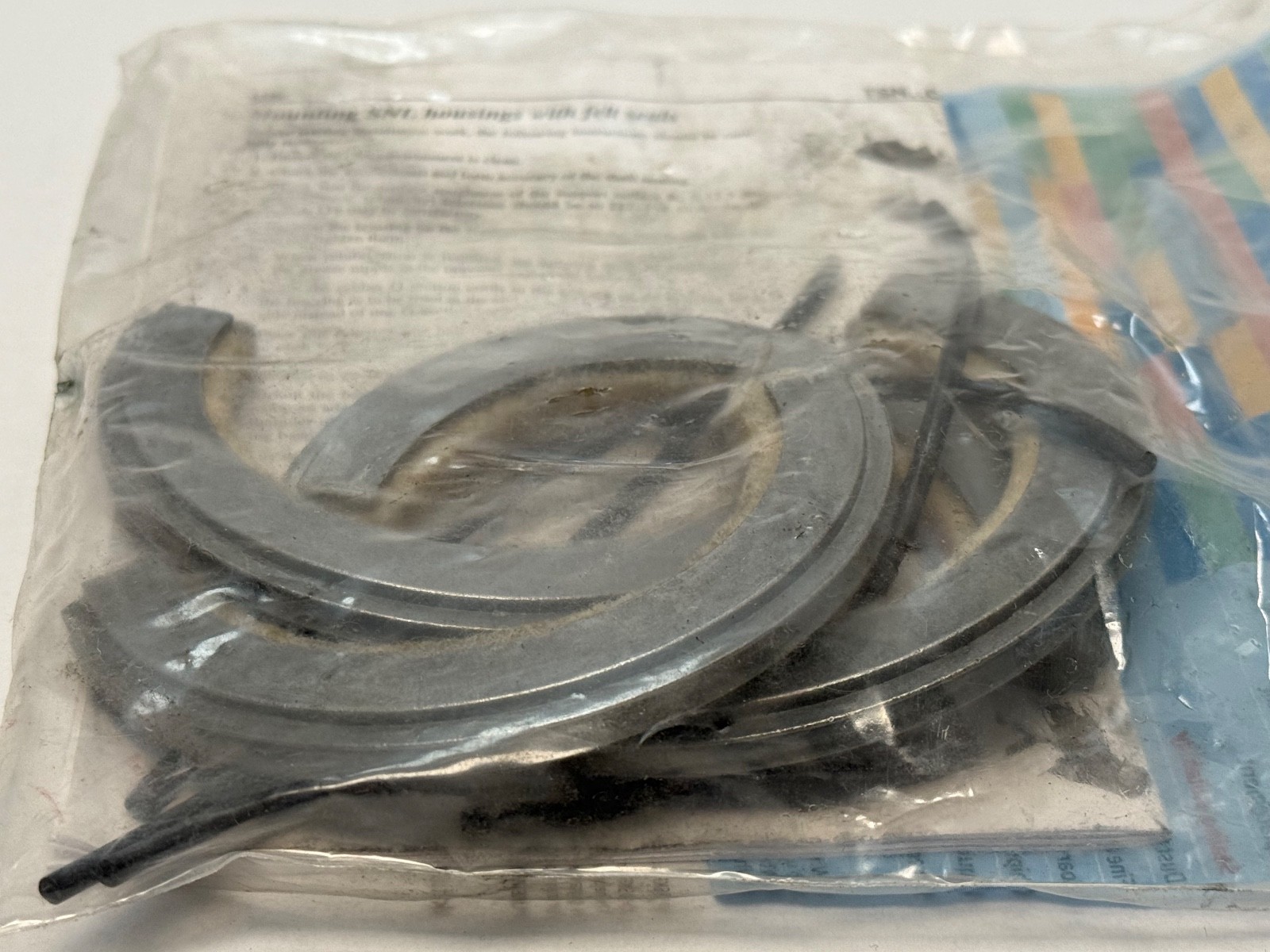

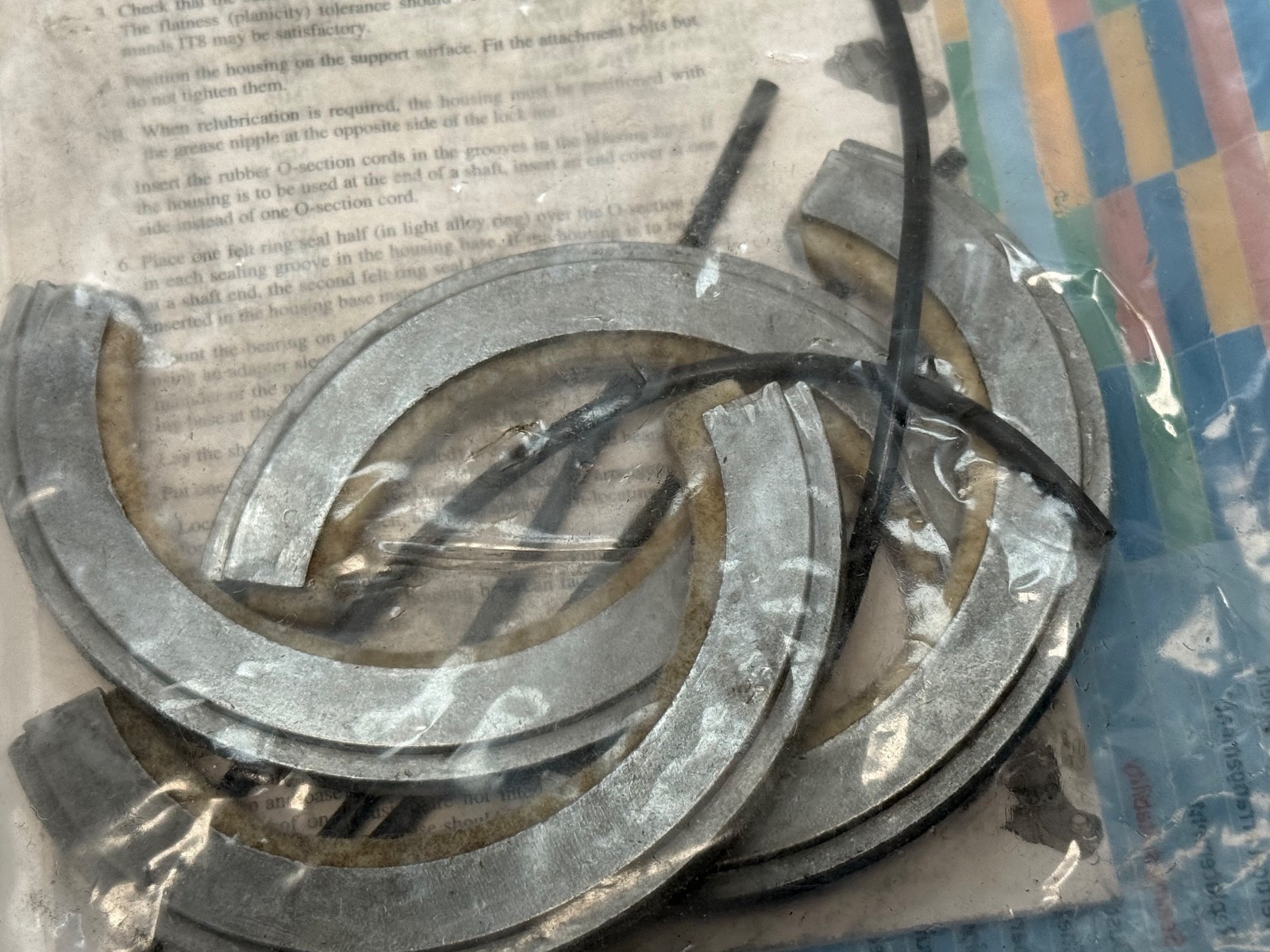

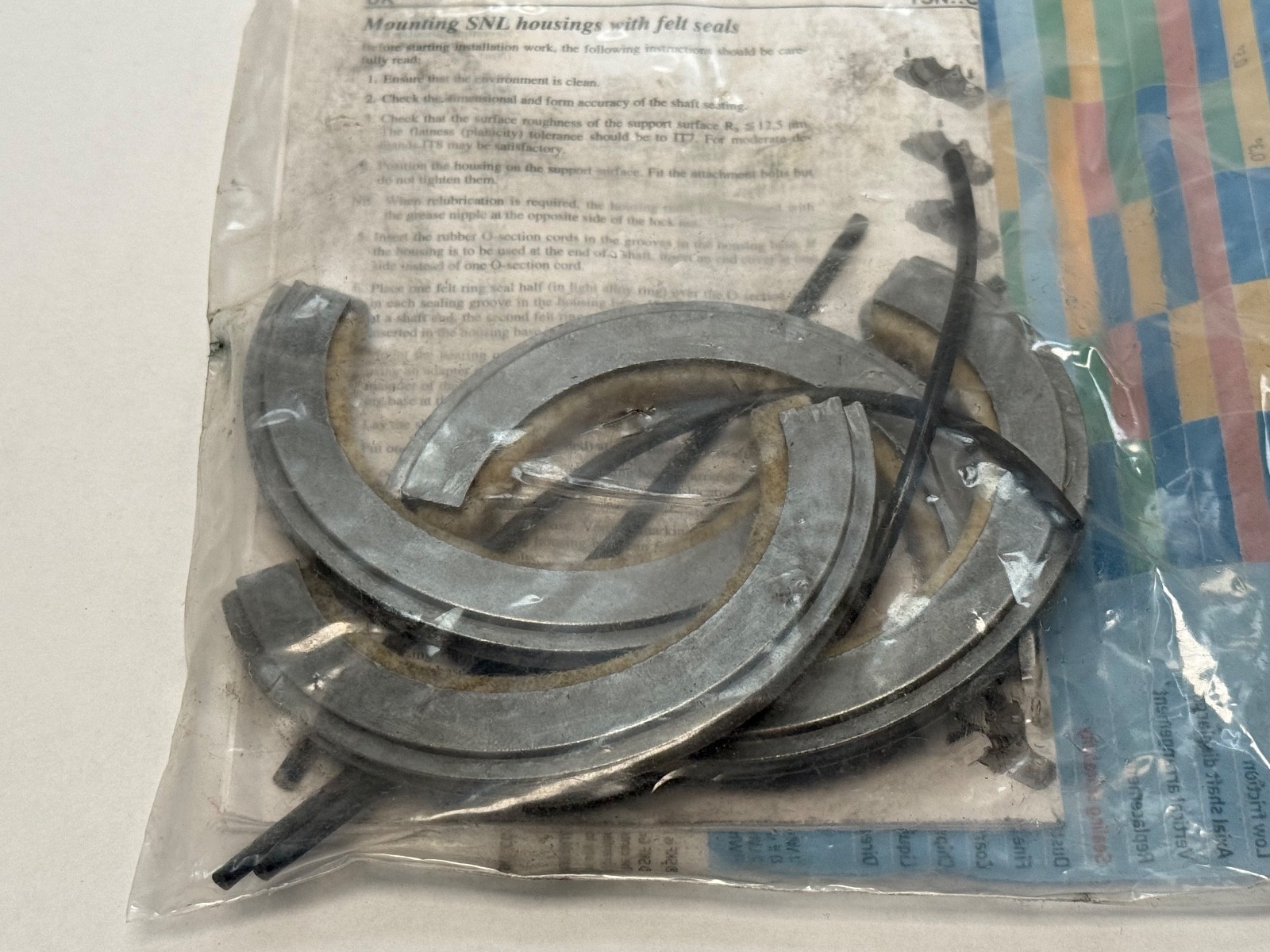

Shaft diameter: 70 mm. Seal groove diameter in the housing: 101 mm. Seal width: 10 mm. The seal drops into the machined groove in each end face of the split housing and closes on the shaft when the cap is bolted down.

Interchange guidance

A TSN seal is matched to the housing size and the shaft diameter, so the numbers to match are 516 and 70 mm. Cross-Reference 1: SKF TSN 516 A (related, alternative seal execution for the same 516 housing). Cross-Reference 2: SKF TSN 516 L (related, four-lip seal execution for the same 516 housing). Searchable forms: TSN-516-C, TSN516C, TSN 516 C, TSN516.
