Fischer45564FBN II 16/25 Bolt Anchor M16 16×145 mm Zinc Plated 45564 Box Of 10

Product Description

What this is:

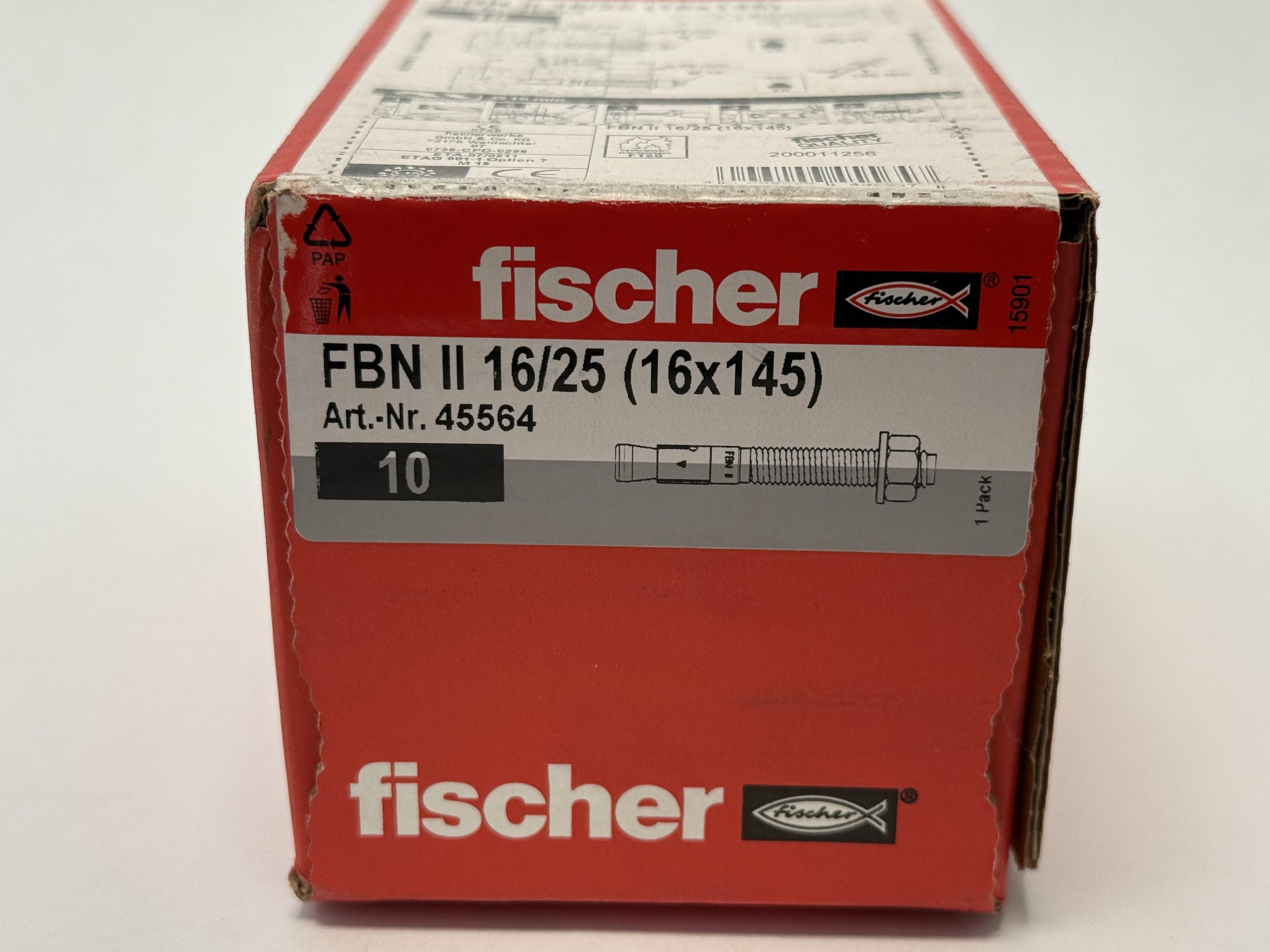

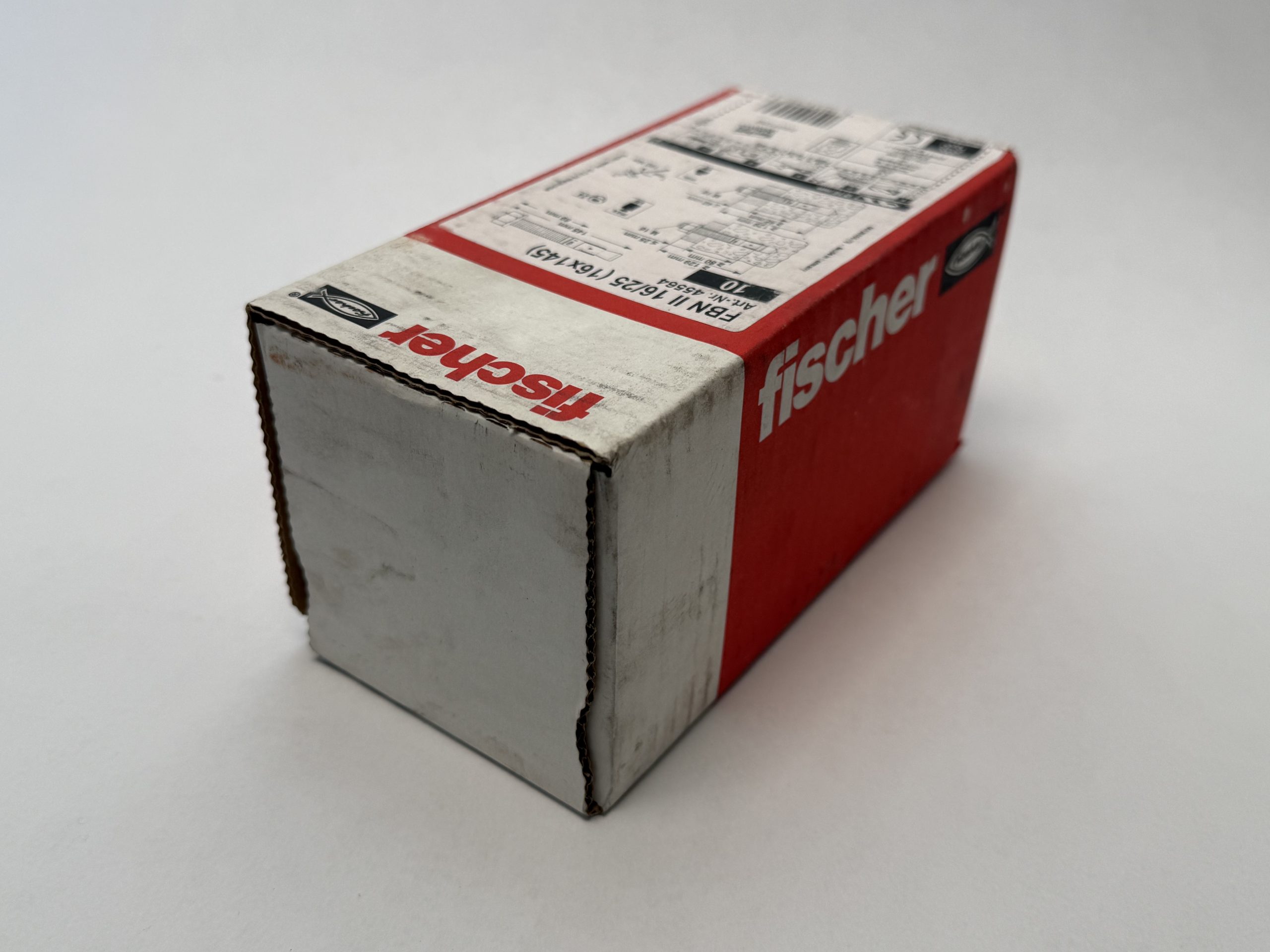

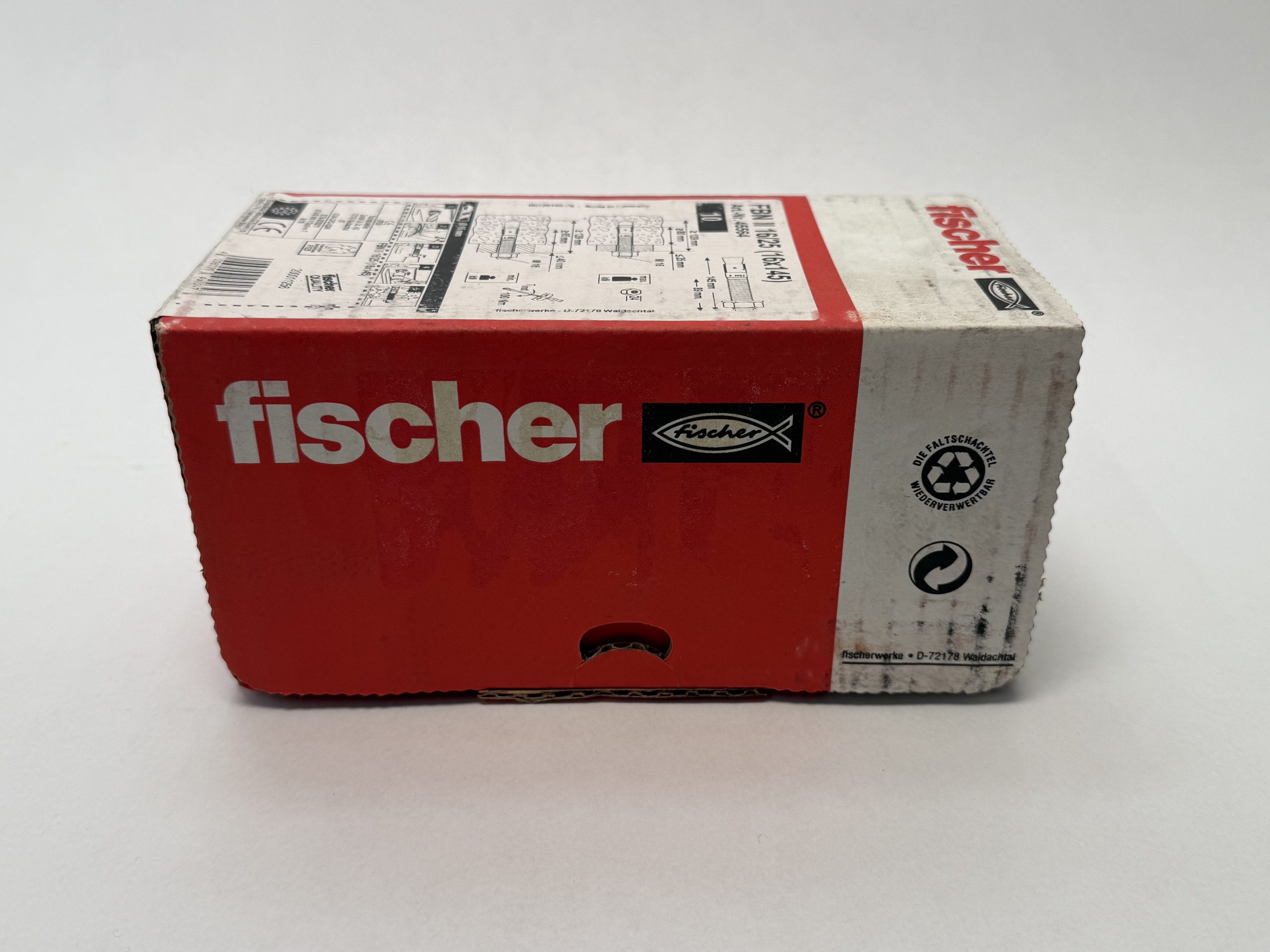

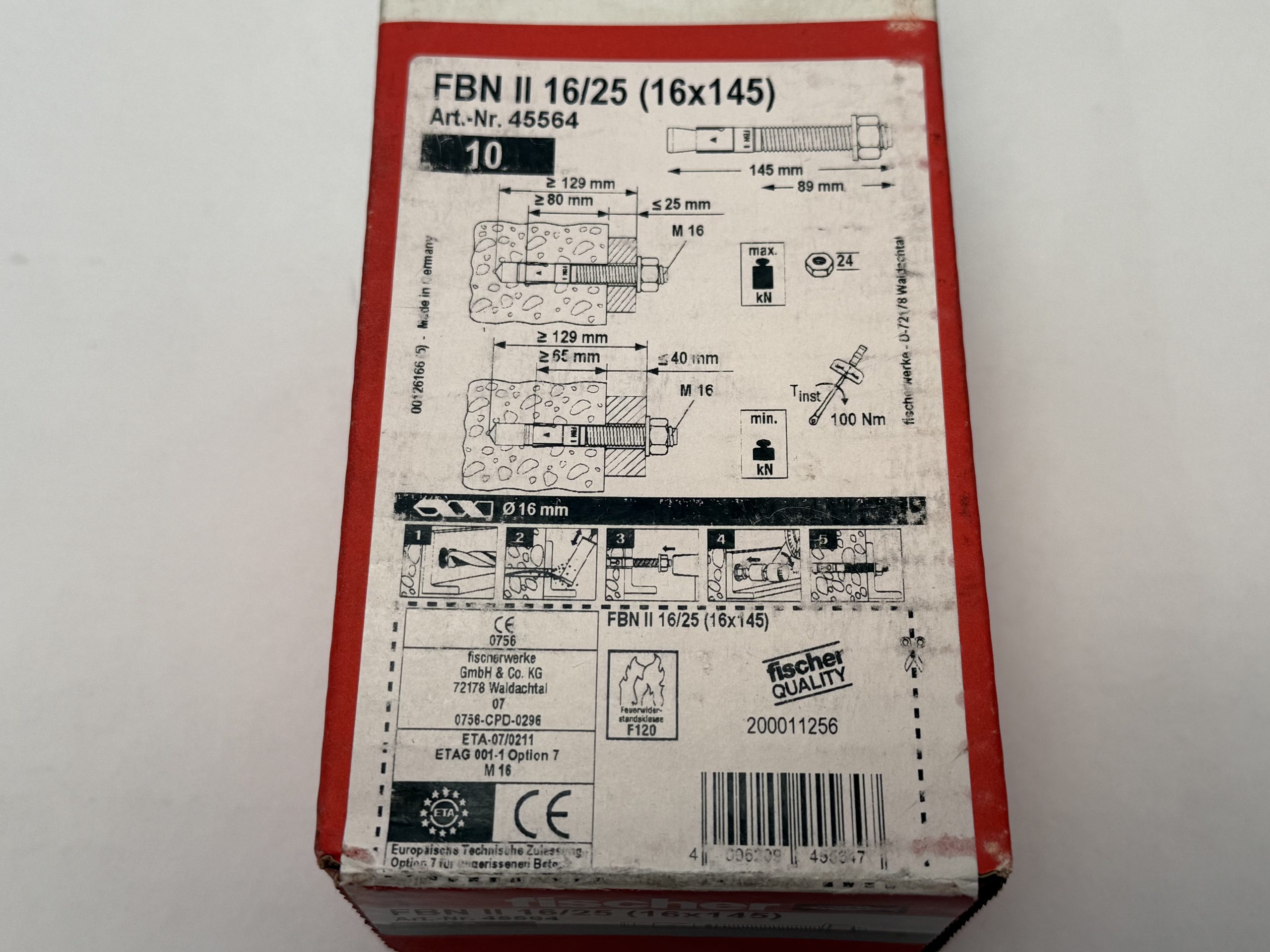

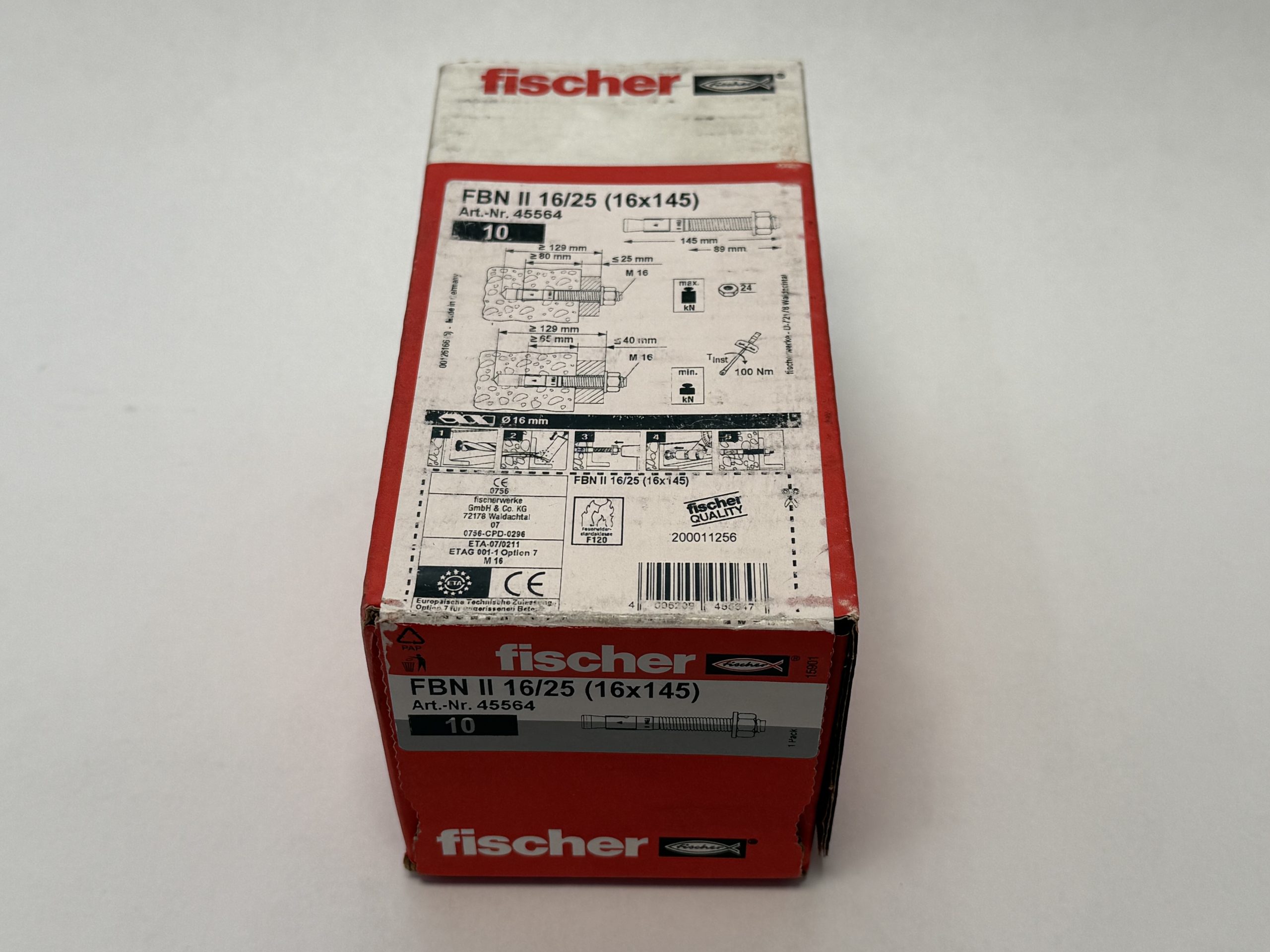

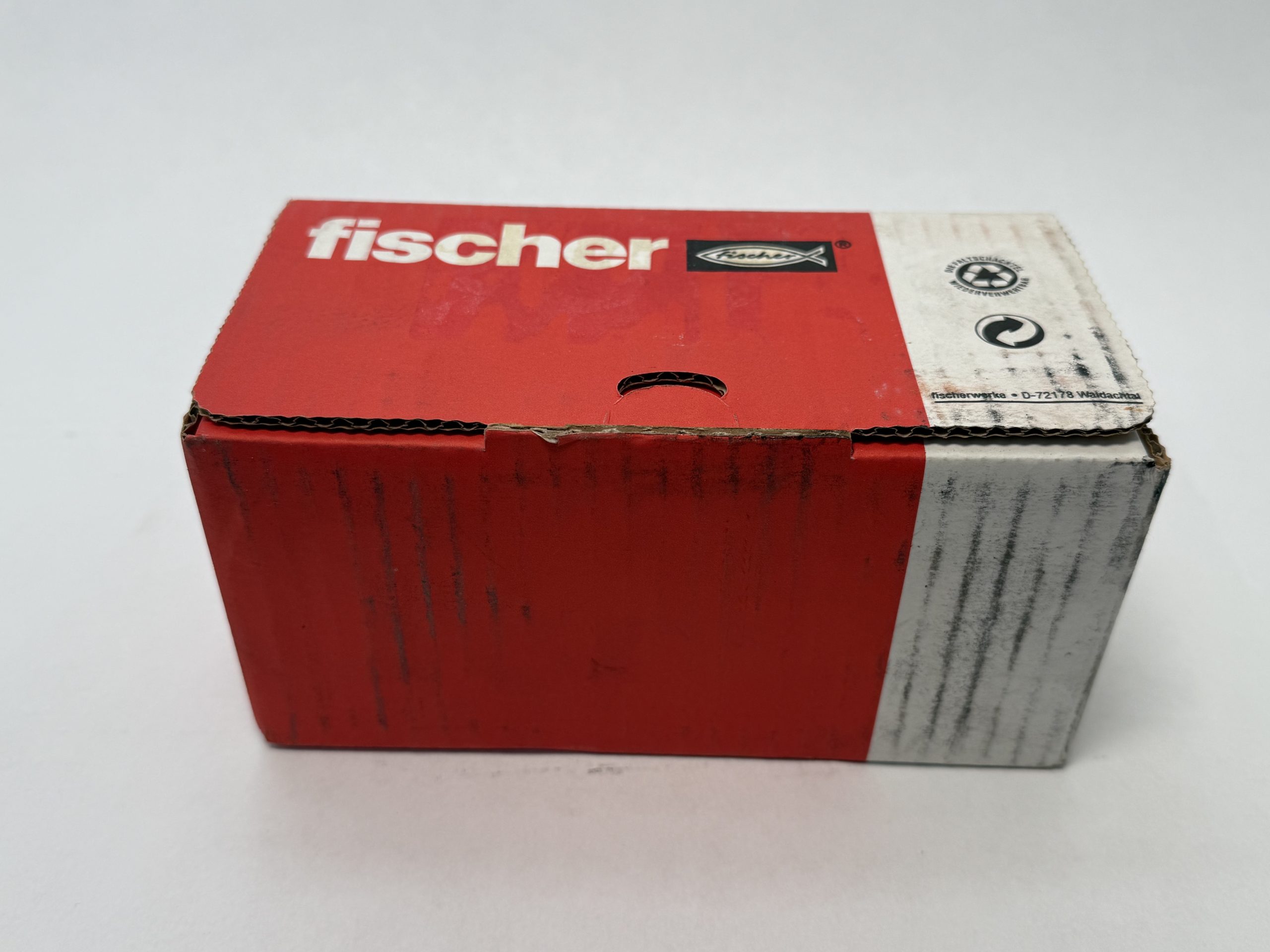

A box of 10 Fischer FBN II 16/25 bolt anchors (16×145), Fischer article number 45564, in electro zinc plated steel. The box is marked FBN II 16/25 (16×145), Art.-Nr. 45564, 10 pieces.

How the part number breaks down:

• FBN II: Fischer bolt anchor range
• 16: drill and anchor diameter, 16 mm (M16 thread)
• 25: maximum usable length (fixture thickness) of 25 mm at standard anchorage depth
• 16×145: diameter x length as printed on the box
• 45564: Fischer article number

Item Specifications:

• Thread: M16
• Drill hole diameter: 16 mm
• Max fixture thickness: 25 mm at standard anchorage depth, 40 mm at reduced anchorage depth
• Material: steel, electro zinc plated
• Approval: ETA-07/0211, for non-cracked concrete C20/25 to C50/60
• Fire resistance class F120, as printed on the box
• Quantity: 10 anchors in the original Fischer box
