GE-FanucIC600CM552ASeries Six Combined Memory Module, 2K Logic, for Model 60 / 600 / 6000 CPUs

Product Description

What this part is:

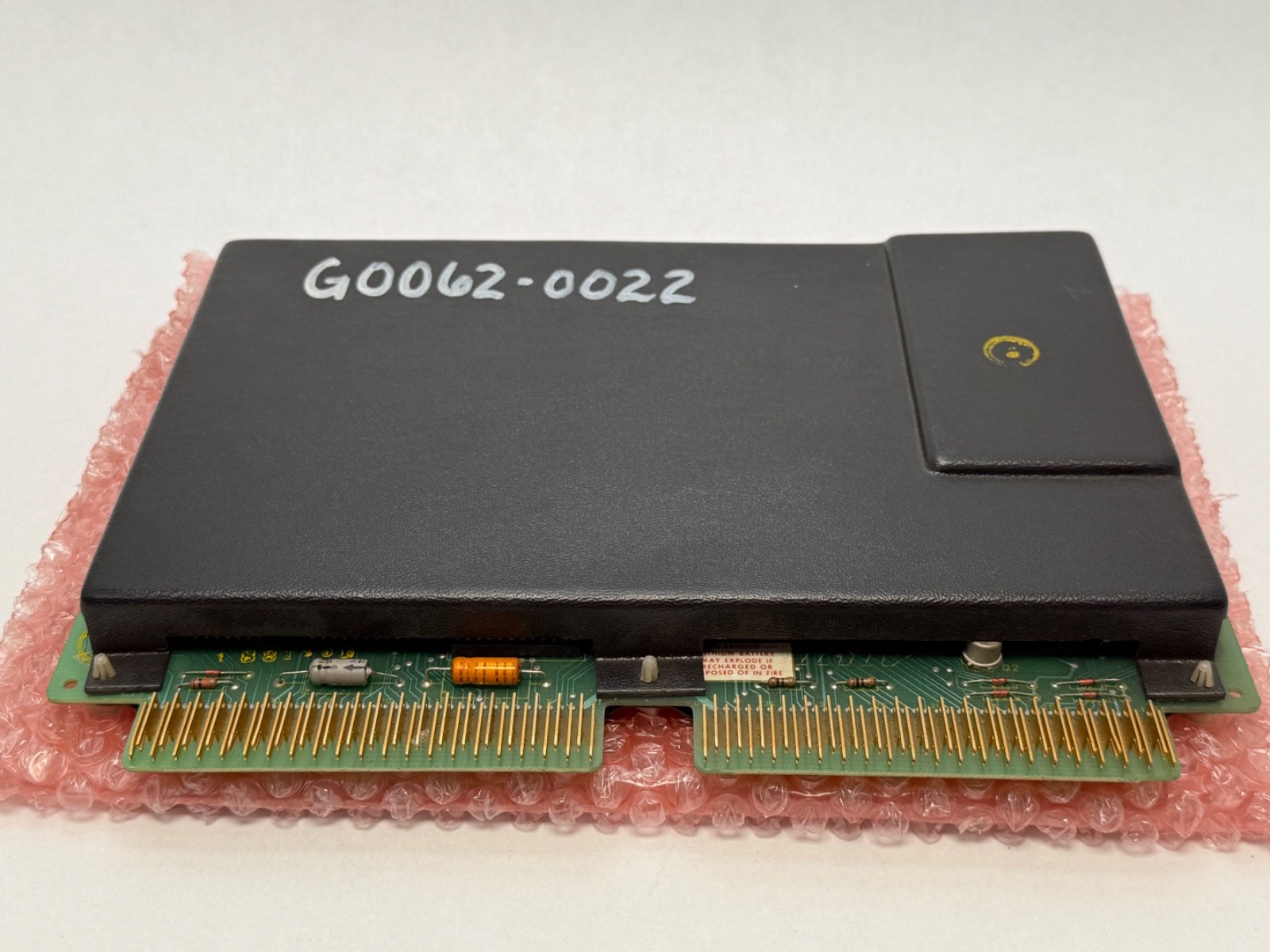

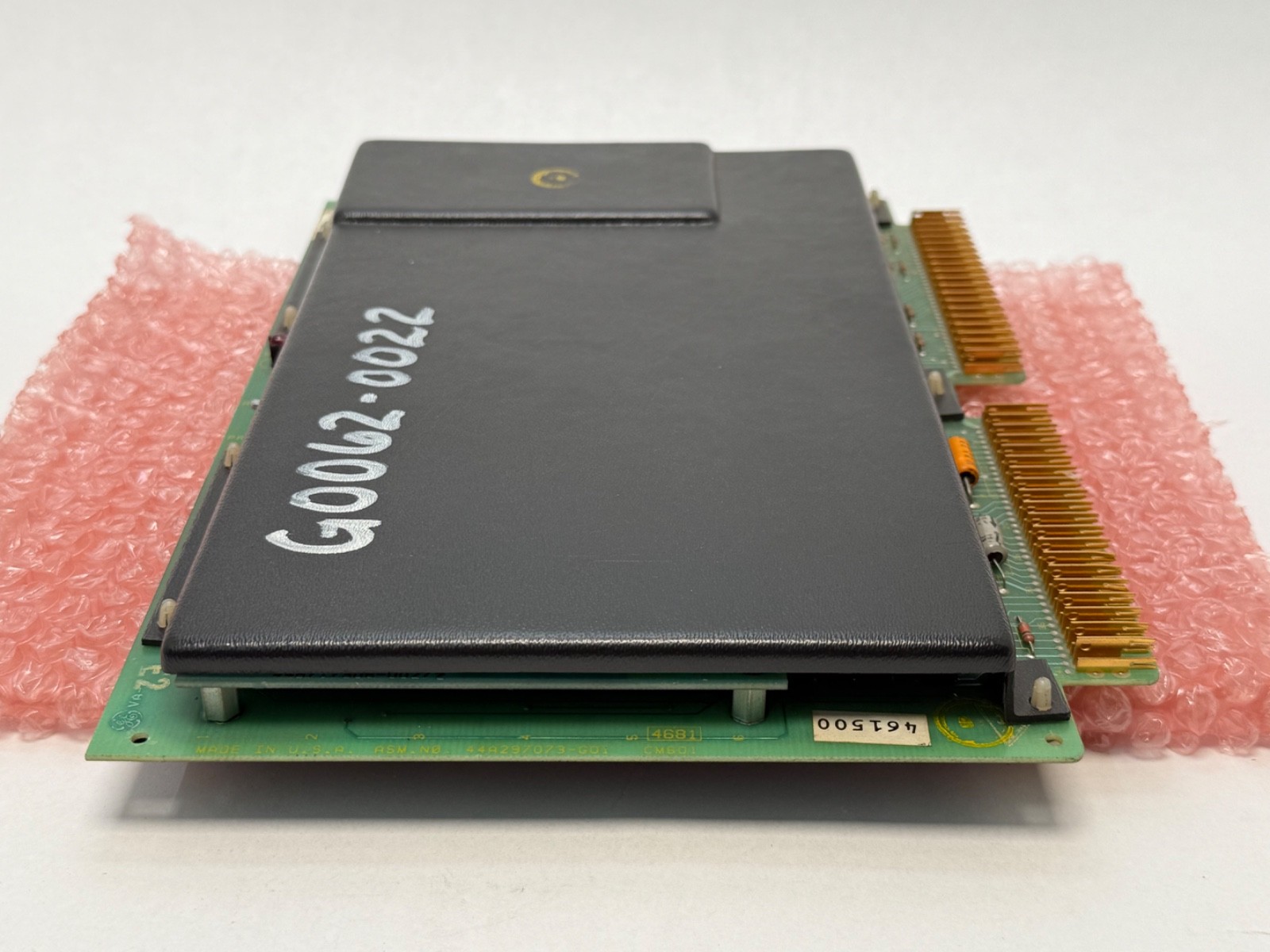

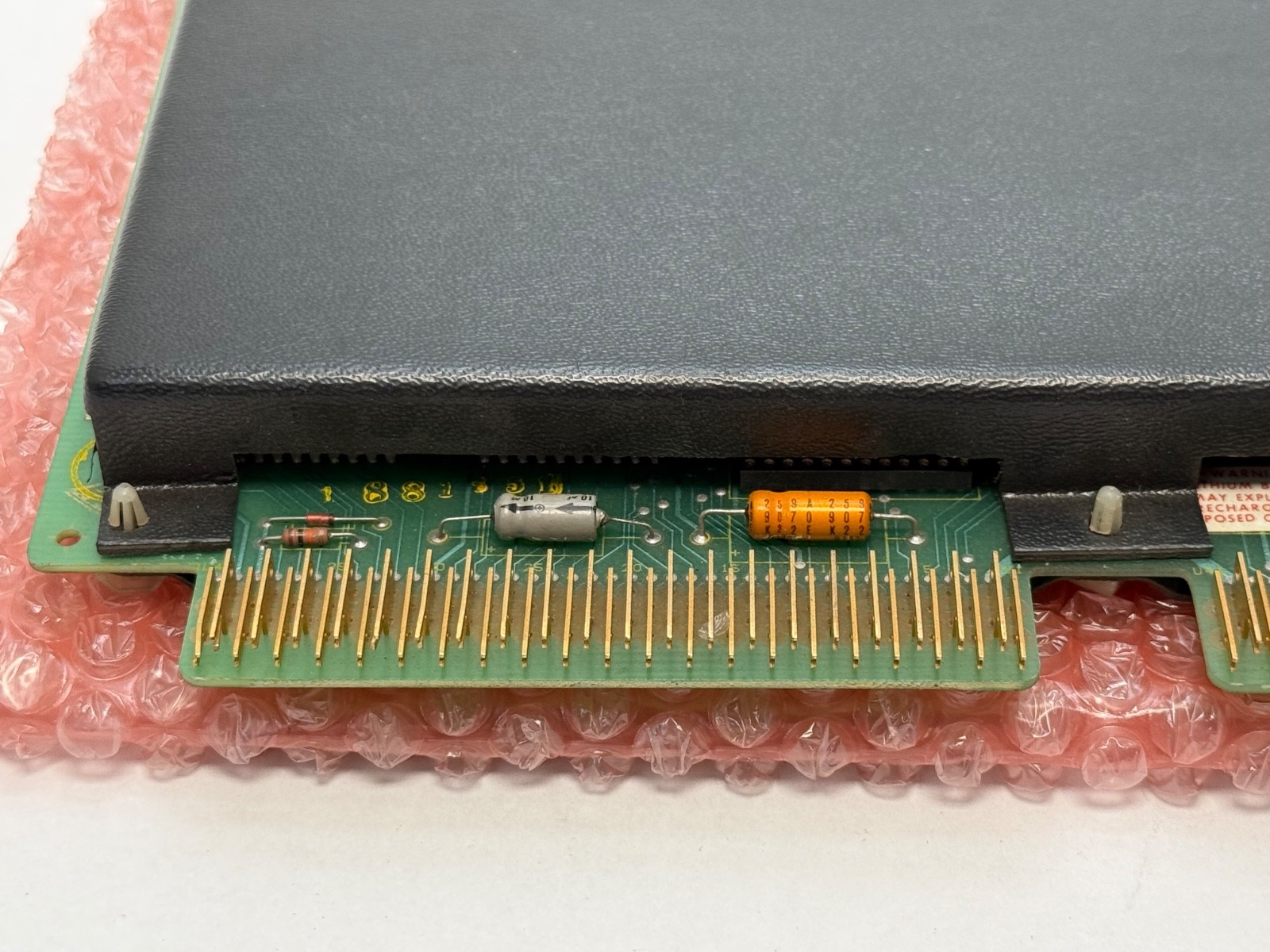

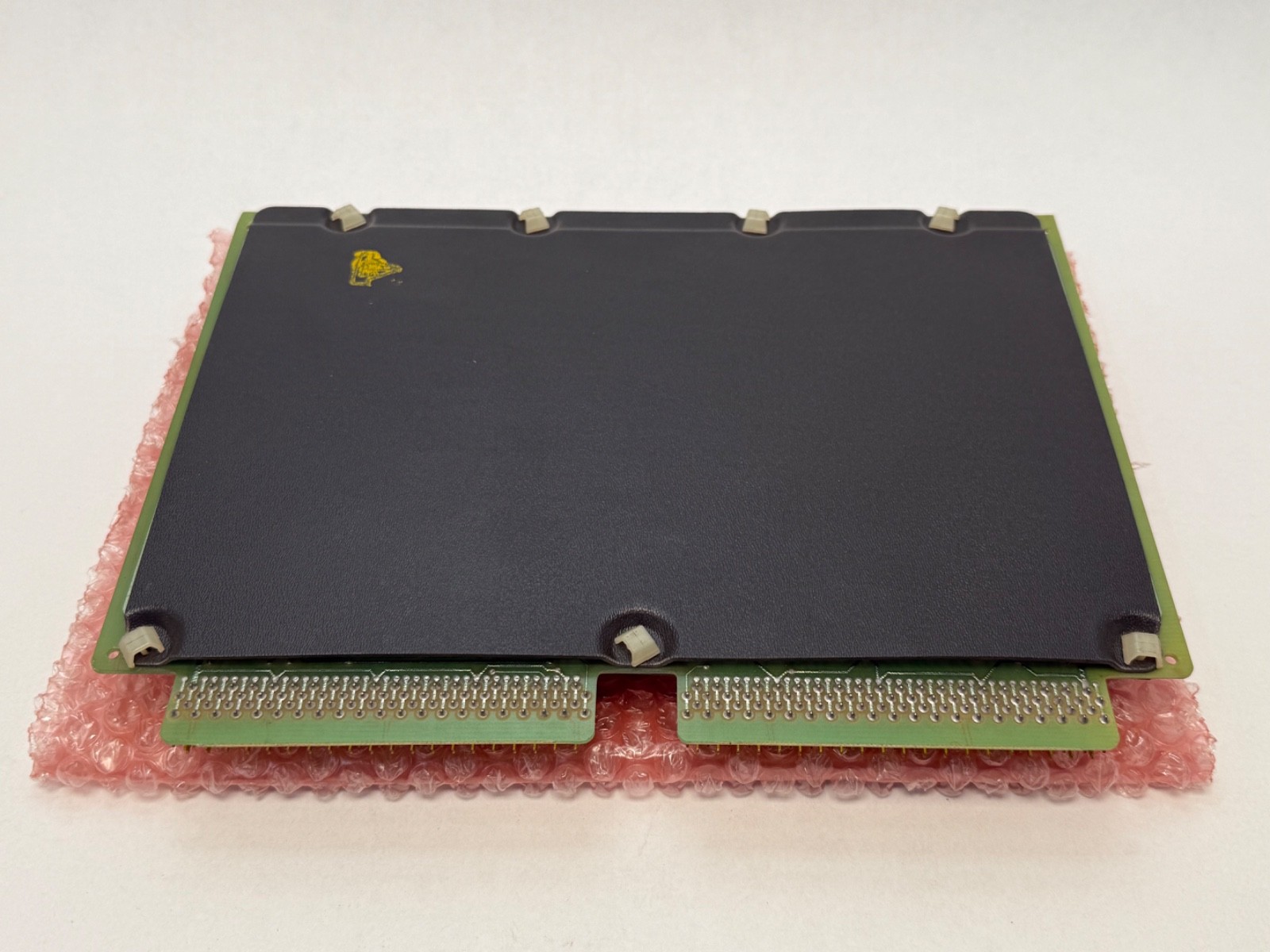

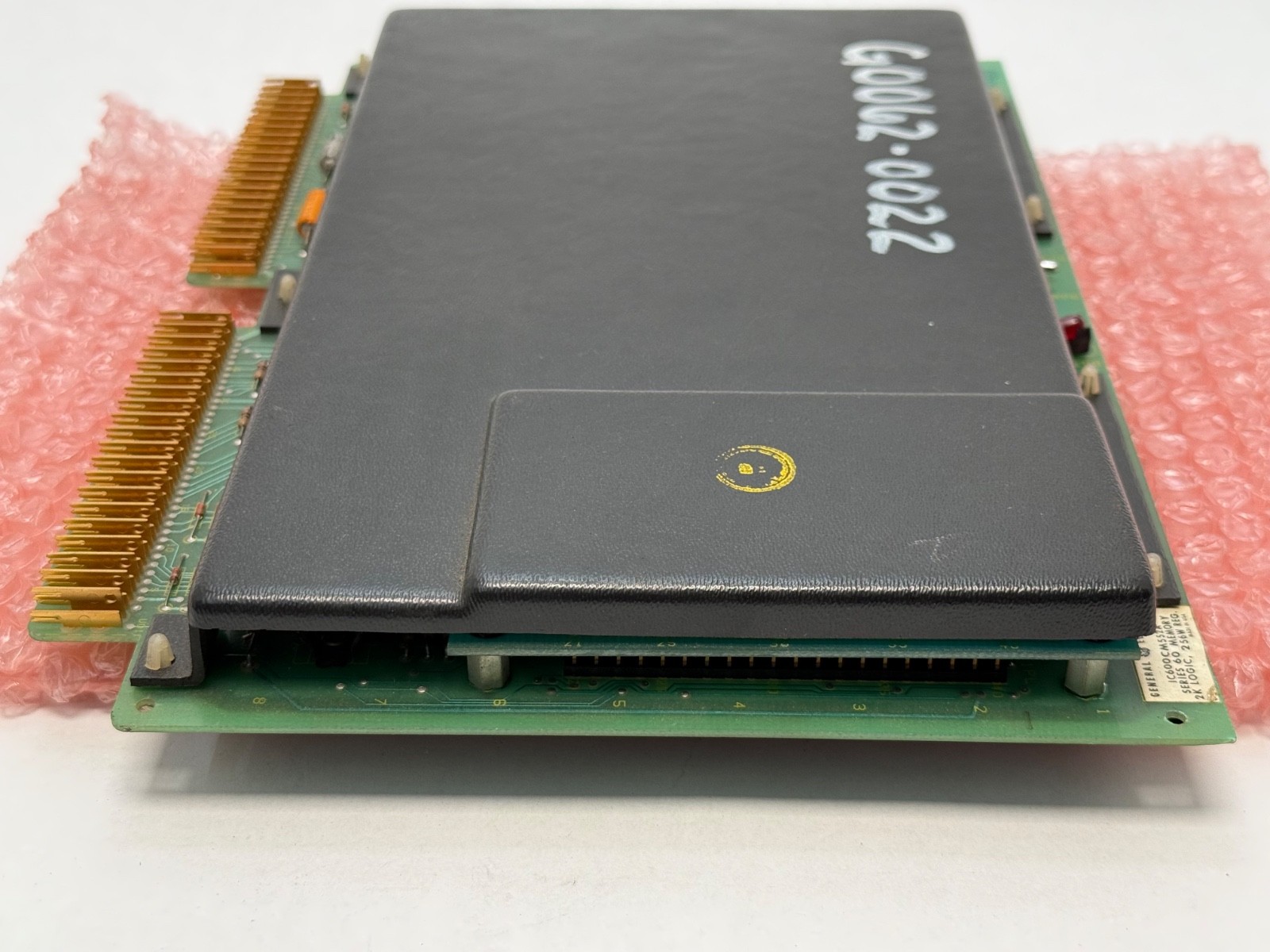

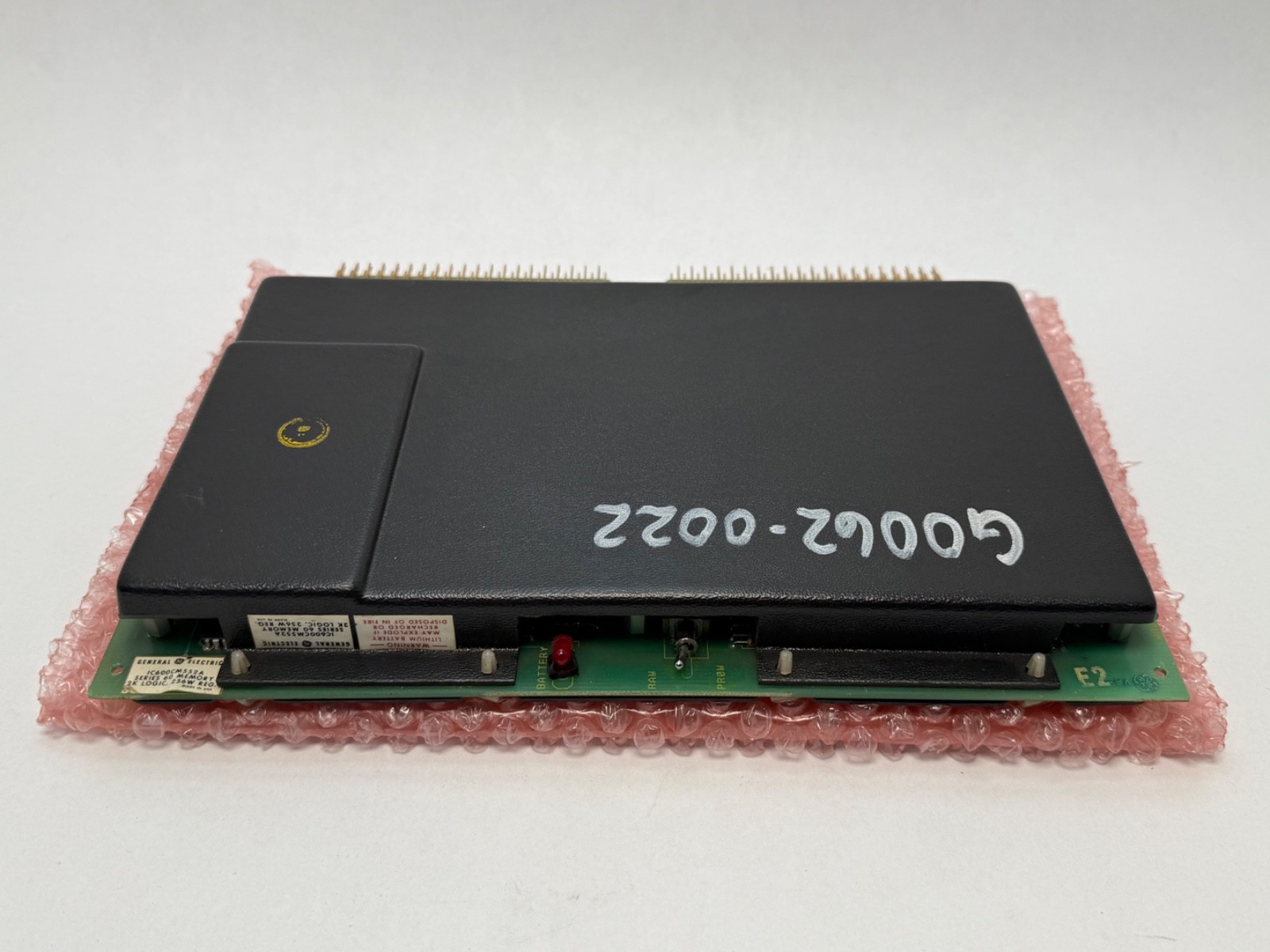

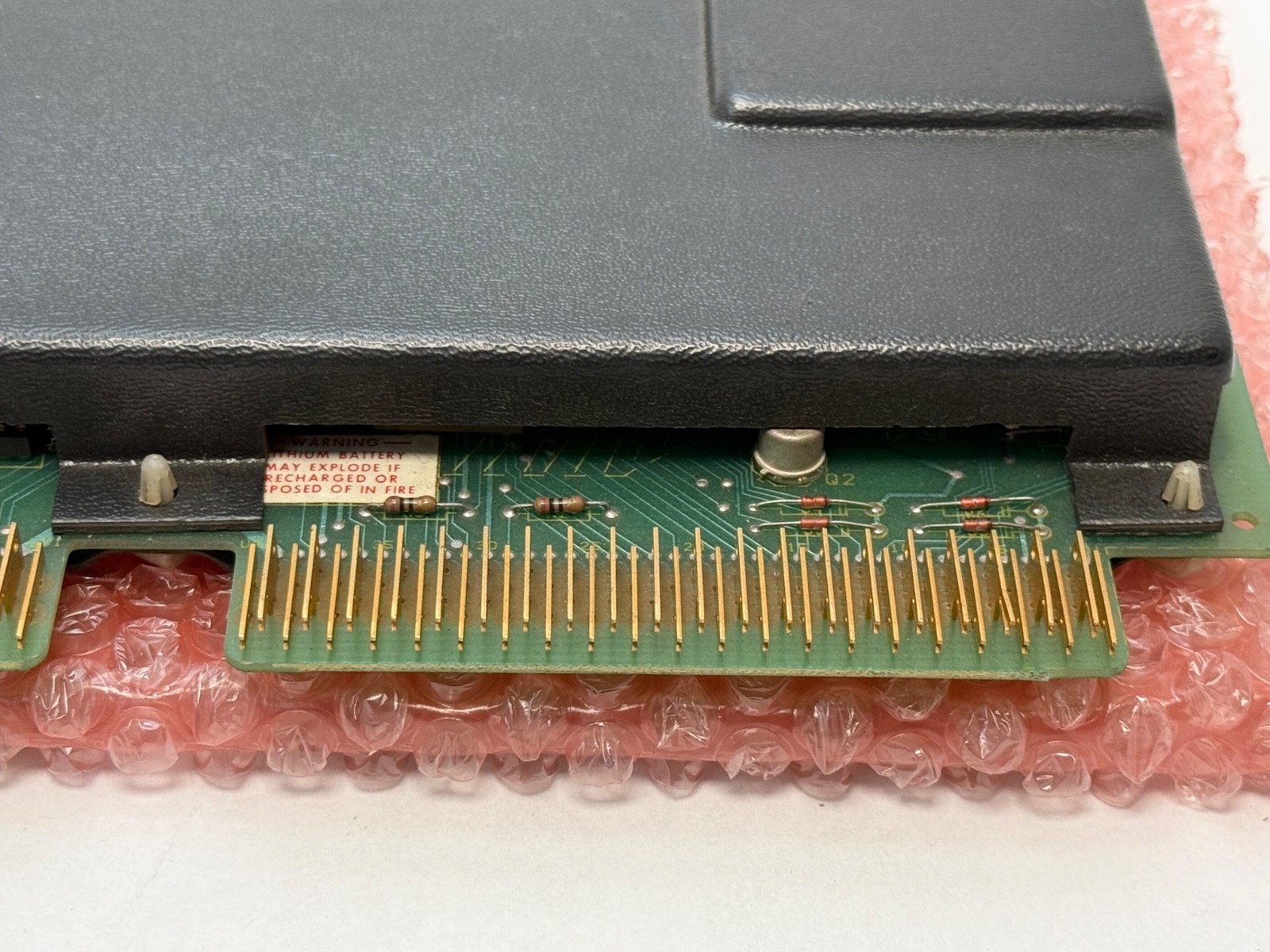

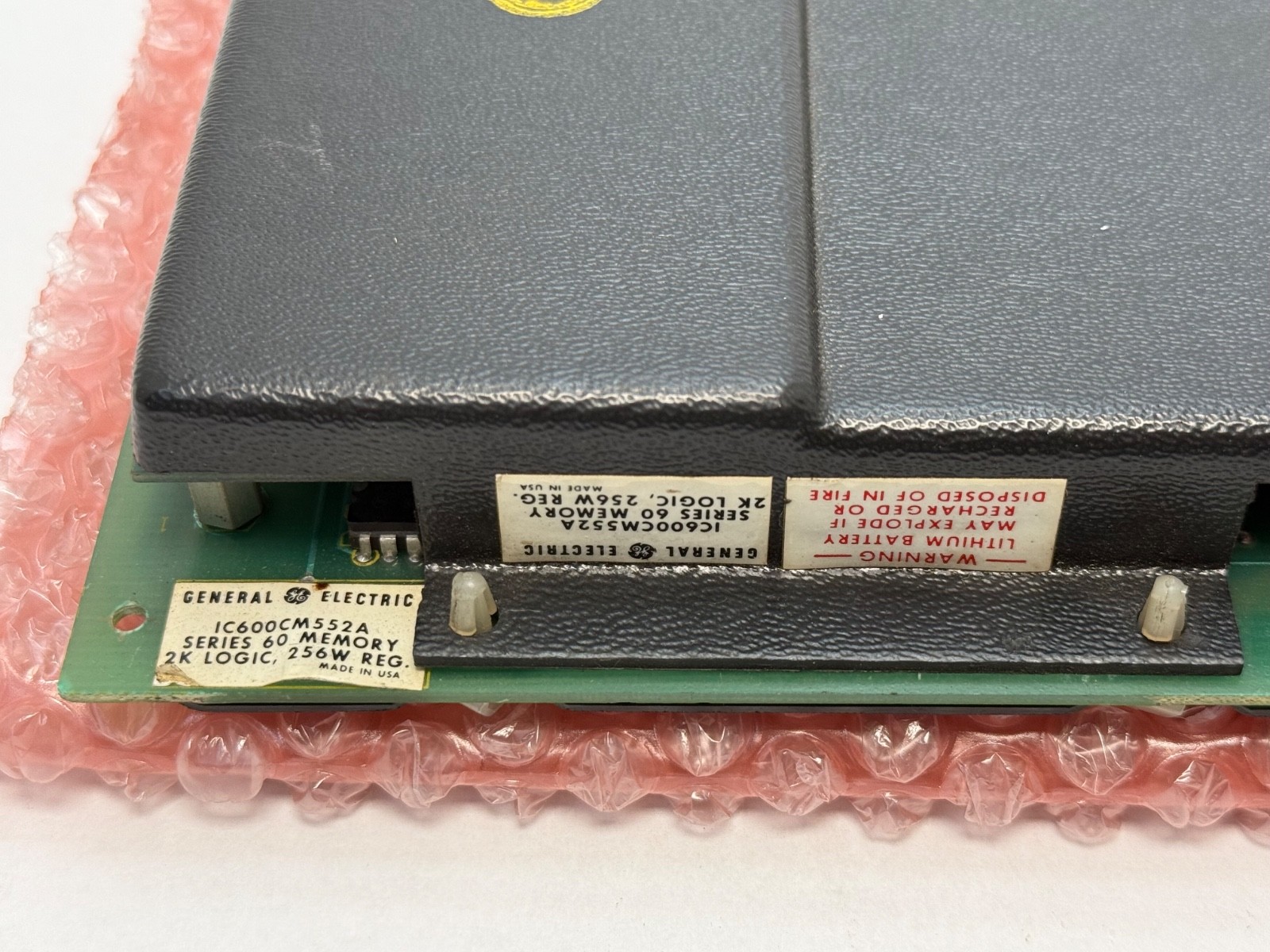

GE Fanuc Series Six combined memory module, IC600CM552A, at the 2K logic capacity. It carries the logic memory that holds the ladder program and the register memory that holds data words on the same card, plus the internal memory support circuitry. Memory Technology: CMOS RAM, battery-backed by a lithium-manganese-dioxide cell. The module has no processor, no I/O points and no display. Controller Platform: GE Fanuc Series Six (Model 60 / 600 / 6000). Unit Quantity: 1 Pc.

Decoding the designation:

IC — GE Fanuc Automation industrial controls prefix.

600 — the Series Six PLC family (Model 60 / 600 / 6000). IC610 is Series One, IC630 is Series Three, IC693 is Series 90-30, IC697 is Series 90-70.

CM — Series Six module class for memory modules. CPU and control modules carry CB; I/O-rack functional and interface modules carry BF; the later combined memory cards carry LX.

552 — the memory module and its capacity within the family. IC600CM542 and IC600CM548 are other Series Six memory modules.

A — hardware revision letter.

Specifications:

Function: Combined memory module — logic memory plus register memory plus internal memory circuits. Memory Capacity: 2K 16-bit words logic memory. Word Width: 16-bit for both logic and register memory. Memory Technology: CMOS RAM, battery-backed. Mounting Type: Series Six CPU rack slot. Series Six Plus: usable, without parity checking. Condition: New – Open box.

Dimensions and mounting:

Series Six combined memory modules were built at 2K and 4K logic, with different register counts. Mounting: Series Six CPU rack slot.

Compatibility and replacement:

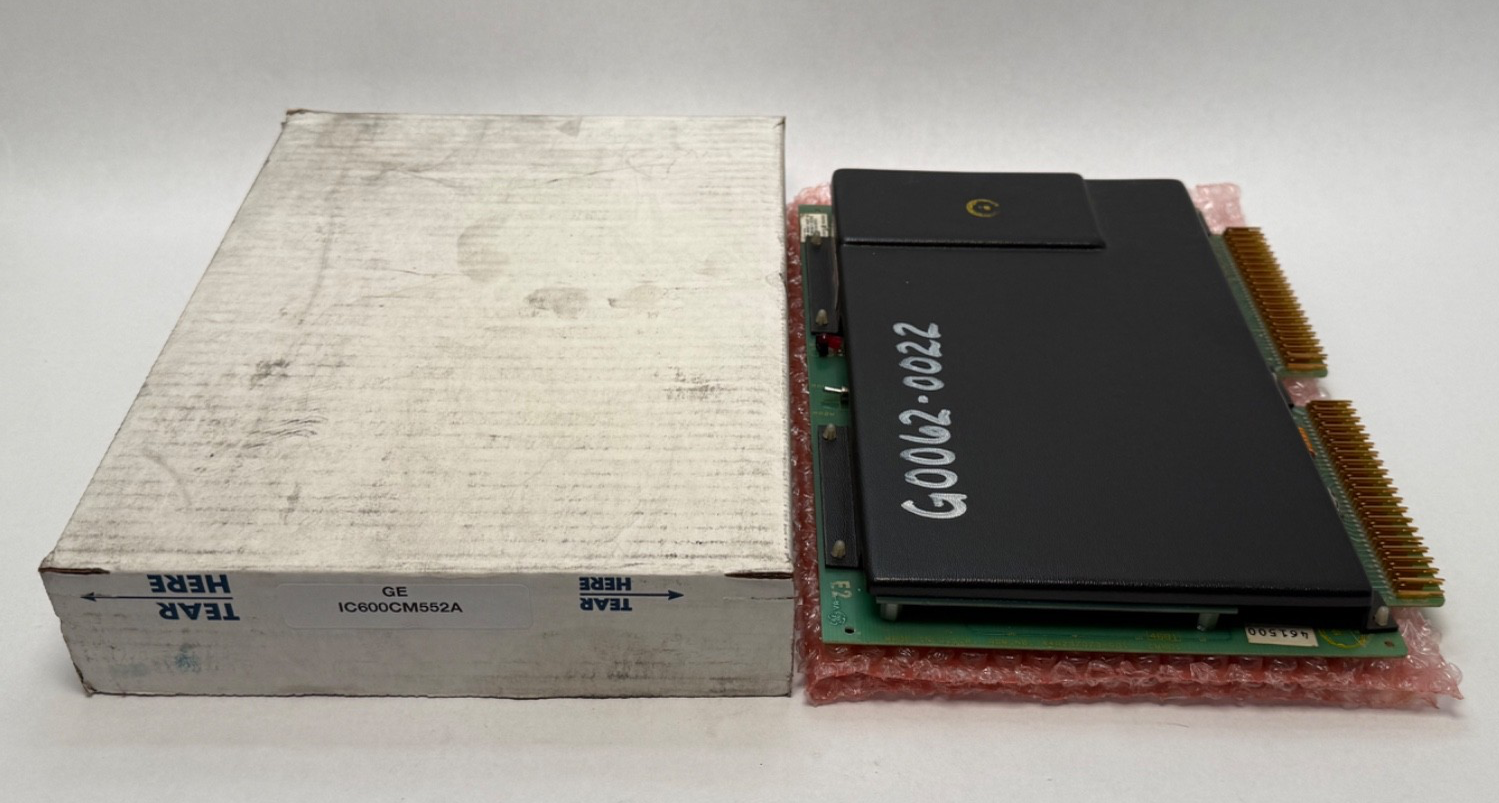

Searchable forms of the same part: IC600CM552A, IC600CM552, IC600-CM-552-A, IC600 CM 552 A, IC600CM552-A. Other revision letters of IC600CM552 are the same module at a different revision. IC600CM542, IC600CM548 and the IC600LX6xx combined memory cards are different Series Six memory modules with different capacities or architectures.

Frequently asked questions:

What is the GE Fanuc IC600CM552A?

A Series Six combined memory module with 2K 16-bit words of logic memory plus register memory in battery-backed CMOS RAM.

Which controllers does it fit?

GE Fanuc Series Six Model 60, 600 and 6000 CPUs. It works in a Series Six Plus PLC without parity checking.

What does the module contain?

Logic memory, register memory and internal memory circuits. It has no processor, no I/O points and no display.
