GE-FanucIC610CCM111ESeries One Link I/O Module, Remote End of Remote I/O Link

Product Description

What this part is:

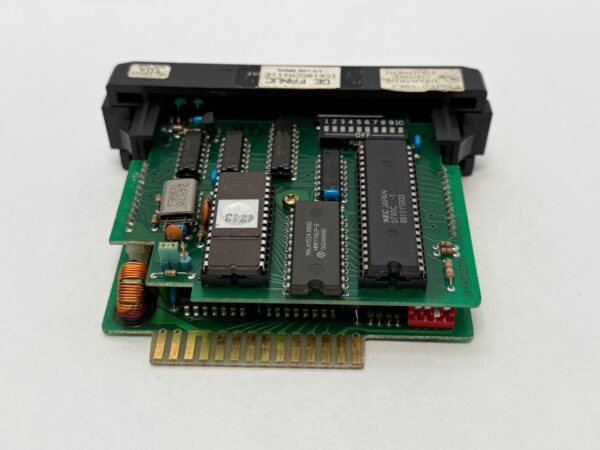

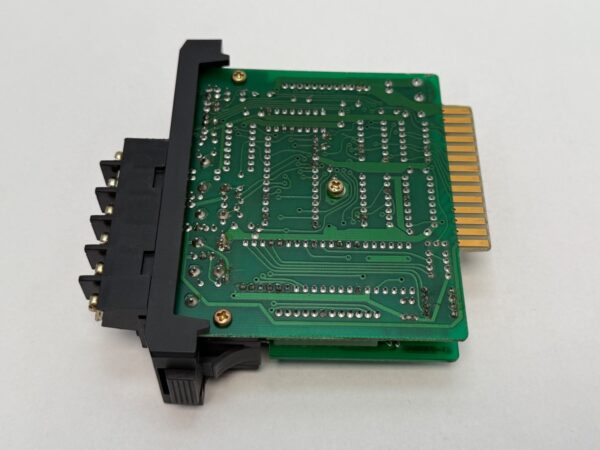

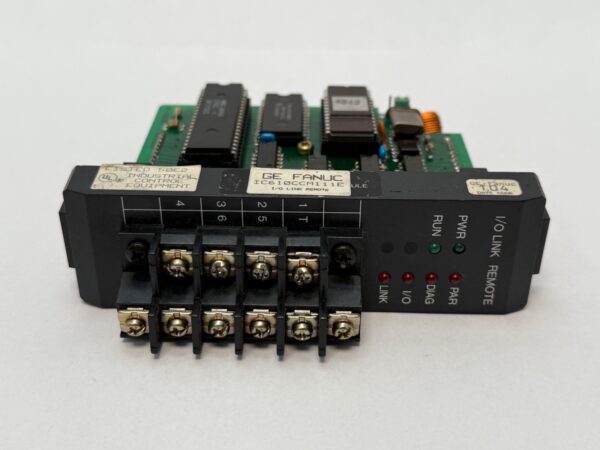

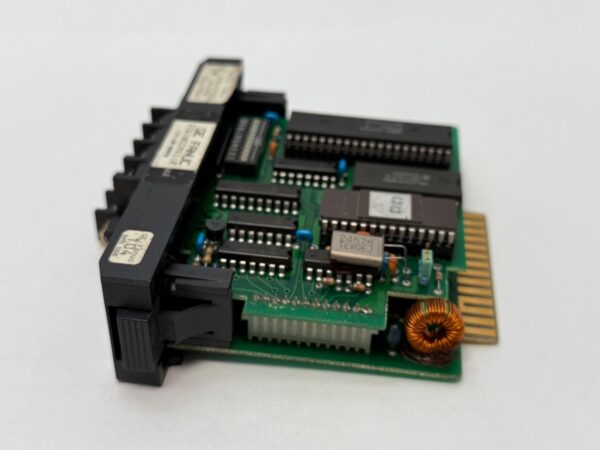

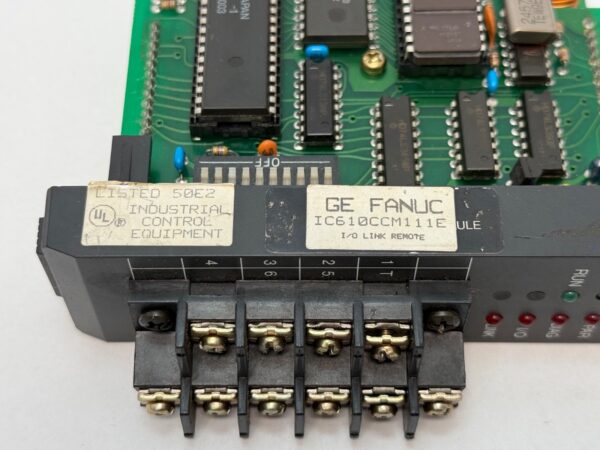

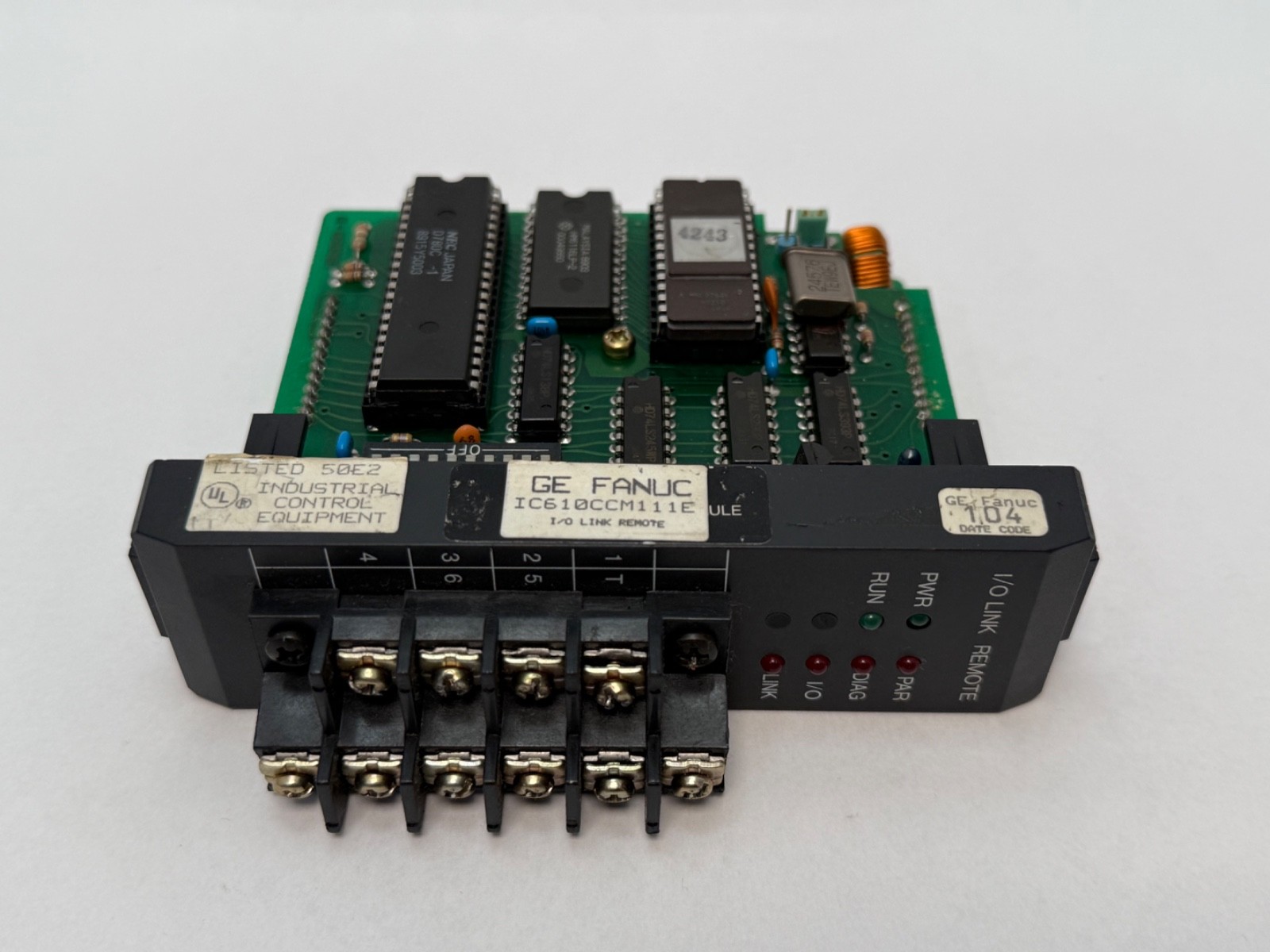

GE Fanuc IC610CCM111E is a Series One Link I/O module, the remote-station half of a Series One remote I/O link. It sits in a rack away from the processor and exchanges I/O data with the CPU over a serial link, so field devices at the far end of a machine or plant are wired locally. It pairs with a Link Local module at the CPU end to make a working remote I/O link. Unit Quantity: 1 Pc, one Link I/O module. Country of Origin: Japan.

Decoding the designation:

IC610 — the GE Fanuc Series One family prefix.

CCM — the communications module class within Series One, covering the serial-link and remote-I/O hardware, as distinct from CPU (processors), ABM (the ASCII/BASIC coprocessor), CHS (racks) and MDL (I/O).

111 — the Link I/O remote module.

E — hardware revision letter.

Specifications:

Brand: GE Fanuc. Part Number: IC610CCM111E. Module Type: Series One Link I/O remote module. Series: GE Fanuc Series One / Series One Plus. Controller Platform: GE Fanuc Series One / Series One Plus (IC610). Communication Standard: Series One remote I/O serial link. Mounting Type: Rack slot, plug-in card on the Series One backplane. Manufacturer Status: Obsolete.

Dimensions and mounting:

Mounting Type: rack slot, plug-in card on the Series One backplane. Station position: remote end of the Series One remote I/O link.

Compatibility and replacement:

Other revision letters of the same module are the closest cross-references. IC610CCM110 is the Link Local partner module at the CPU end. IC610CCM105 is the Data Communications Unit. IC610ABM100 is the Series One ASCII/BASIC coprocessor and IC610CPU numbers are the processors. Searchable forms: IC610CCM111E, IC610CCM111, IC610CCM111-E, IC610-CCM-111-E, IC610 CCM 111 E. The platform ran as GE Series One, then GE Fanuc Automation, then GE Intelligent Platforms, and is supported today under Emerson. IC610 is a GE Fanuc prefix, not a Fanuc CNC prefix.

Frequently asked questions:

What is the IC610CCM111E?

A GE Fanuc Series One Link I/O module, the remote-station half of a Series One remote I/O link.

Which module does it pair with?

A Link Local module at the CPU end of the link.

What does CCM mean in the catalogue number?

CCM is the communications module class within the Series One family.
