Weidmüller911886Interface Module – 50-Position D-Sub Female to Screw Terminals, 12–26 AWG, 150 V, 1.5 A

Product Description

What this part is:

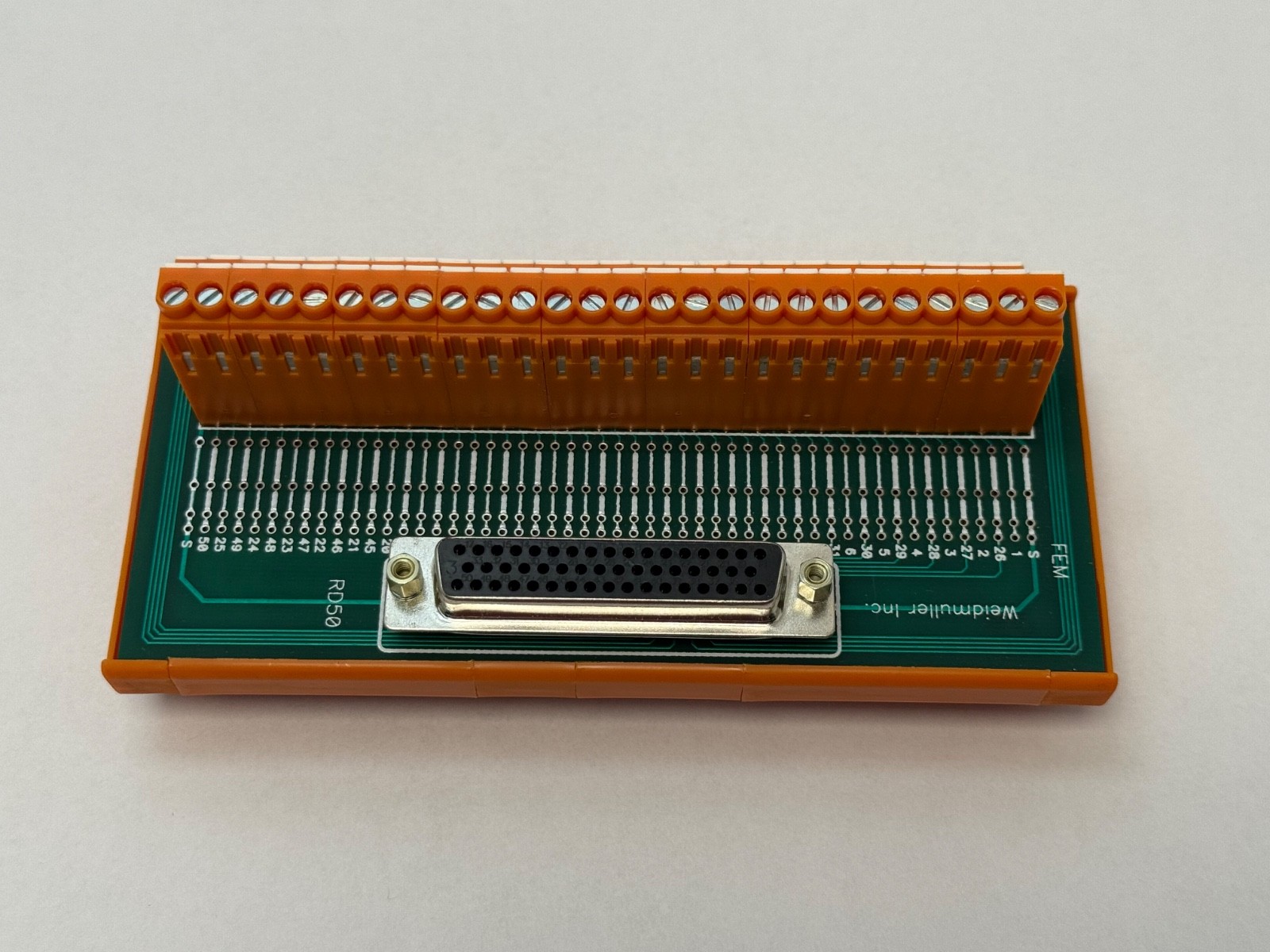

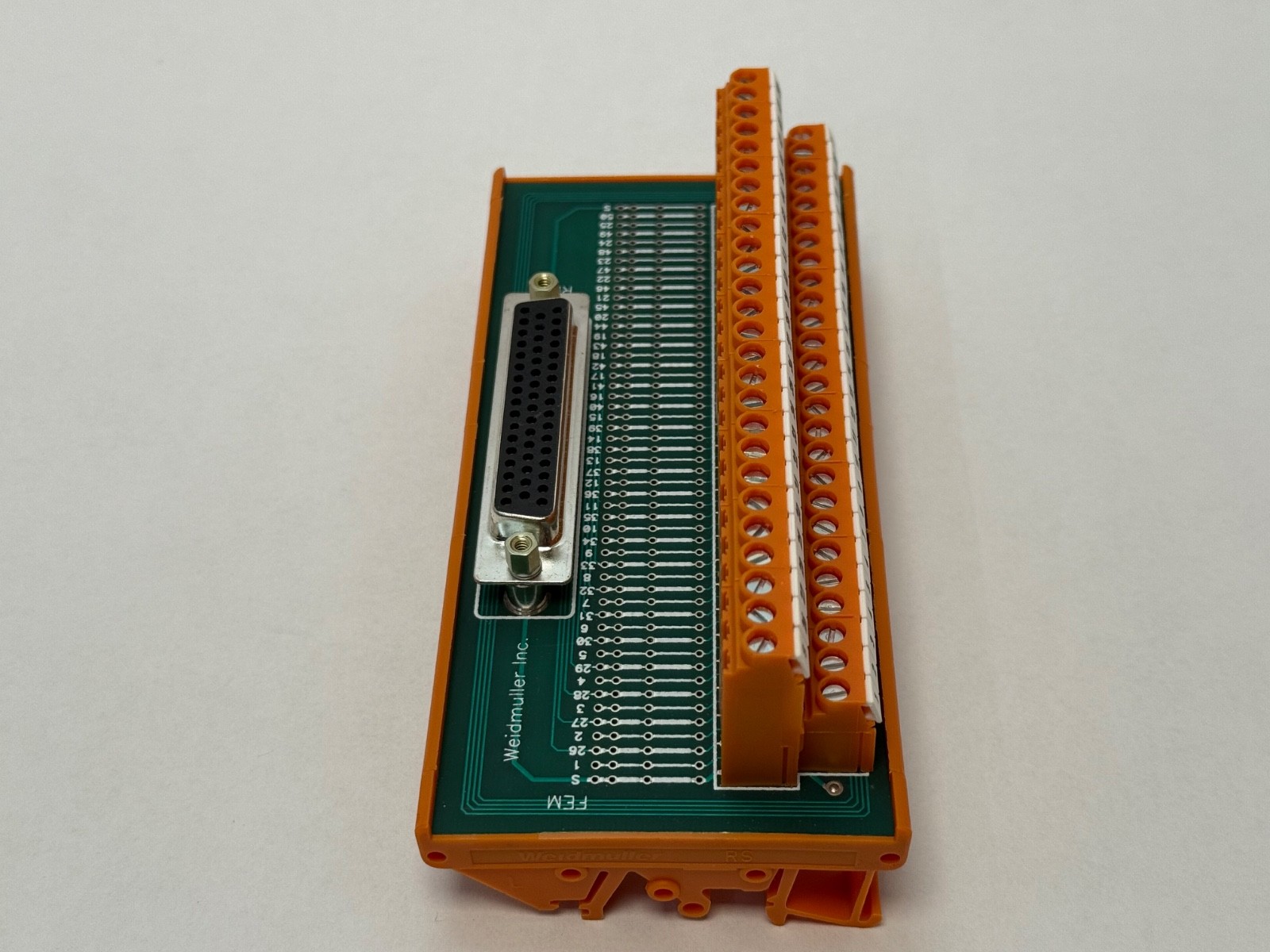

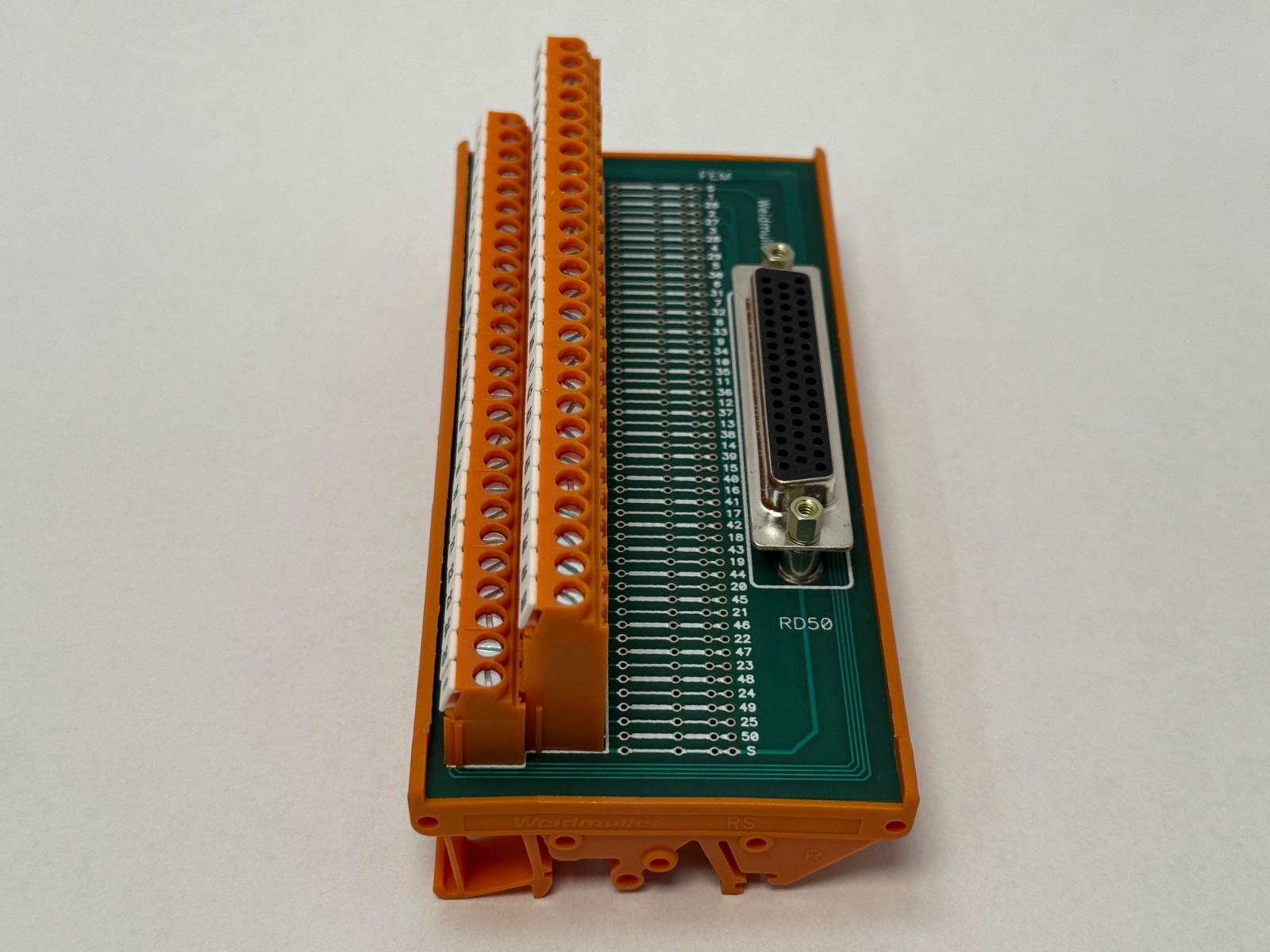

The Weidmüller 911886 (RD-50ASJS) is a new 50-position interface module that transfers signals from a D-Sub female connector to screw-connection terminal blocks. Type: Interface module, terminal block to D-Sub.

Specifications:

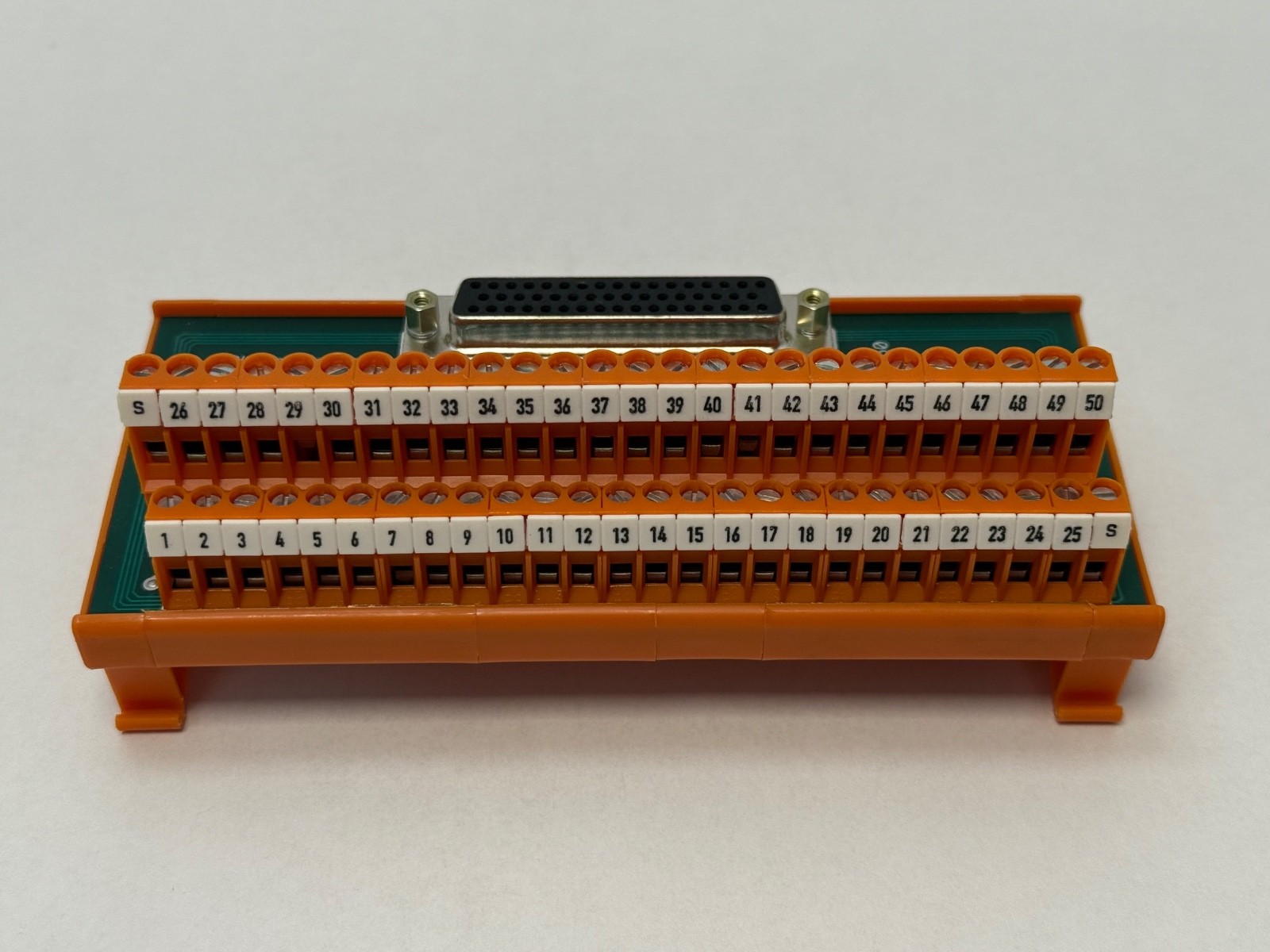

Number of Positions: 50. Control-Side Connector: D-Sub, female, 50-position. Control-Side Cable Retainer: Jackscrew socket, 4-40 mating thread. Field-Side Connection: Screw terminals. Wire Gauge: 12–26 AWG. Rated Voltage: 150 V. Current Rating: 1.5 A per contact. Operating Temperature: –25 °C to +50 °C.

Dimensions and mounting:

Length: 149.35 mm (5.880 in). Width: 70.00 mm (2.756 in).

Compatibility and replacement:

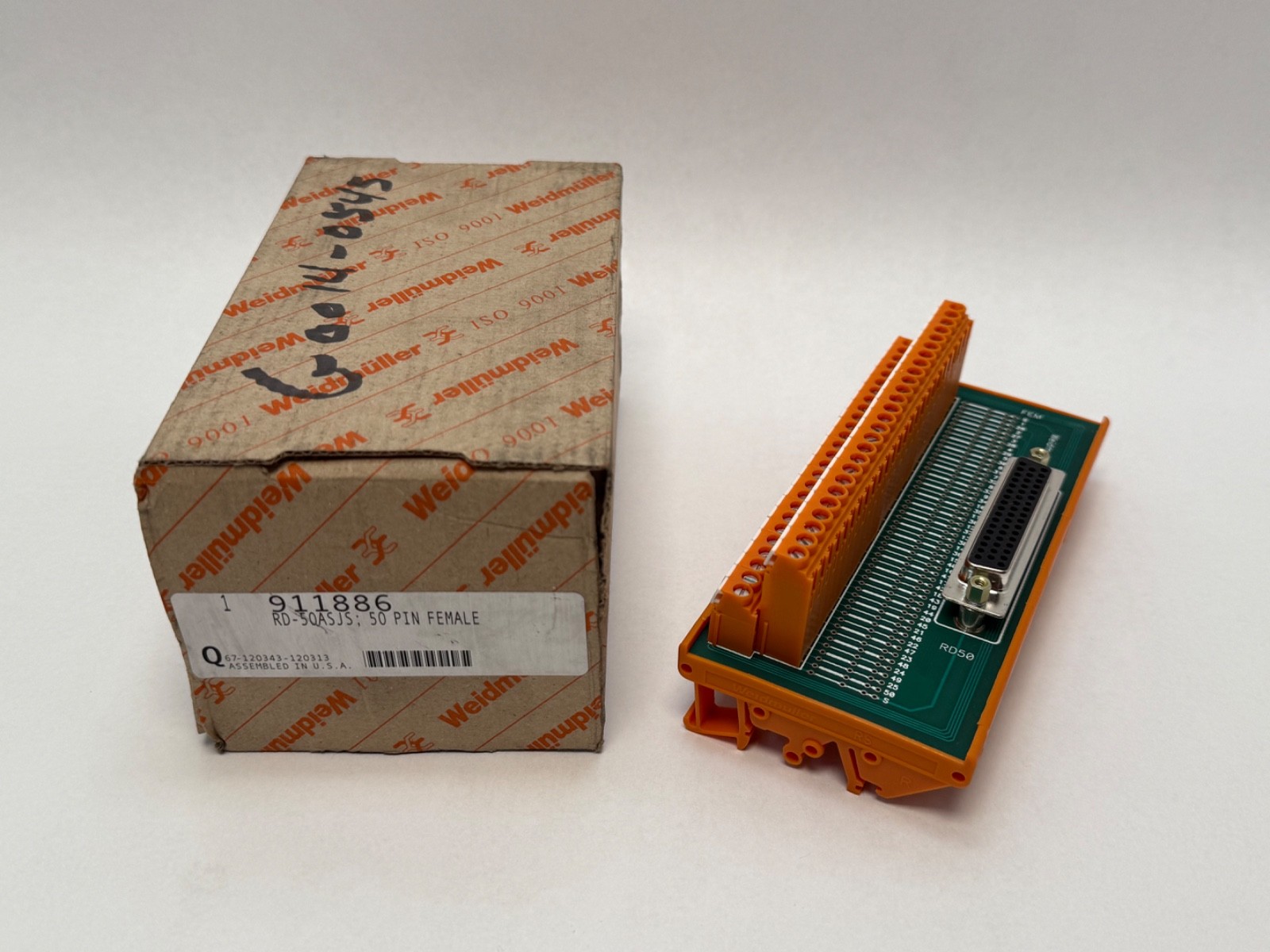

Also written as 911886, 0911886, RD-50ASJS and RD50ASJS.

Frequently asked questions:

What is the Weidmüller 911886?

The Weidmüller 911886, also marked RD-50ASJS, is a 50-position interface module connecting a D-Sub female connector to screw terminals.

What wire size does it accept?

The screw terminals accept 12 to 26 AWG wire. Each contact is rated 1.5 A at 150 V.

How does the cable attach?

The control side is a 50-position female D-Sub with jackscrew sockets using 4-40 mating thread.
