Feed drive module, 600 V DC link input, three-phase 0 to 490 V output at 60 A rated and 120 A peak, 0 to 300 Hz. SIMODRIVE 611 rack module.
List Price
Original price was: $739.38.$554.54Current price is: $554.54.
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | SIEMENS |
|---|---|
| MPN | 6SC6116-0AA00 |
| Model | 6SC6116 0AA00 |
| Condition | Used |
|---|---|
| Base Number | 6SC6116 |
| Industry Terms | feed module; Vorschubmodul; feed drive module; axis drive module; servo drive module; inverter module; Simodrive 611 module |
| Common Misspellings | 6SC6116 0AA00; 6SC61I6-0AA00; 6SC6116-OAA00; 6SC61160AAOO; Simodrive 6ll; Simens 6SC6116-0AA00; Siemsns 6SC61160AA00 |
| Application Types | CNC machine tool feed axes; SIMODRIVE 611 drive cabinets; DC-link servo drive systems; machine tool retrofit and repair |
| Condition Note | Made In Germany, Takeout, Tested |
| Controller Platform | SIMODRIVE 611 |
| Output Amperage | 60 A rated, 120 A peak |
| Output Voltage | 0 to 490 V, three-phase |
| Mpn Variants | 6SC6116-0AA00; 6SC 6116-0AA00; 6SC6116 0AA00; 6SC61160AA00 |
| Manufacturer Status | Discontinued 28 July 2006 |
| Additional Attributes | Product Type: feed drive module; Input: 600 V DC link; Output: 60/120 A, 0-490 V three-phase, 0-300 Hz; Weight: 15.0 kg |
| Series | SIMODRIVE 611 |
| Nominal Rated Input Voltage | 600 V DC link |
| Item Weight | 15.0 kg (33.07 lb) |
| Part Number | 6SC6116-0AA00 |
| Mounting Type | Rack module, SIMODRIVE 611 drive cabinet |

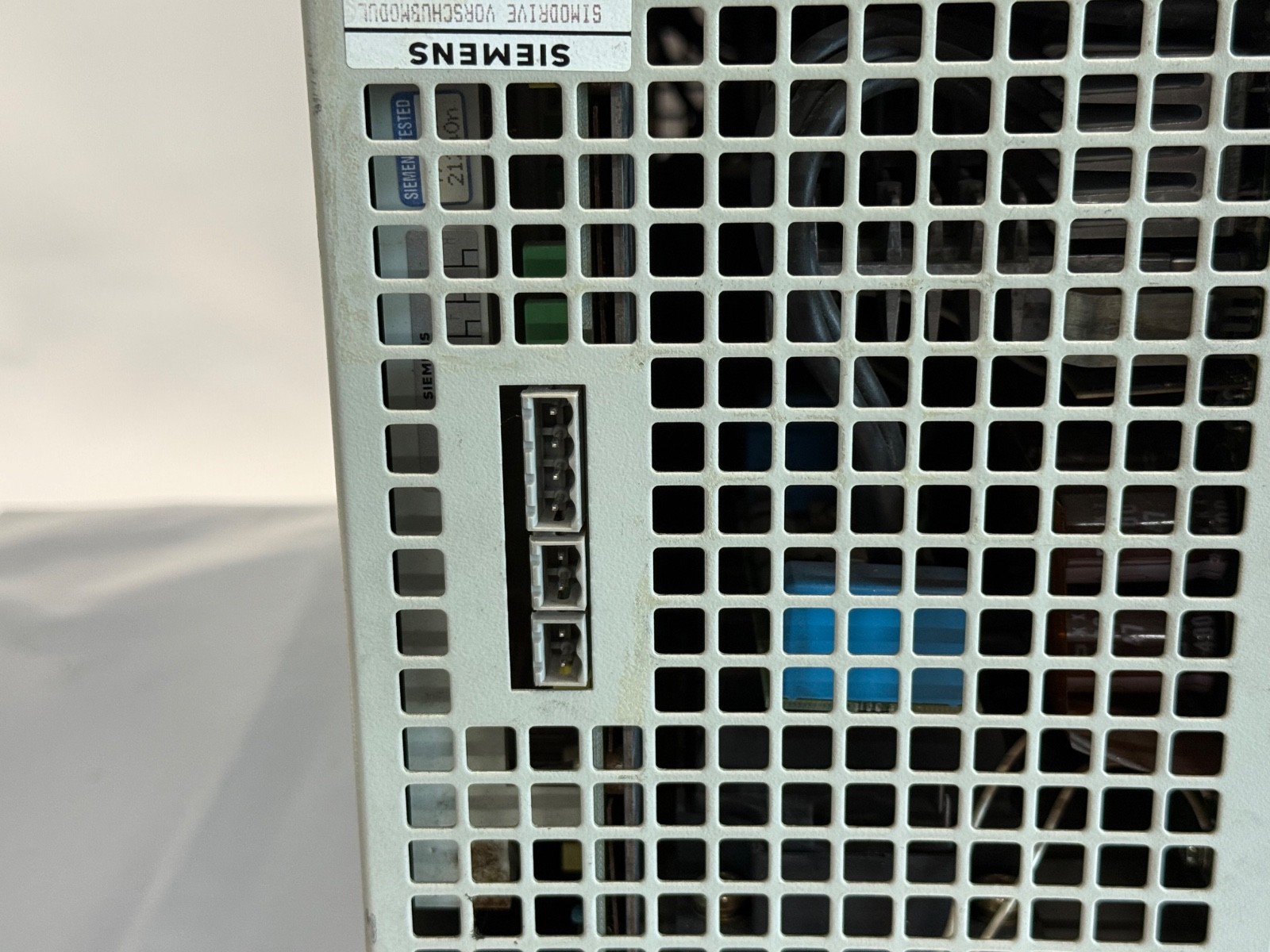

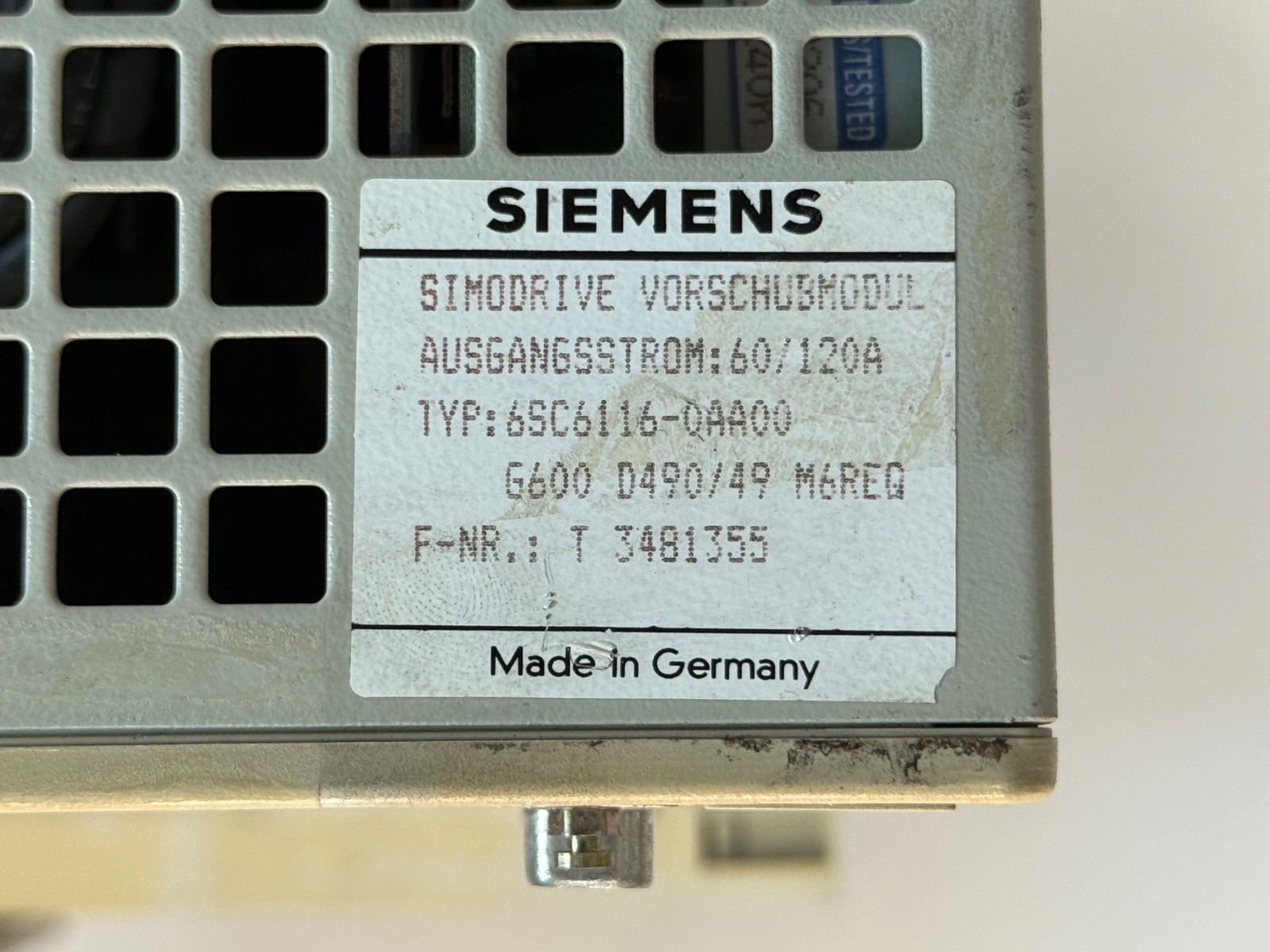

Siemens SIMODRIVE 611 feed module. Brand: Siemens. Part Number: 6SC6116-0AA00. Product Type: feed drive module. Input Voltage: 600 V DC link. Output Voltage: 0 to 490 V, three-phase. Output Amperage: 60 A rated, 120 A peak. Output Frequency: 0 to 300 Hz. Item Weight: 15.0 kg (33.07 lb). Controller Platform: SIMODRIVE 611. Unit Quantity: 1 Pc. Country of Origin: Germany.

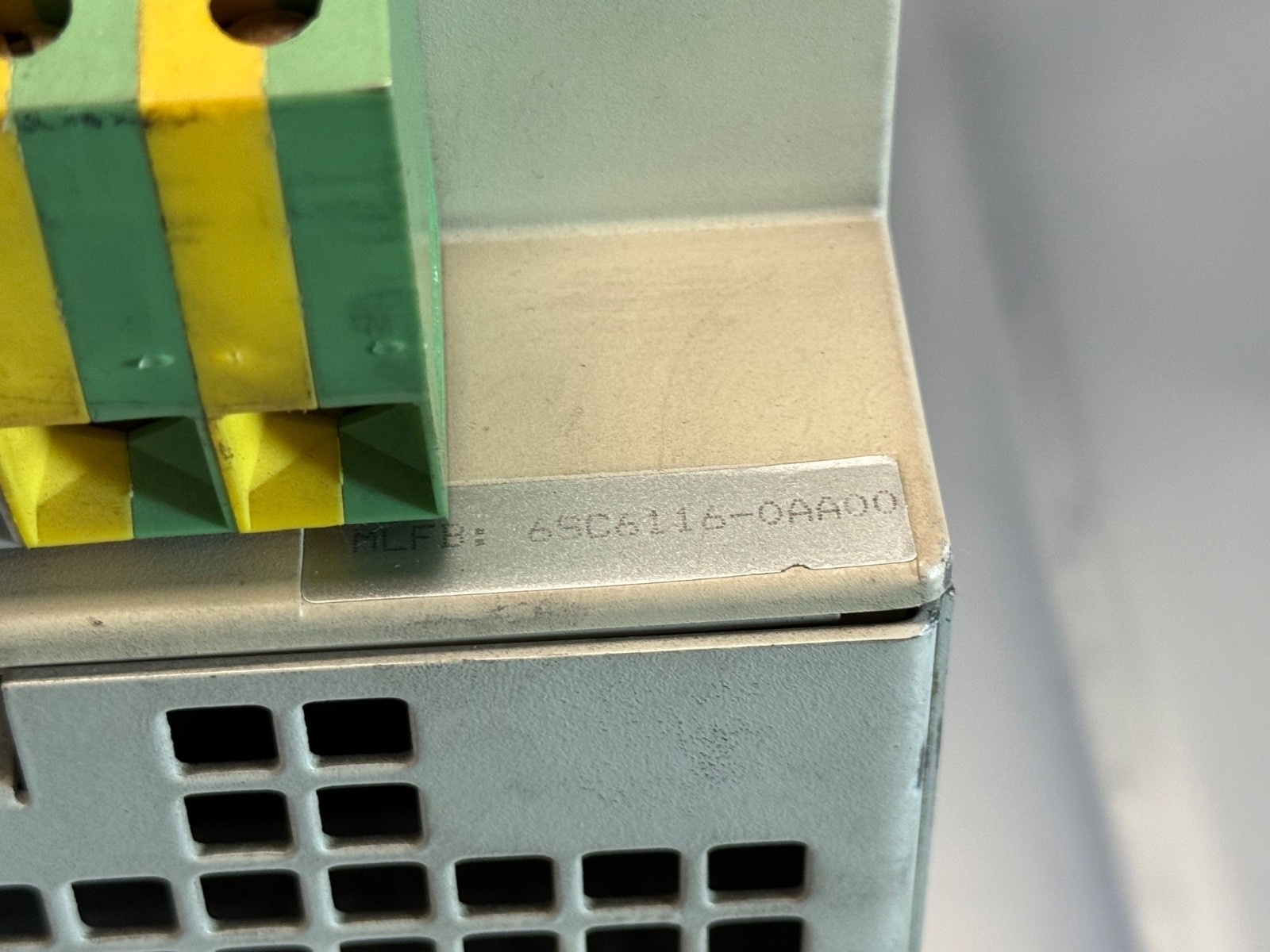

6SC6 — the Siemens order-number group for SIMODRIVE 6SC drive equipment.
116 — the module type number for the feed module at this current rating.
0AA00 — the execution and version code for this build.
Input Voltage: 600 V DC link. Output Amperage: 60 A rated, 120 A peak. Output Frequency: 0 to 300 Hz. The module takes its power from the rack’s common 600 V DC link rather than directly from the mains, which is what lets several axes share one infeed and lets braking energy pass between them. The two-to-one peak-to-rated current ratio is the overload the axis draws during acceleration and rapid reversal. A 300 Hz output ceiling sets the top electrical frequency the module will synthesise, and with it the top speed of the motor it drives.
Mounting Type: rack module for a SIMODRIVE 611 drive cabinet. Item Weight: 15.0 kg (33.07 lb).
Unit Quantity: 1 Pc. Module only. Condition: takeout, tested.
Manufacturer Status: discontinued 28 July 2006. Searchable forms of the number: 6SC6116-0AA00, 6SC 6116-0AA00, 6SC6116 0AA00 and 6SC61160AA00. The 116 type number is what fixes the 60/120 A rating, so a module at a different rating carries a different type number.
