Phoenix ContactPLT-SEC-T3-BEType 3 Surge Protection Base Element – 2 Positions, 25 A, 17.7 mm Wide, DIN Rail, Remote Indication

Product Description

What this part is

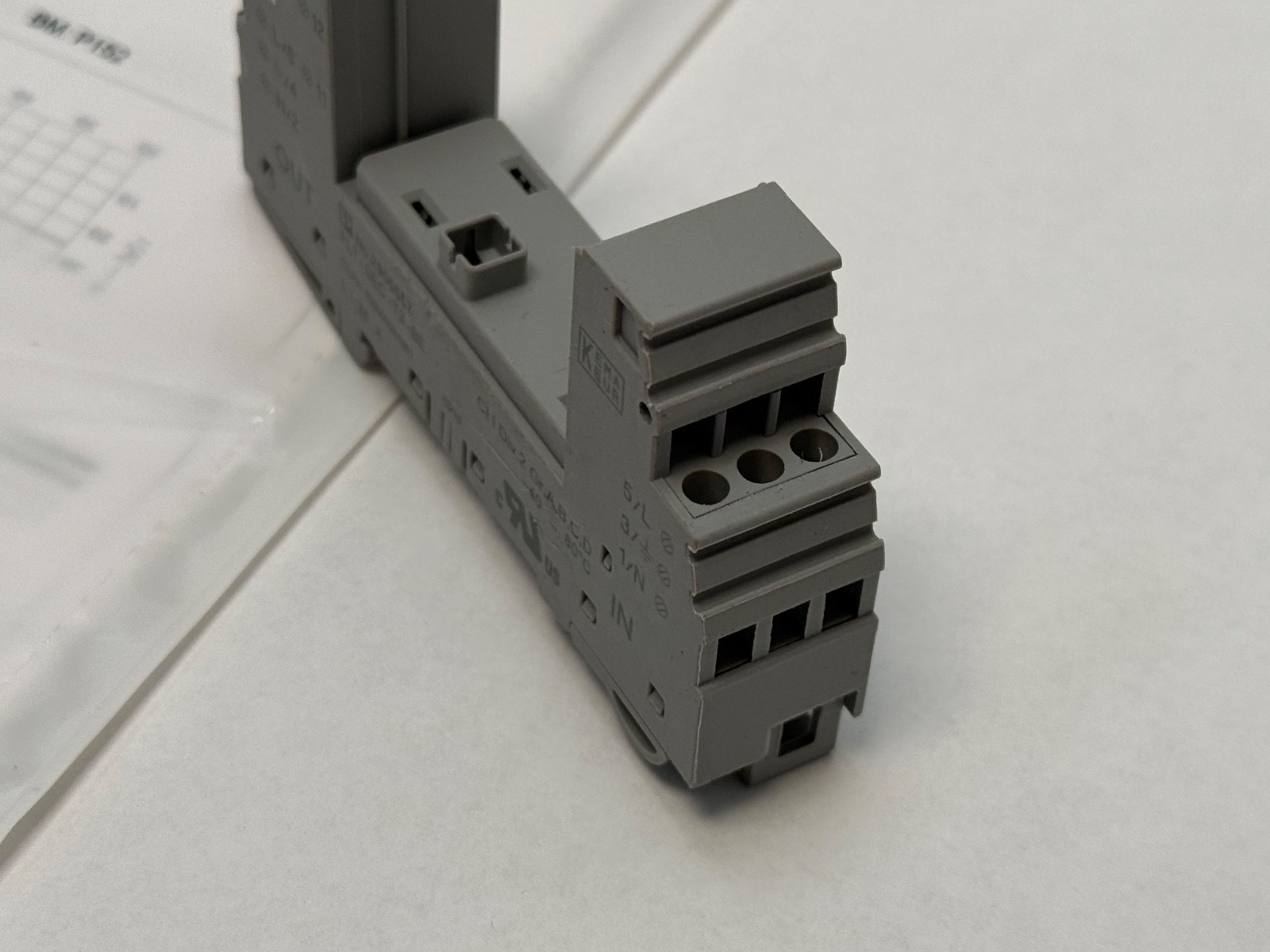

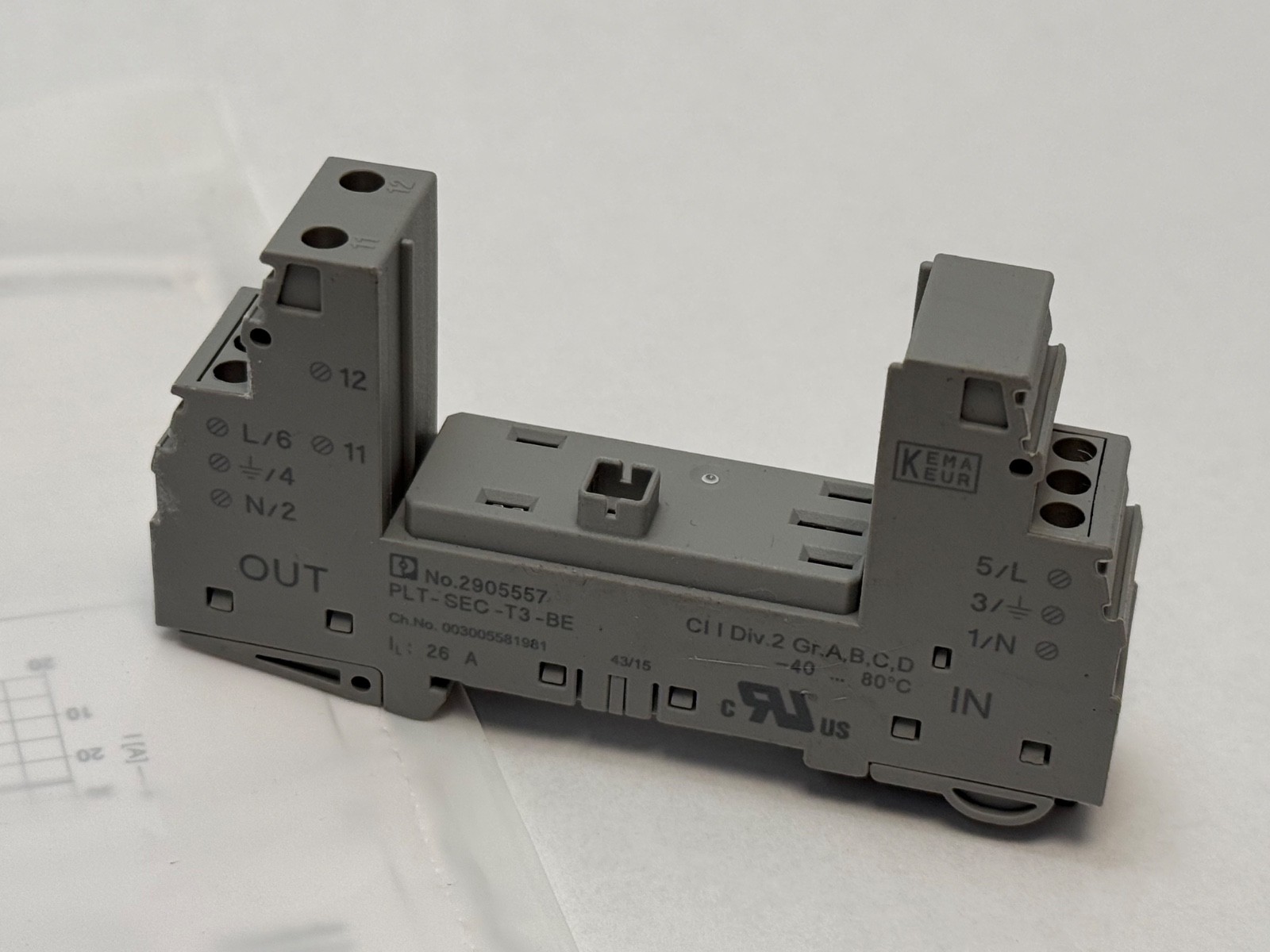

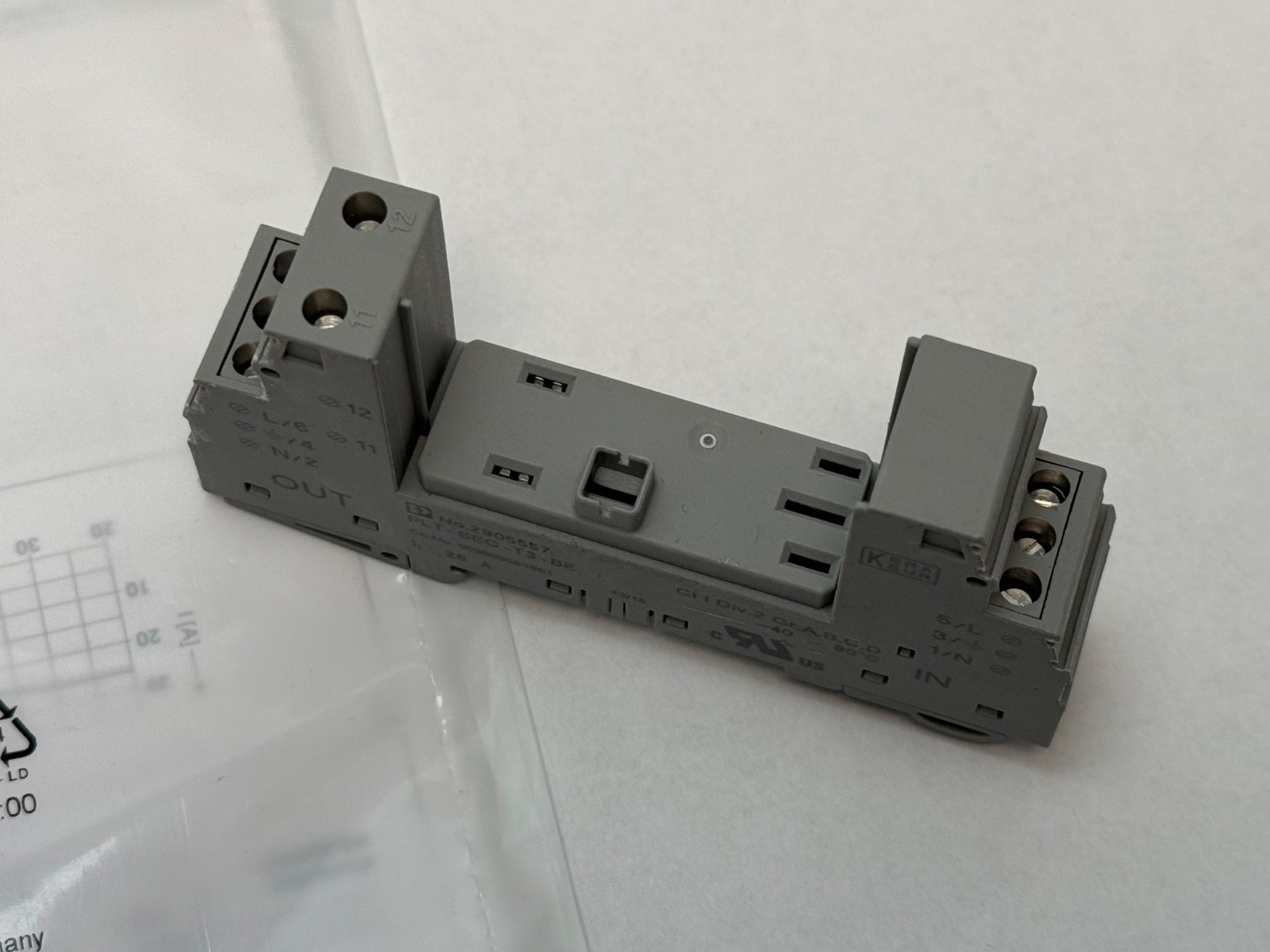

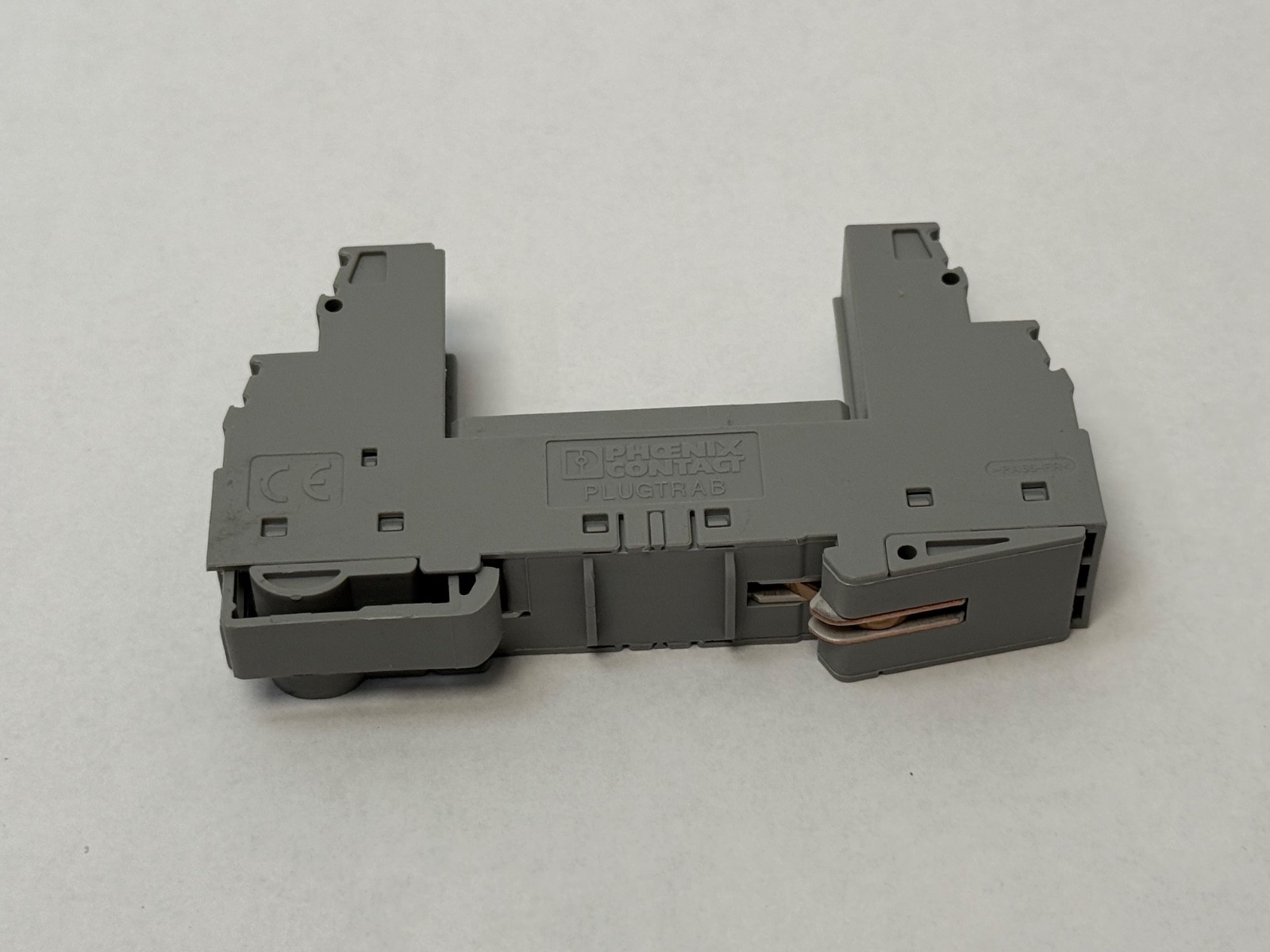

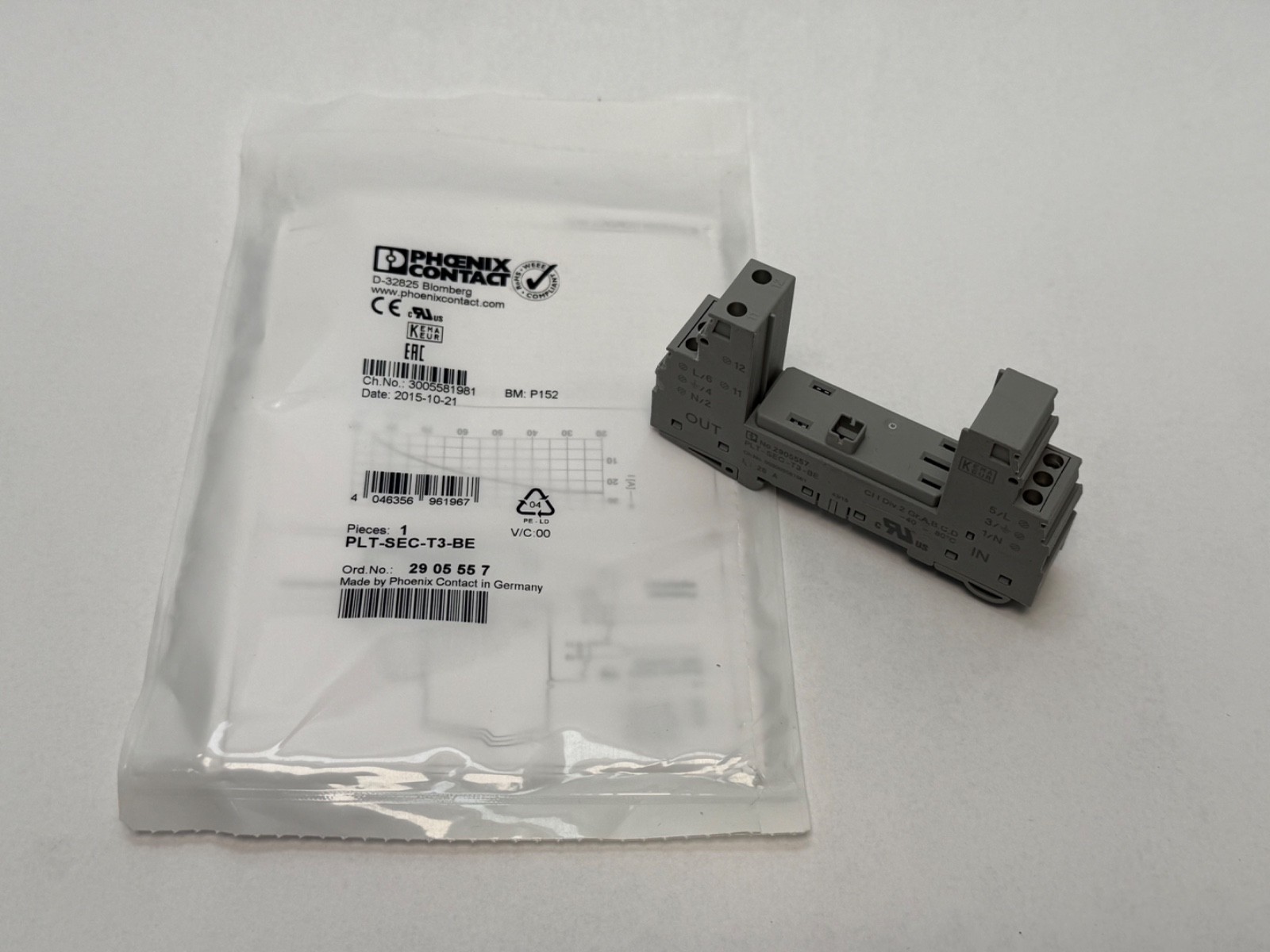

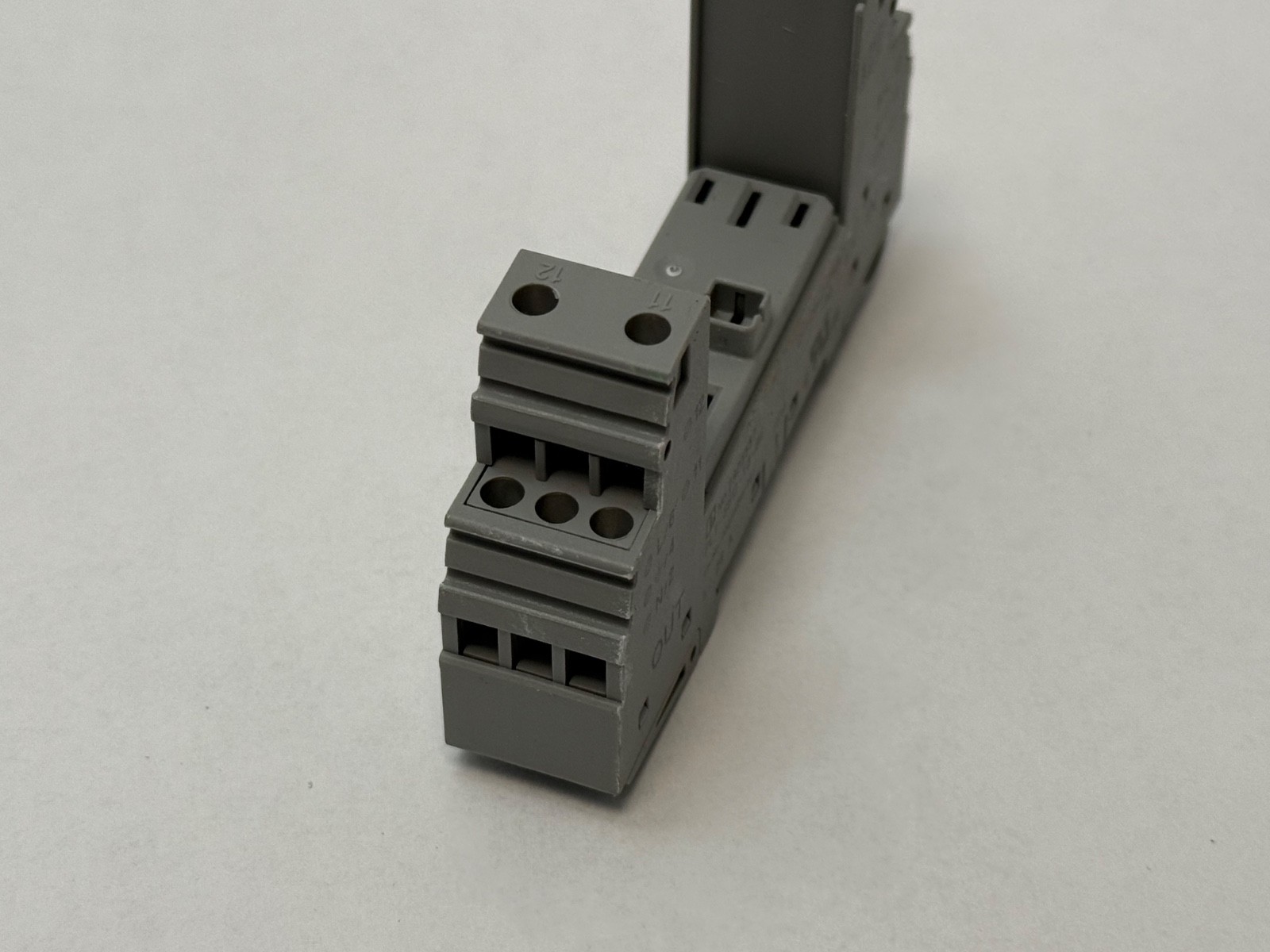

Phoenix Contact PLT-SEC-T3-BE, item number 2905557. Type 3 surge protection base element for protective plugs of the PLUGTRAB SEC series, with remote indication contact. The base mounts on a 35 mm DIN rail and accepts a PLT-SEC-T3 protective plug.

Decoding the designation

PLT-SEC — PLUGTRAB SEC surge protection family.

T3 — Type 3 surge protection per IEC/EN 61643-11.

BE — base element.

Specifications

Surge Protection Type: Type 3 (EN T3, IEC III). Nominal Voltage: 230 V. Rated Load Current: 25 A. Nominal Frequency: 50/60 Hz. Number Of Positions: 2. Remote Indication Contact: Yes. Overvoltage Category: III. Pollution Degree: 2.

Dimensions and mounting

Width: 17.7 mm. Height: 90 mm. Mounting: 35 mm DIN rail. Connection: screw, M3, tightening torque 0.8 Nm. Conductor Cross Section: 0.2 to 2.5 mm² flexible, 0.2 to 4 mm² rigid, AWG 24 to 12.

Compatibility and replacement

Accepts Phoenix Contact protective plugs PLT-SEC-T3-24-P (2905232), PLT-SEC-T3-60-P (2905233), PLT-SEC-T3-120-P (2905234) and PLT-SEC-T3-230-P (2905235). Standards: IEC 61643-11 and EN 61643-11.

Frequently asked questions

What plugs fit this base element?
The PLT-SEC-T3 protective plugs: 24 V (2905232), 60 V (2905233), 120 V (2905234) and 230 V (2905235).

How does it mount?
On a 35 mm DIN rail, 17.7 mm wide.

What is the Phoenix Contact item number?
2905557.
