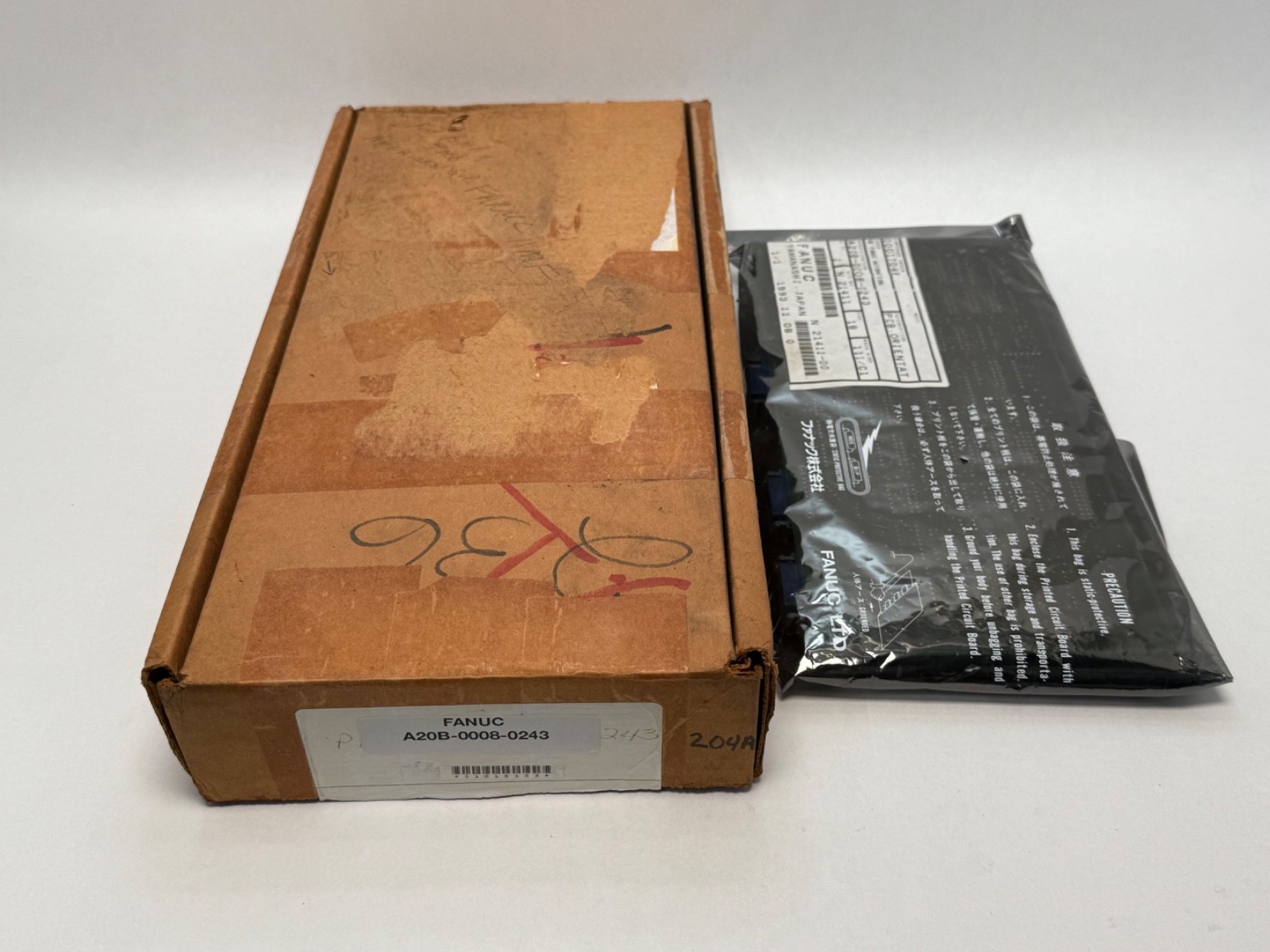

FANUC spindle orientation PCB for AC spindle servo drive units (6055 / 6059 series), drawing revision 0204A. New old stock, made in Japan.
List Price
$209.58
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | FANUC |
|---|---|
| MPN | A20B-0008-0243 |
| Model | A20B-0008-0243/0204A |
| Condition | New – Open box |
|---|---|
| Type | Circuit Board |
| Base Number | A20B-0008-0243 |
| Industry Terms | spindle orientation board; orientation PCB; spindle orientation card; FANUC spindle drive board; A20B board; CNC spindle control board; spindle positioning PCB; AC spindle servo board |
| Common Misspellings | A20B 0008 0243; A20B00080243; A20B-008-0243; A20B-0008-243; Fanuk A20B; Fanac A20B; Funuc; GE Fanuc A20B-0008-0243 |
| Application Types | CNC machining centres with automatic tool change; CNC lathes and turning centres; legacy FANUC AC spindle drive repair; machine-tool spindle orientation retrofits |

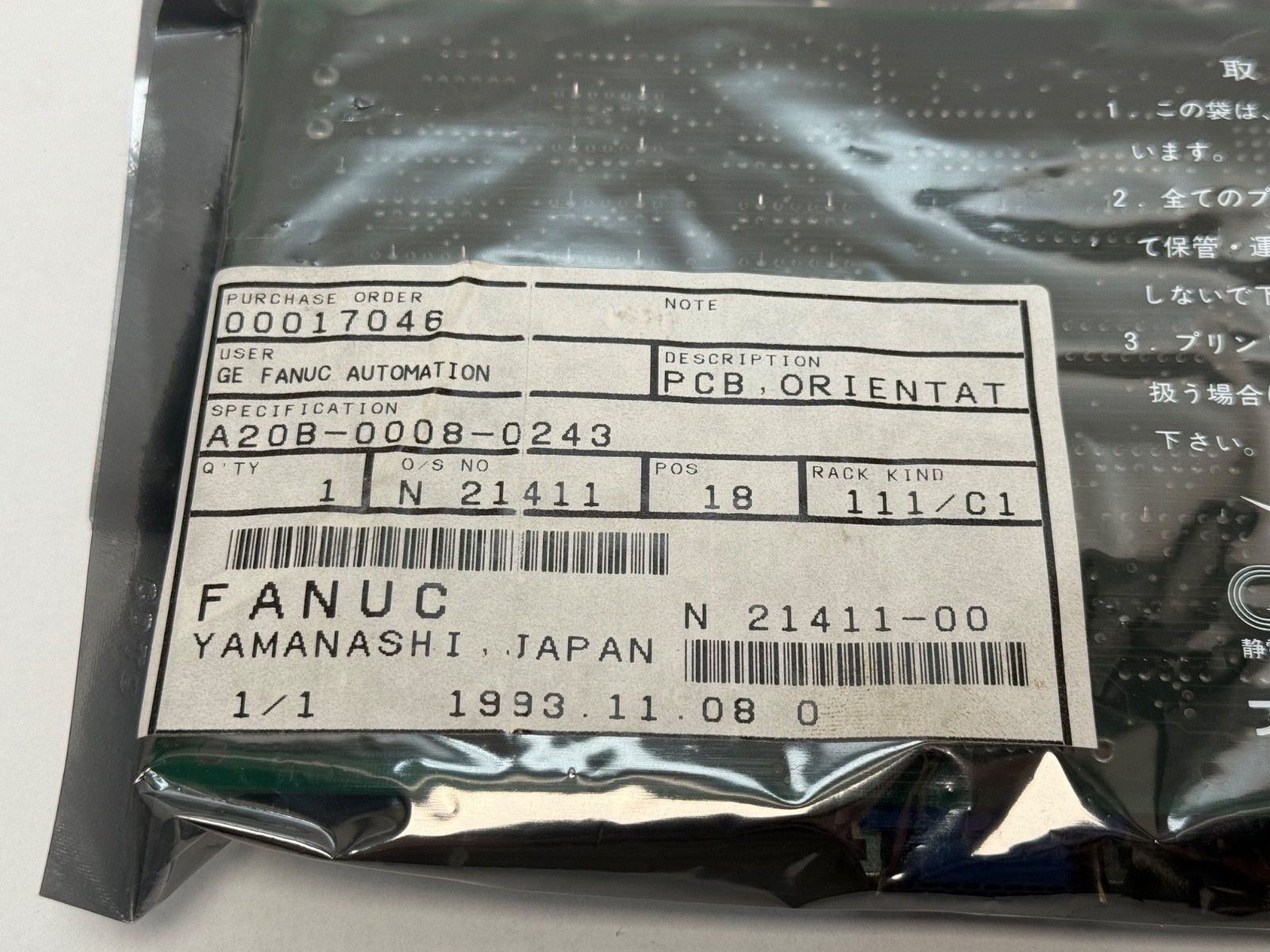

| Condition Note | Made In Japan, New Old Stock |
| Mpn Variants | A20B-0008-0243; A20B00080243; A20B-0008-0243/0204A; A20B-0008-0243-0204A; A20B 0008 0243 |
| Manufacturer Status | Legacy / obsolete - no longer manufactured; supplied as new old stock |
| Compatible With Replaces | FANUC AC spindle servo drive units, 6055 and 6059 series |
| Additional Attributes | Board function: spindle orientation control (commanded angular stop position and hold); Board family: FANUC A20B printed circuit boards; Host equipment: FANUC AC spindle servo units (SPM); Documented drive units: 6055 and 6059 series; Production era: 1980 to early 1990s; Drawing revision: /0204A; Signal role: processes spindle encoder feedback and stop-position signals; Country of manufacture: Japan; Supply note: no longer manufactured - available as new old stock or tested exchange; Revision sensitivity: confirm stamped part number and revision before fitting |
| Part Number | A20B-0008-0243 |
| Cross Reference 1 | A20B-0008-0243/0204A (drawing revision) |
|---|---|
| Cross Reference 2 | A20B00080243 |

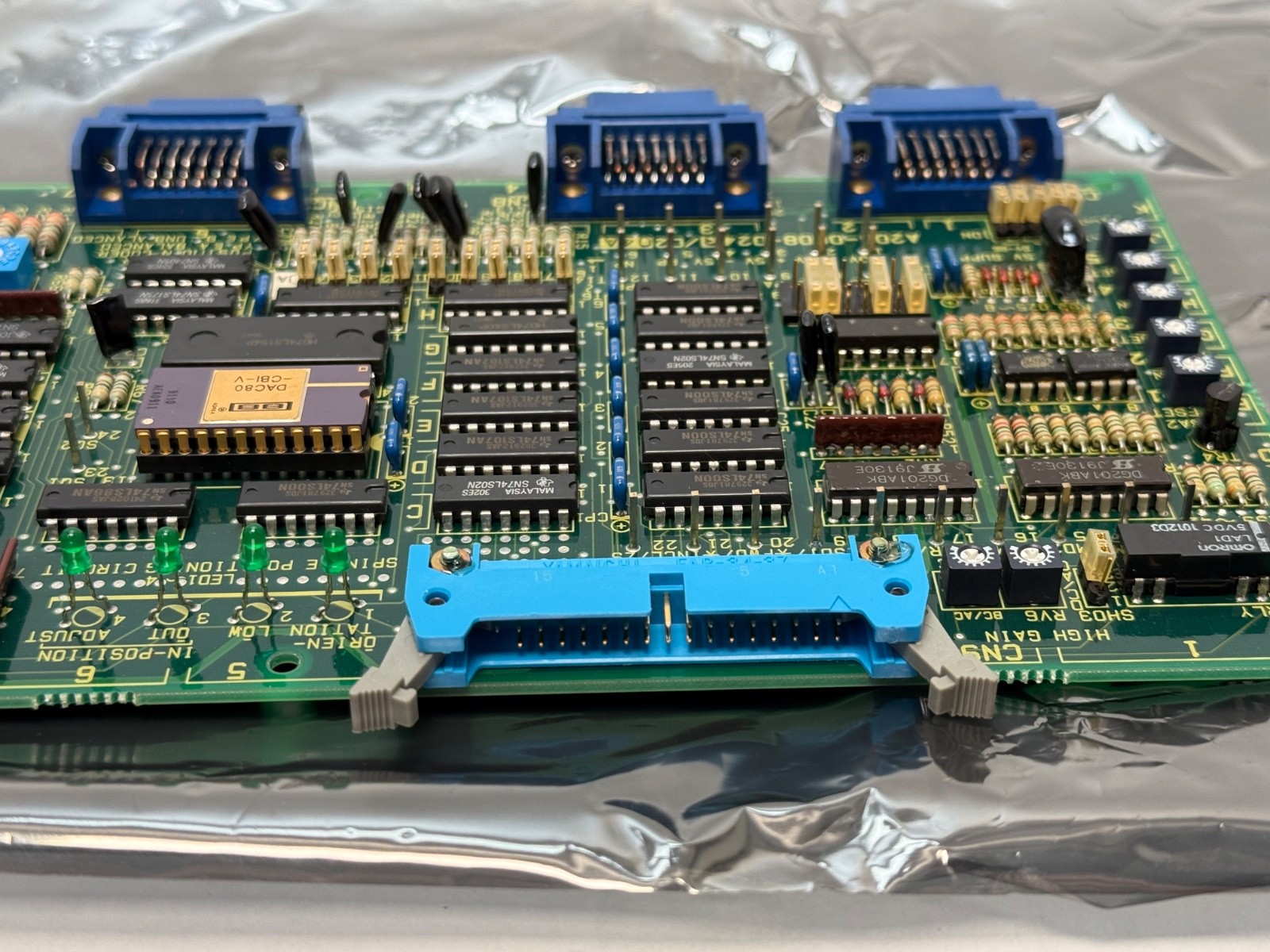

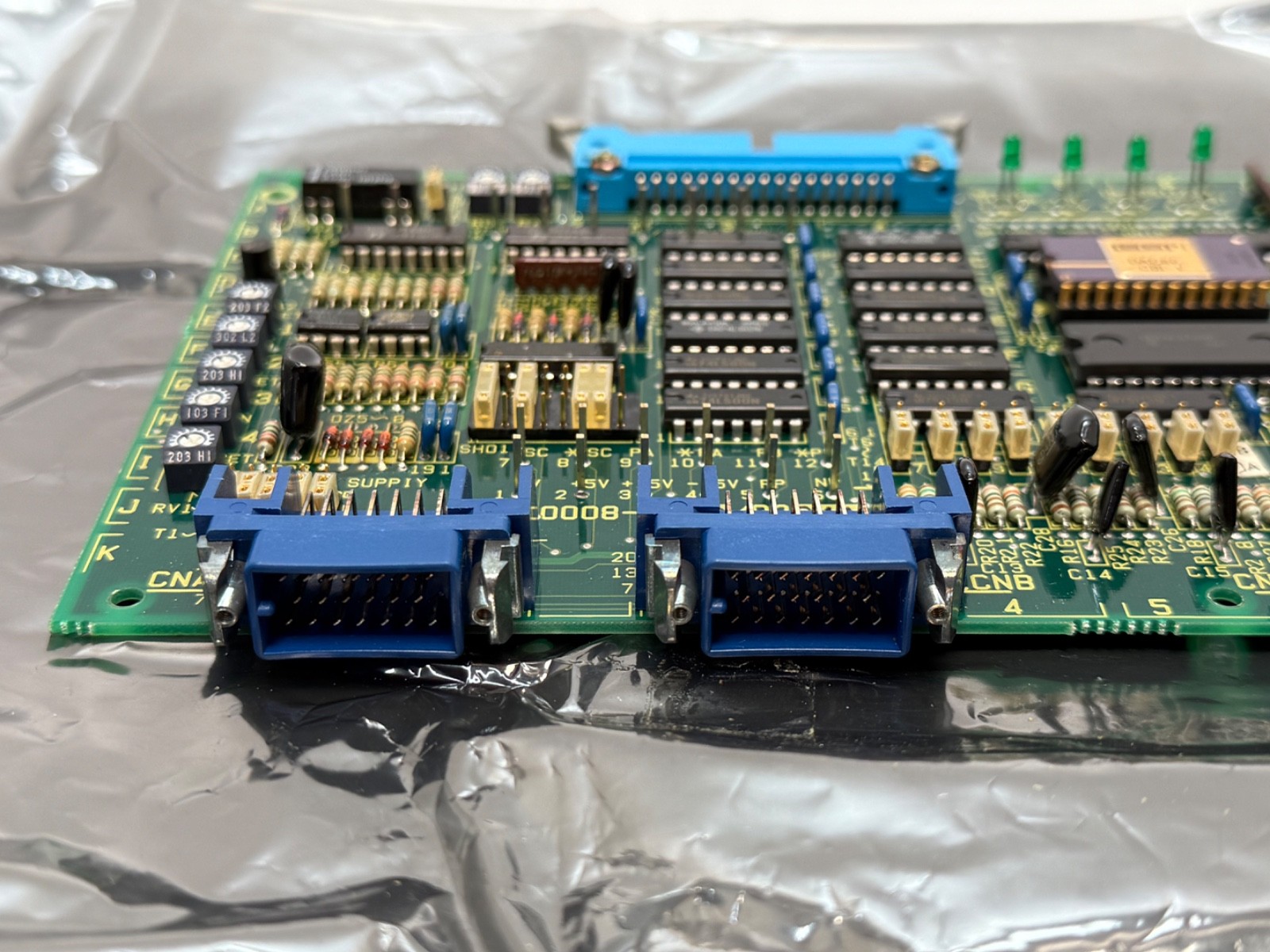

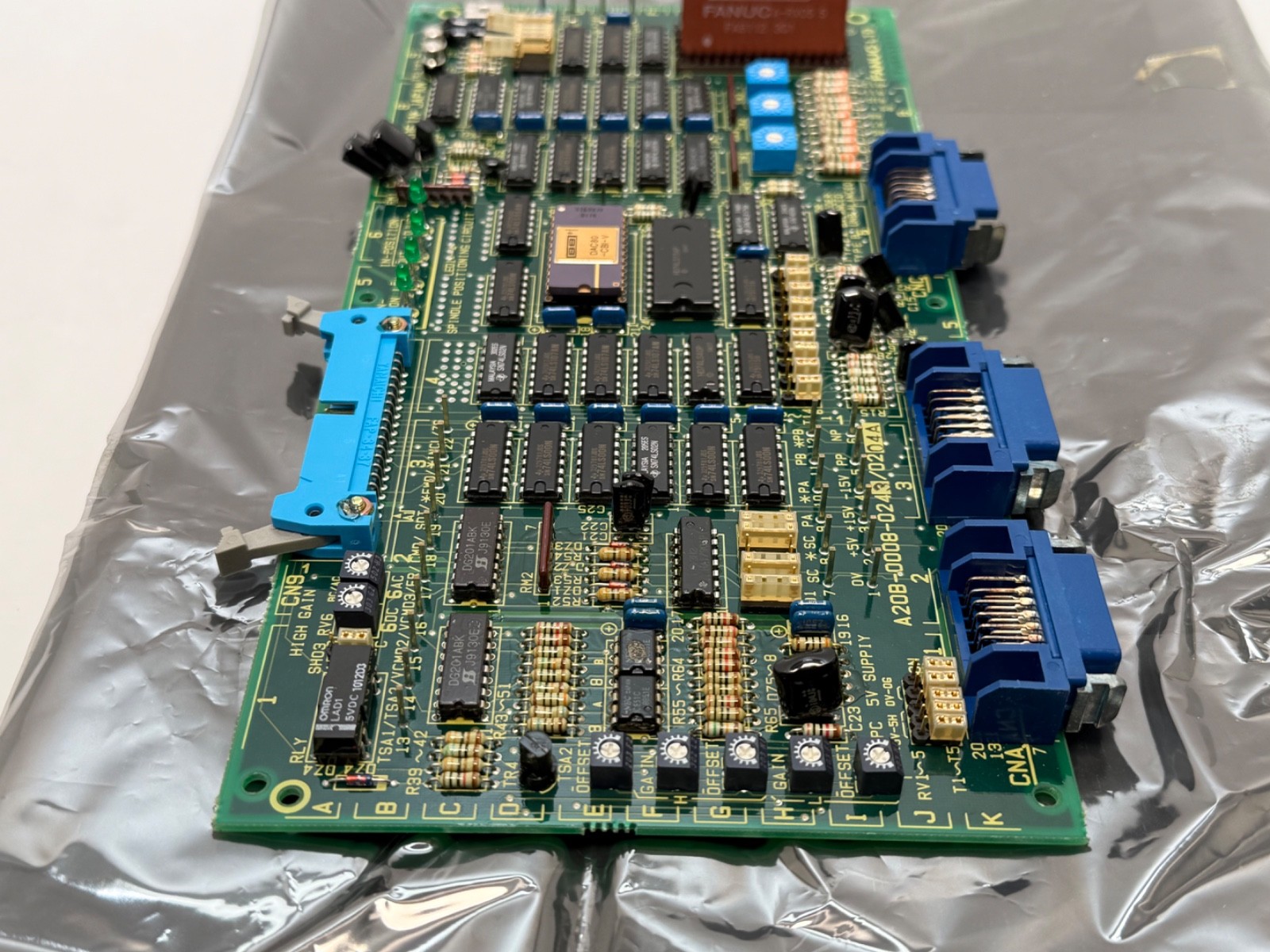

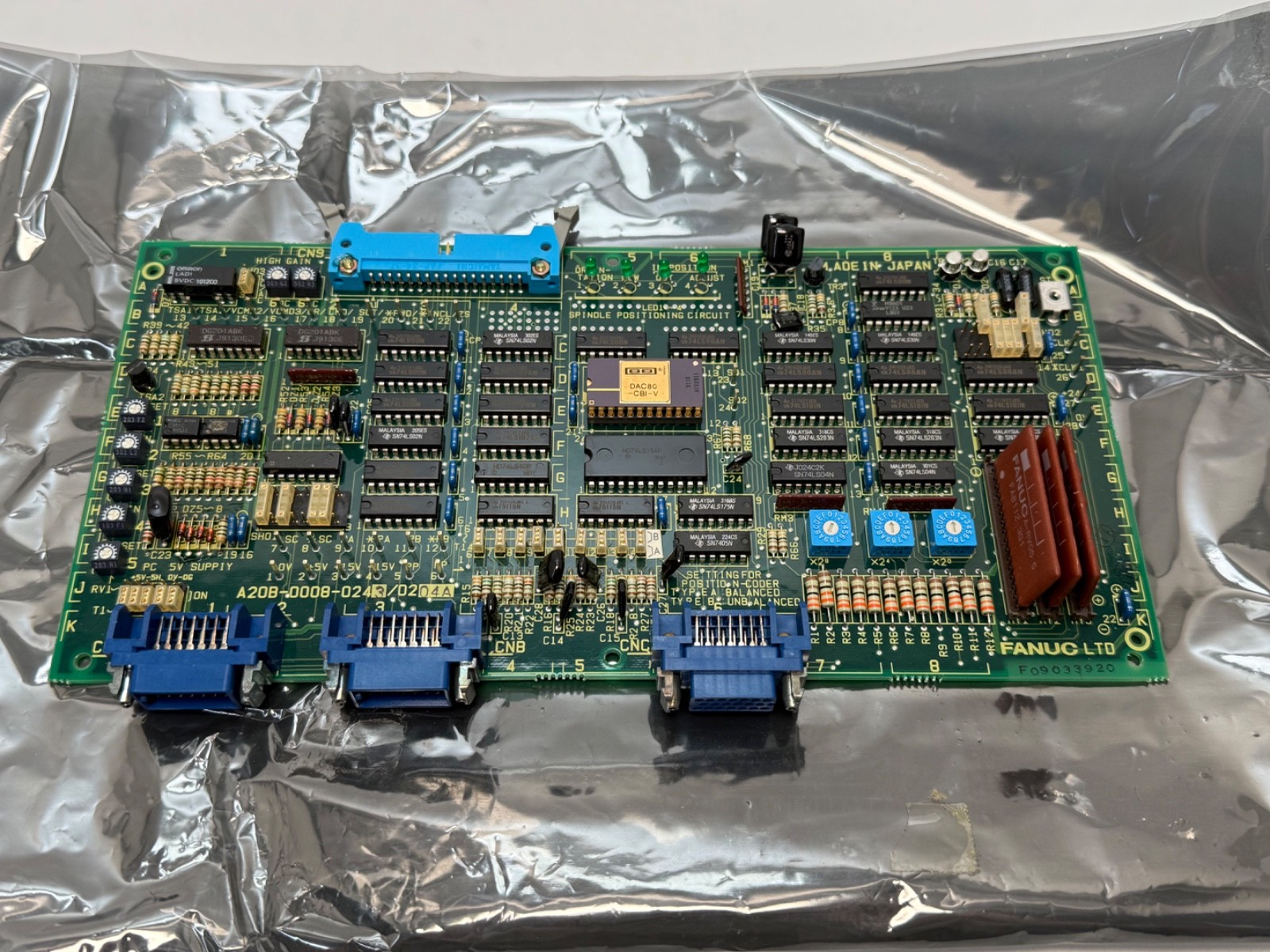

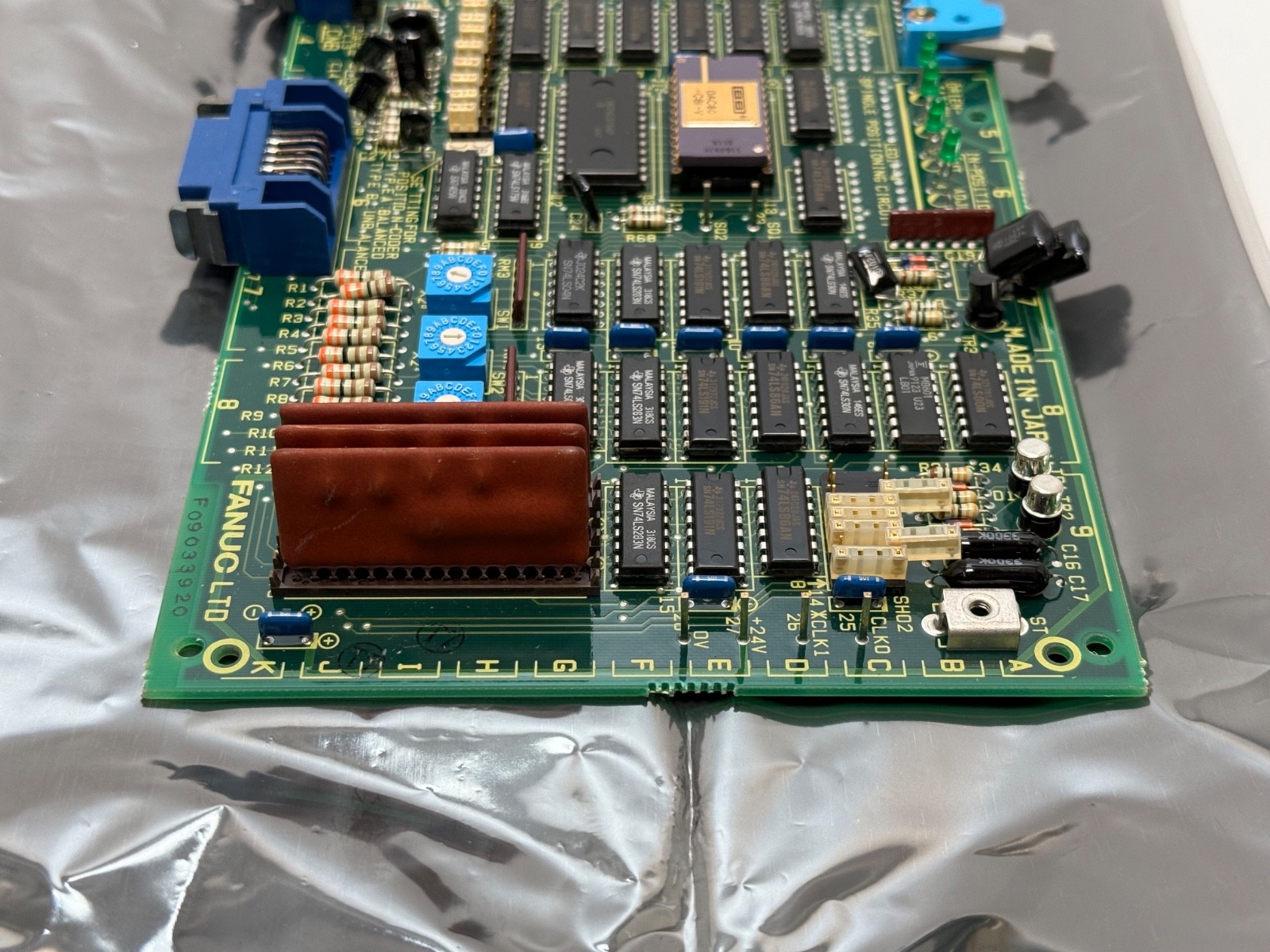

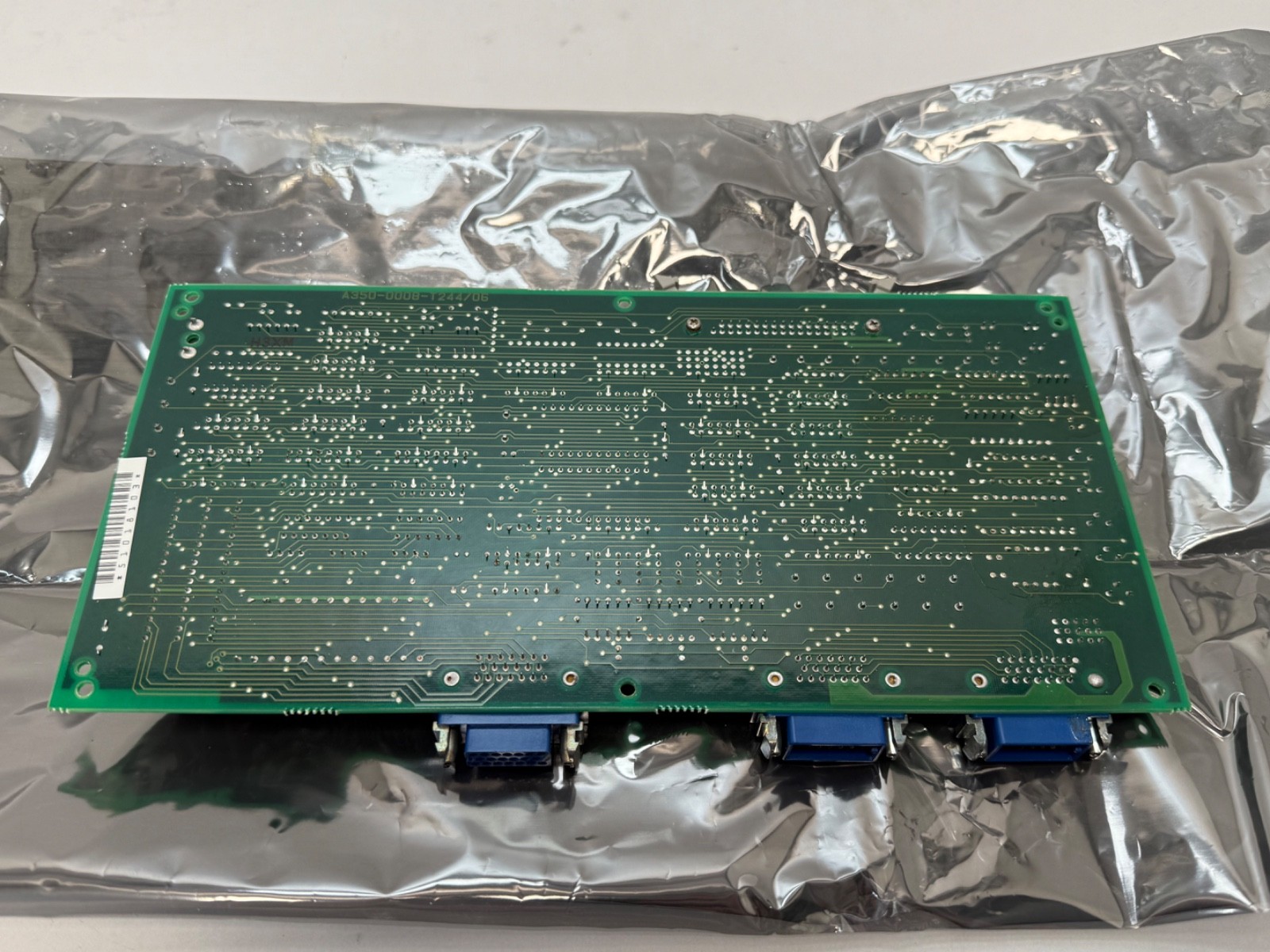

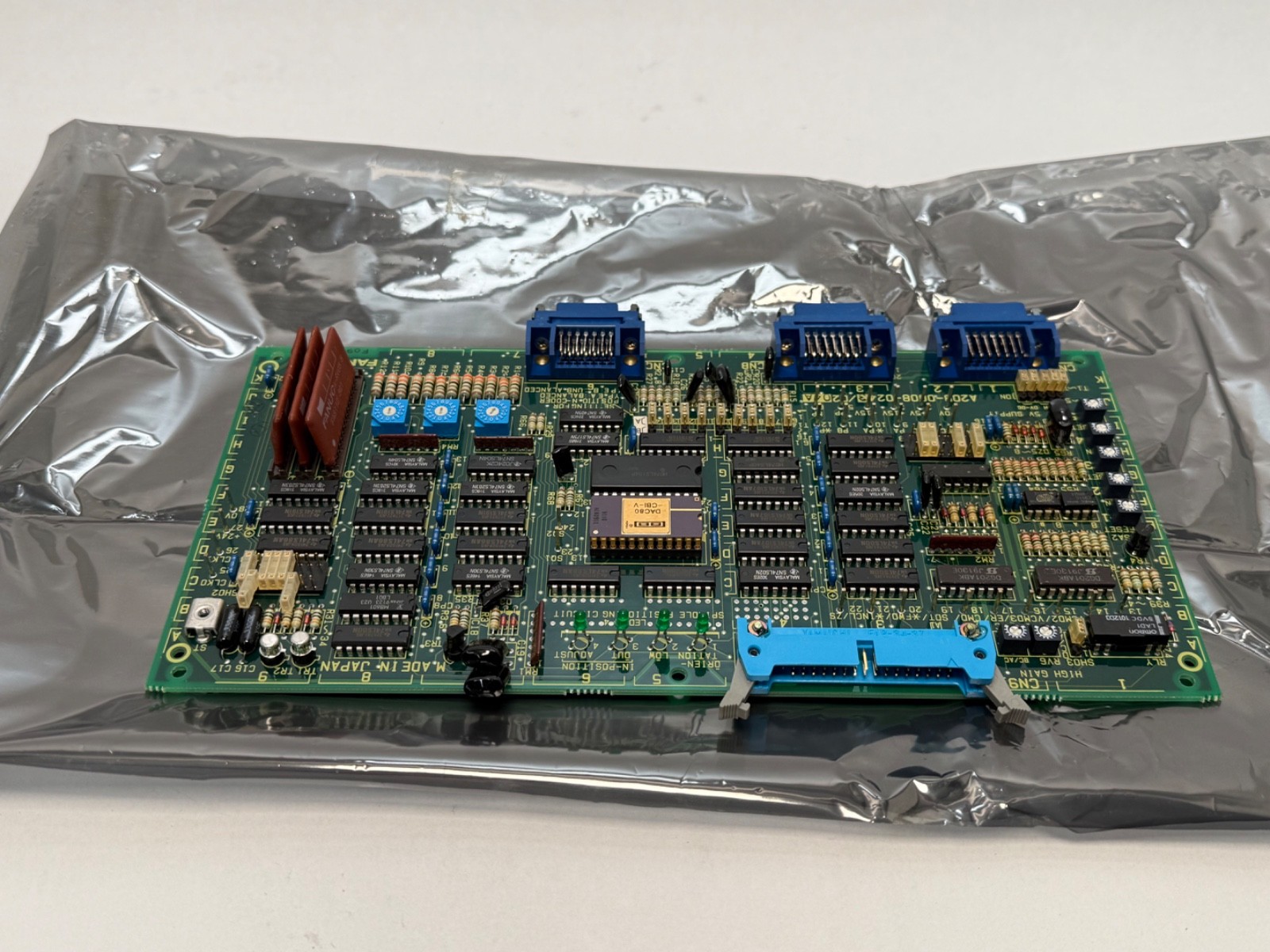

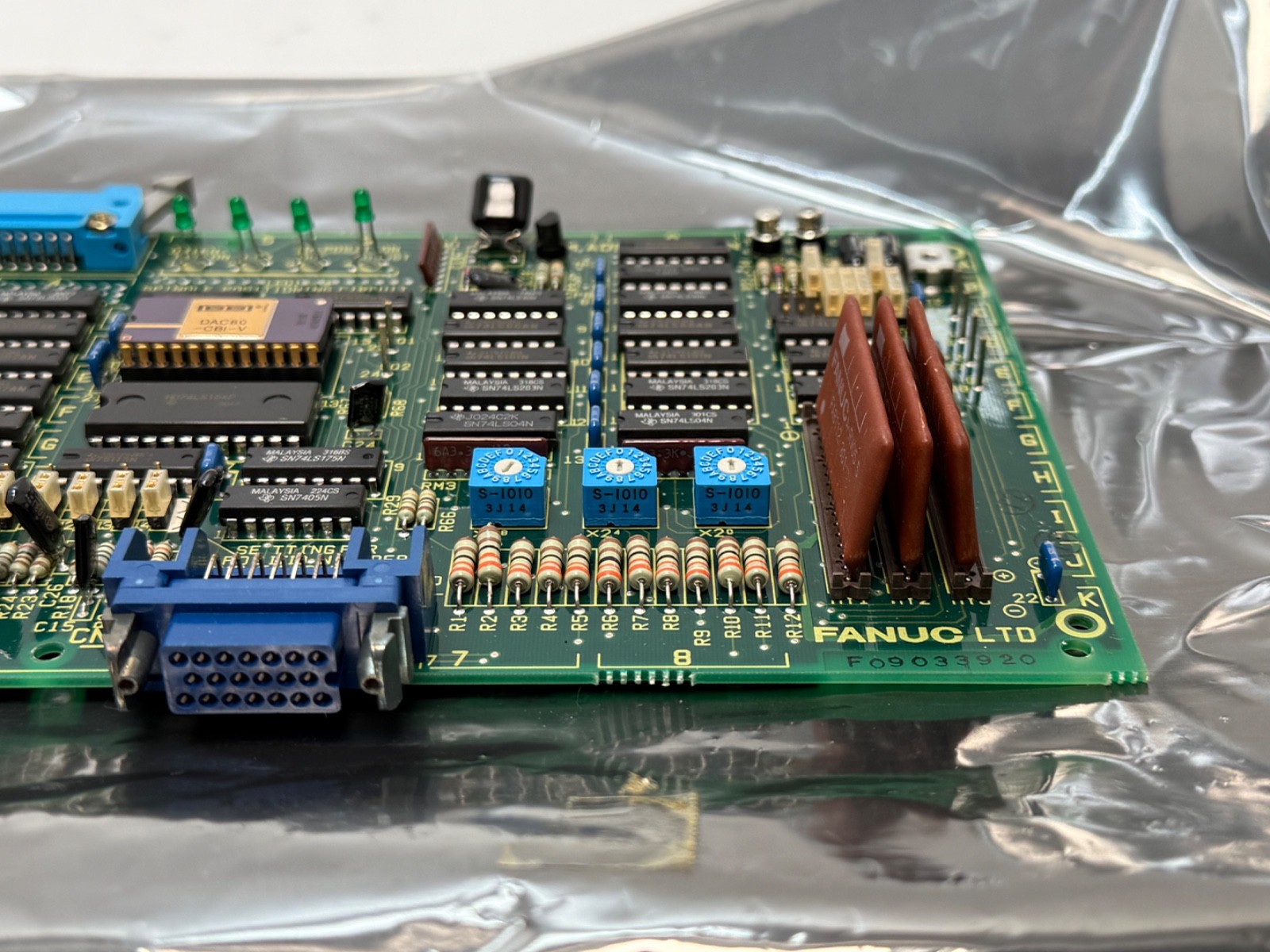

The FANUC A20B-0008-0243 is a spindle orientation printed circuit board used in FANUC AC spindle servo drive systems.
Boards of this vintage are no longer manufactured, so new old stock and tested-exchange units are the normal supply route for keeping legacy machine tools running. Made in Japan, new old stock.
Its job is spindle orientation control – bringing the spindle to a commanded angular stop position and holding it there, which is what allows automatic tool change, boring-bar indexing and keyed workholding to repeat accurately. The board processes spindle encoder feedback and stop-position signals within the drive unit rather than driving the motor itself.

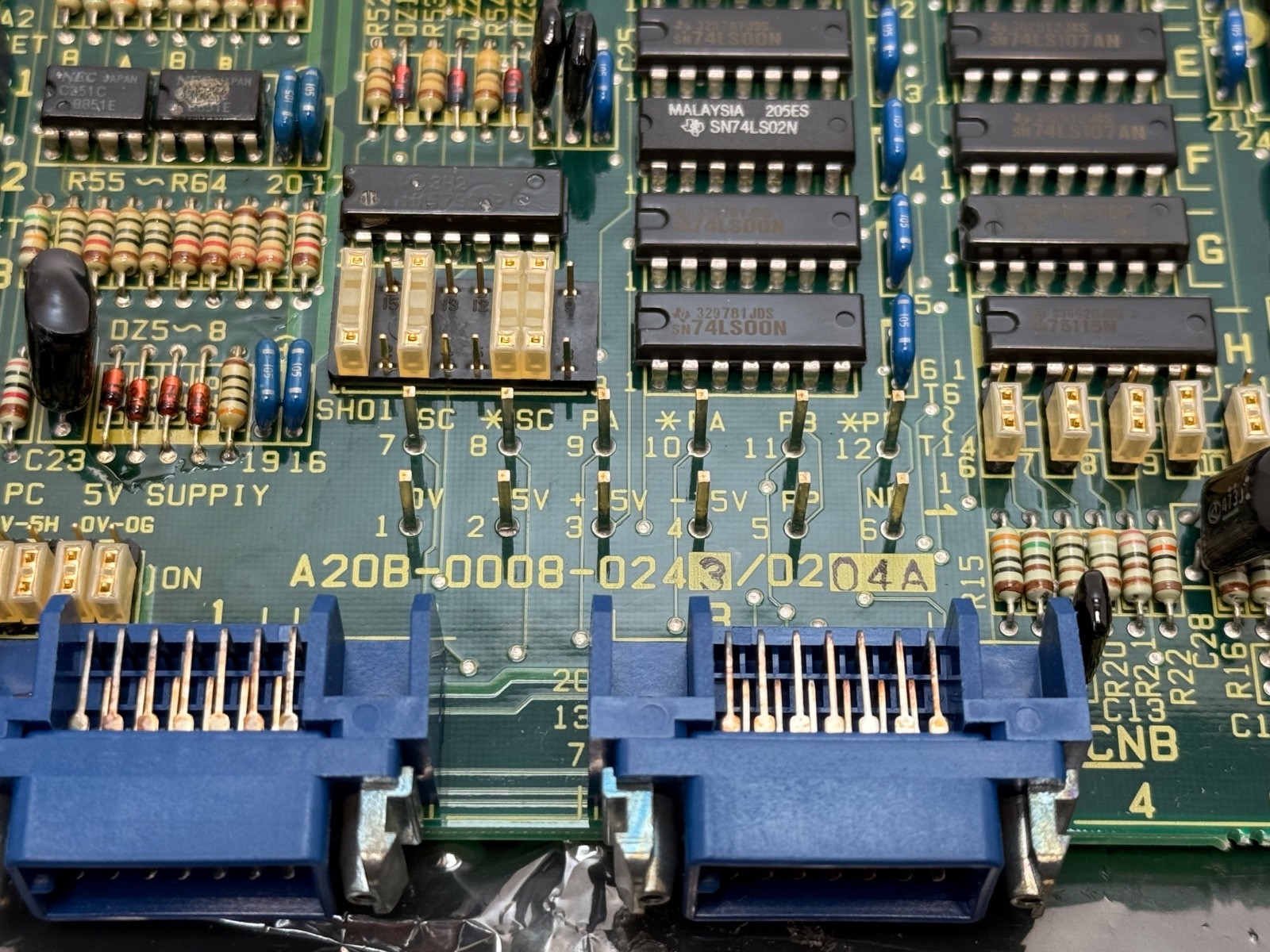

It is documented against FANUC AC spindle drive units of the 6055 and 6059 series from the 1980s through the early 1990s, and this example carries drawing revision /0204A.
Because FANUC used revision-specific hardware across drive generations, confirm the full part number and revision stamped on the board you are replacing before fitting.
