Allen Bradley2090-U3BB-DM12Ultra3000 CN1 Control Interface Breakout Board, 12-Position, Drive Mounted

Condition: Used

Availability:

1 in stock

Used Allen-Bradley 2090-U3BB-DM12 Ultra3000 CN1 control interface breakout board: 44-pin high-density D-sub to 12-position screw terminals, Rev 03.

List Price

$24.64

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandAllen Bradley
MPN2090-U3BB-DM12
GTIN820919048920
Model2090-U3BB-DM12

Technical Specifications

TypeControl Interface Breakout Board
Industry TermsBreakout board; control interface breakout board; terminal breakout board; servo drive I/O breakout; CN1 breakout; Ultra 3000 breakout board kit
Common Misspellings2090-U3BBDM12; 2090-UB3B-DM12; 2090-U3BB-DM-12; 2090-U3B-DM12
Application TypesWiring Ultra3000 servo drive CN1 user I/O control signals to screw terminals
Termination Type12-position screw terminal strip
Number Of Positions12
Connector Style44-pin high-density D-sub (Ultra3000 CN1)
Controller PlatformUltra3000 servo drive (CN1 user I/O)
Mpn Variants2090-U3BB-DM12; 2090U3BBDM12; 2090 U3BB DM12
Manufacturer StatusDiscontinued 2022-12-31, no planned Rockwell replacement
Compatible With ReplacesAllen-Bradley Ultra3000 servo drives (CN1 user I/O connector)
Additional AttributesRockwell name: Ultra 3000 Breakout Board Kit; Rockwell description: Breakout Board, CN1, Ultra3000 Drive Mounted; board part number 74102-861-53 Rev 03 (label); SERCOS rated (Rexel catalog); UPC 820919048920
SeriesUltra3000
Part Number2090-U3BB-DM12
Mounting TypeDrive mounted on Ultra3000 CN1 connector

Cross-References

Cross Reference 1Allen-Bradley 2090-U3CBB-DM12 - same Rockwell description
Seller Part Number: AR1B3#FJDQTQ

Product Description

What this part is:

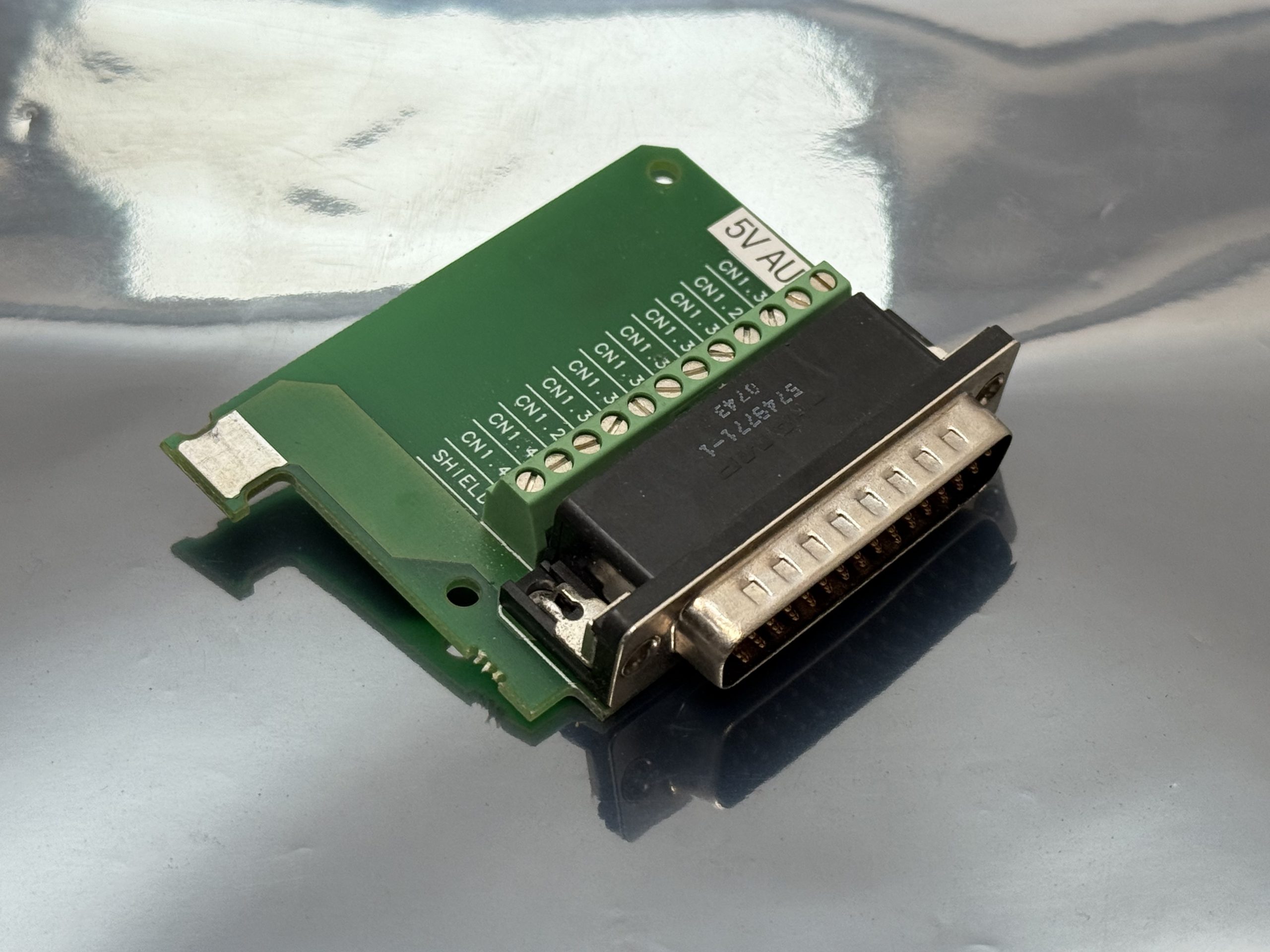

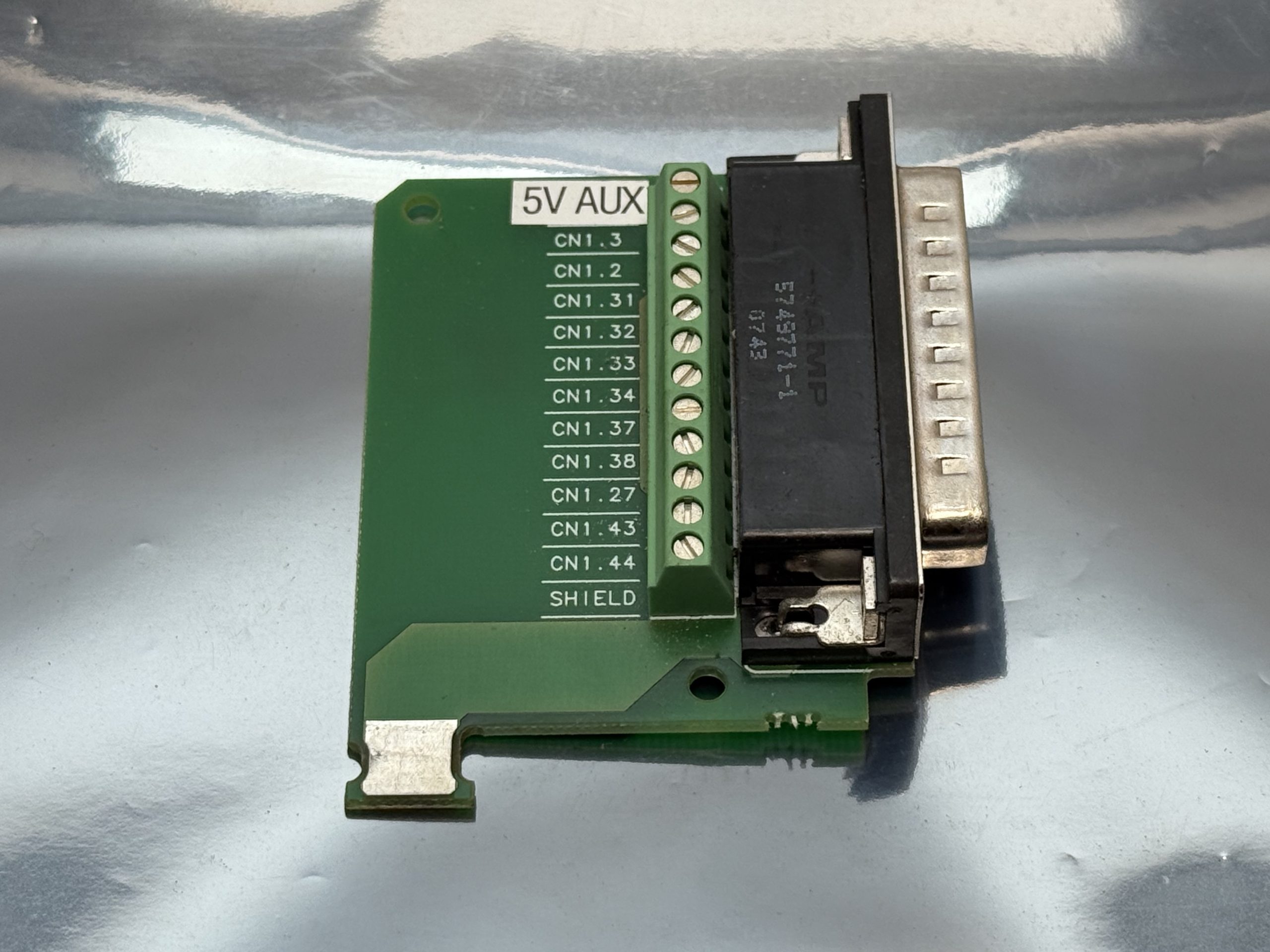

Allen-Bradley 2090-U3BB-DM12 is the Ultra 3000 Breakout Board Kit: a control interface breakout board that mounts on the CN1 user I/O connector of an Ultra3000 servo drive and brings the drive’s control signals out to screw terminals. Unit Quantity: 1 Pc. Condition: used, as pictured. Board label: 2090-U3BB-DM12, 74102-861-53, Rev 03. It has a 44-pin high-density D-sub connector and a 12-position screw terminal strip.

Decoding the designation:

2090-U3BB-DM12 — Rockwell Automation catalog number for the Ultra 3000 Breakout Board Kit (Breakout Board, CN1, Ultra3000 Drive Mounted).

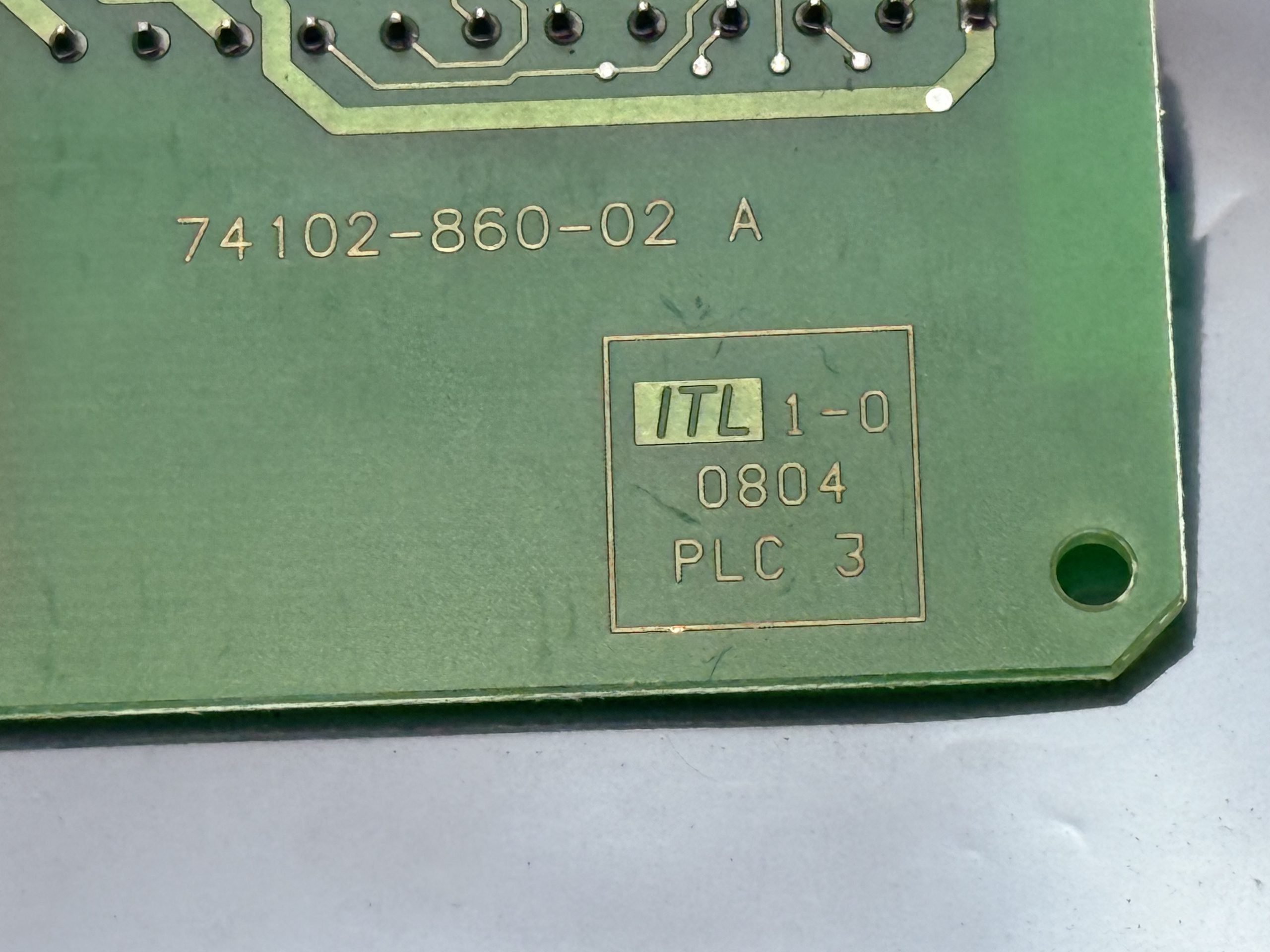

74102-861-53 Rev 03 — board part number and revision printed on the unit (label).

Specifications:

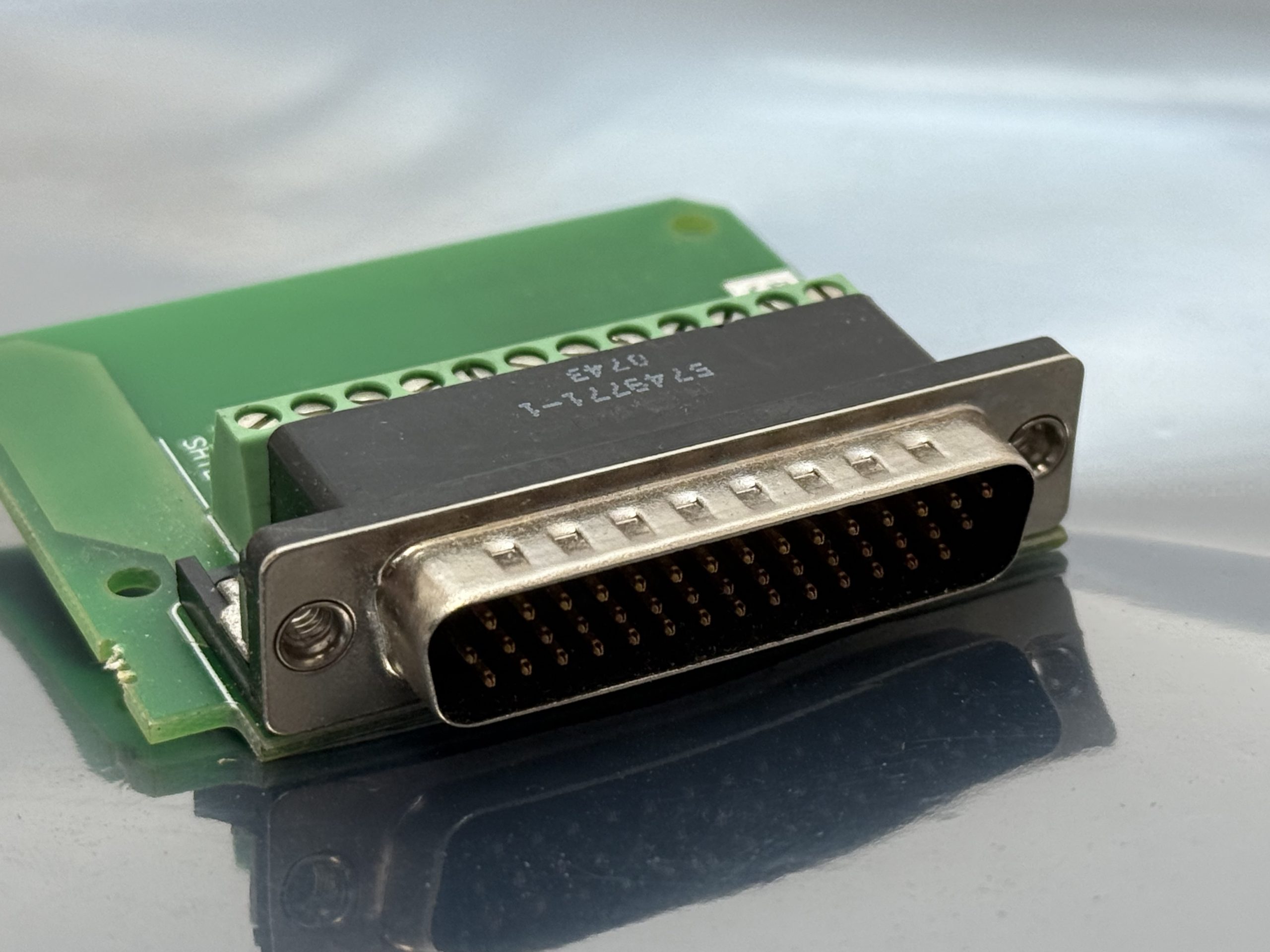

Type: Control interface breakout board (Ultra 3000 Breakout Board Kit). Drive Connector: CN1 user input/output. Connector: 44-pin high-density D-sub (Ultra3000 CN1 is a 44-pin high-density D-shell). Terminals: 12-position screw terminal strip (label). Board Part Number: 74102-861-53, Rev 03 (label). Rating: SERCOS rated (Rexel catalog description). UPC: 820919048920. Lifecycle: Discontinued by Rockwell Automation 31 December 2022, no planned Rockwell replacement.

Dimensions and mounting:

Drive mounted: plugs directly onto the CN1 connector on the front of an Allen-Bradley Ultra3000 servo drive.

Compatibility and replacement:

For Allen-Bradley Ultra3000 servo drives (CN1 user I/O connector). Rockwell lists 2090-U3CBB-DM12 under the same name and description (Ultra 3000 Breakout Board Kit, Breakout Board, CN1, Ultra3000 Drive Mounted). Rockwell has no planned replacement. Also written 2090U3BBDM12.

Frequently asked questions:

What does the Allen-Bradley 2090-U3BB-DM12 connect to?

It mounts on the CN1 user I/O connector (44-pin high-density D-shell) of an Allen-Bradley Ultra3000 servo drive and breaks it out to a 12-position screw terminal strip.

Is the 2090-U3BB-DM12 still made?

No. Rockwell Automation discontinued it on 31 December 2022 and lists no planned replacement.

What board revision is this unit?

The label reads 74102-861-53, Rev 03. The board is used, as pictured.
