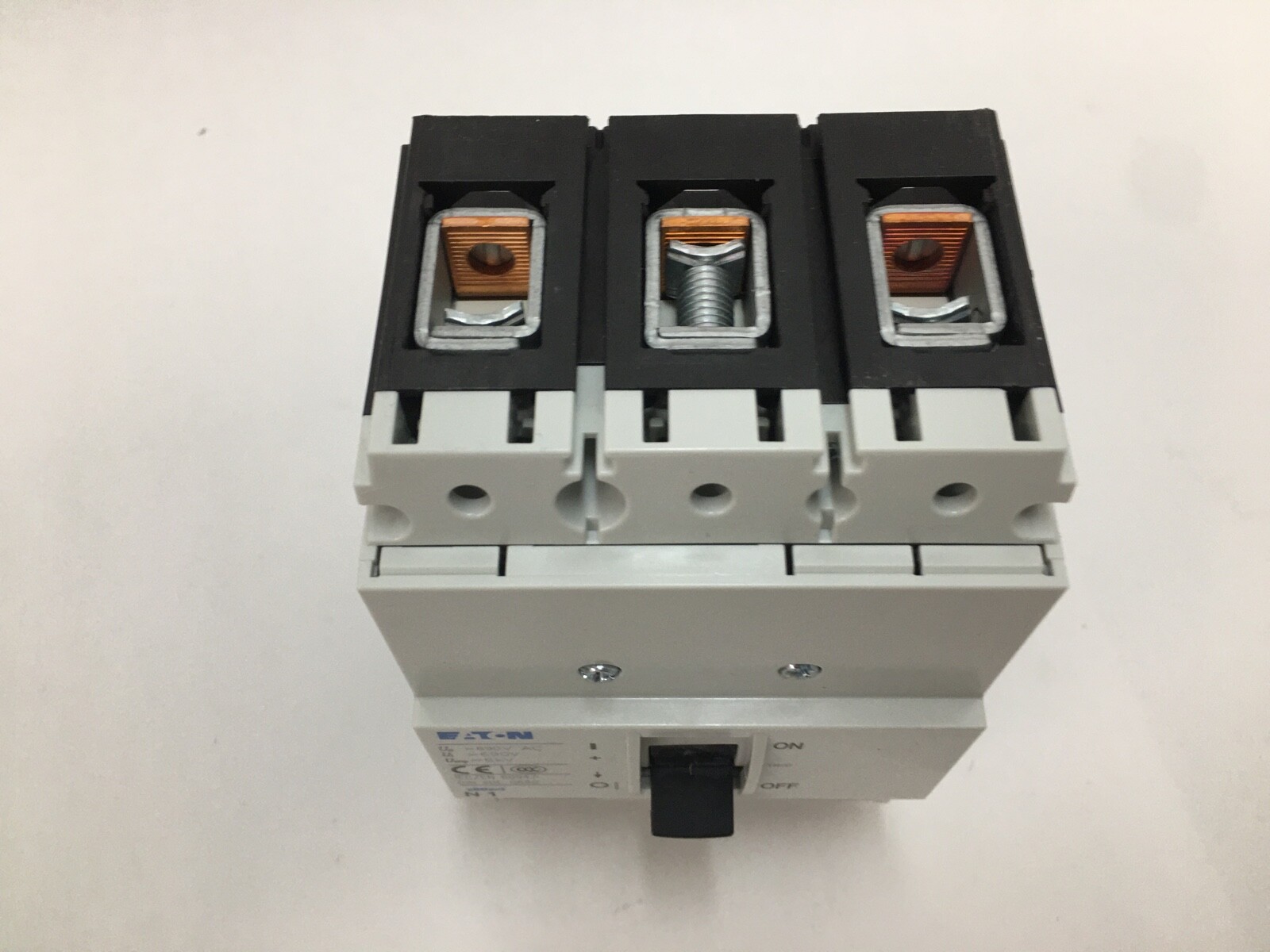

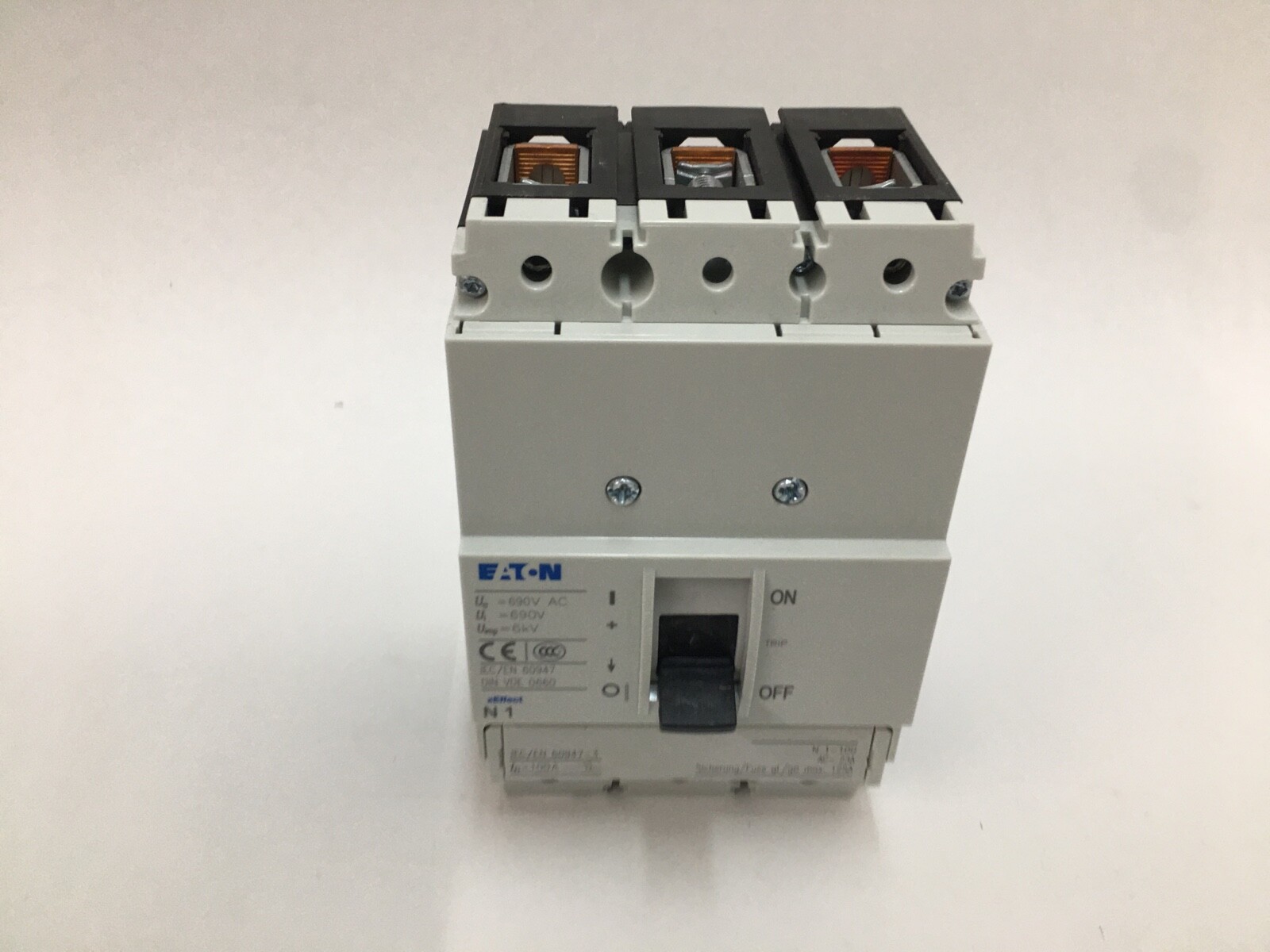

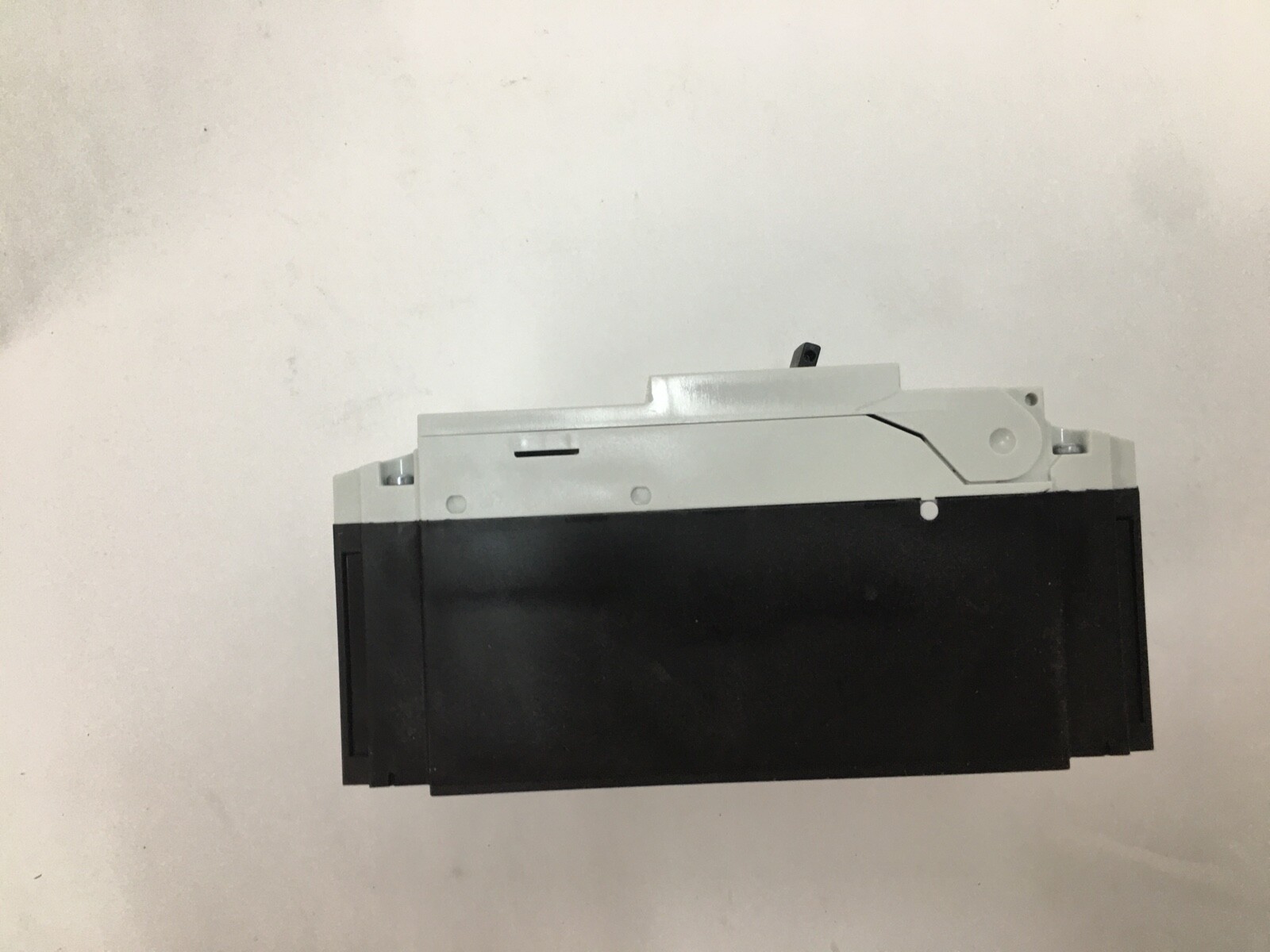

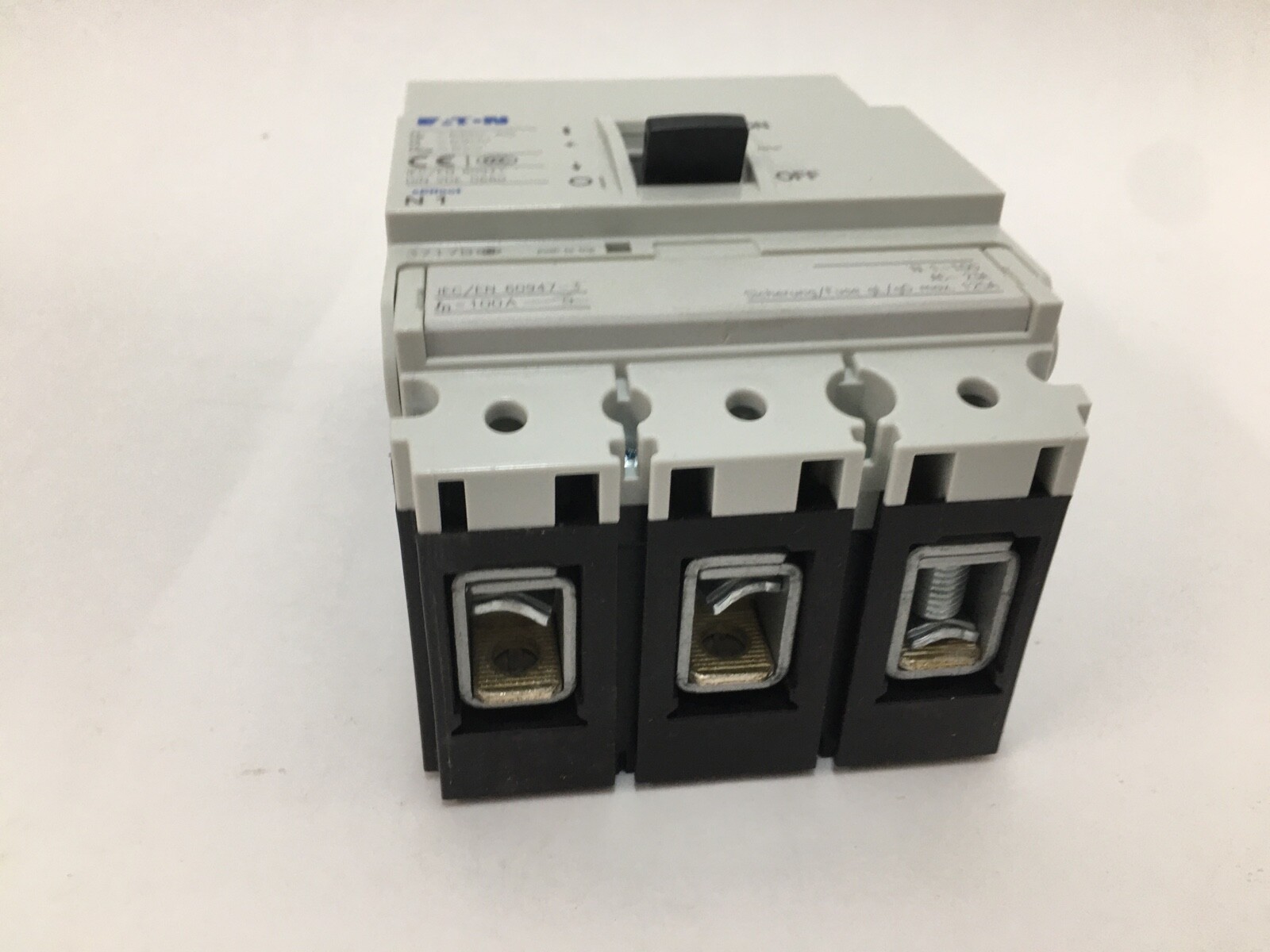

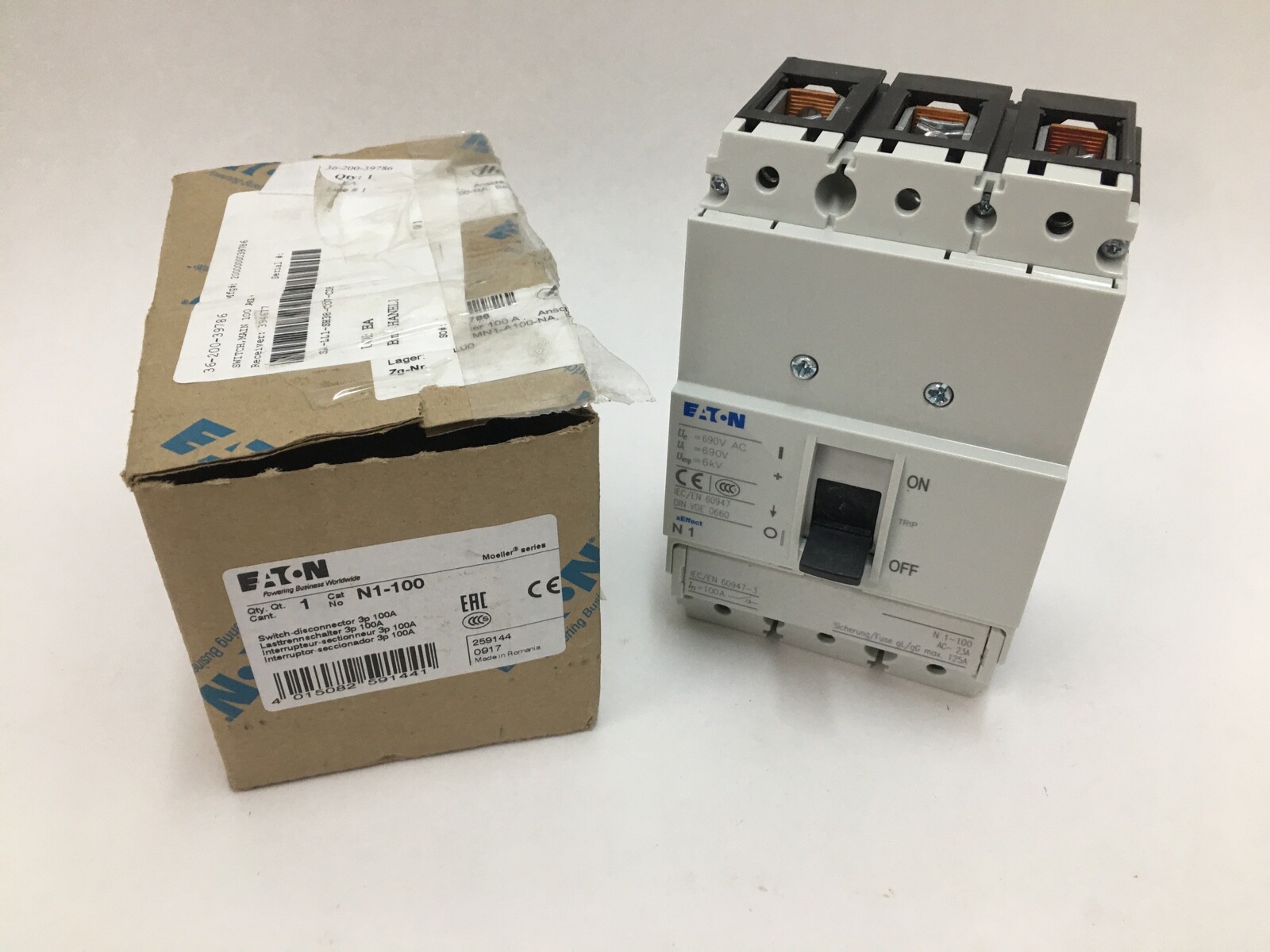

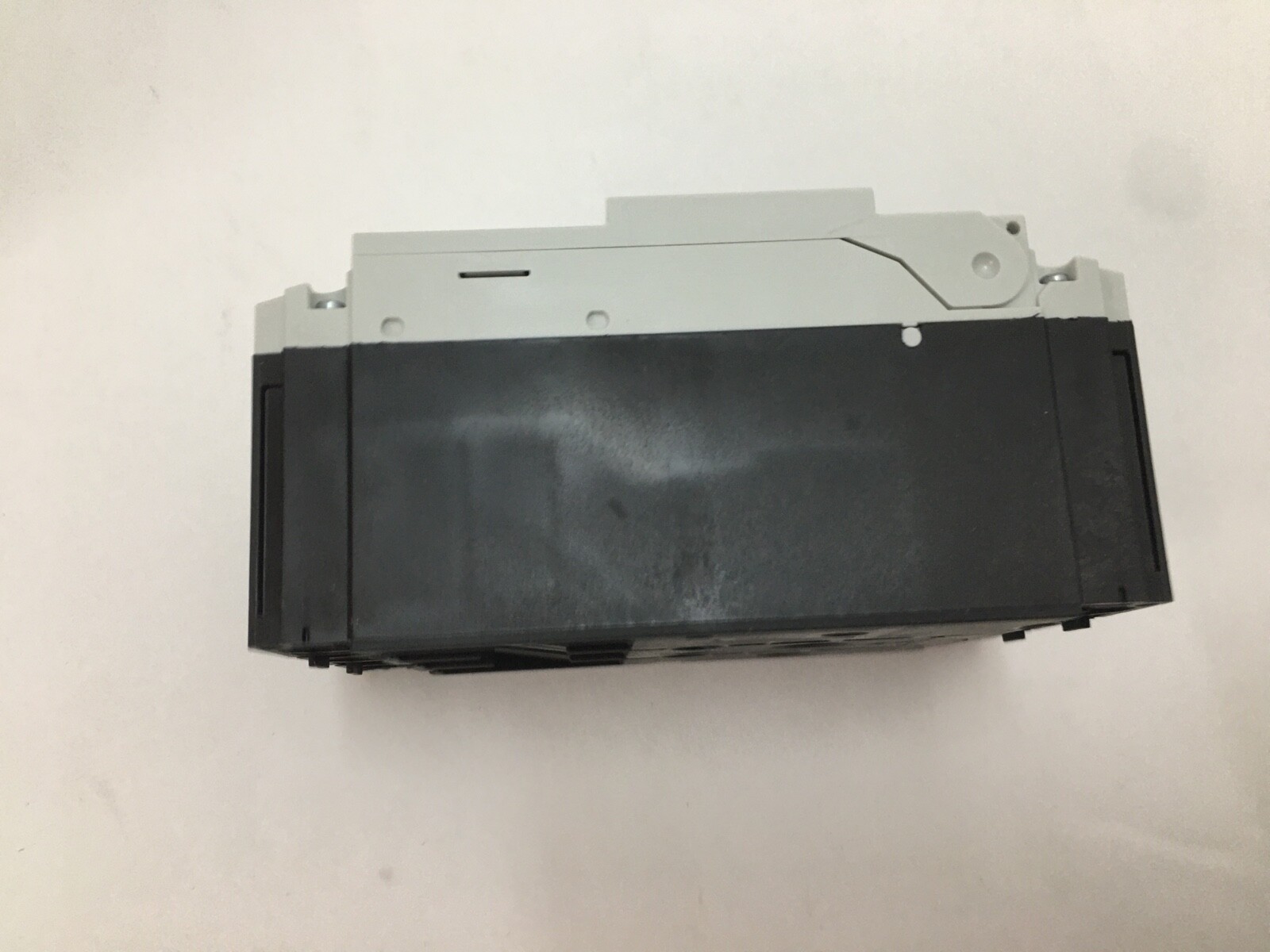

Eaton Moeller N1-100 three-pole 100 A switch-disconnector, NZM frame N1, catalog 259144, 690 V AC rated, rocker lever, box terminals, IEC/EN 60947-3.
List Price
$189.22
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Eaton |
|---|---|
| MPN | N1-100 |
| GTIN | 4015082591441 |
| Model | N1100 |
| Maximum Amperage | 100 A |
|---|---|
| Current Rating | 91-100 A |
| Number Of Poles | 3 |
| Voltage | 690 V AC |
| Mpn Variants | N1-100, N1100, N-1-100, 259144 |
| Additional Attributes | Icw 2 kA; Icm 2.8 kA at 690 V; Uimp 6000 V; AC-23 55 kW at 400 V; heat dissipation 11.4 W; mechanical life 20,000 ops; -25 to 70 C ambient; dims 90 x 145 x 88 mm |
| Series | Moeller NZM |
| Type | Switch-Disconnector |
| Item Weight | 0.847 kg (1.87 lb) |
The Eaton Moeller N1-100 is a three-pole 100 A switch-disconnector from the NZM moulded-case range, frame size N1, Eaton catalog number 259144. It serves as a main switch, maintenance switch and emergency-stop switch with isolating characteristics to IEC/EN 60947-3.
N1 — NZM frame size 1 switch-disconnector.
100 — rated uninterrupted current, 100 A.

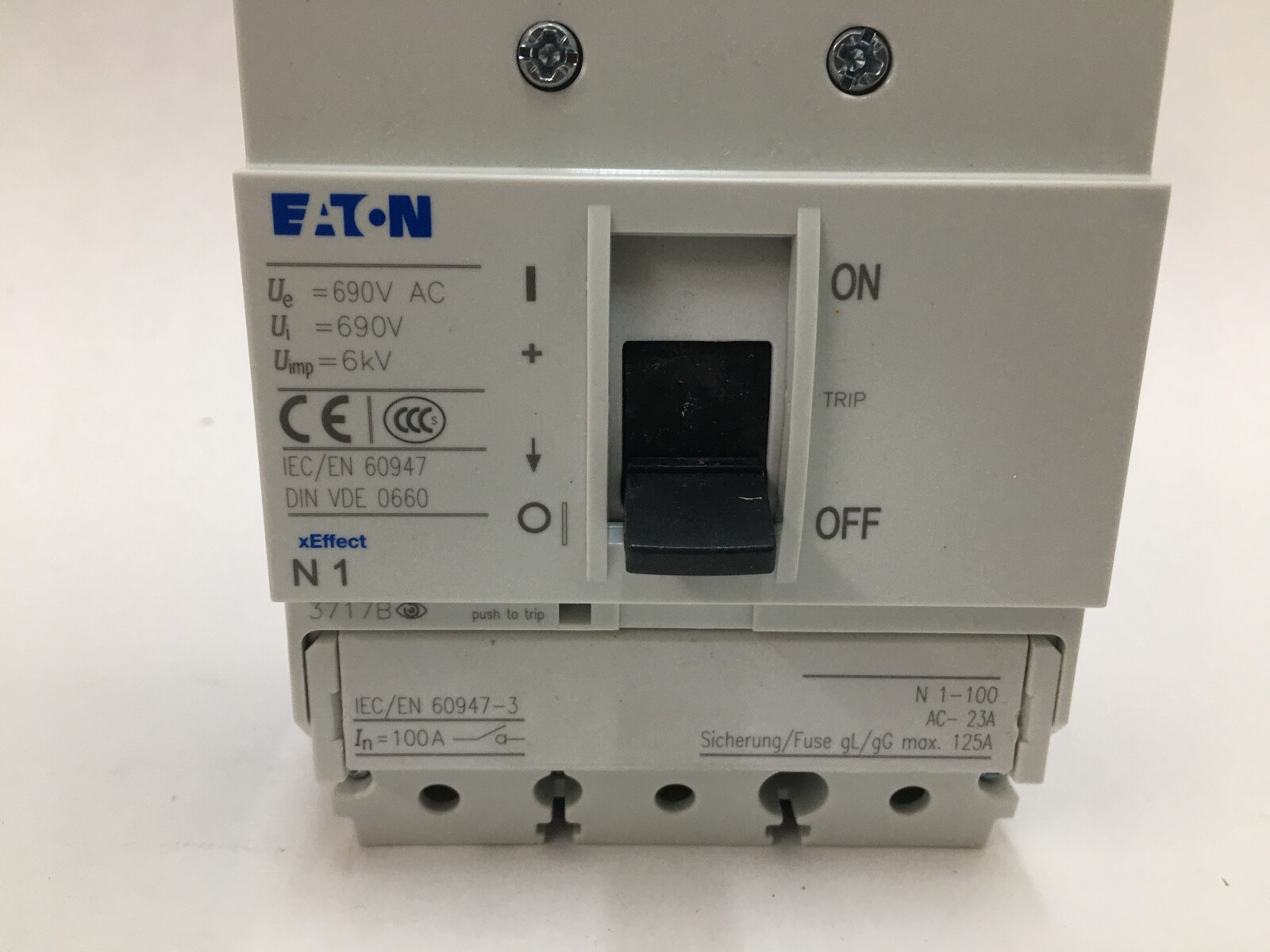

Type: Switch-disconnector. Number of Poles: 3. Rated Uninterrupted Current: 100 A. Rated Operating Voltage: 690 V AC. Rated Insulation Voltage: 690 V. Rated Impulse Withstand Voltage: 6000 V. Rated Operating Frequency: 50 Hz. Rated Operational Current AC-22/23A: 160 A at 415 V and 690 V. Rated Operating Power AC-23 at 400 V: 55 kW. Rated Short-Time Withstand Current: 2 kA. Rated Short-Circuit Making Capacity at 690 V: 2.8 kA. Short-Circuit Protective Fuse Max: 125 A gL. Switch Positions: I, +, 0. Handle Type: Rocker lever. Handle Color: Black. Mechanical Lifespan: 20,000 operations. Heat Dissipation: 11.4 W. Ambient Operating Temperature: -25 °C to 70 °C. Degree of Protection: IP20. Certifications: IEC/EN 60947. GTIN: 4015082591441.
Width: 90 mm. Height: 145 mm. Depth: 88 mm. Weight: 0.847 kg (1.87 lb). Standard Terminals: Box terminal. Optional Terminals: Rear connection, screw terminal, tunnel terminal. Mounting: Fixed, distribution board installation.
Eaton catalog 259144, also written N1100, N-1-100 and Moeller N1-100. Accessories in the NZM size 1 family include door coupling rotary handle 260166 and undervoltage release 259442.
CAD model and data sheet: available from Eaton (eaton.com).
Is the N1-100 a circuit breaker?
The N1-100 is a switch-disconnector in the NZM moulded-case family. It switches and isolates at 100 A and carries no overload trip unit.
What voltage is the N1-100 rated for?
Rated operating voltage is 690 V AC, with rated insulation voltage 690 V and impulse withstand voltage 6000 V.
What is the Eaton catalog number for the N1-100?

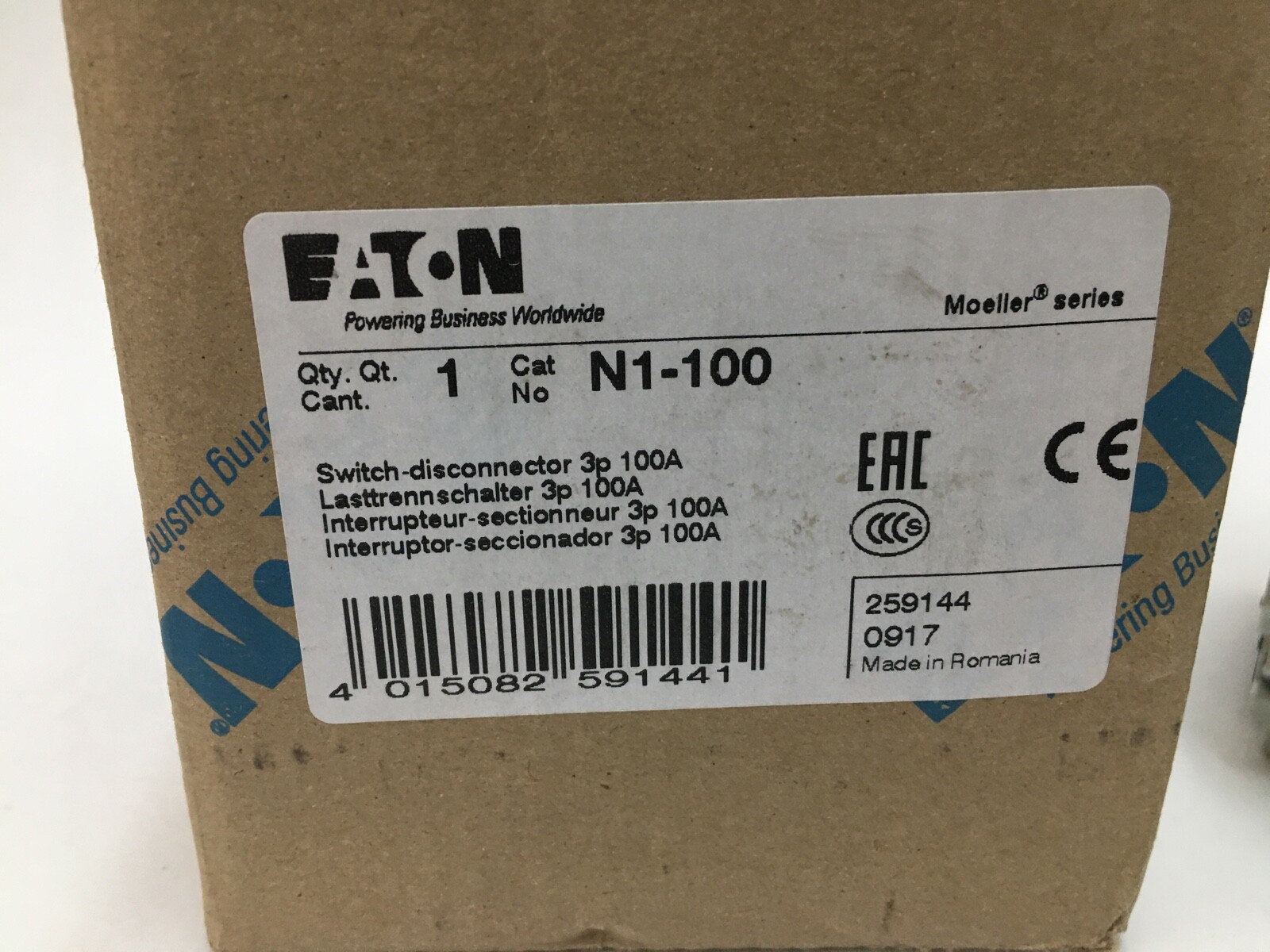

Eaton catalog number 259144, EAN 4015082591441.
