ABBS203UP-Z3Miniature Circuit Breaker 3 Pole 3A Z Curve UL 489 480Y/277V 2 Pcs

Product Description

What this is:

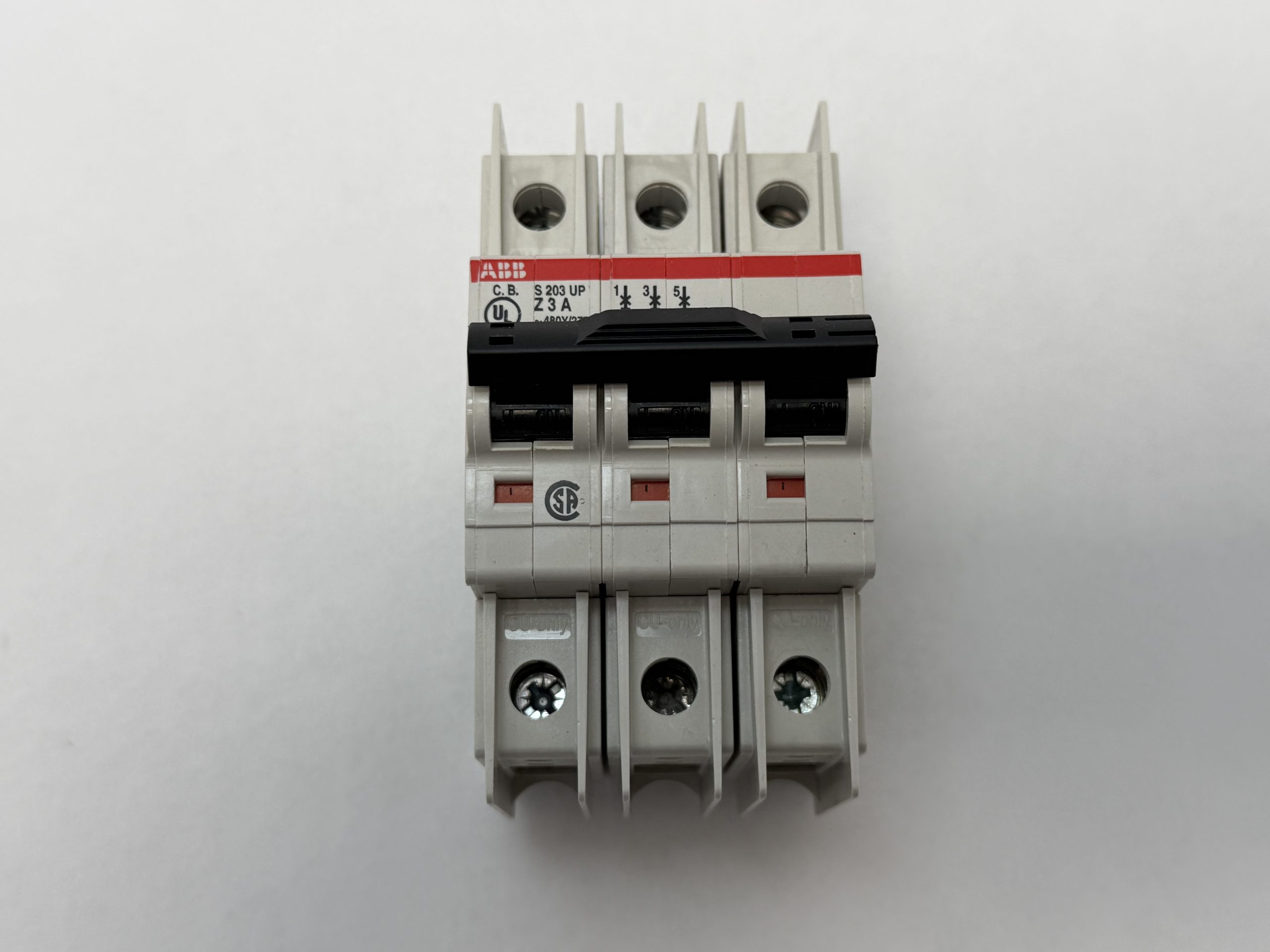

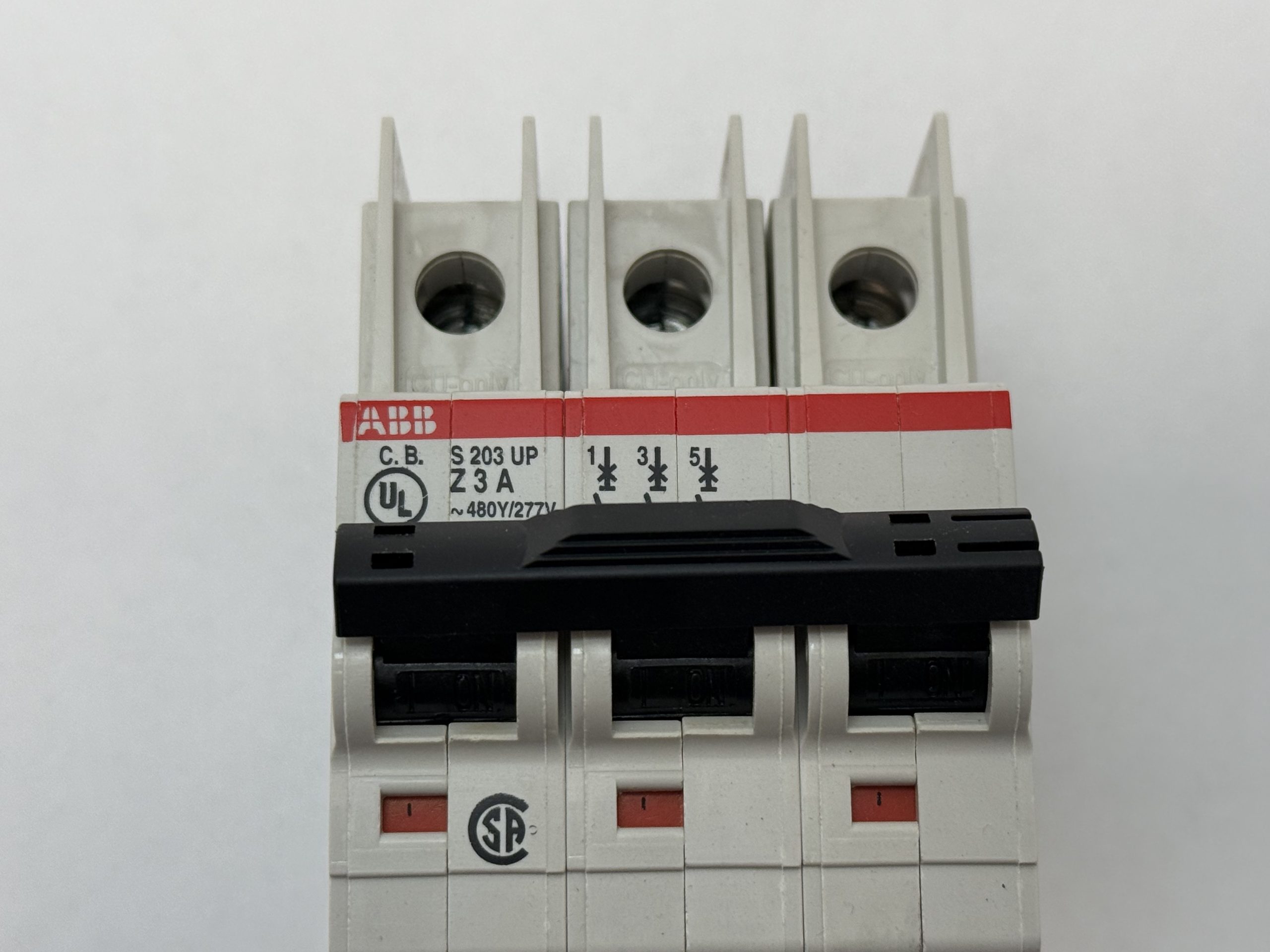

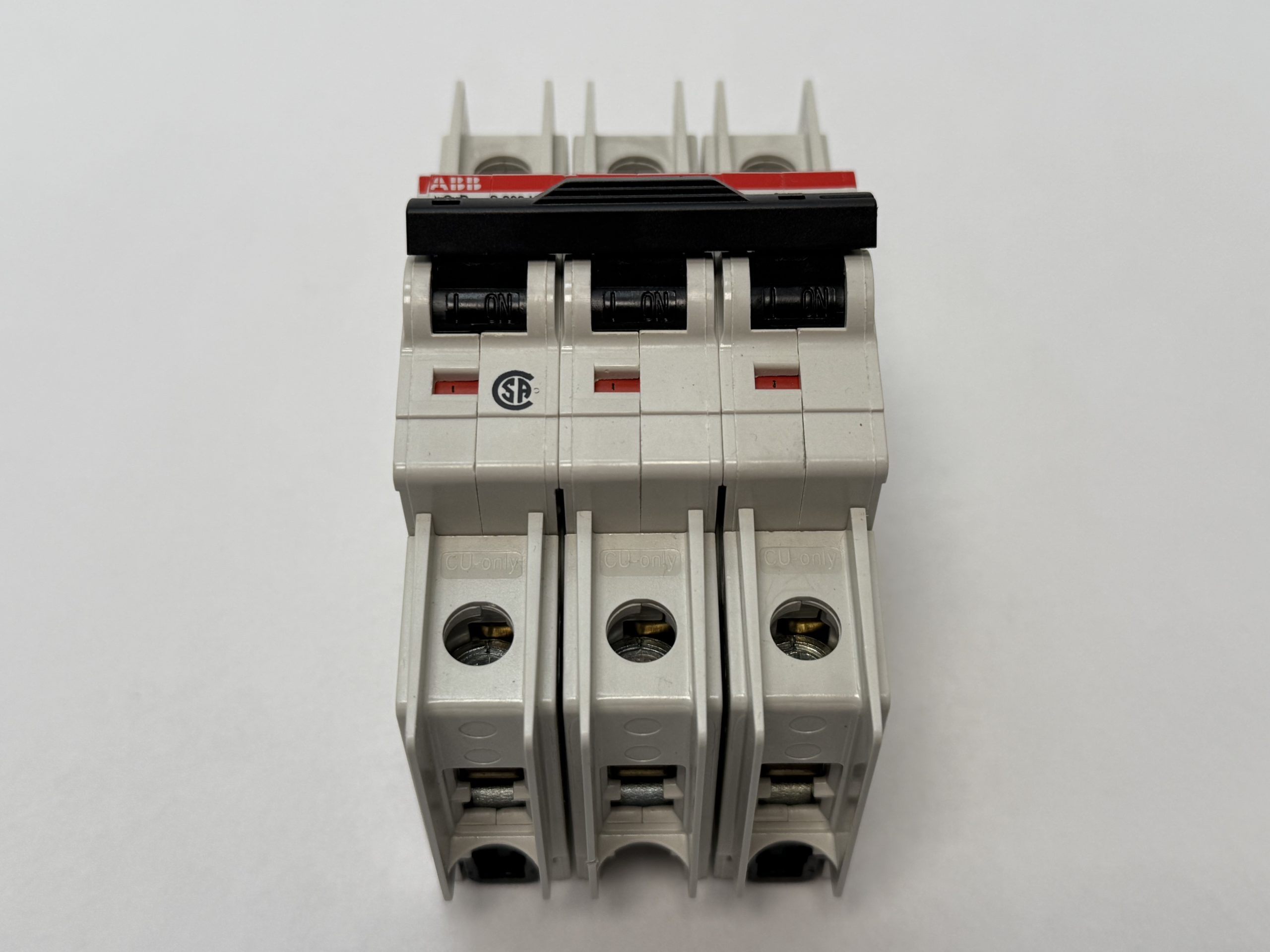

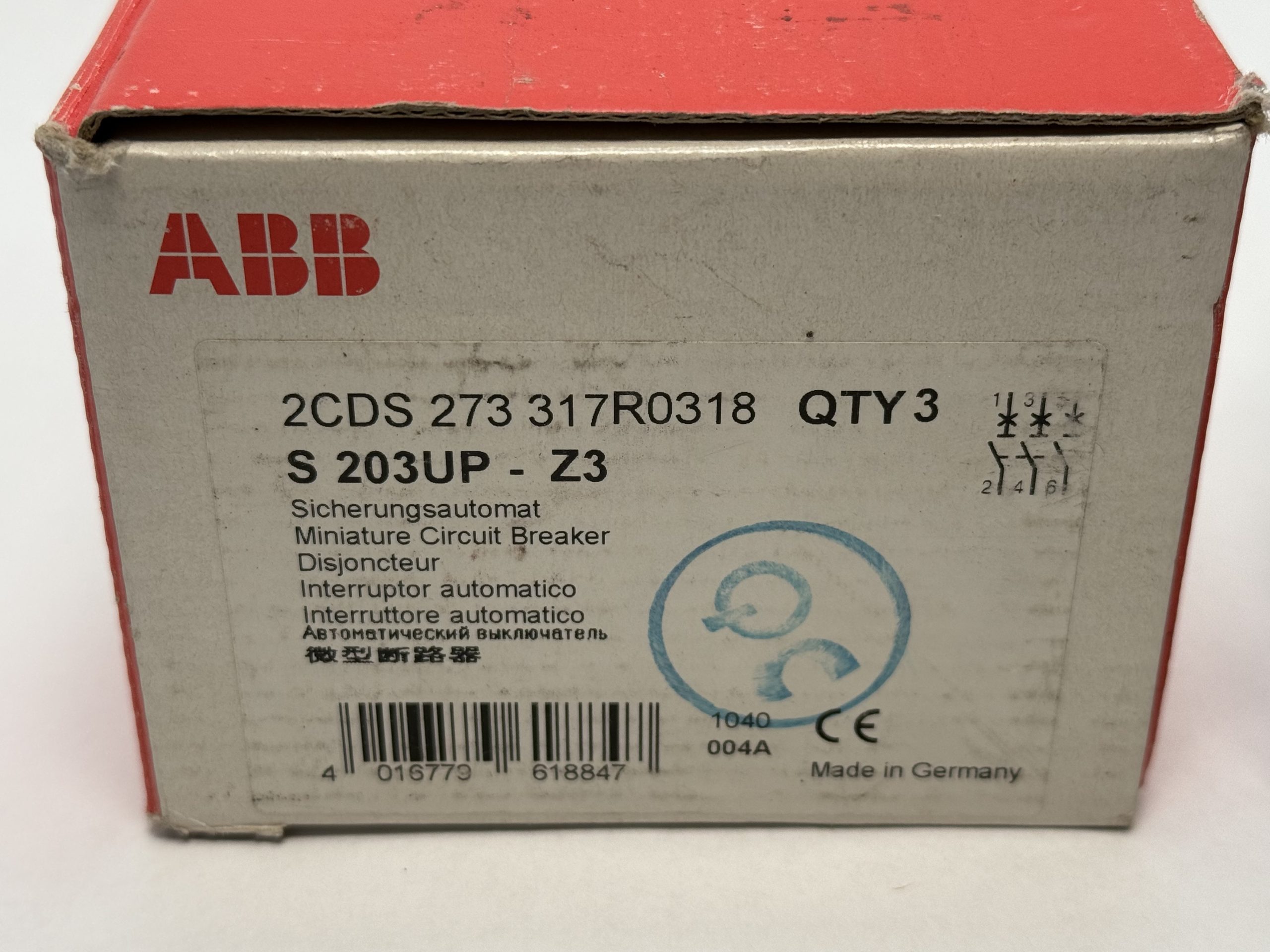

Opened box: 2 of the 3 breakers from the original box. Two ABB S203UP-Z3 miniature circuit breakers from the S200UP line: 3 pole, 3 A, Z tripping characteristic, UL 489 listed for 480Y/277 V AC. The box carries ABB pack order number 2CDS 273 317 R0318 (QTY 3). Made in Germany.

How the part number breaks down:

• S203: S200 series, 3 pole unit
• UP: the UL 489 / CSA 22.2 No. 5 version rated 480Y/277 V AC, as printed on the unit label
• Z: Z tripping characteristic
• 3: 3 A rated current
• Also written as S 203UP-Z3, S203UP-Z3A, S203UPZ3

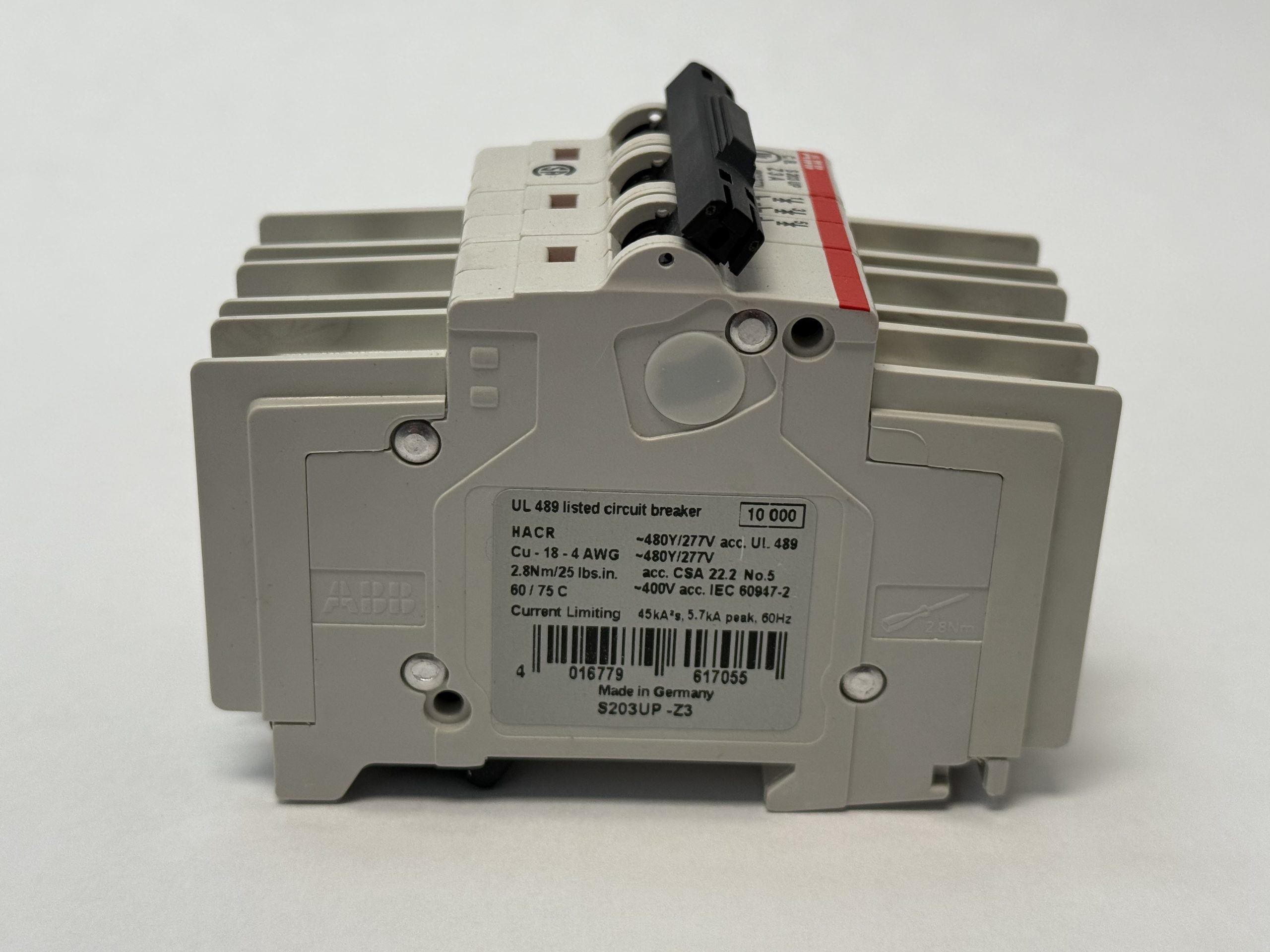

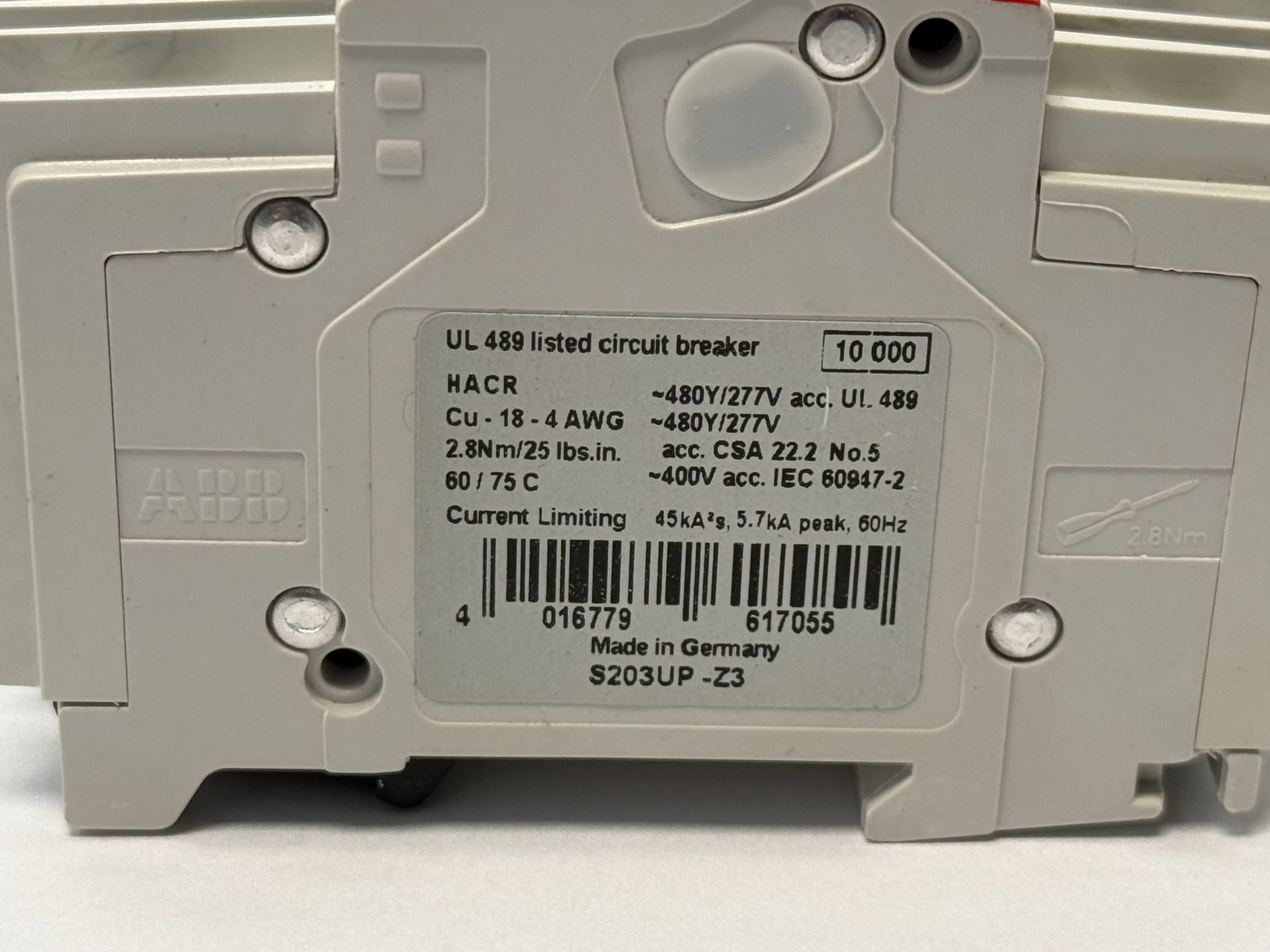

Item Specifications:

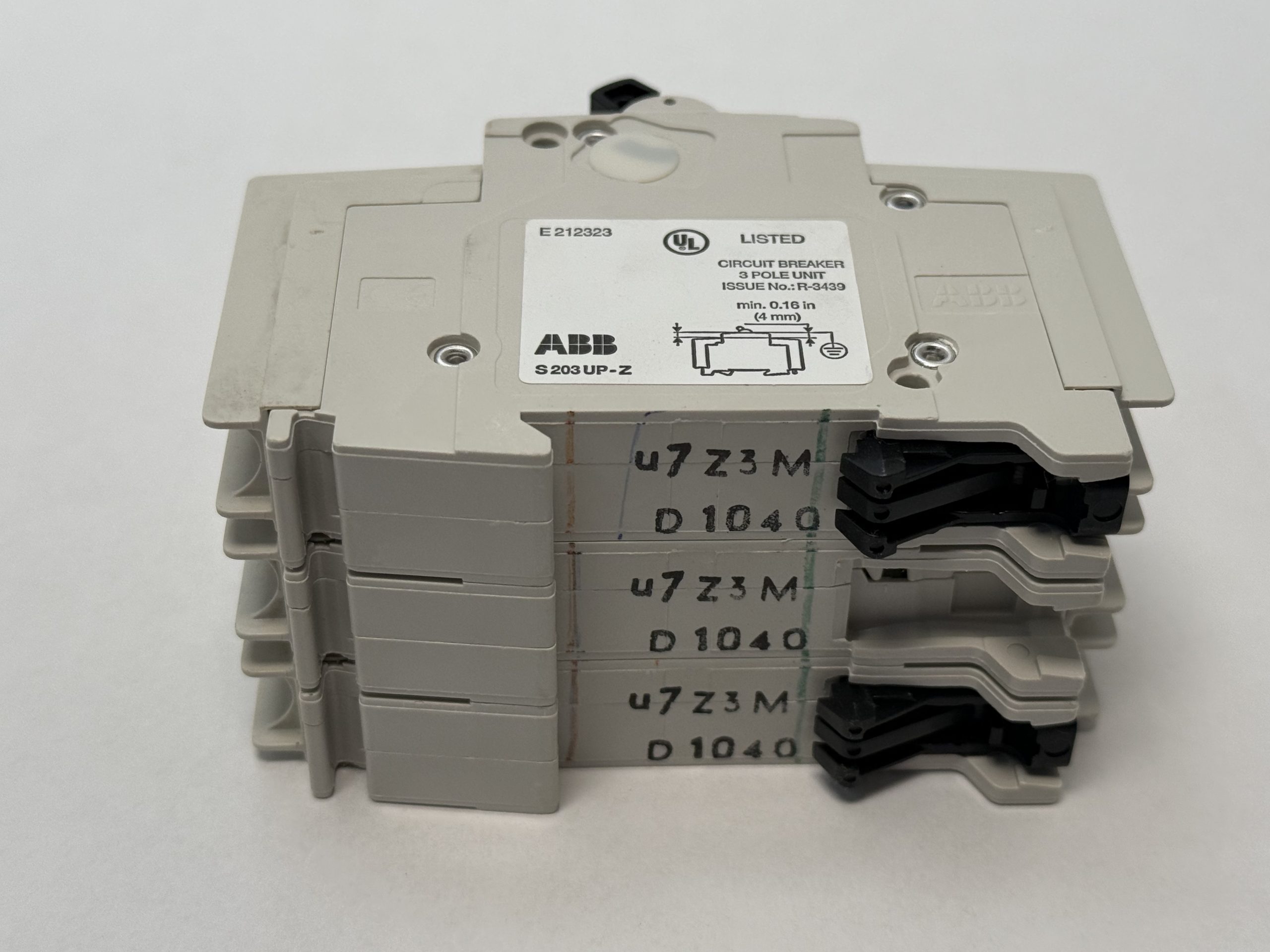

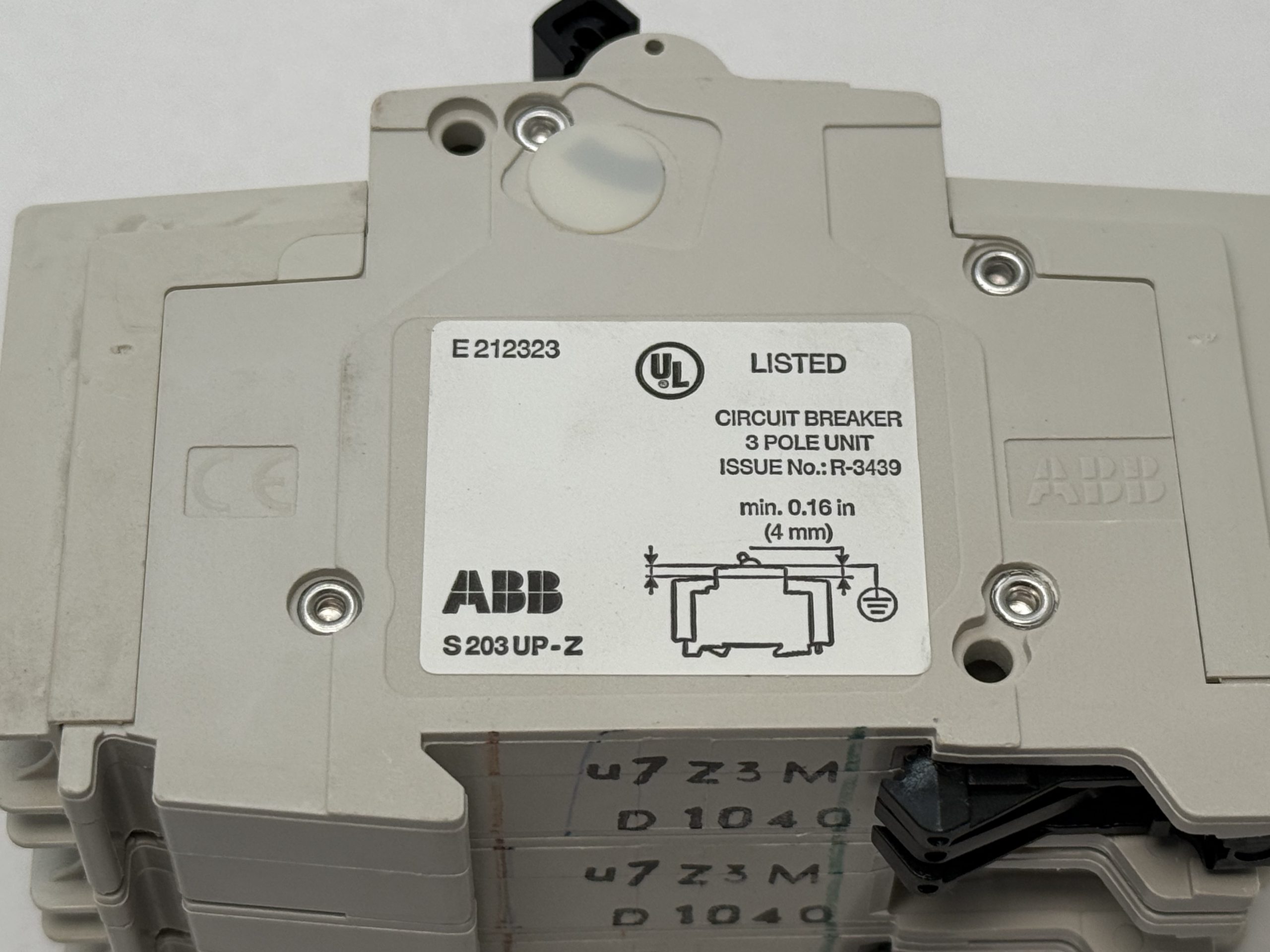

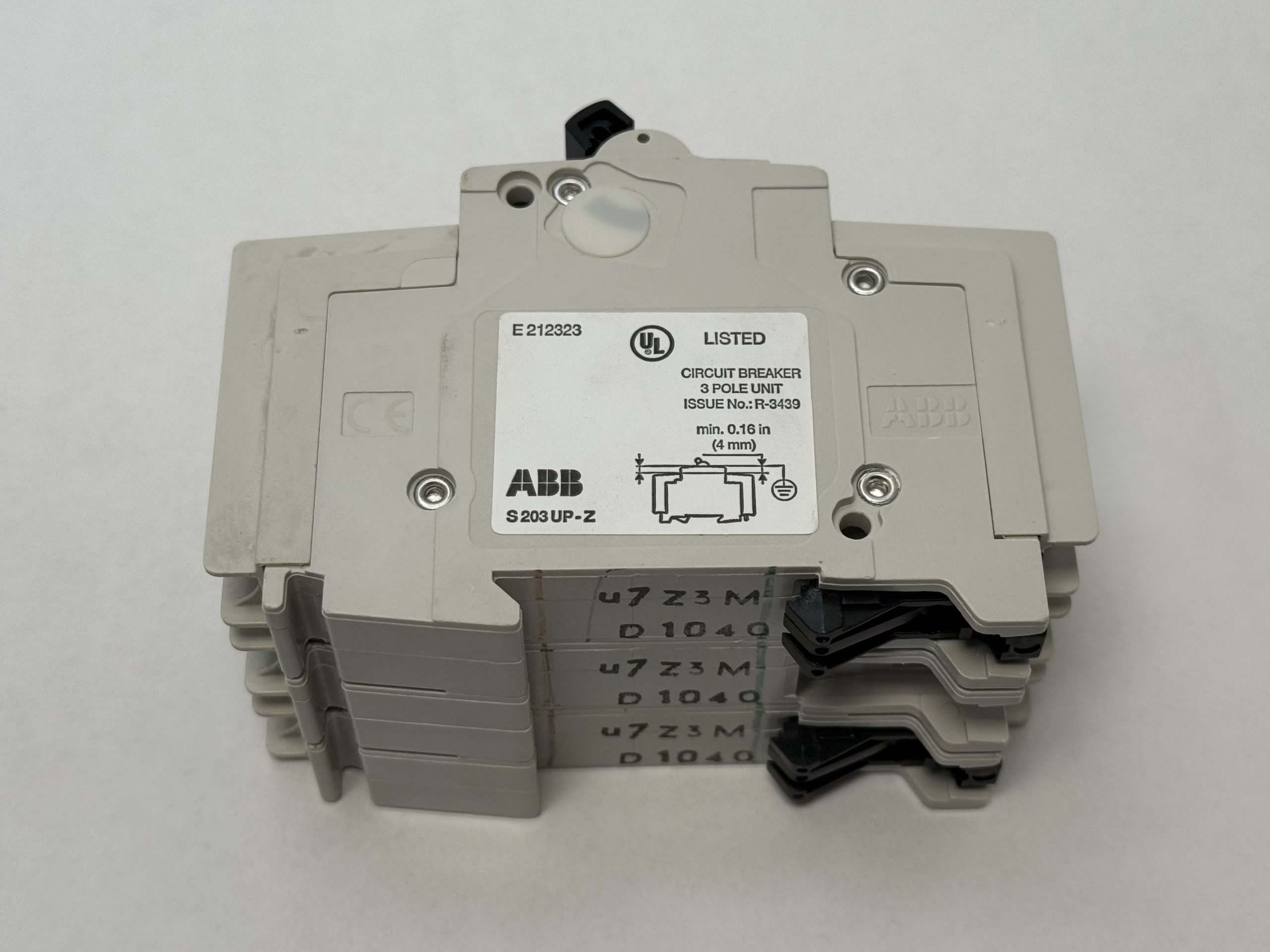

• Listing: UL 489 listed circuit breaker, CSA 22.2 No. 5, UL file E212323
• Voltage: 480Y/277 V AC (UL 489 and CSA); 400 V AC (IEC 60947-2)
• Interrupting rating: 10,000 A (UL 489)
• Current limiting: 45 kA²s, 5.7 kA peak at 60 Hz
• HACR rated

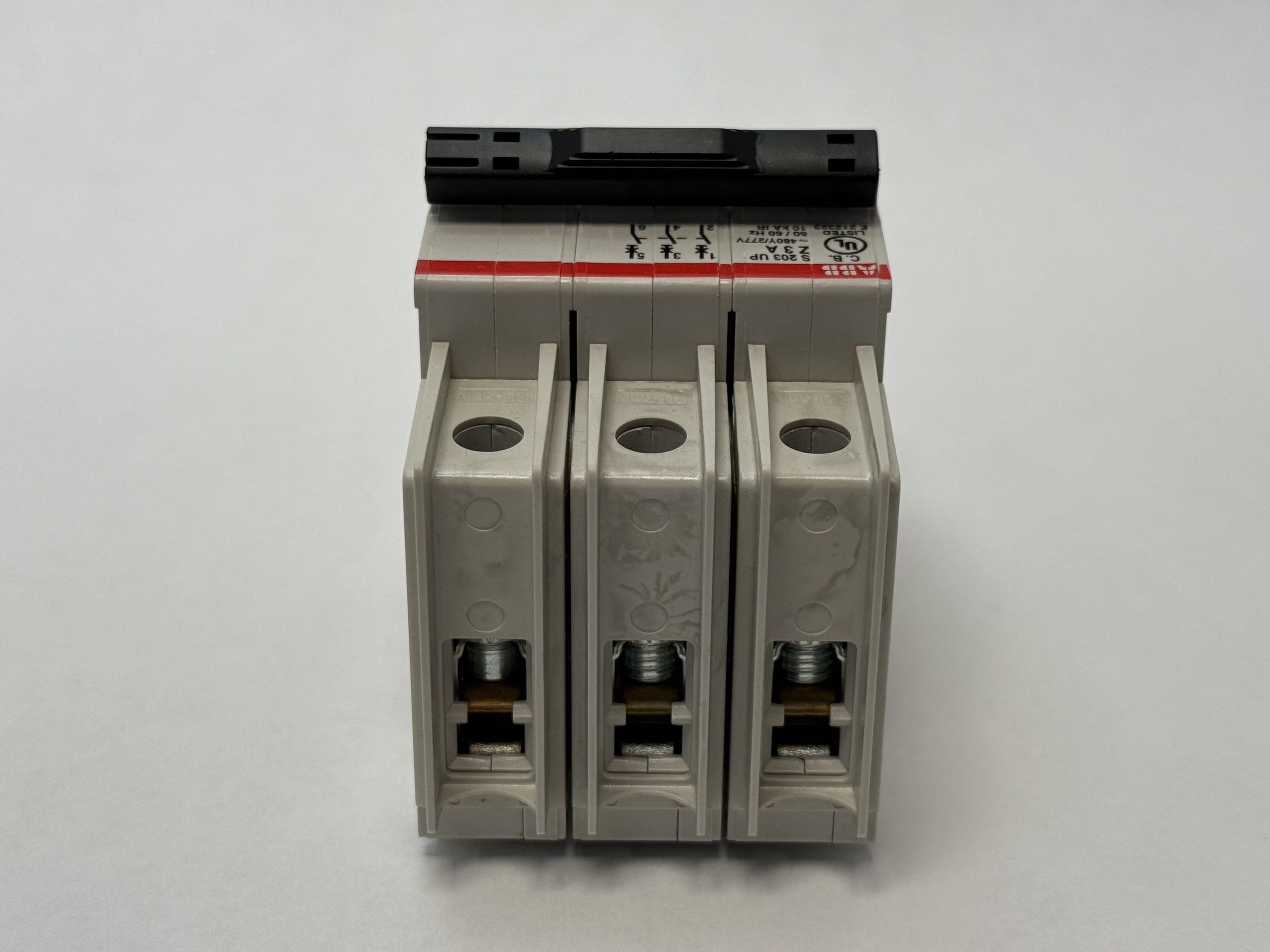

• Wire: Cu, 18 to 4 AWG, 60/75 °C
• Terminal torque: 2.8 Nm / 25 lb-in
• Mounting: DIN rail

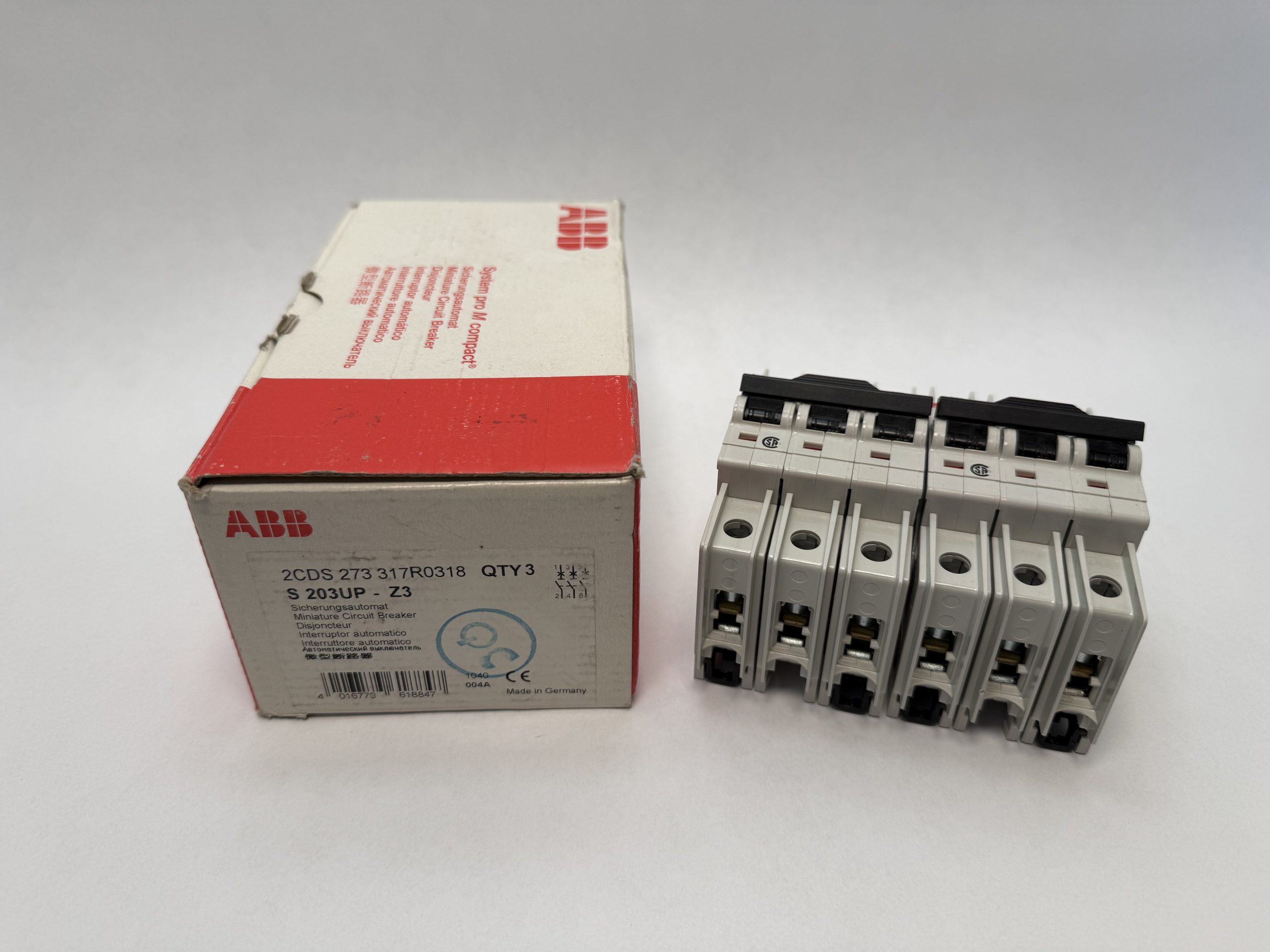

• Quantity: 2 breakers in the original ABB box
