Telemecanique XCKS102H29 limit switch, steel roller plunger, 1NC+1NO snap action, M20 entry, AC-15 3 A at 240 V. Assembled from ZCKS1H29 body and ZCKD02 head.
List Price
$58.10
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Telemecanique |
|---|---|
| MPN | XCKS102H29 |
| Model | XCK-S102H29 |
| Actuator Type | Roller Plunger |
|---|---|
| Current Rating | 3 A |
| Mpn Variants | XCKS102H29, XCK-S102H29, ZCKD02, ZCK-D02, ZCKS1H29, ZCK-S1H29 |
| Series | XC Standard XCKS |
| Condition | New |
| Ip Rating | IP66, IP67 |
| Item Weight | 0.133 kg (0.29 lb) |

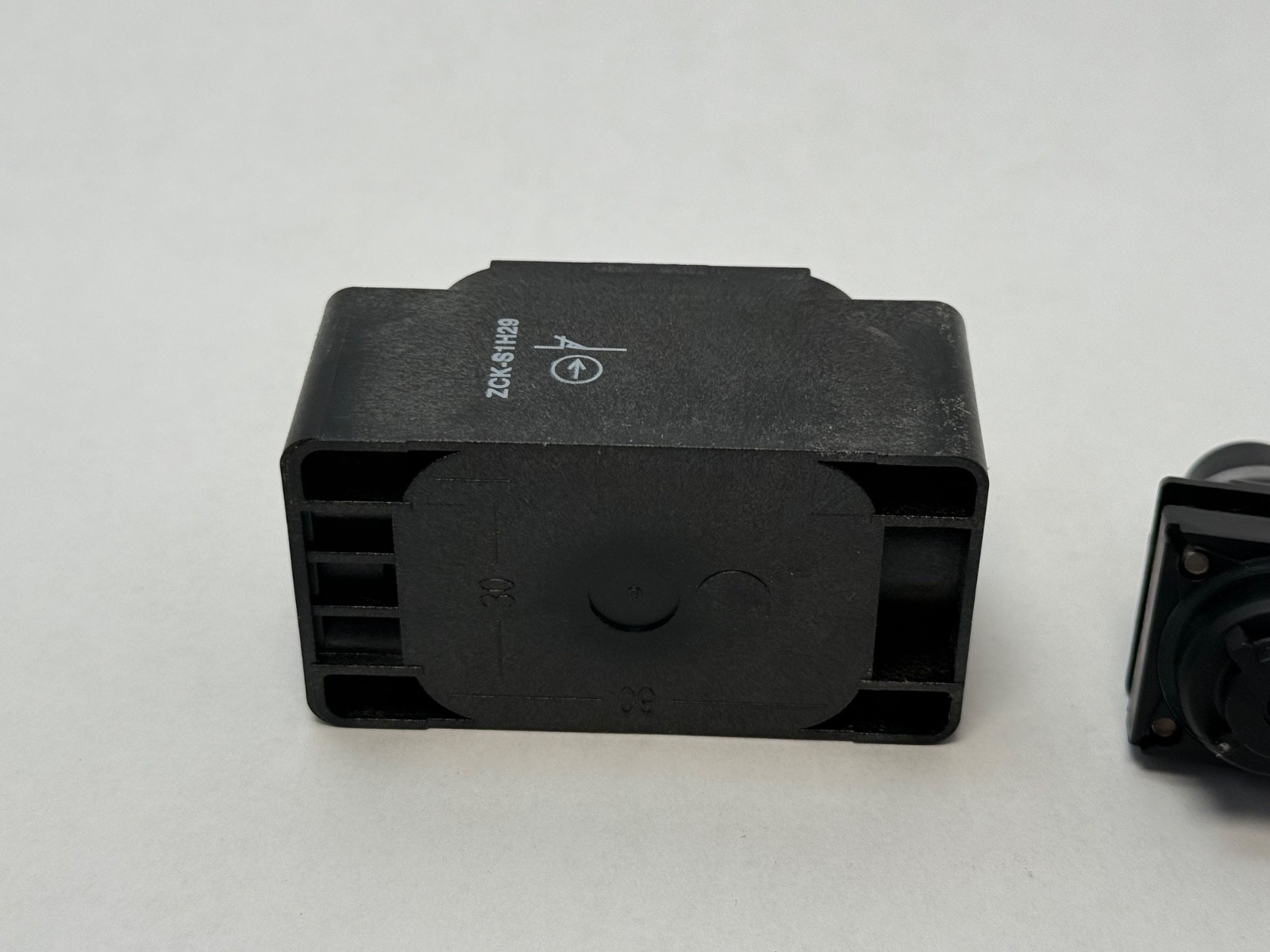

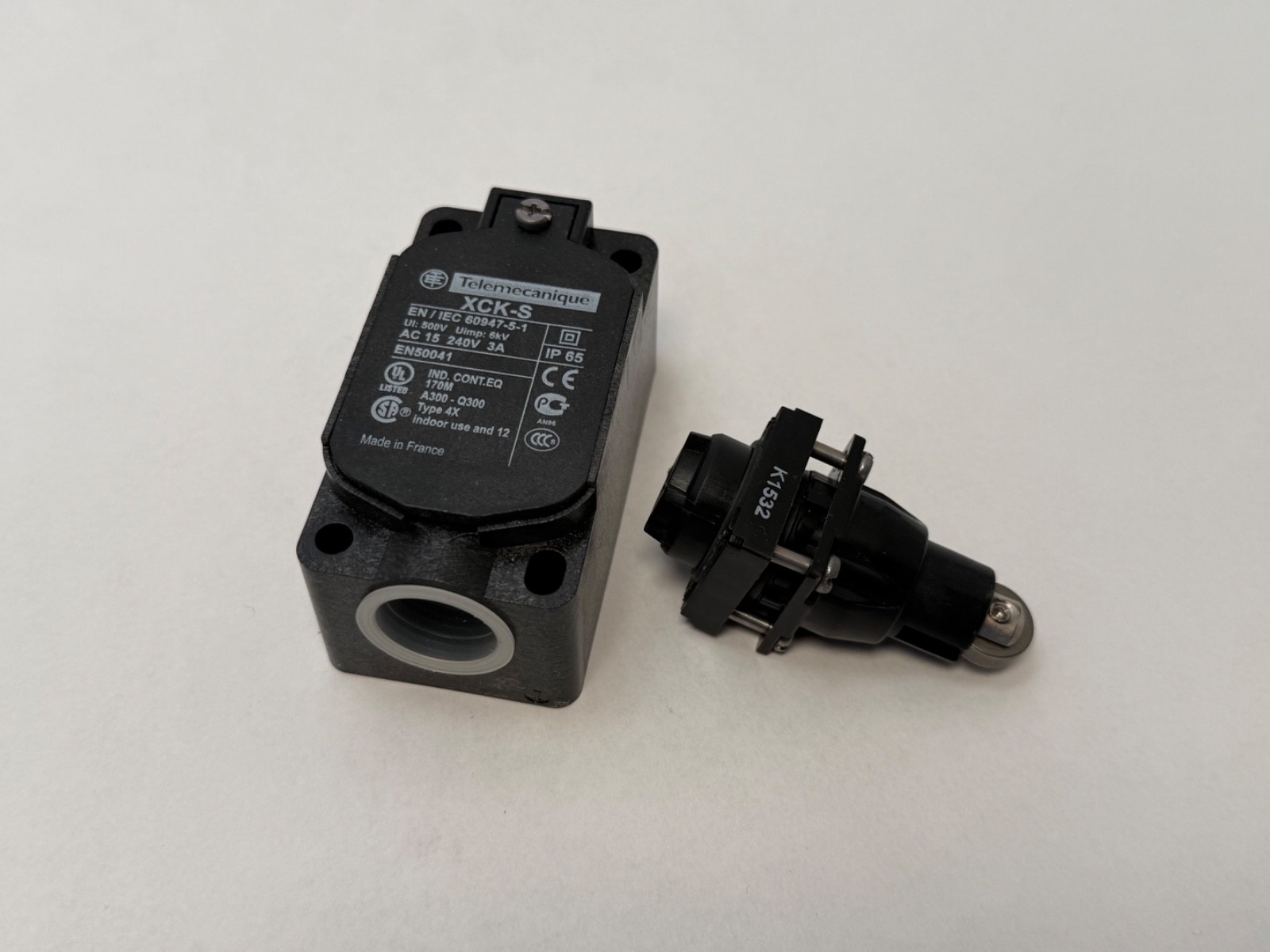

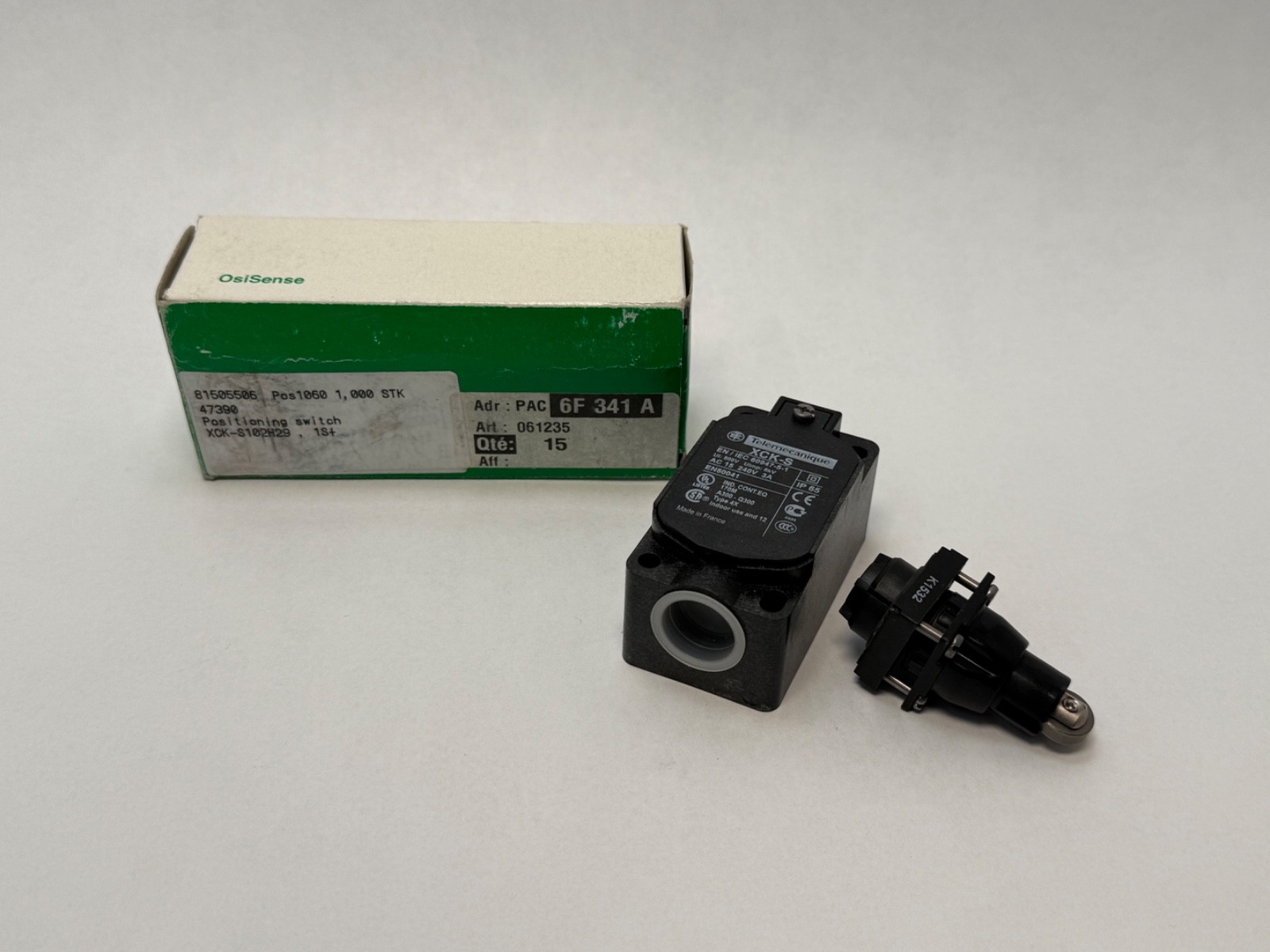

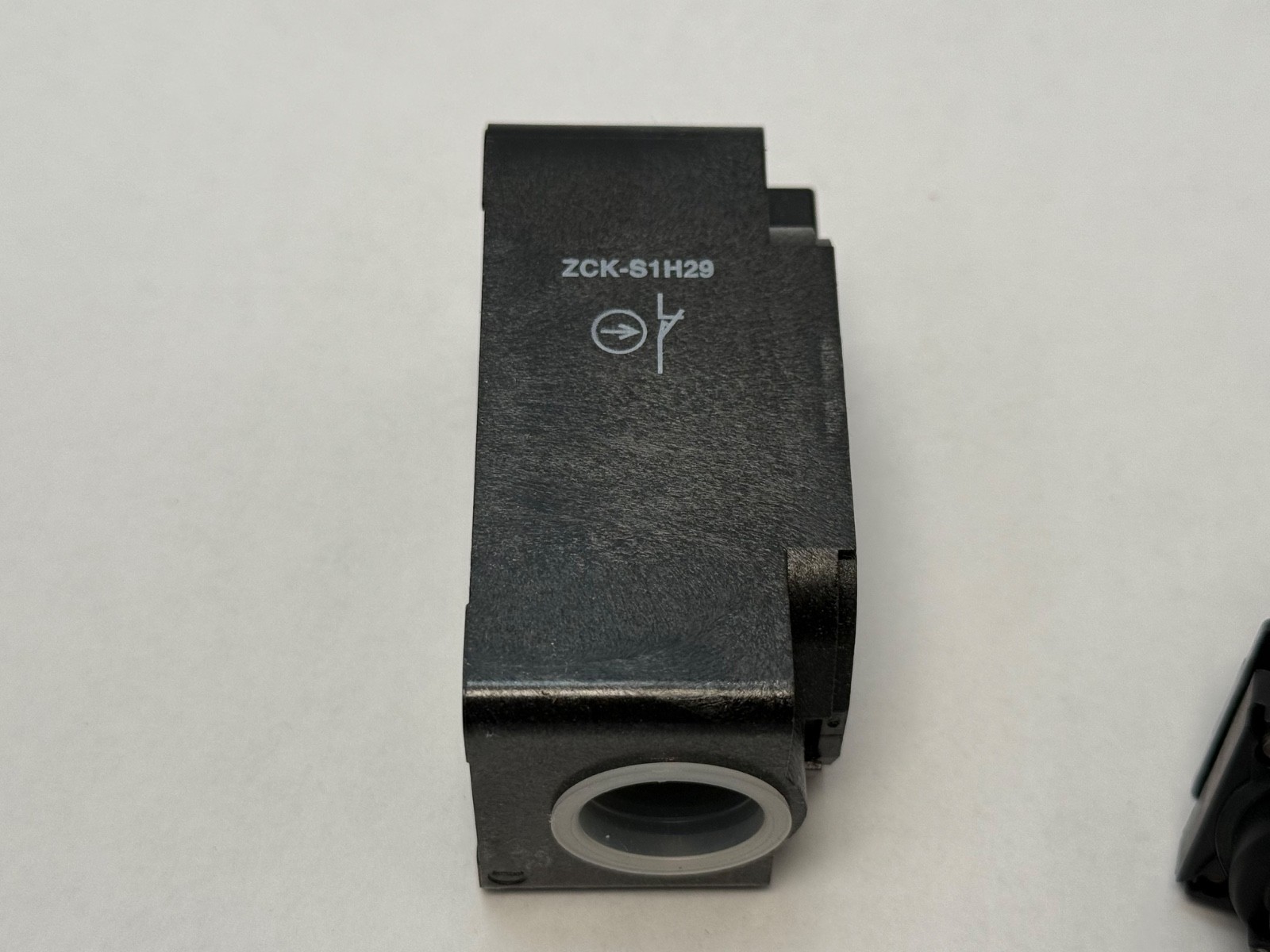

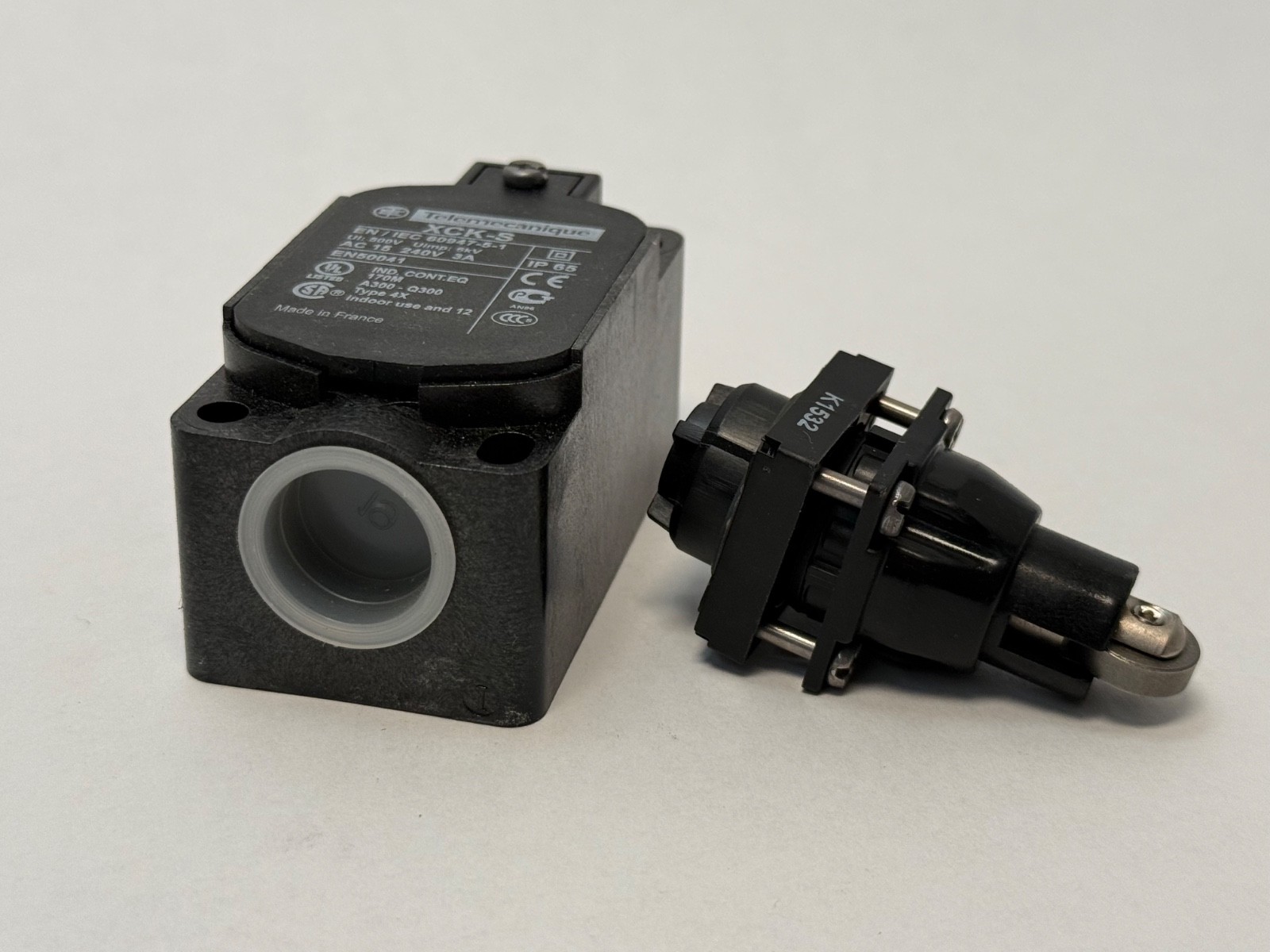

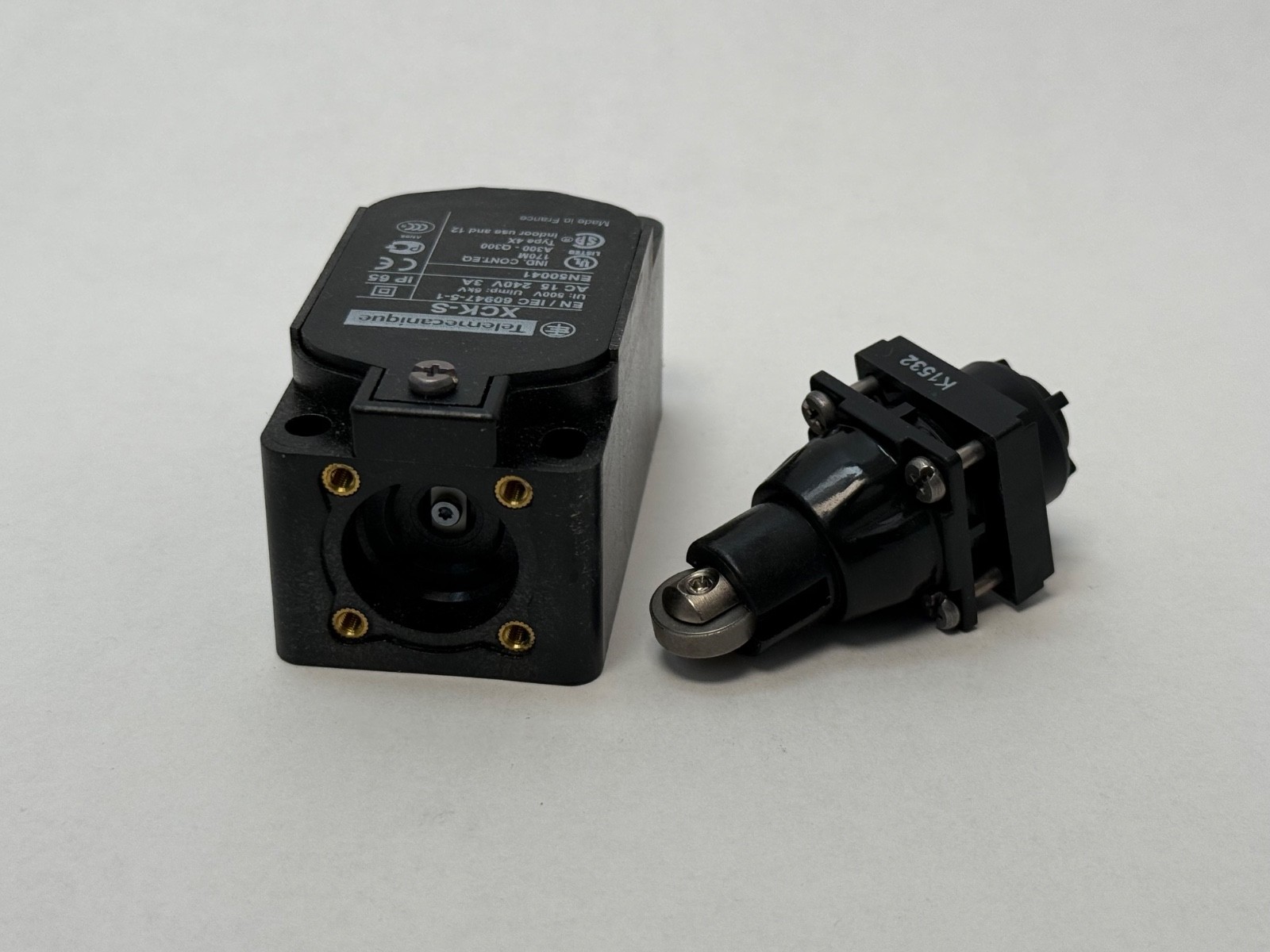

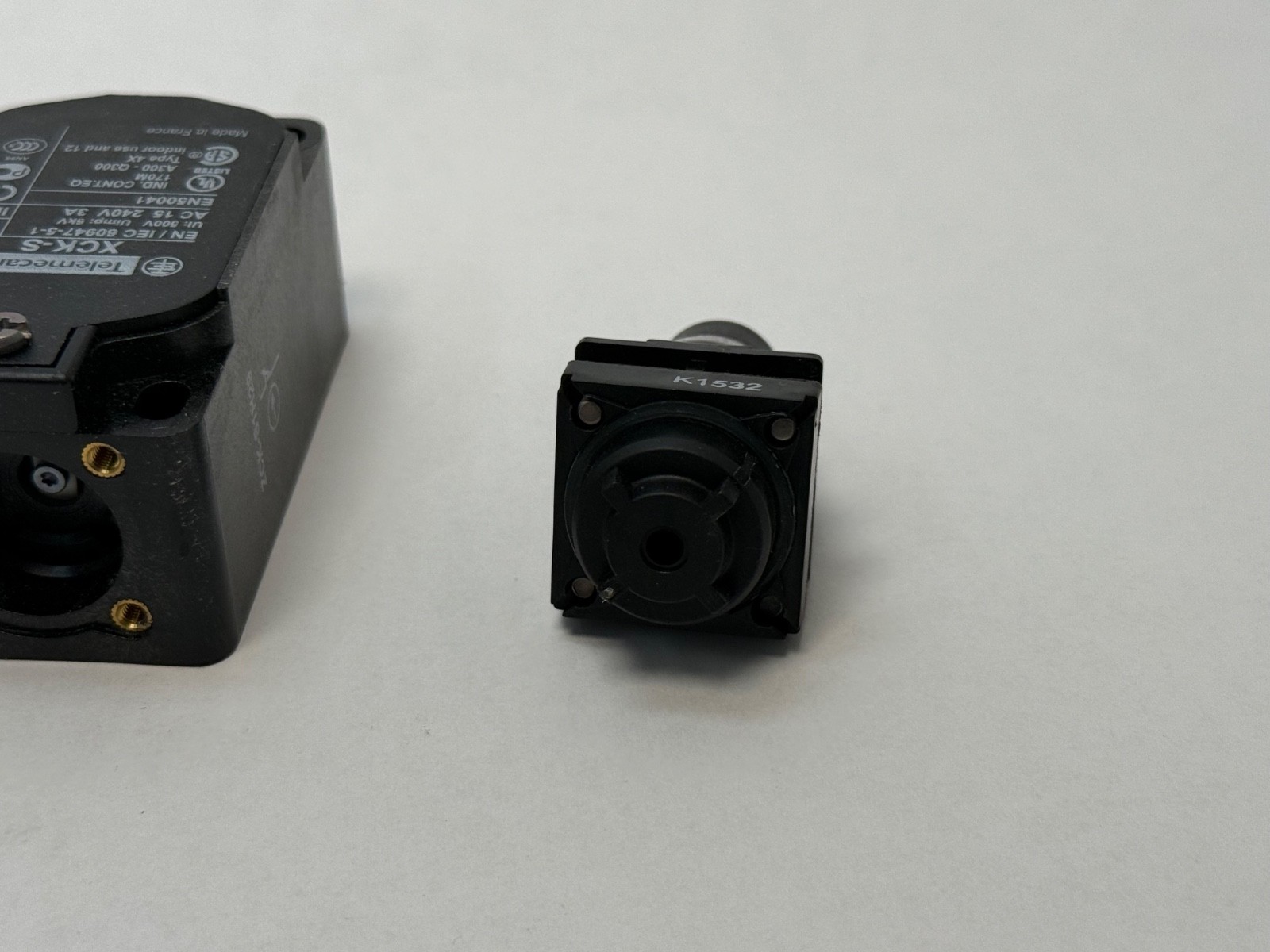

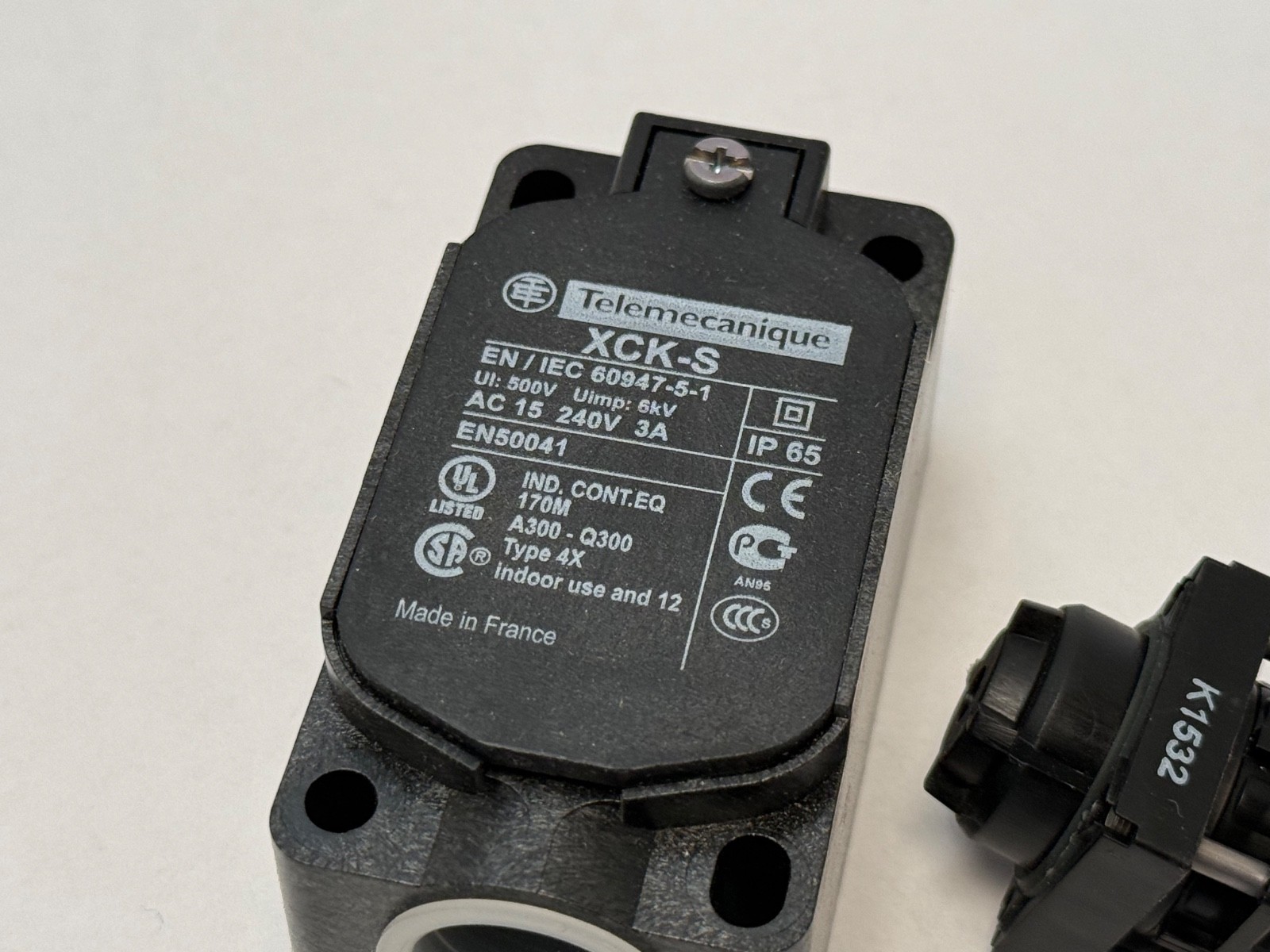

Telemecanique XCKS102H29 is a complete limit switch from the Limit switches XC Standard range: a plastic XCKS body with a steel roller plunger head, 1 NC + 1 NO snap action contacts and an M20 cable entry. The assembly is made up of the ZCKS1H29 body and the ZCKD02 head.
XCKS — XC Standard limit switch, plastic body, CENELEC EN 50041 form C.

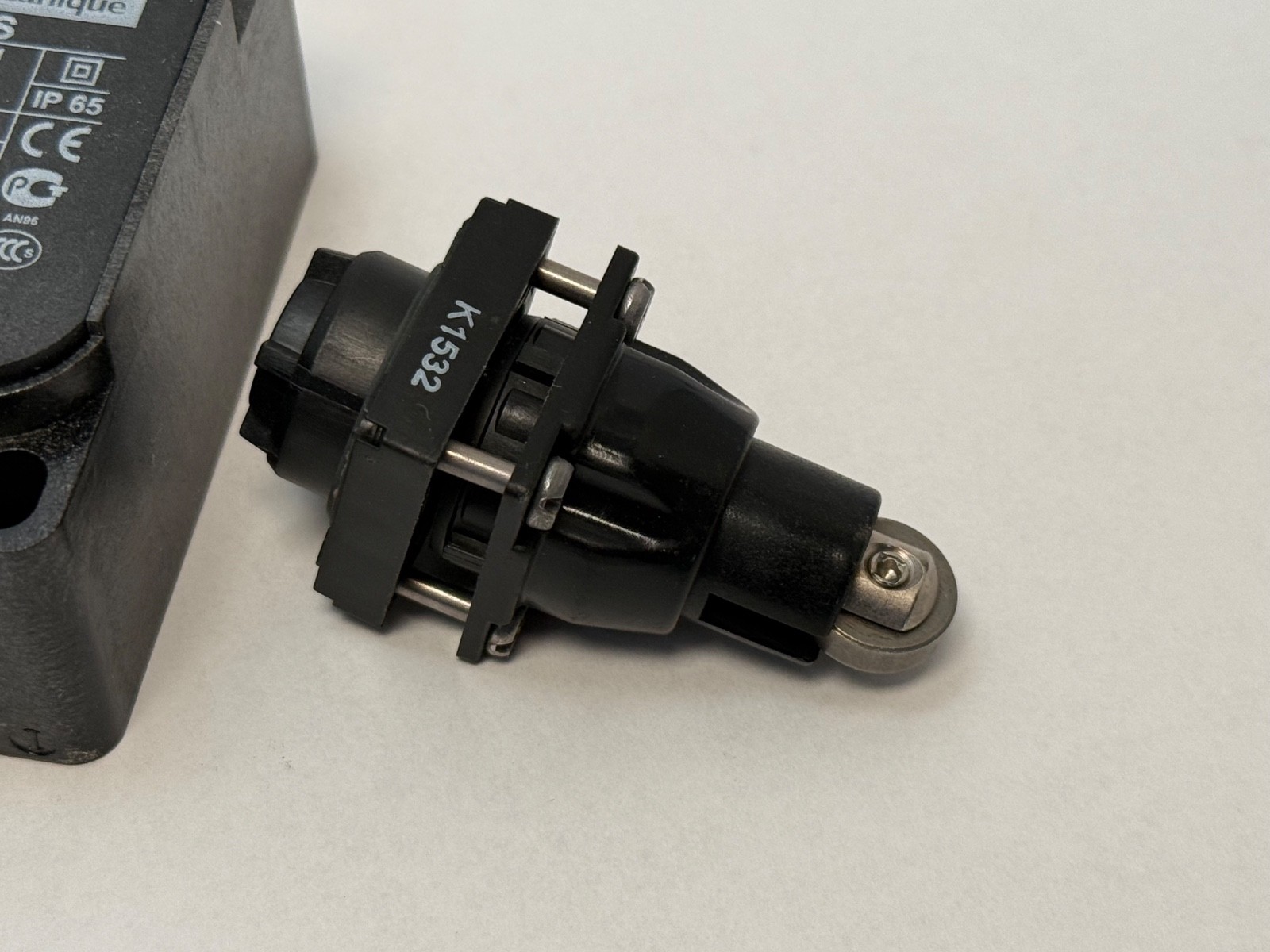

102 — steel roller plunger head with 1 NC + 1 NO snap action contact block.
H29 — one entry tapped for an M20 x 1.5 cable gland.

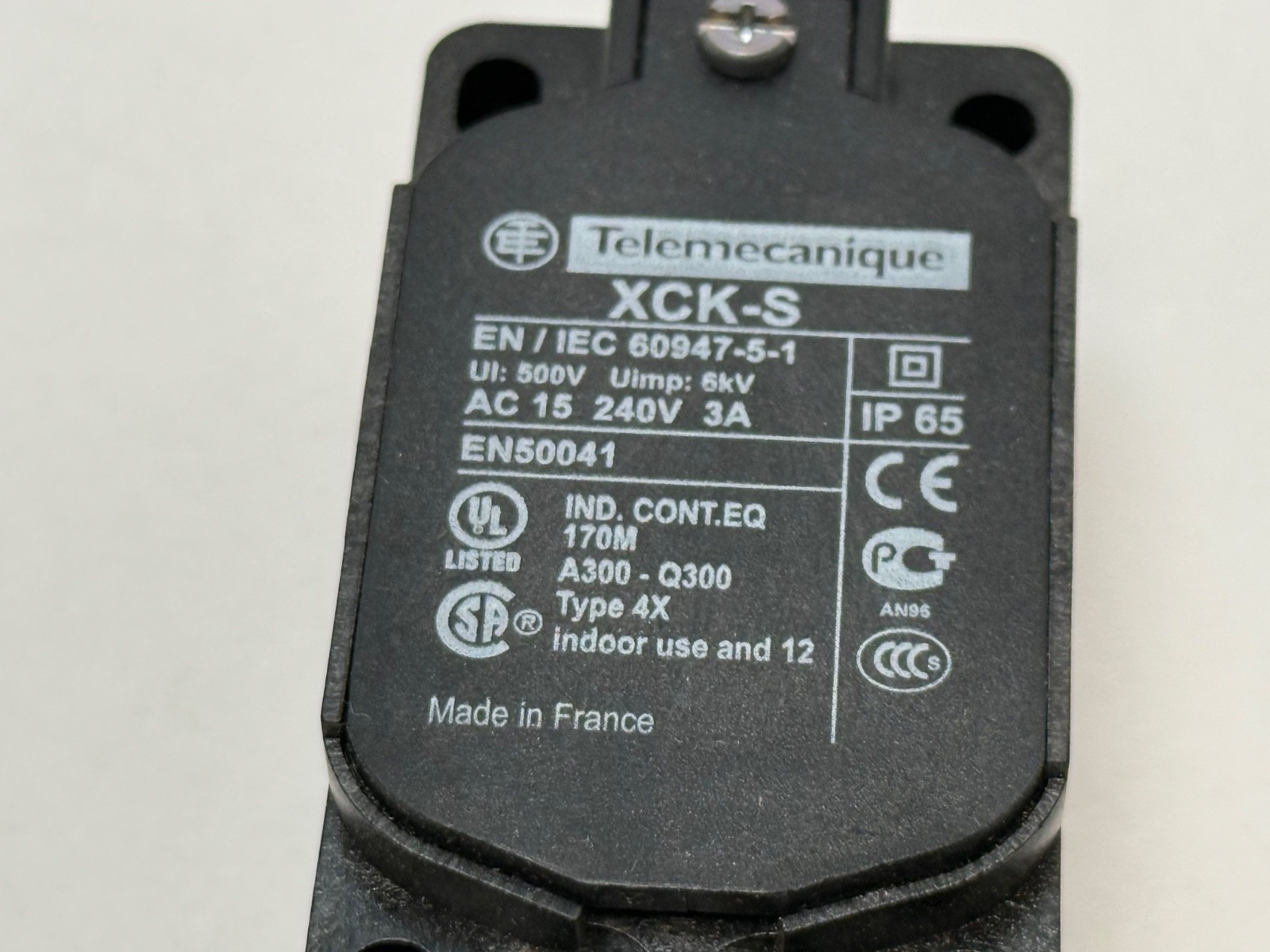

Head Type: Plunger head. Type Of Operator: Spring return roller plunger, metal. Type Of Approach: Lateral, 2 directions. Switch Actuation: By 30° cam. Contacts: 1 NC + 1 NO, snap action. Positive Opening: With. Contact Rating: AC-15, 3 A at 240 V; DC-13, 0.27 A at 250 V (A300, Q300). Thermal Current: 10 A. Rated Insulation Voltage: 300 V (UL 508). Cable Entry: M20 x 1.5, cable 7 to 13 mm. Electrical Connection: Screw-clamp terminals, 1 x 0.34 to 2 x 1.5 mm². Mechanical Durability: 15,000,000 cycles. IP Rating: IP66, IP67. Operating Temperature: -25 to 70 °C. Certifications: UL, CSA, CCC.
Width: 40 mm. Height: 117 mm. Depth: 37 mm. Net Weight: 0.133 kg. Fixing: By the body, 2 elongated holes 5.3 x 7.3 mm.
Components: ZCKS1H29 body and ZCKD02 head. Data sheet available from Telemecanique Sensors (tesensors.com).
What contacts does the XCKS102H29 have?
1 NC + 1 NO, snap action, with positive opening on the NC contact.
What is the XCKS102H29 contact rating?
AC-15, 3 A at 240 V; DC-13, 0.27 A at 250 V.
What cable entry does it use?
One M20 x 1.5 tapped entry.
