Availability:
3 in stock
Rexnord HP7705-18 MatTop conveyor chain, 18 in wide, 1.00 in pitch, solid top, straight running, brown HP material with polyester pins. 5 ft length.
List Price
$152.96
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Rexnord |
|---|---|
| MPN | HP770518 |
| Model | HP7705-18 |
| Condition | New – Open box |
|---|---|
| Industry Terms | MatTop chain, modular plastic belt, tabletop conveyor chain, solid top belt |
| Common Misspellings | HP 7705-18, Rexnord 7705 Mat Top, Rexnord MatTop 7705 18 inch |
| Application Types | Case conveyors, packaging lines, bottling, food and beverage conveying |
| Mpn Variants | HP7705-18, HP770518, HP7705 18, 7705-18, 10028405 |
| Additional Attributes | Chain Width: 18 in (457 mm); Chain Pitch: 1.00 in (25.4 mm); Chain Height: 0.50 in (12.7 mm); Chain Strength: 2,950 lb/ft (43,041 N/m); Chain Weight: 2.76 lb/ft2 (13.48 kg/m2); Surface Type: Solid Top; Open Area: 3%; Straight Running; Operating Temperature: -40 to 180 F dry, 150 F wet; Length: 5 ft |
| Material | HP High Performance (brown), polyester pins |
| Series | MatTop 7700 |

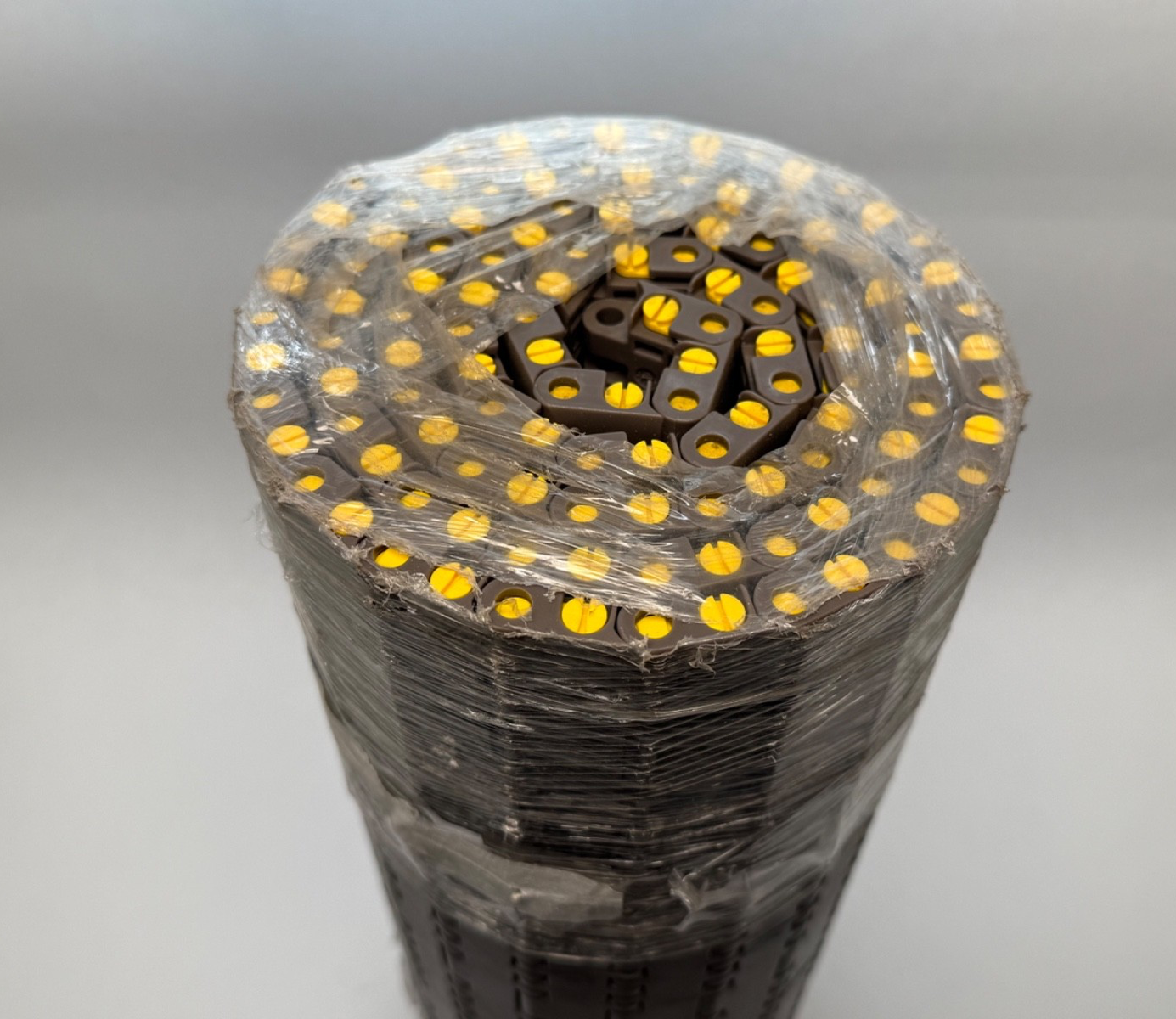

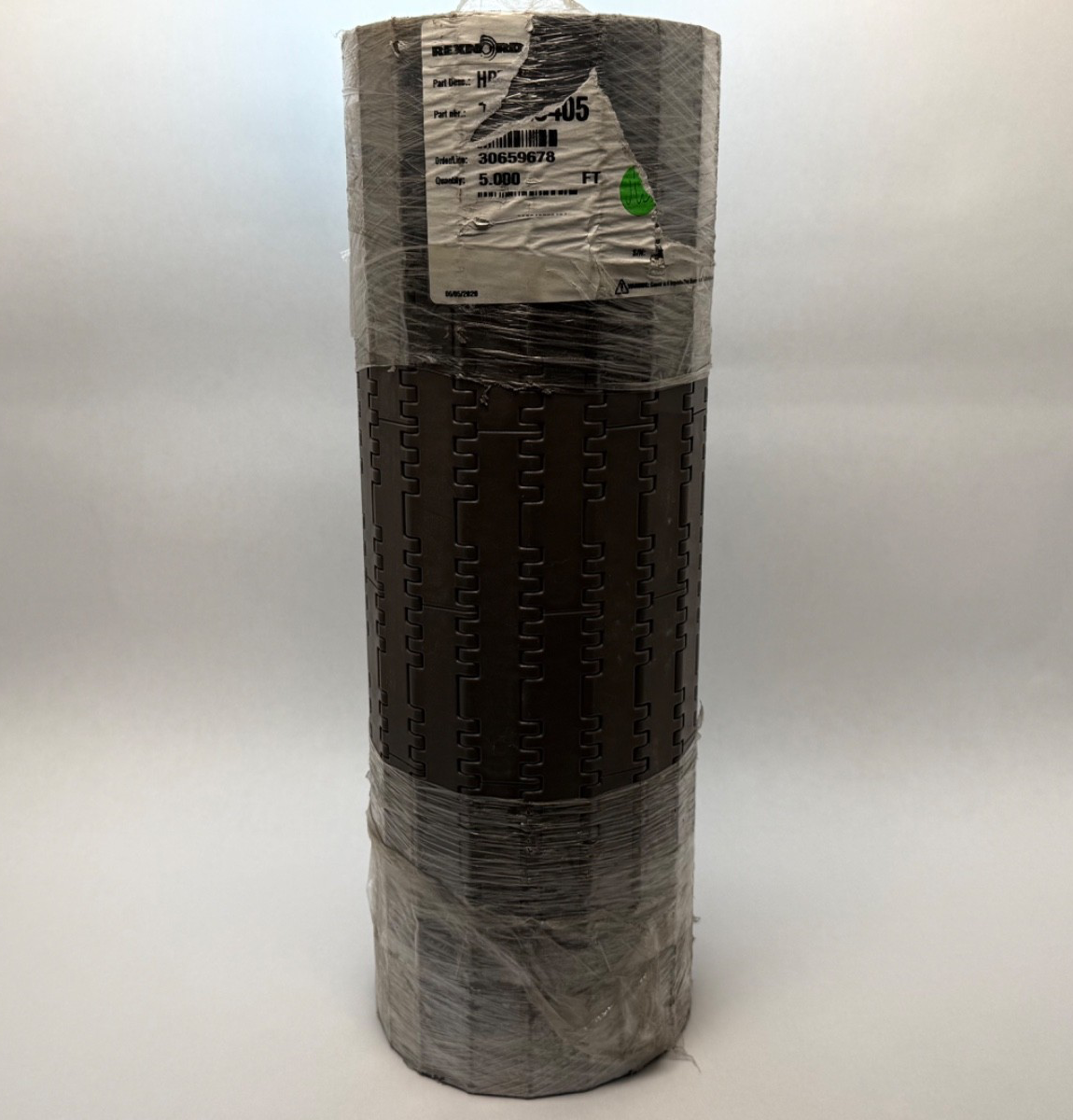

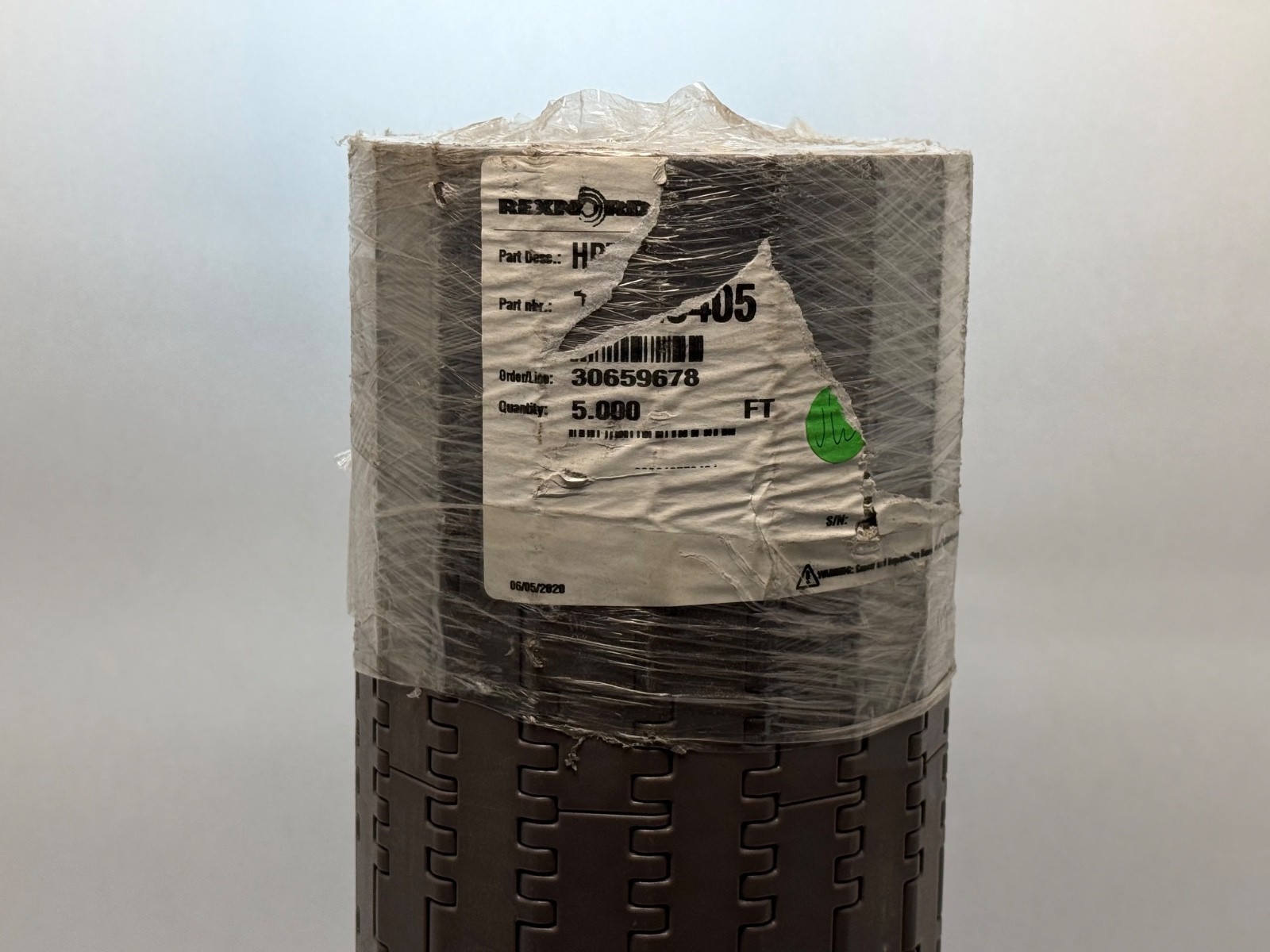

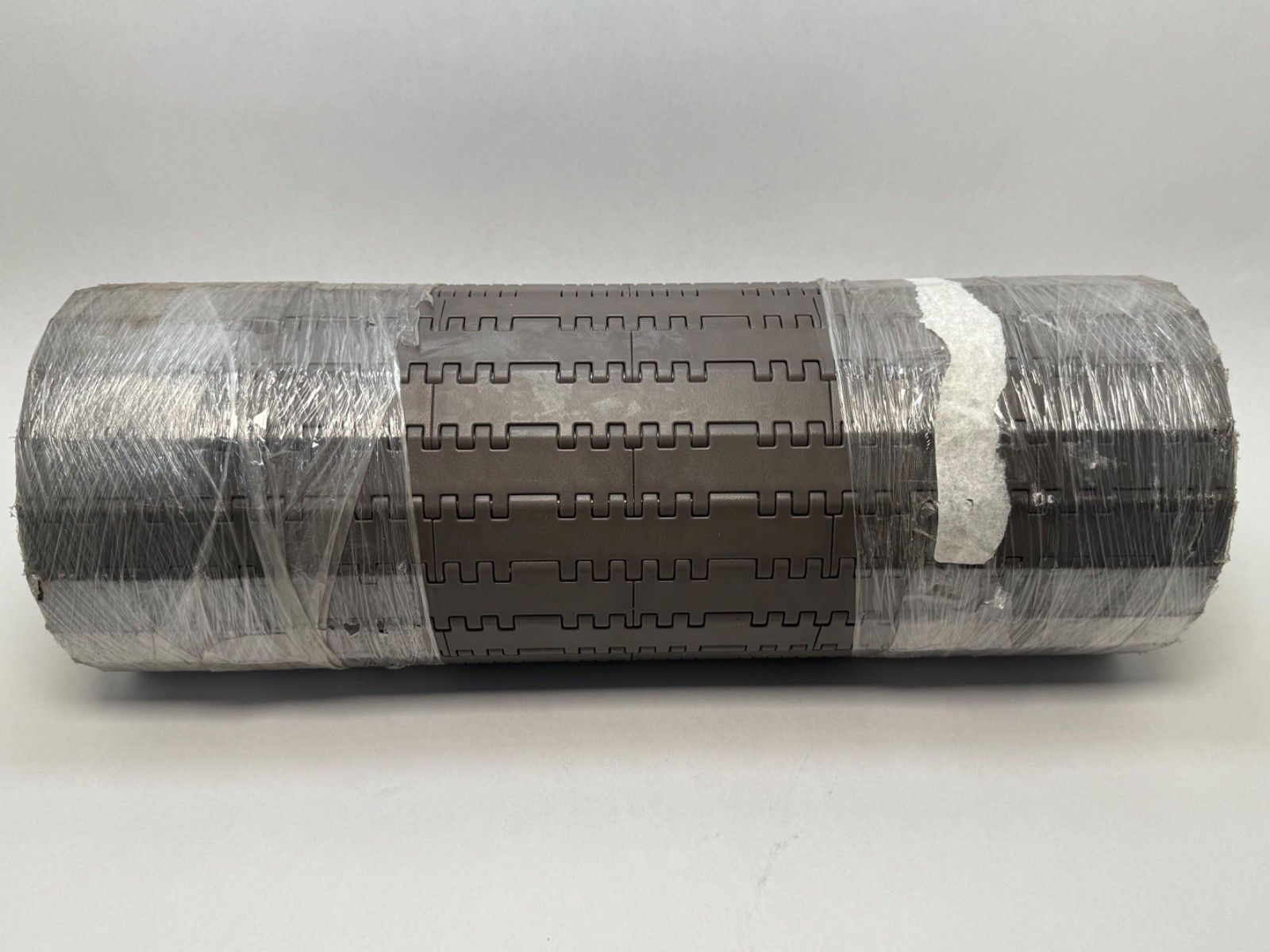

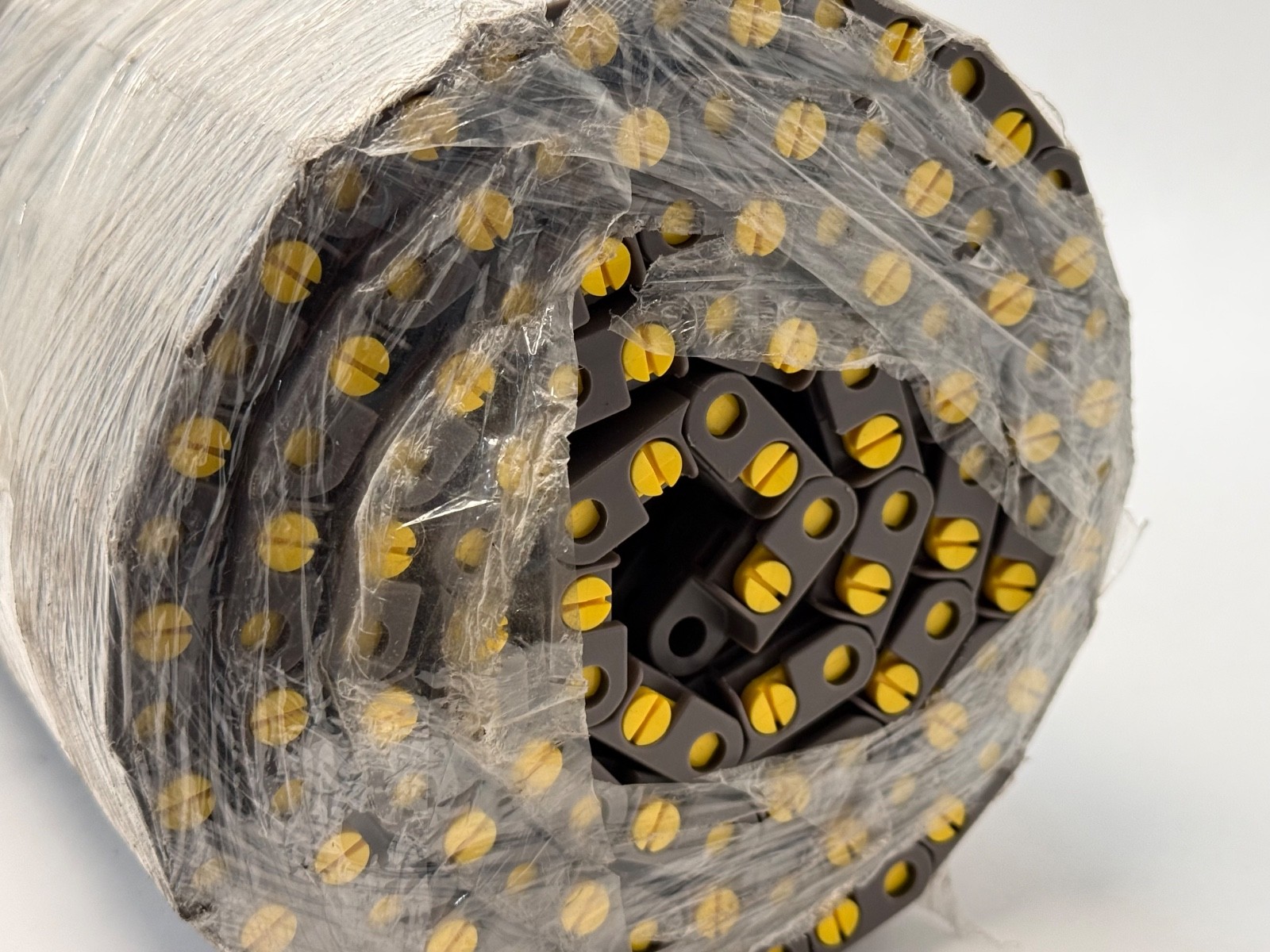

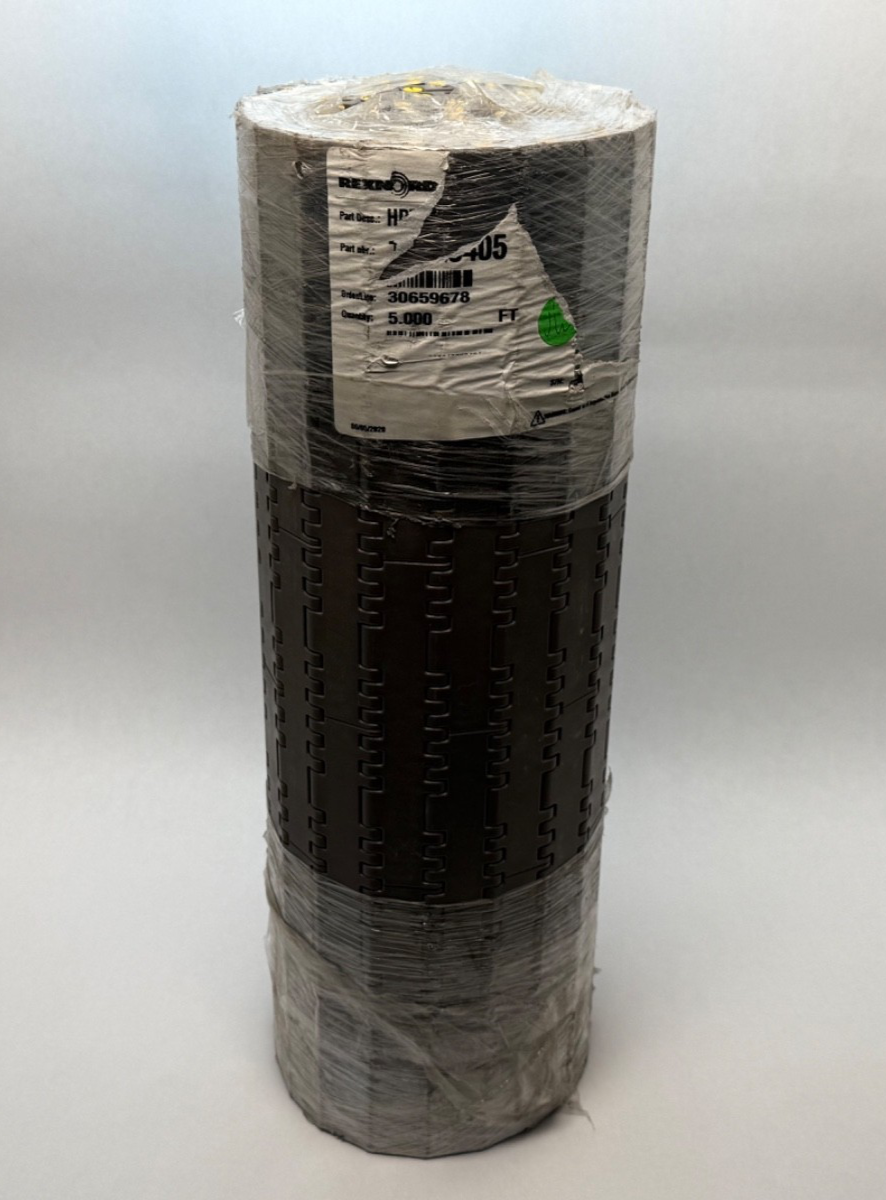

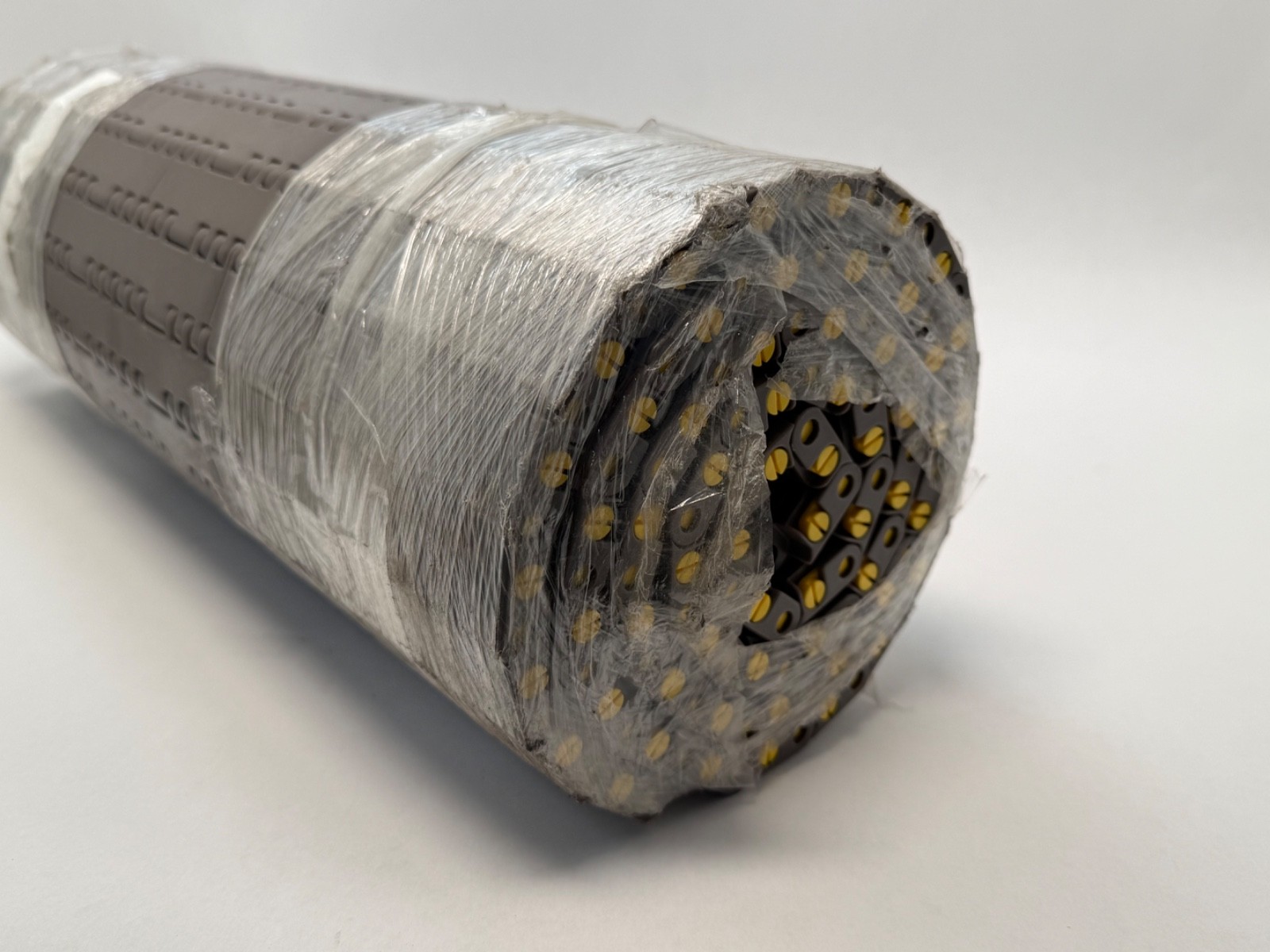

Rexnord HP7705-18 is an 18 in wide 7705 MatTop modular plastic conveyor chain, molded in brown HP High Performance material and assembled with polyester pins. Solid top surface, straight running, 1.00 in pitch. This listing is a 5 ft length.
HP — Rexnord High Performance chain material, brown.
7705 — Rexnord MatTop 7700 series chain, solid top, 1.00 in pitch.
18 — chain width, 18 in.
Chain Width: 18 in (457 mm). Chain Pitch: 1.00 in (25.4 mm). Chain Height: 0.50 in (12.7 mm). Chain Strength: 2,950 lb/ft (43,041 N/m). Chain Weight: 2.76 lb/ft² (13.48 kg/m²). Surface Type: Solid Top. Open Area: 3%. Pin Material: Polyester. Operating Temperature: -40 to 180 °F (-40 to 82 °C) dry; up to 150 °F (66 °C) wet. The solid top carries cases, packs and containers on a flat, closed surface; the HP material is Rexnord’s wear-resistant general-duty grade.
Unit Quantity: 1 Pc. One 5 ft length of 18 in wide chain.
Runs on 7705 MatTop sprockets and wearstrips. Joins with other HP7705 chain of the same width. Carton marking: 10028405.
