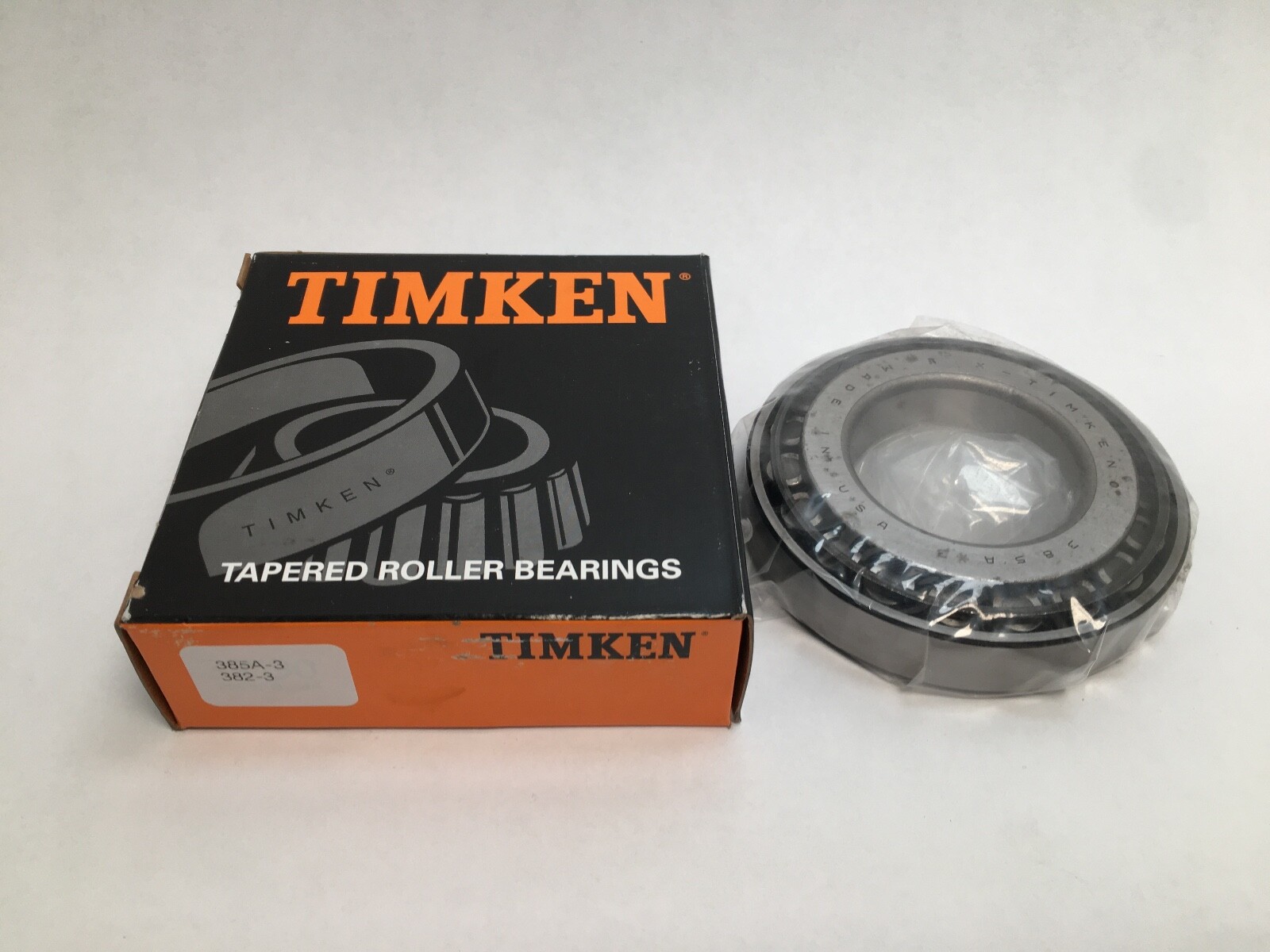

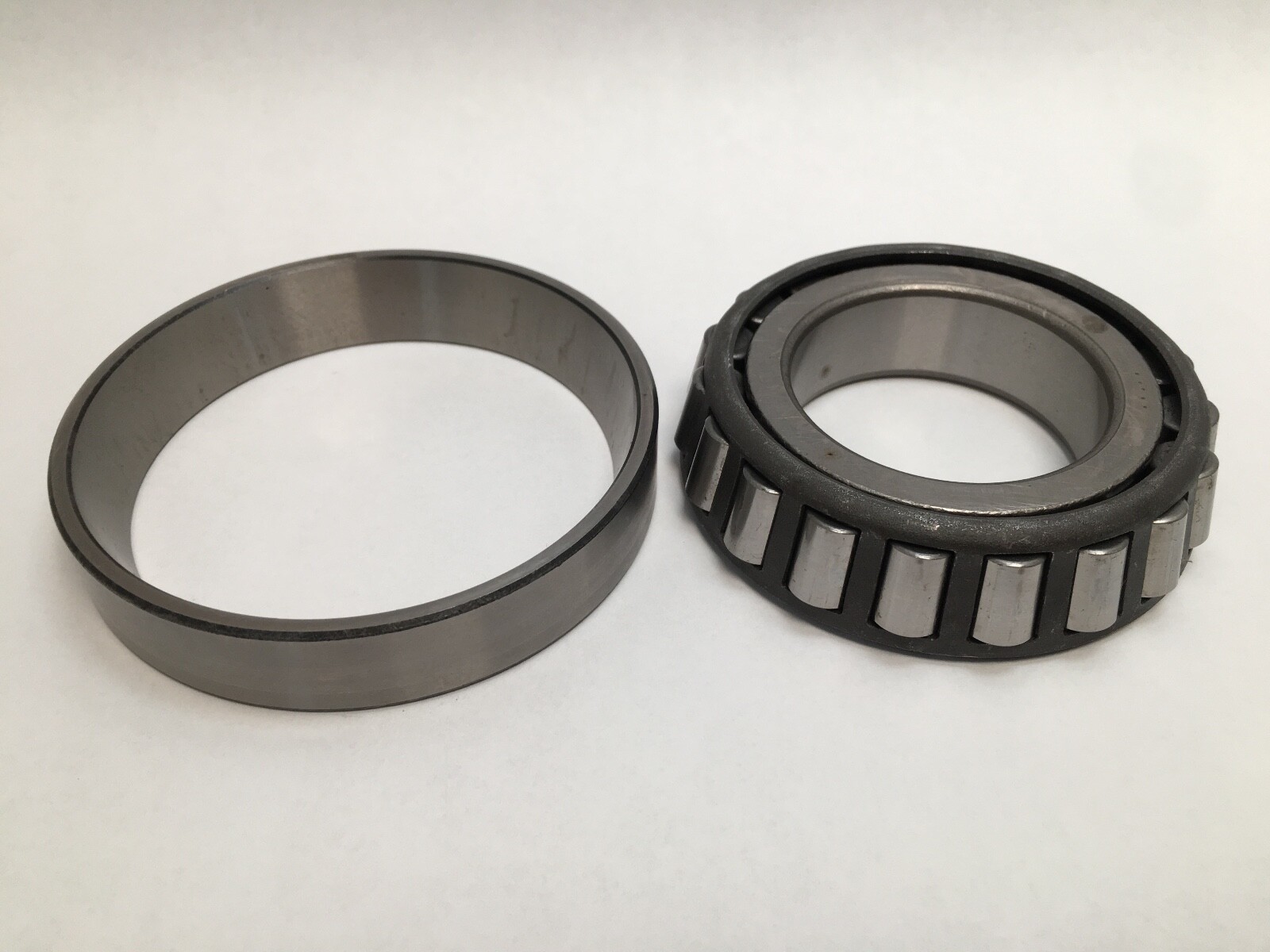

Timken 385A-3/382-3 tapered roller bearing set – image 1

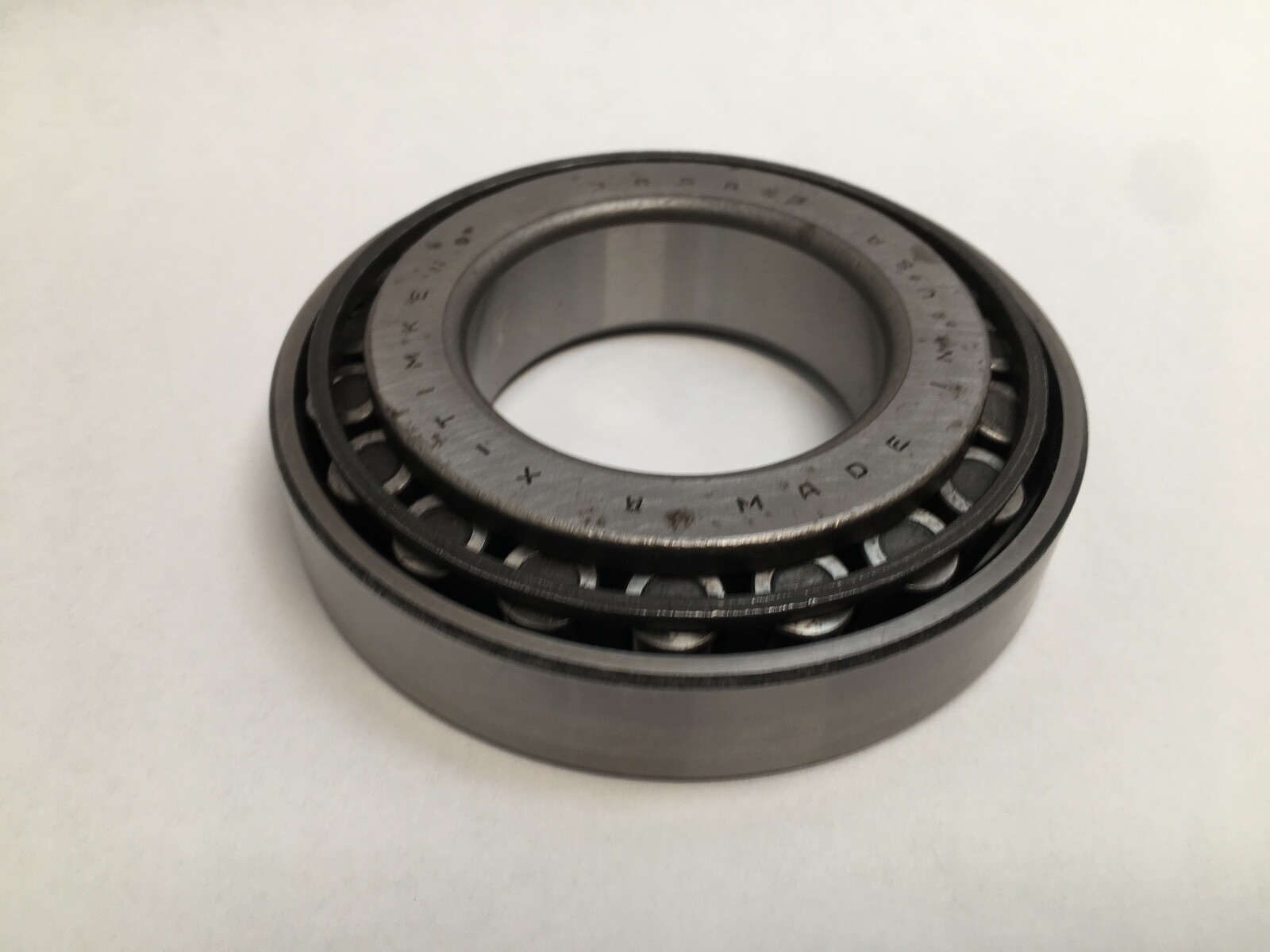

Timken 385A-3/382-3 tapered roller bearing set – image 2

Timken 385A-3/382-3 tapered roller bearing set – image 3

Timken 385A-3/382-3 tapered roller bearing set – image 4

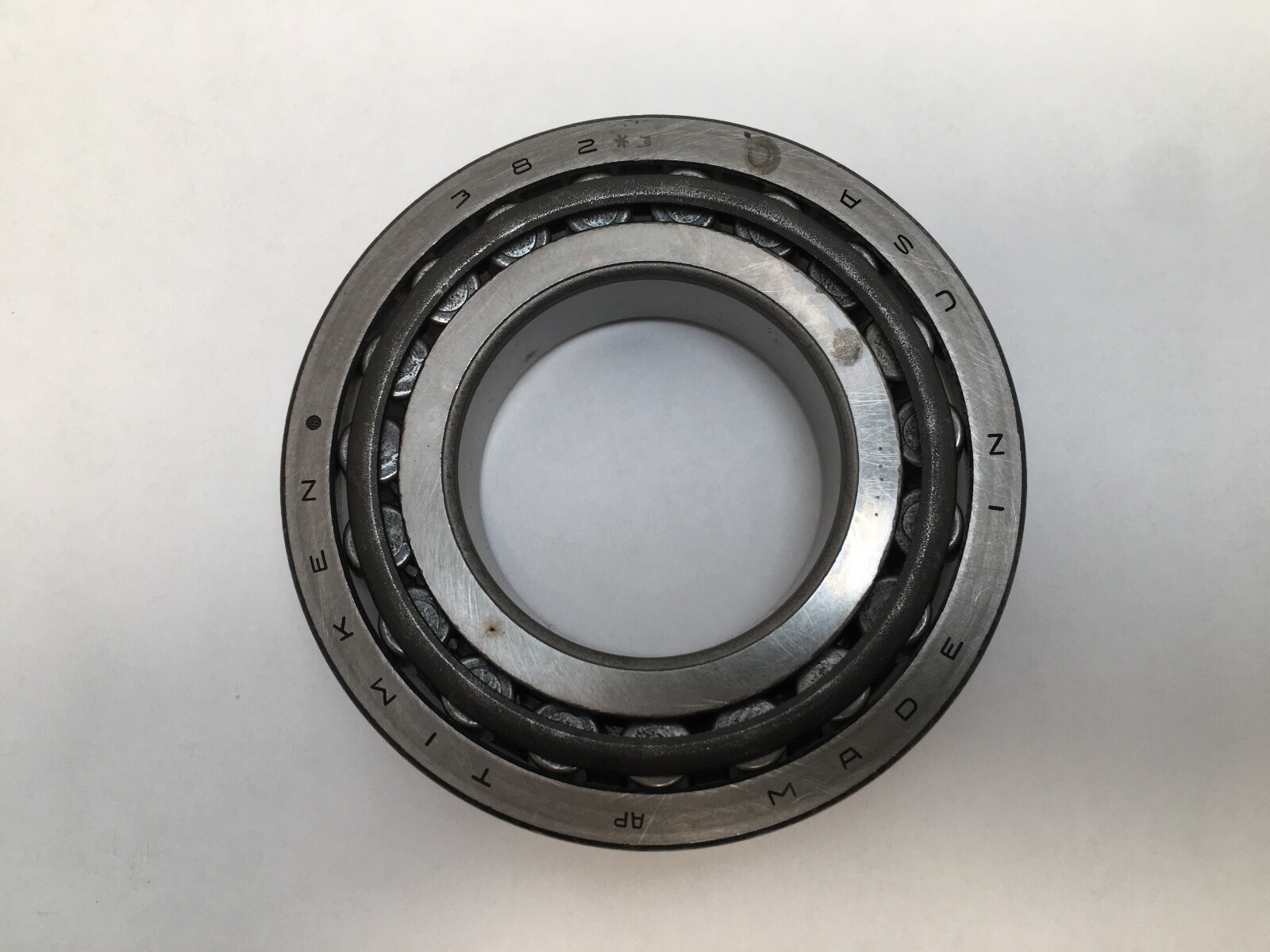

Timken 385A-3/382-3 tapered roller bearing set – image 5

Timken 385A-3/382-3 tapered roller bearing set – image 6

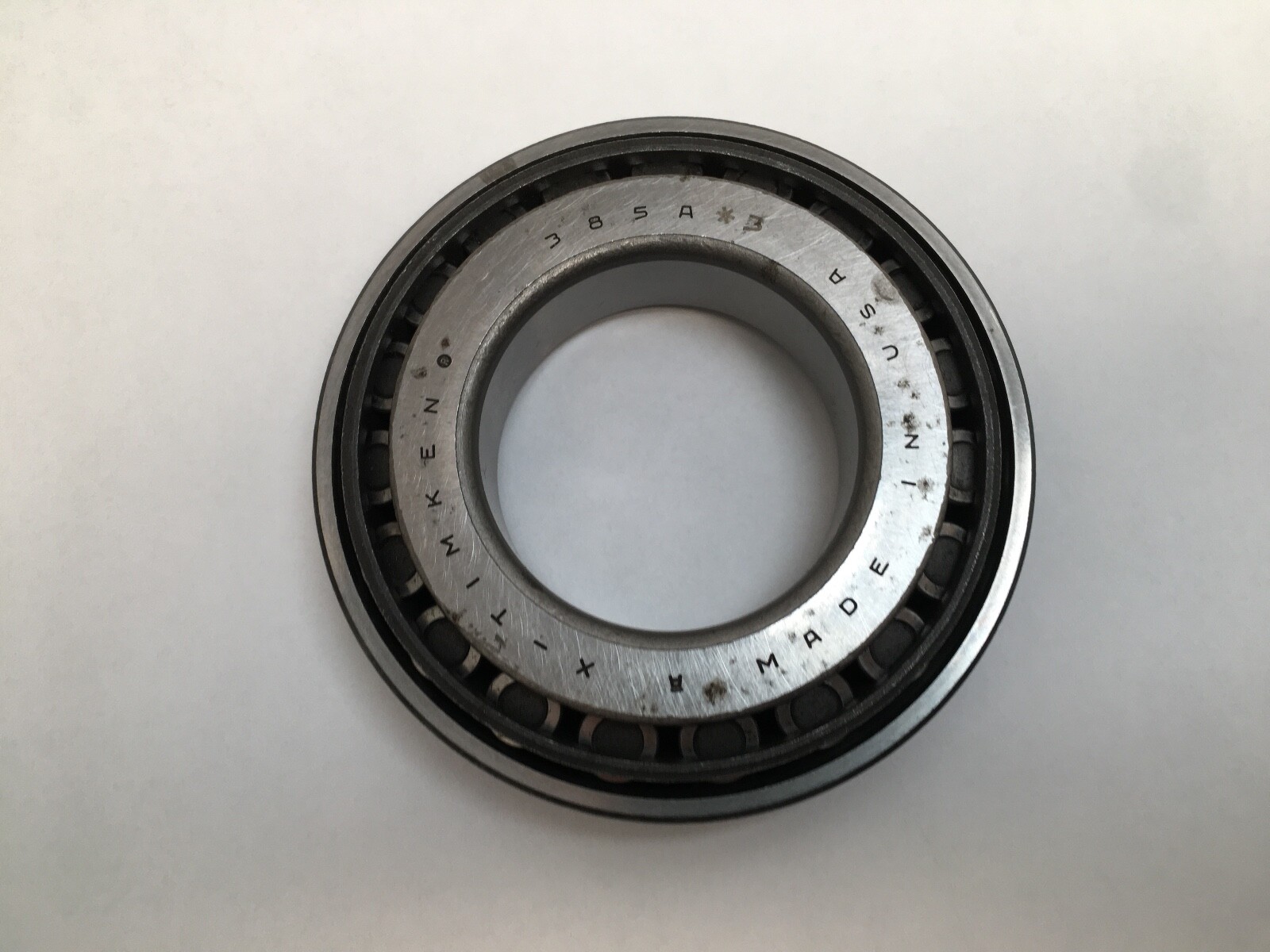

Timken 385A-3/382-3 tapered roller bearing set – image 7

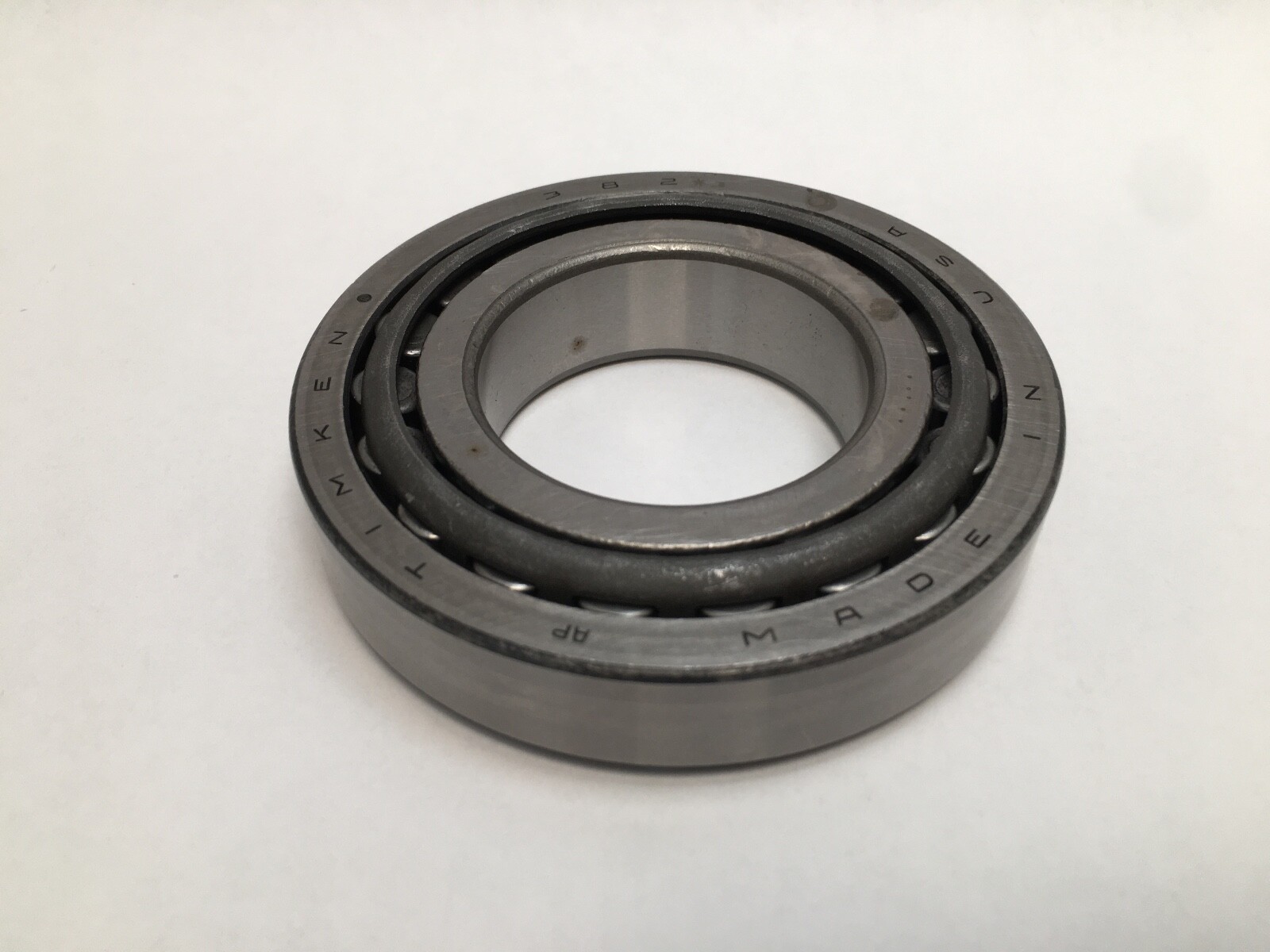

Timken 385A-3/382-3 tapered roller bearing set – image 8

Timken 385A-3/382-3 tapered roller bearing set – image 9

13k+ reviews

See our eBay reviews

Timken385A-3/382-3Tapered Roller Bearing Cone and Cup Set – 2.0000 in Bore, 3.8750 in Outside Diameter, 0.8268 in Assembled Width, Class 3 Precision

Name: Timken 385A-3/382-3 Tapered Roller Bearing Cone and Cup Set – 2.0000 in Bore, 3.8750 in Outside Diameter, 0.8268 in Assembled Width, Class 3 Precision
Brand: Timken
SKU: AA2B3#J5RVTT
Price: 68.74 USD
Availability: InStock

Condition: New – Open box

Condition Note: Made In USA, Class 3 Precision, New Old Stock

Availability:

1 in stock

Categories: Bearings, Tapered Roller Bearing

Timken 385A-3/382-3 Class 3 tapered roller bearing cone and cup set, 2.0000 in bore, 3.8750 in OD, 0.8268 in width, 108,000 N dynamic rating.

Same day shipment

List Price

$68.74

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	Timken
MPN	385A-3/382-3
Model	385-A 3 / 382 3
Bearing Type	Tapered Roller Bearing
ID	2.0000 in
OD	3.8750 in

Technical Specifications

Material	Steel
Series	385
Base Number	385A
Overall Width	0.8268 in
Mpn Variants	385A-3/382-3; 385A3; 3823; 385A#3; 382#3; 385-A 3; 385A/382
Precision Class	Class 3
Dynamic Load Rating C1	108,000 N
Dynamic Load Rating	108,000 N
Static Load Rating	107,000 N
Rolling Elements	Tapered Roller
Item Weight	0.70 kg (1.60 lb)
Number Of Rows	1
Bore Type	Straight
Harmonization Code	8482.20.00
Cup Part Number	382
Design Units	Imperial
Bearing Material	Case-Carburized Steel
Cup Width	0.7018 in
Cup Backface To Clear Radius	0.03 in
Cone Part Number	385A
Cone Width	0.8640 in
Cone Backface To Clear Radius	0.09 in
Cone Frontface Backing Diameter	2.36 in
Cup Frontface Backing Diameter	3.66 in
Cage Cone Frontface Clearance	0.11 in
Cage Cone Backface Clearance	0.03 in
Effective Center Location	-0.12 in

Cross-References

Cross Reference 1	SKF 385A/382 (standard class)
Cross Reference 2	FAG K-385-A / K-382 (standard class)
Cross Reference 3	NSK 385A/382 (standard class)
Cross Reference 4	NTN 4T-385A / 4T-382 (standard class)
Cross Reference 5	Koyo 385A/382 (standard class)
Cross Reference 6	Fersa 385A/382 (standard class)
Cross Reference 7	BCA/Bower 385A/382 (standard class)
Cross Reference 8	PEER 385A/382 (standard class)

Seller Part Number: AA2B3#J5RVTT

Product Description

What this part is:

Timken 385A-3/382-3 inch single-row tapered roller bearing, supplied as a matched cone and cup set: cone 385A and cup 382, Class 3 precision. 2.0000 in bore, 3.8750 in outside diameter, 0.8268 in assembled width. Unit Quantity: 2 Pc, one cone and one cup.

Decoding the designation:

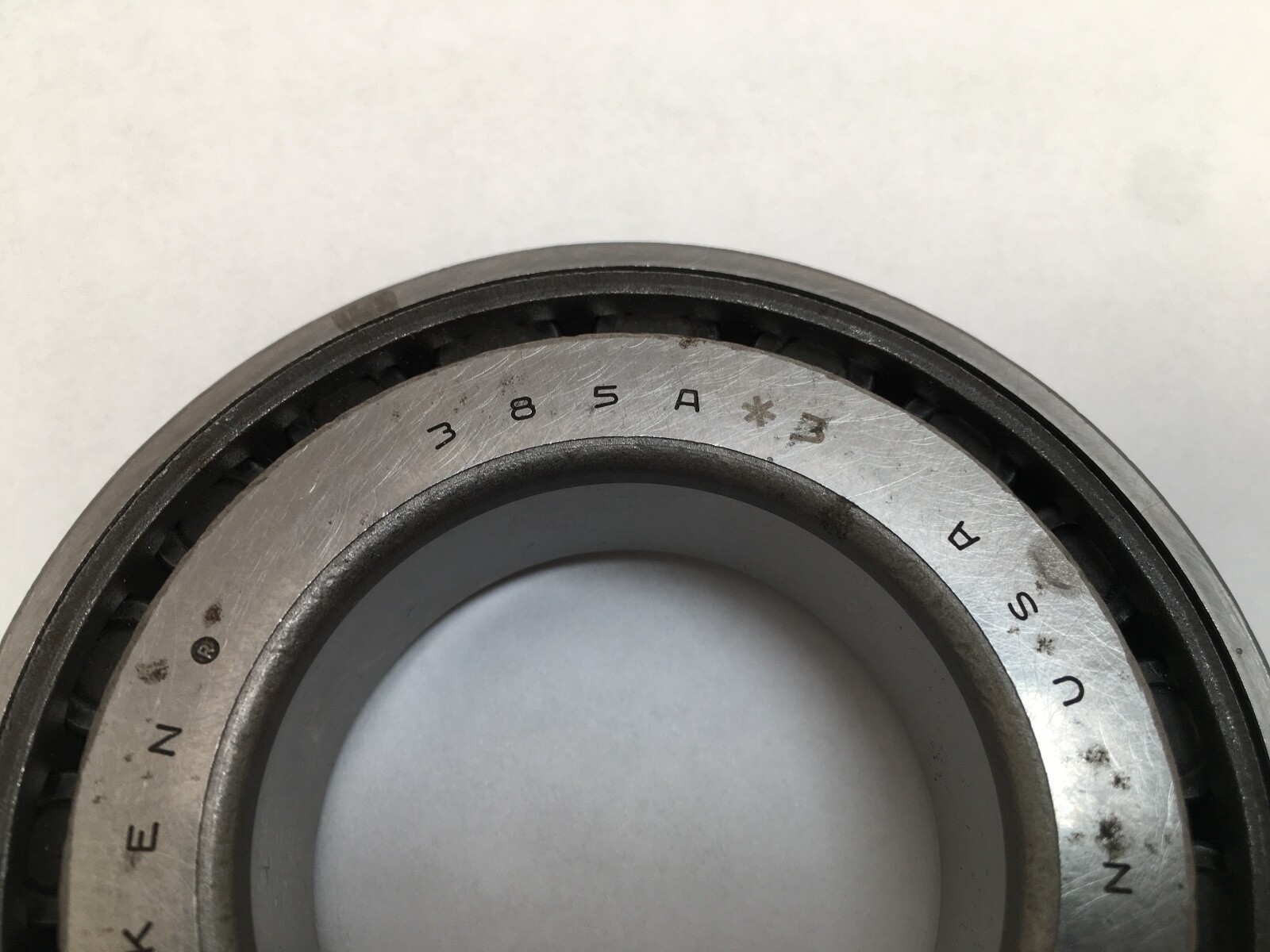

385A — the cone, the inner ring with its roller and cage assembly, 2.0000 in bore.

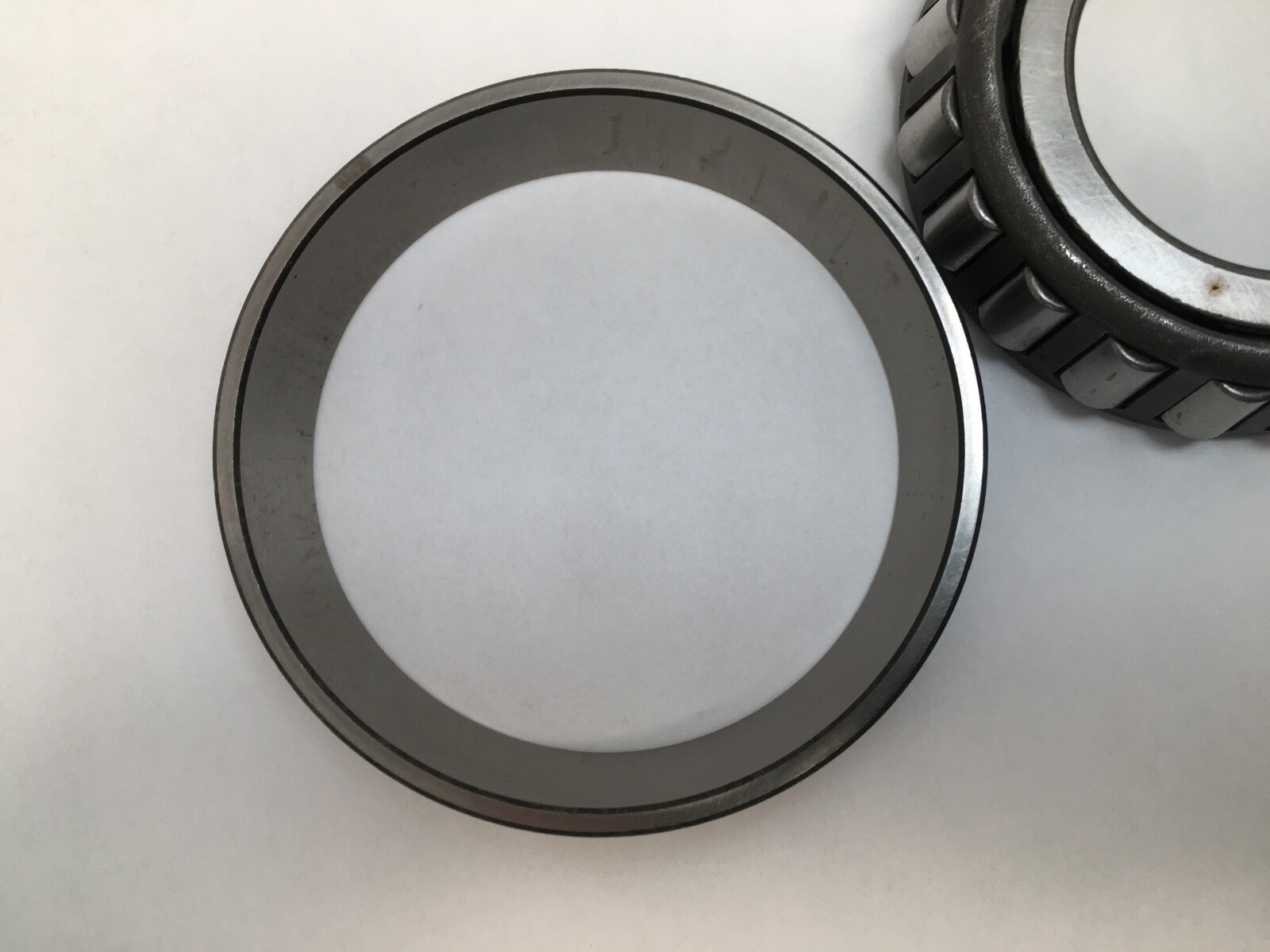

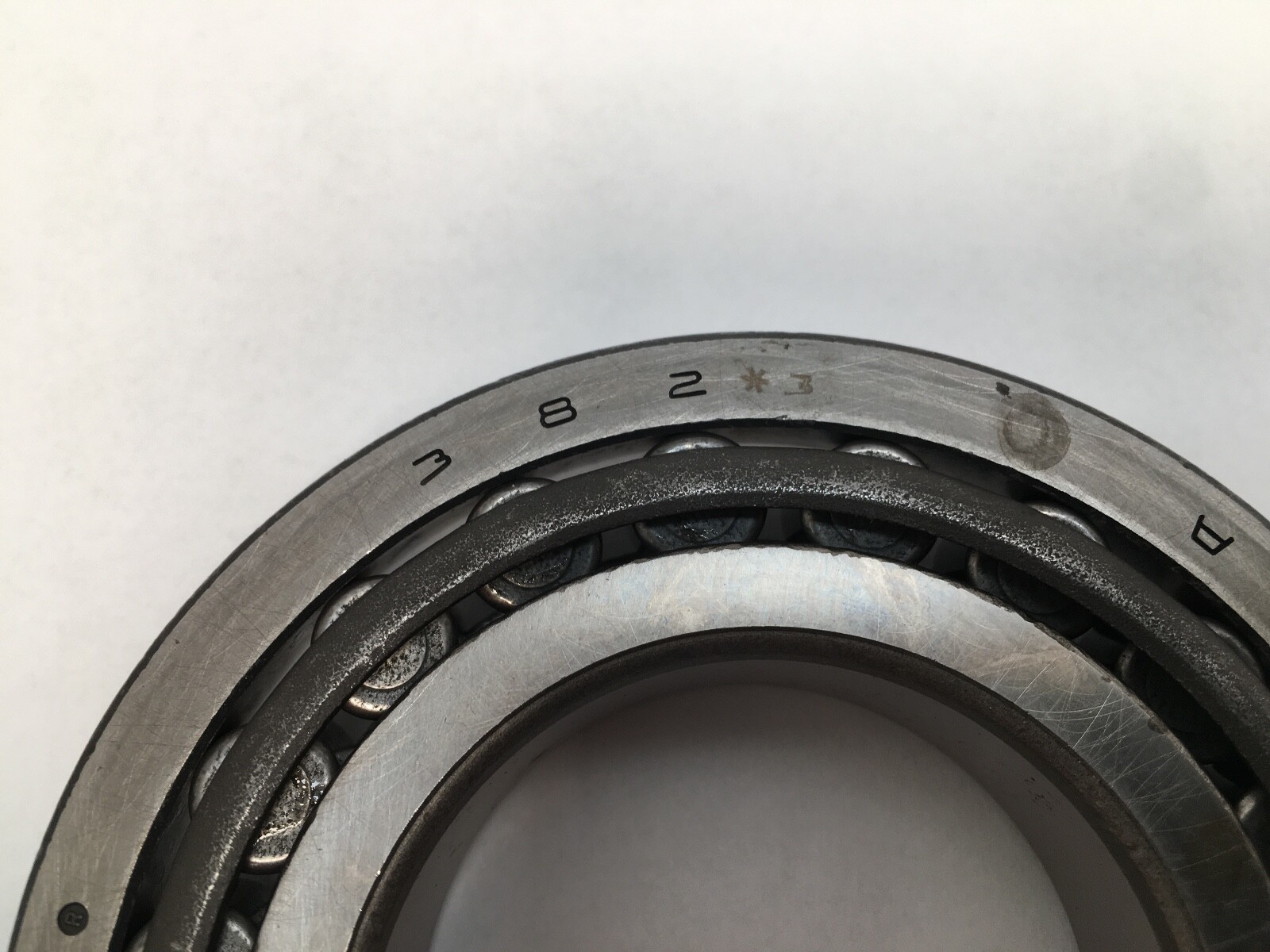

382 — the cup, the outer race, 3.8750 in outside diameter.

-3 — Precision Class 3, also written *3 and #3.

Specifications:

Bore Diameter: 2.0000 in (50.8 mm). Outside Diameter: 3.8750 in (98.425 mm). Overall Width: 0.8268 in (21.001 mm) assembled. Precision Class: Class 3. Item Weight: 0.70 kg (1.60 lb). Dynamic Load Rating: 108,000 N at one million revolutions. Static Load Rating: 107,000 N. Dynamic Radial Rating at 90 million revolutions: 28,000 N. Dynamic Axial Rating at 90 million revolutions: 16,900 N. K Factor: 1.65. e Factor: 0.35. Y Factor: 1.69. G1 Factor: 42. G2 Factor: 15.7. Geometry Factor (Cg): 0.0859. Cone Part Number: 385A. Cup Part Number: 382. Series: 385. Design Units: Imperial. Rolling Elements: Tapered Roller. Number Of Rows: 1. Bore Type: Straight. Bearing Material: Case-Carburized Steel. Unit Quantity: 2 Pc.

Dimensions and mounting:

Cone Width: 0.8640 in. Cup Width: 0.7018 in. Effective Center Location: -0.12 in, inside the cone backface. Shaft Backing Shoulder Diameter, frontface: 2.36 in. Shaft Backing Shoulder Diameter, backface: 2.40 in. Housing Backing Shoulder Diameter, frontface: 3.66 in. Housing Backing Shoulder Diameter, backface: 3.54 in. Maximum Shaft Fillet Radius cleared by the bearing corner: 0.09 in. Maximum Housing Fillet Radius cleared by the bearing corner: 0.03 in. Cage Location relative to backface: 0.03 in. Cage Location relative to frontface: 0.11 in.

Compatibility and replacement:

Standard-class inch taper numbers 385A and 382 appear under SKF 385A/382, FAG K-385-A / K-382, NSK 385A/382, NTN 4T-385A / 4T-382, Koyo 385A/382, Fersa 385A/382, BCA/Bower 385A/382 and PEER 385A/382. Also listed as 385A*3, 382*3, 385A#3, 382#3, 385-A 3 and 385A/382.
