Availability:
3 in stock

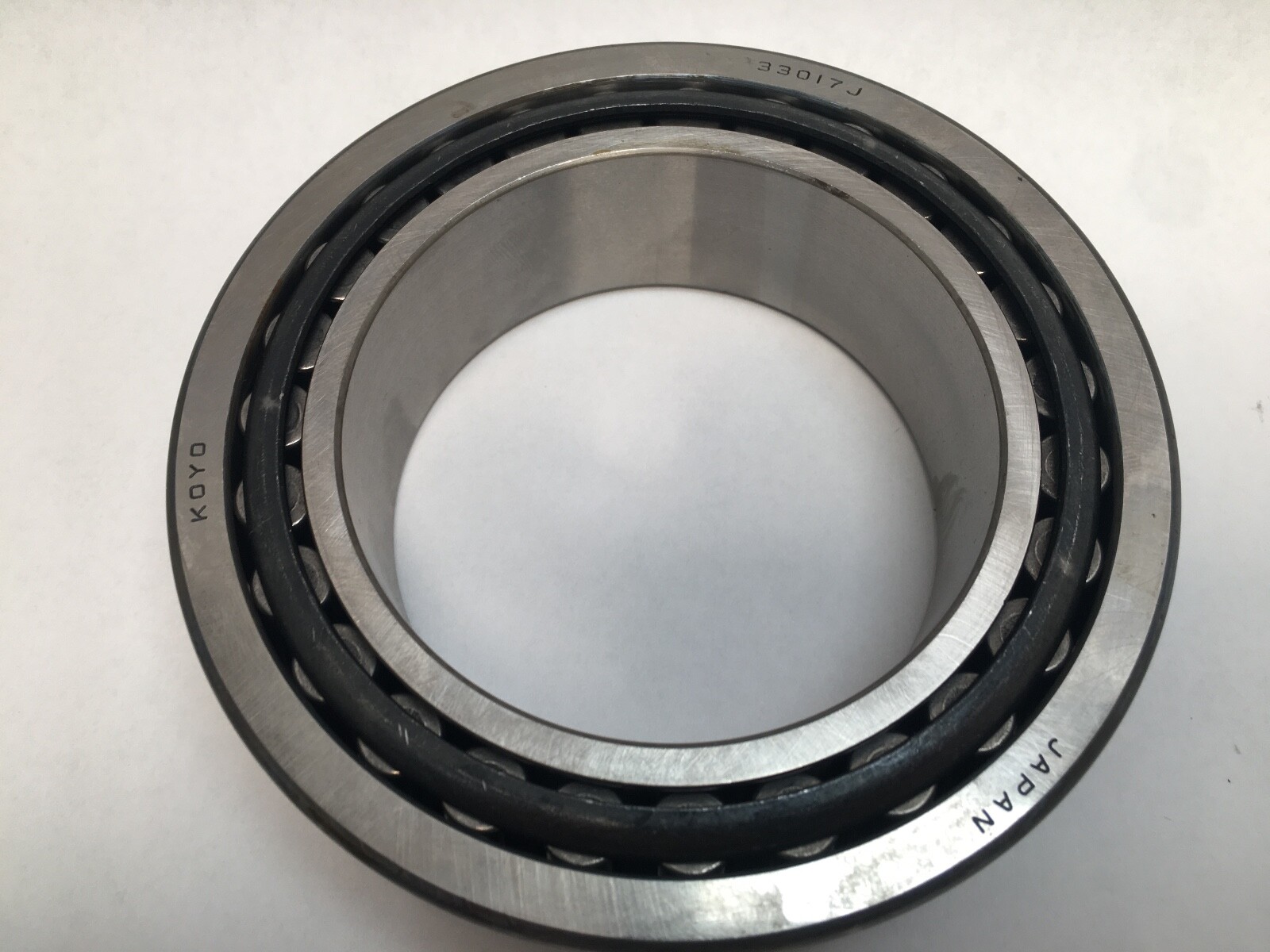

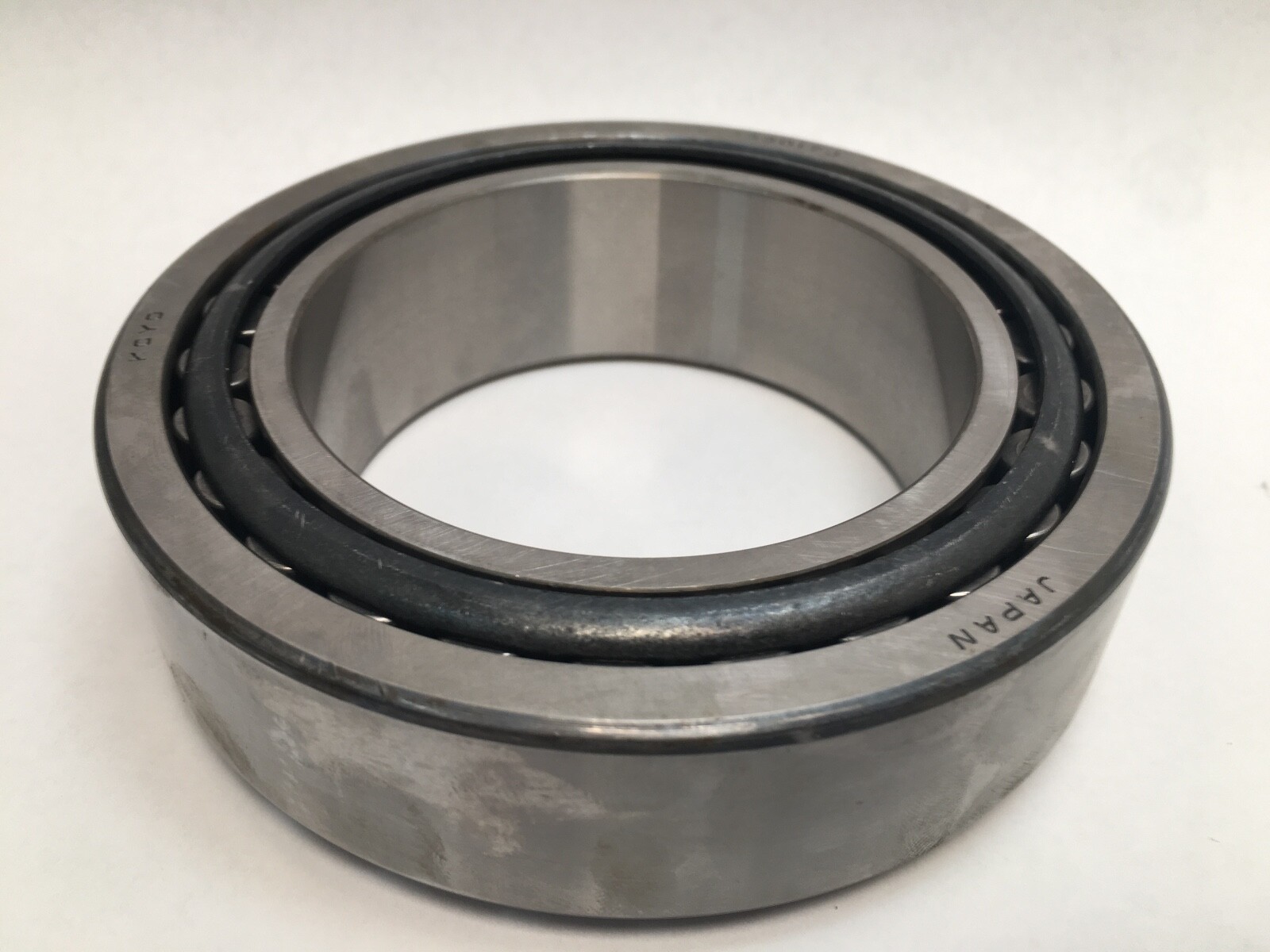

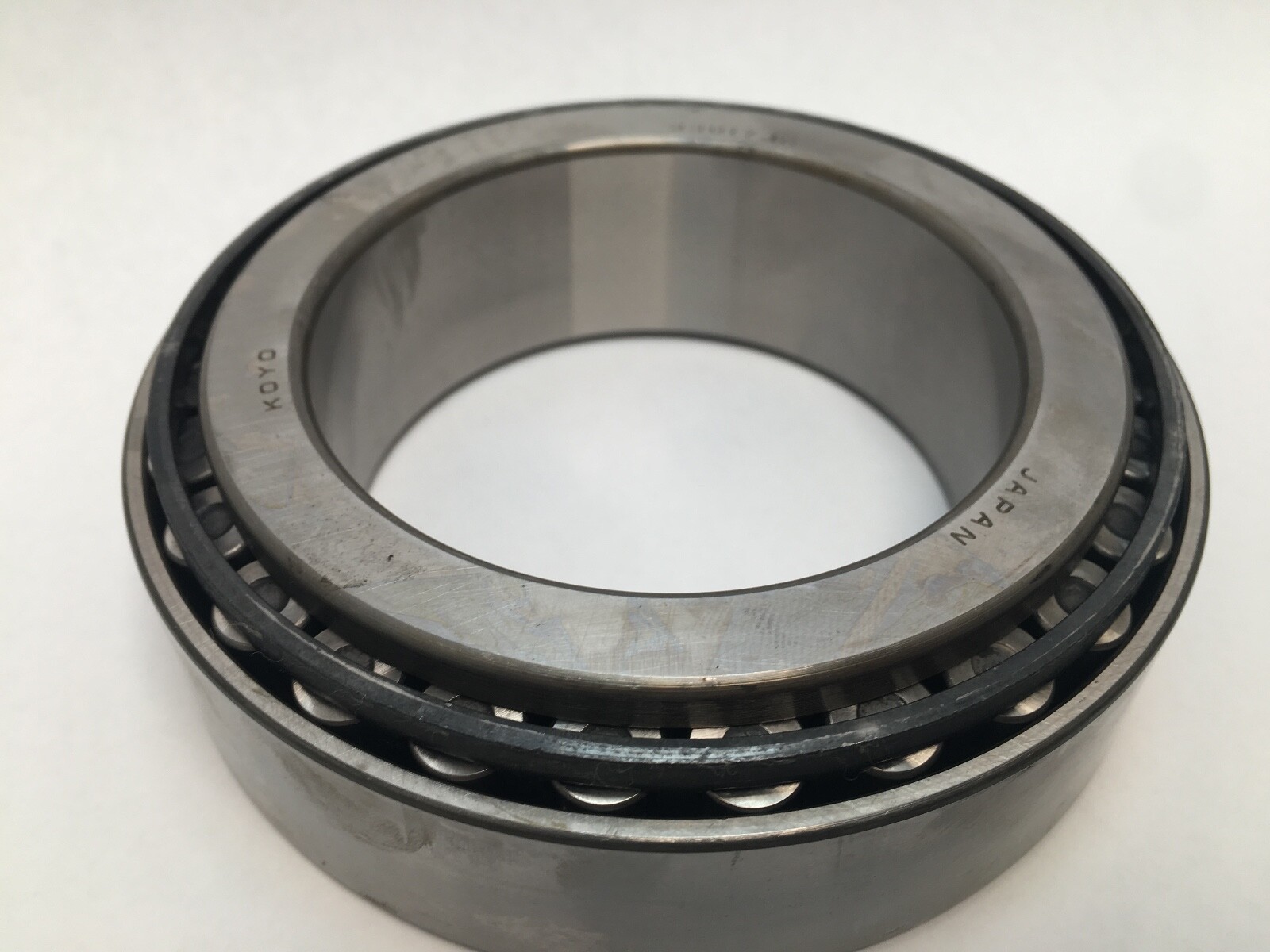

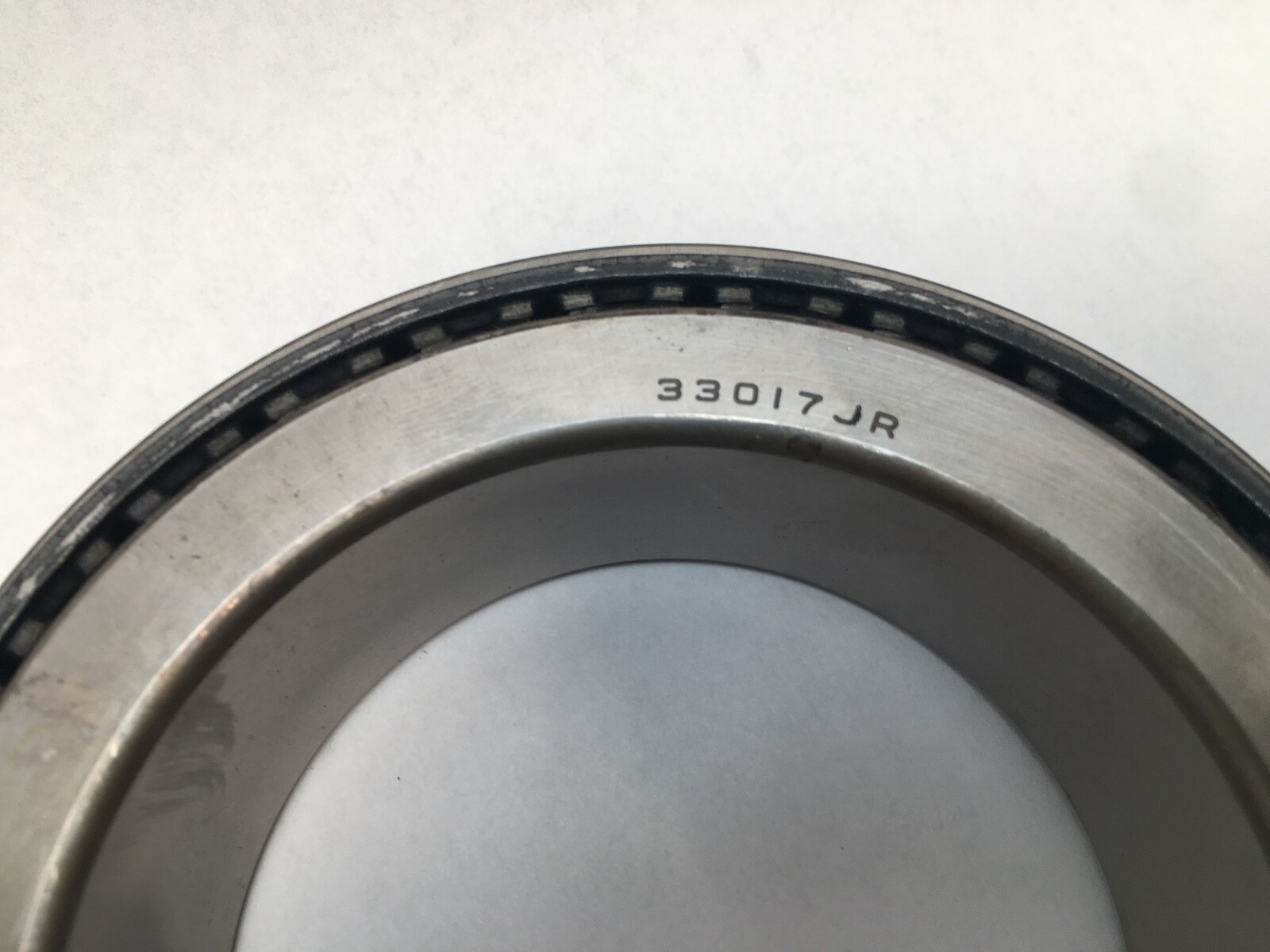

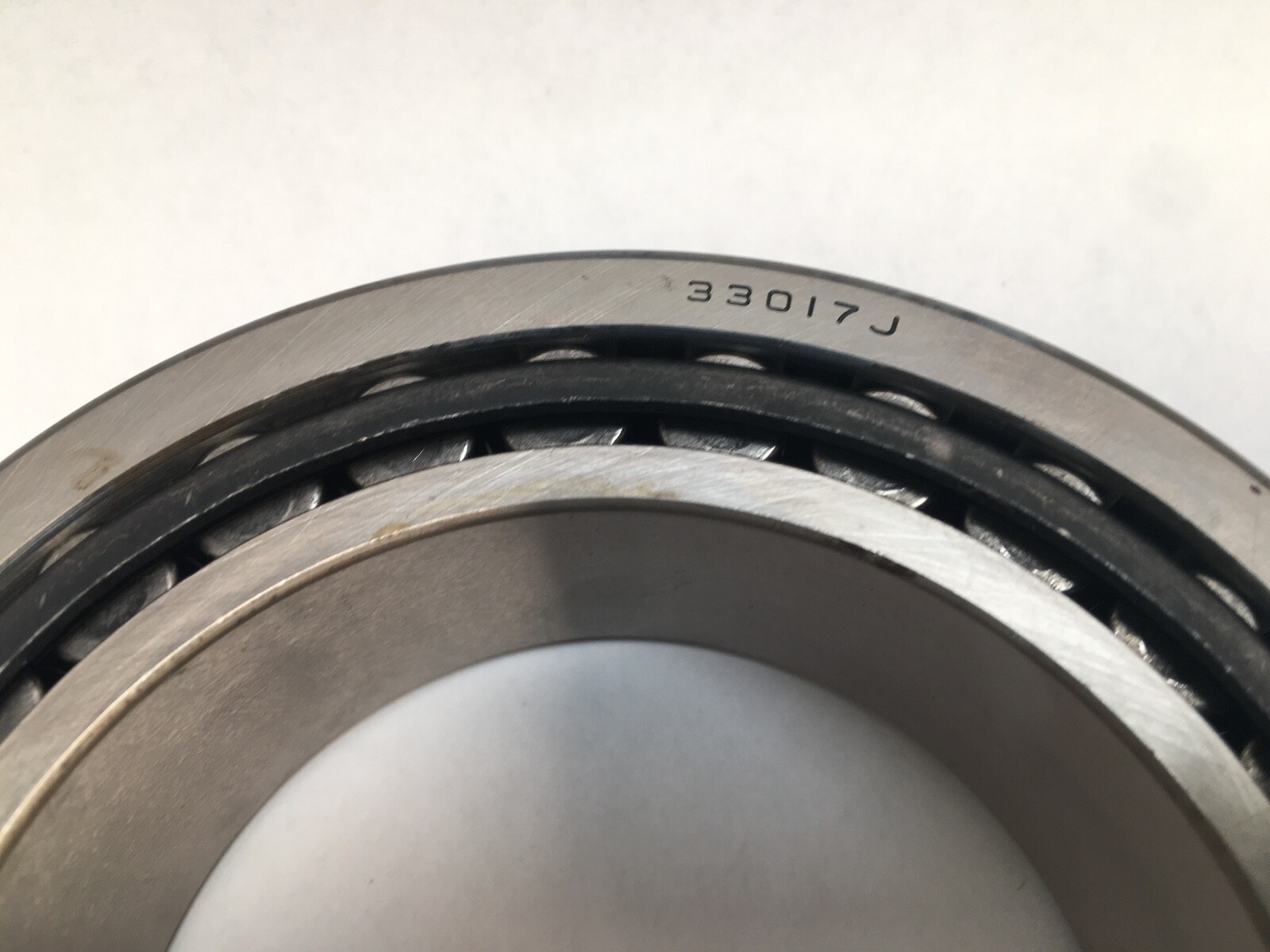

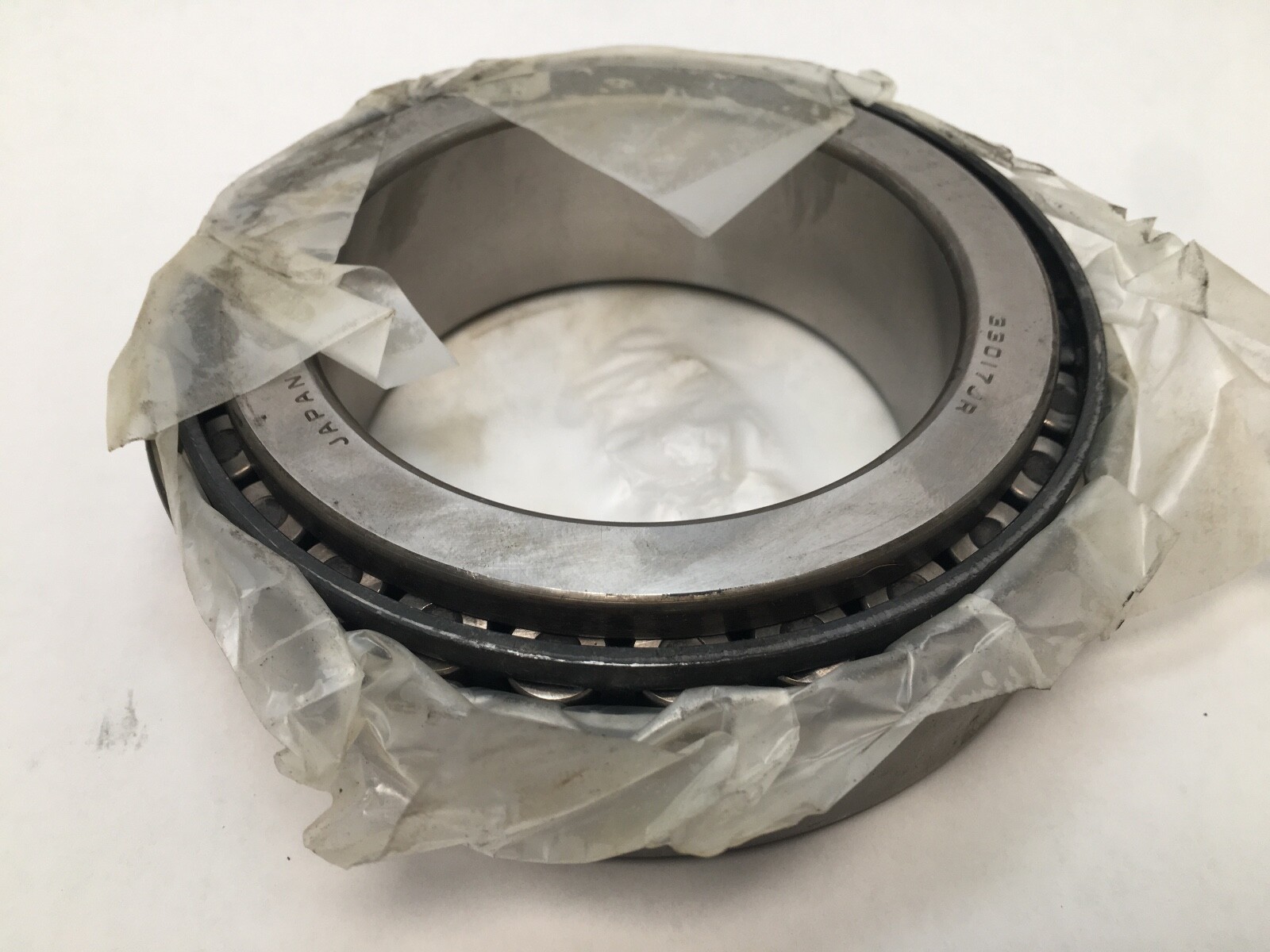

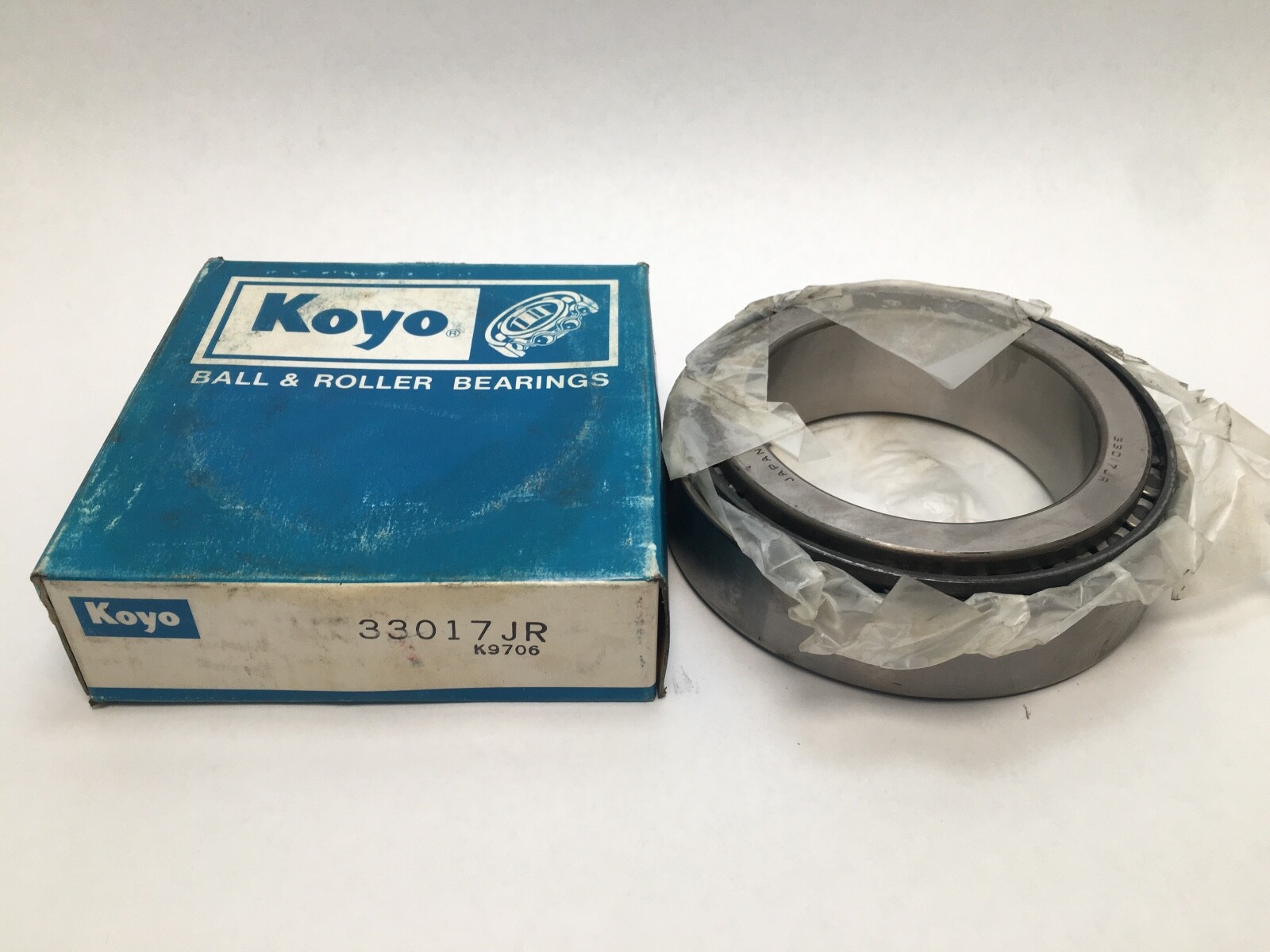

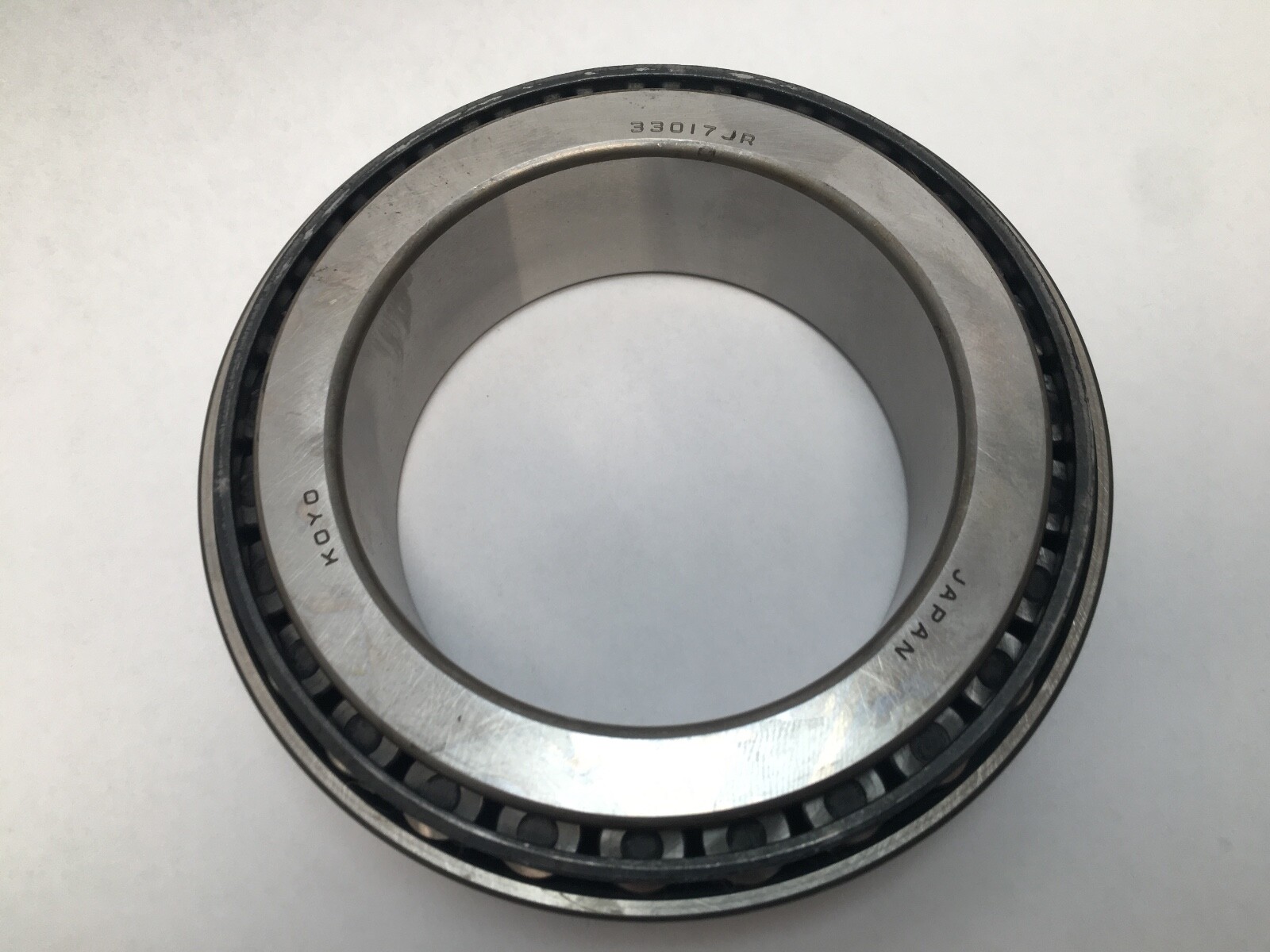

Koyo 33017JR tapered roller bearing, cone and cup, 85 x 130 x 36 mm, 330 series. 222,000 N dynamic, 300,000 N static. Interchanges with SKF 33017/Q.
List Price
$52.64
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Koyo |
|---|---|
| Model | 33017 JR |
| Bearing Type | Tapered Roller Bearing |
| ID | 85 mm |
| OD | 130 mm |
| Width | 36 mm |
| Total Width | 36 mm |
|---|---|
| Mpn Variants | 33017JR, 33017 JR, 33017-JR, 33017 J R |
| Additional Attributes | Cone width B: 36 mm; Cup width C: 29.5 mm; r min: 1.5 mm; r1 min: 1.5 mm; Effective load centre a: 26.3 mm; Fatigue load limit Cu: 46.0 kN; e: 0.29; Y1: 2.06; Y0: 1.13; ISO dimension series 2CE |
| Dynamic Load Rating | 222,000 N |
| Static Load Rating | 300,000 N |
| Series | 33000 |
| Rolling Elements | Tapered Roller |
| Item Weight | 1.72 kg |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 2,800 rpm grease; 3,700 rpm oil |
| Cross Reference 1 | SKF 33017/Q |
|---|---|
| Cross Reference 2 | FAG 33017 |
| Cross Reference 3 | NSK HR33017J |
| Cross Reference 4 | NTN 4T-33017 |
| Cross Reference 5 | Timken 33017 |

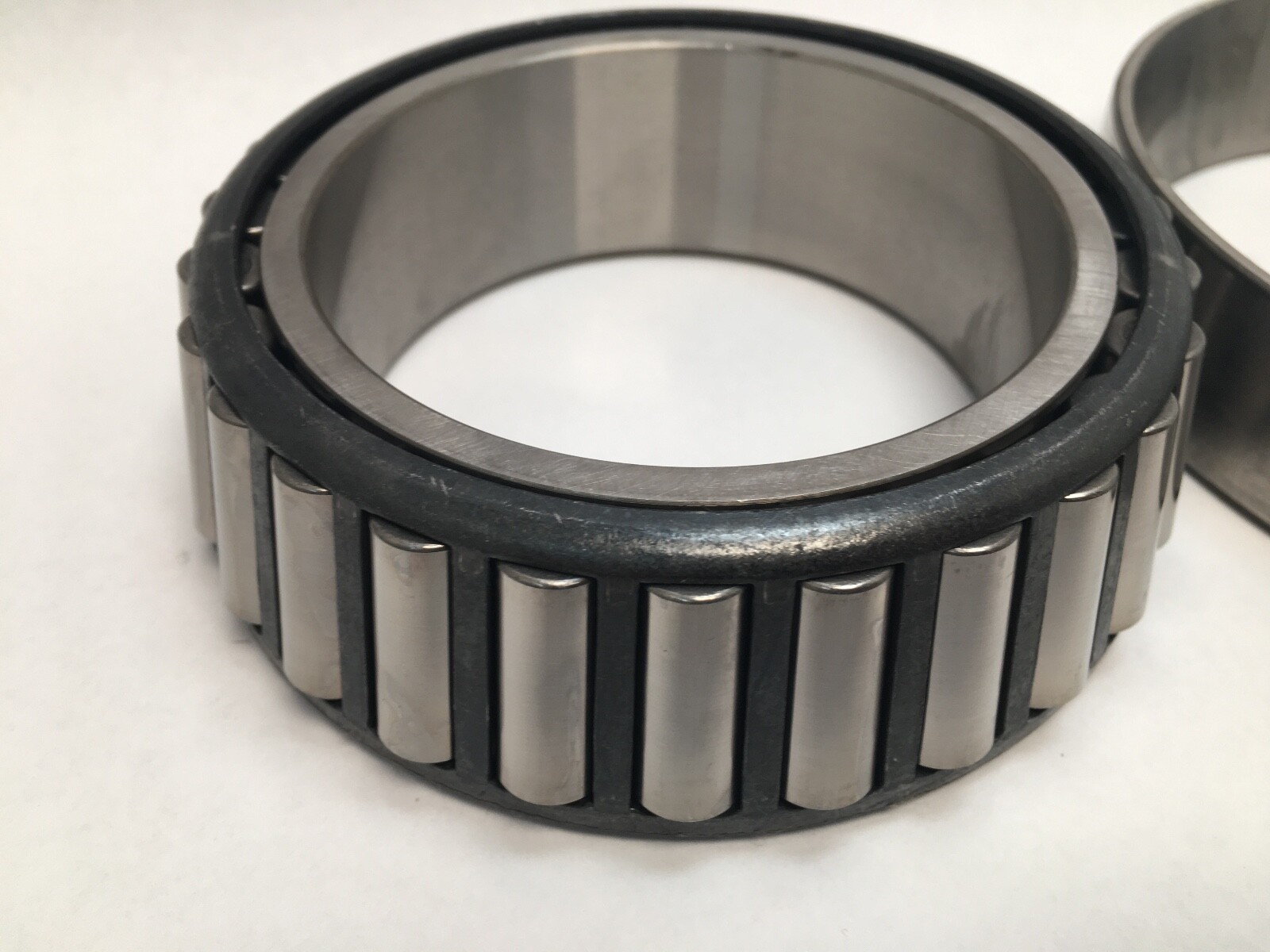

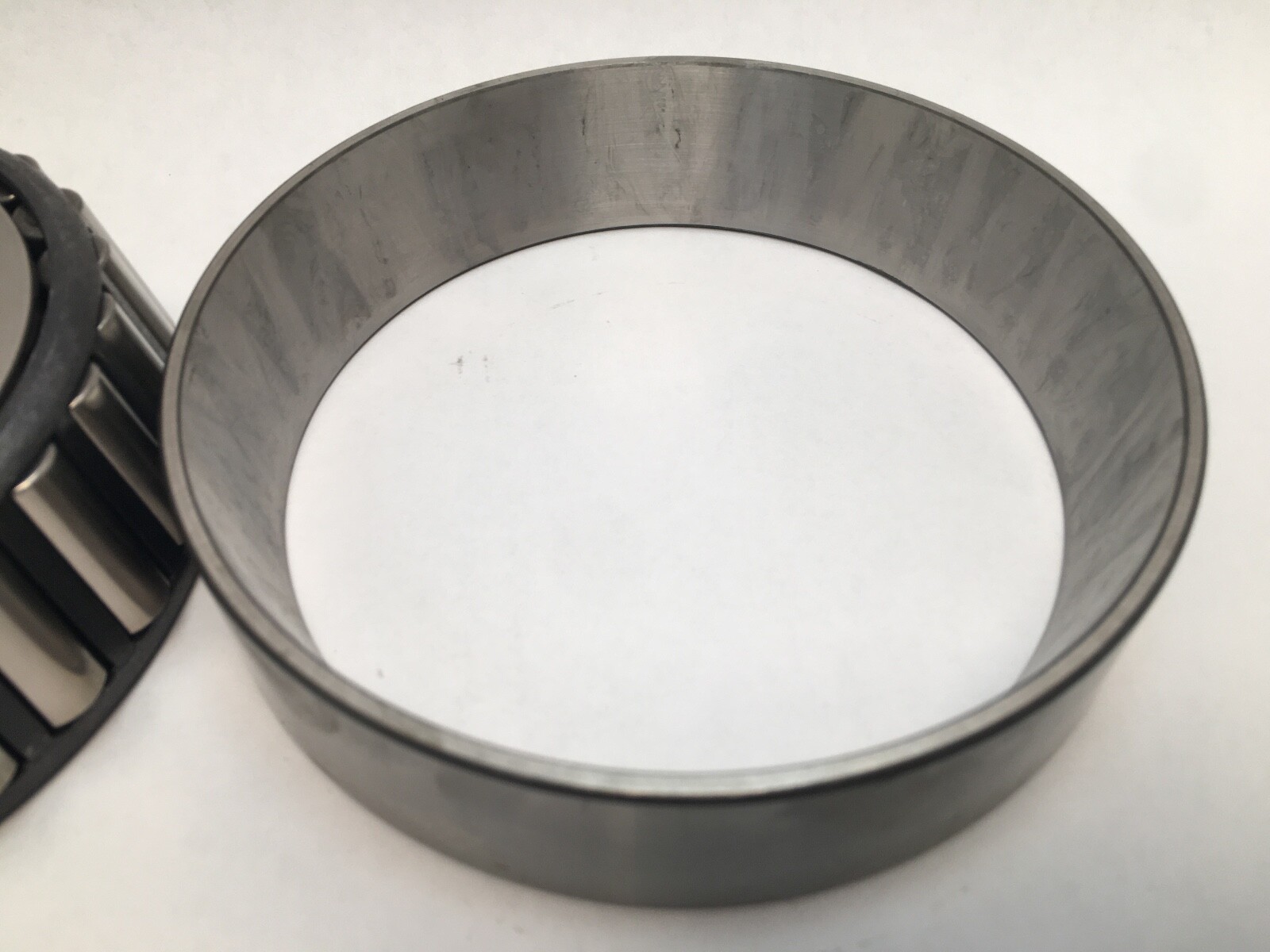

Koyo 33017JR is a single-row metric tapered roller bearing supplied as a complete assembly: cone (inner ring, rollers and cage) with its matching cup. Bore Diameter: 85 mm. Outside Diameter: 130 mm. Total Width: 36 mm. Rolling Elements: Tapered Roller. Bore Type: Straight.
33017 — ISO 330 dimension series, bore code 17 = 85 mm, ISO dimension series 2CE.
Dynamic Load Rating: 222,000 N. Static Load Rating: 300,000 N. Fatigue load limit Cu: 46.0 kN. Limiting Speed: 2,800 rpm grease; 3,700 rpm oil. Item Weight: 1.72 kg.
Calculation factor e: 0.29. Axial load factor Y1: 2.06. Static axial factor Y0: 1.13. The wide 330-series section carries heavy combined radial and one-direction axial load; mounted in pairs it locates a shaft in both directions.
Cone width B: 36 mm. Cup width C: 29.5 mm. Cone chamfer r min: 1.5 mm. Cup chamfer r1 min: 1.5 mm. Effective load centre a: 26.3 mm.

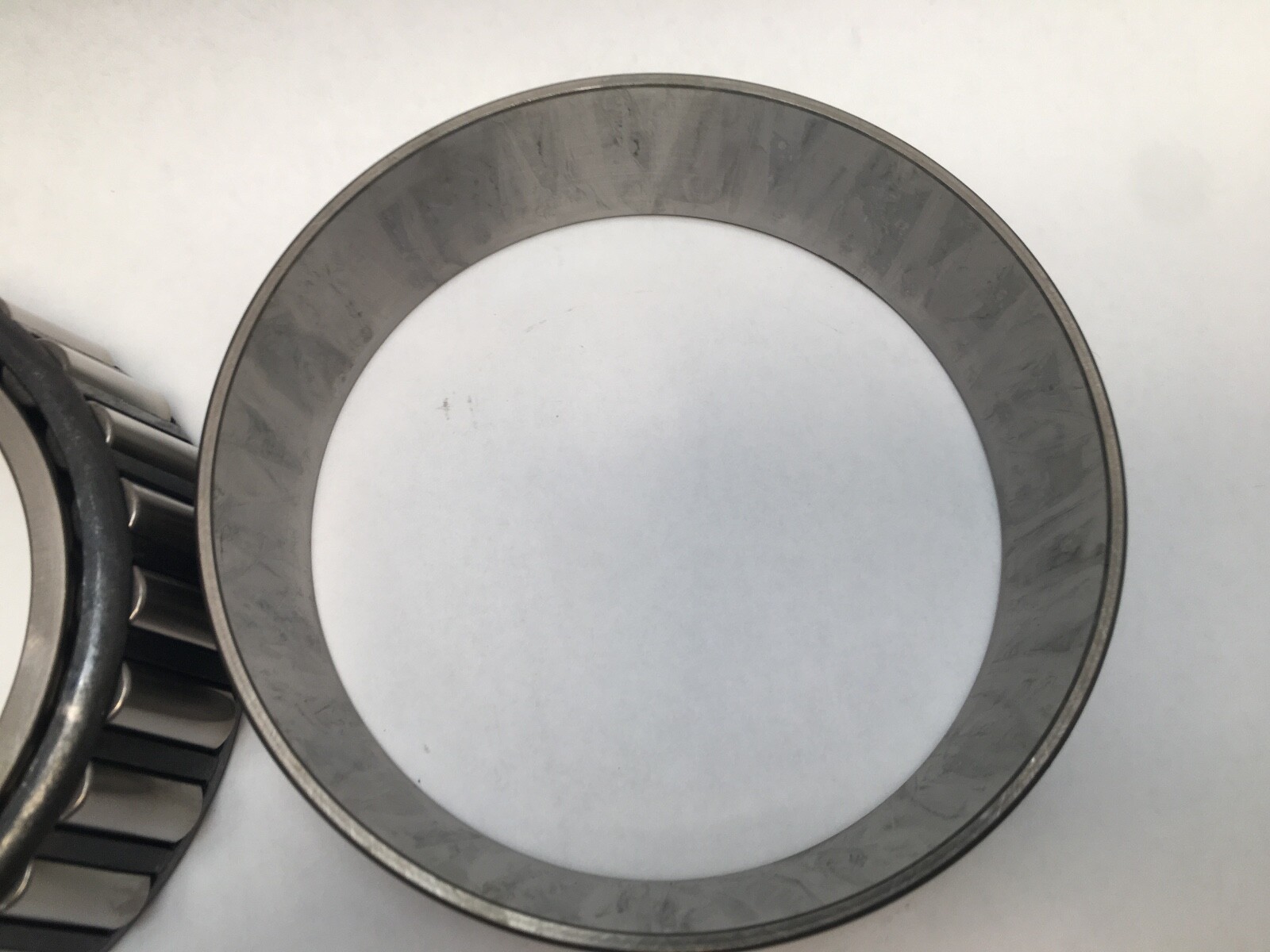

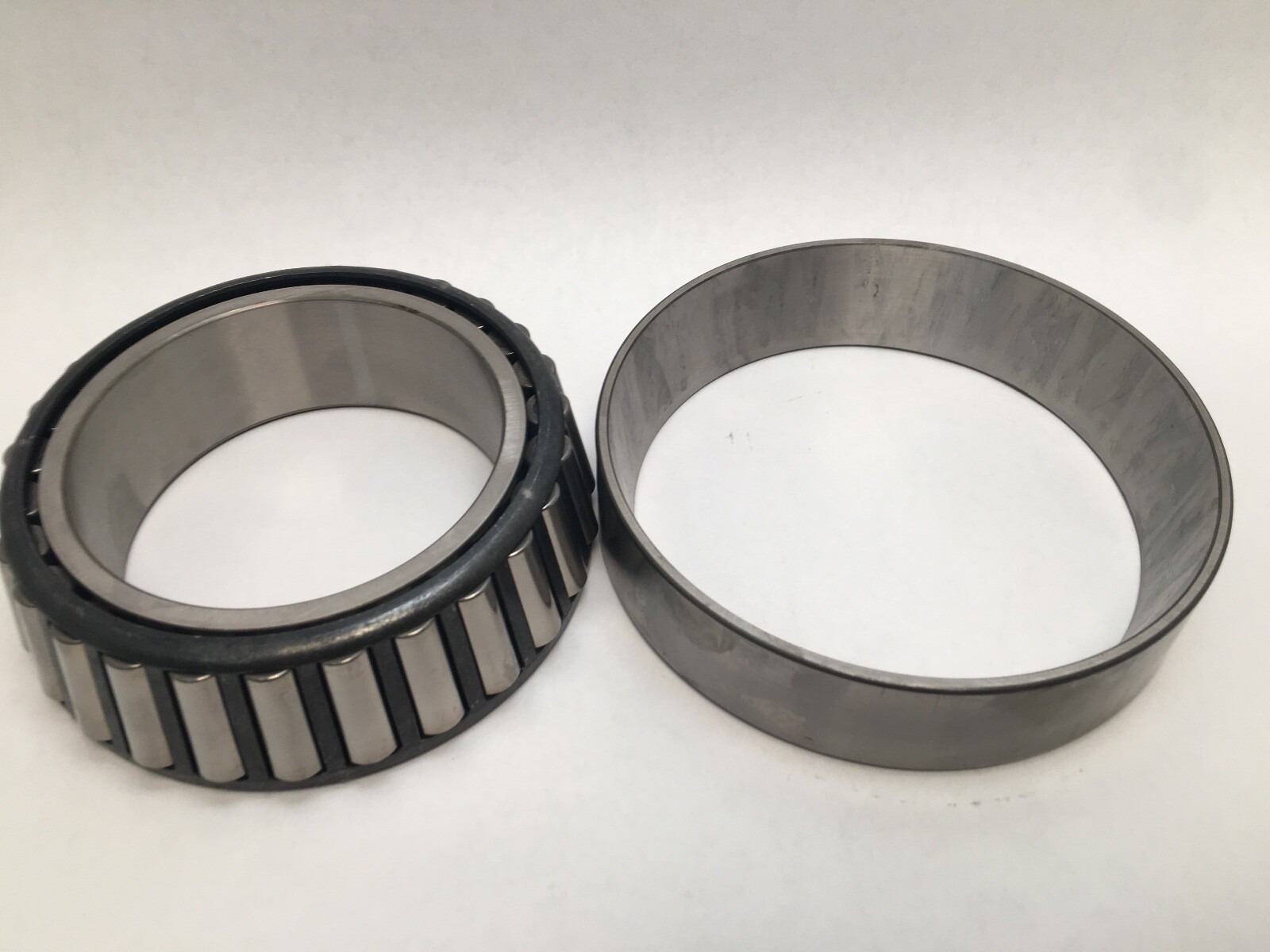

Unit Quantity: 1 Pc. One cone and one cup, the complete single-row bearing.
Same 85 x 130 x 36 mm ISO envelope as SKF 33017/Q, FAG 33017, NSK HR33017J, NTN 4T-33017 and Timken 33017.
