Tapered roller bearing single cup, 4.1563 in (105.570 mm) OD, 0.3750 in (9.525 mm) width, Class 3 precision. Mates Timken LL714649 cone. Item weight 0.3 kg.
List Price
$38.16
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | LL714610-3 |
| Model | LL 714610 3 |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 4.1563 in (105.570 mm) |
| Series | LL714600 |
|---|---|
| Base Number | LL714610 |
| Overall Width | 0.3750 in (9.525 mm) |
| Mpn Variants | LL714610-3, LL714610*3, LL-714610 *3, LL 714610 3, LL714610 |
| Compatible With Replaces | Timken LL714649 cone |
| Precision Class | Class 3 |
| Item Weight | 0.3 kg (0.7 lb) |
| Number Of Rows | 1 |
| Harmonization Code | 8482.20.00 |
| Cup Part Number | LL714610 |
| Design Units | Inch |
| Cup Width | 0.3750 in (9.525 mm) |
| Cup Backface To Clear Radius | 0.06" |
| Cup Frontface Backing Diameter | 3.90" |
| Industry Terms | tapered roller bearing cup; taper bearing outer race; single cup; Class 3 tapered cup; 4.1563 in OD cup; LL714600 series cup |
| Common Misspellings | Timkin LL714610-3; Timken LL 714610-3; Timken LL714610 3; Timken LL-714610 |
| Application Types | Thin-section tapered roller bearing assemblies; machine tool spindles; general industrial machinery |
| Cross Reference 1 | SKF LL714610 - standard class |
|---|---|
| Cross Reference 2 | NTN 4T-LL714610 - standard class |
| Cross Reference 3 | Koyo LL714610 - standard class |
| Cross Reference 4 | NSK LL714610 - standard class |

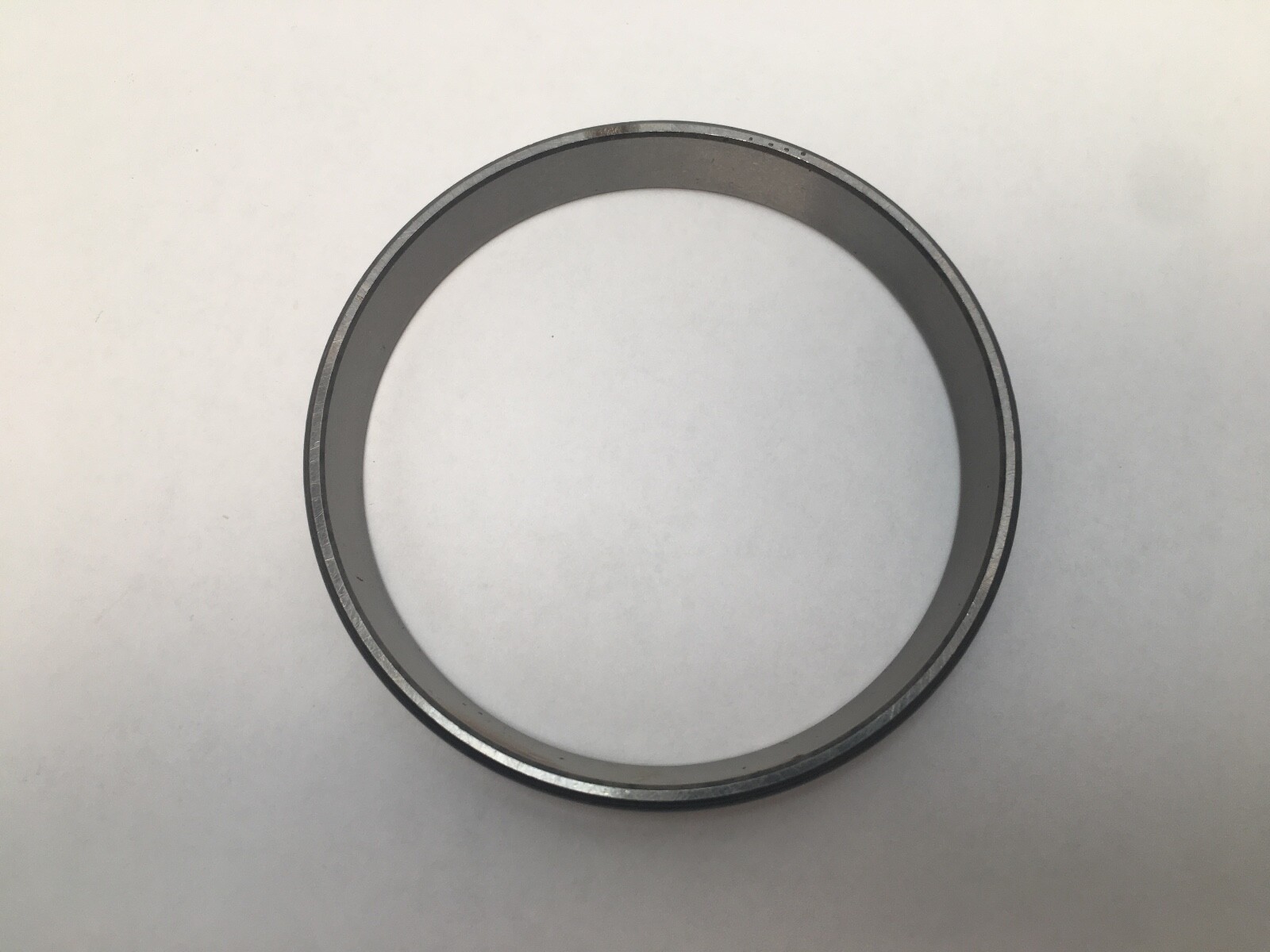

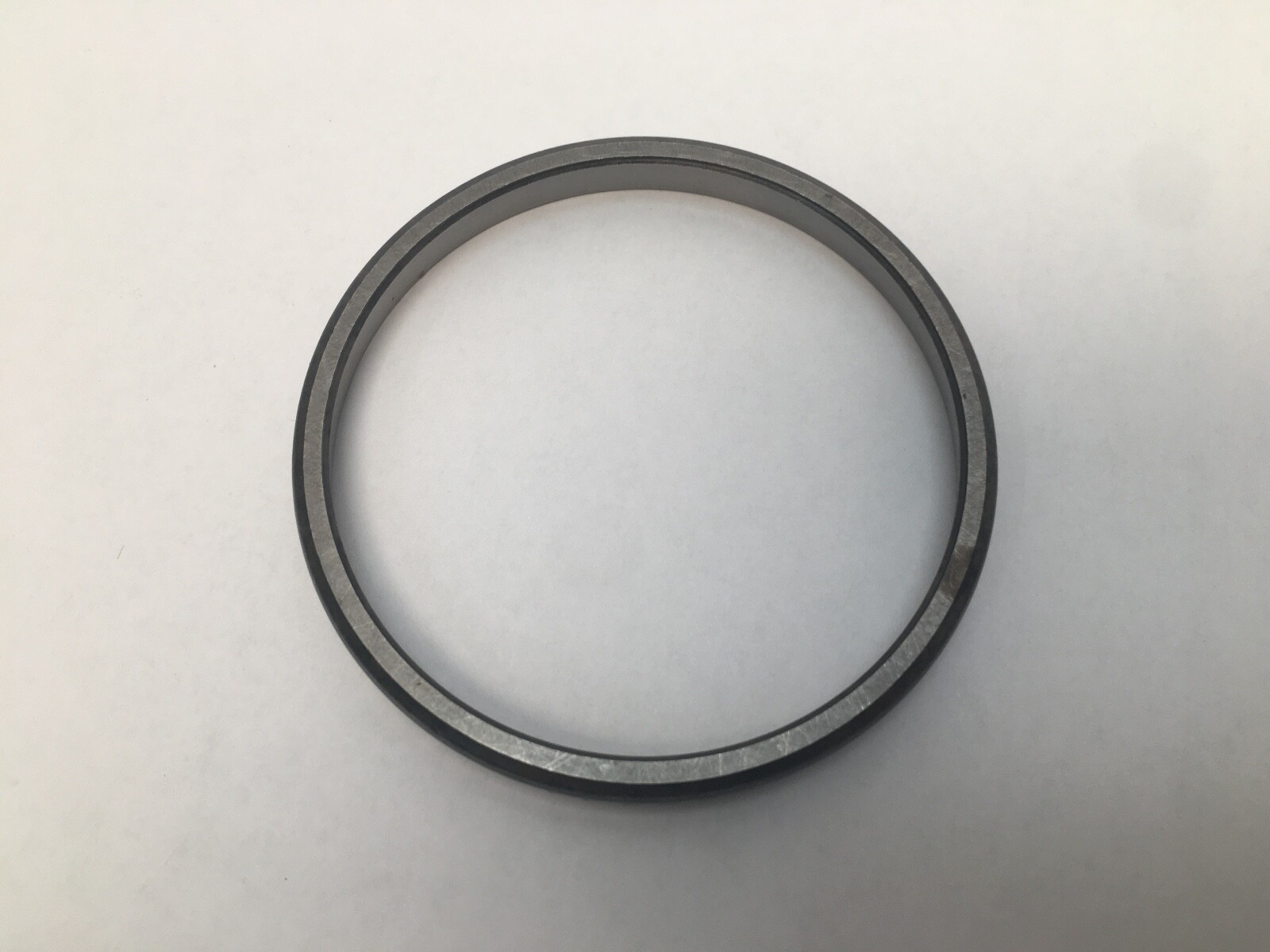

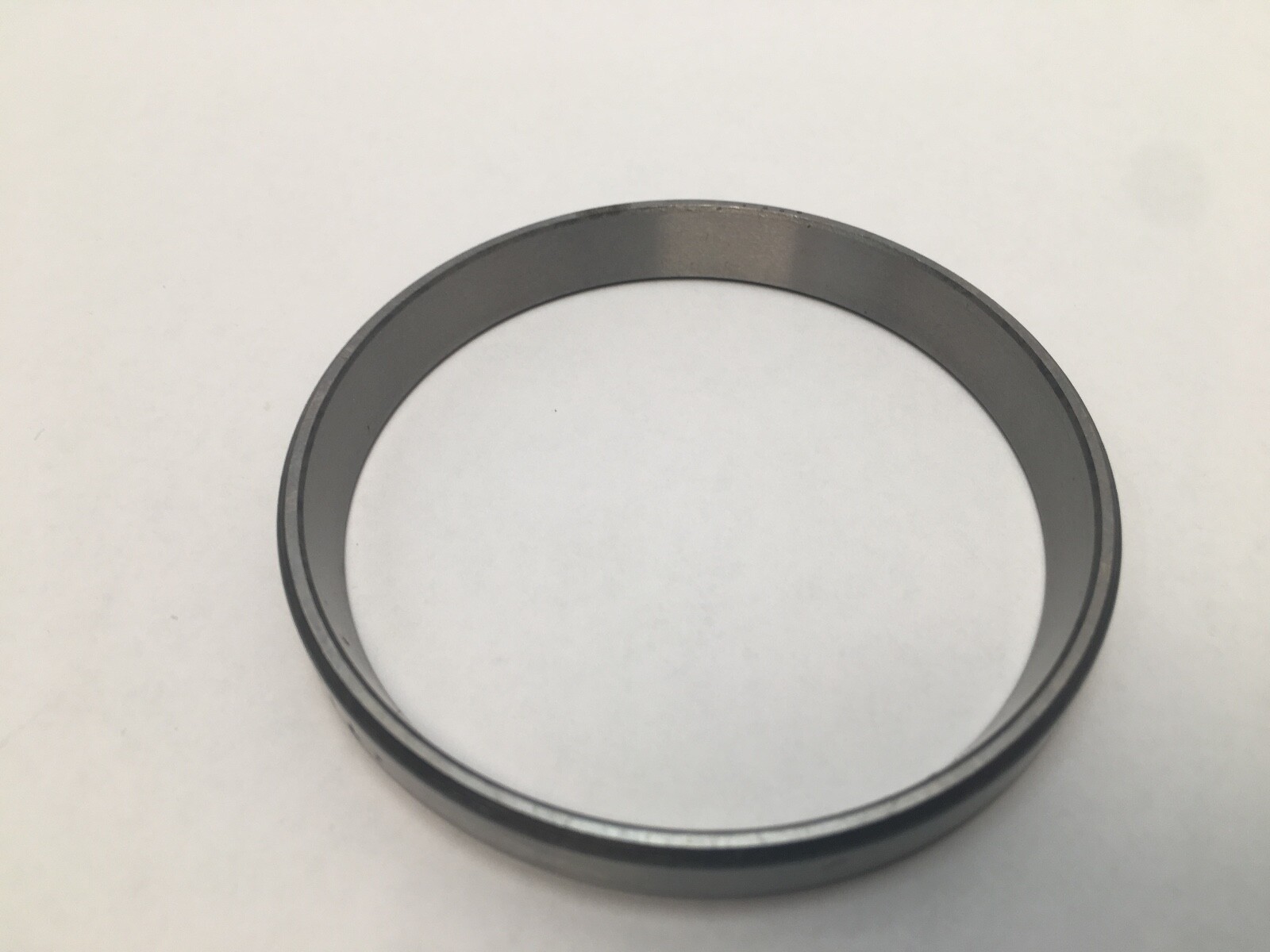

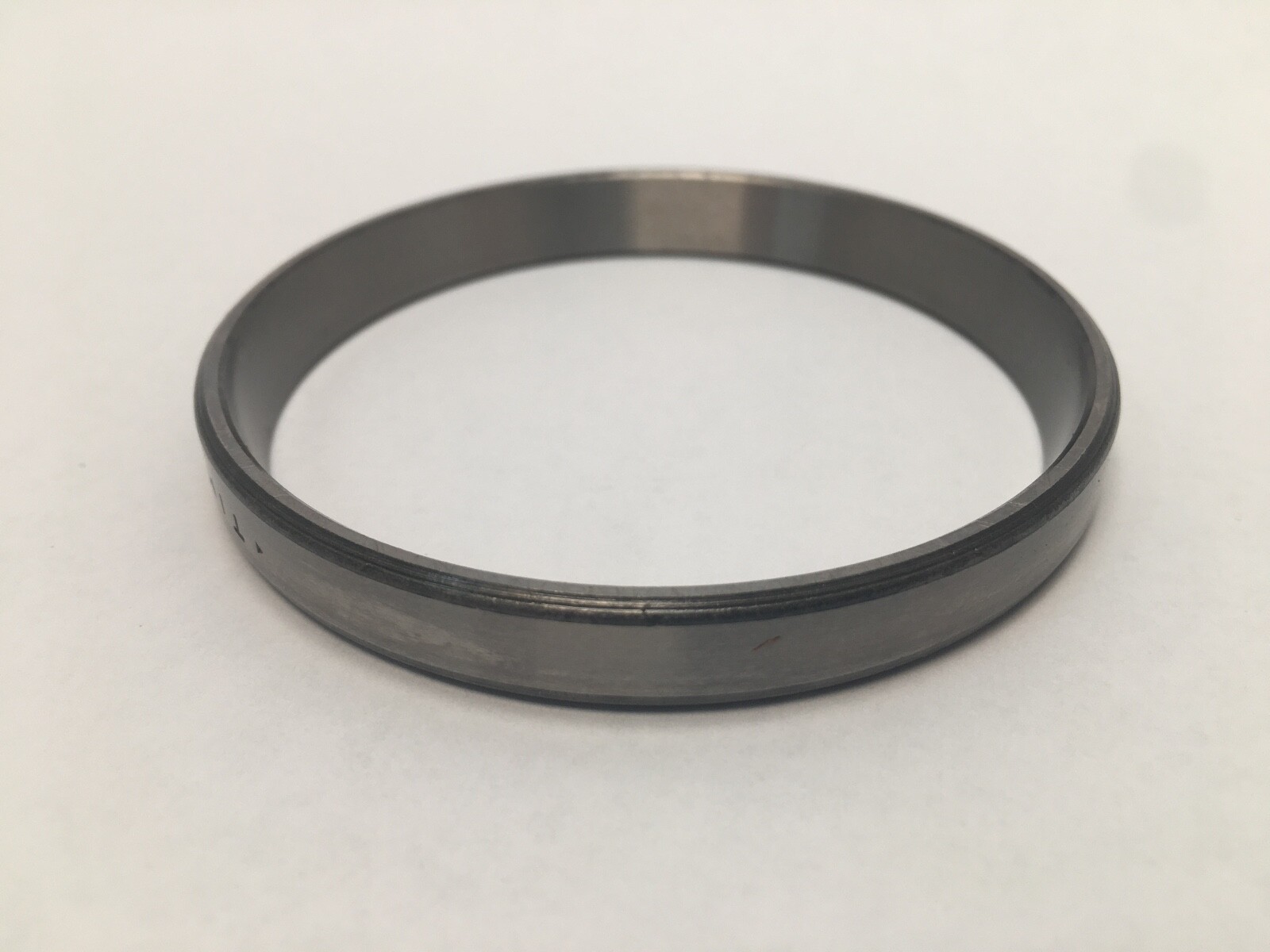

Timken LL714610-3 tapered roller bearing cup: the outer ring of a single-row TS tapered roller bearing. Part Number: LL714610-3. Base Number: LL714610. Series: LL714600. Number Of Rows: 1. Unit Quantity: 1 Pc. Cup only. Matching cone: Timken LL714649.
LL — Timken extra-light-duty series prefix for thin-section tapers.
714610 — cup number in the LL714600 series.

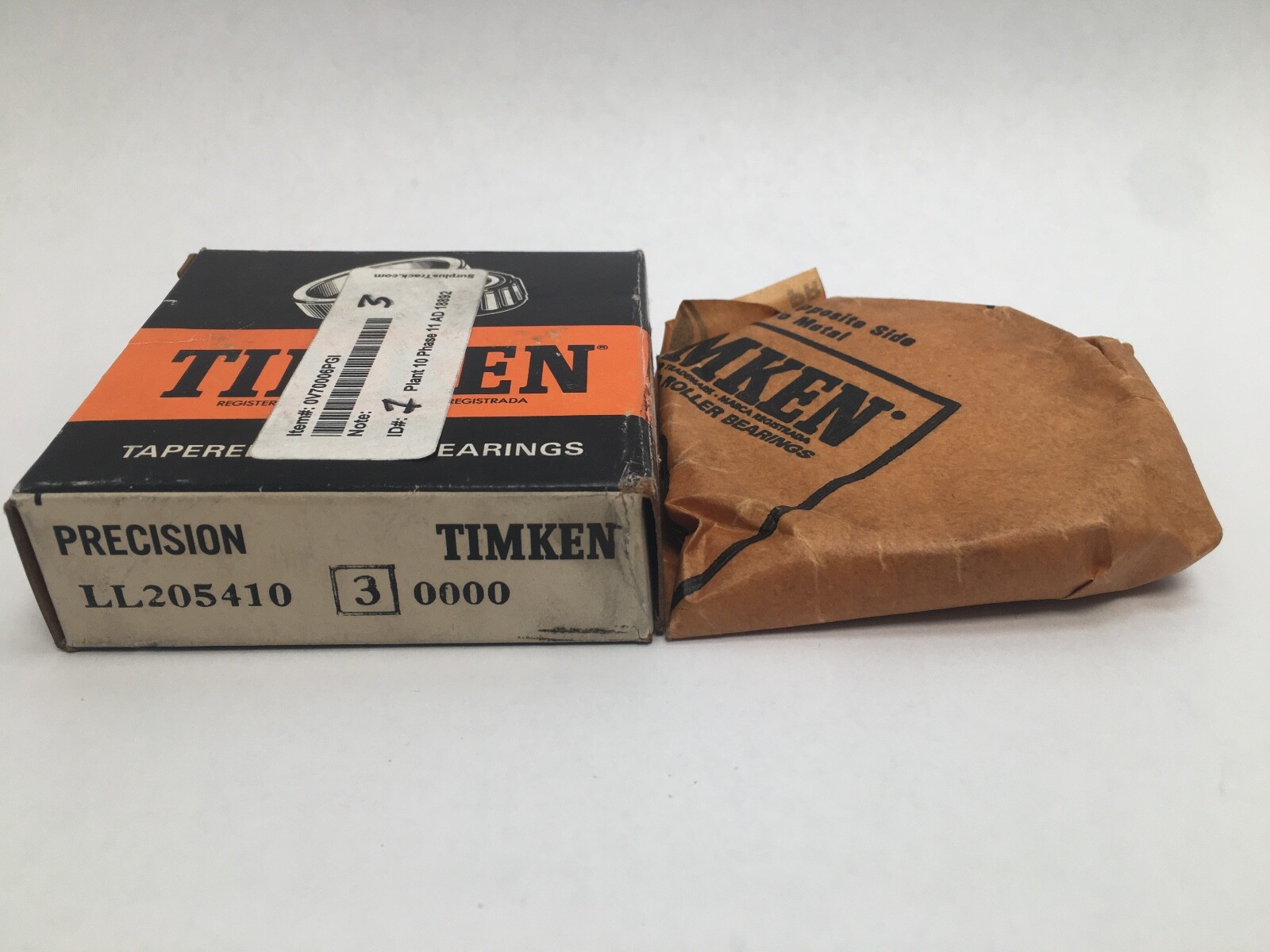

-3 — Timken precision Class 3, marked on cartons as -3, *3 or #3. Tighter runout and dimensional tolerance than standard Class 4.
Outside Diameter: 4.1563 in (105.570 mm). Overall Width: 0.3750 in (9.525 mm). Precision Class: Class 3. Item Weight: 0.3 kg (0.7 lb). e Factor: 0.47. Y Factor: 1.27. Geometry Factor (Cg): 0.0956. Design Units: Inch.
Max Housing Fillet Radius: 1.52 mm (0.06 in). Housing Backing Shoulder Diameter, Frontface (Da): 103.10 mm (4.06 in). Housing Backing Shoulder Diameter, Backface (Db): 99.06 mm (3.90 in).
Cross-references: SKF LL714610, NTN 4T-LL714610, Koyo LL714610, NSK LL714610; these carry the standard-class number without the -3 suffix. Matching cone: Timken LL714649.
CAD model and data sheet: available from Timken (cad.timken.com).
4.1563 in (105.570 mm) outside diameter and 0.3750 in (9.525 mm) width.
Timken precision Class 3, with tighter runout and dimensional tolerance than standard Class 4.
Timken LL714649.
