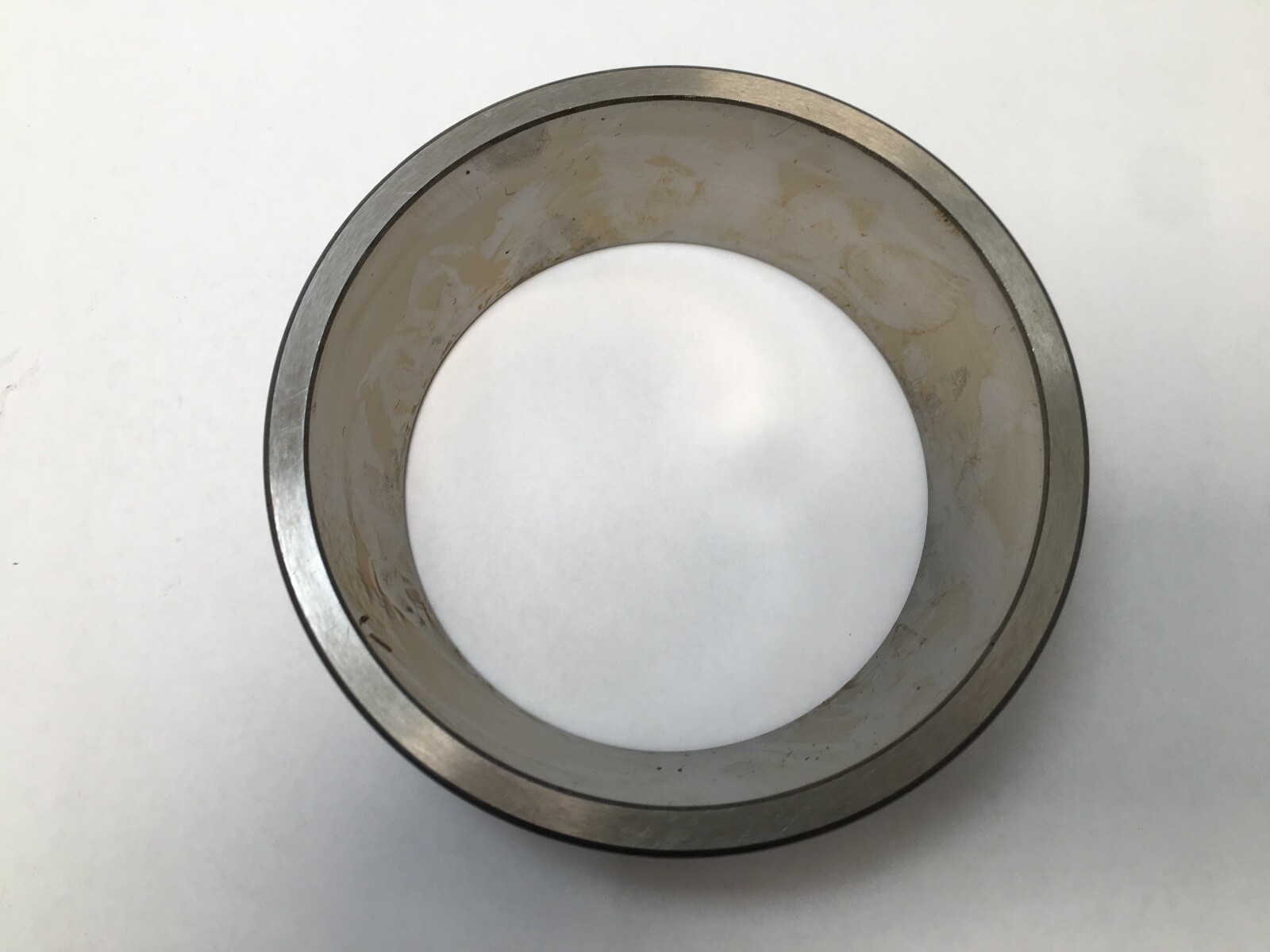

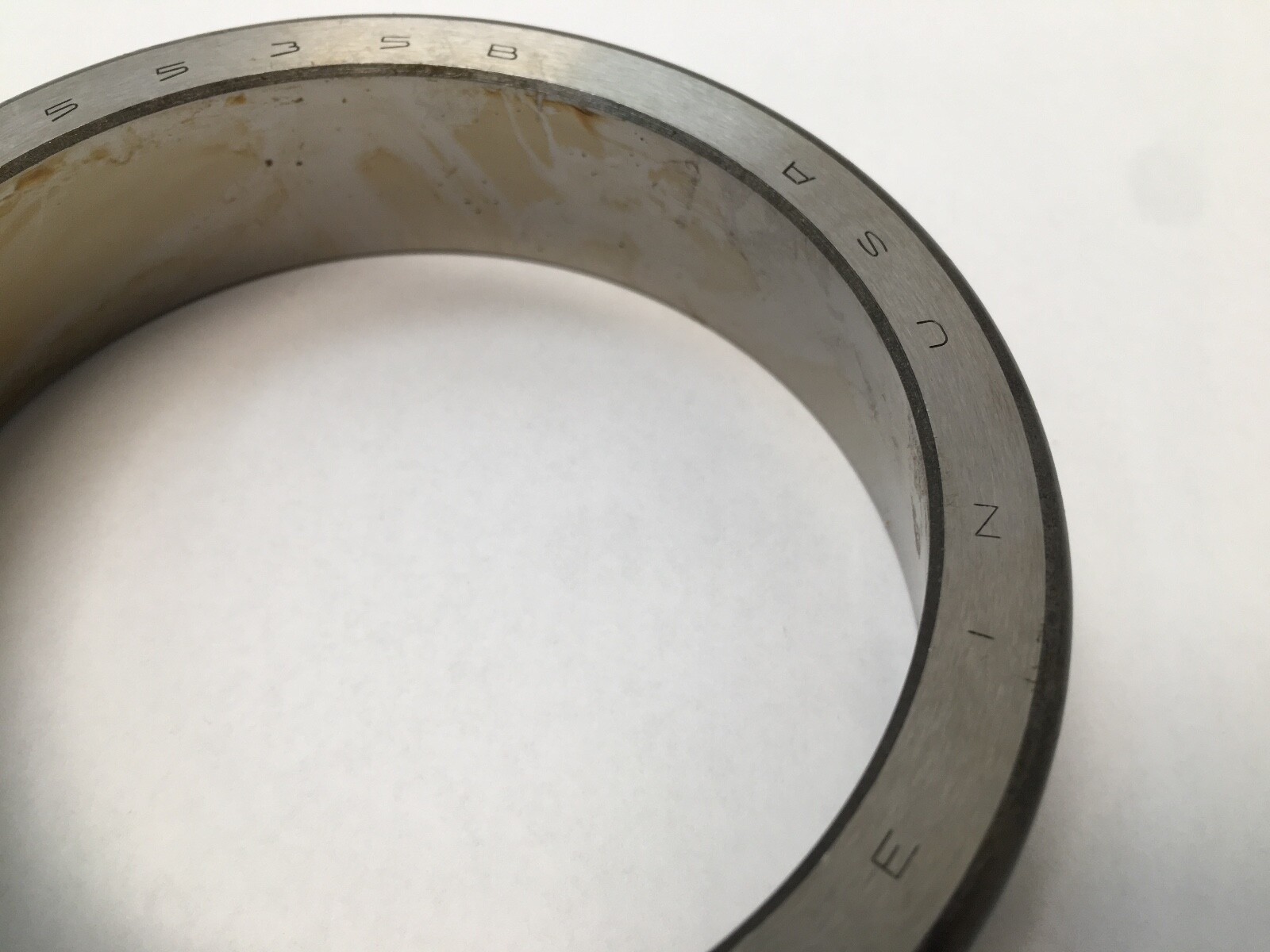

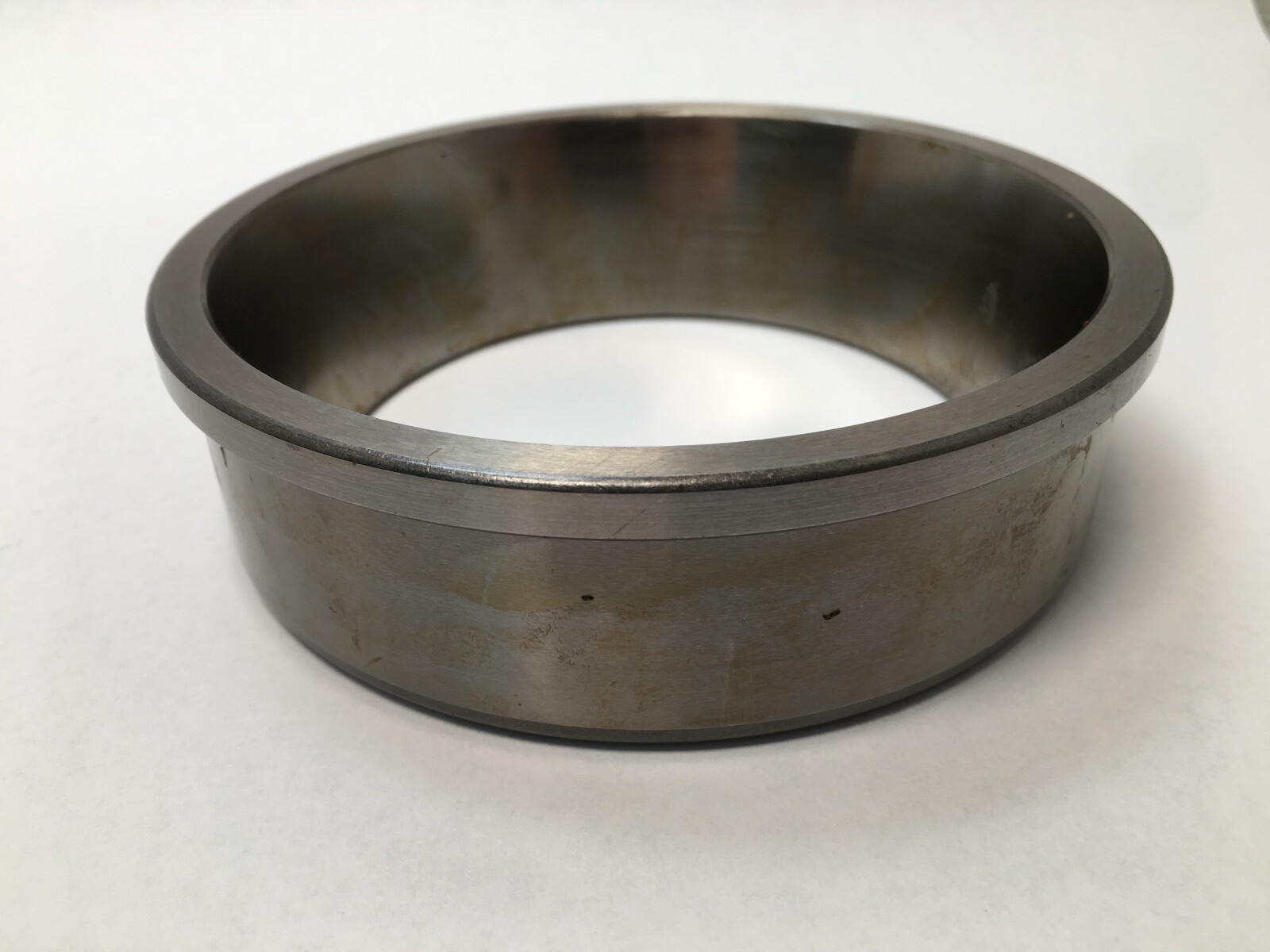

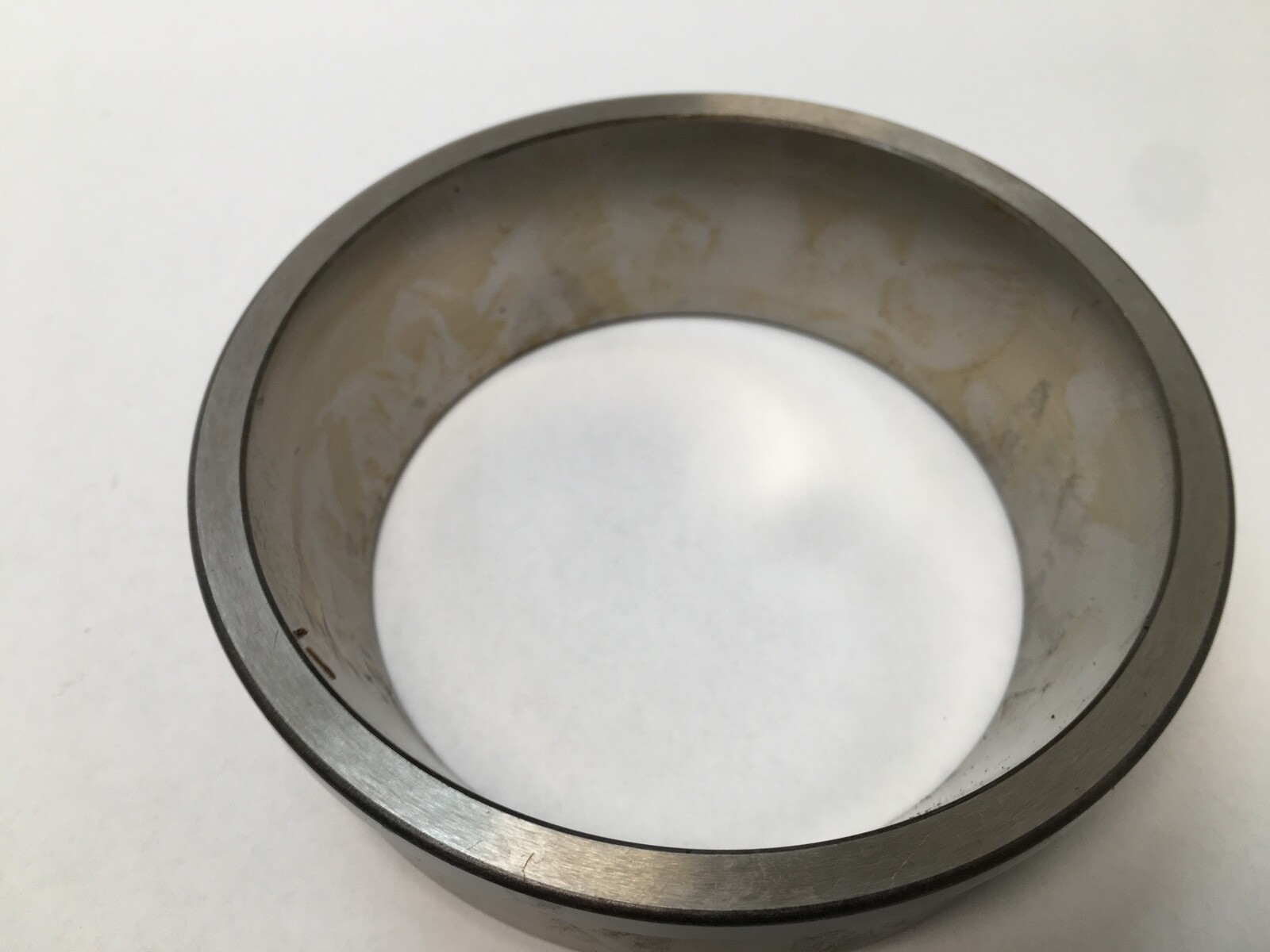

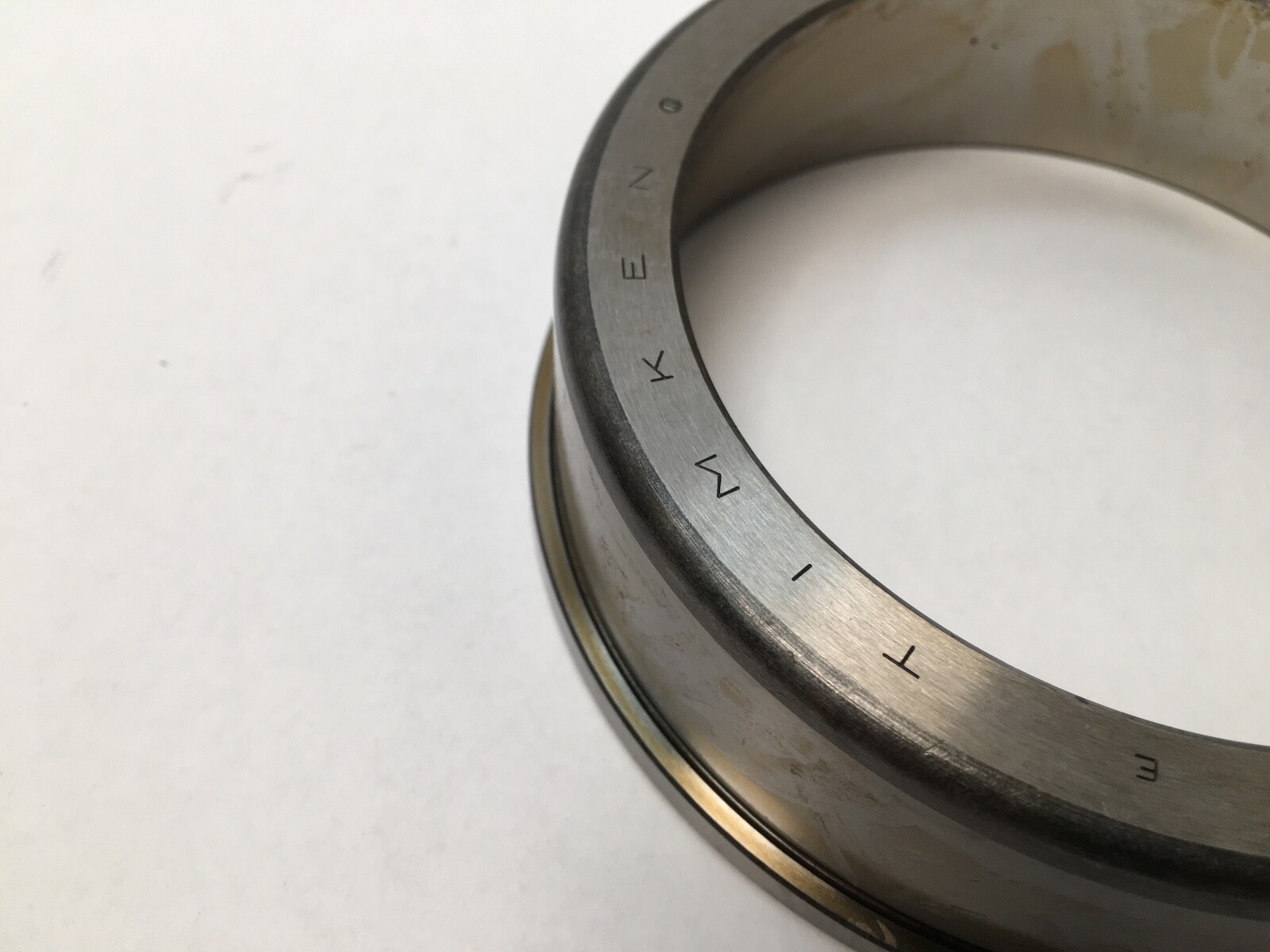

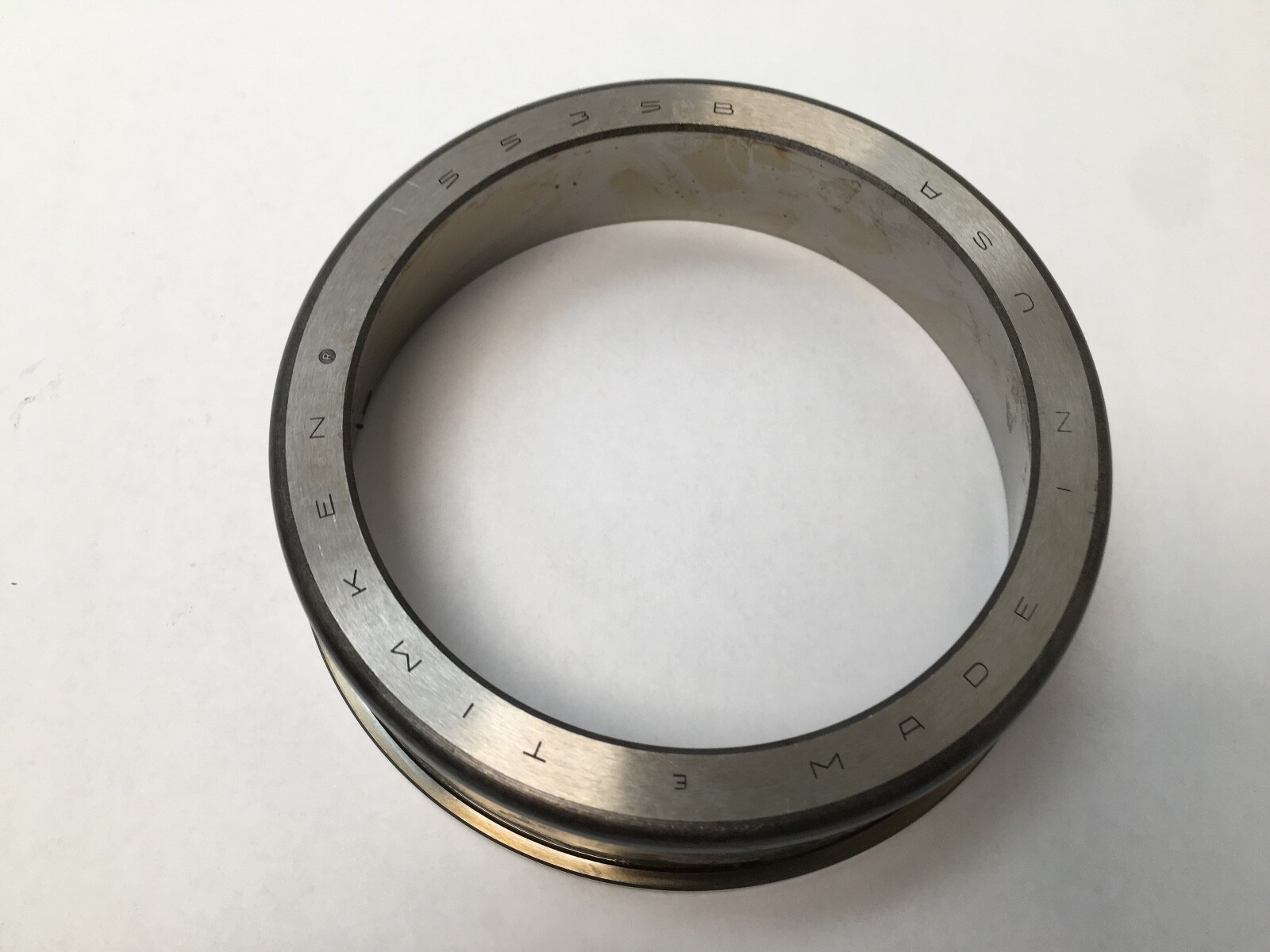

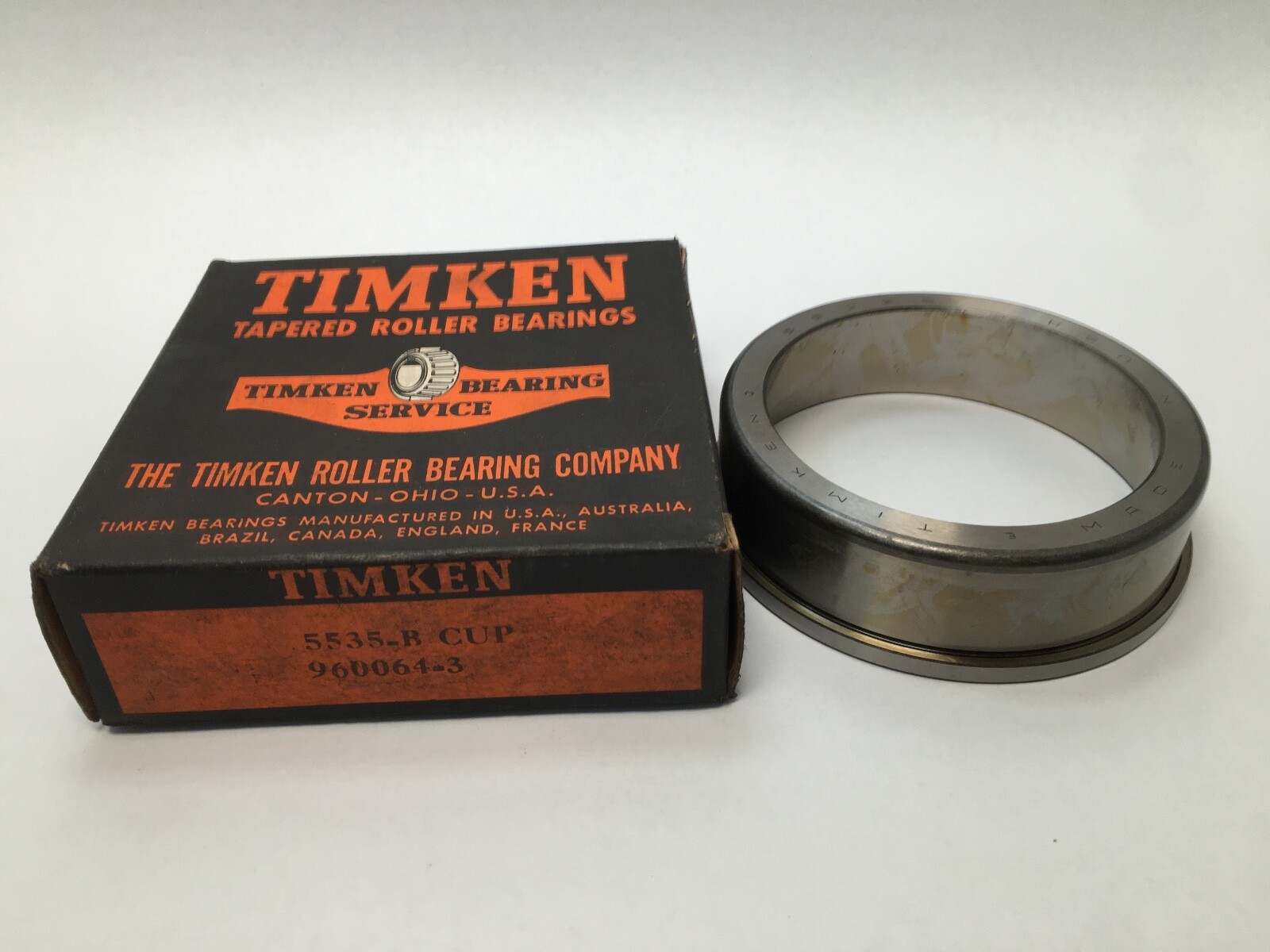

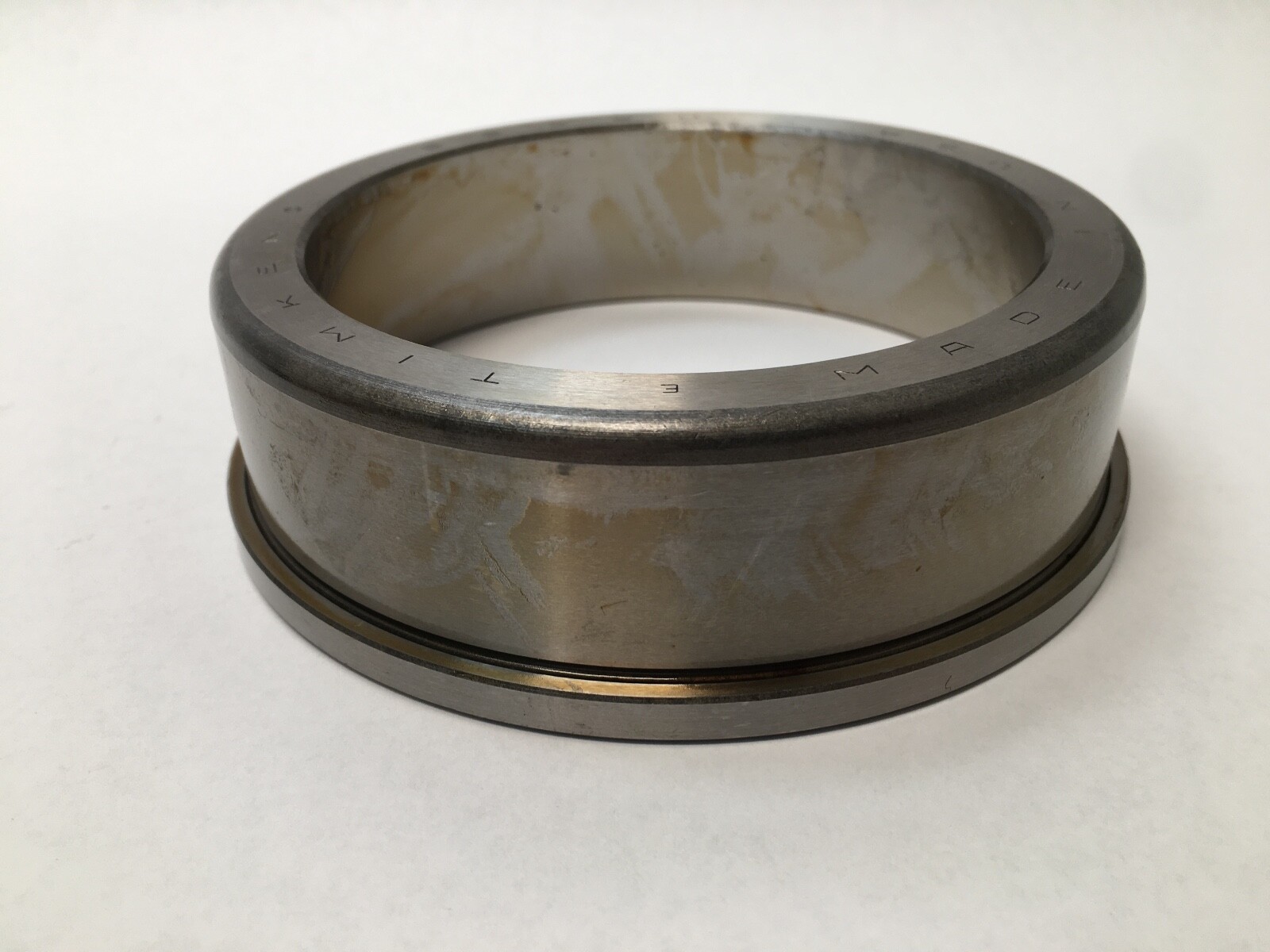

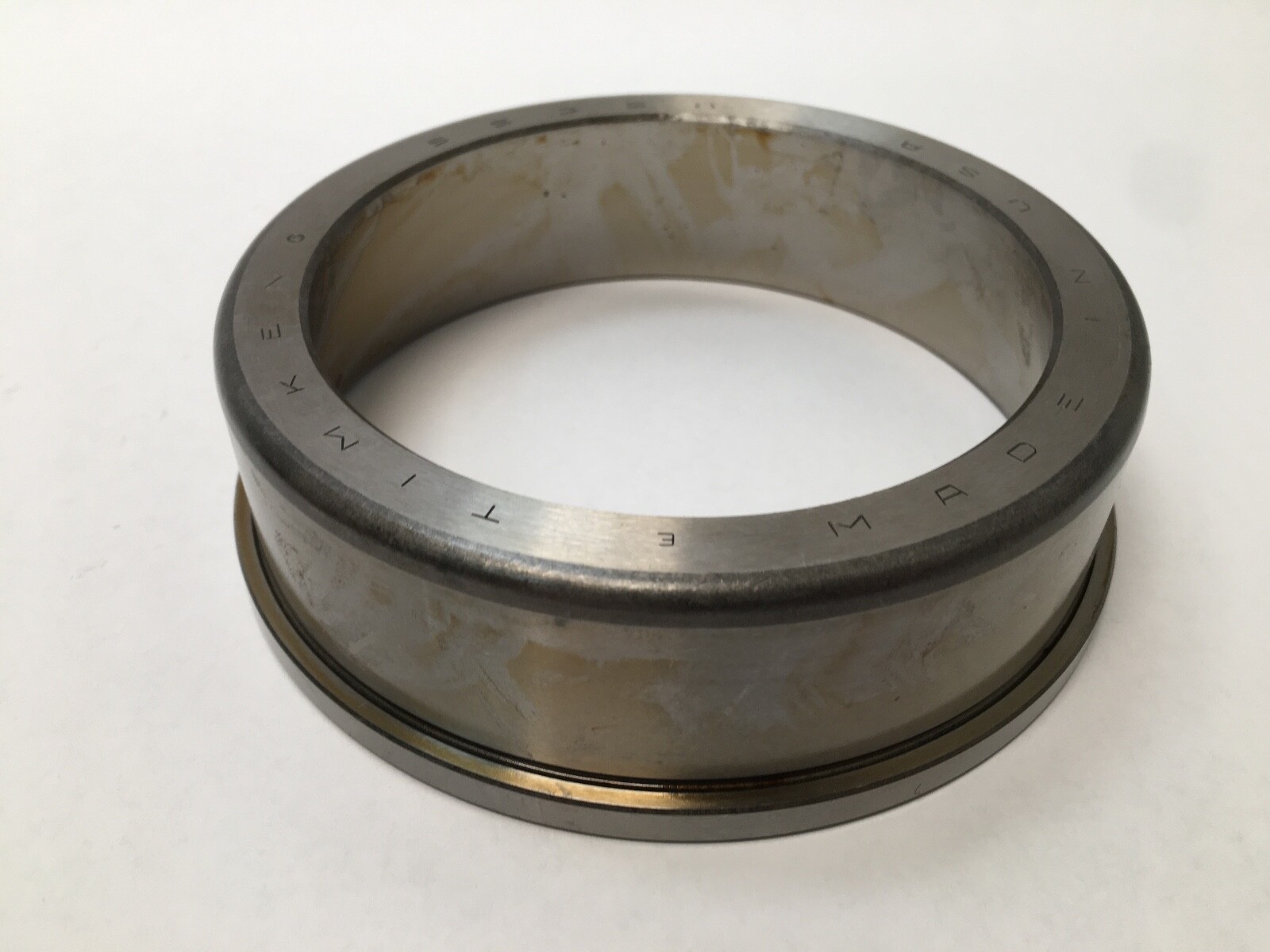

Timken 5535-B single flanged tapered roller bearing cup, 4.8125 in outside diameter, 1.4375 in width, 5.0625 in flange outside diameter, 0.25 in flange width.
List Price
$72.61
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 5535-B |
| GTIN | 053893142890 |
| Model | 5535B |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 4.8125 in |
| Series | 5500 |
|---|---|
| Base Number | 5535 |
| Overall Width | 1.4375 in |
| Mpn Variants | 5535-B; 5535B; 5535 B |
| Precision Class | Not specified |
| Material | Case-Carburized Steel |
| Rolling Elements | Tapered Roller |
| Item Weight | 2.30 kg (5.00 lb) |
| Number Of Rows | 1 |
| Harmonization Code | 8482.20.00 |
| Cup Part Number | 5535-B |
| Design Units | Imperial |
| Bearing Material | Case-Carburized Steel |
| Cup Width | 1.4375 in |
| Cup Backface To Clear Radius | 0.130 in |
| Cup Frontface Backing Diameter | 4.67 in |
| Industry Terms | flanged cup; TSF cup; tapered roller bearing outer race; inch tapered flanged cup; flanged bearing race |
| Common Misspellings | Timkin 5535B; Timkn 5535-B; Timken 5535 B flange cup |
| Cross Reference 1 | SKF 5535B |
|---|---|
| Cross Reference 2 | NTN 4T-5535B |
| Cross Reference 3 | Koyo 5535B |
| Cross Reference 4 | BCA/Bower 5535B |
| Cross Reference 5 | Timken 5535 – no flange |
Timken 5535-B inch tapered roller bearing single flanged cup (TSF), the outer race of a single-row tapered set. Cup only, Unit Quantity: 1 Pc. Cup Part Number: 5535-B. Base Number: 5535. Design Units: Imperial. Rolling Elements: Tapered Roller. Number Of Rows: 1. GTIN: 053893142890.
5535 — the Timken cup number, fixing a 4.8125 in outside diameter and a 1.4375 in outer ring width.

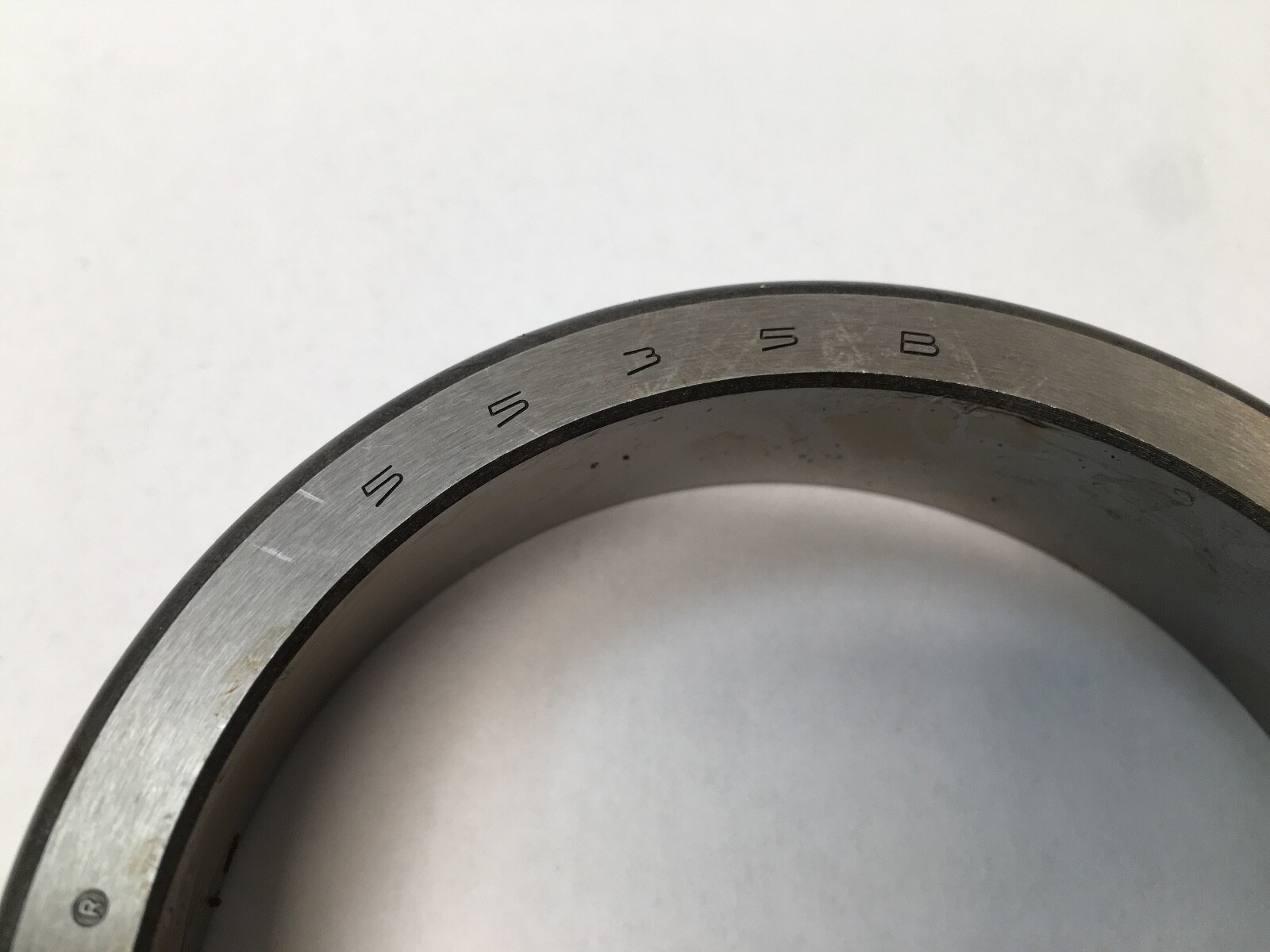

B — flanged execution. An integral flange on the outer ring locates the cup against the housing face.
Outside Diameter: 4.8125 in (122.238 mm). Overall Width: 1.4375 in (36.513 mm). Outer Ring Flange Outside Diameter: 5.0625 in (128.588 mm). Outer Ring Flange Width: 0.25 in (6.35 mm). Bearing Material: Case-Carburized Steel. Item Weight: 2.30 kg (5.00 lb). Series: 5500. Precision Class: Not specified.
e Factor: 0.36. K Factor: 1.63. Y Factor: 1.67. Geometry Factor (Cg): 0.0825.
Maximum Housing Fillet Radius cleared by the bearing corner: 0.130 in (3.30 mm). Housing Backing Shoulder Diameter, frontface: 4.67 in (118.11 mm).
Cross-references: SKF 5535B. NTN 4T-5535B. Koyo 5535B. BCA/Bower 5535B. The plain Timken 5535 has the same 4.8125 in outside diameter and is a related size without a flange.
Searchable designation variants: 5535B, 5535-B, 5535 B.
Outside diameter 4.8125 in (122.238 mm), width 1.4375 in (36.513 mm), flange outside diameter 5.0625 in (128.588 mm) and flange width 0.25 in (6.35 mm).
Yes. The B suffix marks the flanged execution, a single flanged cup (TSF) with an integral outer ring flange.
GTIN: 053893142890, published by Timken for cup part number 5535-B.
