Availability:
7 in stock

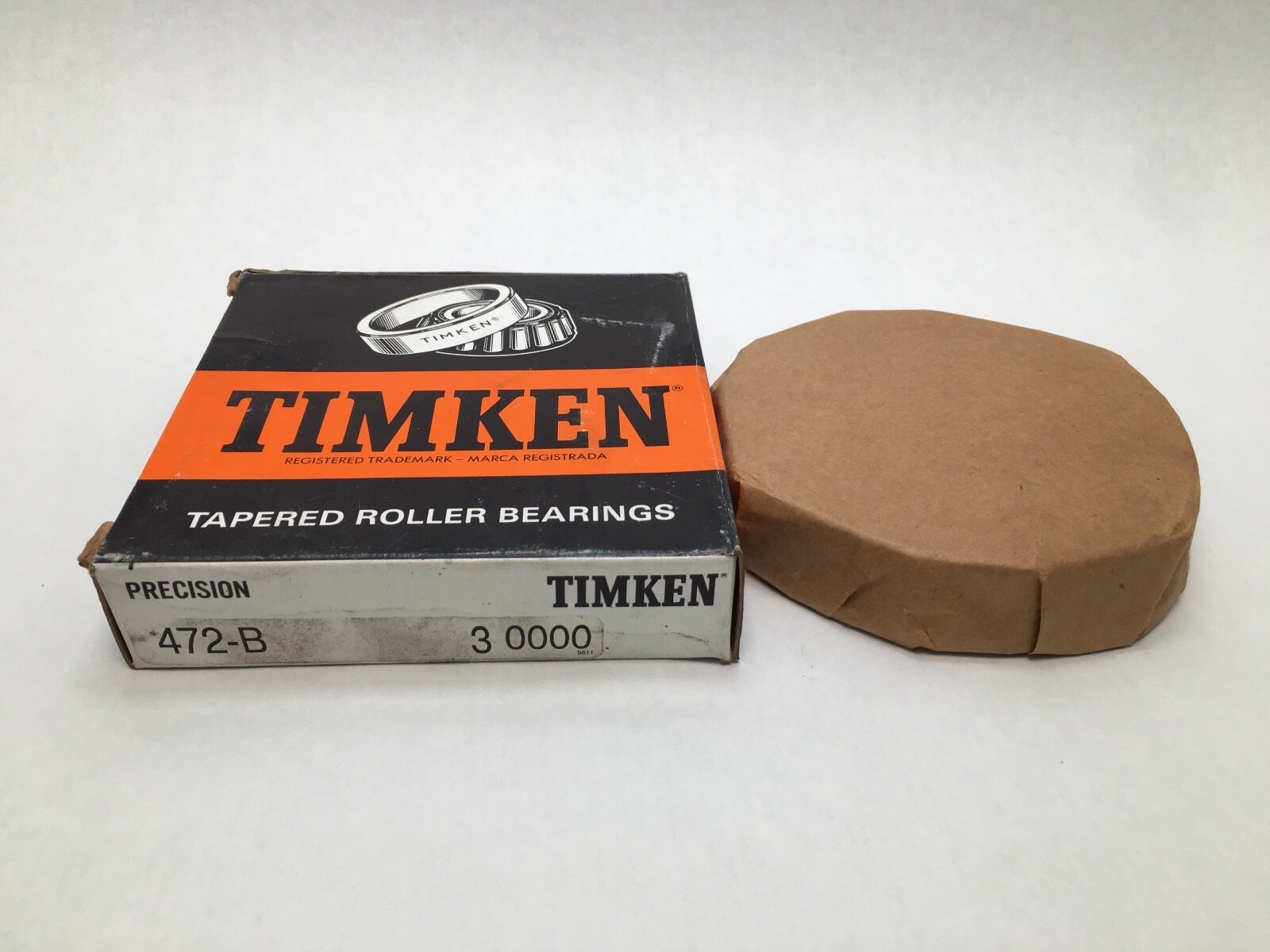

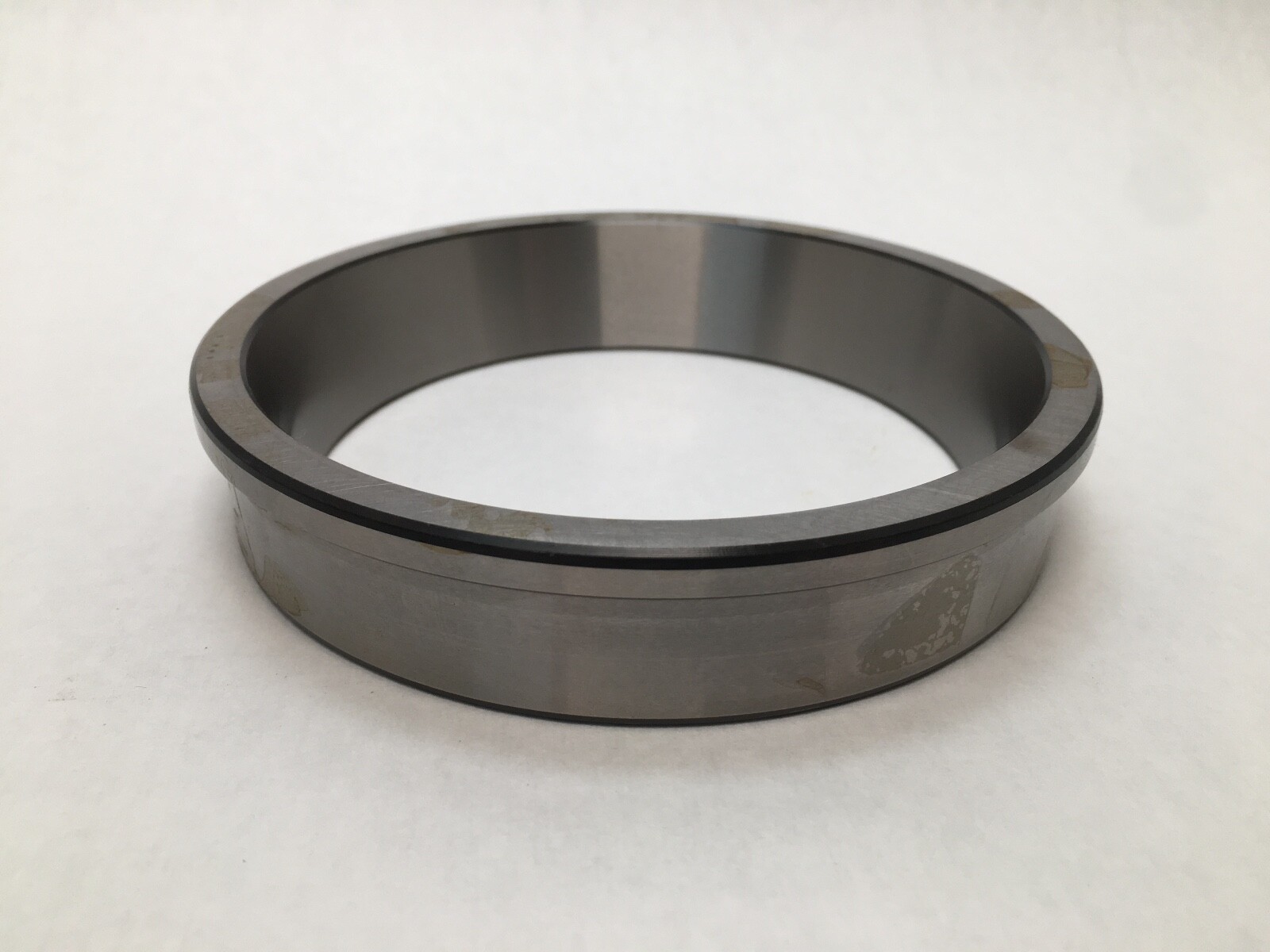

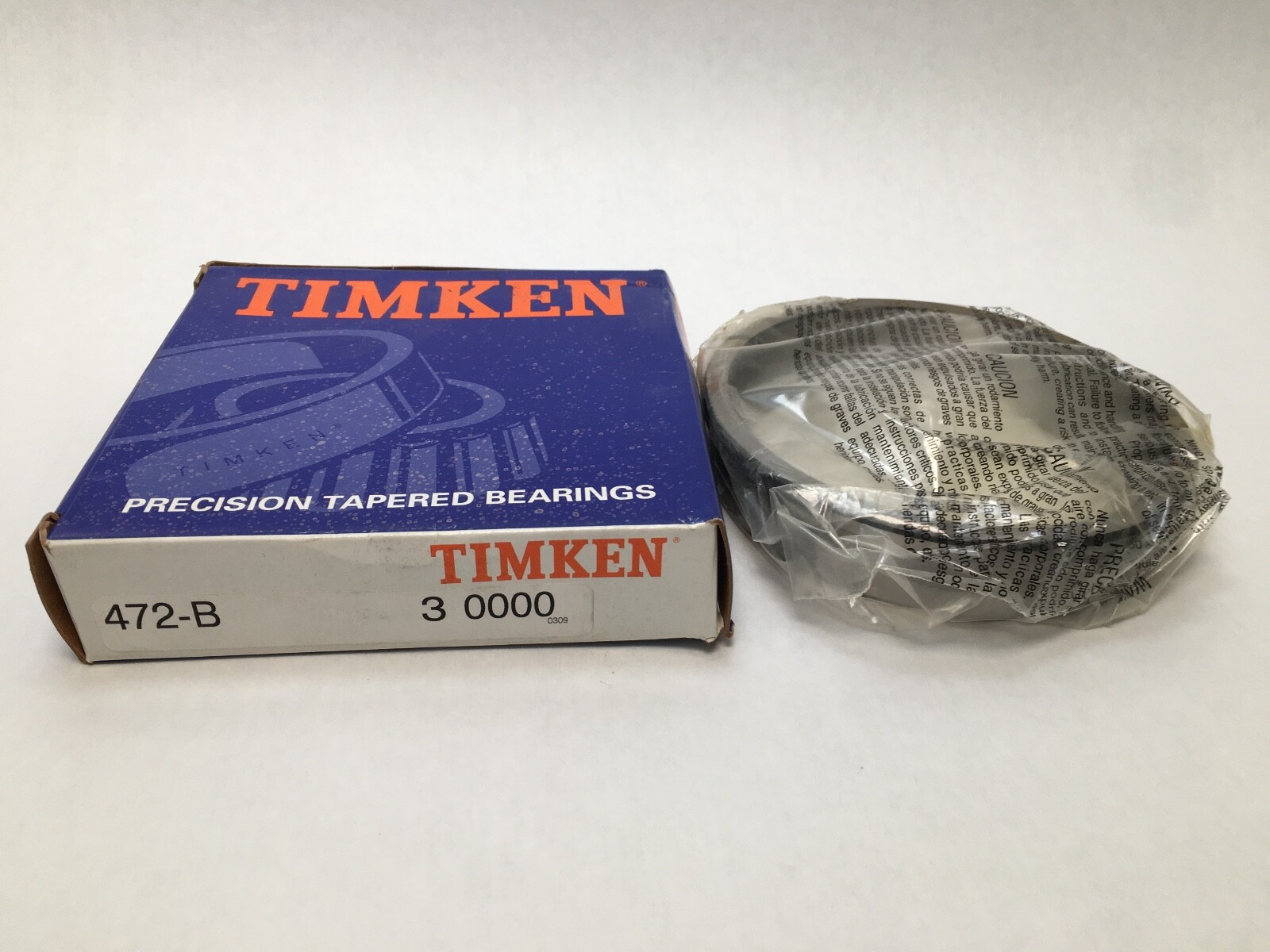

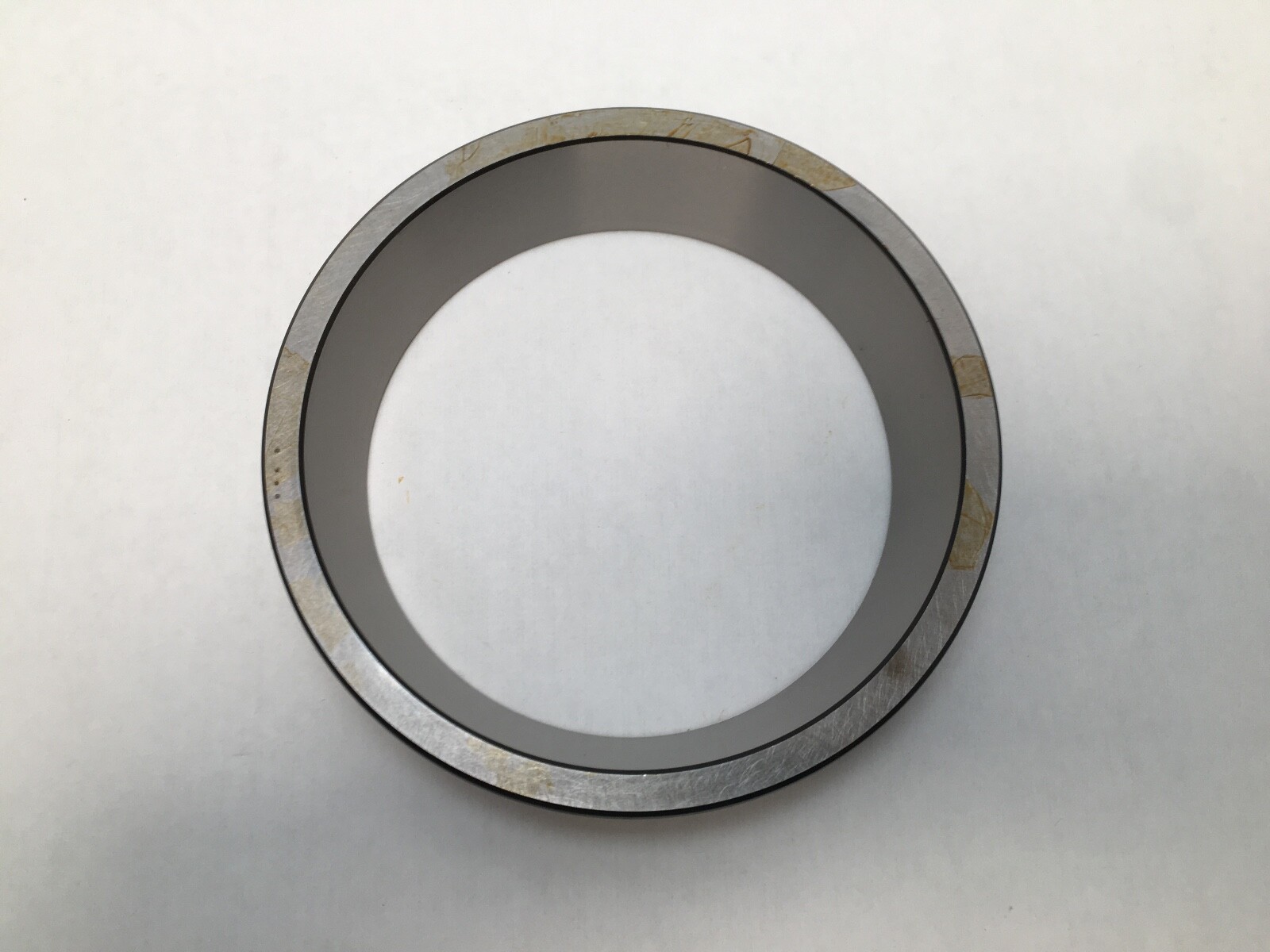

Flanged inch tapered roller bearing cup, 4.7244 in outside diameter, 0.9542 in width, Class 3. Runs against a 480 or 484 cone.
List Price
$133.79
7 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 472B-3 |
| GTIN | 053893038346 |
| Model | 472 B 3 |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 4.7244 in (120 mm) |
| Series | 475 |
|---|---|
| Base Number | 472B |
| Overall Width | 0.9542 in (24.237 mm) |
| Flange Outer Diameter | 4.968 in |
| Cup Flange Width | 0.250 in |
| Bearing Width To Flange | 0.250 in |
| Mpn Variants | 472B-3; 472-B *3; 472B #3; 472B3; 472-B-3 |
| Compatible With Replaces | Mating cones: Timken 480, Timken 484 |
| Precision Class | Class 3 |
| Additional Attributes | e Factor 0.38; K Factor 1.52; Y Factor 1.56; G1 38.8; G2 27.8; Cg 0.108; Flange OD (D1) 125.435 mm; Flange width (C2) 5.537 mm; Max housing fillet radius 0.8 mm; Da 115.82 mm |
| Rolling Elements | Tapered Roller |
| Item Weight | 1.4 kg (3.0 lb) |
| Number Of Rows | 1 |
| Harmonization Code | 8482.20.00 |
| Cup Part Number | 472B |
| Cup Width | 1.0000 in |
| Cup Backface To Clear Radius | 0.13 in |
| Part Number | 472B-3 |
| Cup Frontface Backing Diameter | 4.41 in |
| Cross Reference 1 | Timken 472 – related size, unflanged cup, same 4.7244 in outside diameter and raceway |
|---|---|
| Cross Reference 2 | Timken 472A – related size, unflanged cup, same 4.7244 in outside diameter |
Timken 472B-3 flanged inch tapered roller bearing cup. Bearing Type: Tapered roller bearing cup with an integral outer-ring flange. Series: 472. Base Number: 472B. Outside Diameter: 4.7244 in (120 mm). Overall Width: 0.9542 in (24.237 mm). Outer Ring Flange Outside Diameter (D1): 4.9384 in (125.435 mm). Outer Ring Flange Width (C2): 0.2180 in (5.537 mm). Rolling Elements: Tapered Roller. Number Of Rows: 1. Item Weight: 1.4 kg (3.0 lb).
472 — Timken base cup number, 4.7244 in outside diameter. The 120 mm metric outside diameter is exact, which is why this cup drops into metric housings as well as inch ones.

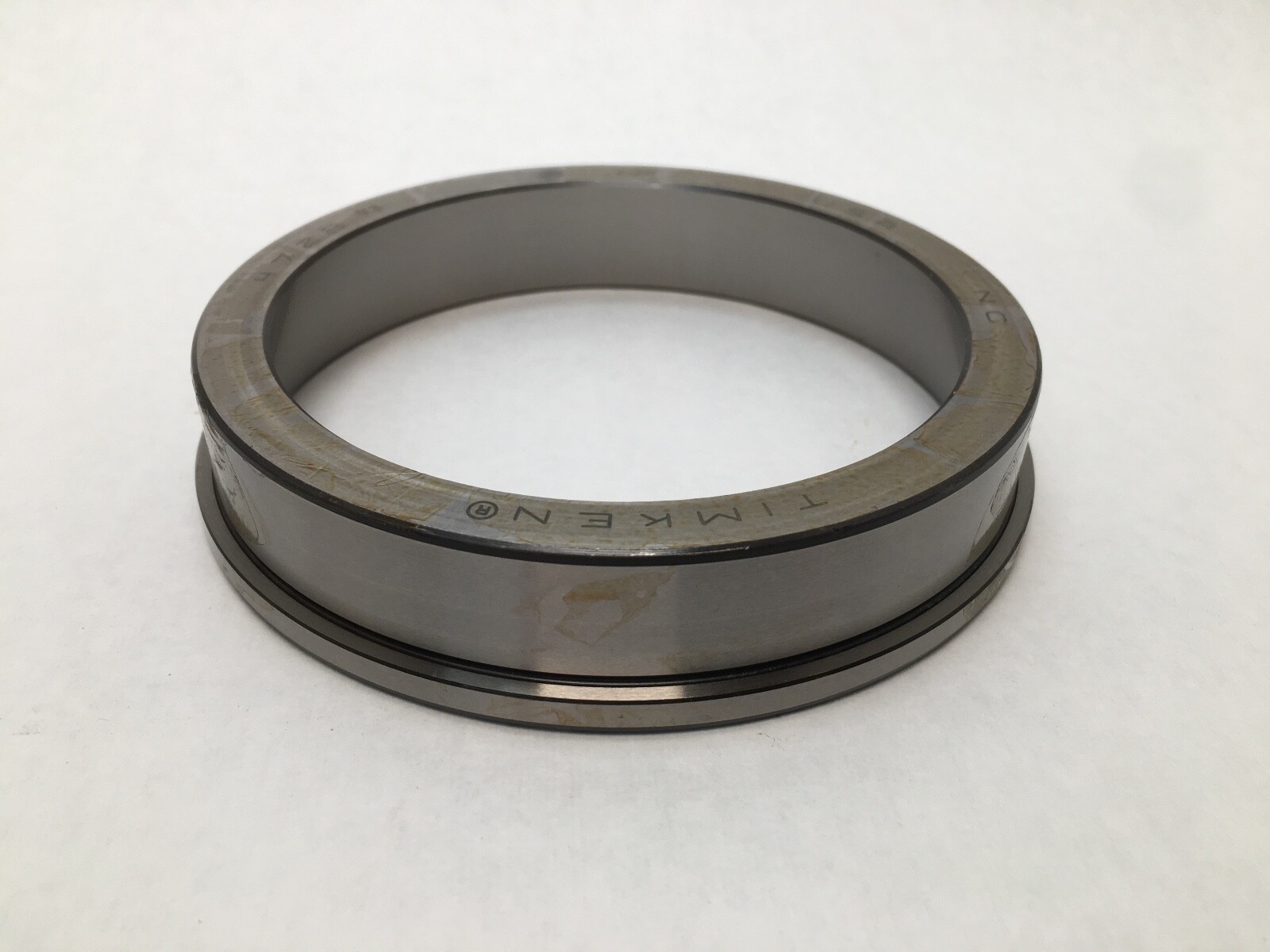

B — flanged execution. The flange raises the outside diameter to 4.9384 in over a 0.2180 in band at one end, so the cup seats on the face of a through-bored housing instead of on an internal shoulder.

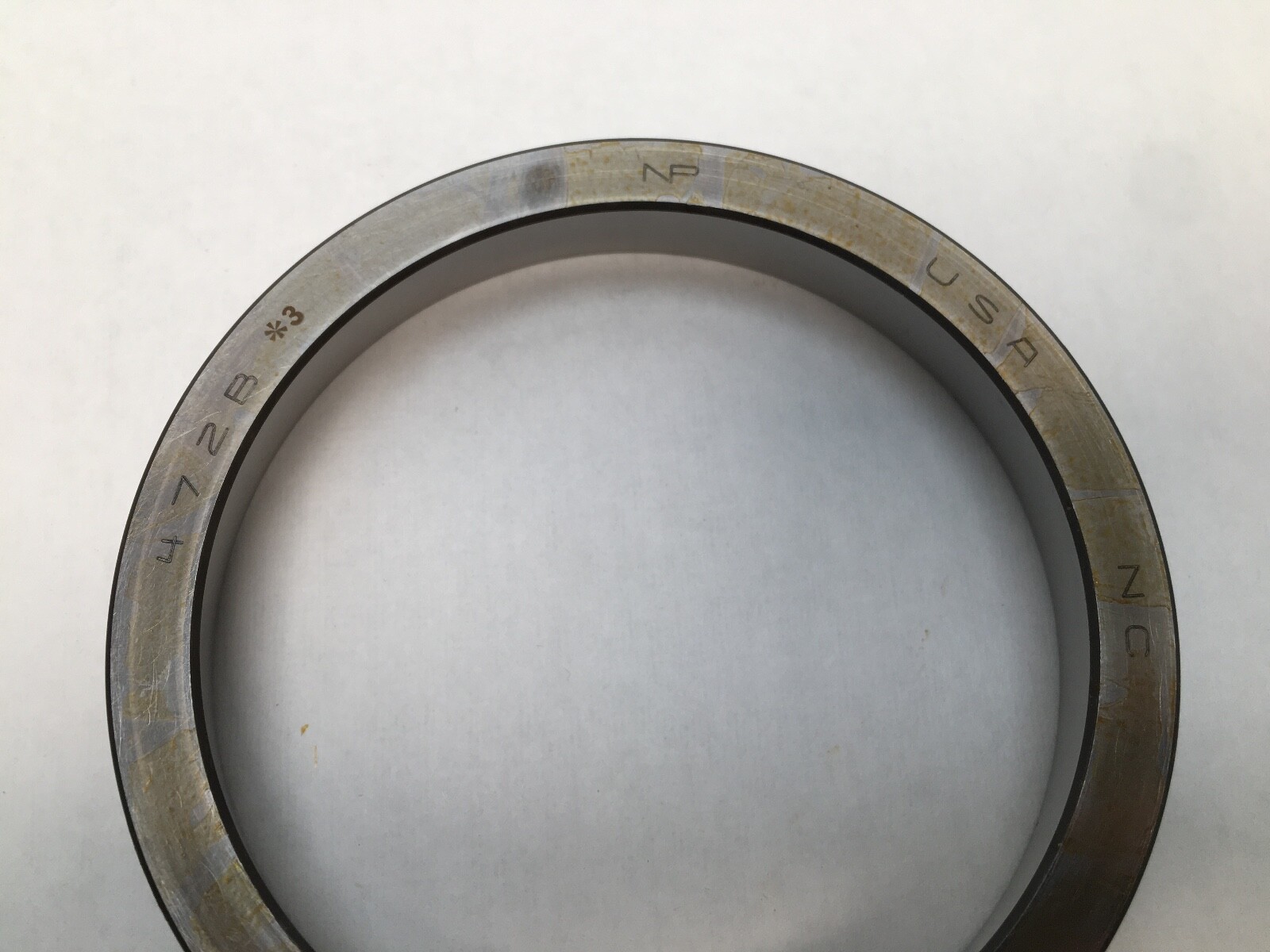

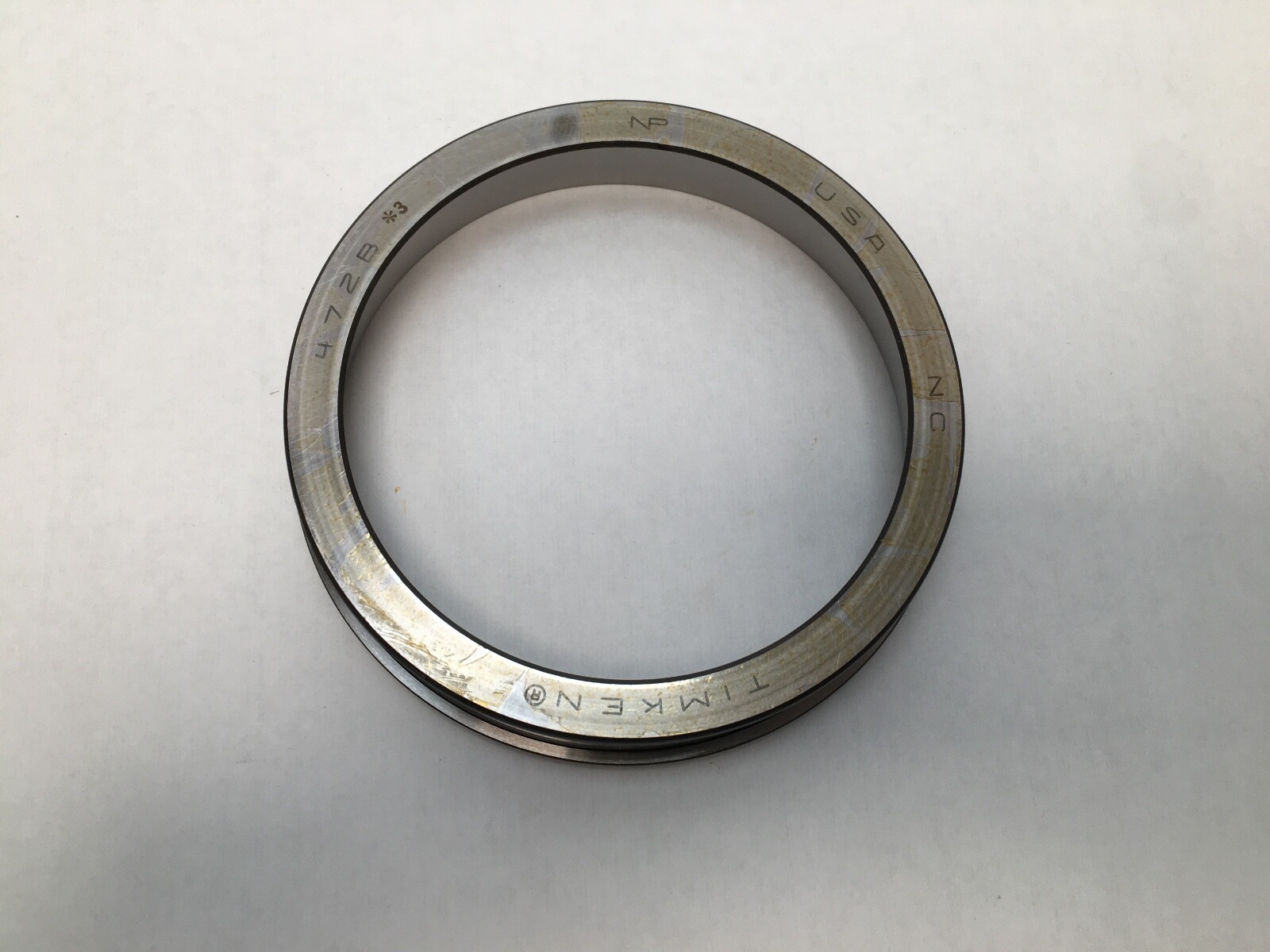

*3 — Timken Precision Class 3. Tighter running and mounting tolerance than standard class, giving lower running vibration and closer location in the housing bore. The same class is written 472B-3, 472B *3 and 472B #3.
e Factor: 0.38. K Factor: 1.52. Y Factor: 1.56. G1 Factor: 38.8. G2 Factor: 27.8. Geometry Factor (Cg): 0.108. A K of 1.52 is a moderately shallow roller angle: radial capacity leads, with a working thrust share in an opposed pair.
Maximum fillet radius on the mating housing: 0.8 mm (0.03 in). Housing Backing Shoulder Diameter, frontface (Da): 115.82 mm (4.56 in). The flange face sets axial position, so the housing bore can run straight through.
Unit Quantity: 1 Pc. Cup only. Matching cones are the Timken 480 and 484.
The flanged 472B is a Timken execution. The plain 472 and 472A cups share the 4.7244 in outside diameter and raceway and are built by several makers, but they locate on a housing shoulder rather than on a flange face, so they are related sizes rather than drop-in interchanges for a flanged seat. For a flanged 4.7244 in seat, Timken is the source.
