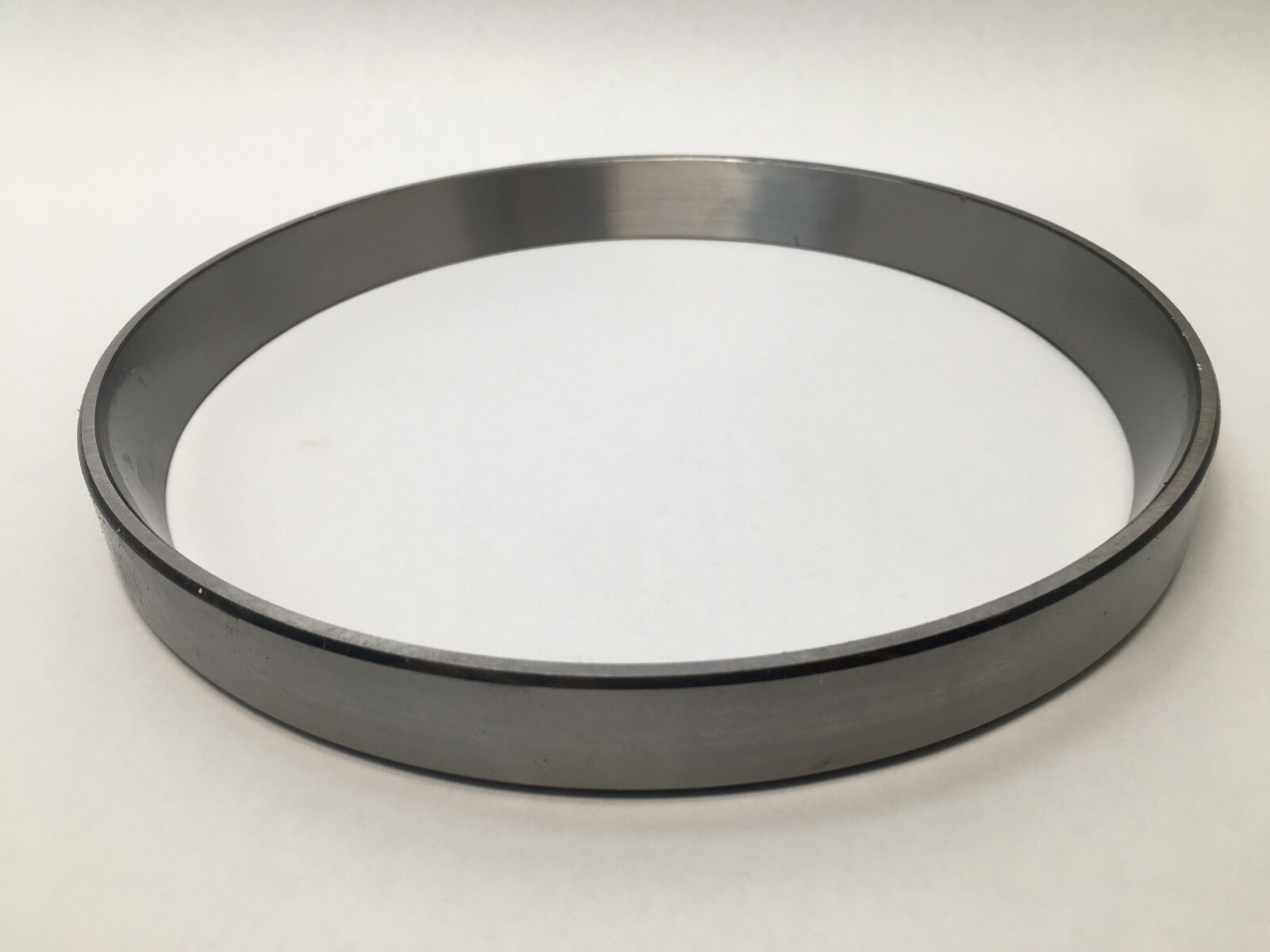

Timken 36920 inch tapered roller bearing cup, 8.9375 in outside diameter, 0.9063 in width, e factor 0.44. Caterpillar 476-9142. Matching cone: 36990.
List Price
$122.26
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 36920 |
| GTIN | 053893272856 |
| Model | 36-920 |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 8.9375 in (227.013 mm) |
| Series | 369 |
|---|---|
| Base Number | 36920 |
| Overall Width | 0.9063 in (23.020 mm) |
| Mpn Variants | 36920; 36-920; 36 920; 476-9142 |
| Compatible With Replaces | Mating cone: Timken 36990 |
| Precision Class | Not specified |
| Additional Attributes | e Factor 0.44; Y Factor 1.36; Cg 0.143; Max housing fillet radius 1.52 mm; Da 221.00 mm; Db 214.12 mm |
| Rolling Elements | Tapered Roller |
| Item Weight | 2.90 kg (6.4 lb) |
| Number Of Rows | 1 |
| Harmonization Code | 8482.20.00 |
| Cup Part Number | 36920 |
| Cup Width | 0.9063 in |
| Cup Backface To Clear Radius | 0.06 in |
| Part Number | 36920 |
| Industry Terms | tapered roller bearing cup; inch tapered bearing race; outer race; 369 series cup |
| Common Misspellings | Timken 36-920; Timken 36 920; Timken 36920 cap; Timkin 36920 |
| Cross Reference 1 | Caterpillar 476-9142 – same cup, OEM part number |
|---|---|
| Cross Reference 2 | Koyo 36920 – same inch cup number |
| Cross Reference 3 | NSK 36920 – same inch cup number |
| Cross Reference 4 | SKF 36920 – same inch cup number |

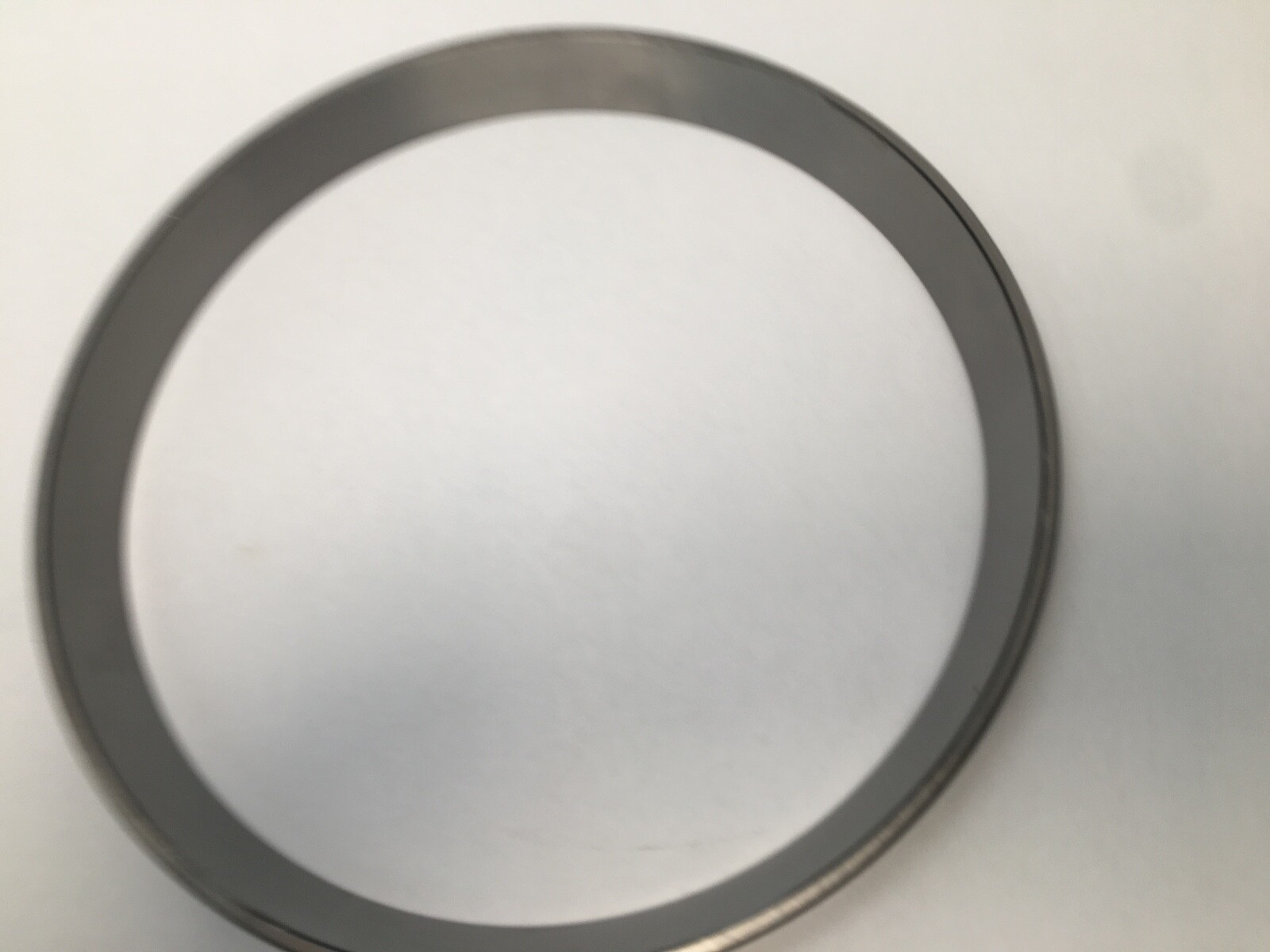

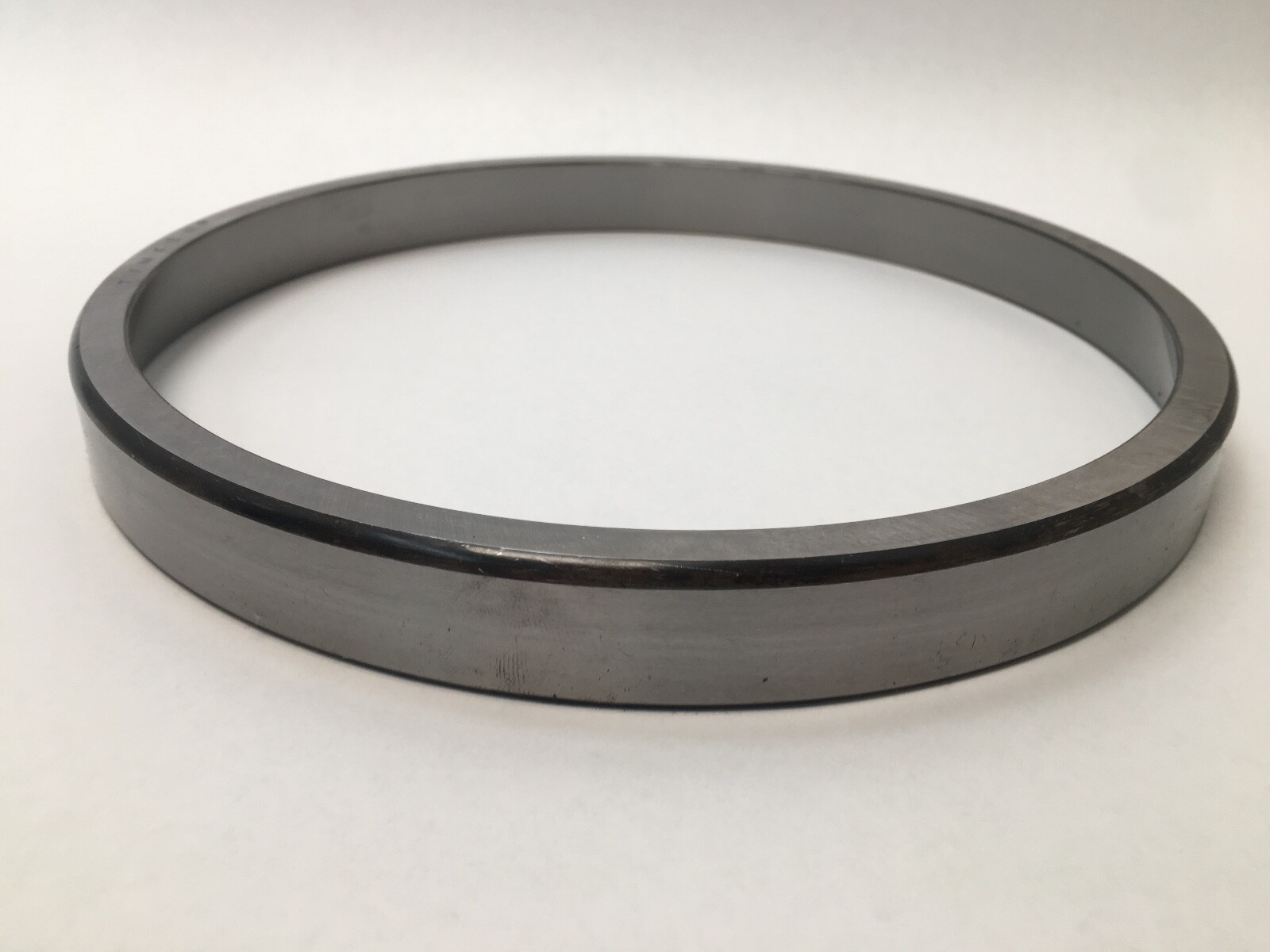

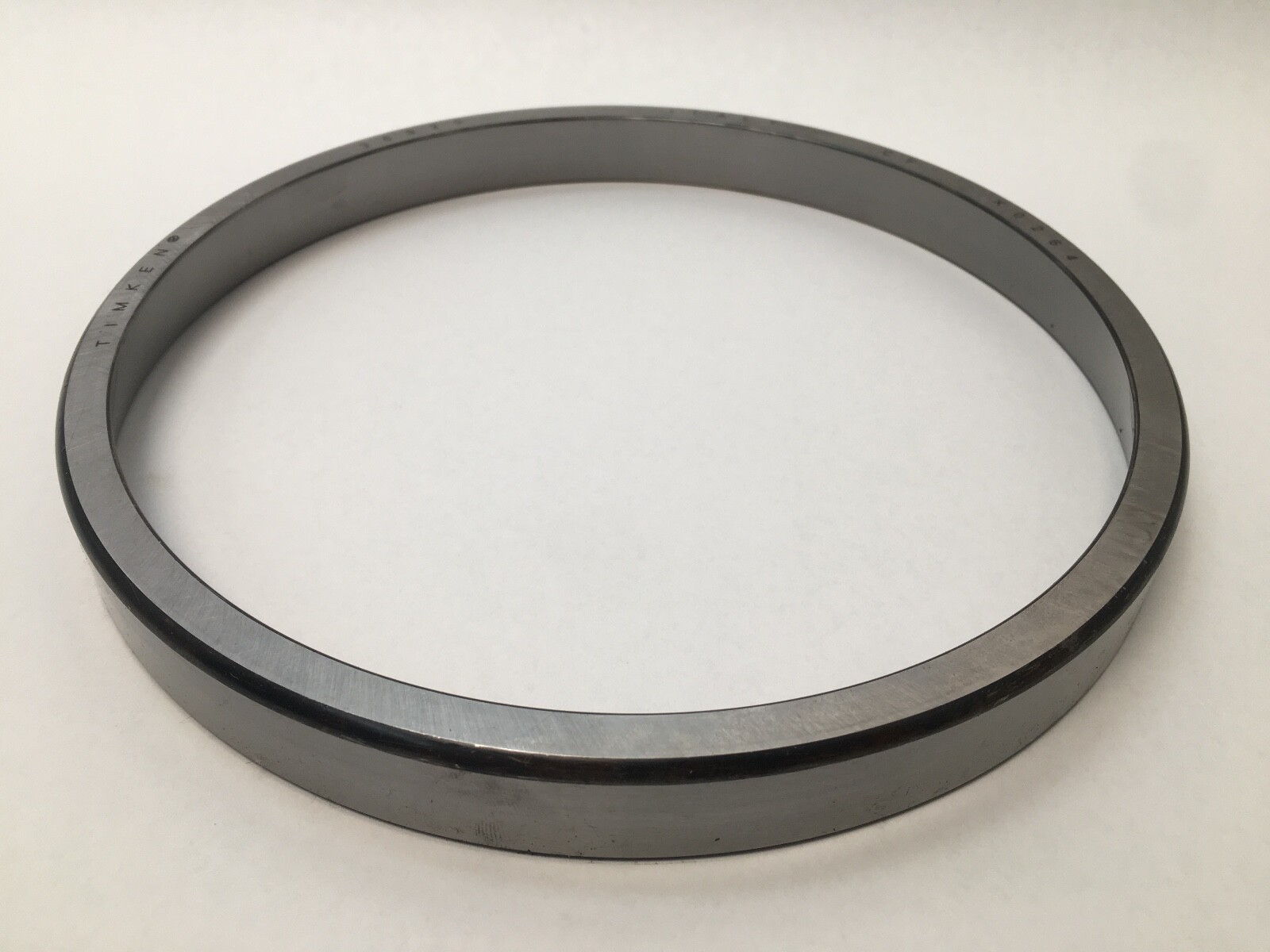

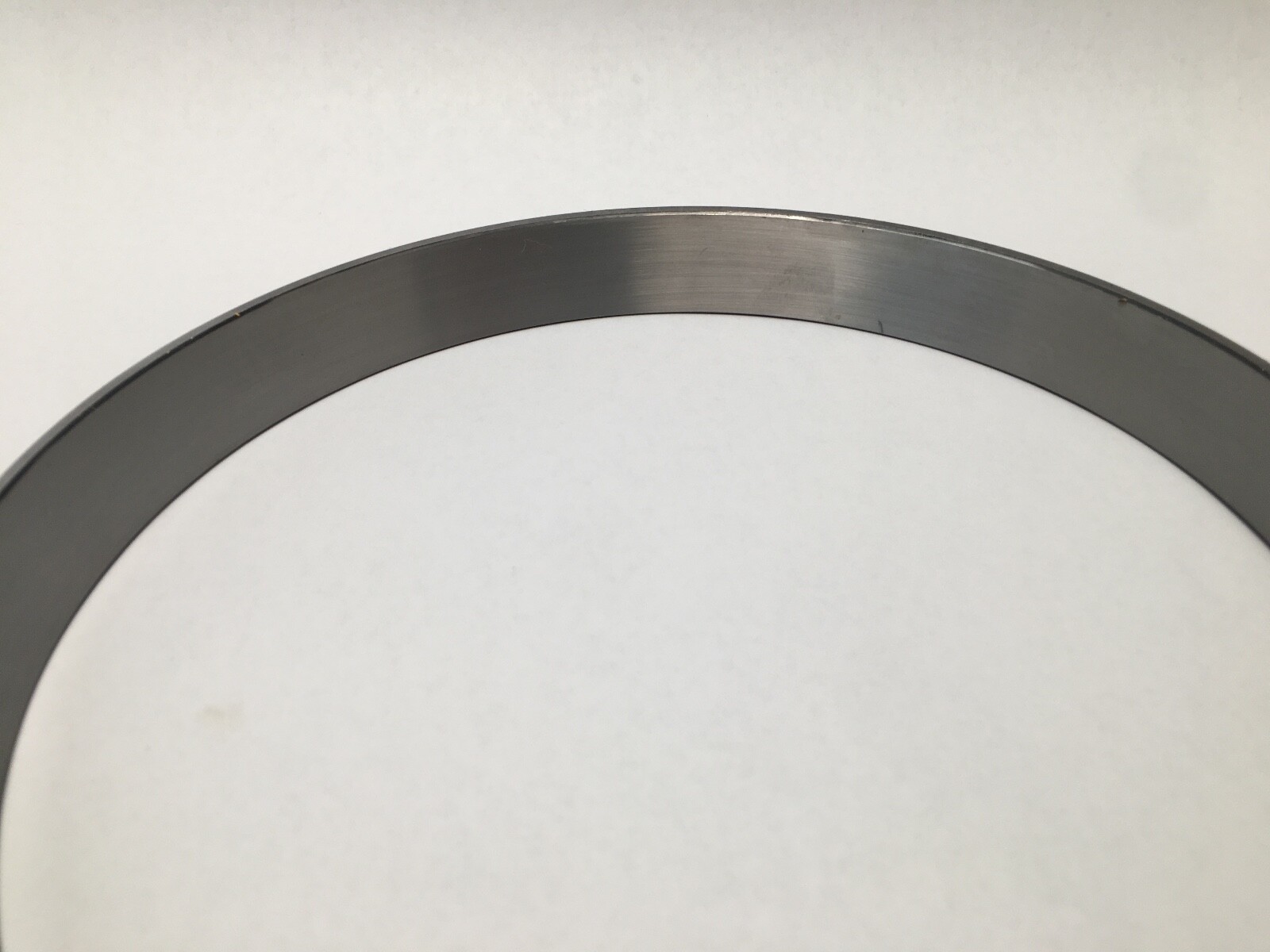

Timken 36920 inch tapered roller bearing cup, the outer race of a single-row tapered roller bearing. Cup only. Unit Quantity: 1 Pc. Bearing Type: Tapered roller bearing cup. Series: 369. Base Number: 36920. Outside Diameter: 8.9375 in (227.013 mm). Overall Width: 0.9063 in (23.020 mm). Rolling Elements: Tapered Roller. Number Of Rows: 1. Item Weight: 2.90 kg (6.4 lb). GTIN: 053893272856.

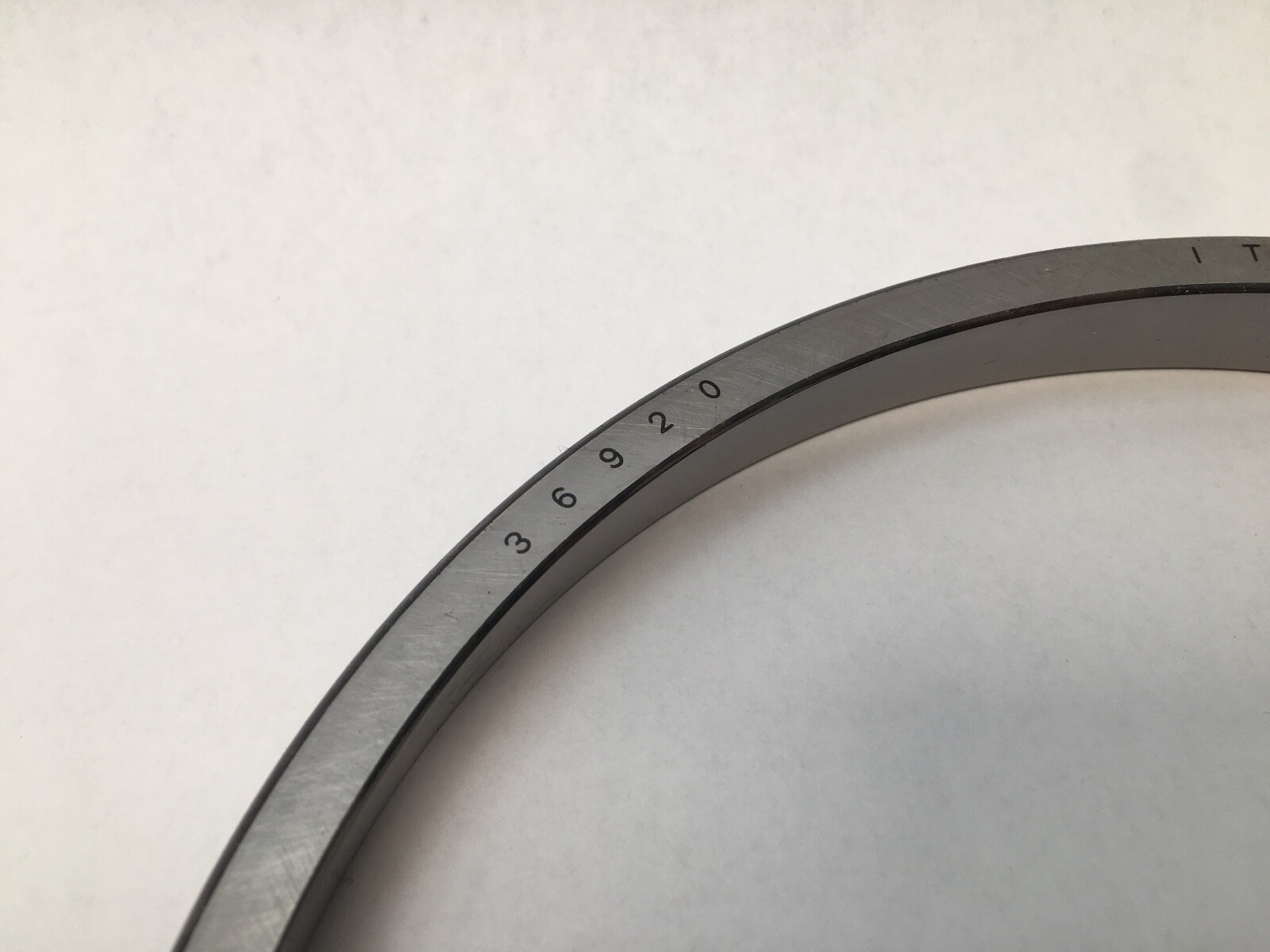

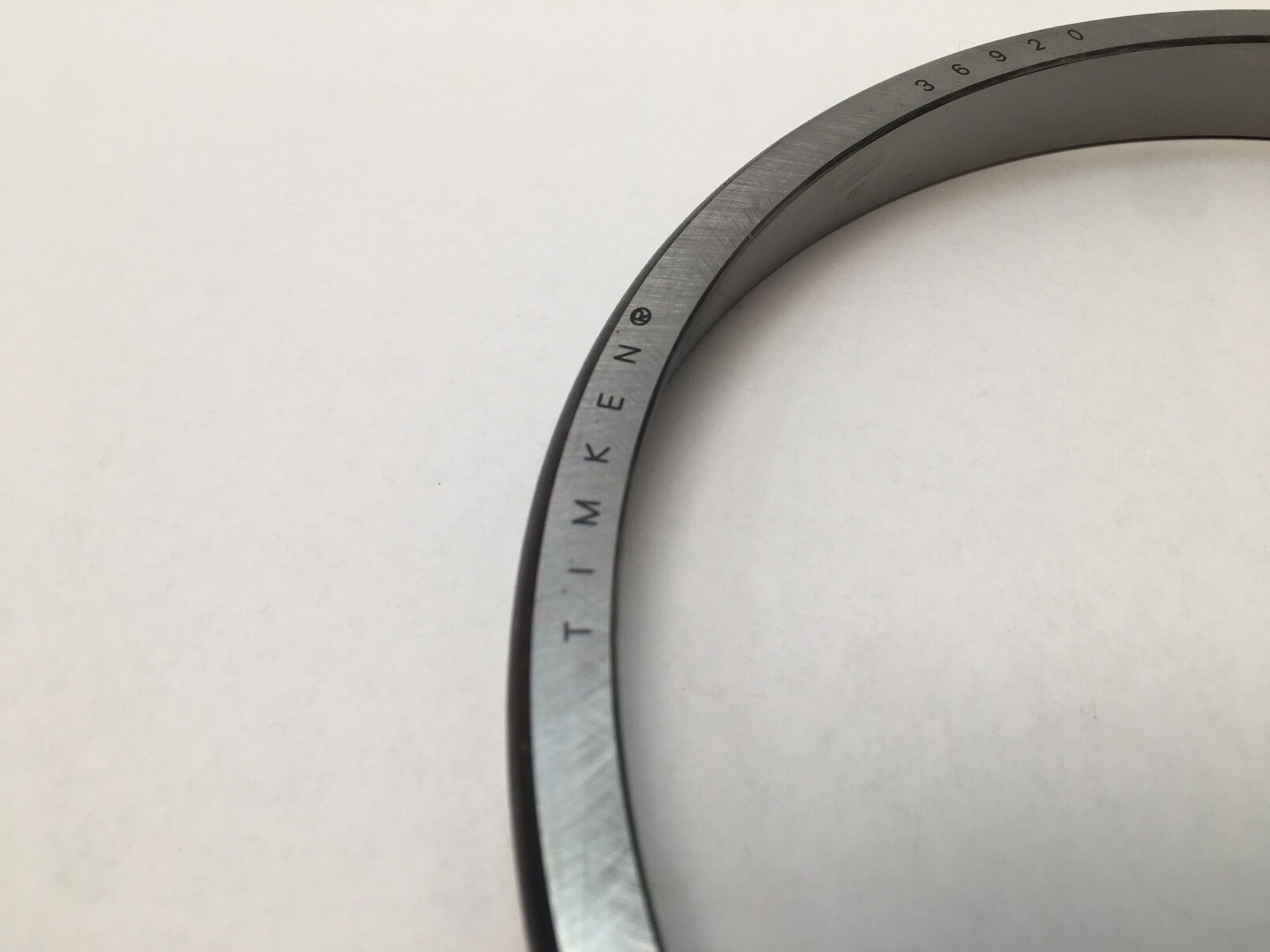

36920 — Timken base cup number in the 369 inch series, 8.9375 in outside diameter. No precision suffix is present.

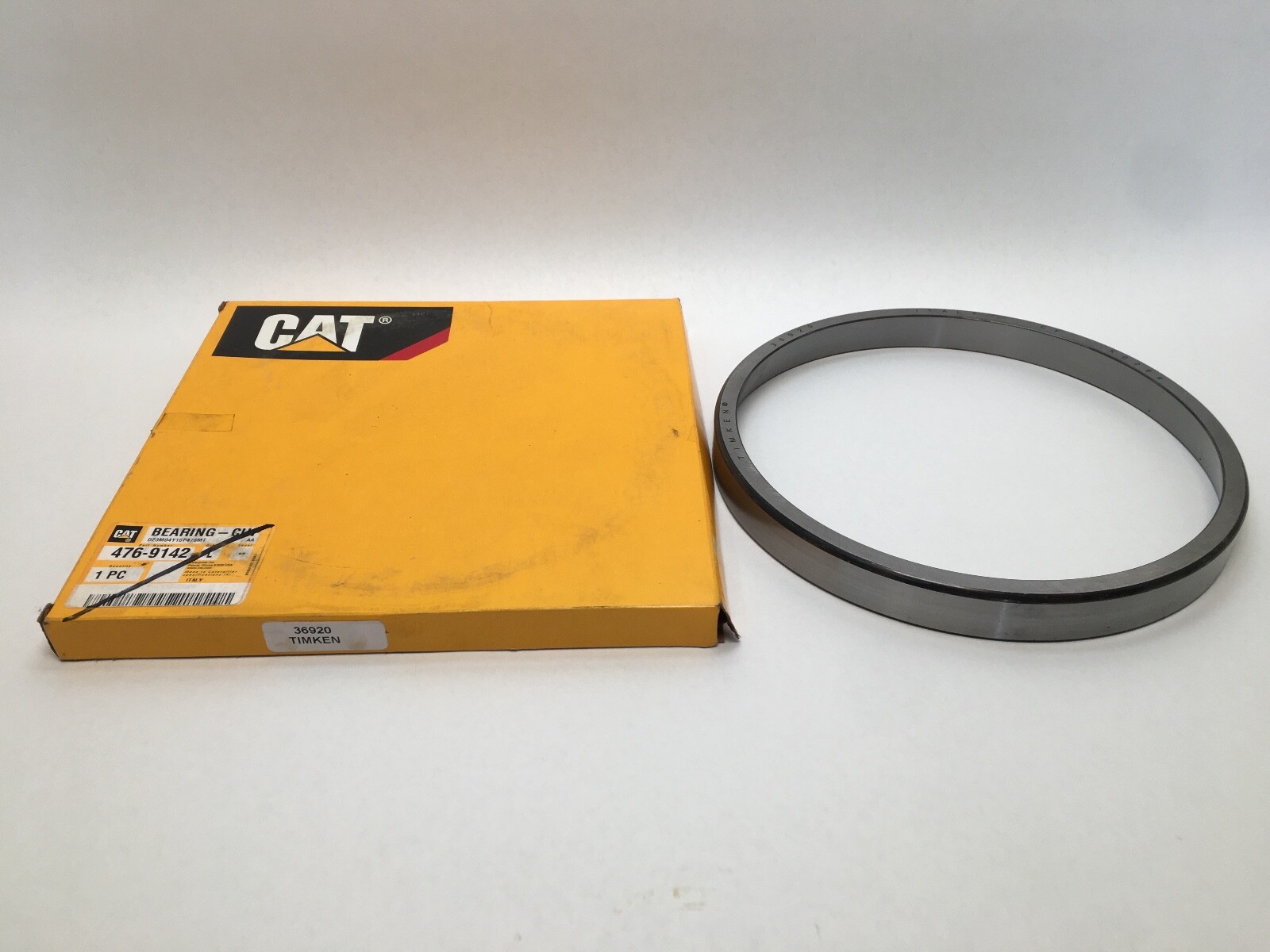

476-9142 — Caterpillar part number carried on this cup.
Outside Diameter: 8.9375 in (227.013 mm). Overall Width: 0.9063 in (23.020 mm). e Factor: 0.44. Y Factor: 1.36. Geometry Factor (Cg): 0.143. Item Weight: 2.90 kg (6.4 lb). Precision Class: Not specified.
Maximum fillet radius on the mating housing: 1.52 mm (0.06 in). Housing Backing Shoulder Diameter, frontface (Da): 221.00 mm (8.74 in). Housing Backing Shoulder Diameter, backface (Db): 214.12 mm (8.43 in).
Matching cone: Timken 36990. Cross-references: Caterpillar 476-9142 (same cup, OEM part number); Koyo 36920; NSK 36920; SKF 36920. Also written 36-920 and 36 920.
Outside diameter 8.9375 in (227.013 mm) and width 0.9063 in (23.020 mm).
The matching cone is the Timken 36990.
It is the Caterpillar part number carried on this Timken 36920 cup.
