Availability:
1 in stock
Two-row TDO tapered roller bearing, 90.000 mm / 3.5433 in bore, 6.3750 in outside diameter, cone rows back to back in one double cup.
List Price
$1,136.92
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Tyson |
|---|---|
| MPN | M919049/M919010D |
| Model | M-919049 M-919010-D |
| Bearing Type | Tapered Roller Bearing Cone |
| Base Number | M919049/M919010D |
|---|---|
| Industry Terms | double cup taper bearing; TDO two row taper roller; double outer race bearing; 90mm bore taper roller; two-raceway taper cup; cone and double cup set |
| Common Misspellings | M919049; M91949; M919094; M919010-D; M919010 D; Tyson bearring; taper rolller double cup |
| Application Types | Wheel hubs; crane and hoist sheaves; mill roll necks; heavy conveyor pulleys; gearbox output shafts |
| Bore Shaft Size | 90.000 mm / 3.5433 in |
| Mpn Variants | M919049/M919010D; M919049-M919010D; M919010D; M919010-D; M919049; M-919049 |
| Compatible With Replaces | Double cup M919010D, cone M919049. Related cone on the same double cup: M919048 (M919048/M919010D TDO). Single cup M919010 is a related size. |
| Number Of Rows | 2 |
| Part Number | M919049/M919010D |

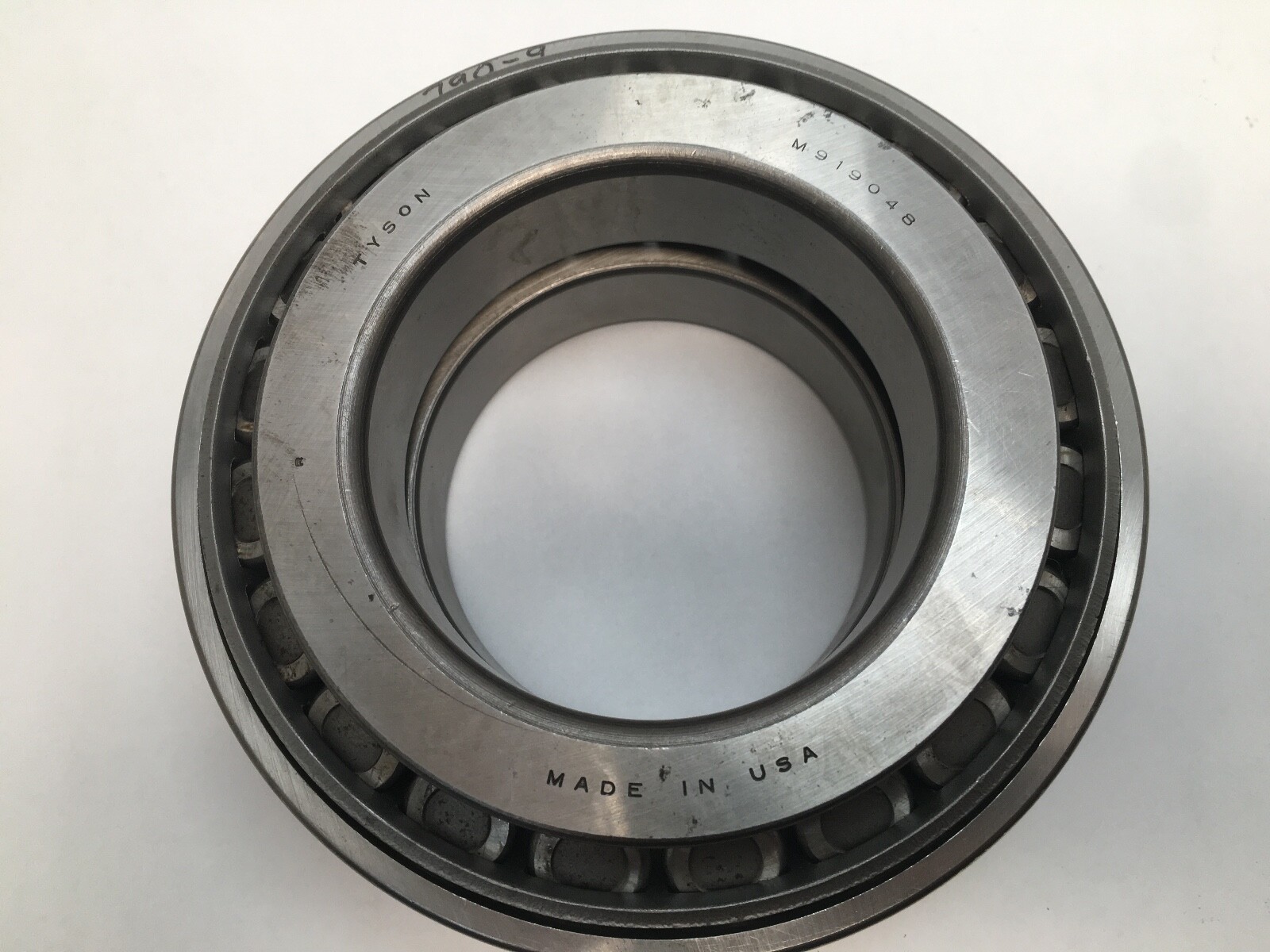

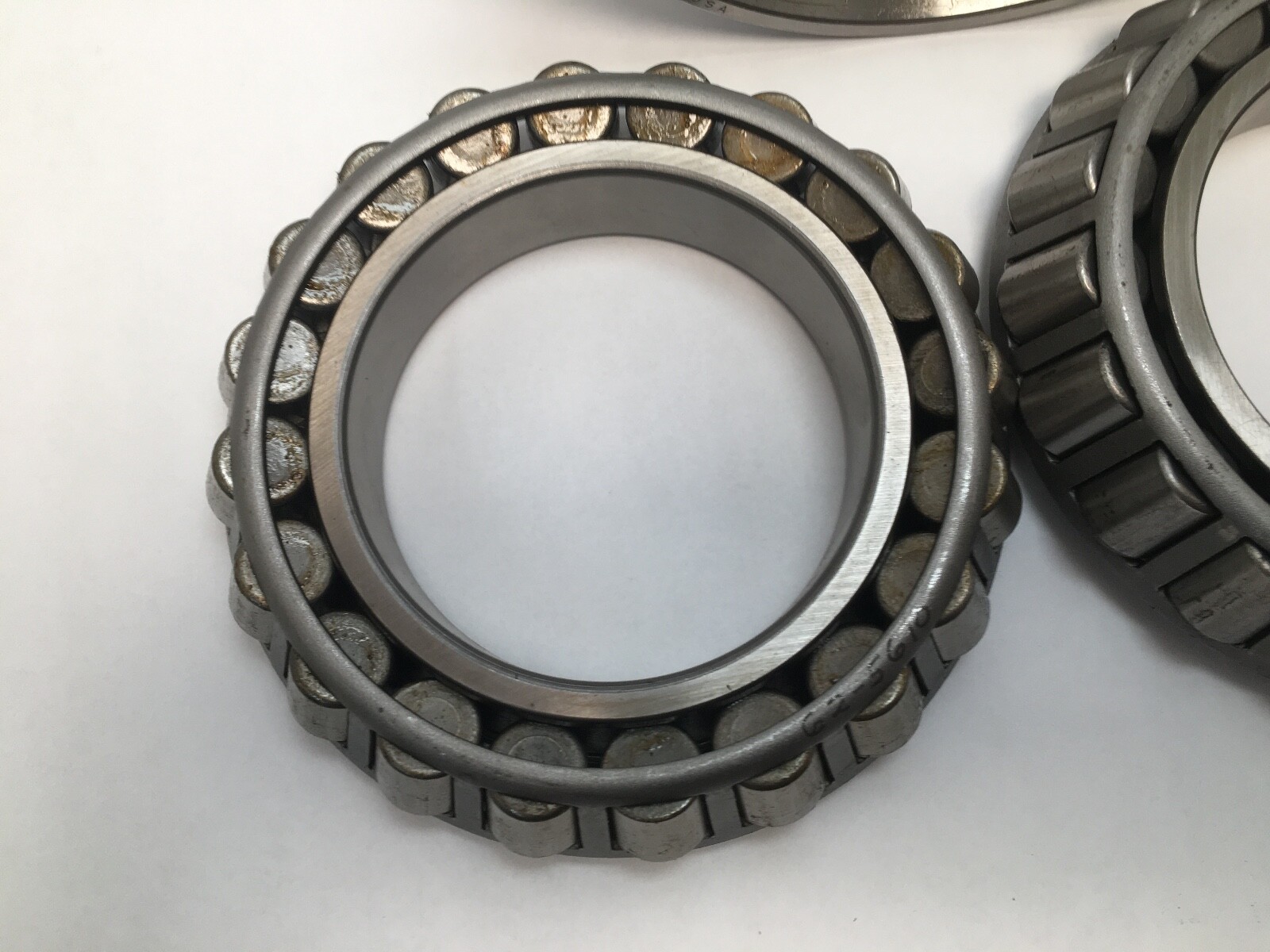

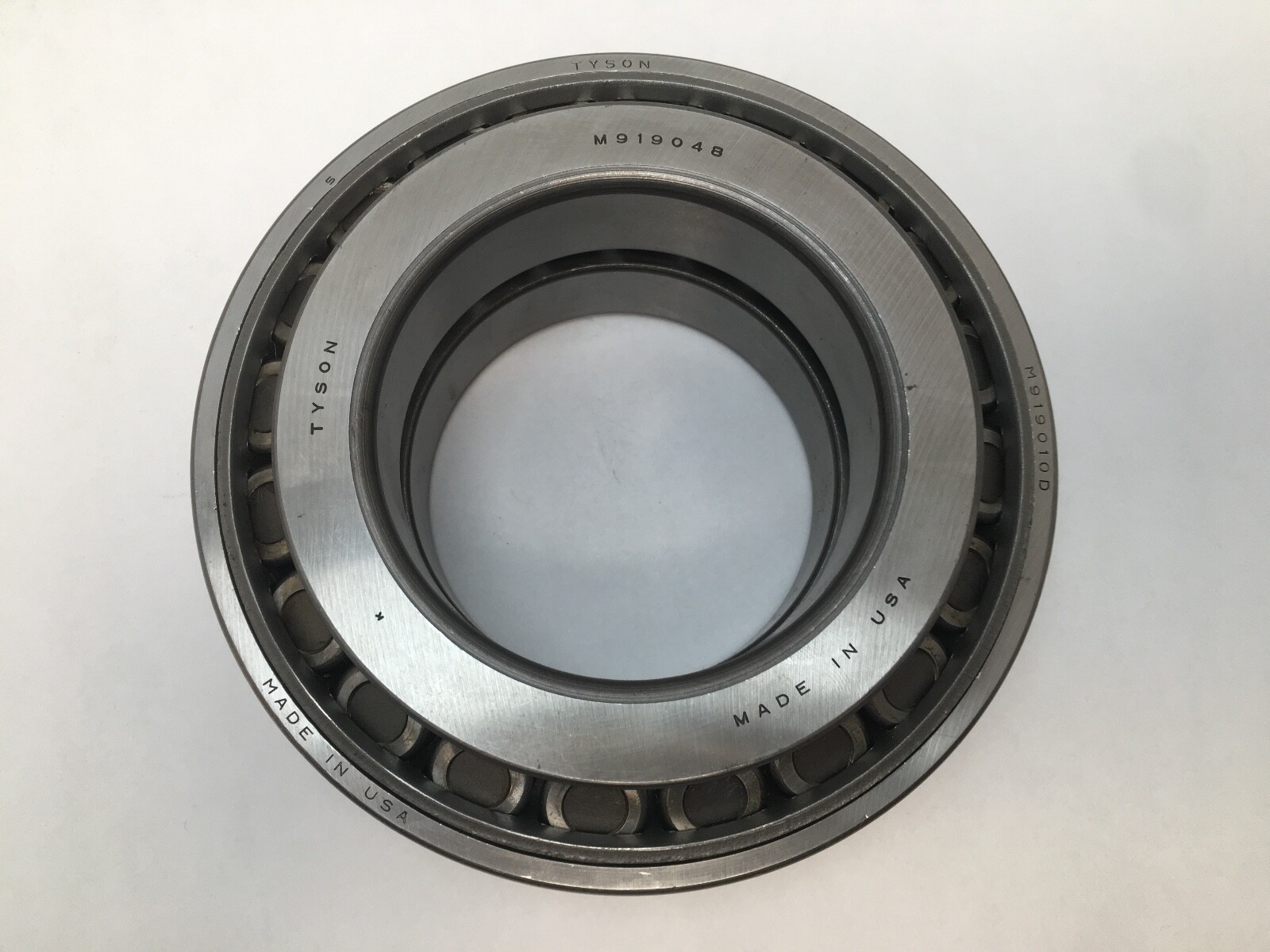

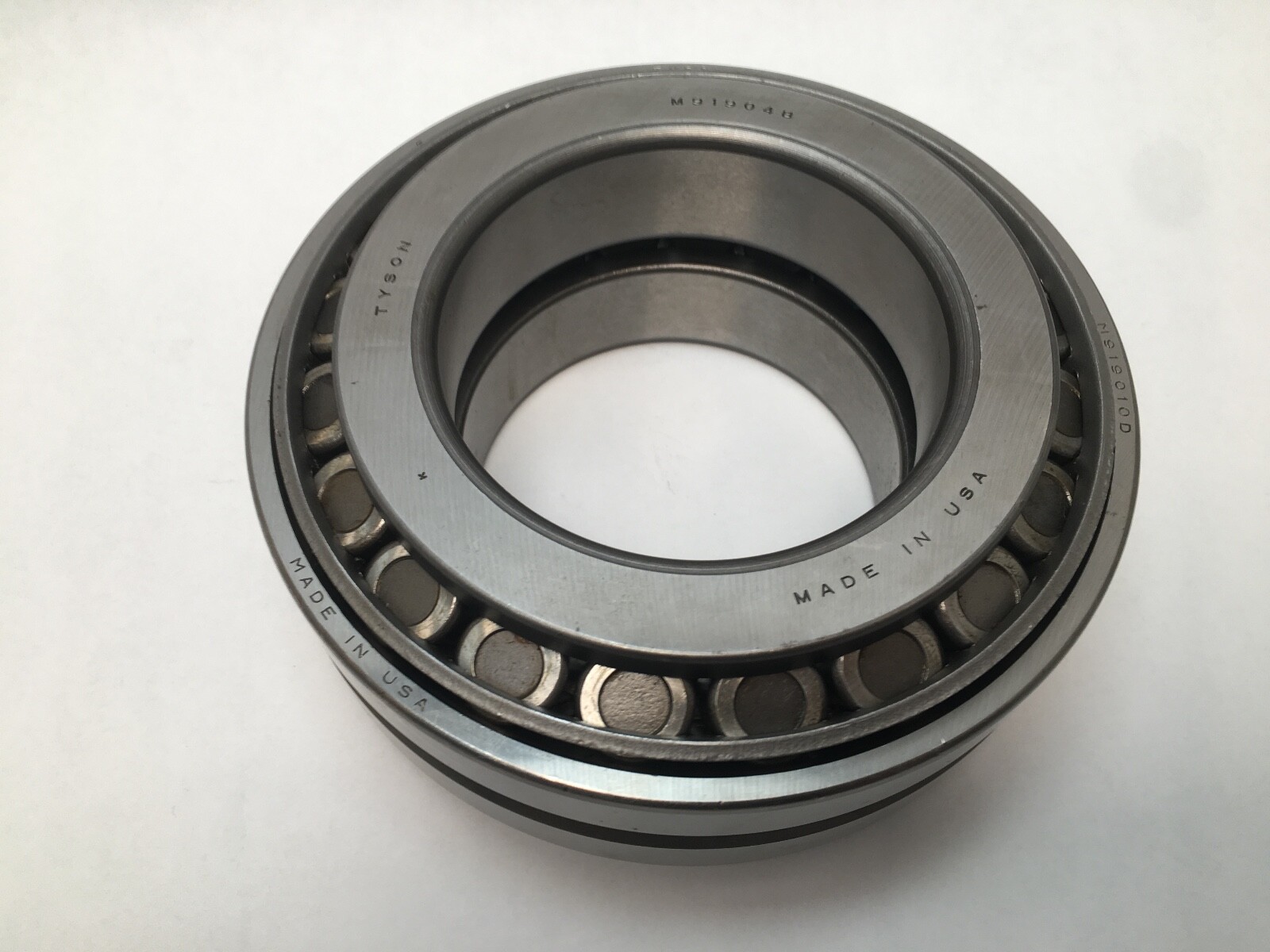

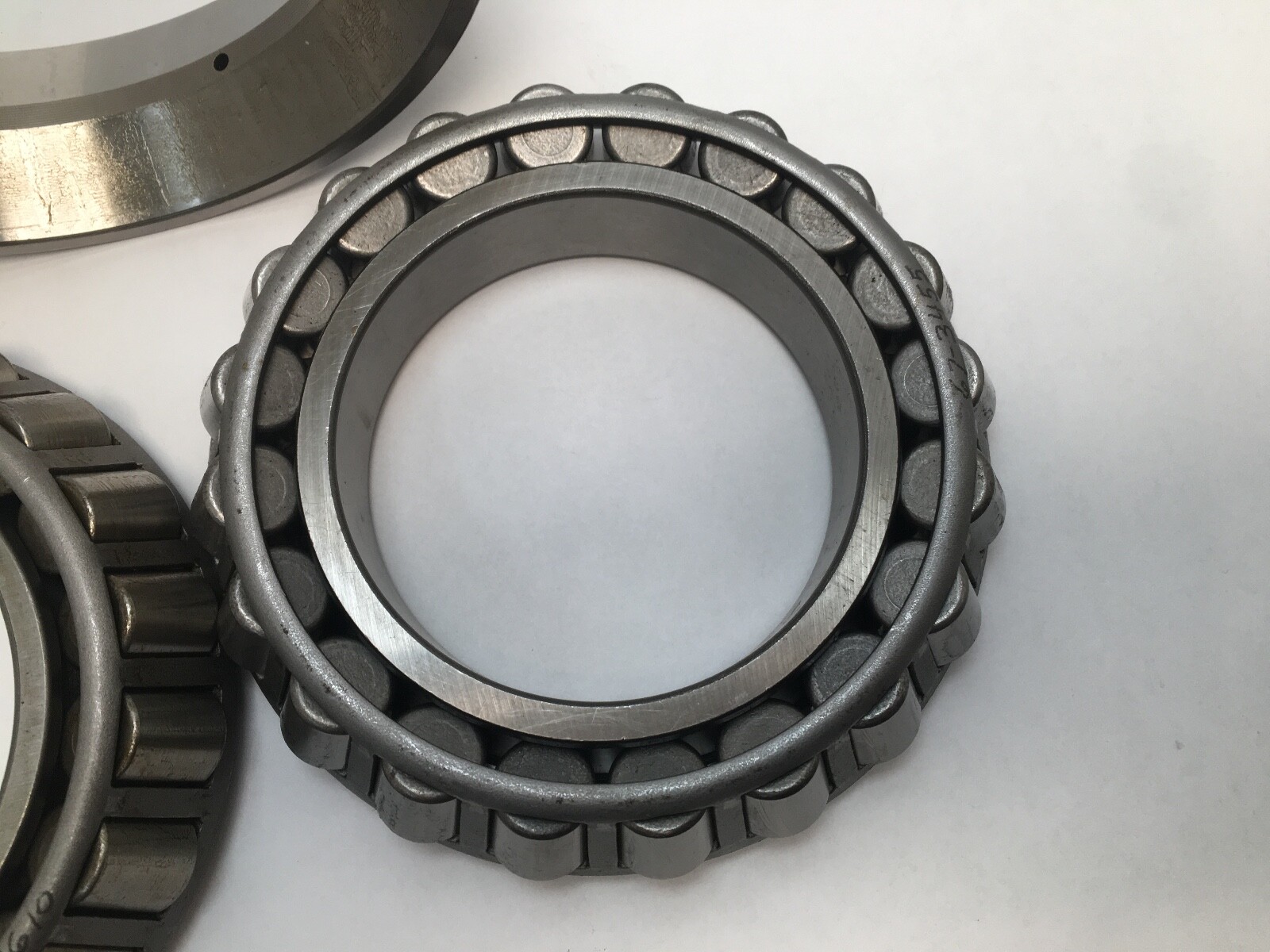

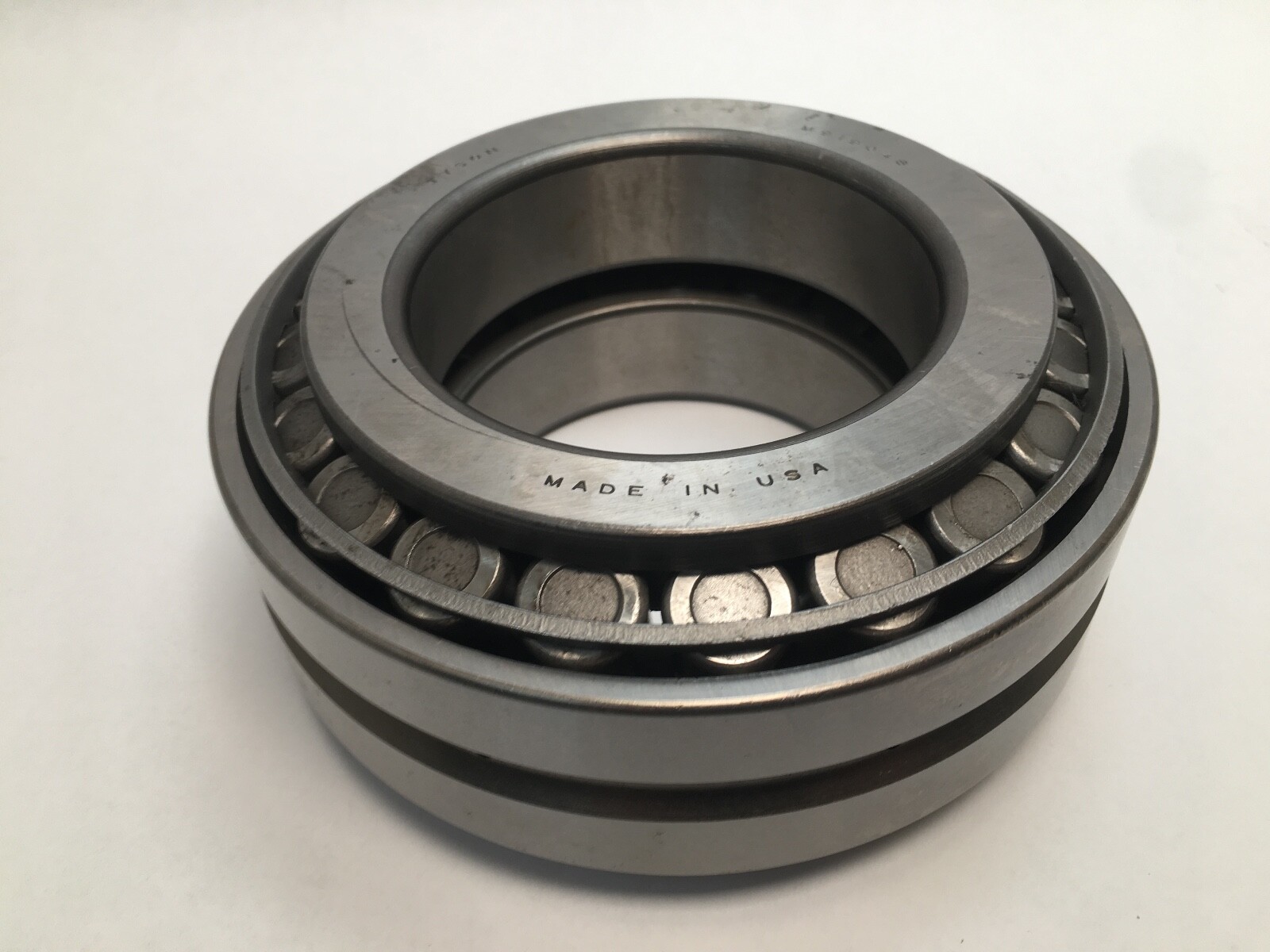

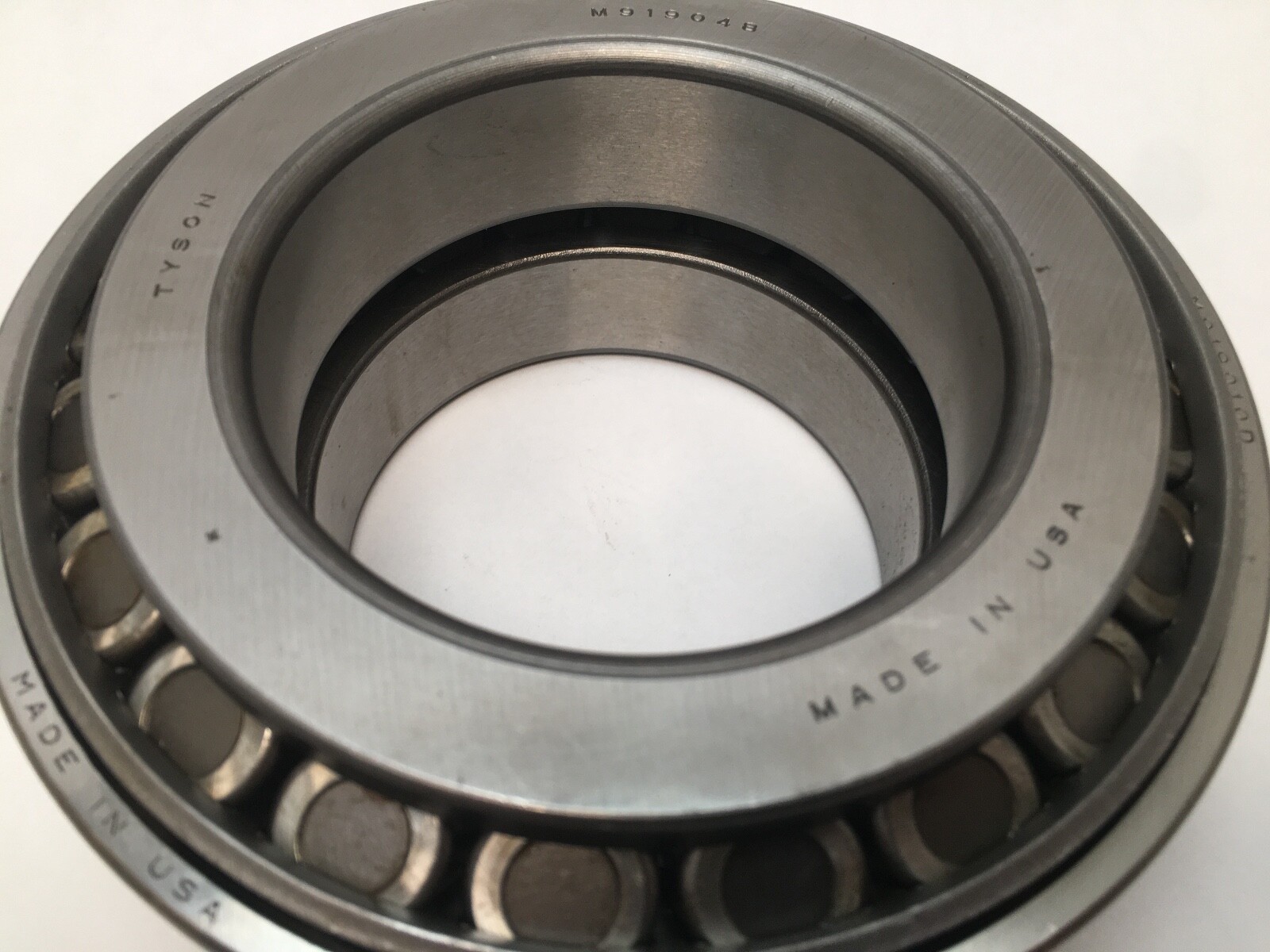

A Tyson M919049 tapered roller bearing cone with a Tyson M919010D double cup — one outer ring carrying two tapered raceways. TDO configuration, 90.000 mm bore, 6.3750 in outside diameter.

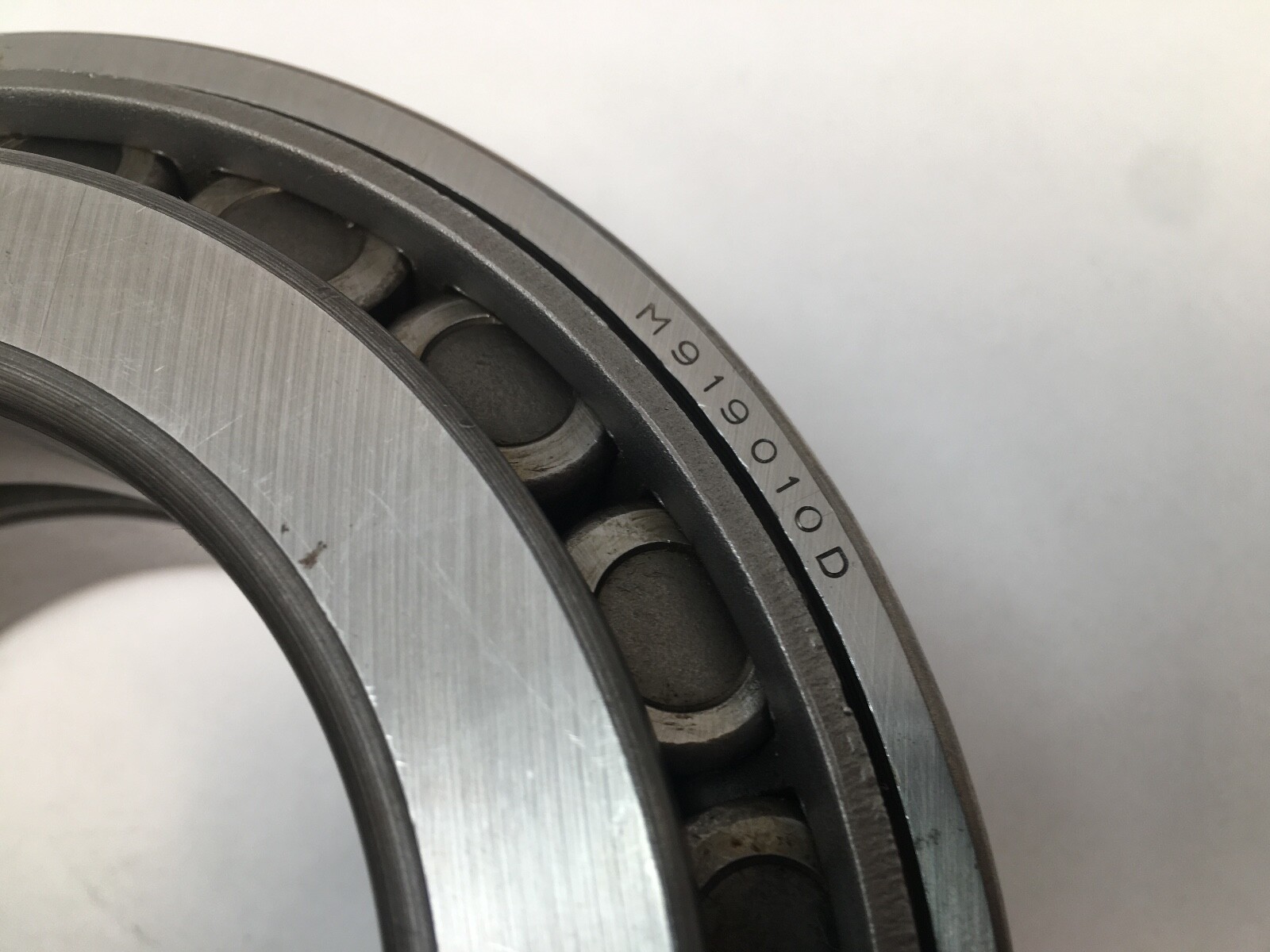

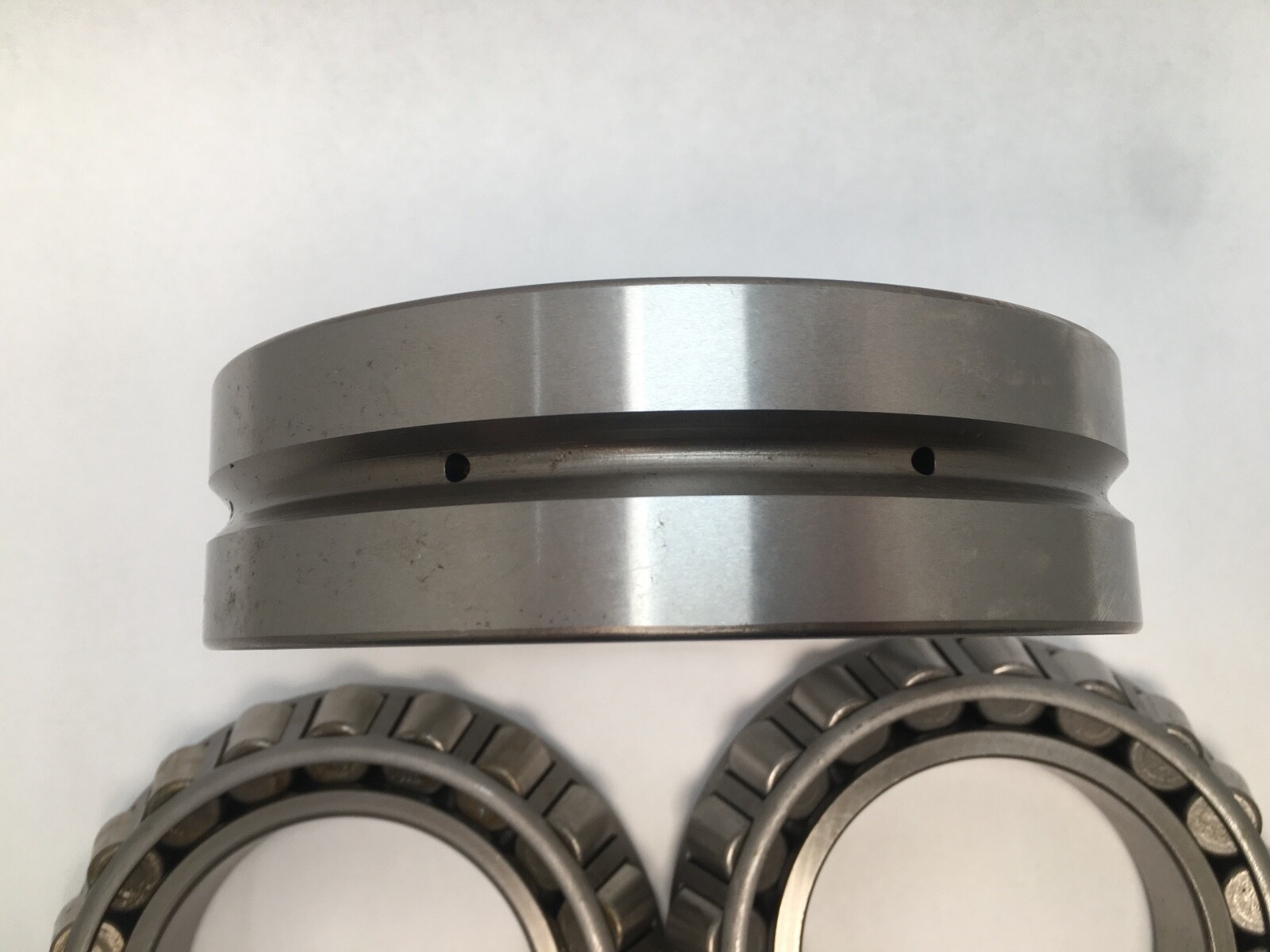

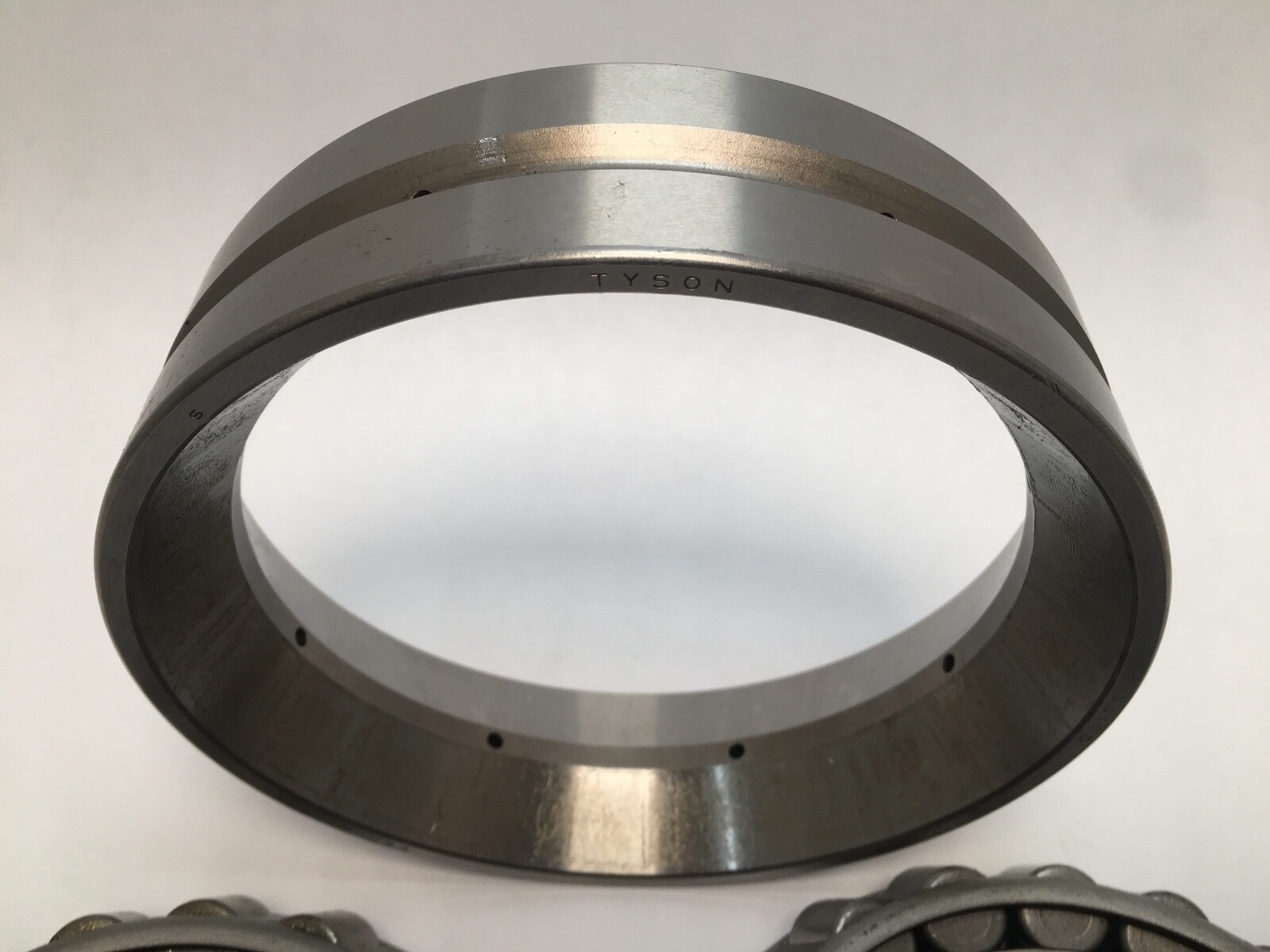

M919049 is the cone number. The D suffix on M919010D marks a double cup: a single outer ring with two raceways instead of one. TDO is Tapered Double Outer, the arrangement in which two cone rows sit back to back inside that one cup. The M prefix identifies a metric-bore size carried in an inch-style tapered number series, which is why a 90.000 mm bore reads as 3.5433 in.

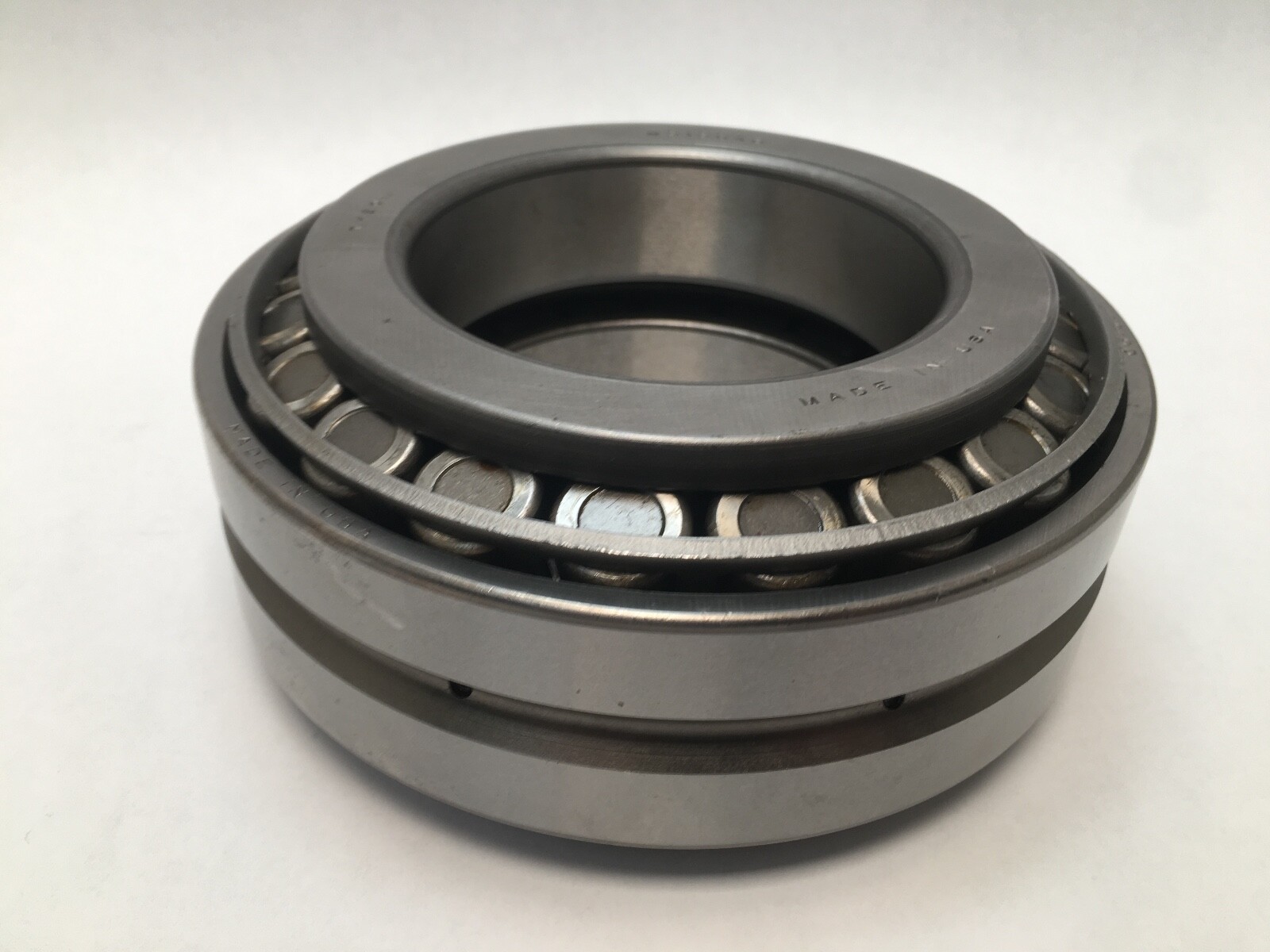

Two rows back to back in a double cup take thrust in both directions and set the load lines wide apart, giving stiff resistance to overturning moment across a short shaft length. Both raceways being ground into one ring keeps the rows square without housing shims and reduces the fit to a single press into the housing bore. The metric bore lets the unit drop onto a shaft turned to ISO tolerances while retaining the inch tapered raceway geometry.
Bore: 90.000 mm / 3.5433 in
Double cup outside diameter: 6.3750 in / 161.925 mm
Raceways in the cup ring: 2
Rows: 2, back to back
Series: M919000 tapered, TDO, metric bore
Rolling element: tapered roller, chrome alloy steel
Cage: pressed steel

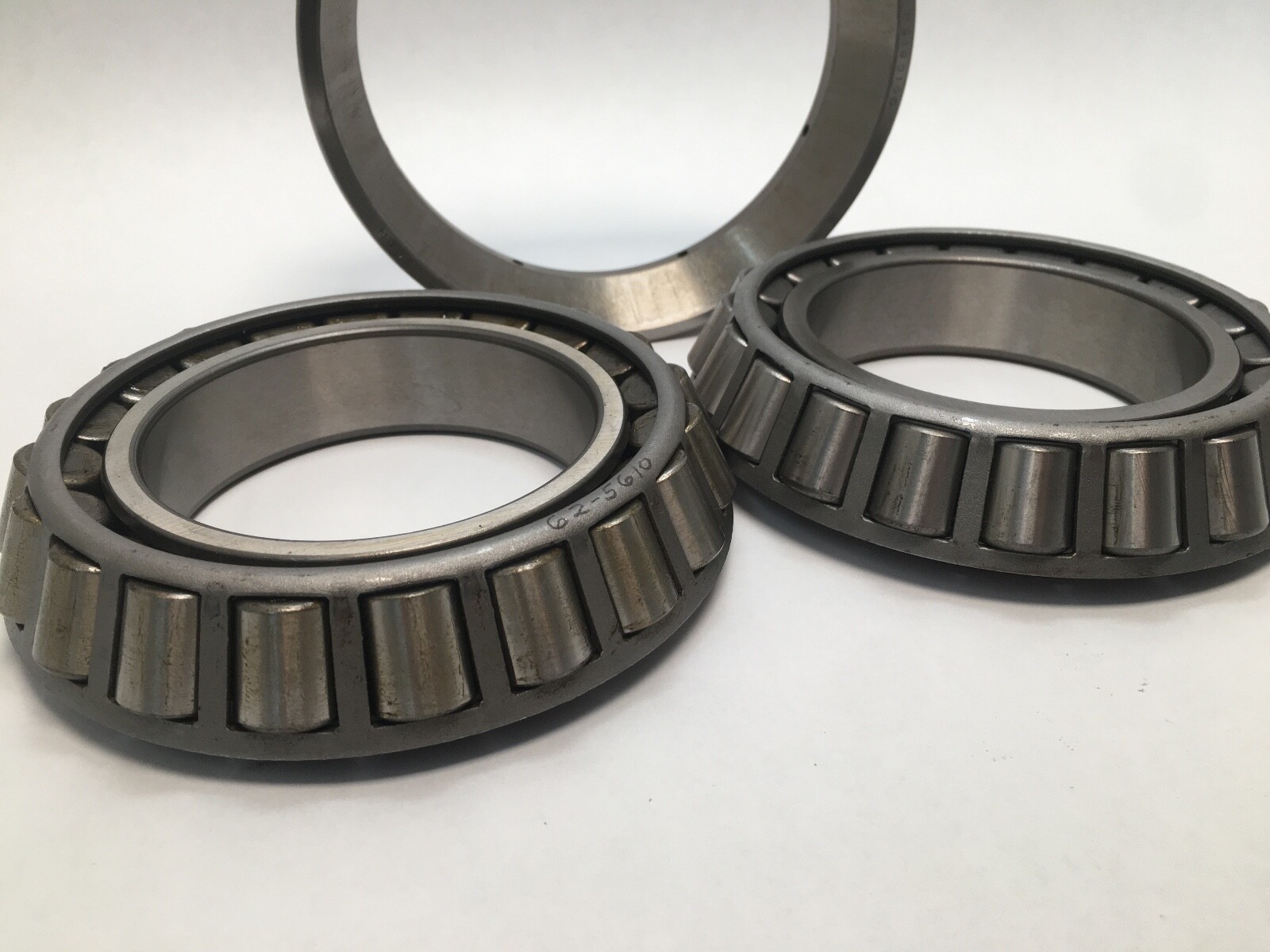

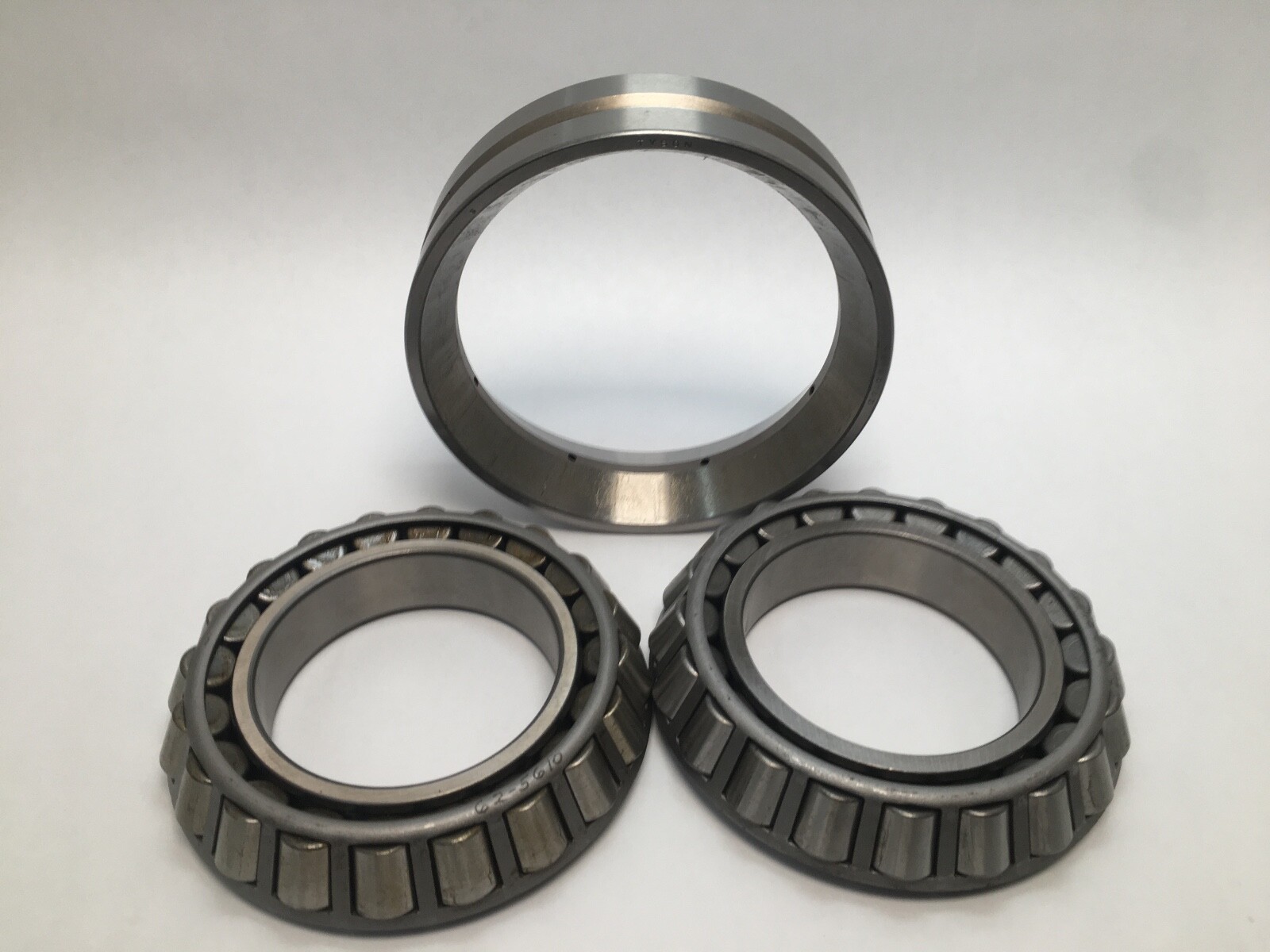

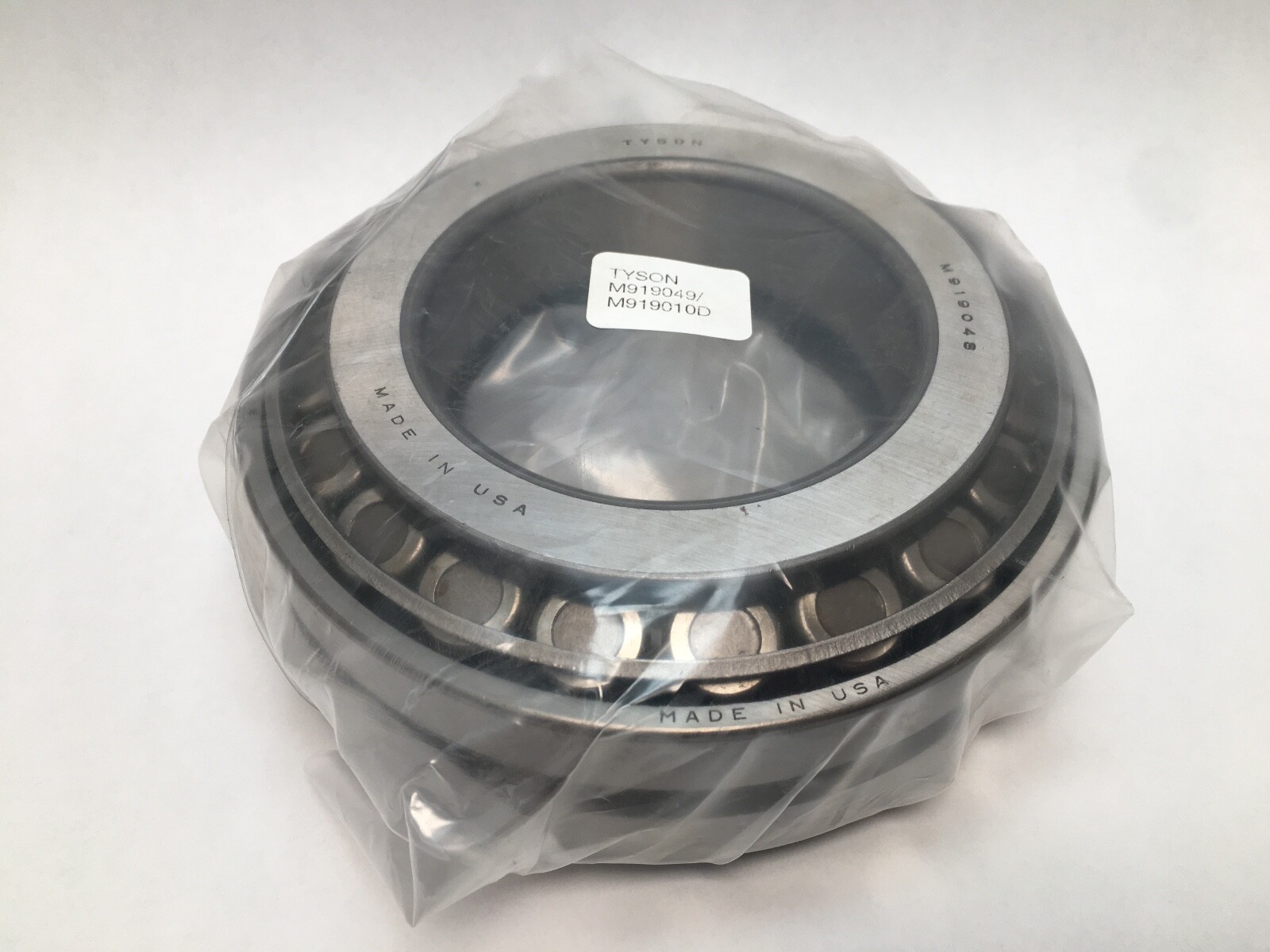

Supplied as a Tyson M919049 cone with the M919010D double cup, as titled. A complete TDO assembly uses two cones, one double cup and, on most arrangements, a ground cone spacer.
M919010D and M919049 are industry numbers and read the same under other brands, Timken among them. The M919048 is a separate cone that also runs against the M919010D double cup; it differs in bore, so it is a related size within the same cup family rather than a substitute for an M919049. A single-cup M919010 without the D has one raceway and a different width.
