Availability:
1 in stock
Two-row tapered roller bearing assembly, 1-3/4 in bore x 3-3/4 in OD. Complete TDO assembly: two 53178 cones and one 53376D double cup. 1 Set.
List Price
$259.53
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 53178-90074 |
| Model | 53178 / 53376-D |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 1.7500 in |
| OD | 3.7500 in |
| Series | 53000 |
|---|---|
| Base Number | 53178 |
| Industry Terms | TDO bearing, double cup tapered roller assembly, two row taper bearing, matched taper roller assembly |
| Common Misspellings | Timkin, Timpken, 53178 90047, 53376-D, 5337 6D |
| Application Types | Wheel hubs, gearbox output shafts, pinion supports, moment-loaded shafts |
| Bore Shaft Size | 1-3/4 in (44.45 mm) |
| Mpn Variants | 53178-90074, 5317890074, 53178 90074, 53178/53376D |
| Number Of Rows | 2 |
| Harmonization Code | 8482.2 |
| Cup Part Number | 53376D |
| Part Number | 53178-90074 |
| Cone Part Number | 53178 |
| Cone Width | 1.1142 in |
| Cone Backface To Clear Radius | 0.06 in |
| Cone Frontface Backing Diameter | 2.05 in |
| Cage Cone Frontface Clearance | 0.07 in |
| Cage Cone Backface Clearance | 0.03 in |
| Effective Center Location | -0.19 in |

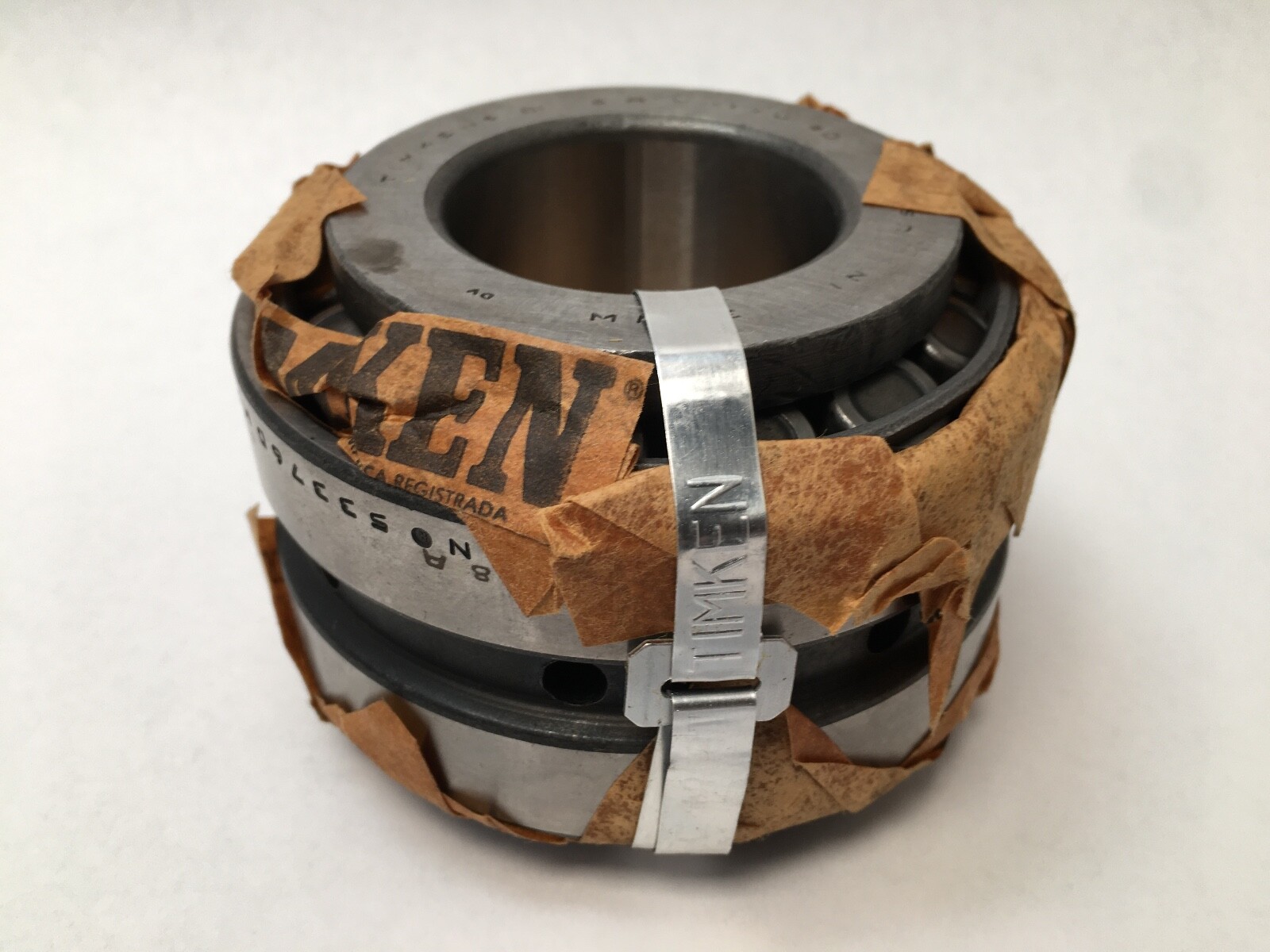

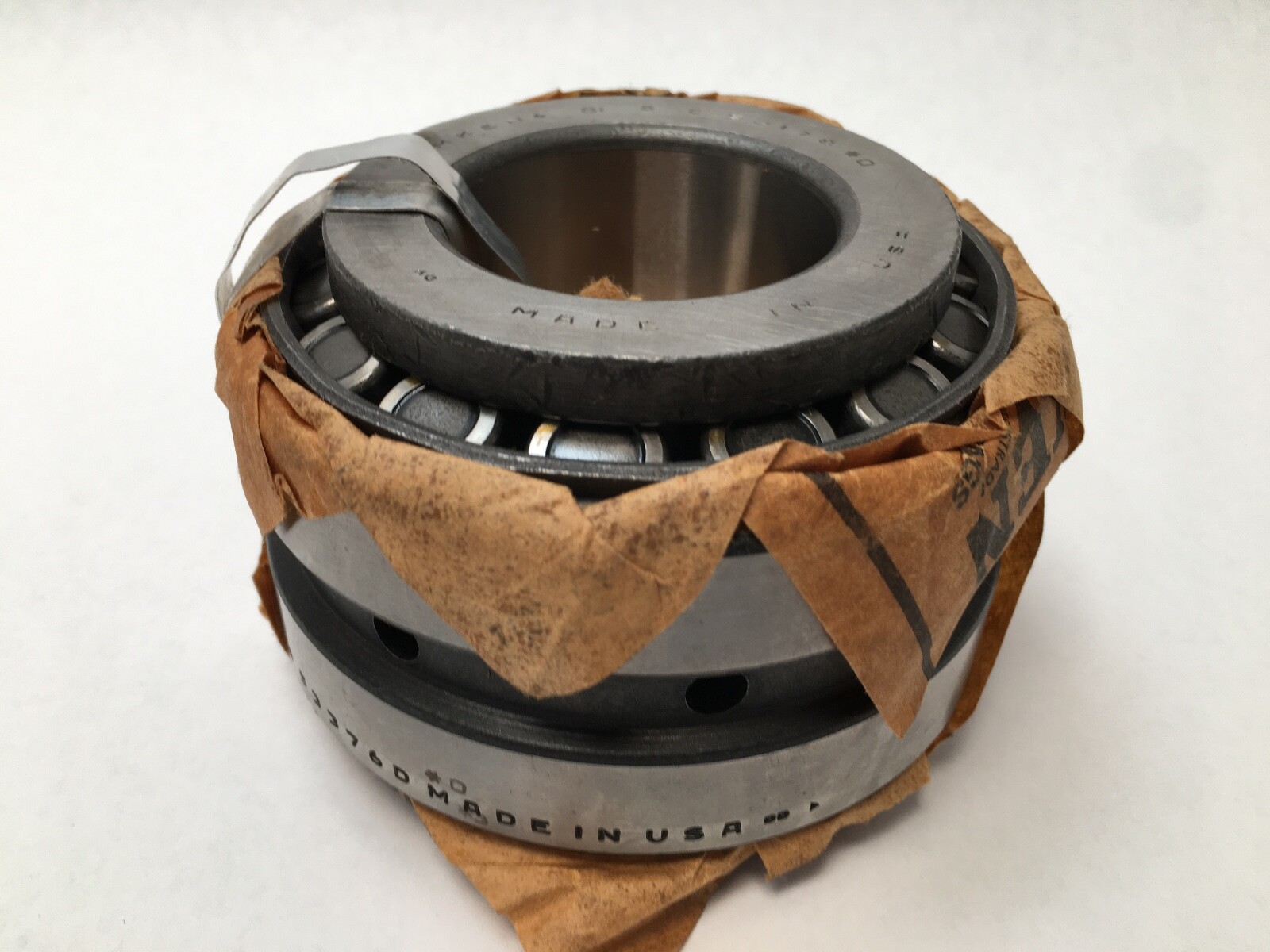

A Timken 53178-90074 complete two-row tapered roller bearing assembly. Bore 1-3/4 in (44.45 mm), outside diameter 3-3/4 in (95.25 mm). The assembly comprises two 53178 cones and one 53376D double cup.

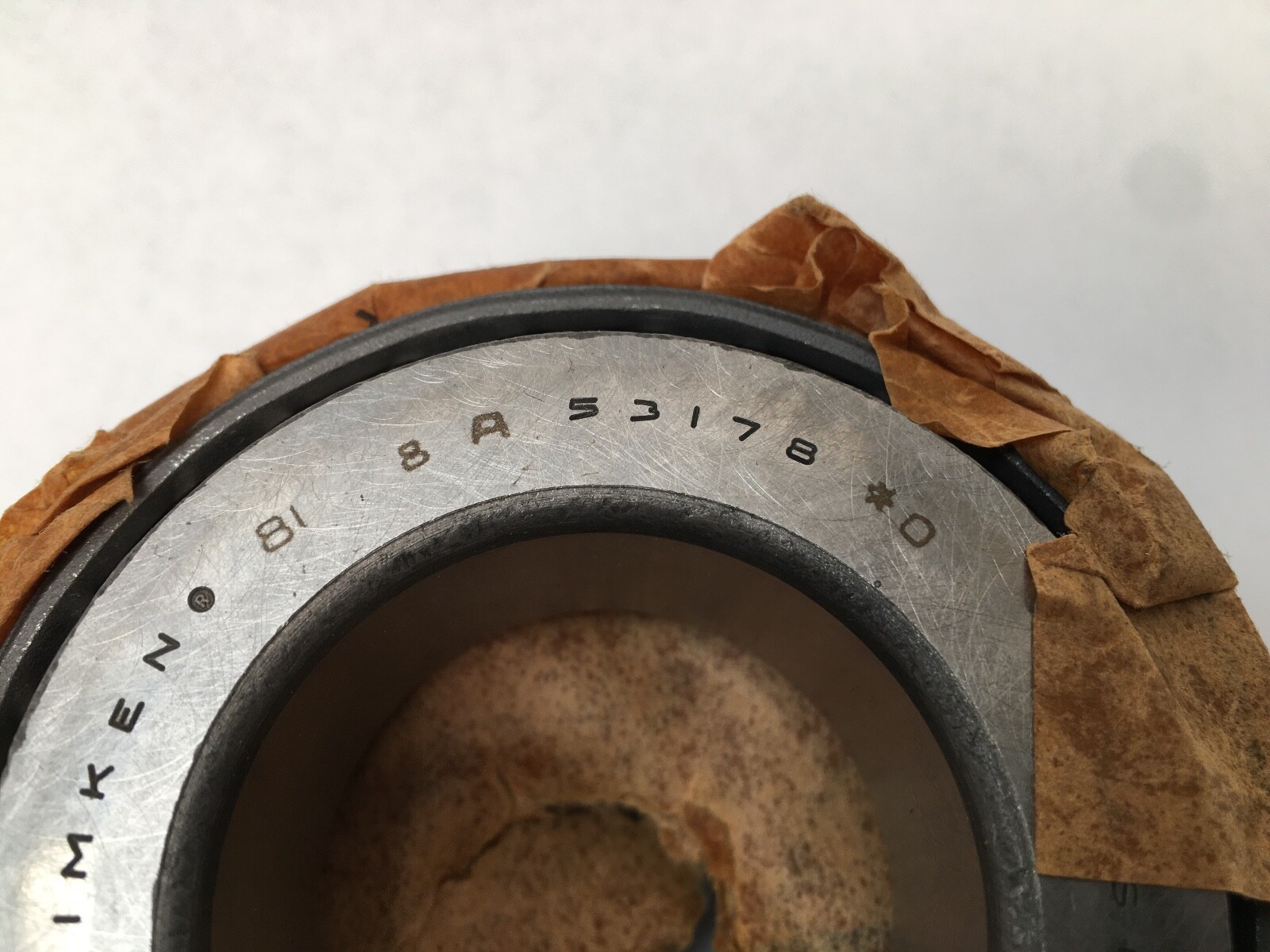

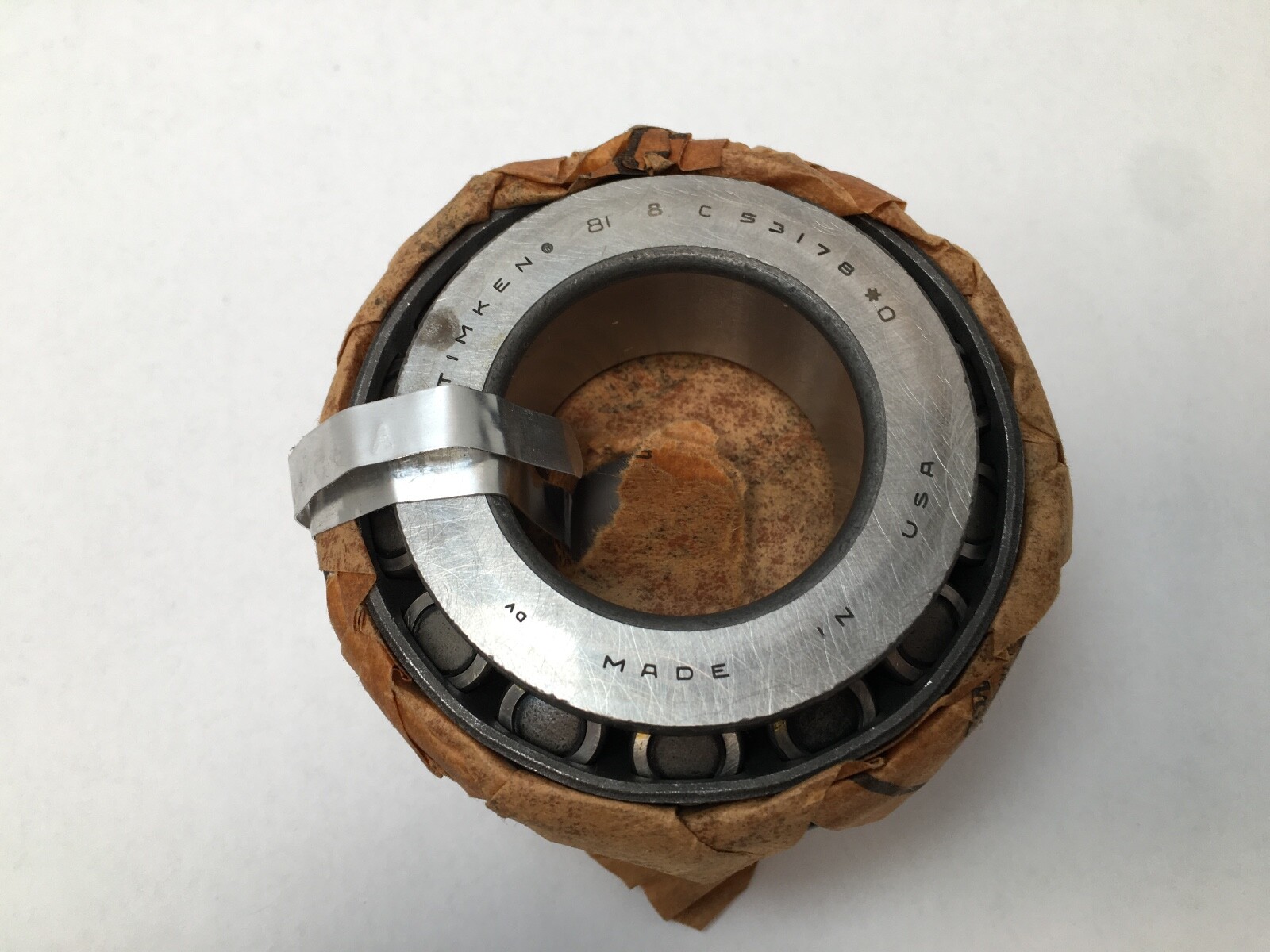

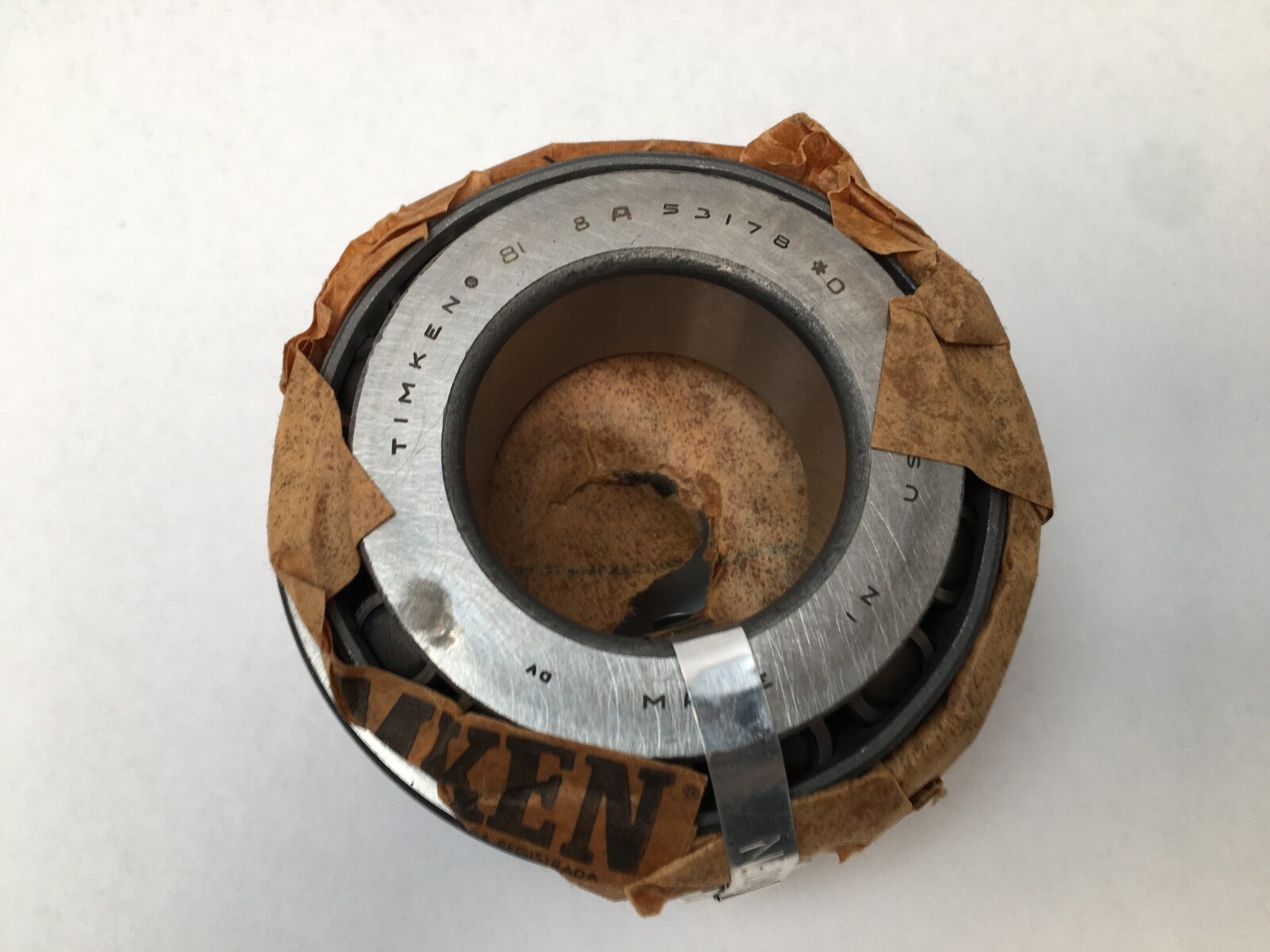

53178 — cone number, 1-3/4 in bore
-90074 — Timken assembly number, denoting a complete factory assembly rather than a component

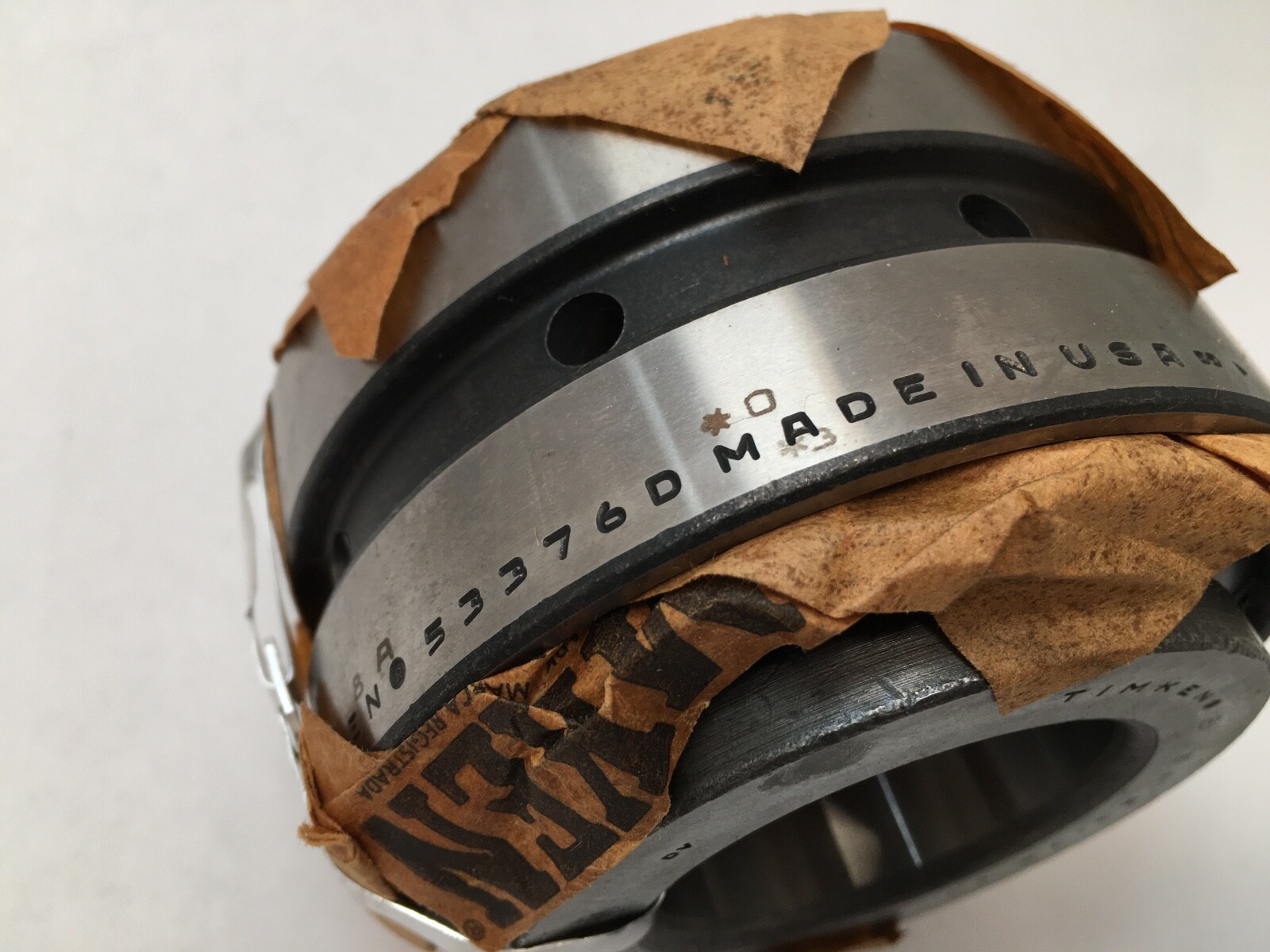

53376D — cup number; the D suffix denotes a double cup

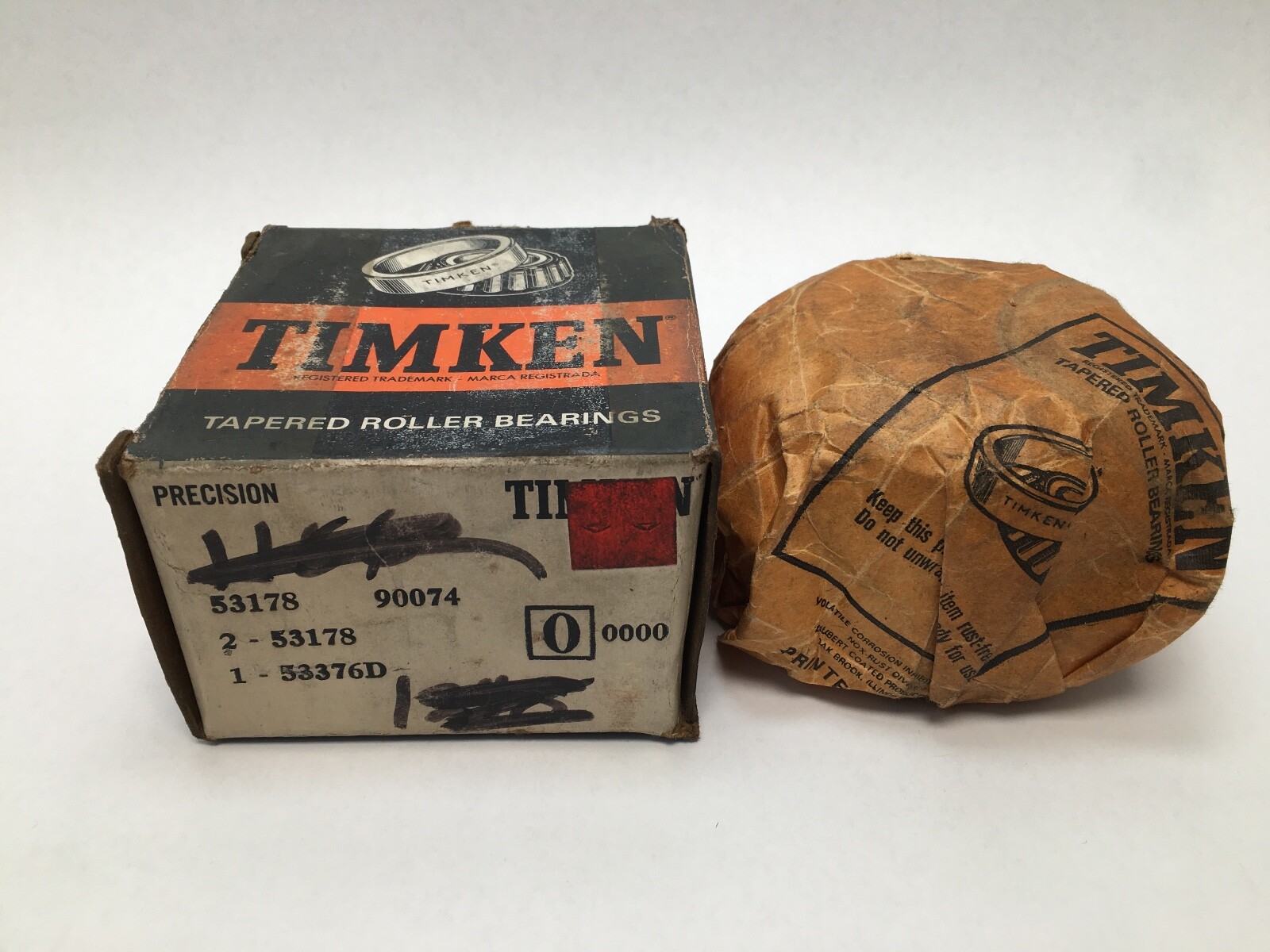

2 x 53178 cone
1 x 53376D double cup

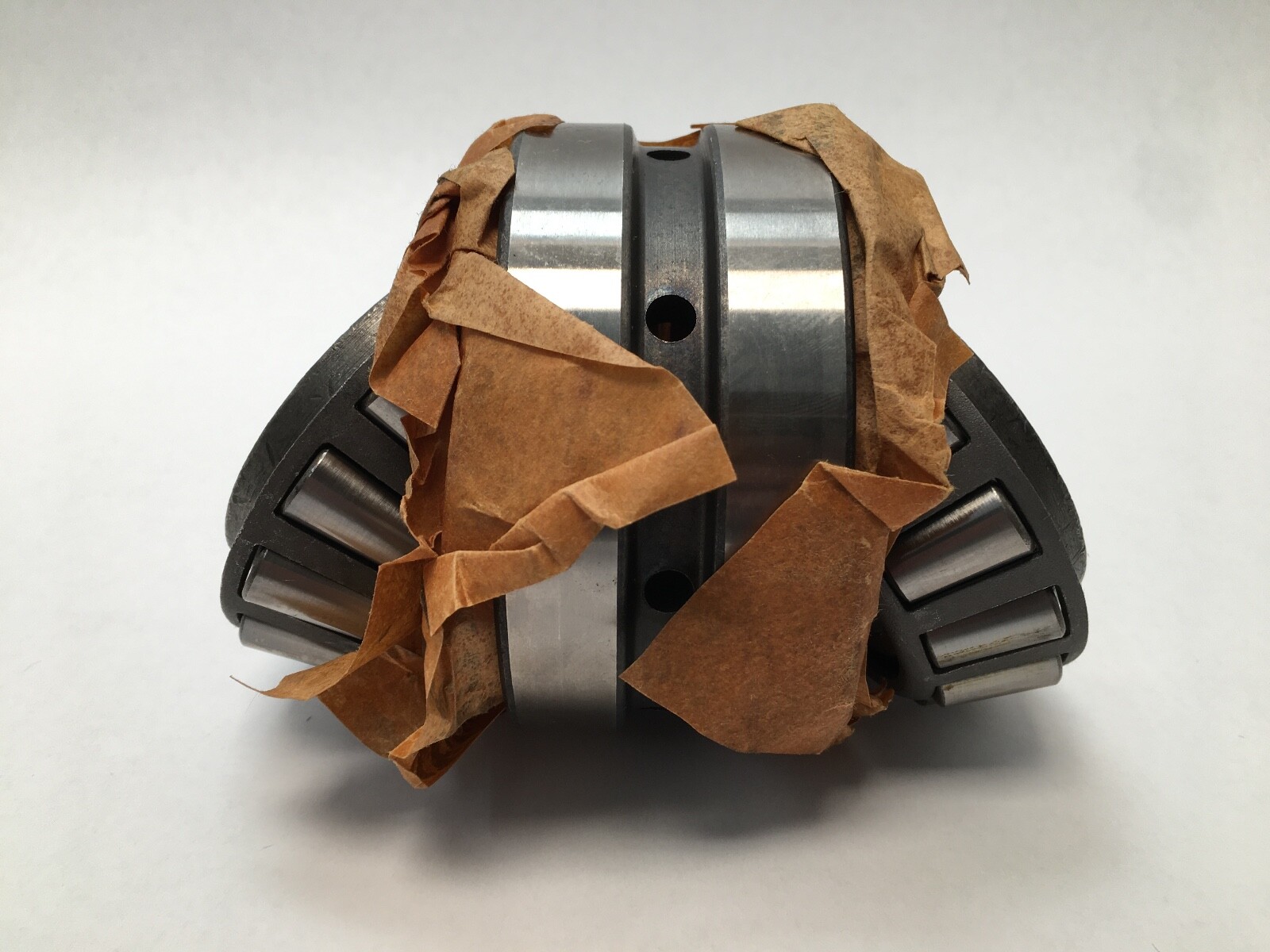

A double cup carries two raceways in one outer ring, so a single pressed-in cup serves both rows. The two cones face opposite directions, which lets the assembly take thrust in both directions and carry a moment load, and the TDO arrangement is the usual choice where a wide effective bearing spread is wanted inside one housing bore. Being a factory assembly, the setting is established by the supplied component stack rather than adjusted at fitting.
Bore: 1-3/4 in (44.45 mm)
Outside diameter: 3-3/4 in (95.25 mm)
Number of rows: 2
Rolling elements: tapered rollers
Configuration: TDO, tapered double outer
Cup: double cup, one outer ring with two raceways
Series: inch
1 Set, complete assembly.
The double cup presses into a single housing bore and the two cones press onto the shaft journal, one from each side. Both cones seat square against their shoulders, and the assembly runs at the setting built into the supplied stack.
A bare 53178 cone or a bare 53376D cup is a component and not an interchange for this assembly number. Other 53178-90xxx assemblies share the cone but differ in cup, spacer or setting and are related assemblies rather than interchanges.
