TimkenTapered Roller Bearing Cone and Cup Set – 2.6240 in Bore, 4.4375 in OD, Inch Series 39500

Product Description

What this part is

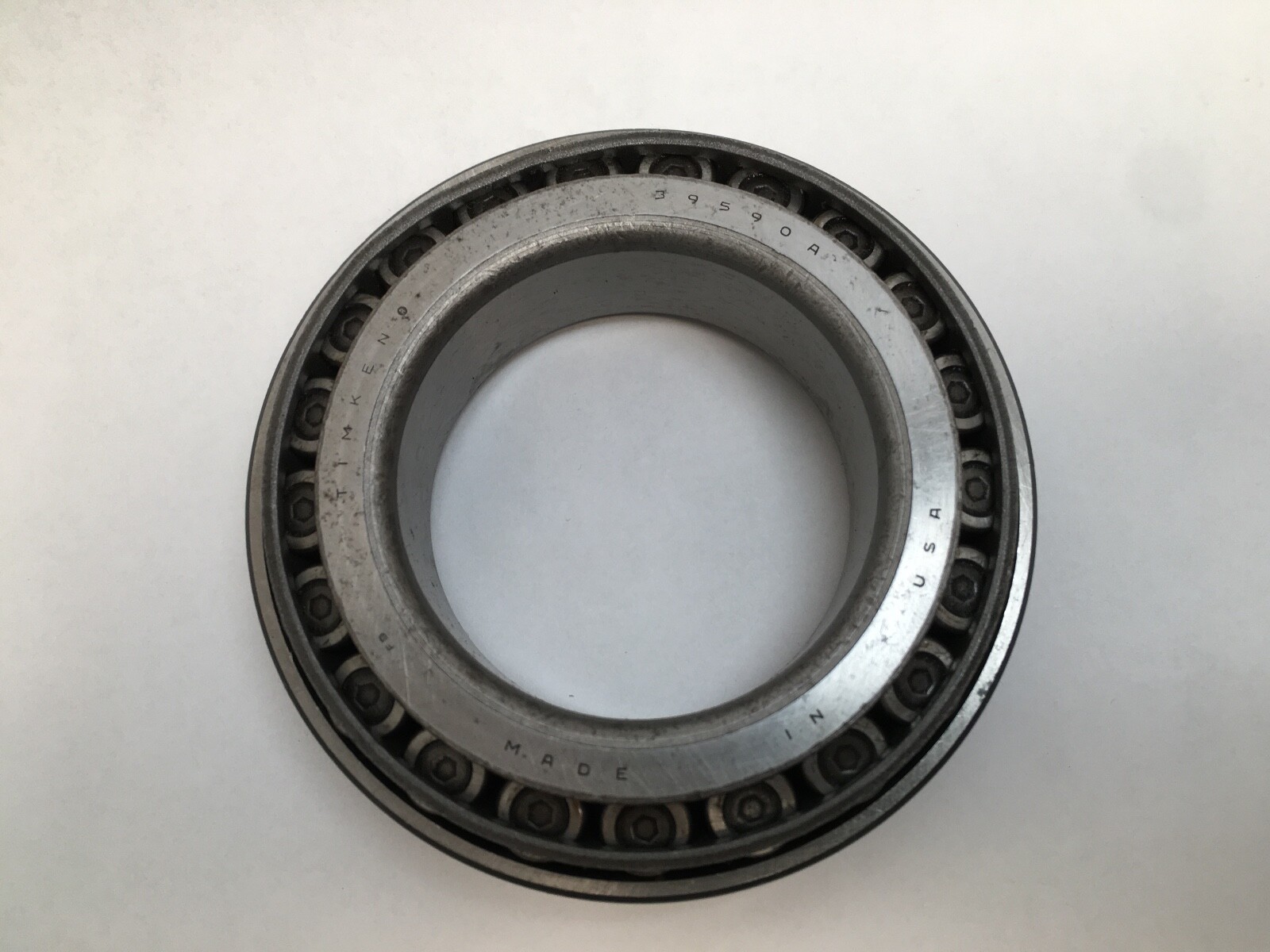

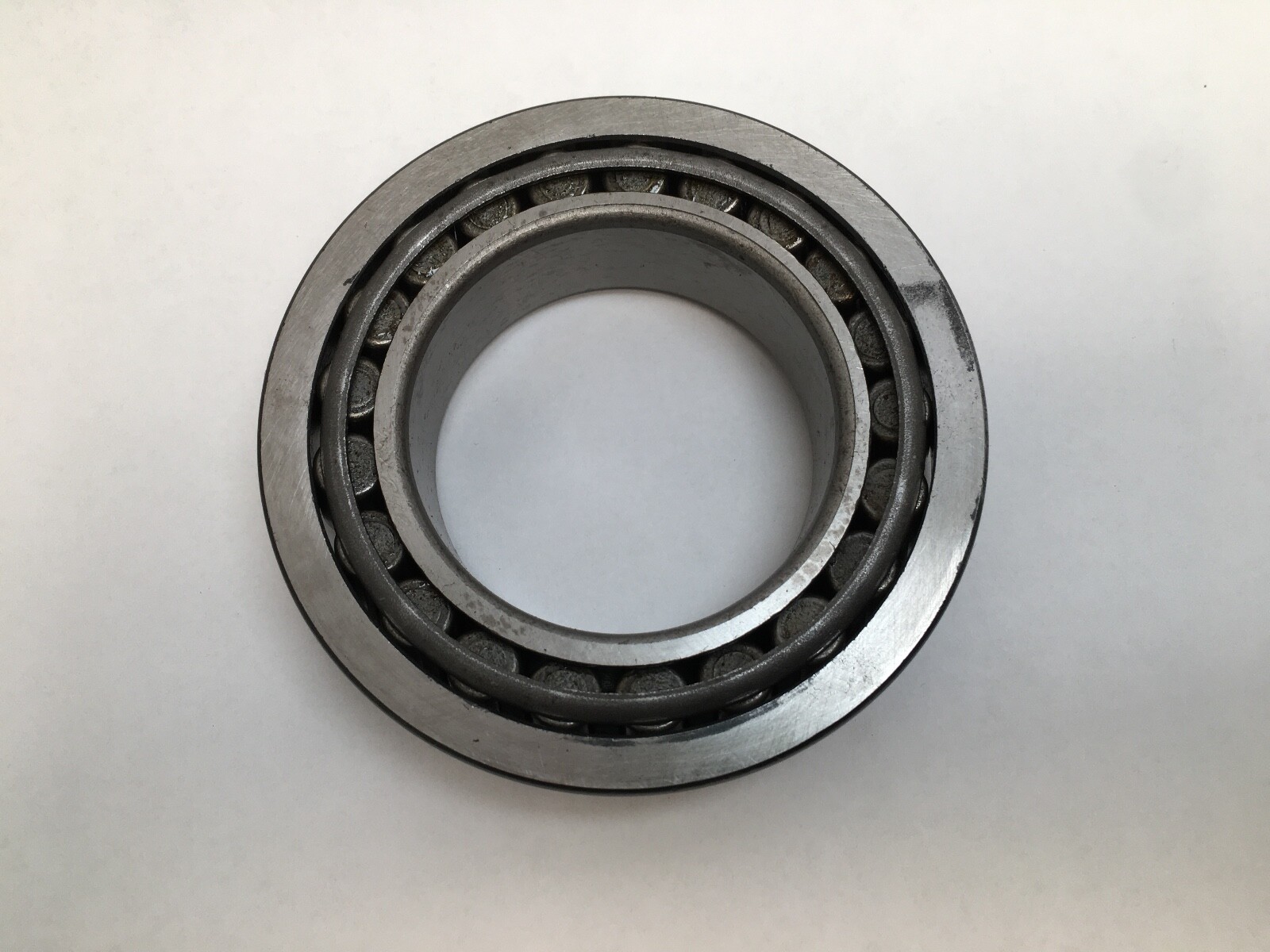

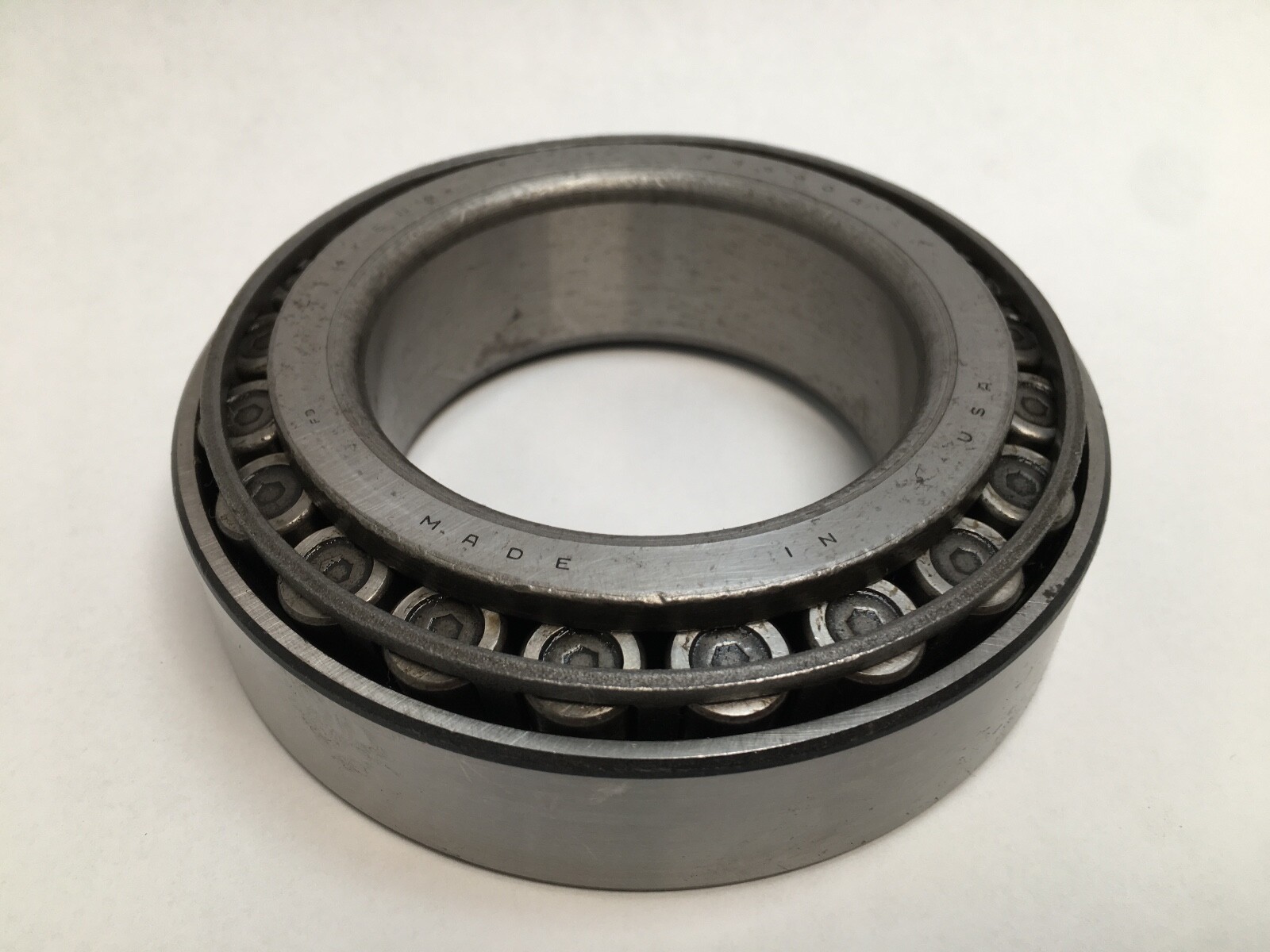

Timken 39590A / 39521 inch tapered roller bearing, supplied as the matched cone and cup. Bore Diameter: 2.6240 in (66.650 mm). Outside Diameter: 4.4375 in (112.713 mm). Overall Width: 1.1876 in (30.165 mm). Inner Ring Width B: 1.1875 in (30.163 mm). Outer Ring Width C: 0.9375 in (23.813 mm). Series: 39500. Base Number: 39590A. Number Of Rows: 1. Rolling Elements: Tapered Roller. Bore Type: Straight. Bearing Material: Steel. Precision Class: Not specified.

Decoding the designation

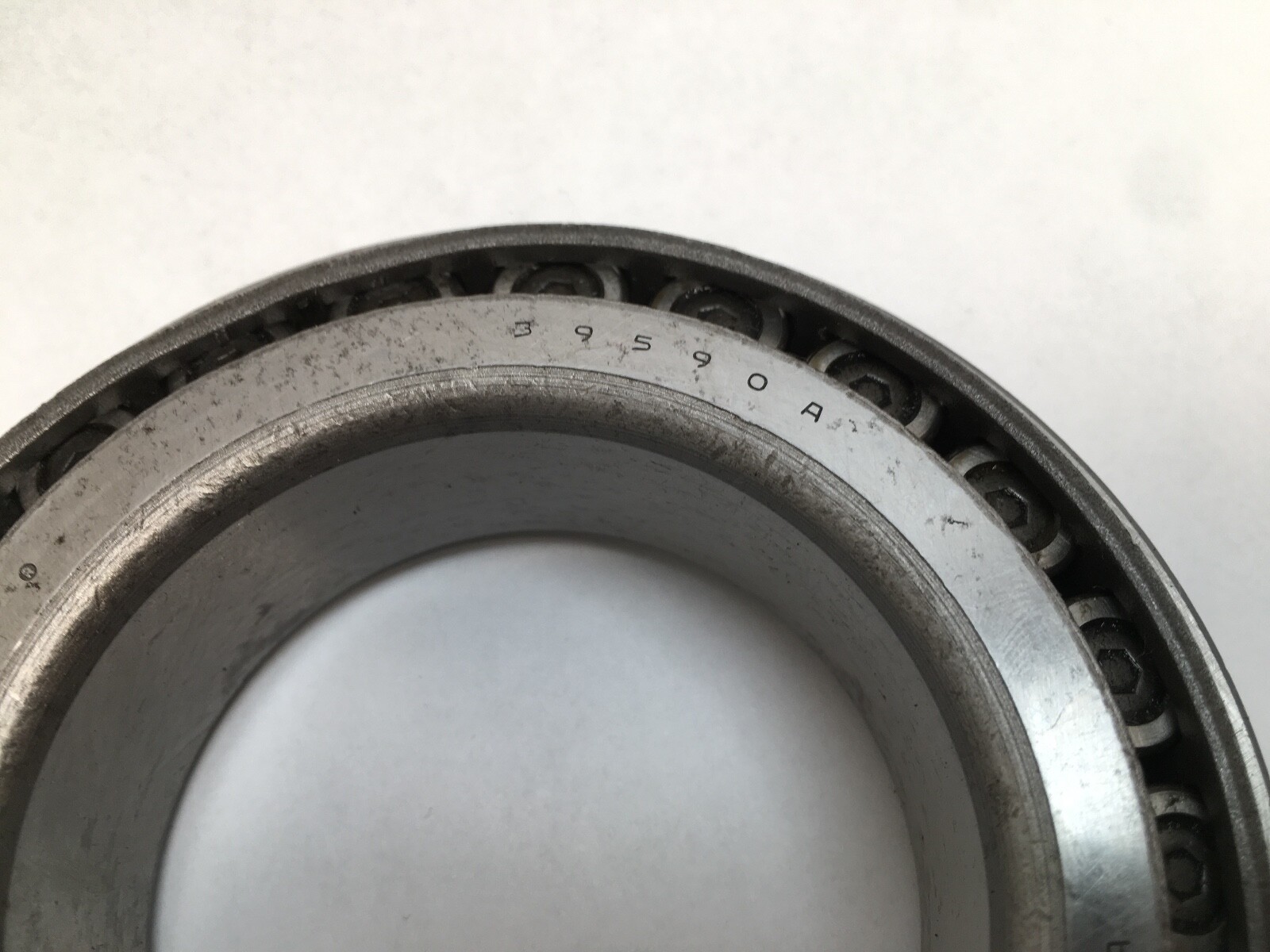

39590 — the cone base number in the Timken 39500 inch tapered series, fixing the bore and the roller path.

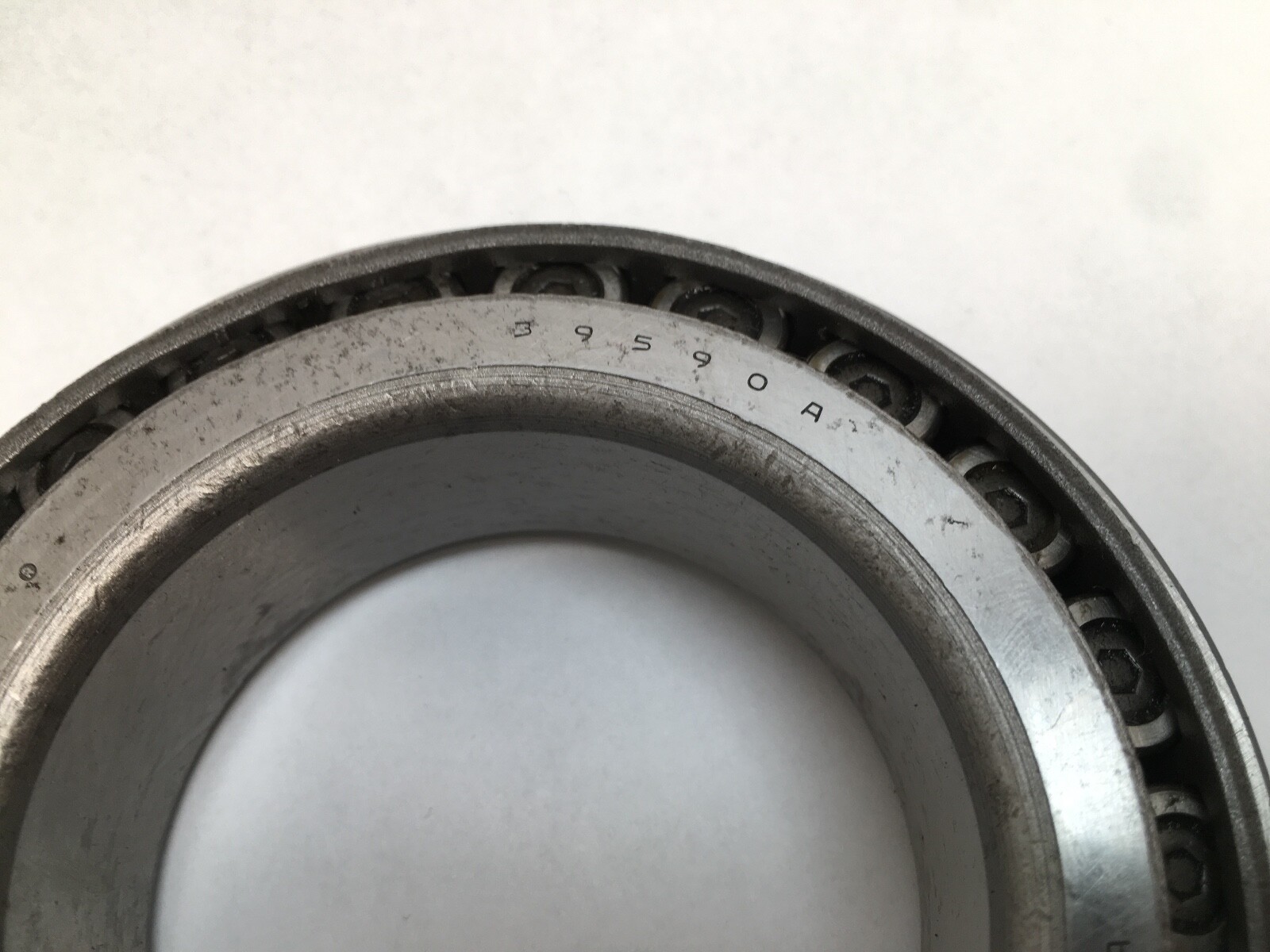

A — the design revision of the cone, which sets the 2.6240 in bore that distinguishes it from the plain 39590.

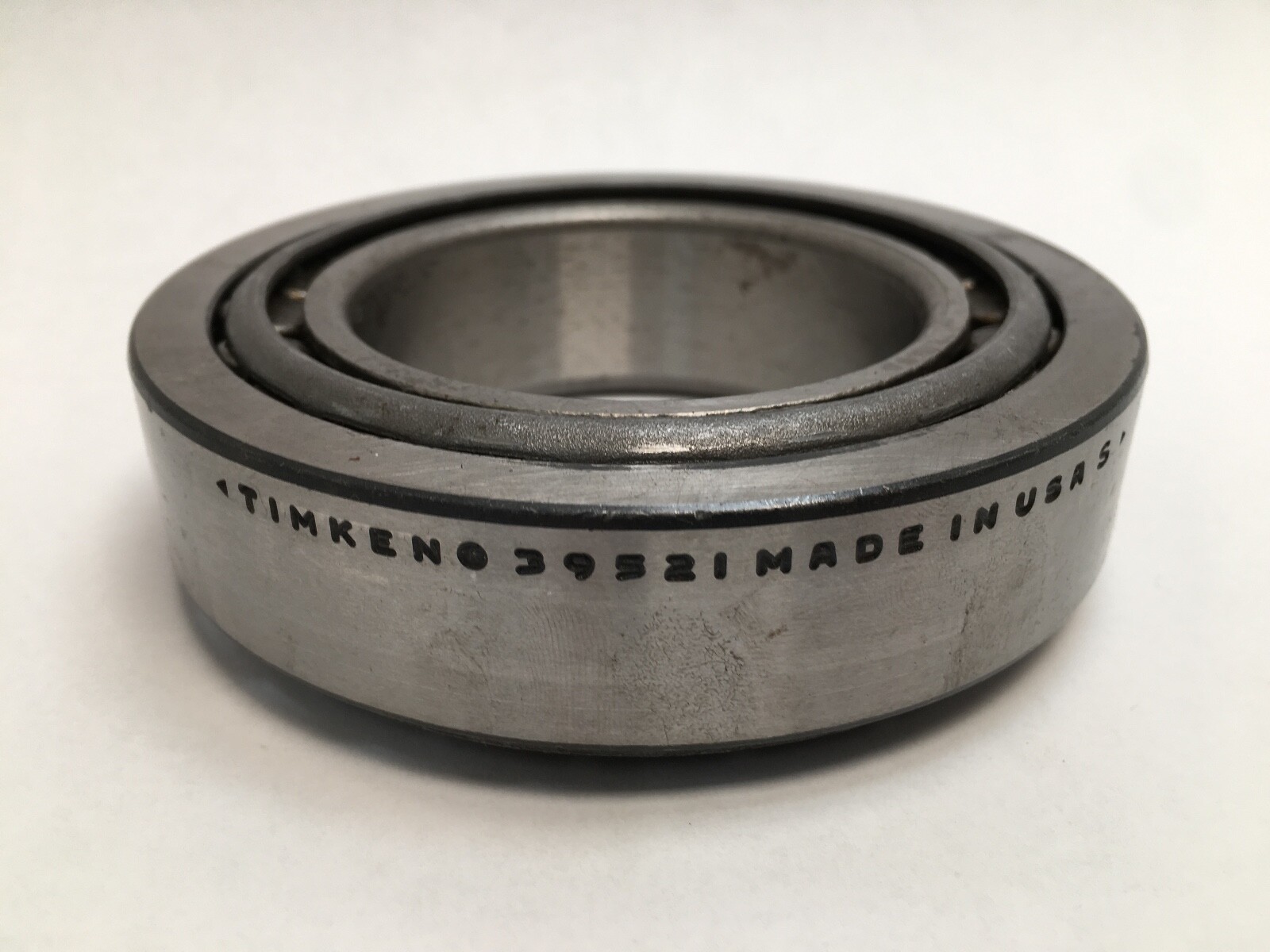

39521 — the mating cup, fixing the 4.4375 in outside diameter and the housing seat.

What these specs mean in practice

Dynamic Load Rating: 167,000 N (37,500 lbf) at 1 million revolutions. Static Load Rating: 224,000 N (50,300 lbf). Dynamic Radial Load Rating C90: 43,300 N (9,730 lbf). Dynamic Axial Rating Ca90: 25,100 N (5,650 lbf). e Factor: 0.34. K Factor: 1.72. Y Factor: 1.77. Geometry Factor Cg: 0.107. G1 Factor: 84.3. G2 Factor: 23.7. Item Weight: 1.20 kg (2.60 lb). A K factor of 1.72 places this size in the shallower half of the inch range, so radial capacity dominates and the thrust share stays moderate.

Mounting data

Effective Center Location: -0.26 in (-6.6 mm), inside the cone backface. Max Shaft Fillet Radius: 0.140 in (3.600 mm). Max Housing Fillet Radius: 0.03 in (0.76 mm). Shaft Backing Shoulder Diameter Frontface da: 2.99 in (75.9 mm). Shaft Backing Shoulder Diameter Backface db: 3.15 in (80 mm). Housing Backing Shoulder Diameter Frontface Da: 4.25 in (107.95 mm). Housing Backing Shoulder Diameter Backface Db: 4.06 in (103.12 mm). Cage Location Relative To Backface Aa: 0.05 in (1.3 mm). Cage Location Relative To Frontface Ab: 0.13 in (3.3 mm).

Quantity and configuration

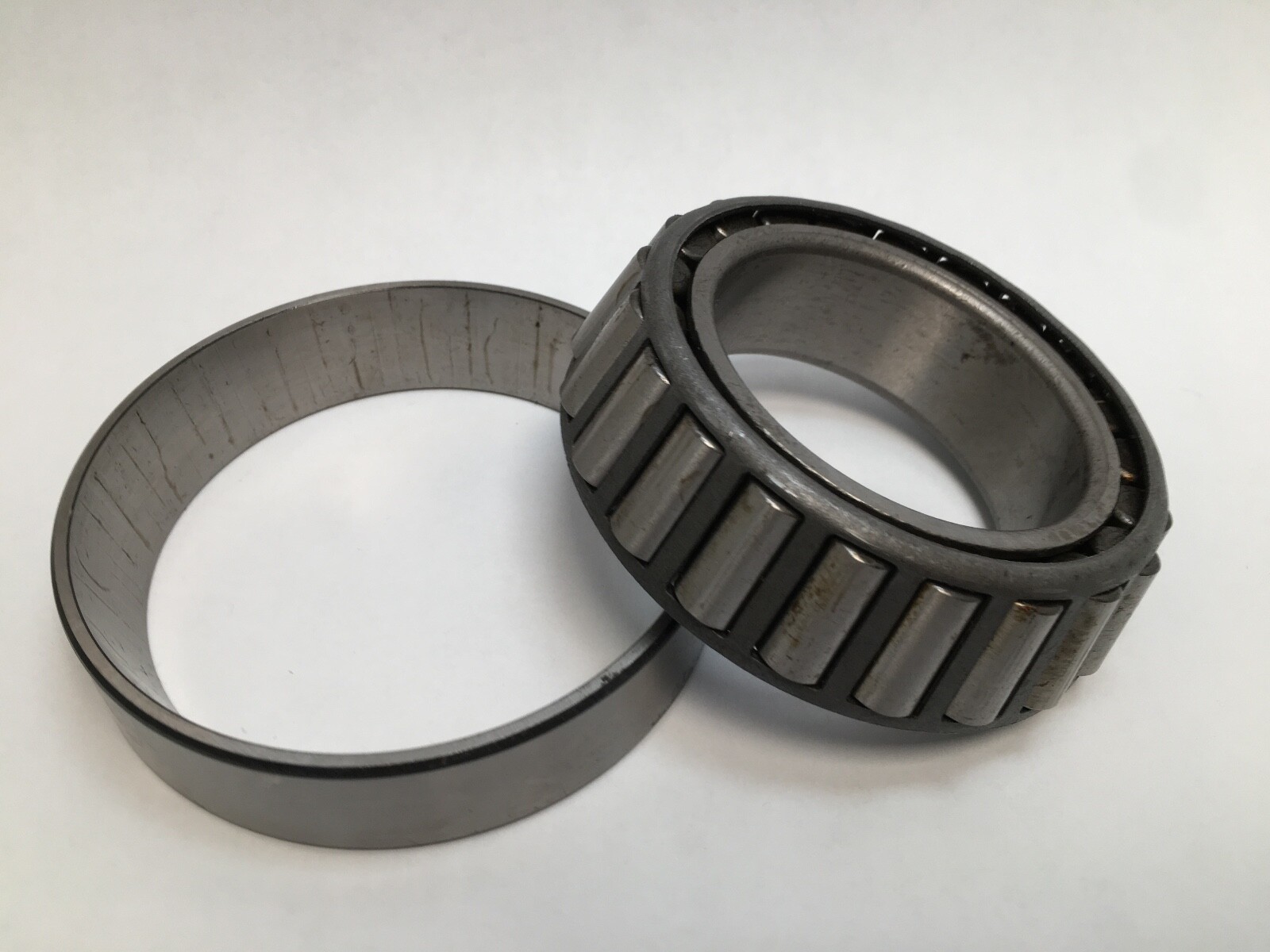

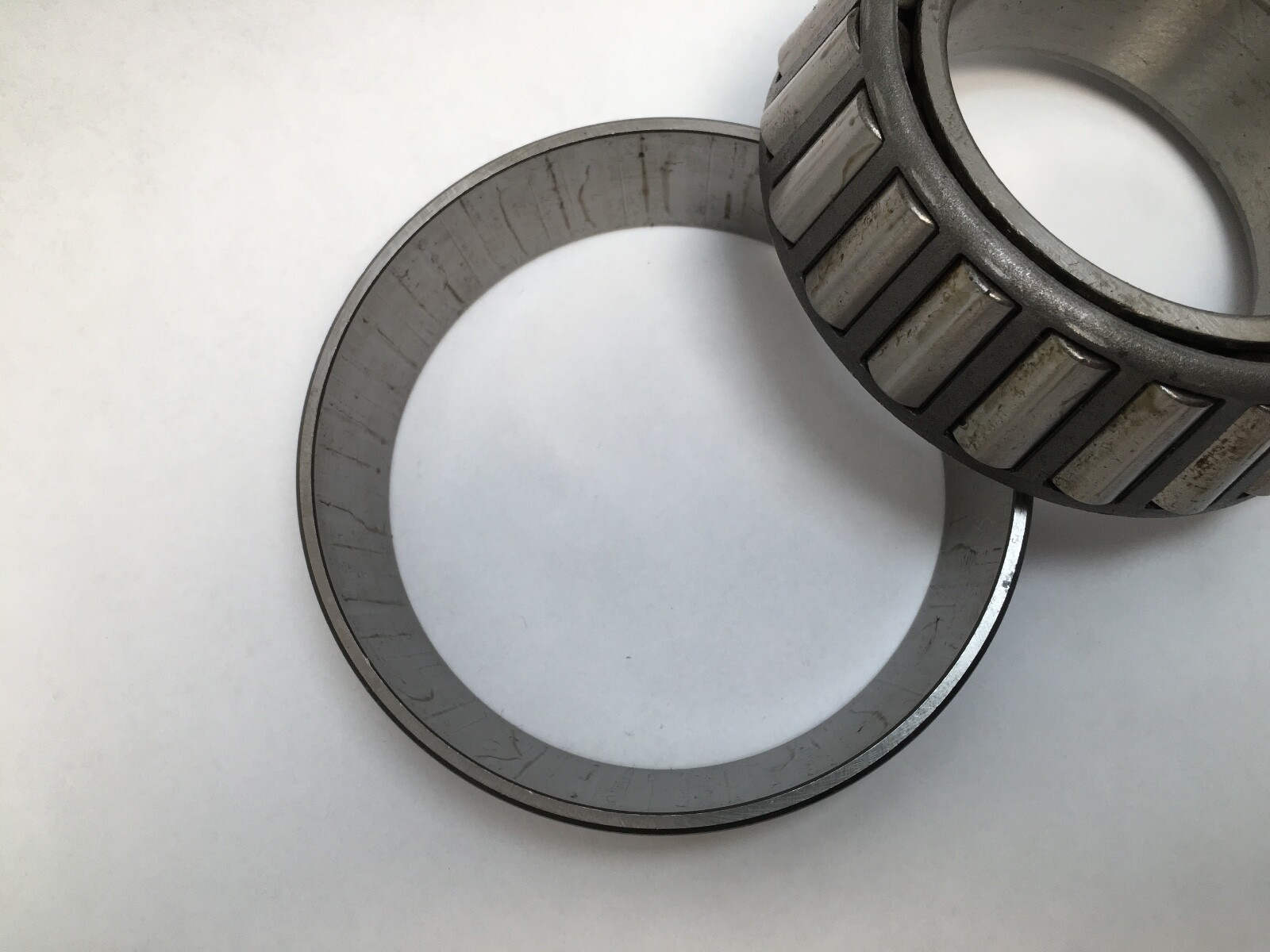

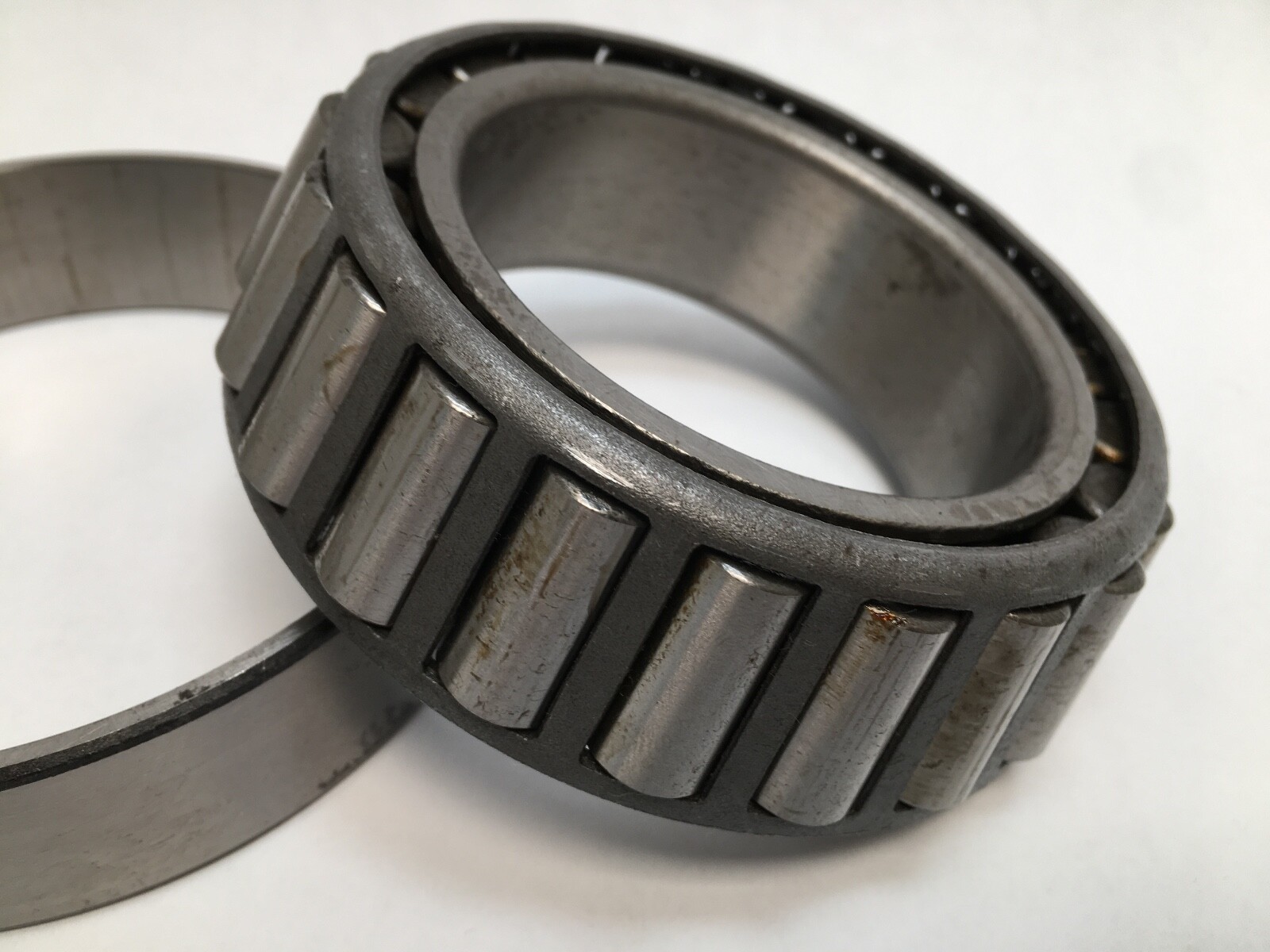

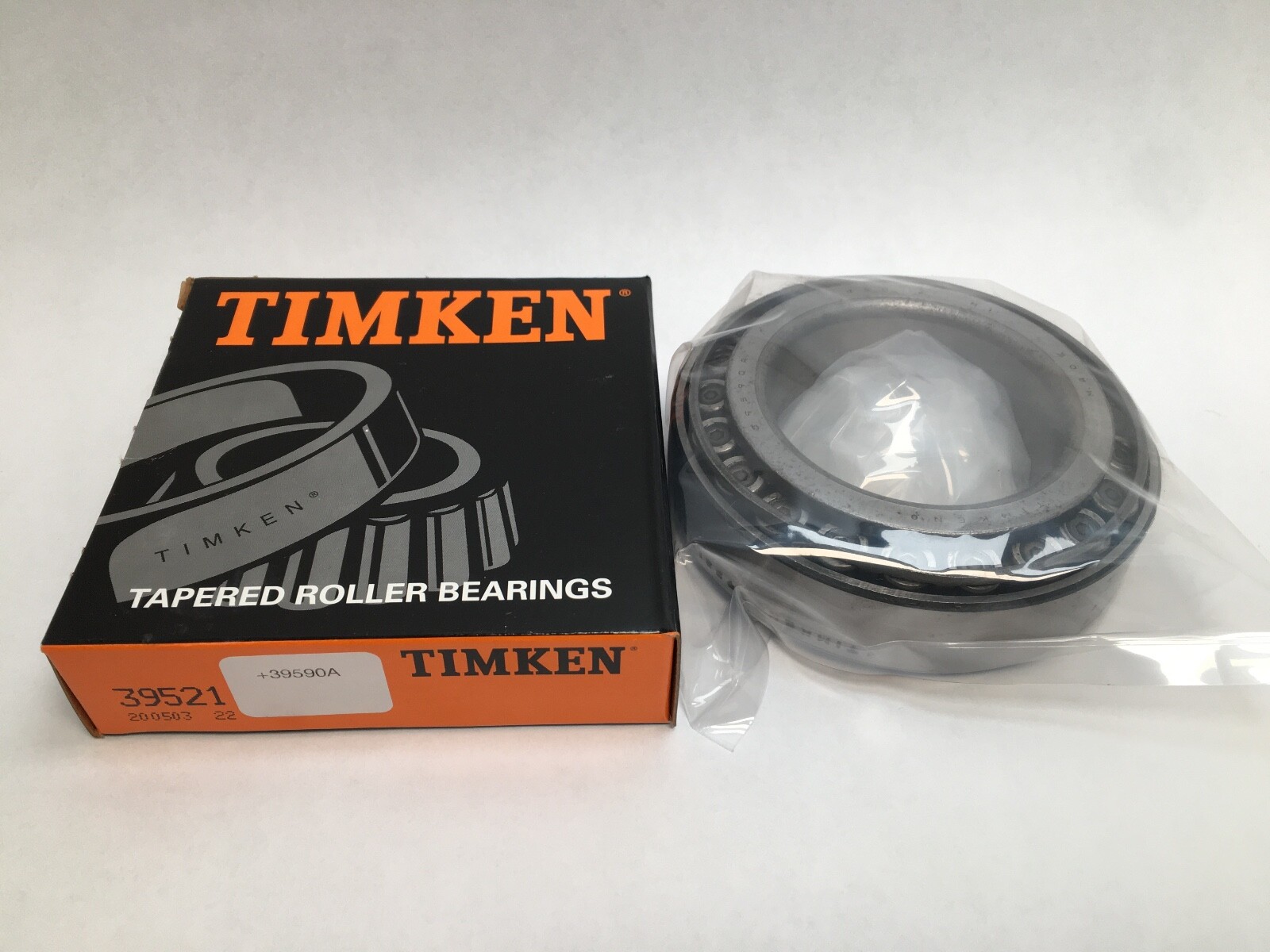

Unit Quantity: 2 Pcs. One 39590A cone and one 39521 cup, supplied together as a matched single-row assembly.
