Timken 368SB/362 tapered roller bearing cone and cup set, 2.0312 in bore, 3.5433 in OD, 0.625 in cup width. 102,000 N dynamic load rating. 2 Pcs.
List Price
$49.31
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 368SB/362 |
| Model | 368S B / 362 |
| Bearing Type | Tapered Roller Bearing Cone and Cup Set |
| ID | 2.0312 in (51.592 mm) |
| OD | 3.5433 in (90 mm) |
| Material | Steel |
|---|---|
| Series | 365 |
| Harmonization Code | 8482.20.00 |
| Cup Part Number | 362 |
| Design Units | Imperial |
| Bearing Material | Case-Carburized Steel |
| Cup Width | 0.6250 in (15.875 mm) |
| Cup Backface To Clear Radius | 0.08" |
| Cone Part Number | 368SB |
| Cone Width | 0.8750 in (22.225 mm) |
| Cone Backface To Clear Radius | 0.08" |
| Base Number | 368-S/362 |
| Mpn Variants | 368SB/362, 368-S-B/362, 368S B 362, 368SB 362, 368-S, 362 |
| Compatible With Replaces | Timken 368-S cone, Timken 362 cup |
| Precision Class | Not specified |
| Dynamic Load Rating C1 | 102,000 N (22,900 lbf) |
| Dynamic Axial Rating Ca90 | 14,400 N (3,250 lbf) |
| K Factor | 1.83 |
| E Factor | 0.32 |
| Additional Attributes | K Factor 1.83; e 0.32; Y 1.88; C90 26,400 N; Ca90 14,400 N; Effective center -0.17 in |
| Dynamic Load Rating | 102,000 N |
| Static Load Rating | 95,800 N (21,500 lbf) |
| Precision Rating | Not specified |
| Rolling Elements | Tapered Roller |
| Item Weight | 1.67 kg (3.69 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Effective Center Location | -0.17 in (-4.3 mm) |
| Industry Terms | tapered roller bearing set; cone and cup set; inch taper bearing; 368 cone 362 cup; 2-1/32 bore taper bearing |
| Common Misspellings | Timkin 368SB/362; Timken 368 SB 362; Timken 368S/362; Timkin 368S B 362 |
| Application Types | Gearboxes; axle and wheel hub assemblies; industrial machinery; power transmission |

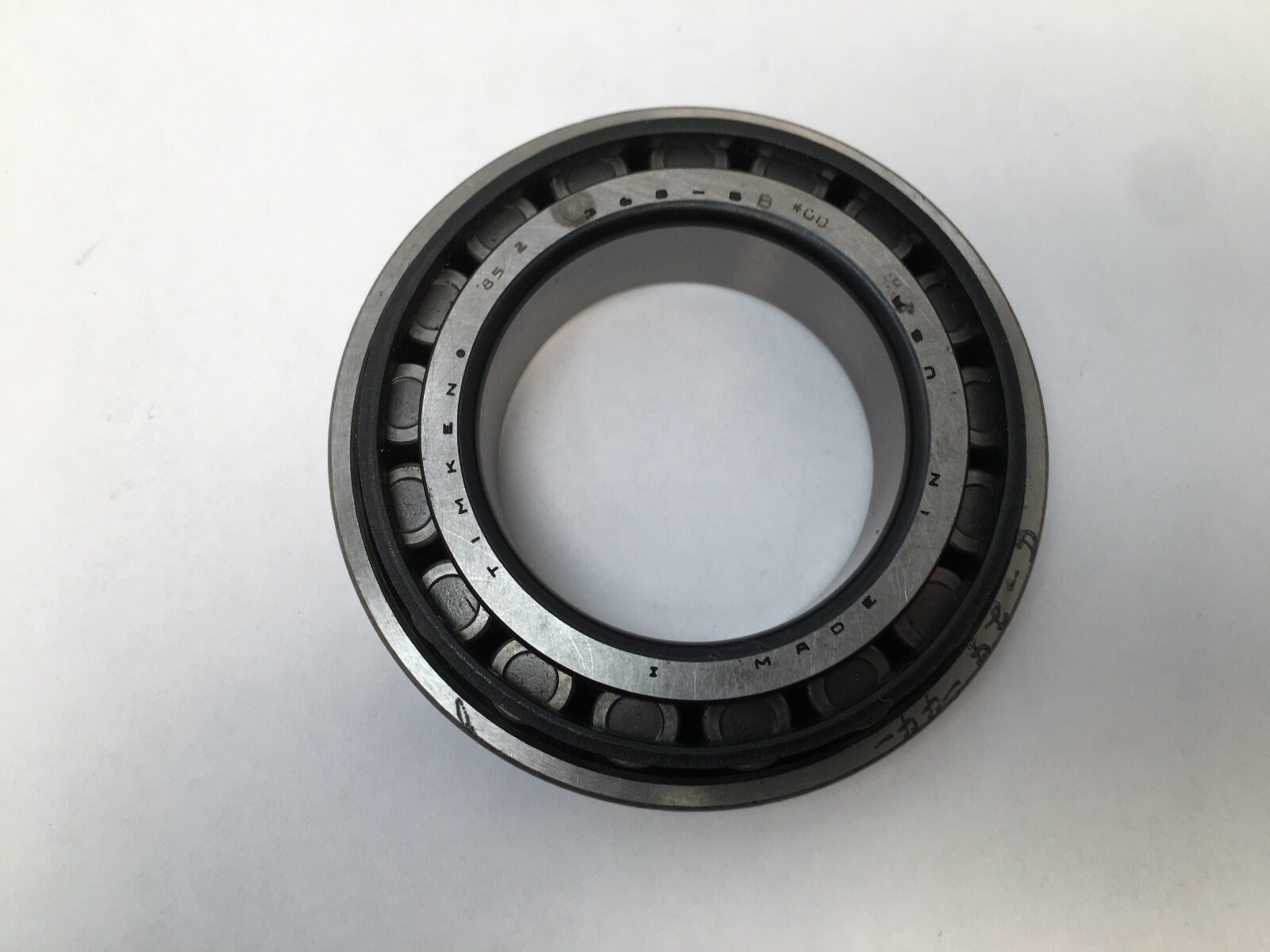

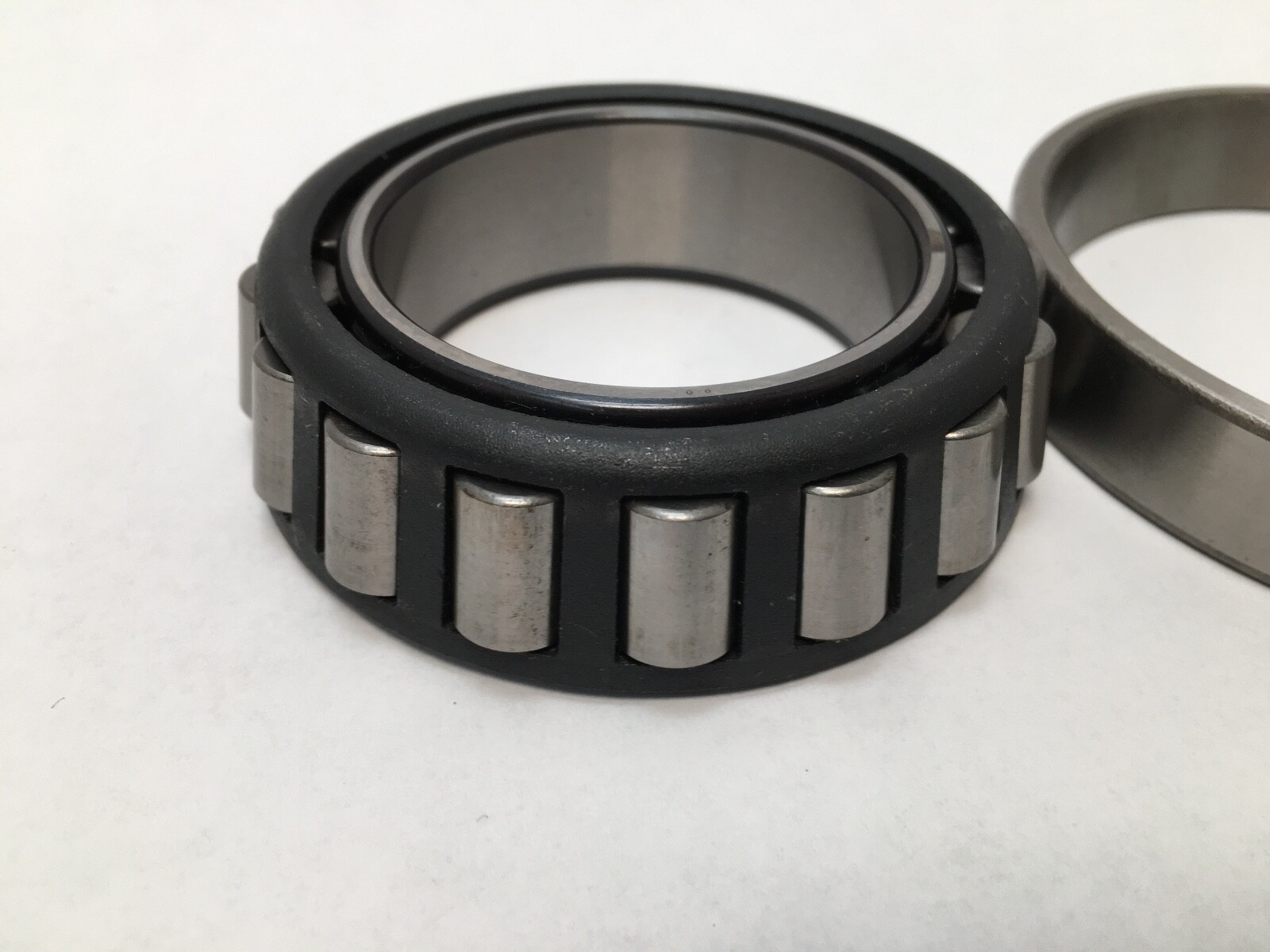

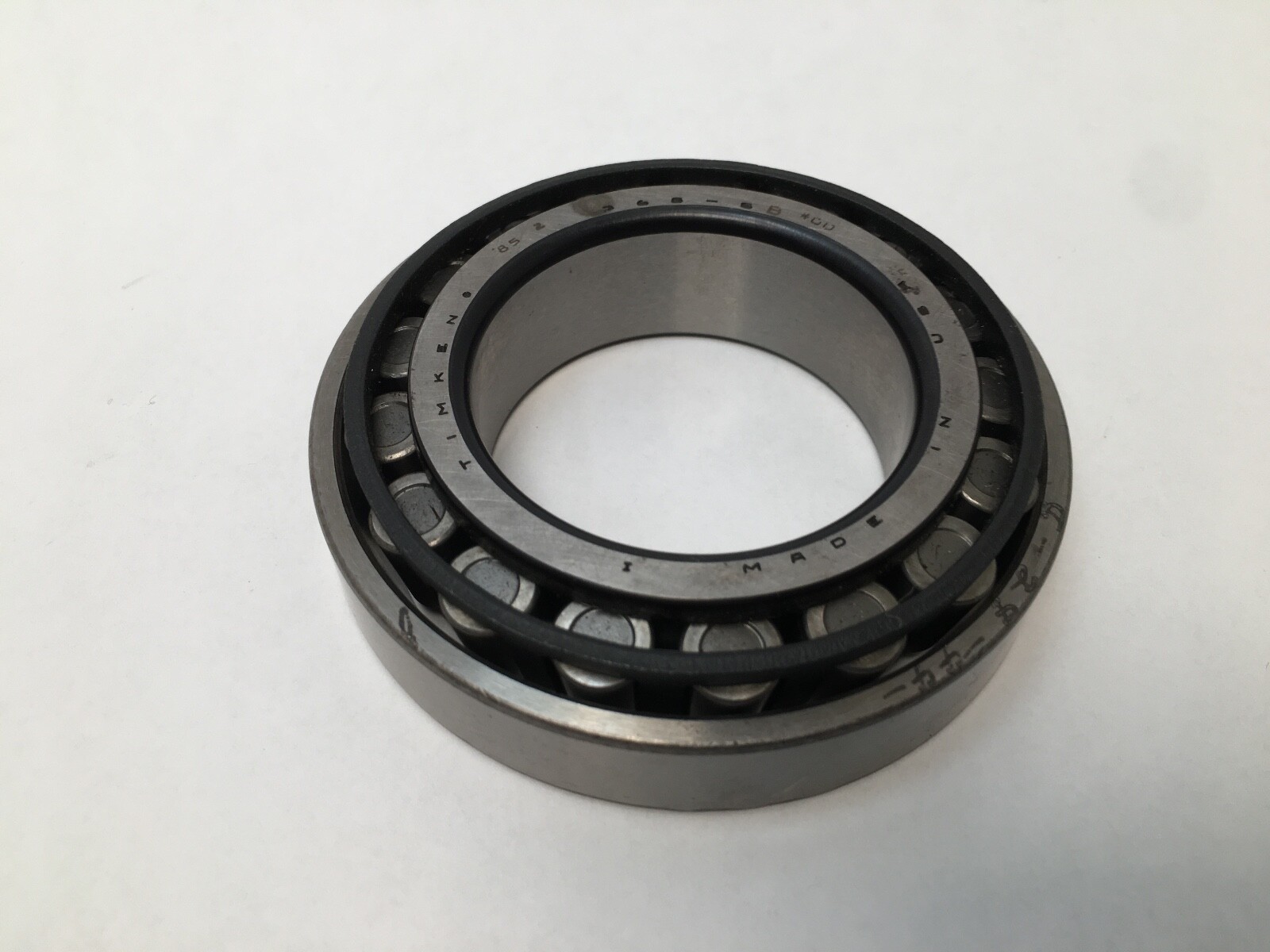

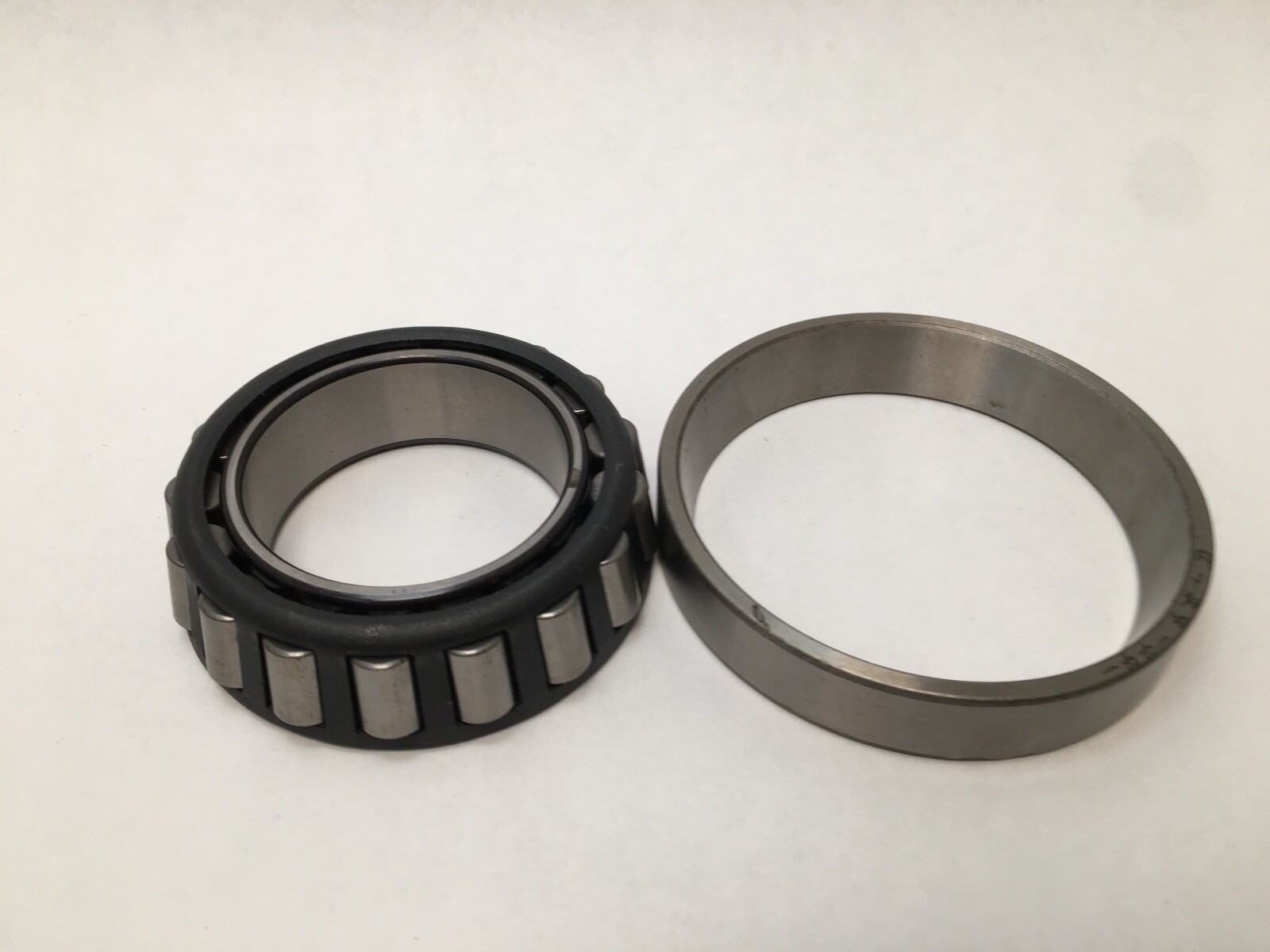

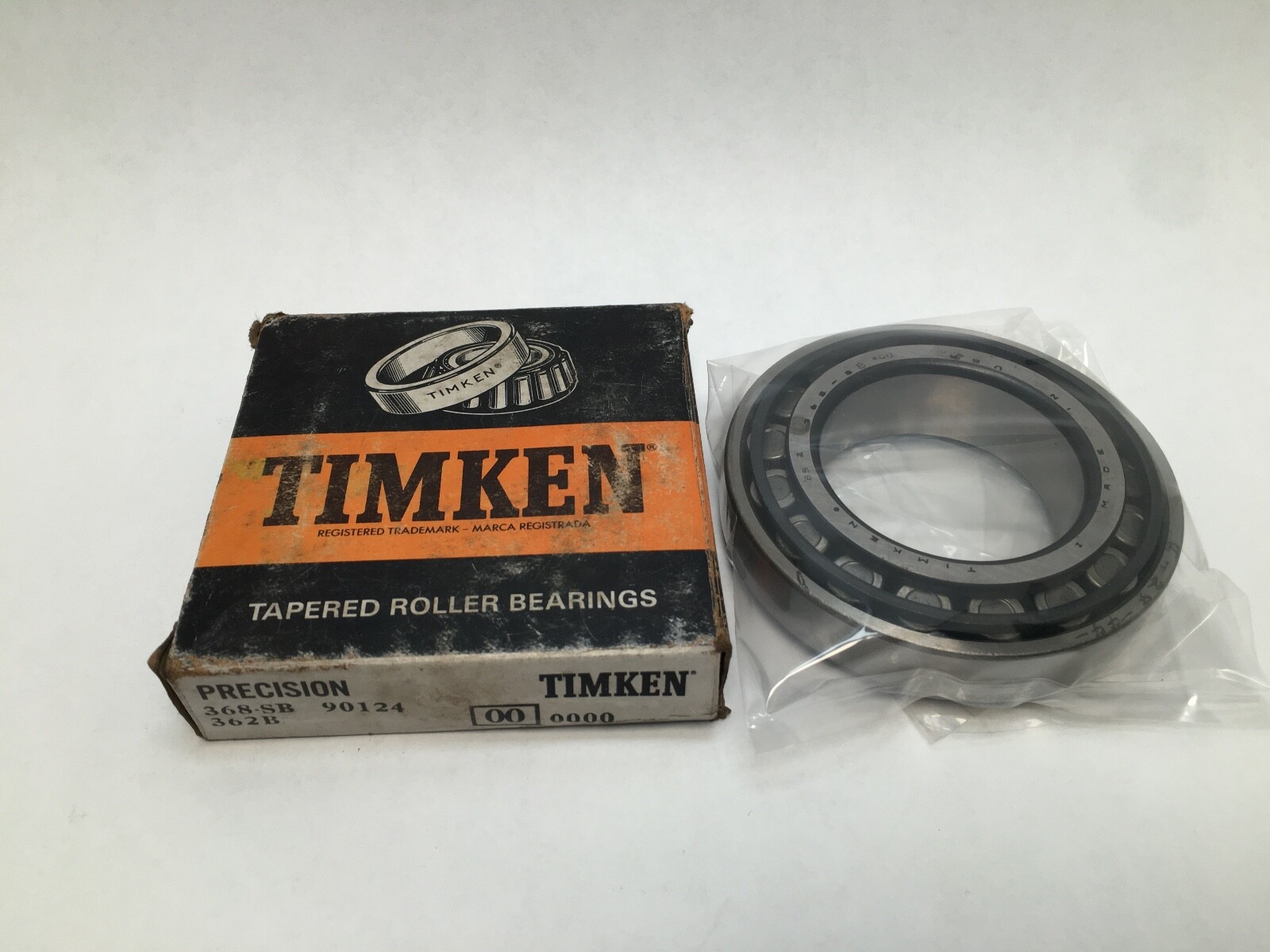

Timken 368SB/362 is a single-row inch tapered roller bearing supplied as a cone and a cup. Cone Part Number: 368SB. Cup Part Number: 362. Unit Quantity: 2 Pcs. The cone carries the inner race, the roller set and the cage; the 362 cup is the outer race.

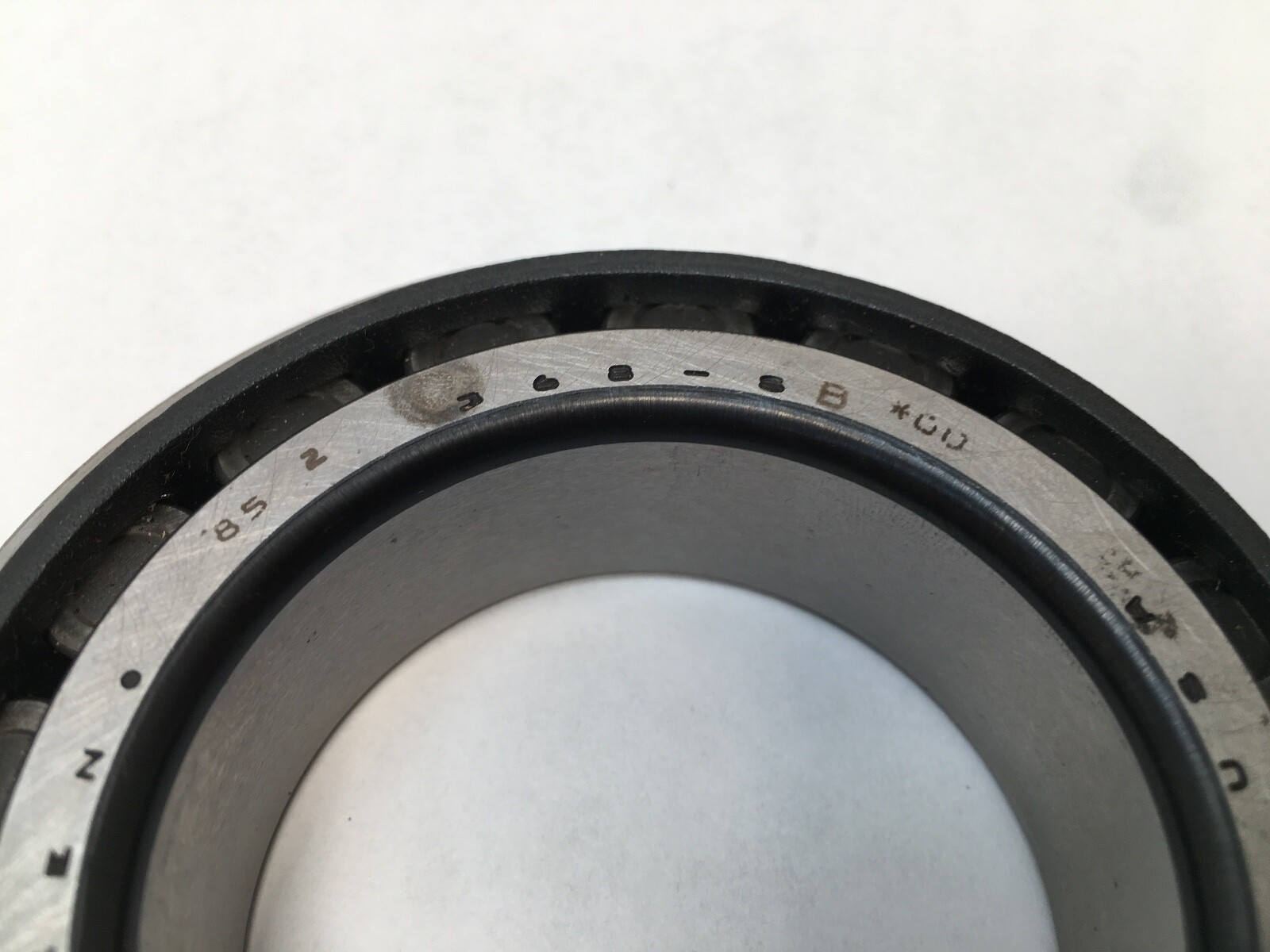

368 — the cone base number, a 365-series inch tapered roller cone on a 2.0312 in bore.
362 — the mating cup number, giving a 3.5433 in outside diameter.
Bore Diameter: 2.0312 in (51.592 mm). Outside Diameter: 3.5433 in (90 mm). Cone Width: 0.8750 in (22.225 mm). Cup Width: 0.6250 in (15.875 mm). Rolling Elements: Tapered Roller. Number Of Rows: 1. Bore Type: Straight. Design Units: Imperial. Series: 365. Bearing Material: Case-Carburized Steel. Item Weight: 1.67 kg (3.69 lb) for the two pieces. Cone Weight: 1.174 kg (2.59 lb). Cup Weight: 0.5 kg (1.1 lb).
Dynamic Load Rating (C1): 102,000 N (22,900 lbf). Dynamic Radial Load Rating (C90): 26,400 N (5,930 lbf). Dynamic Axial Rating (Ca90): 14,400 N (3,250 lbf). Static Load Rating (C0): 95,800 N (21,500 lbf). K Factor: 1.83. e Factor: 0.32. Y Factor: 1.88.
Effective Center Location: -0.17 in (-4.3 mm), measured inside the cone backface. Max Shaft Fillet Radius: 0.080 in (2.0 mm). Max Housing Fillet Radius: 0.08 in (2.03 mm). Shaft Backing Shoulder Diameter, frontface (da): 2.2 in (56 mm). Shaft Backing Shoulder Diameter, backface (db): 2.32 in (59 mm). Housing Backing Shoulder Diameter, frontface (Da): 3.34 in (84.10 mm). Housing Backing Shoulder Diameter, backface (Db): 3.19 in (81.03 mm).
Timken 368-S cone with Timken 362 cup; Timken lists 362 as the mating cup for the 368-S cone. CAD model and data sheet: available from Timken (cad.timken.com).
Bore Diameter: 2.0312 in (51.592 mm). Outside Diameter: 3.5433 in (90 mm).

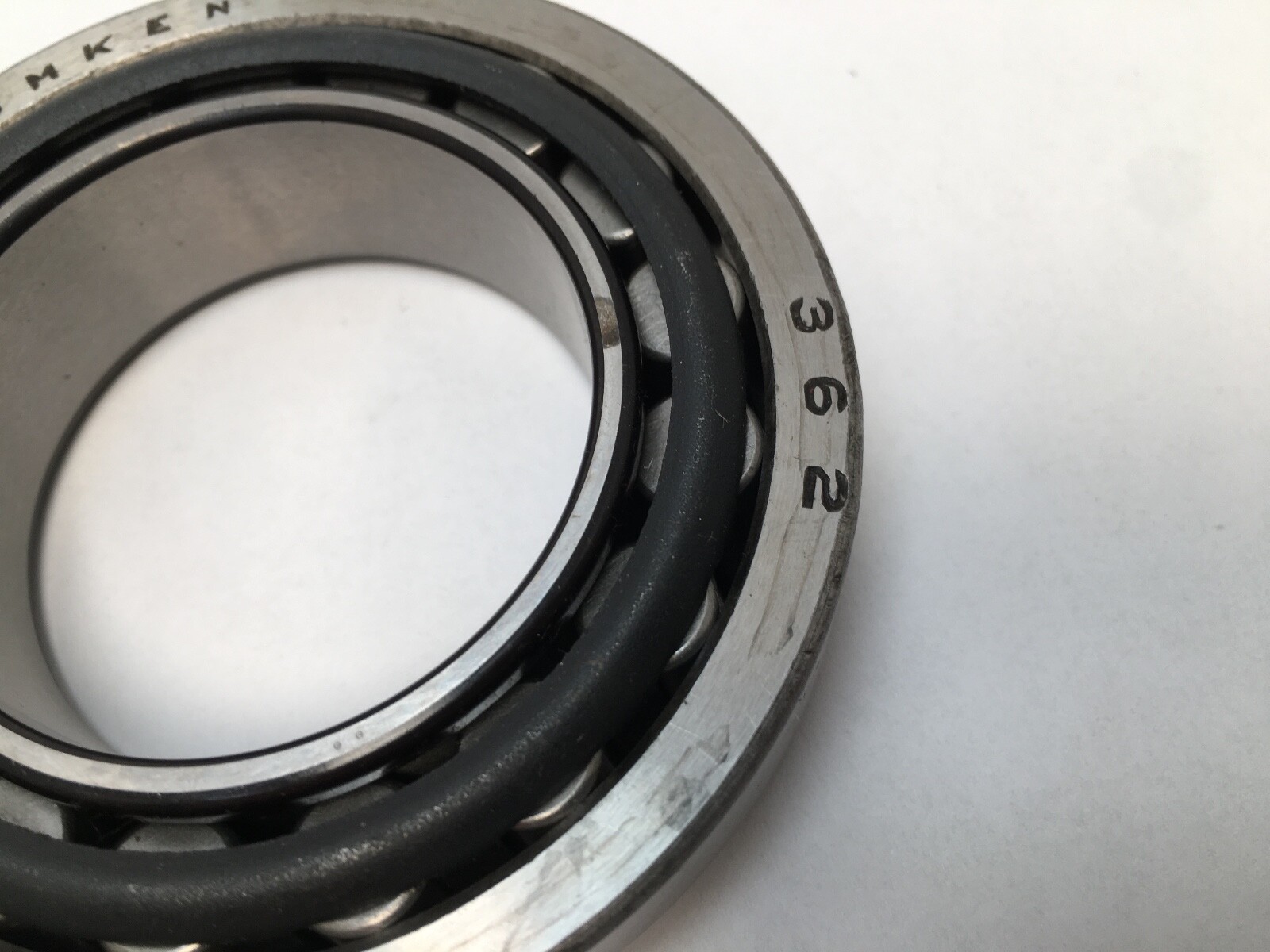

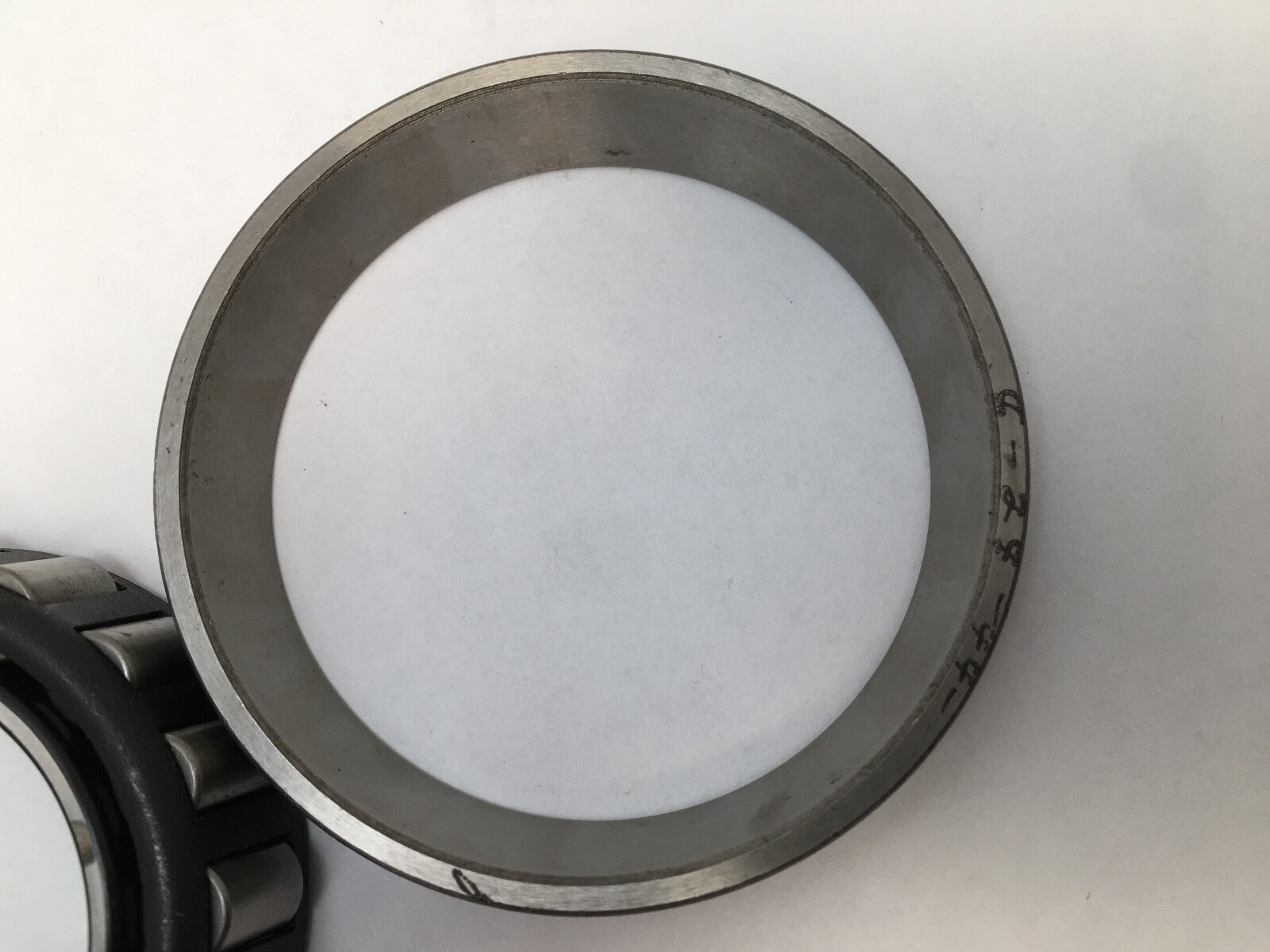

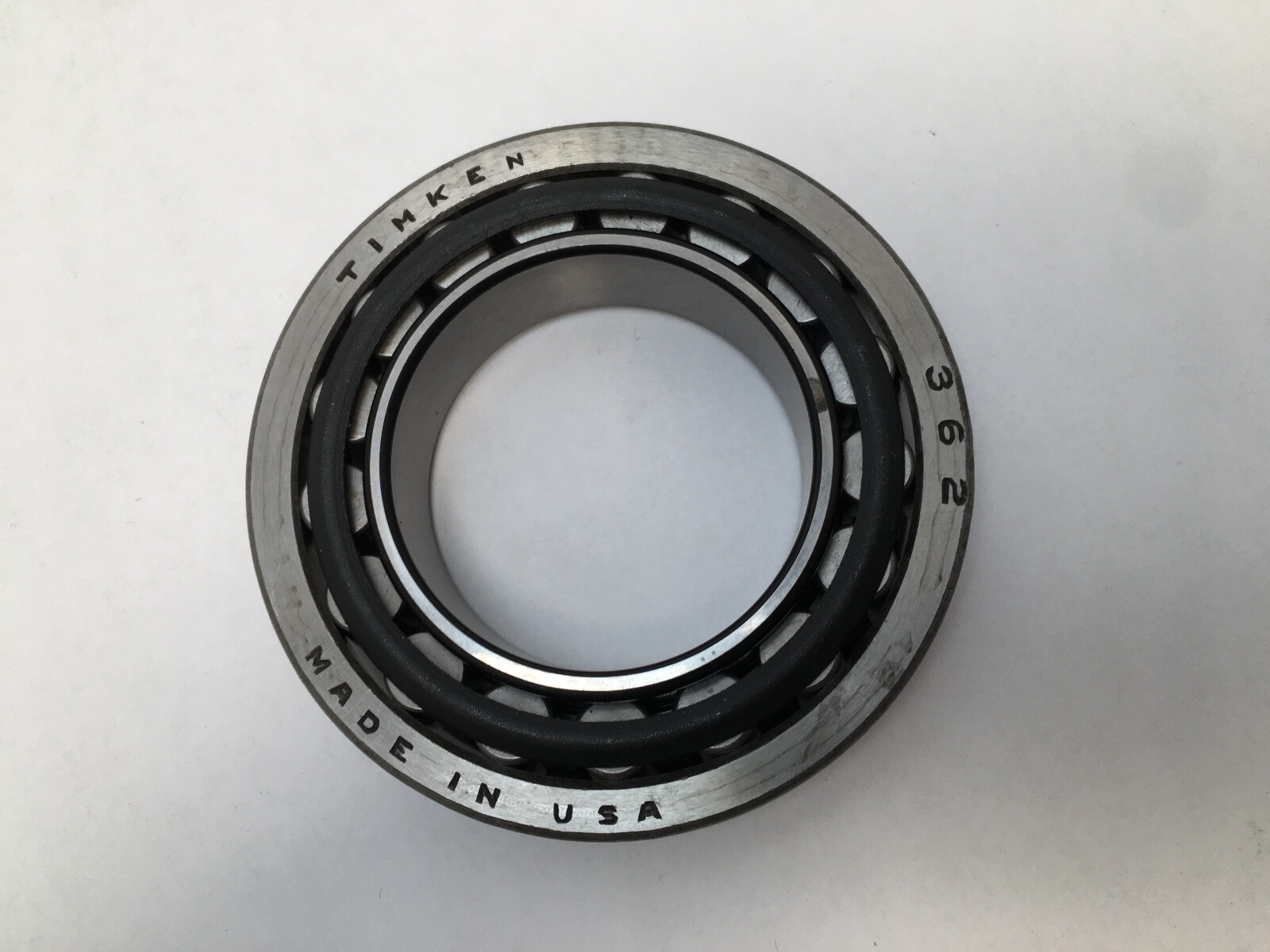

Timken 362, a 3.5433 in outside diameter cup with a cup width of 0.6250 in.
Dynamic Load Rating (C1): 102,000 N. Static Load Rating (C0): 95,800 N. C90 radial: 26,400 N. Ca90 axial: 14,400 N.
