Availability:
1 in stock
Flanged-cup tapered roller bearing set, 2.0312 in bore, 3.5433 in OD, 0.8750 in cone width. 102,000 N dynamic rating, flange locates the cup axially.
List Price
$64.97
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 368SB/363B |
| Model | 368 SB / 363 B |
| Bearing Type | Tapered Roller Bearing |
| ID | 2.0312 in |
| OD | 3.5433 in |
| Base Number | 368-S |
|---|---|
| Mpn Variants | 368SB/363B, 368-SB / 363-B, 368 SB / 363 B, 368-S, 363-B, 90124 |
| Precision Class | Not specified |
| K Factor | 1.83 |
| Dynamic Load Rating | 102,000 N |
| Static Load Rating | 95,800 N |
| Rolling Elements | Tapered Roller |
| Item Weight | 1.174 kg (2.59 lb) cone |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.20.00 |
| Cup Part Number | 363B |
| Design Units | Imperial |
| Bearing Material | Case-Carburized Steel |
| Cup Width | 0.7874 in |
| Cone Part Number | 368SB |
| Cone Width | 0.8750 in |
| Effective Center Location | -0.17 in (-4.3 mm) |

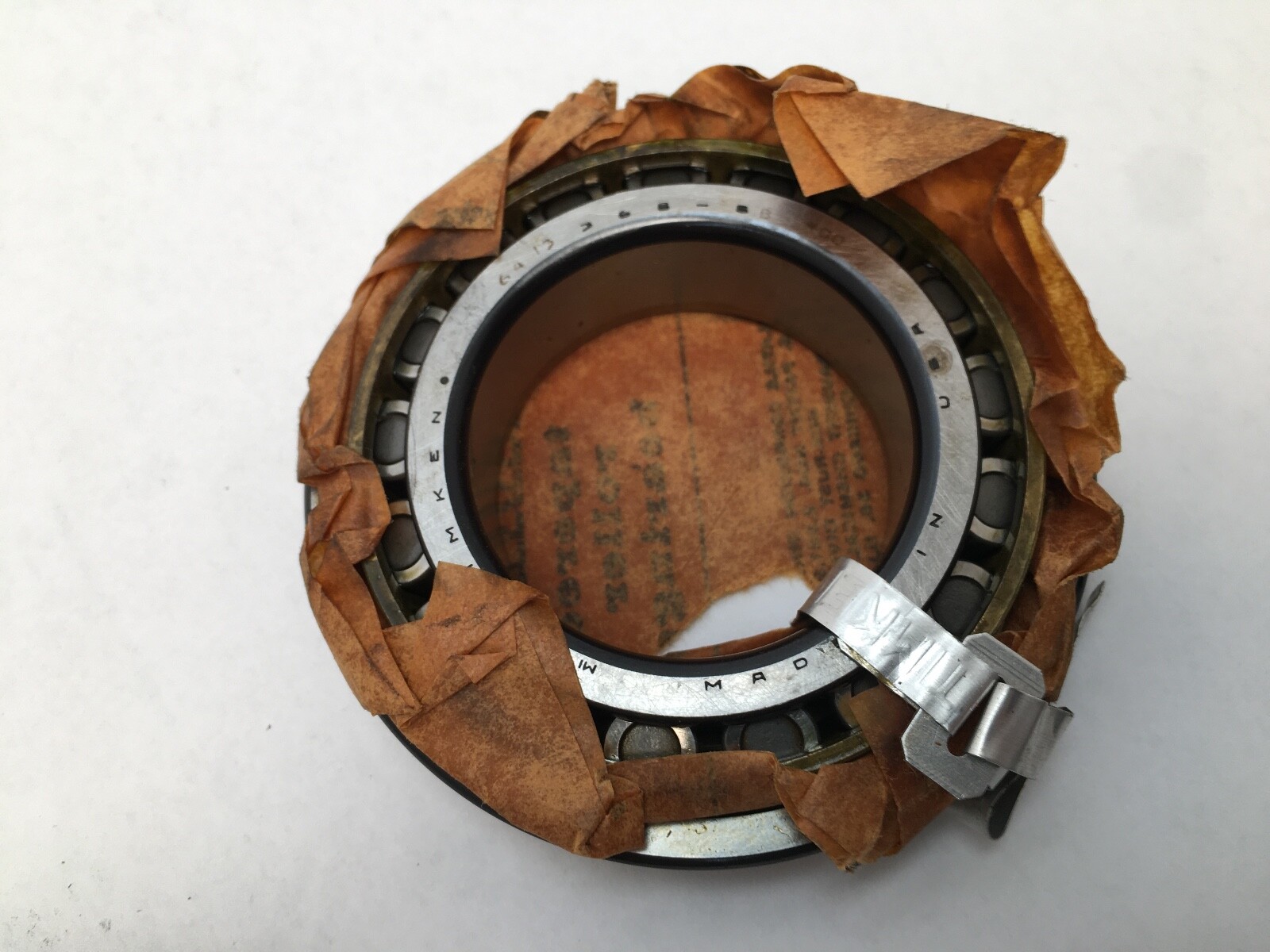

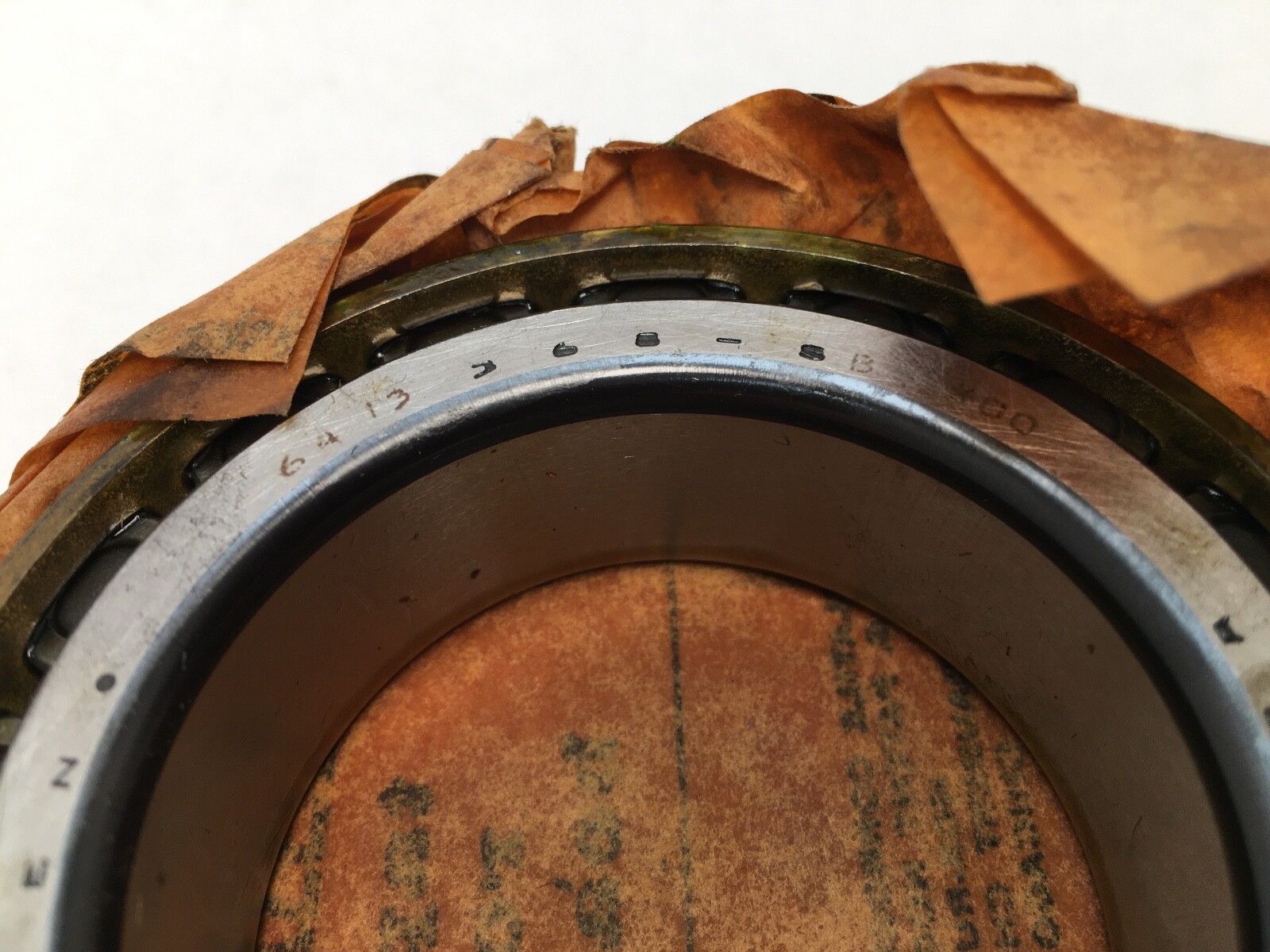

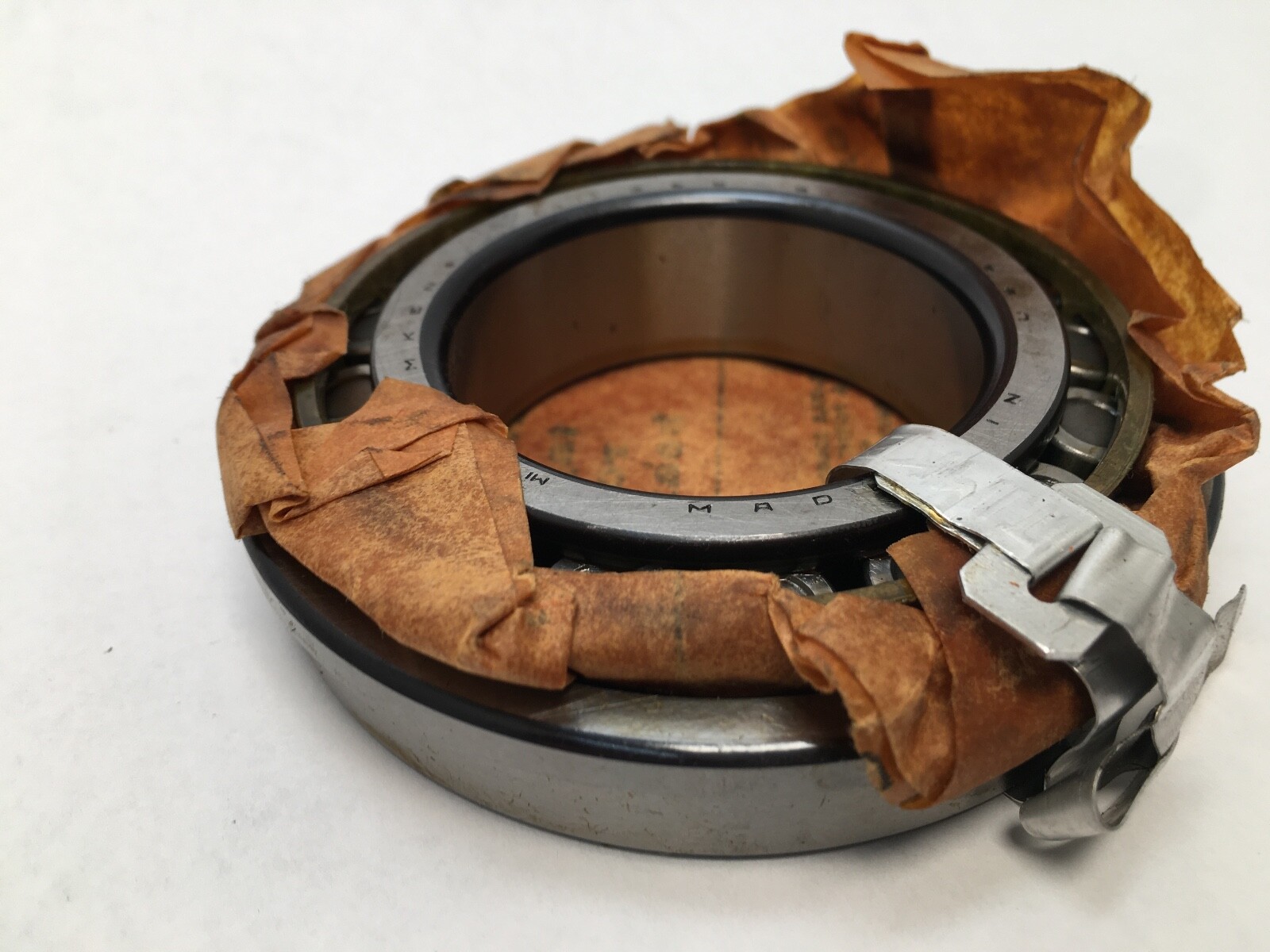

Timken 368SB/363B inch tapered roller bearing set: one 368-S single cone and one 363-B single flanged cup, a complete matched cone-and-cup assembly (Timken assembly number 90124). Unit Quantity: 2 Pcs. Base Number: 368-S. Country of Origin: United States.
368-S — the cone number, fixing the 2.0312 in bore.

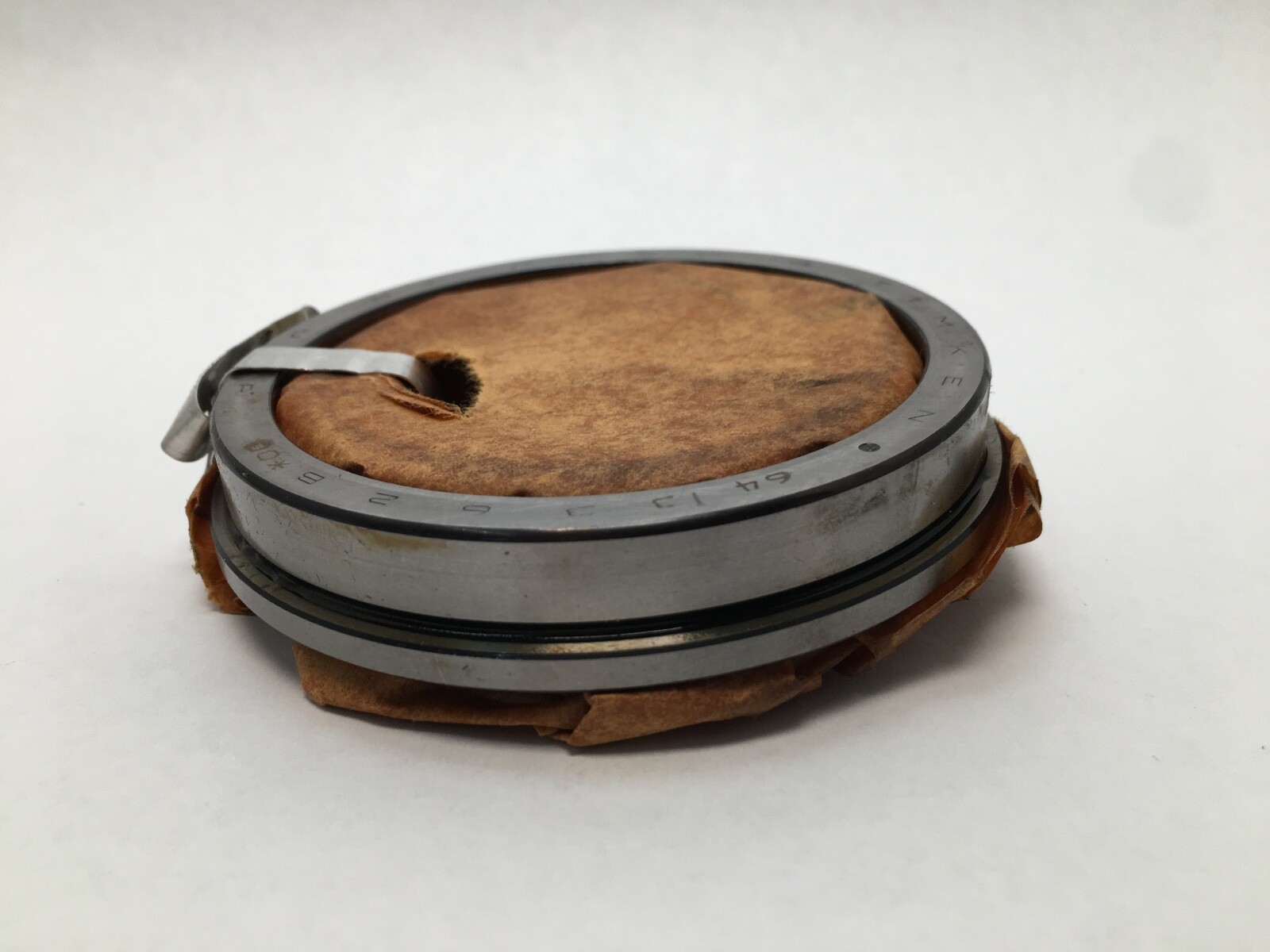

363-B — the cup number. B marks a flanged outer ring, a distinct part from the plain 363.
90124 — Timken assembly number for a complete matched cone-and-cup assembly.
Bore Diameter: 2.0312 in (51.592 mm). Outside Diameter: 3.5433 in. Cone Width: 0.8750 in (22.225 mm). Cup Width: 0.7874 in. Rolling Elements: Tapered Roller. Number Of Rows: 1. Bore Type: Straight. Bearing Material: Case-Carburized Steel. Dynamic Load Rating: 102,000 N (22,900 lbf) at 1 million revolutions. Static Load Rating: 95,800 N (21,500 lbf). Dynamic Radial Rating C90: 26,400 N (5,930 lbf). Dynamic Axial Rating Ca90: 14,400 N (3,250 lbf). K Factor: 1.83. G1 Factor: 33.8. G2 Factor: 14. Geometry Factor (Cg): 0.0773. Item Weight: 1.174 kg (2.59 lb) cone.
Effective Center Location: -0.17 in (-4.3 mm). Max Shaft Fillet Radius: 0.080 in (2.0 mm). Shaft Backing Shoulder Diameter, frontface (da): 2.2 in (56 mm). Shaft Backing Shoulder Diameter, backface (db): 2.32 in (59 mm). Cage Location relative to backface (Aa): 0 in. Cage Location relative to frontface (Ab): 0.07 in (1.8 mm). Flanged cup.
MPN Variants: 368SB/363B, 368-SB / 363-B, 368 SB / 363 B, 368-S, 363-B, 90124. The flanged 363-B is a distinct part from the plain 363 cup.
Bore Diameter: 2.0312 in (51.592 mm). Outside Diameter: 3.5433 in. Cone Width: 0.8750 in (22.225 mm).
The B marks a flanged outer ring, a distinct part from the plain 363.

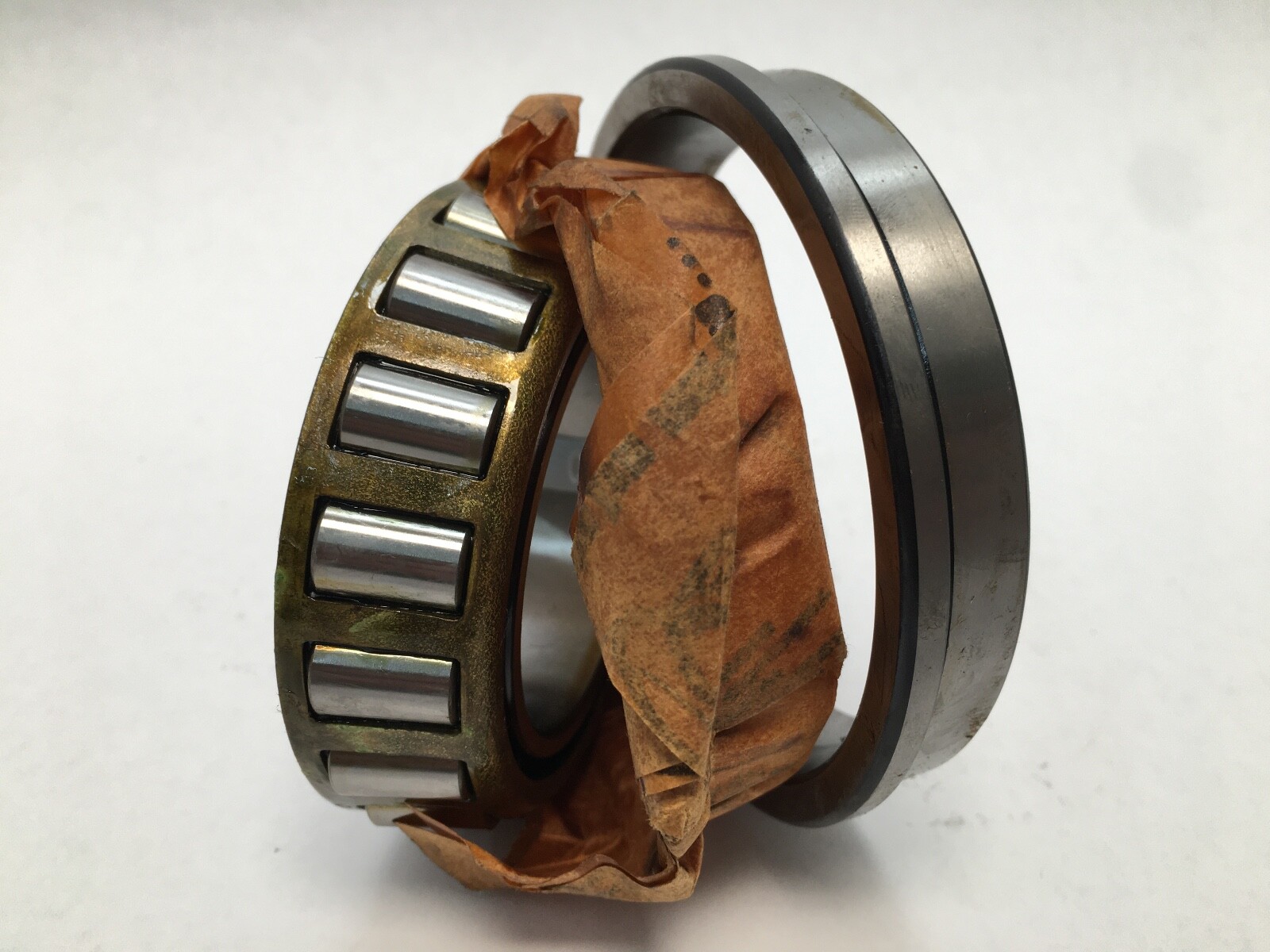

One 368SB cone and one 363B flanged cup. Unit Quantity: 2 Pcs.
