Tapered roller bearing cone, 2.0000 in bore x 1.4200 in wide, Class 3 precision, 165,000 N dynamic rating. Timken 529X-3 single cone, 525 series.
List Price
$38.12
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Tapered Roller Bearing Cone — 2.0000 in Bore, 1.4200 in Width, Class 3, 165,000 N Dynamic Rating$42.41
Single-Row Imperial Tapered Roller Bearing Cone – 3 in Bore, 1.172 in Width, K Factor 1.31$40.79
Tapered Roller Bearing Cone – 3.7500 in Bore, 1.4219 in Width, 223,000 N Dynamic Rating$53.09
Tapered Roller Bearing Cone – 2.6250 in Bore, 1.4375 in Width, 229,000 N Dynamic Rating$59.49| MFR / Brand | Timken |
|---|---|
| MPN | 529X-3 |
| Model | 529 X #3 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 2.0000 in (50.8 mm) |
| Width | 1.0625 in |
| Series | 525 |
|---|---|
| Lubricant | Oil |
| Mpn Variants | 529X-3, 529X, 529-X *3, 529 X #3, 529X3 |
| Precision Class | Class 3 |
| Additional Attributes | C90: 42,700 N; Ca90: 20,800 N; K 2.05; da 58 mm; db 65 mm |
| Dynamic Load Rating | 165,000 N |
| Static Load Rating | 191,000 N |
| Precision Rating | Class 3 |
| Rolling Elements | Tapered Roller |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Bearing Class | Class 3 |
| Cone Width | 1.4200 in (36.068 mm) |
| Effective Center Location | -0.5 in (-12.7 mm) |
| Cross Reference 1 | Koyo 529X |
|---|---|
| Cross Reference 2 | NTN 4T-529X |
| Cross Reference 3 | Bower 529X |

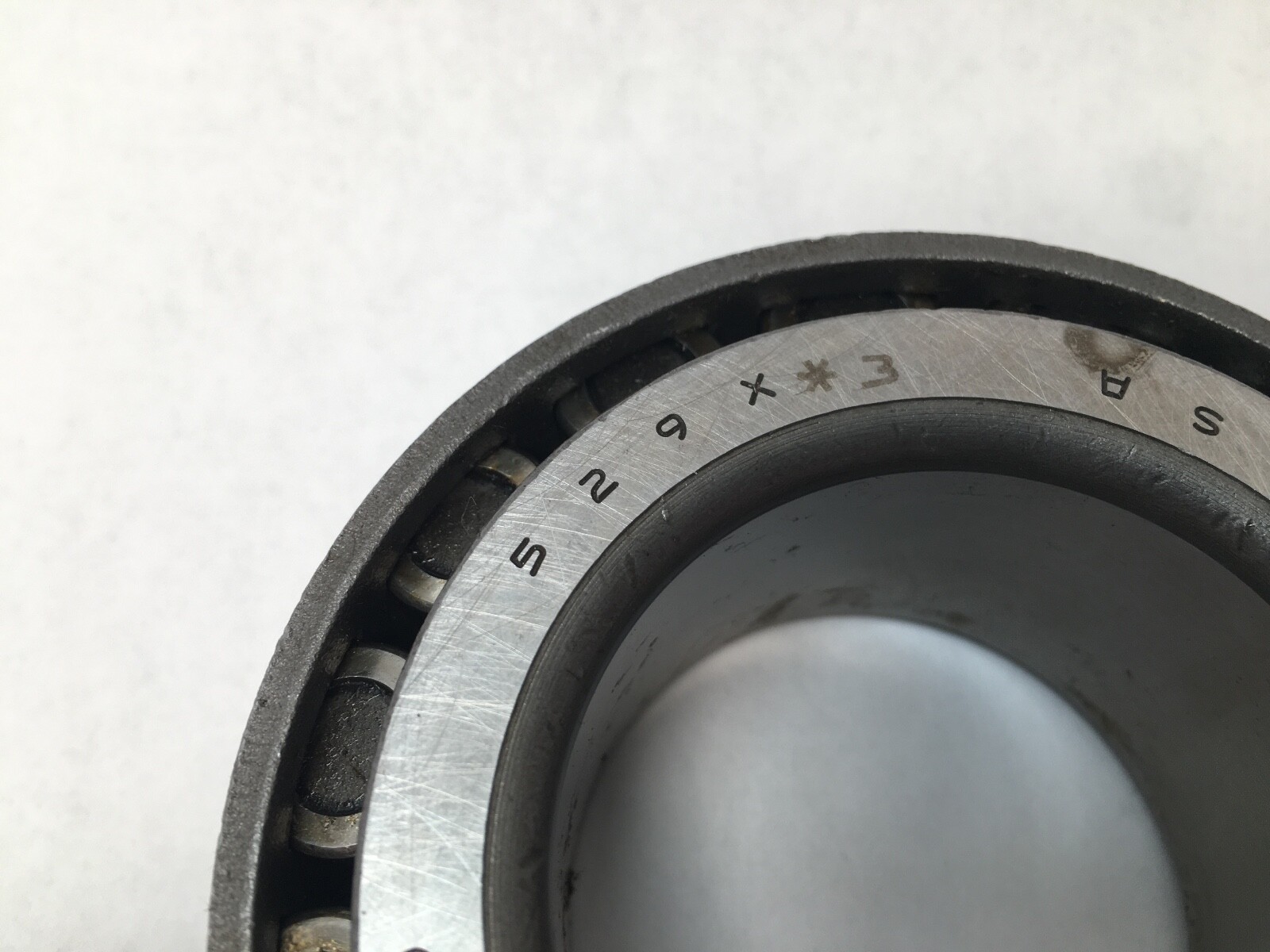

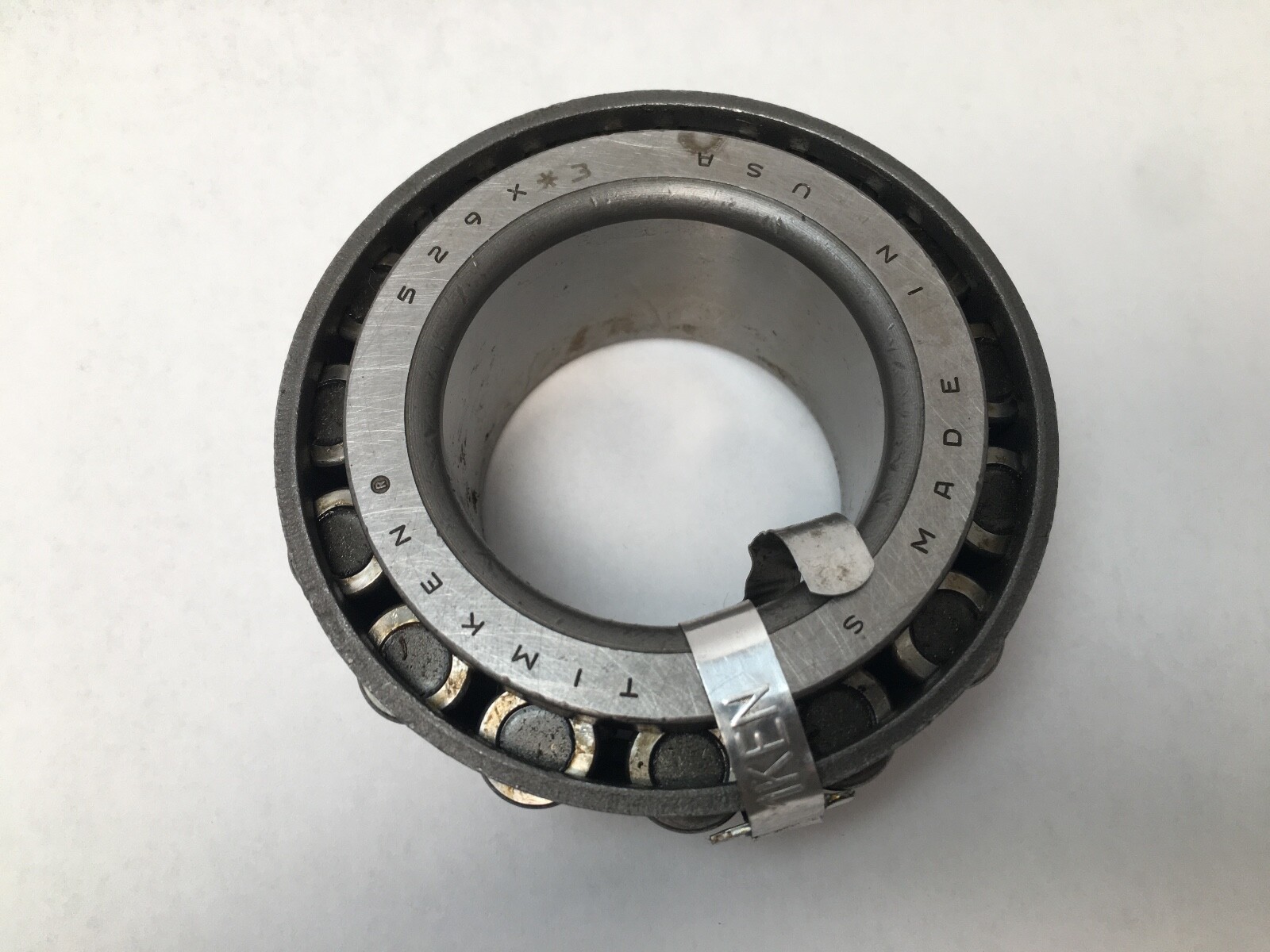

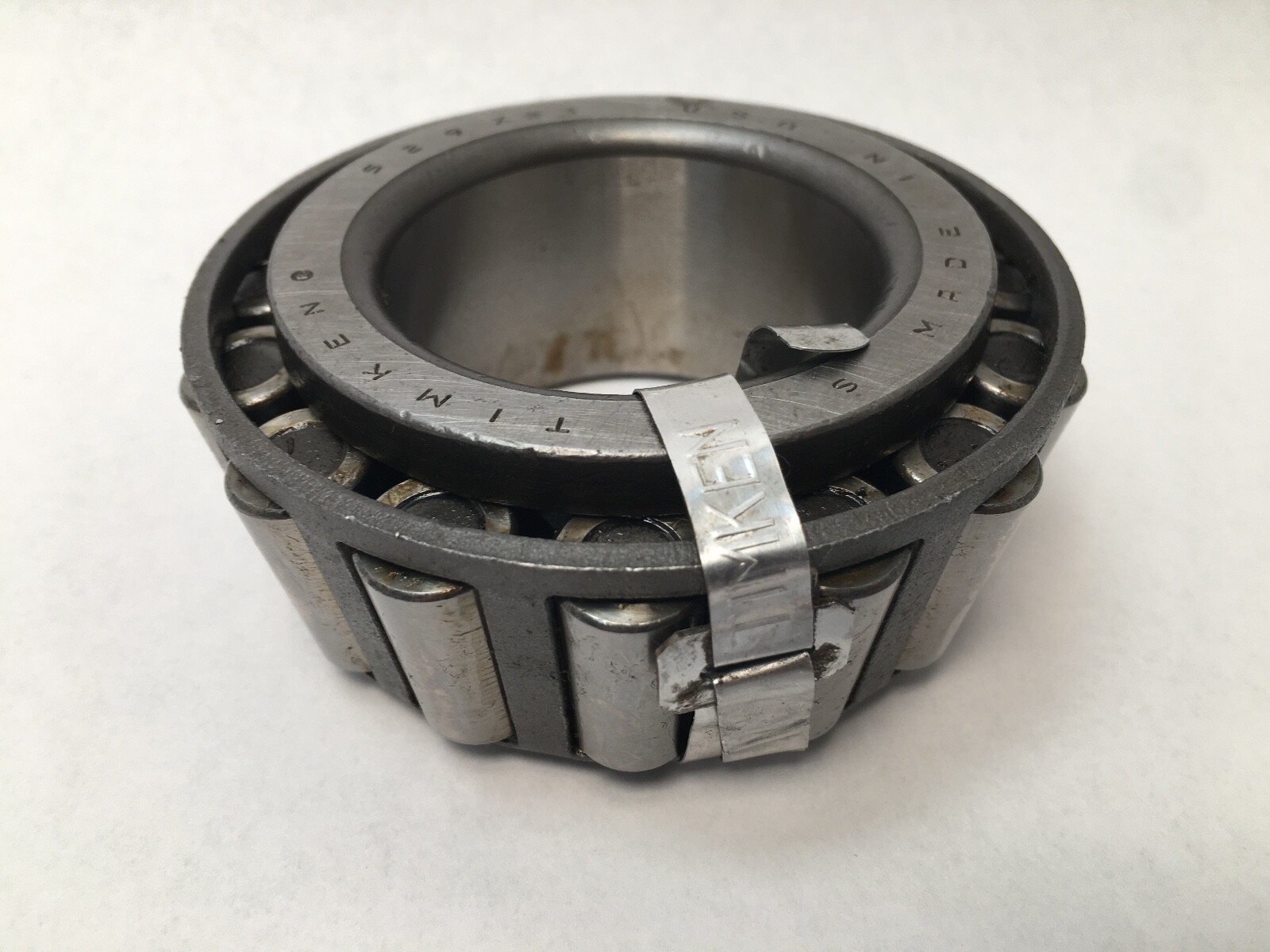

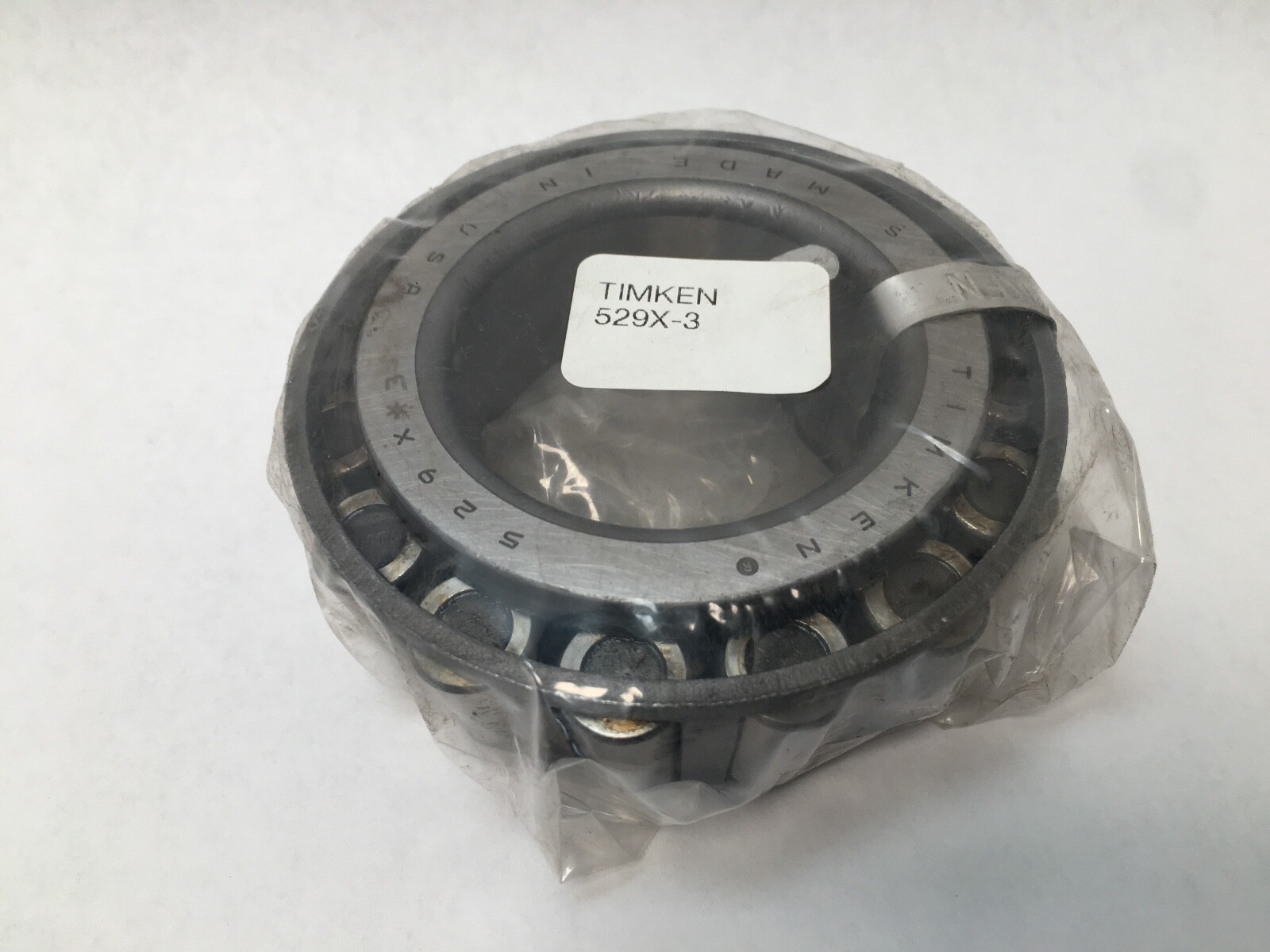

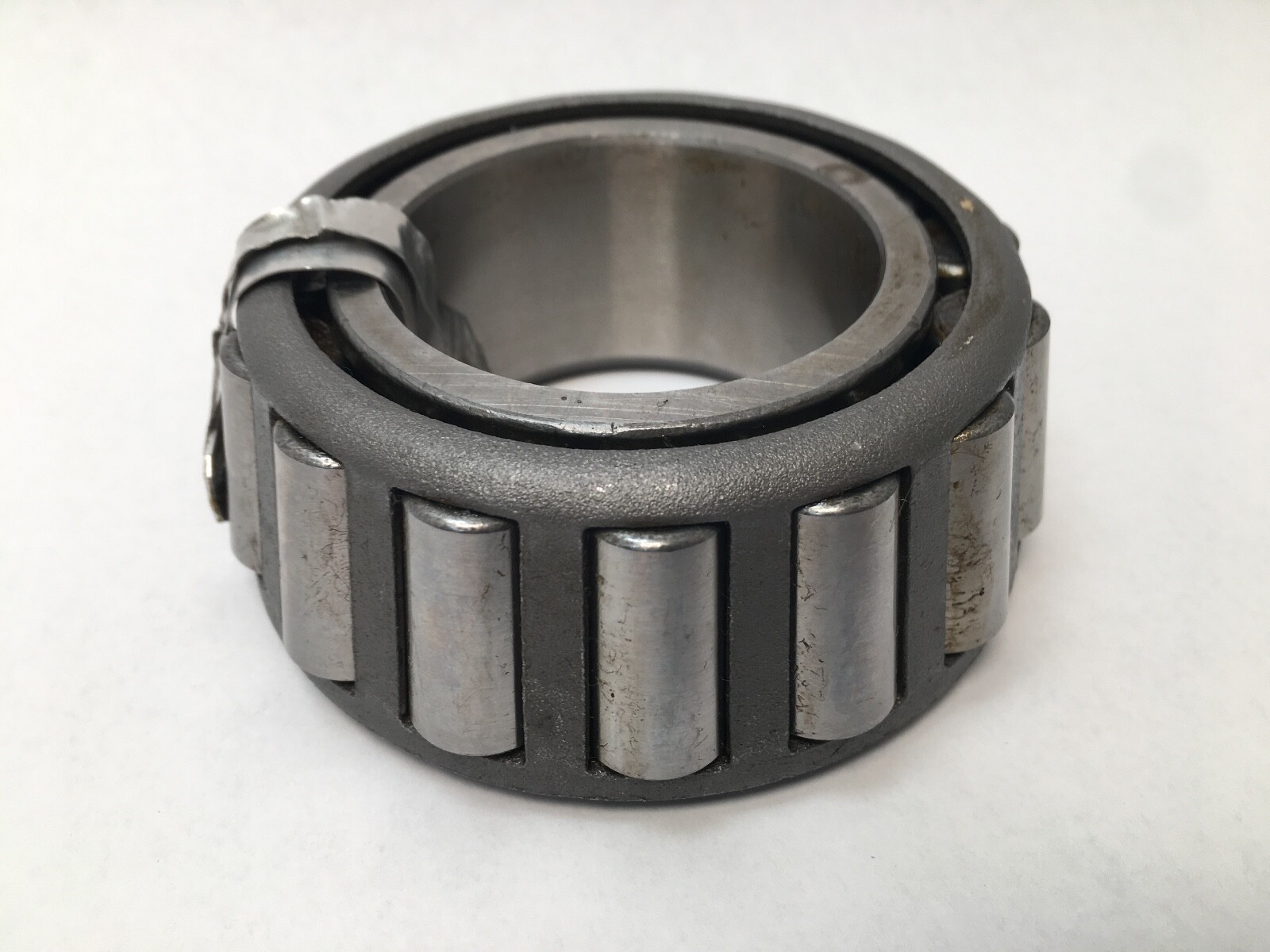

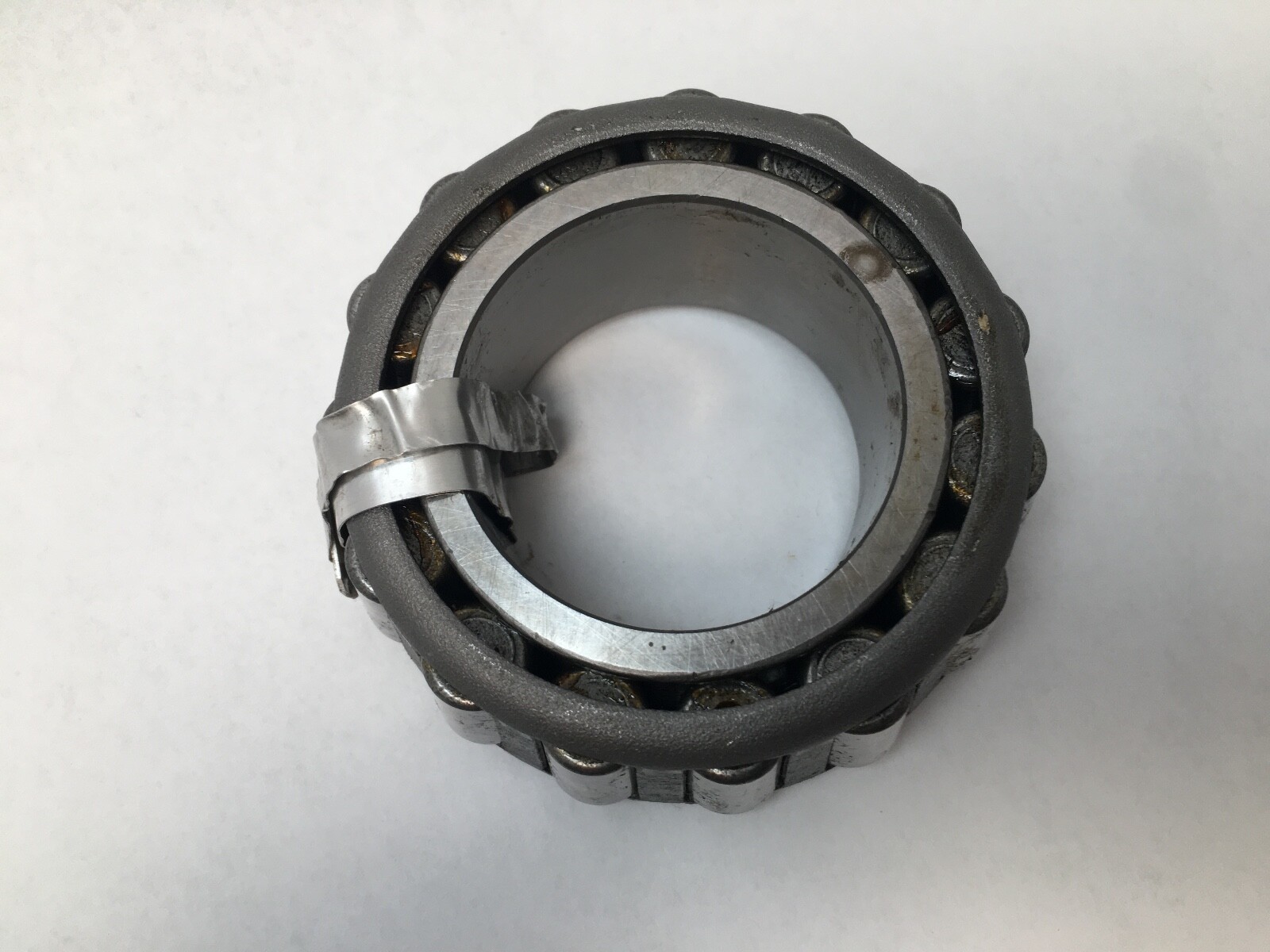

Timken 529X-3 is a Class 3 single cone (inner ring, tapered rollers and cage) for a single-row tapered roller bearing, 525 series. Bore Diameter: 2.0000 in (50.8 mm). Cone Width: 1.4200 in (36.068 mm). Bore Type: Straight. Rolling Elements: Tapered Roller.
529X — Timken single cone, 2.0000 in bore, 525 series.
-3 / *3 — Timken Class 3 precision: tighter tolerance and lower runout than standard Class 2.
Dynamic Load Rating (C1): 165,000 N (37,000 lbf), ISO 1 million revolutions. Dynamic Radial Load Rating (C90): 42,700 N (9,600 lbf). Dynamic Axial Rating (Ca90): 20,800 N (4,690 lbf). Static Load Rating: 191,000 N (43,000 lbf). K Factor: 2.05. Precision Class: Class 3.
Effective Load Center: -0.5 in (-12.7 mm), inside the cone backface. Max Shaft Fillet Radius: 0.140 in (3.600 mm). Shaft Backing Shoulder Diameter: 2.28 in (58 mm) frontface, 2.56 in (65 mm) backface. Cage Location relative to backface (Aa): 0.09 in (2.3 mm). Cage Location relative to frontface (Ab): 0.1 in (2.5 mm).
Unit Quantity: 1 Pc. Cone only.
529X is an ABMA inch cone number also built as Koyo 529X, NTN 4T-529X and Bower 529X, matching the bore and width. The Class 3 grade is specific to this Timken cone.
