Availability:
4 in stock
Tapered roller bearing cone, 2.0000 in bore x 1.4200 in wide, Class 3 precision, 165,000 N dynamic rating. Timken 529X-3 single cone, 525 series.
List Price
$42.41
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 529X-3 |
| Model | 529 X #3 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 2.0000 in (50.8 mm) |
| Series | 525 |
|---|---|
| Mpn Variants | 529X-3, 529X, 529-X *3, 529 X #3, 529X3 |
| Precision Class | Class 3 |
| Additional Attributes | C90: 42,700 N; Ca90: 20,800 N; K 2.05; db 65 mm |
| Dynamic Load Rating | 165,000 N |
| Static Load Rating | 191,000 N |
| Precision Rating | Class 3 |
| Rolling Elements | Tapered Roller |
| Harmonization Code | 8482.2 |
| Bearing Class | Class 3 |
| Cone Part Number | 529X |
| Cone Width | 1.4200 in (36.068 mm) |
| Cone Backface To Clear Radius | 0.140 in (3.600 mm) |
| Cone Frontface Backing Diameter | 2.28 in (58 mm) |
| Cage Cone Frontface Clearance | 0.1" |
| Cage Cone Backface Clearance | 0.09" |
| Effective Center Location | -0.5 in (-12.7 mm) |
| Cross Reference 1 | Koyo 529X |
|---|---|
| Cross Reference 2 | NTN 4T-529X |

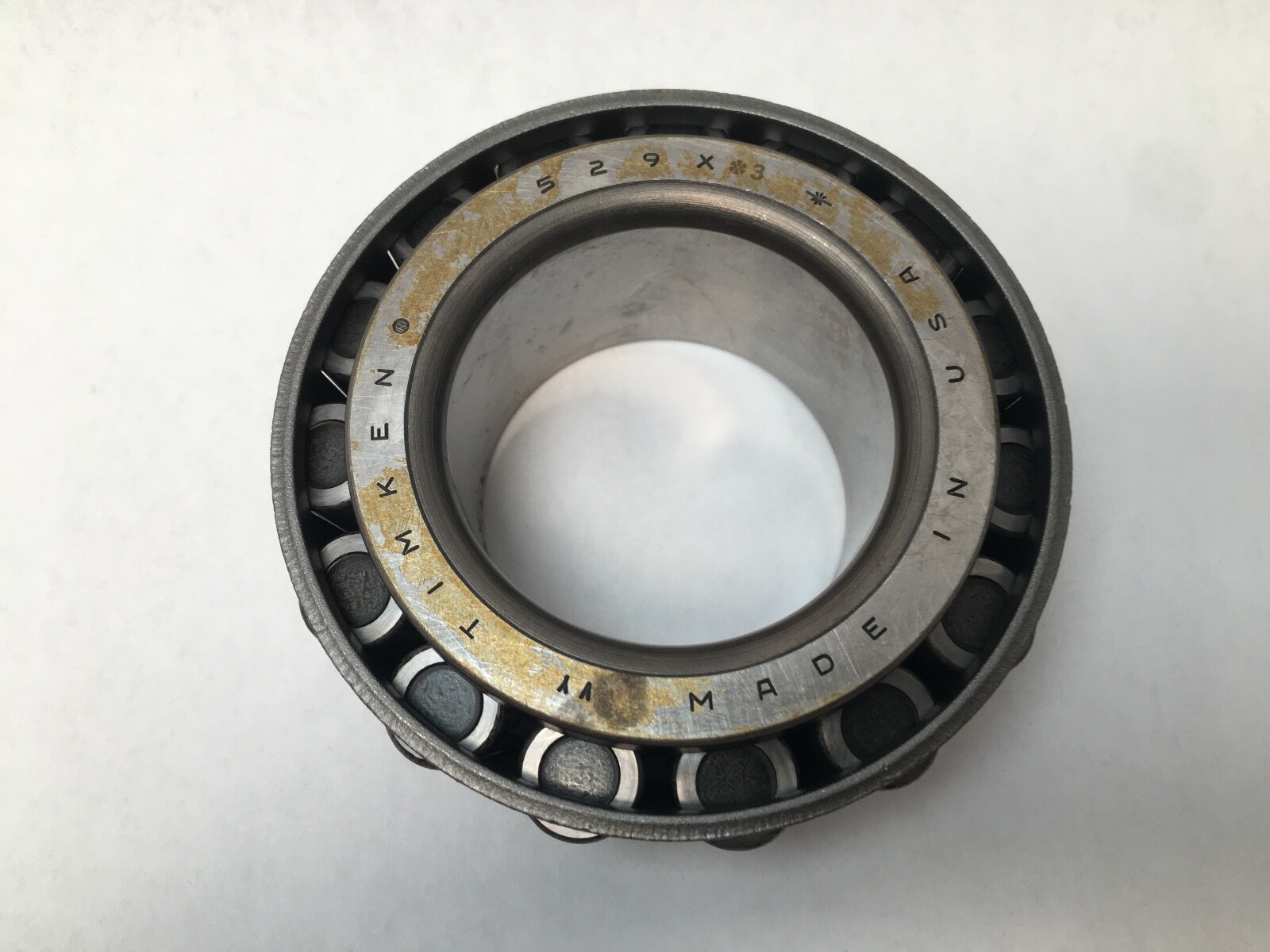

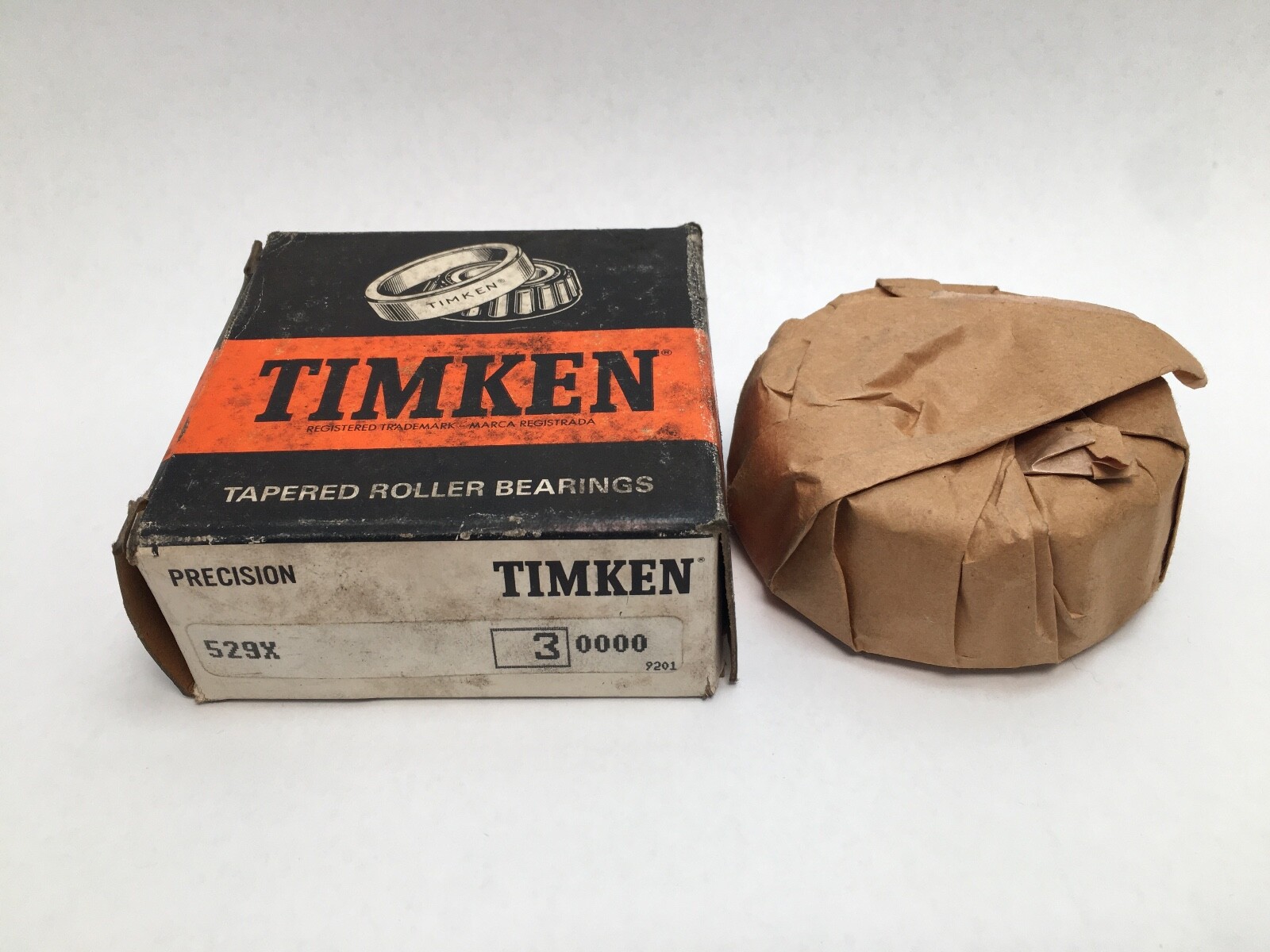

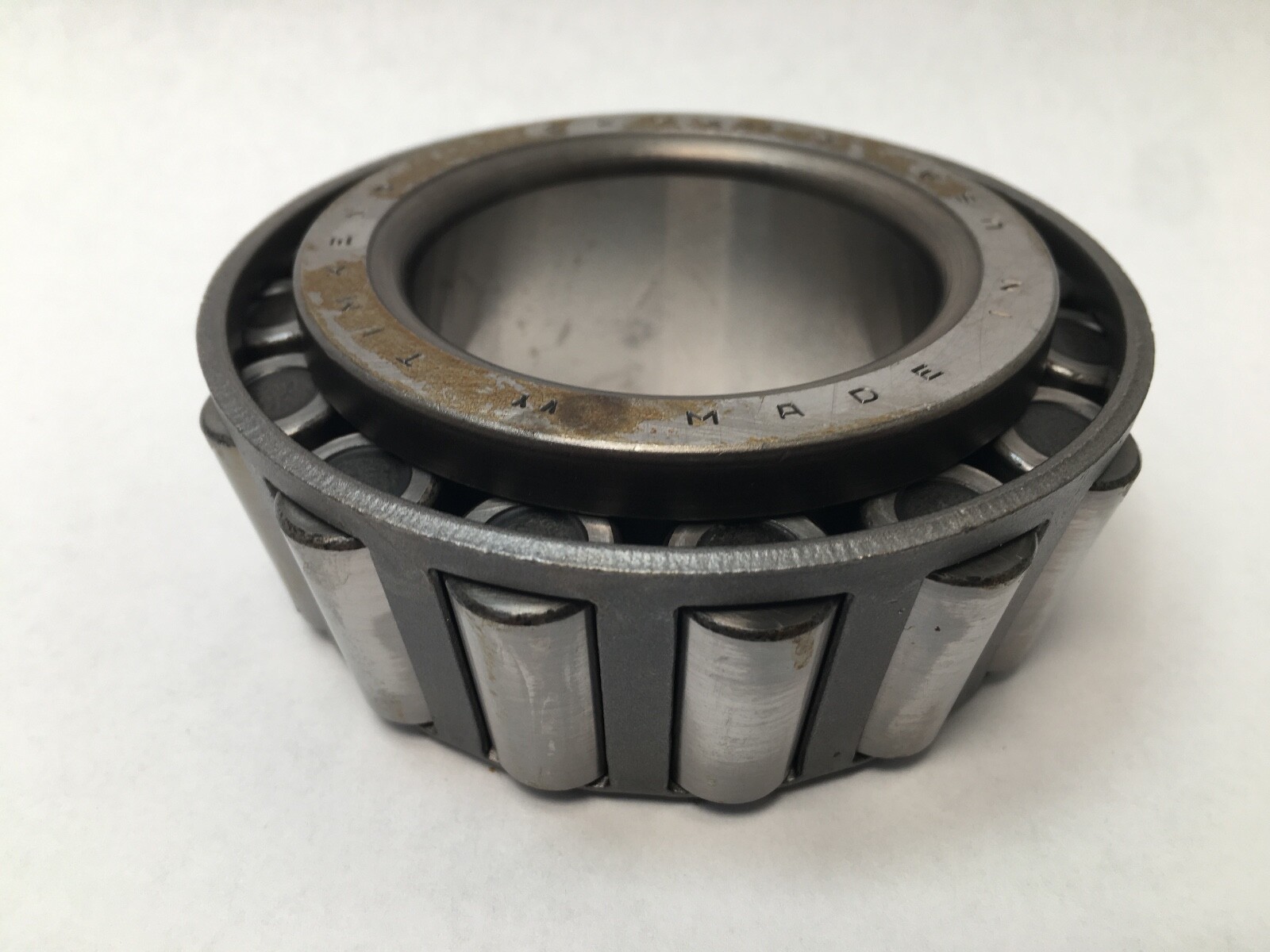

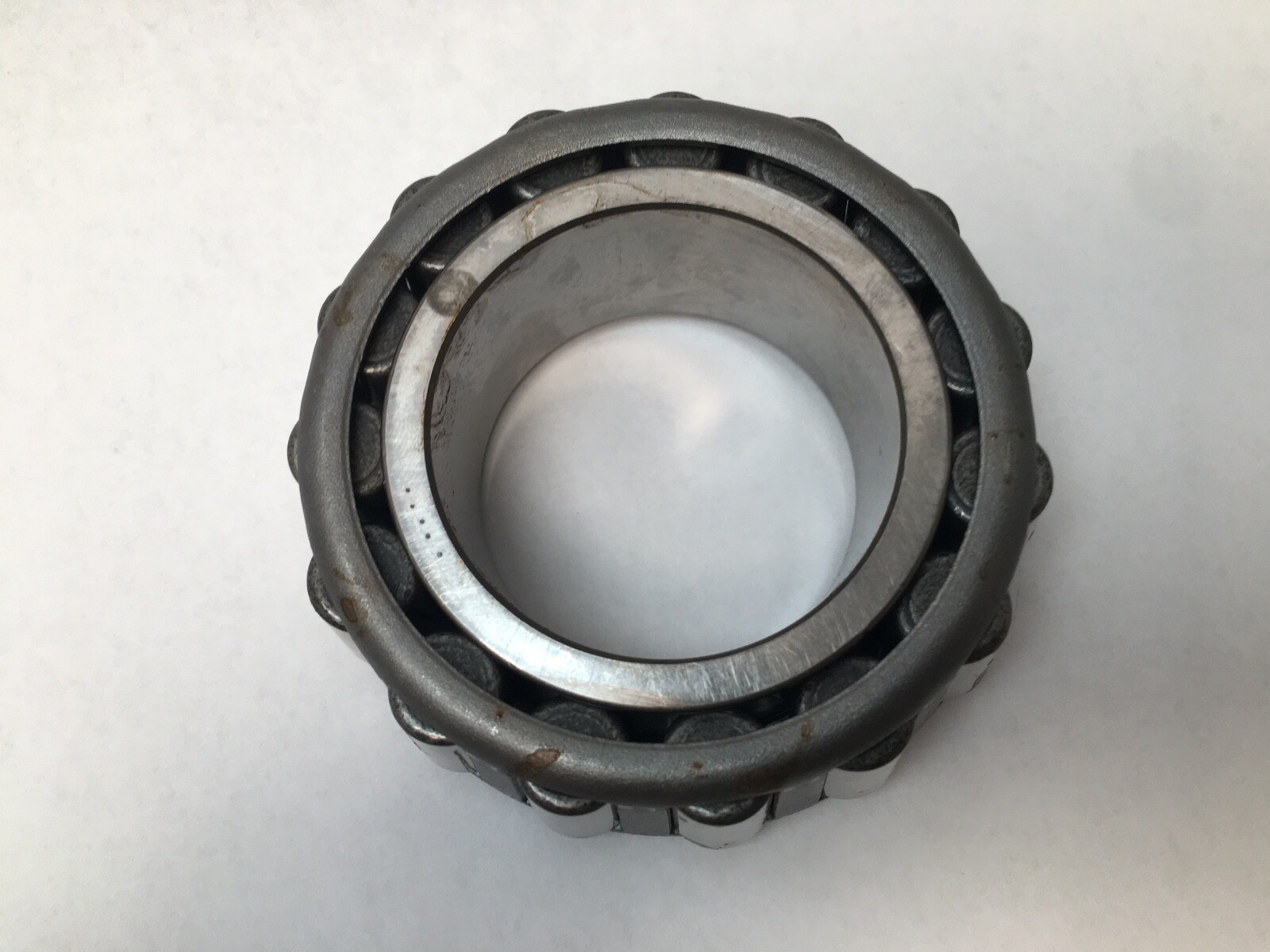

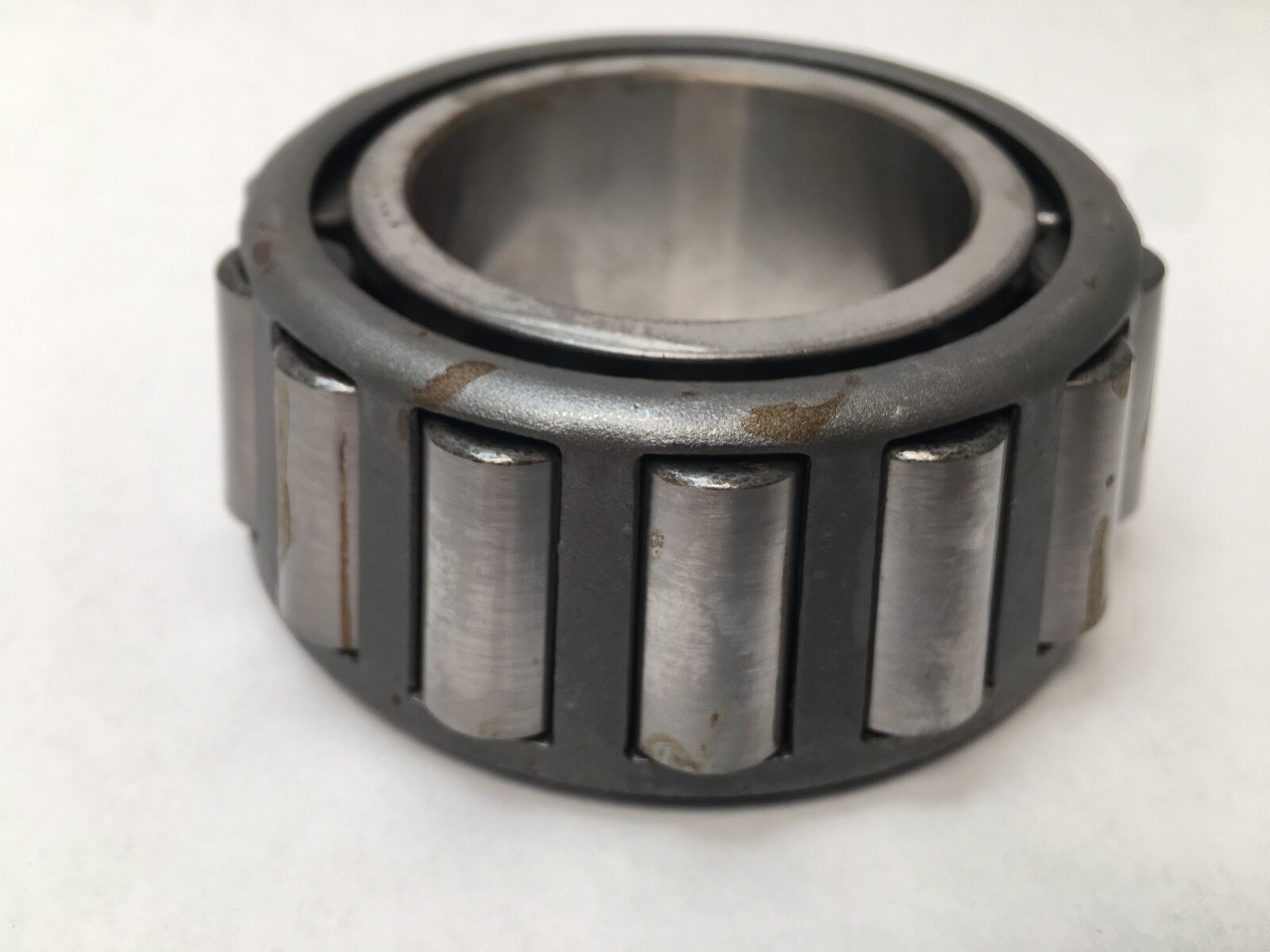

Timken 529X-3 is a Class 3 single cone (inner ring, tapered rollers and cage) for a single-row tapered roller bearing, 525 series. Bore Diameter: 2.0000 in (50.8 mm). Cone Width: 1.4200 in (36.068 mm). Rolling Elements: Tapered Roller.
529X — Timken single cone, 2.0000 in bore, 525 series.

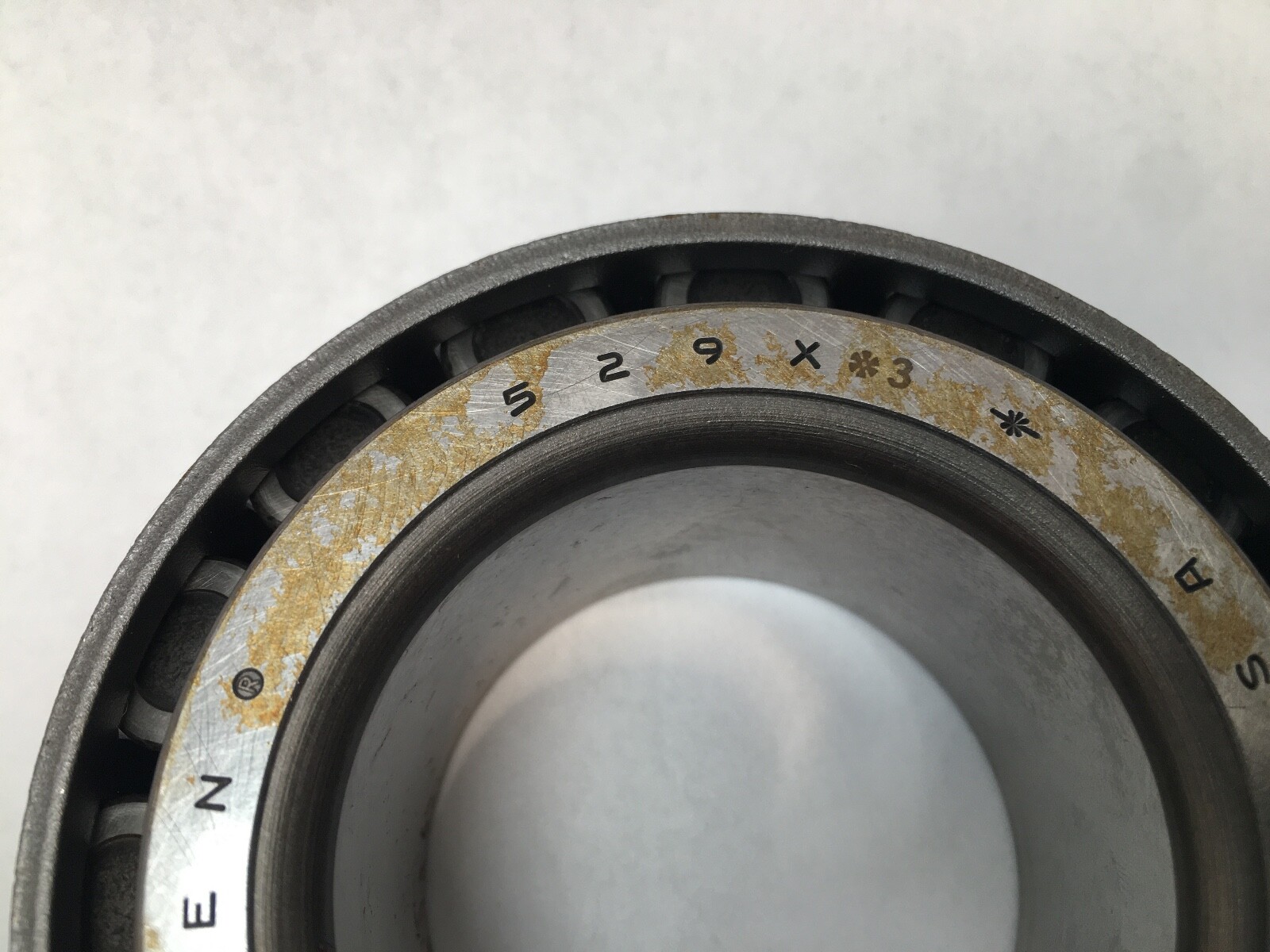

-3 / *3 — Timken Class 3 precision: tighter tolerance and lower runout than standard Class 2.
Dynamic Load Rating (C1): 165,000 N (37,000 lbf), ISO 1 million revolutions. Dynamic Radial Load Rating (C90): 42,700 N (9,600 lbf). Dynamic Axial Rating (Ca90): 20,800 N (4,690 lbf). Static Load Rating: 191,000 N (43,000 lbf). K Factor: 2.05. Precision Class: Class 3.
Effective Load Center: -0.5 in (-12.7 mm), inside the cone backface. Max Shaft Fillet Radius: 0.140 in (3.600 mm). Shaft Backing Shoulder Diameter: 2.28 in (58 mm) frontface, 2.56 in (65 mm) backface. Cage Location relative to backface (Aa): 0.09 in (2.3 mm). Cage Location relative to frontface (Ab): 0.1 in (2.5 mm).
Unit Quantity: 1 Pc. Cone only.
529X is an ABMA inch cone number also built as Koyo 529X and NTN 4T-529X, matching the bore and width. The Class 3 grade is specific to this Timken cone.
