Availability:
1 in stock

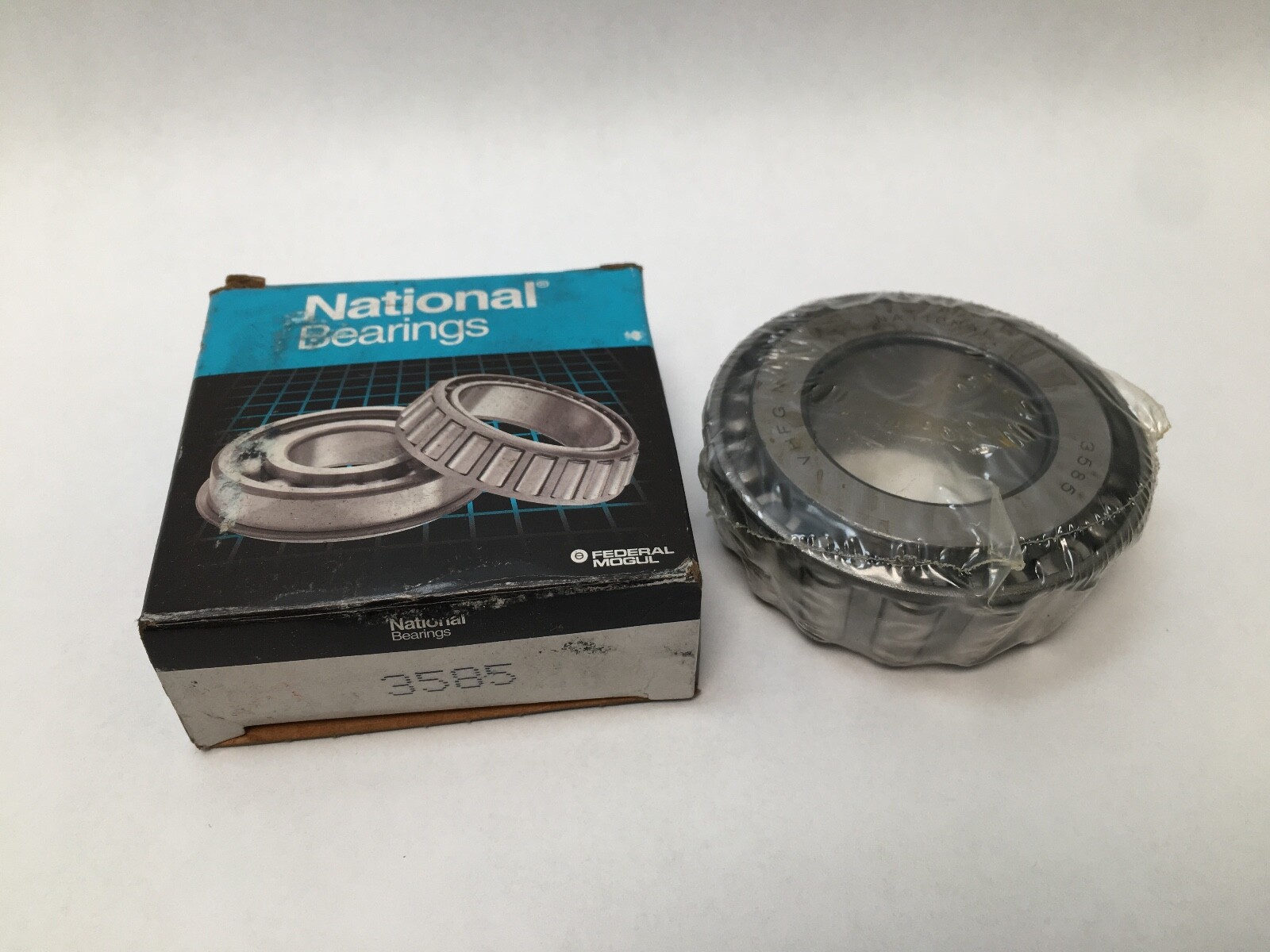

National 3585 tapered roller bearing cone, 1-5/8 in (41.275 mm) bore, 1.2160 in inner ring width. Mates with 3520 or 3525 cups. Interchanges with Timken 3585.
List Price
$29.02
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | National |
|---|---|
| MPN | 3585 |
| Model | 3585 Cone |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 1.6250 in (41.275 mm) |
| Width | 1.2160 in (30.886 mm) |
| Mpn Variants | 3585, National 3585, 3585 Cone, Timken 3585 |
|---|---|
| Compatible With Replaces | Mating cups 3520, 3525 |
| Series | 3500 |
| Rolling Elements | Tapered Roller |
| Type | Tapered Roller Bearing Cone |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Industry Terms | taper cone, inner race with rollers, TS cone, single cone, 1-5/8 in taper cone, 3585 cone |
| Common Misspellings | National 3585 cone, Natl 3585, National 358, Nationl 3585, Timkin 3585 |
| Application Types | Gear reducers, conveyor shafts, agricultural drivetrains, trailer and axle hubs, industrial gearboxes |
| Cross Reference 1 | Timken 3585 |
|---|

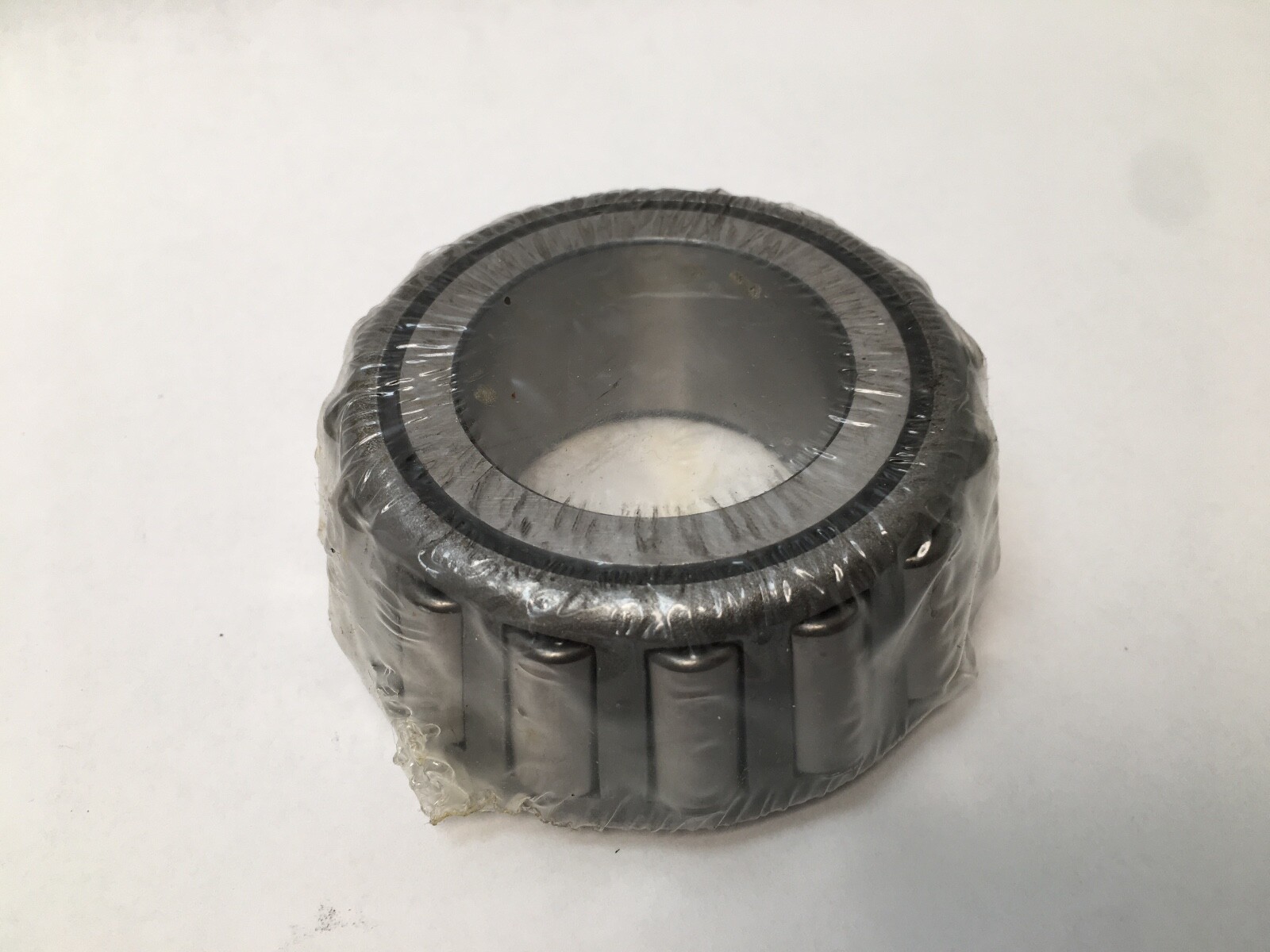

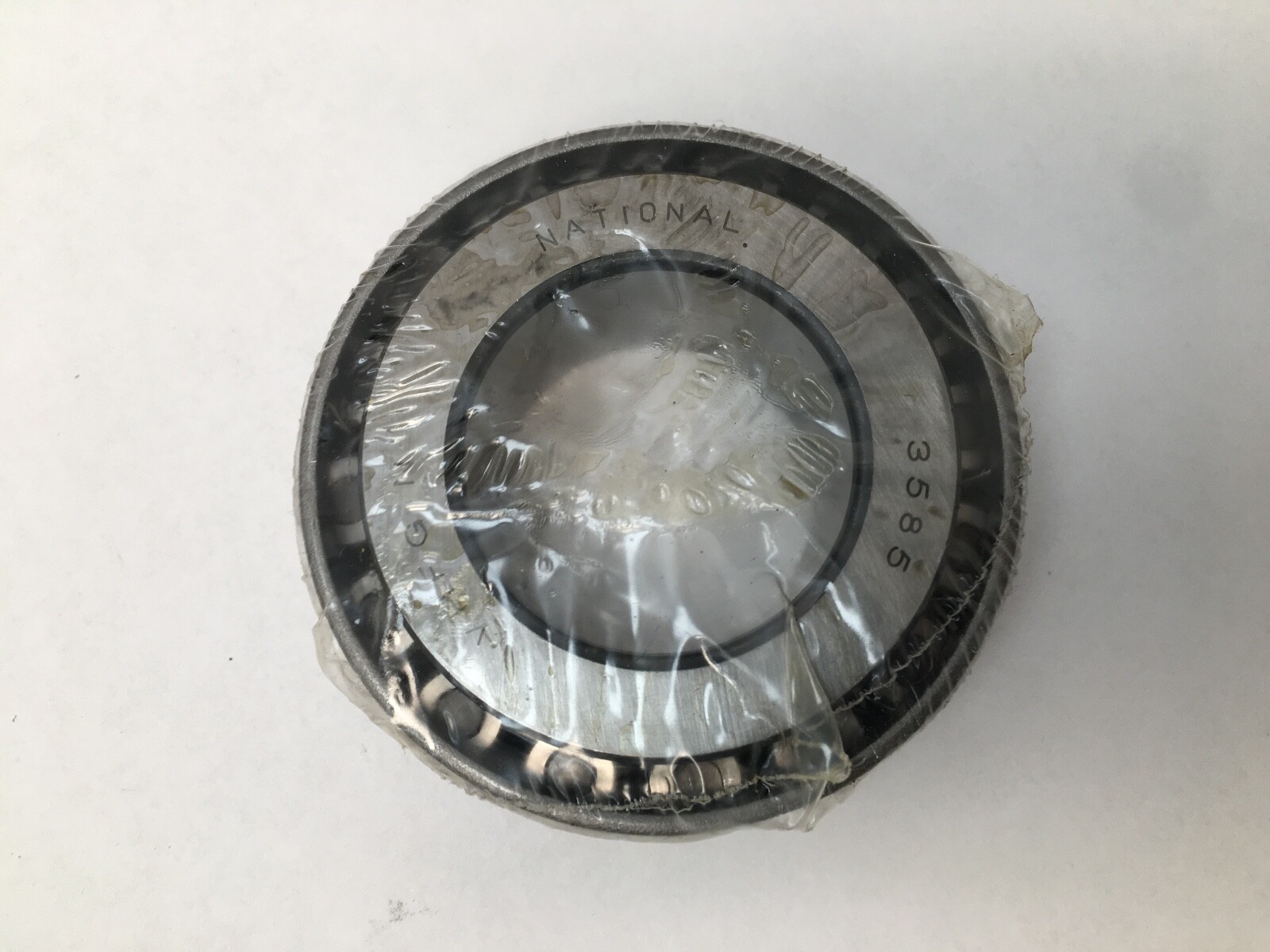

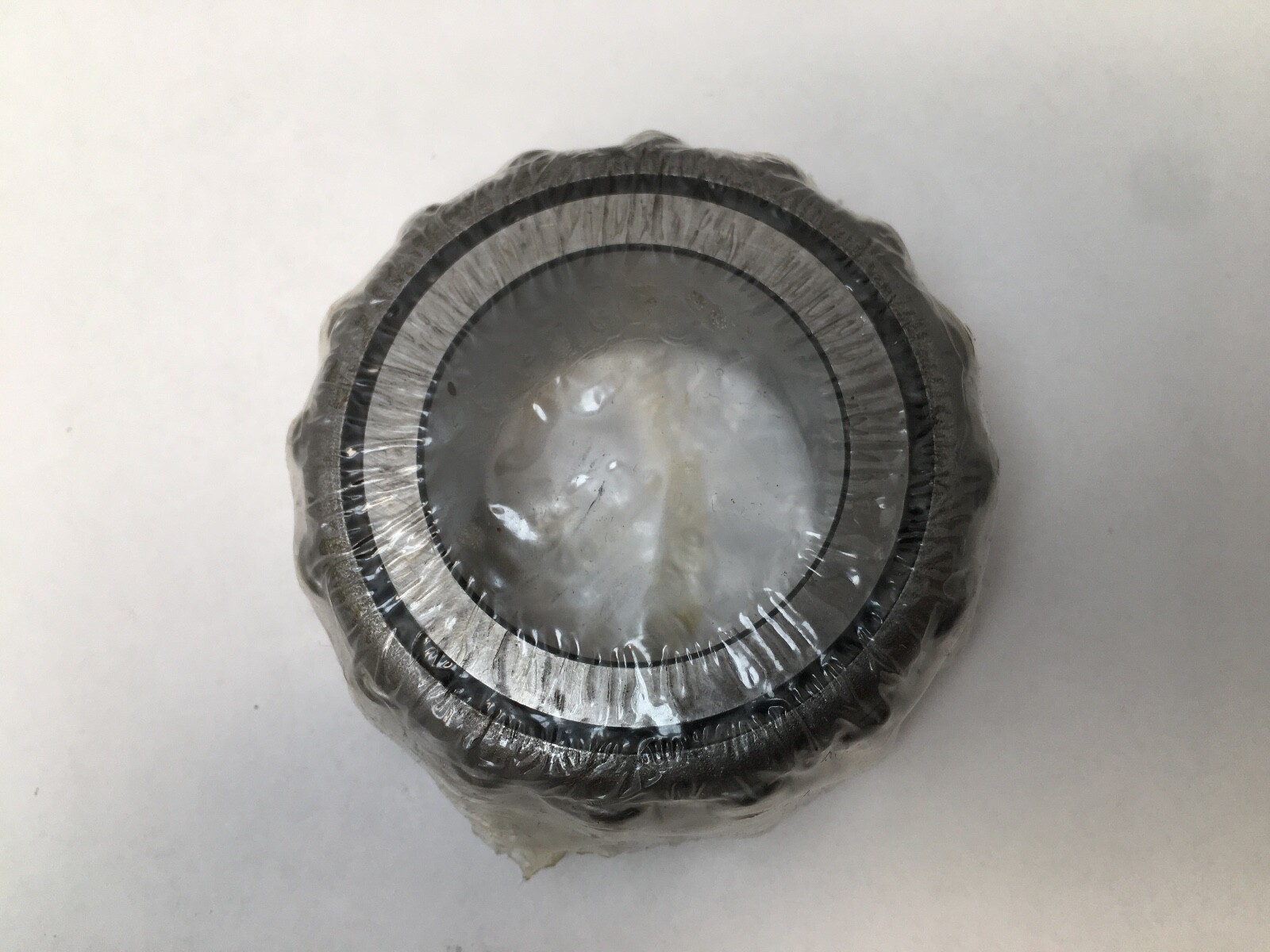

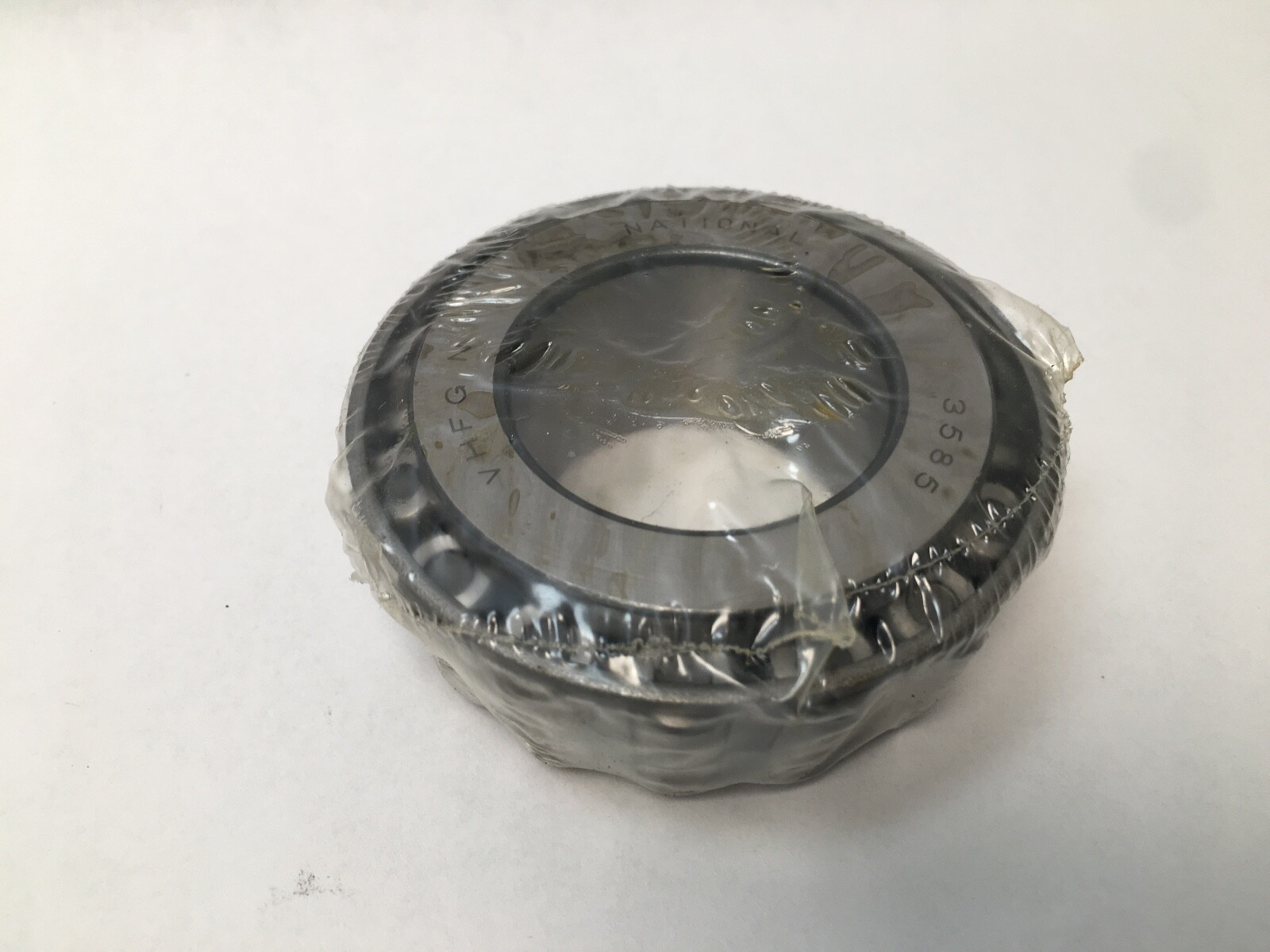

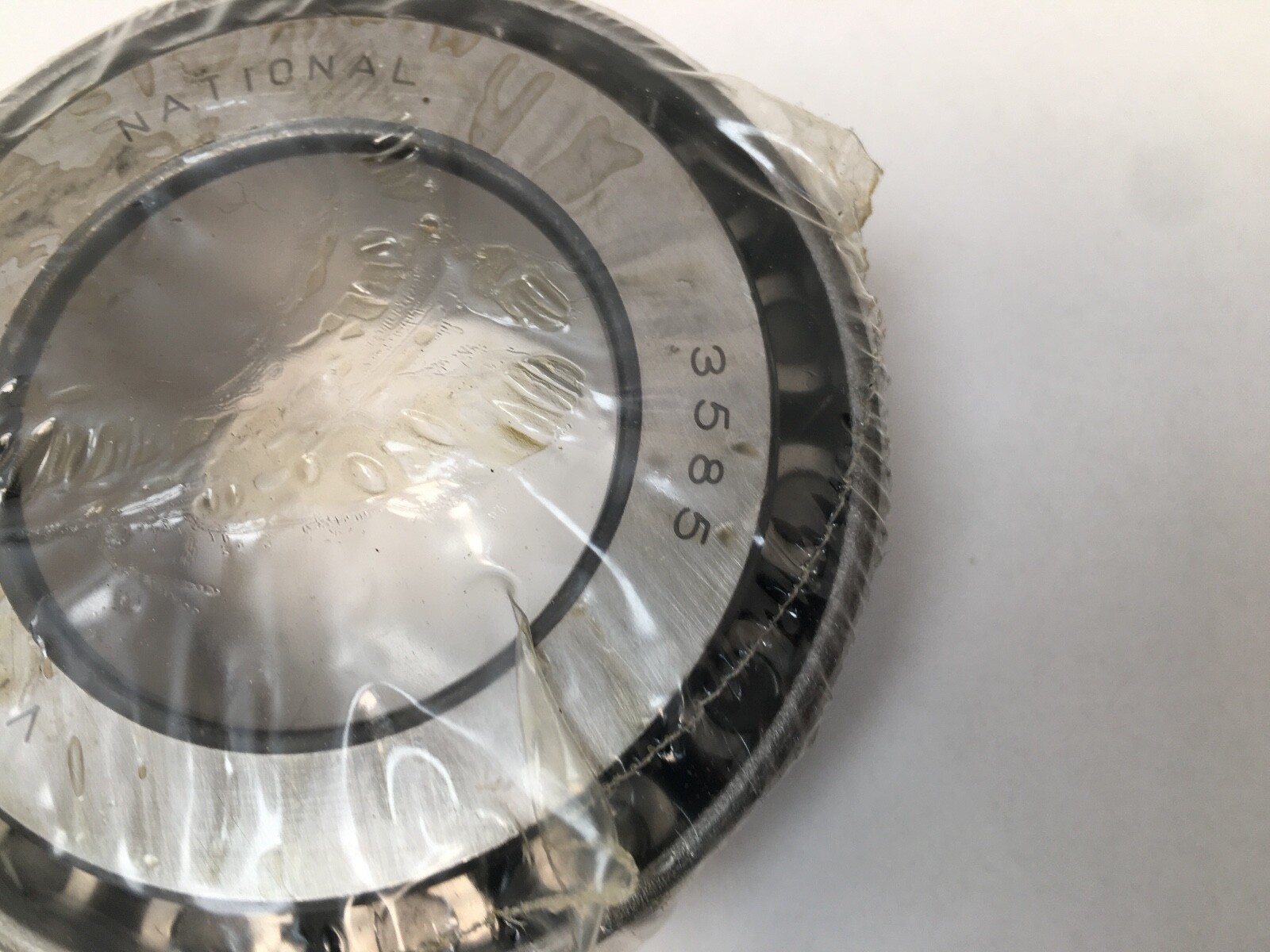

National 3585 single-row tapered roller bearing cone: the inner ring with its roller and cage assembly, 1-5/8 in bore. Cone only. Matching cups: 3520 or 3525.
3585 — ABMA inch tapered roller cone number in the 3500 series, 1.6250 in bore, shared across makers that use the ABMA numbering.
Bearing Type: Tapered Roller Bearing Cone. Bore Diameter: 1.6250 in (41.275 mm). Inner Ring Width: 1.2160 in (30.886 mm). Rolling Elements: Tapered Roller. Number Of Rows: 1. Bore Type: Straight. Unit Quantity: 1 Pc.
Bore Diameter: 1-5/8 in. Cone Width: 1.2160 in. Mating Cups: 3520, 3525.
Interchanges with Timken 3585 and other ABMA-numbered 3585 cones. Mates with 3520 and 3525 cups.
1-5/8 in, 41.275 mm.
3520 and 3525.
Cone only. The cup is a separate part.
