Inch tapered roller bearing cone, 3.500 in bore, 1.890 in width. Industry-standard 775 number, mating to a 772 or 772A cup.
List Price
$95.63
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Tapered Roller Bearing Cone — 2.1250 in (53.975 mm) Bore, 1.1542 in Width, Class 3 Precision$38.22
Single-Row Imperial Tapered Roller Bearing Cone – 3 in Bore, 1.172 in Width, K Factor 1.31$40.79
Tapered Roller Bearing Cone – 1.8125 in Bore, 0.6875 in Width, Class 3 Precision, Inch Series 186$41.89
Tapered Roller Bearing Cone – 3.7500 in Bore, 1.4219 in Width, 223,000 N Dynamic Rating$53.09| MFR / Brand | Timken |
|---|---|
| MPN | 775 |
| Model | 775 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 3.5000 in (88.9 mm) |
| Series | 775 |
|---|---|
| Base Number | 775 |
| Overall Width | 1.8900 in (48.006 mm) |
| Mpn Variants | 775; 77-5; Bower 775 |
| Compatible With Replaces | Mating cups: 772, 772A |
| Precision Class | Not specified |
| Rolling Elements | Tapered Roller |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.20.00 |
| Part Number | 775 |
| Cone Part Number | 775 |
| Cone Width | 1.8900 in |
| Cone Backface To Clear Radius | 0.19 in |
| Cross Reference 1 | Timken 775 |
|---|---|
| Cross Reference 2 | Koyo 775 |
| Cross Reference 3 | NTN 4T-775 |
| Cross Reference 4 | NSK 775 |
| Cross Reference 5 | SKF 775 |

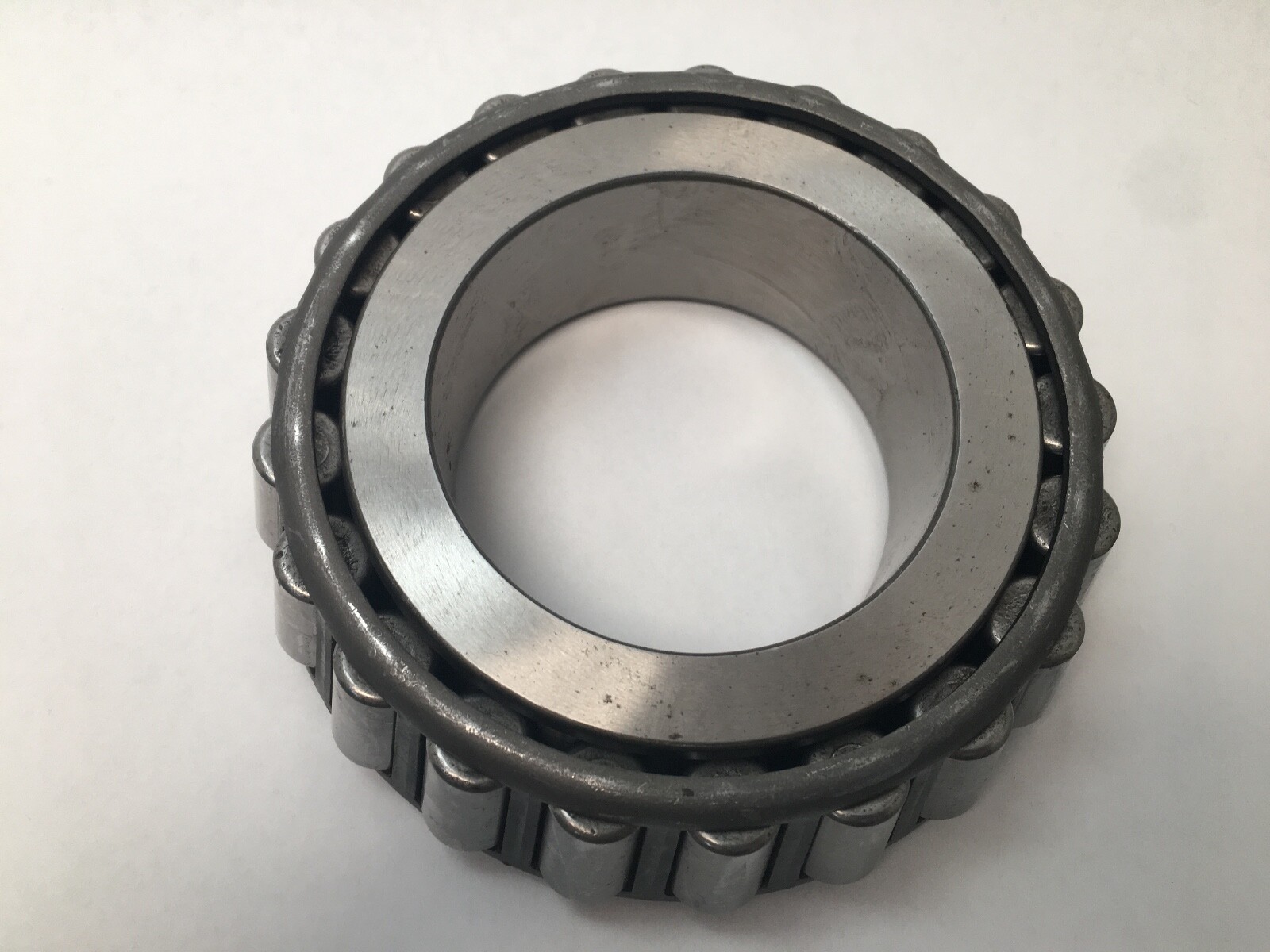

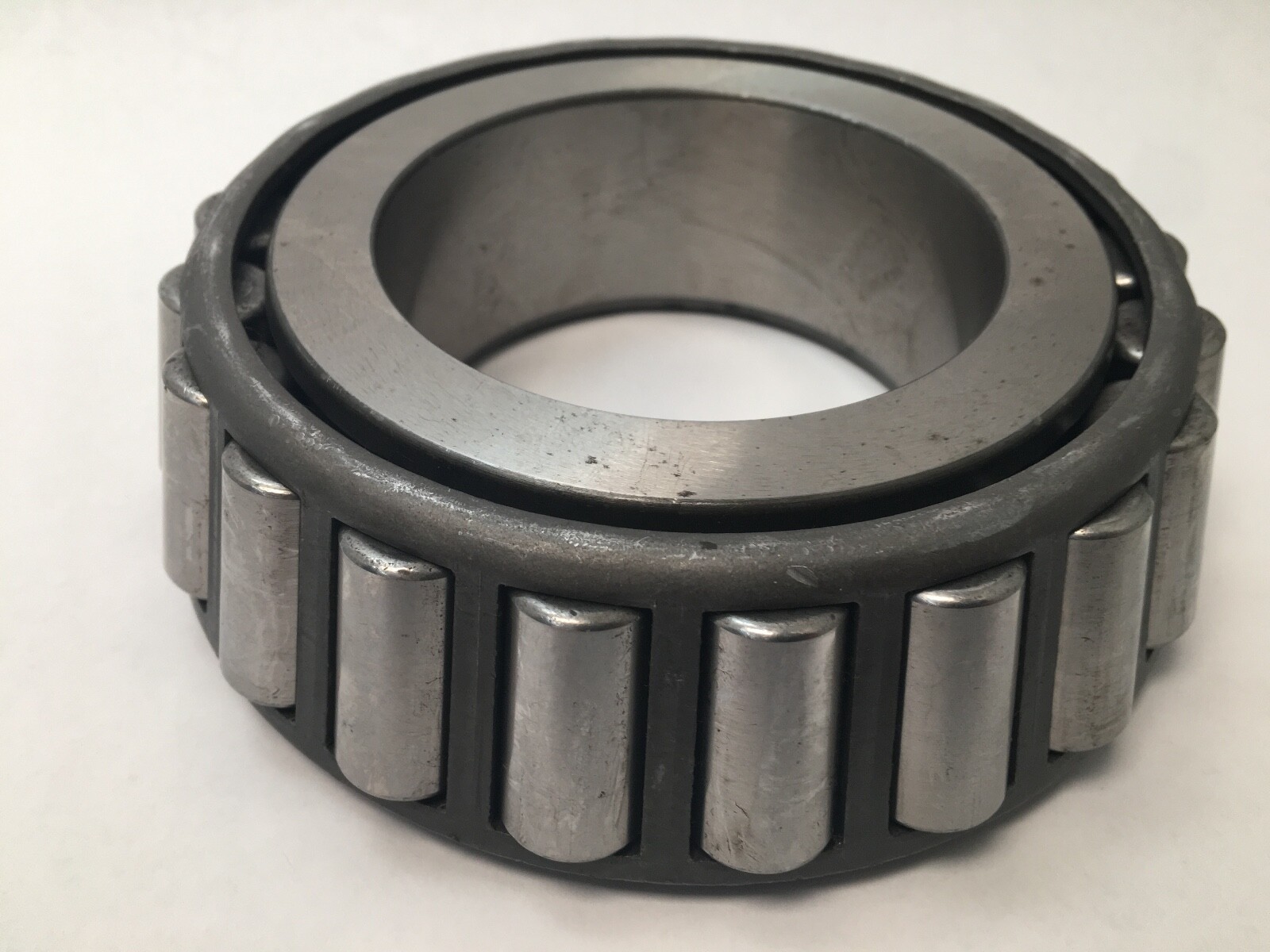

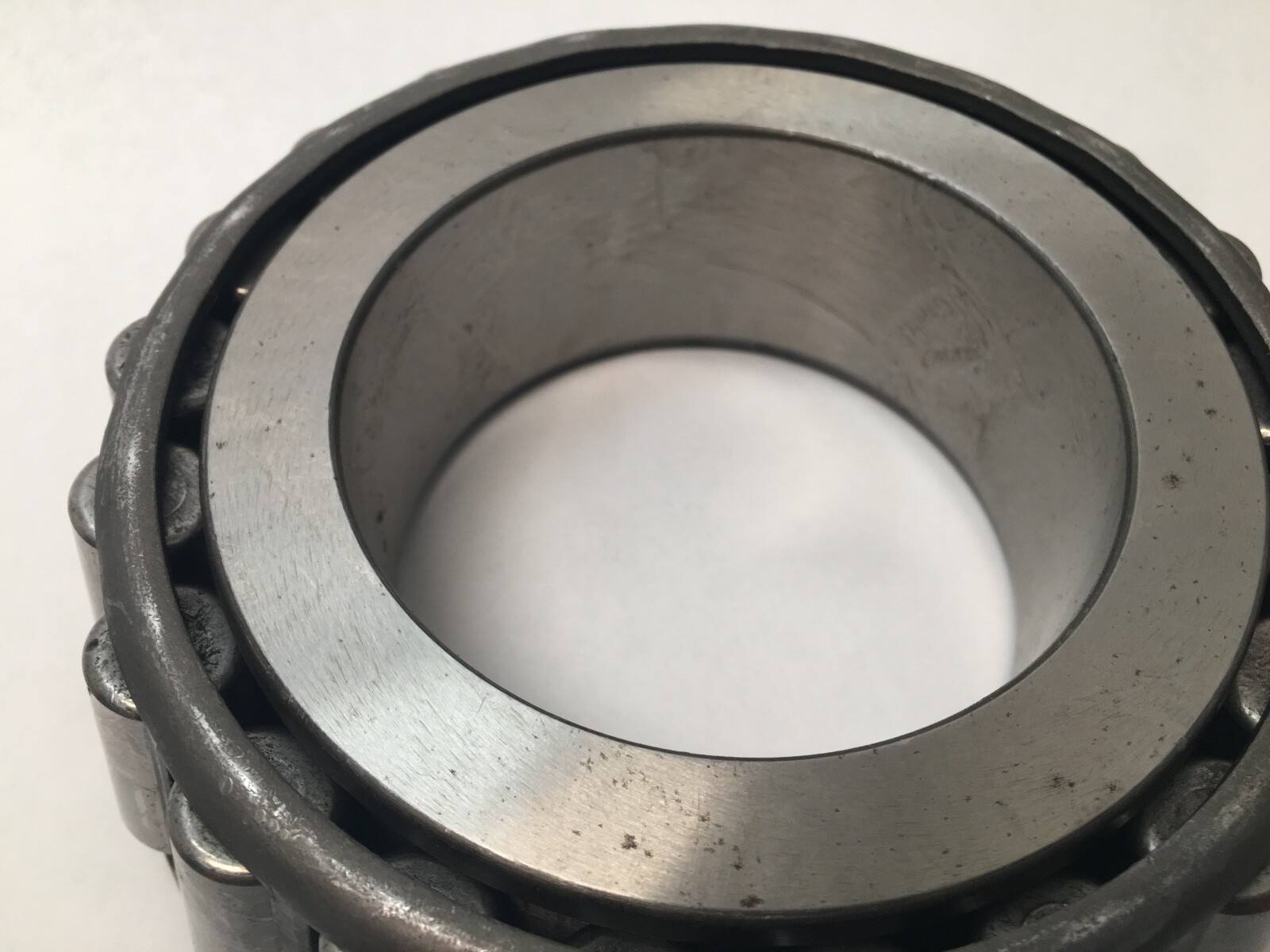

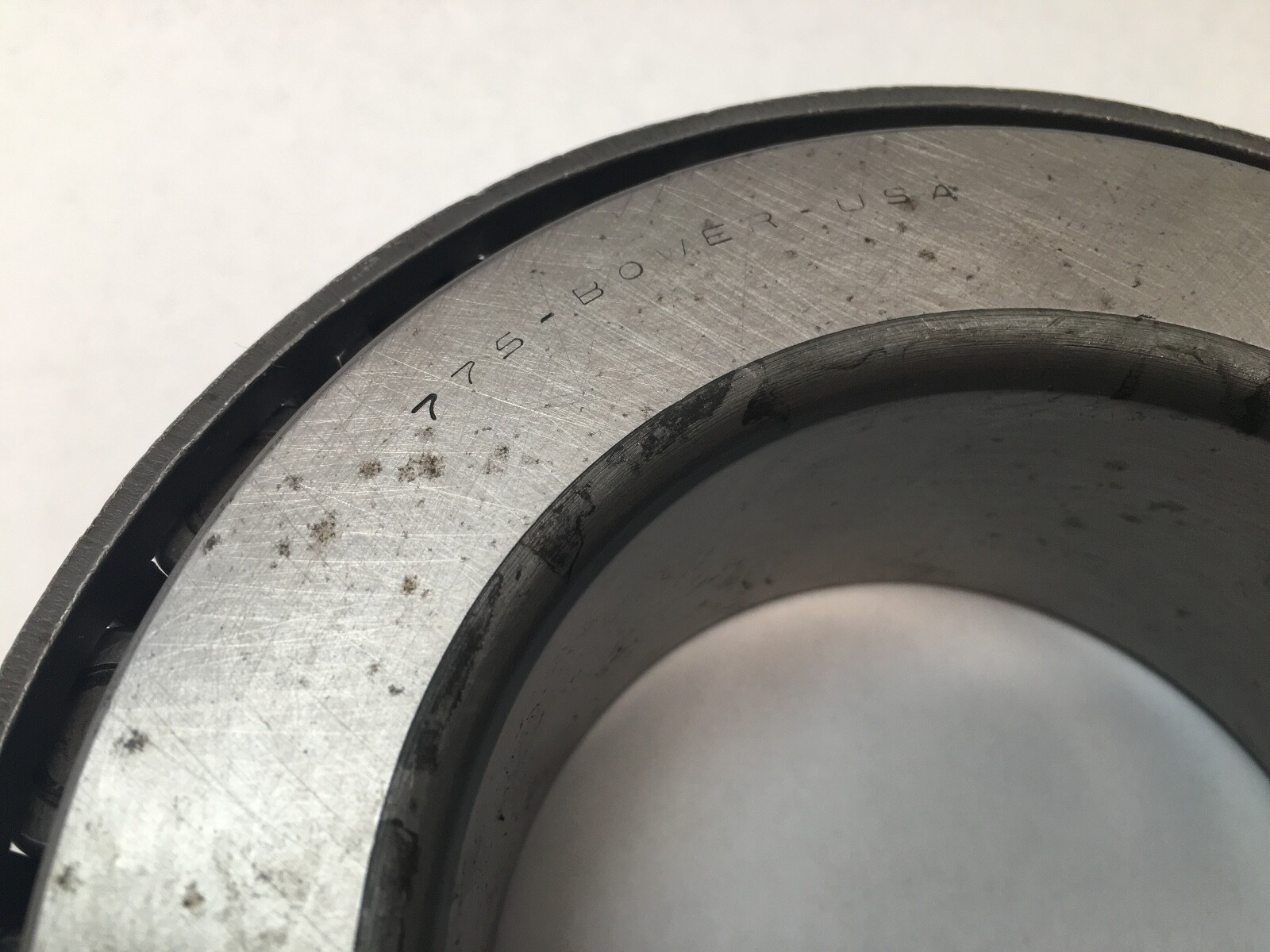

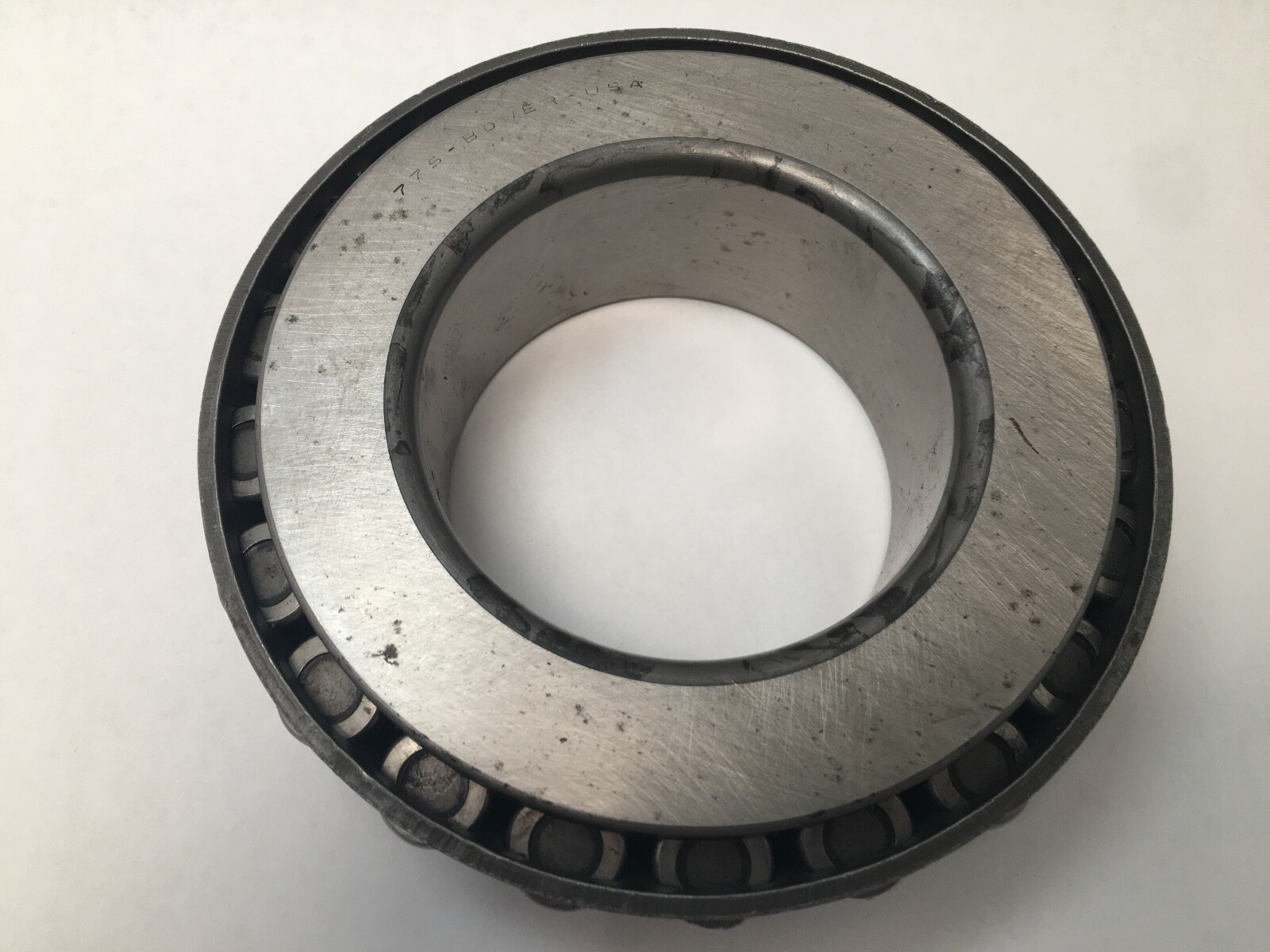

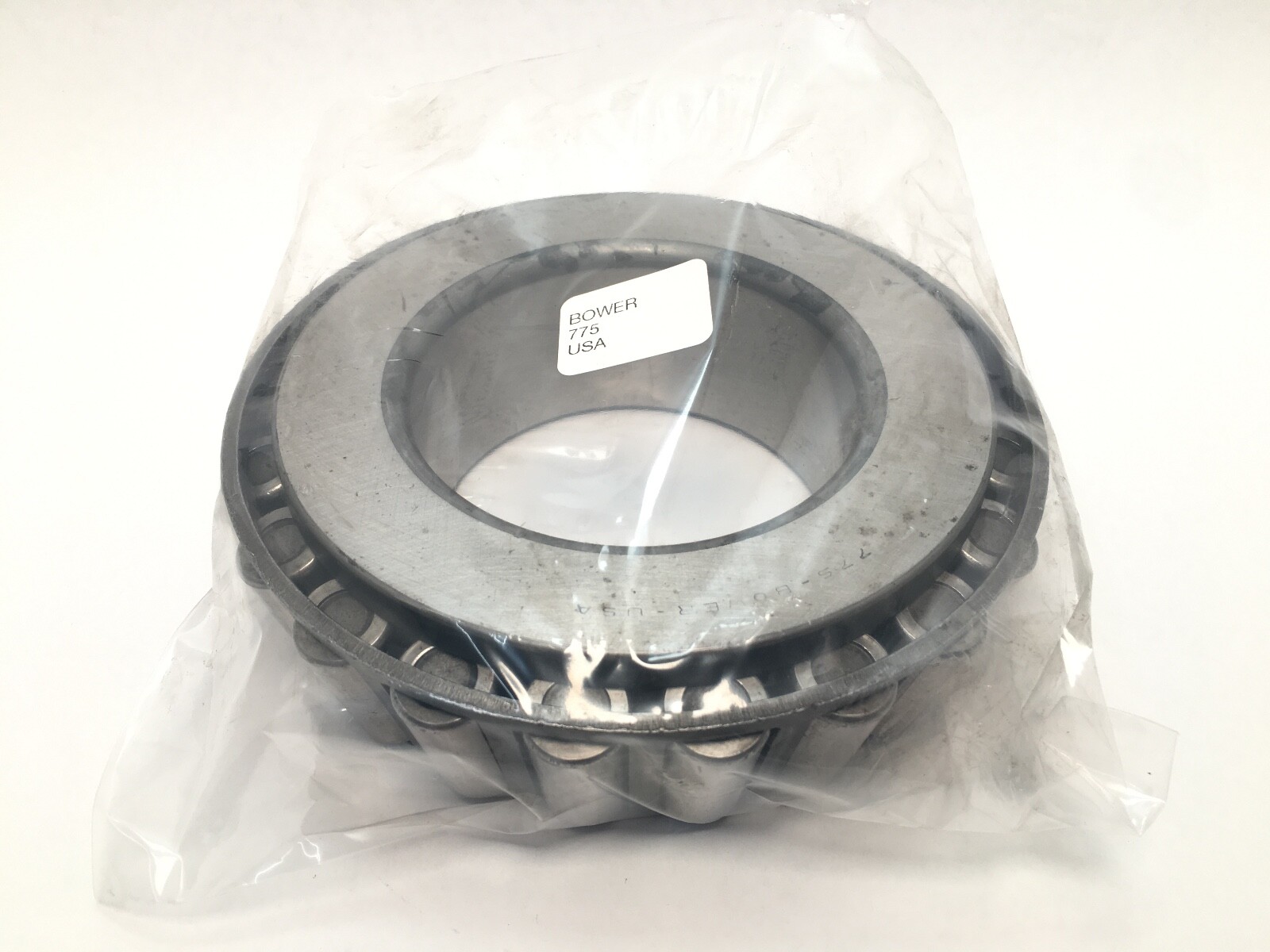

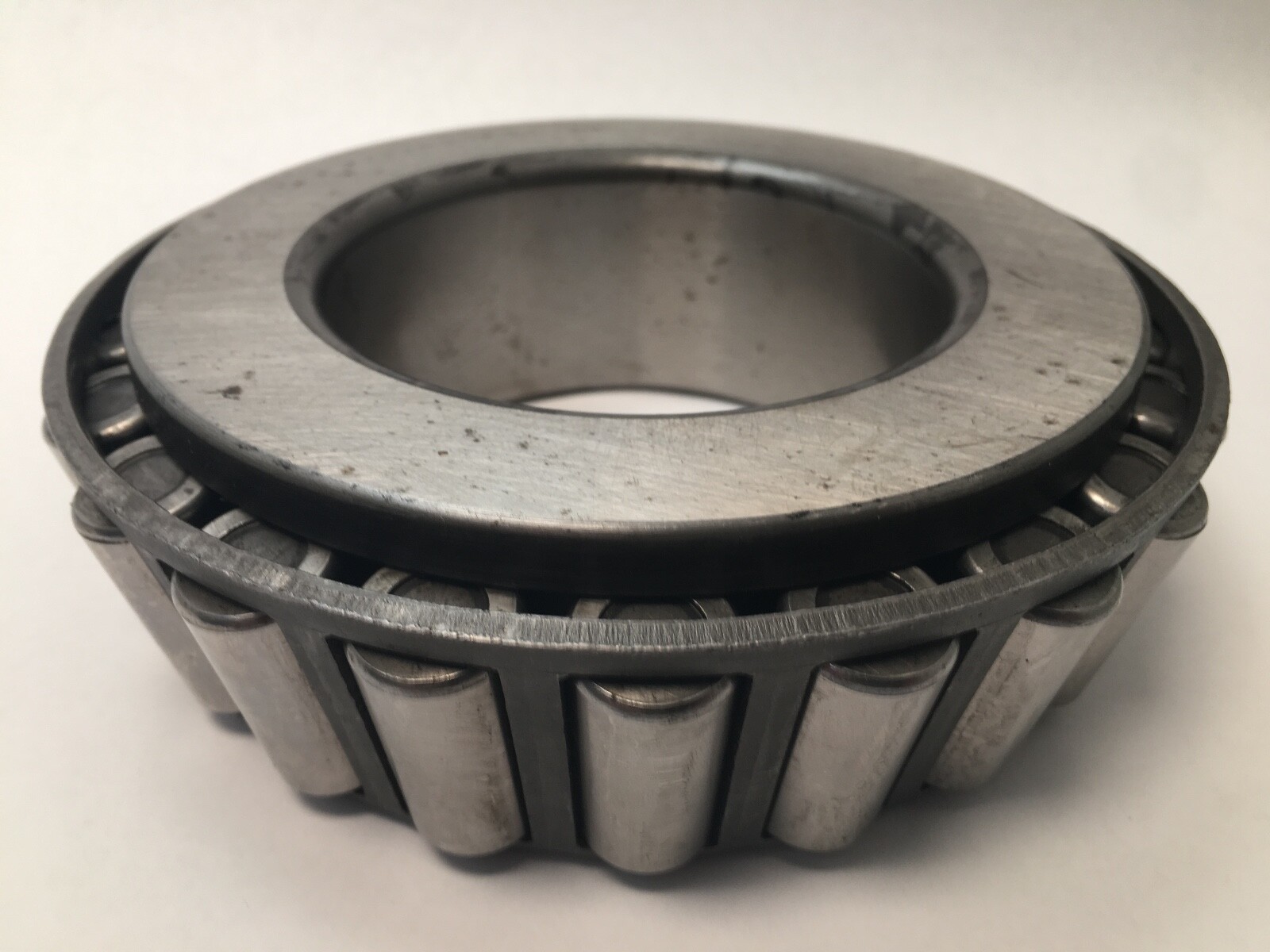

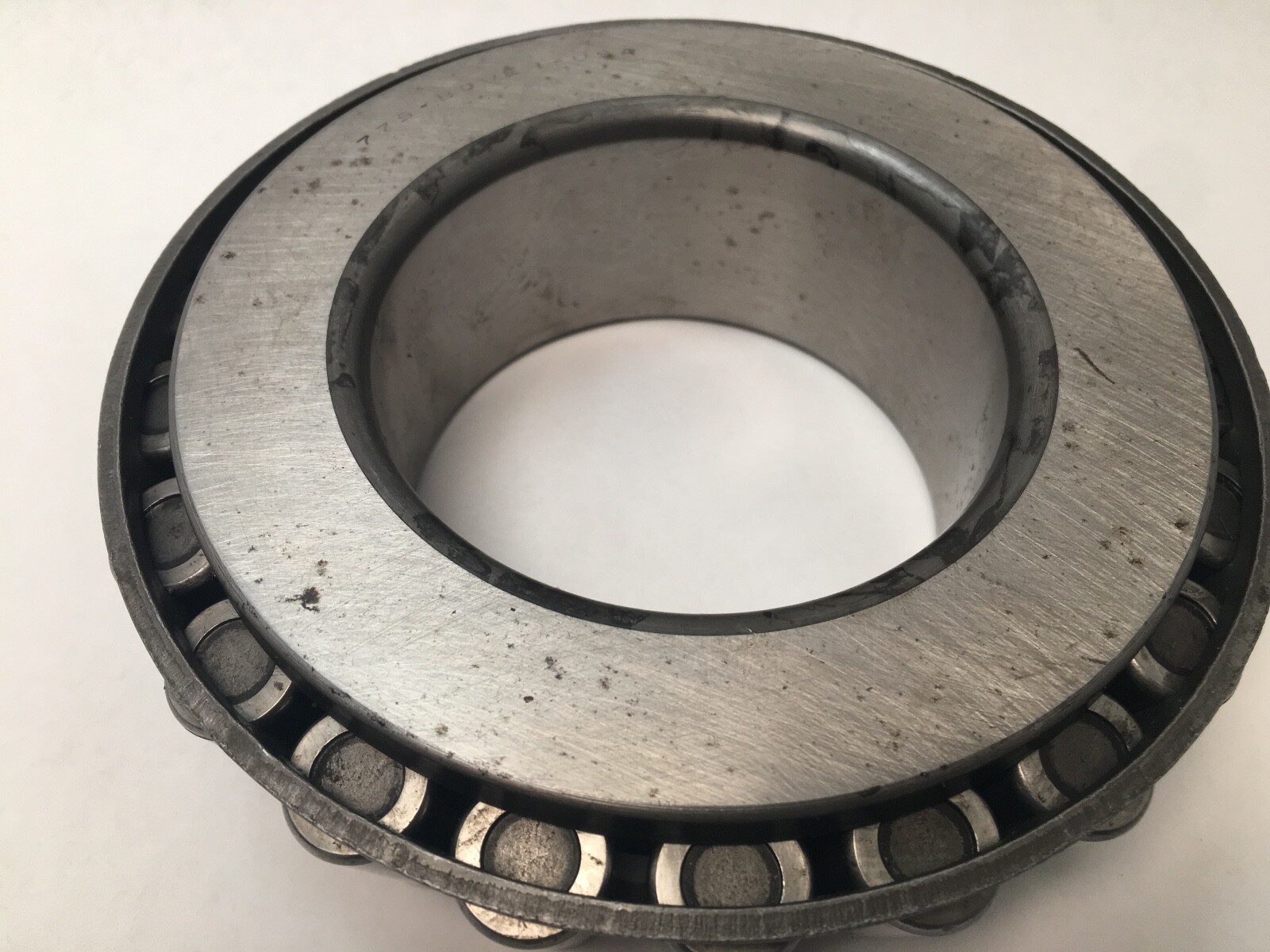

Bower 775 inch tapered roller bearing cone. Bearing Type: Tapered roller bearing cone — the inner ring carrying the tapered rollers and cage as one assembly. Series: 77x. Base Number: 775. Bore Diameter: 3.5000 in (88.9 mm). Overall Width: 1.8900 in (48.006 mm). Bore Type: Straight. Rolling Elements: Tapered Roller. Number Of Rows: 1.
775 — industry-standard inch tapered roller cone number, 3.5000 in bore. No precision suffix is present, so the tolerance class is Not specified.
A 1.890 in inner ring width on a 3.500 in bore is a deep section for the size, which is what puts the 775 in the heavy-duty group of its diameter range. Boundary dimensions are set by the industry standard, so a 775 from any maker seats on the same shaft and in the same cup.
Unit Quantity: 1 Pc. Cone only. Matching cups are the 772 and 772A.
775 is an industry-standard inch tapered roller bearing cone number. Timken, Koyo, NTN, NSK, SKF and BCA/Bower all build a 775 to the same boundary dimensions, and all interchange with this cone.
