Timken 3583/3520 tapered roller bearing cone and cup set, 1.5000 in bore, 3.3125 in OD, 0.9375 in cup width, 29,400 N C90 radial rating. 2 Pcs.
List Price
$63.88
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 3583/3520 |
| Model | 3583/3520 |
| Bearing Type | Tapered Roller Bearing Cone and Cup Set |
| ID | 1.5000 in (38.1 mm) |
| OD | 3.3125 in (84.138 mm) |
| Series | 3500 |
|---|---|
| Harmonization Code | 8482.20.00 |
| Cup Part Number | 3520 |
| Design Units | Imperial |
| Bearing Material | Case-Carburized Steel |
| Cup Width | 0.9375 in (23.813 mm) |
| Cup Backface To Clear Radius | 0.03" |
| Cone Part Number | 3583 |
| Cone Width | 1.2160 in (30.886 mm) |
| Cone Backface To Clear Radius | 0.14" |
| Base Number | 3583/3520 |
| Mpn Variants | 3583/3520, 3583-3520, 3583 3520, 3583, 3520 |
| Compatible With Replaces | Timken 3583 cone, Timken 3520 cup |
| Precision Class | Not specified |
| Dynamic Load Rating C1 | 113,000 N (25,500 lbf) |
| Dynamic Axial Rating Ca90 | 15,400 N (3,460 lbf) |
| K Factor | 1.91 |
| E Factor | 0.31 |
| Dynamic Load Rating | 113,000 N |
| Static Load Rating | 134,000 N (30,100 lbf) |
| Precision Rating | Not specified |
| Rolling Elements | Tapered Roller |
| Item Weight | 2.1 kg (4.6 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Effective Center Location | -0.4 in (-10.2 mm) |
| Industry Terms | tapered roller bearing cone and cup set; inch taper bearing set; TRB cone cup; single row tapered bearing; 3583 cone 3520 cup |
| Common Misspellings | Timkin 3583/3520; Timken 3583 3520; Timken 3583-3520; Timkin 3583; Timken 3520 |
| Application Types | Gearboxes; wheel hubs; conveyors; agricultural and construction equipment; industrial machinery |
| Cross Reference 1 | NTN 4T-3583/3520 |
|---|---|
| Cross Reference 2 | SKF 3583/3520 |
| Cross Reference 3 | FAG K3583-3520 |
| Cross Reference 4 | NSK 3583/3520 |
| Cross Reference 5 | Koyo 3583/3520 |
| Cross Reference 6 | Fersa 3583/3520 |
| Cross Reference 7 | BCA/Bower 3583/3520 |
| Cross Reference 8 | PEER 3583/3520 |

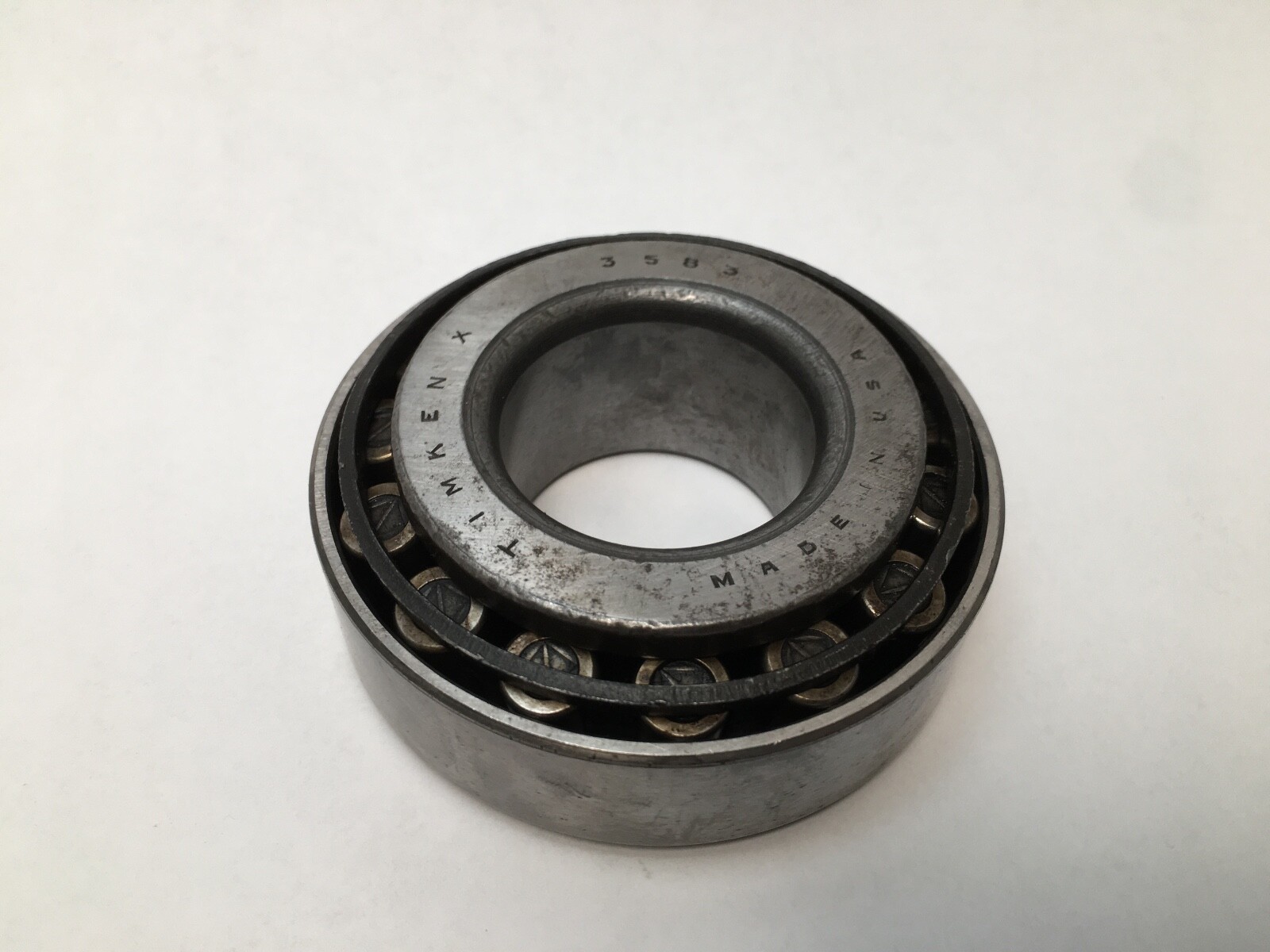

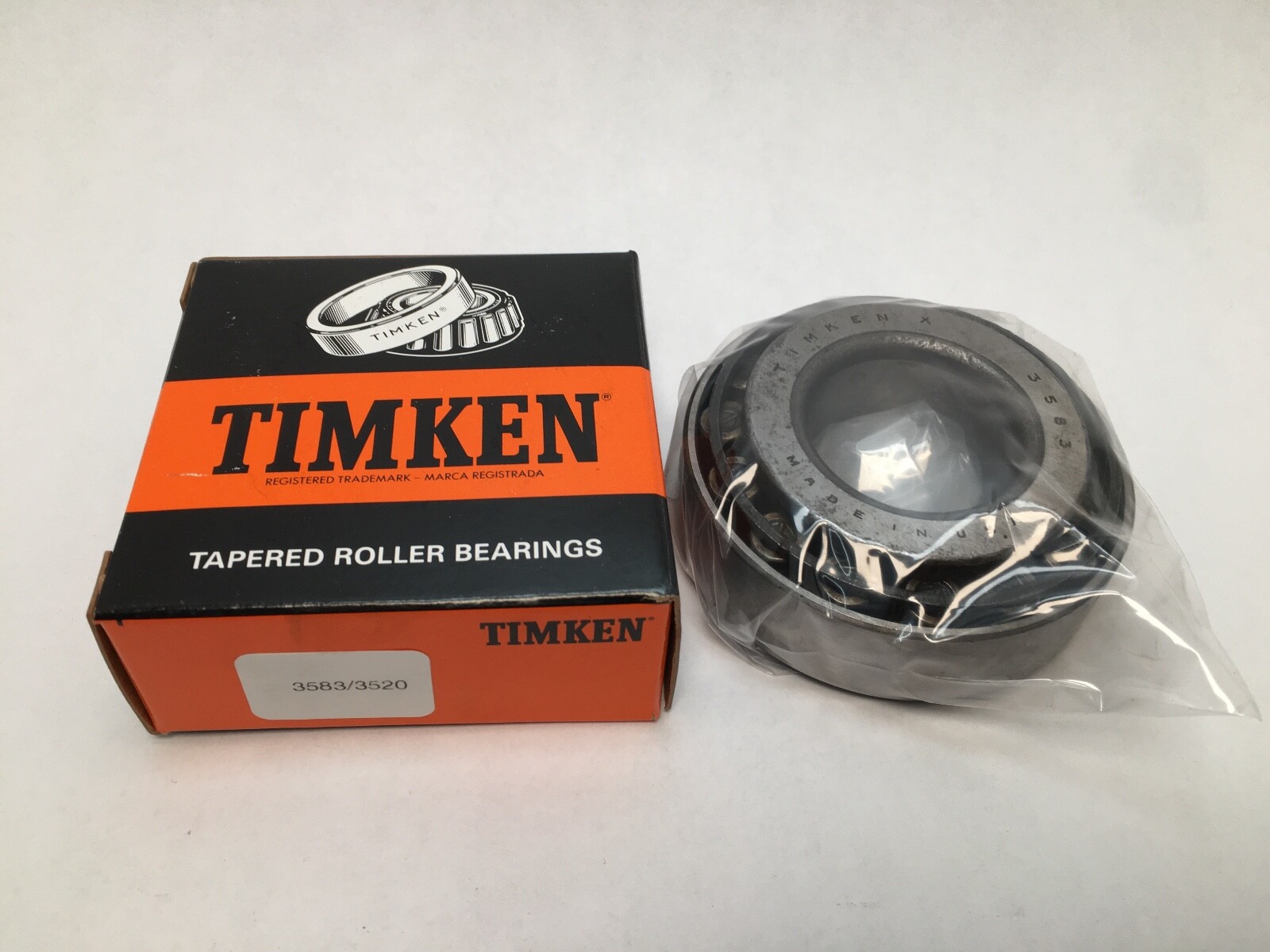

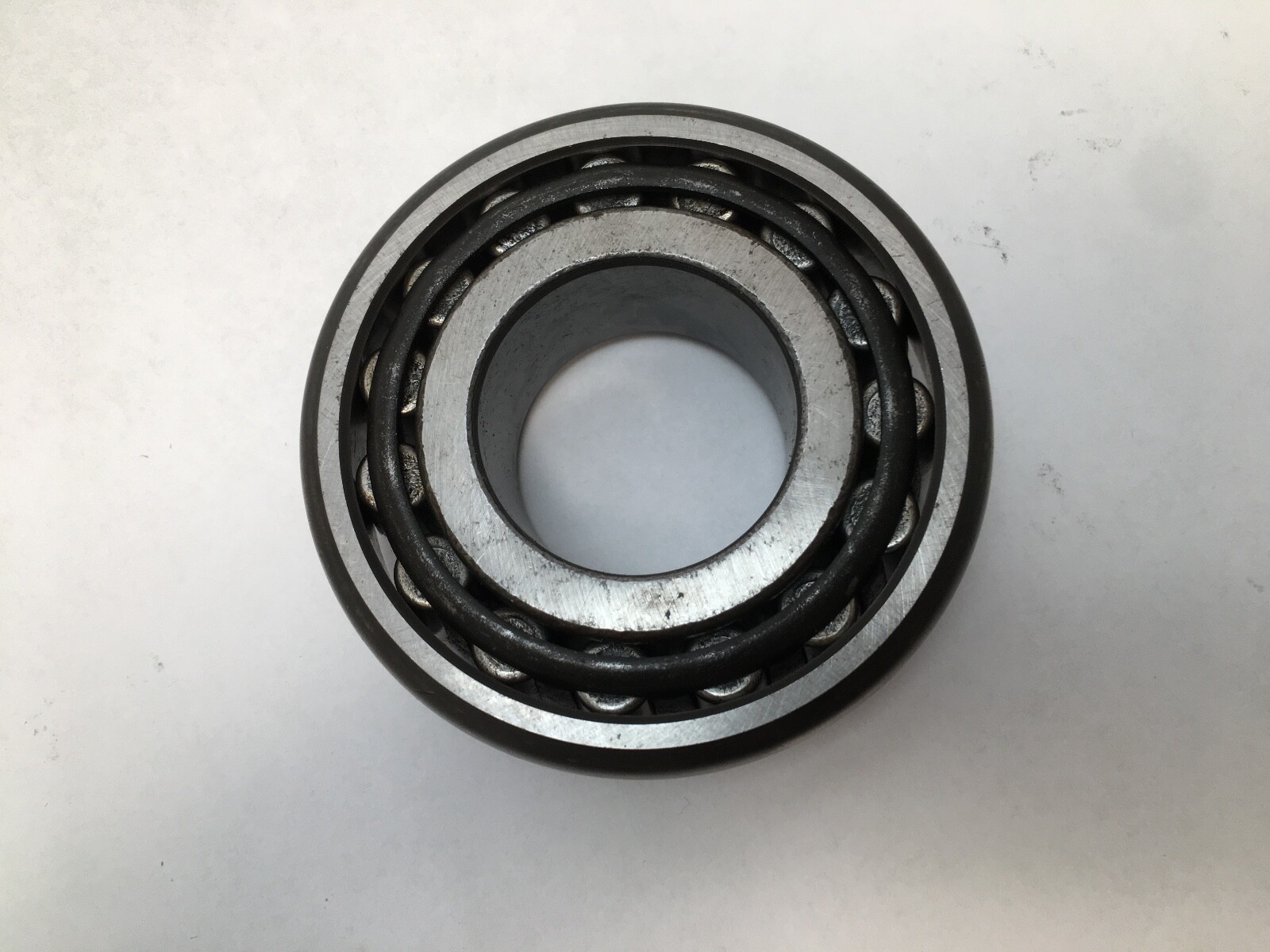

Timken 3583/3520 single-row inch tapered roller bearing, a matched cone and cup set. Cone Part Number: 3583. Cup Part Number: 3520. Unit Quantity: 2 Pcs. Rolling Elements: Tapered Roller. Number Of Rows: 1. Bore Type: Straight. Bearing Material: Case-Carburized Steel. Harmonization Code: 8482.20.00.

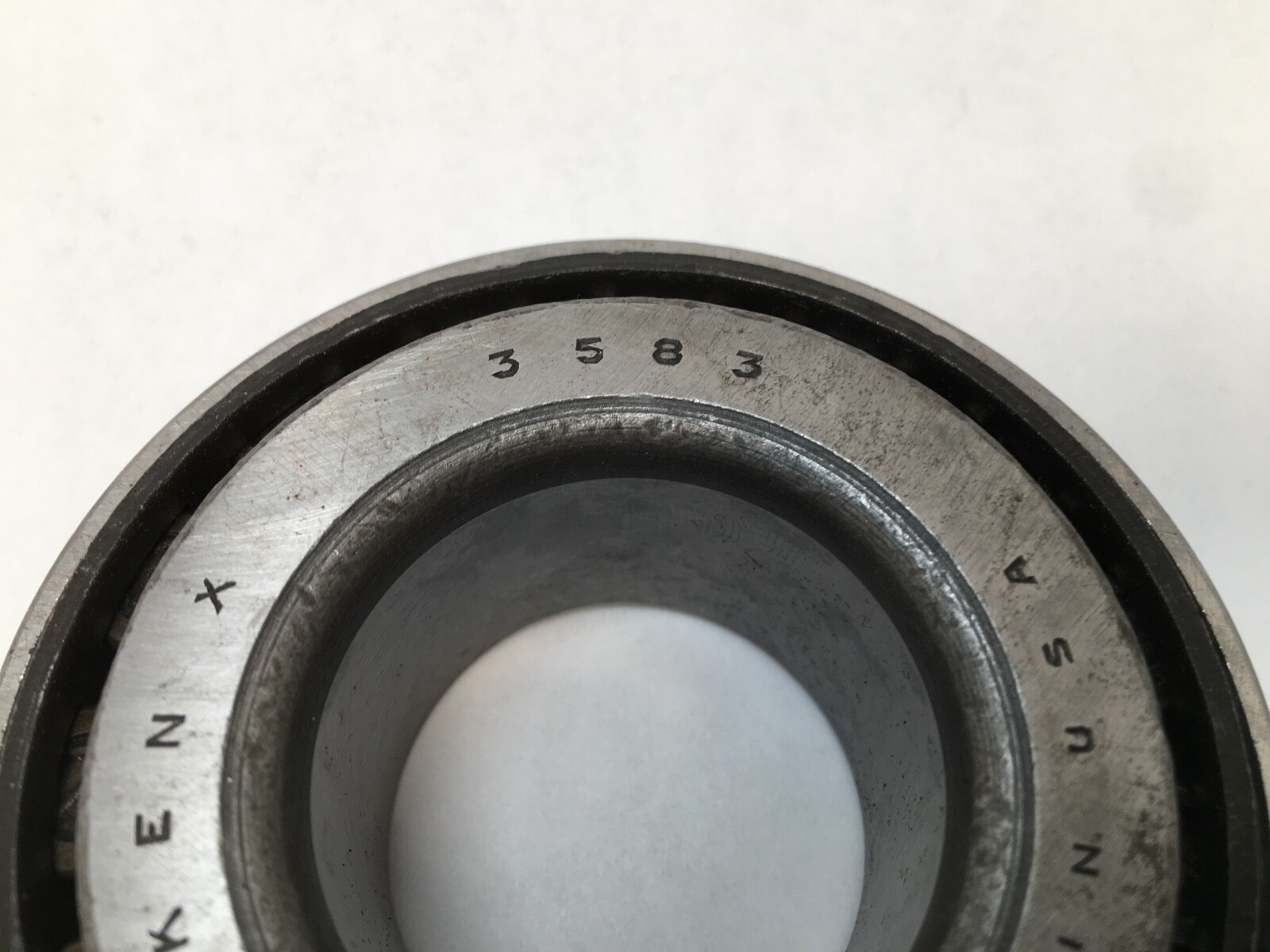

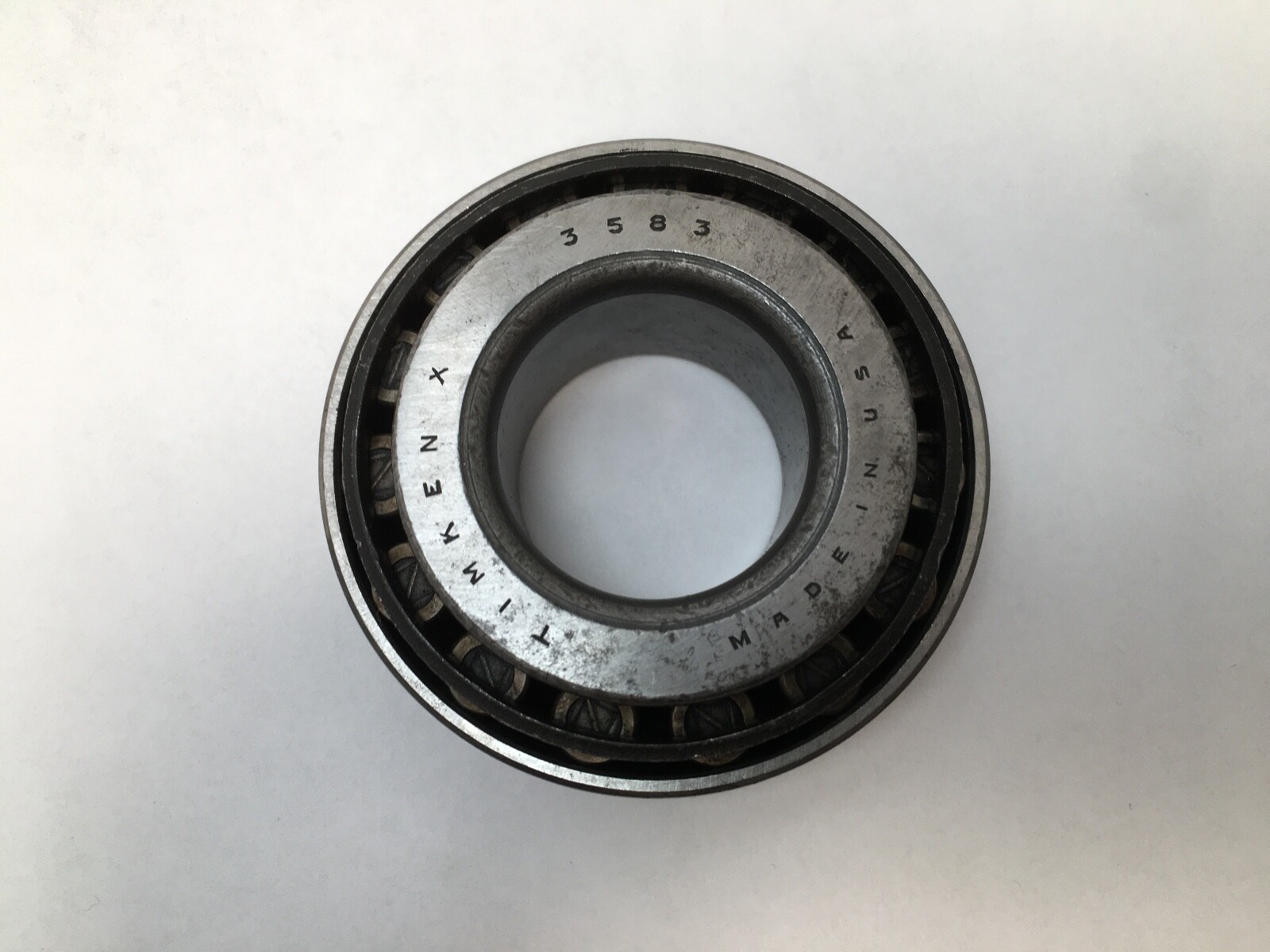

3583 — Timken cone number: 1.5000 in bore, 1.2160 in inner ring width.

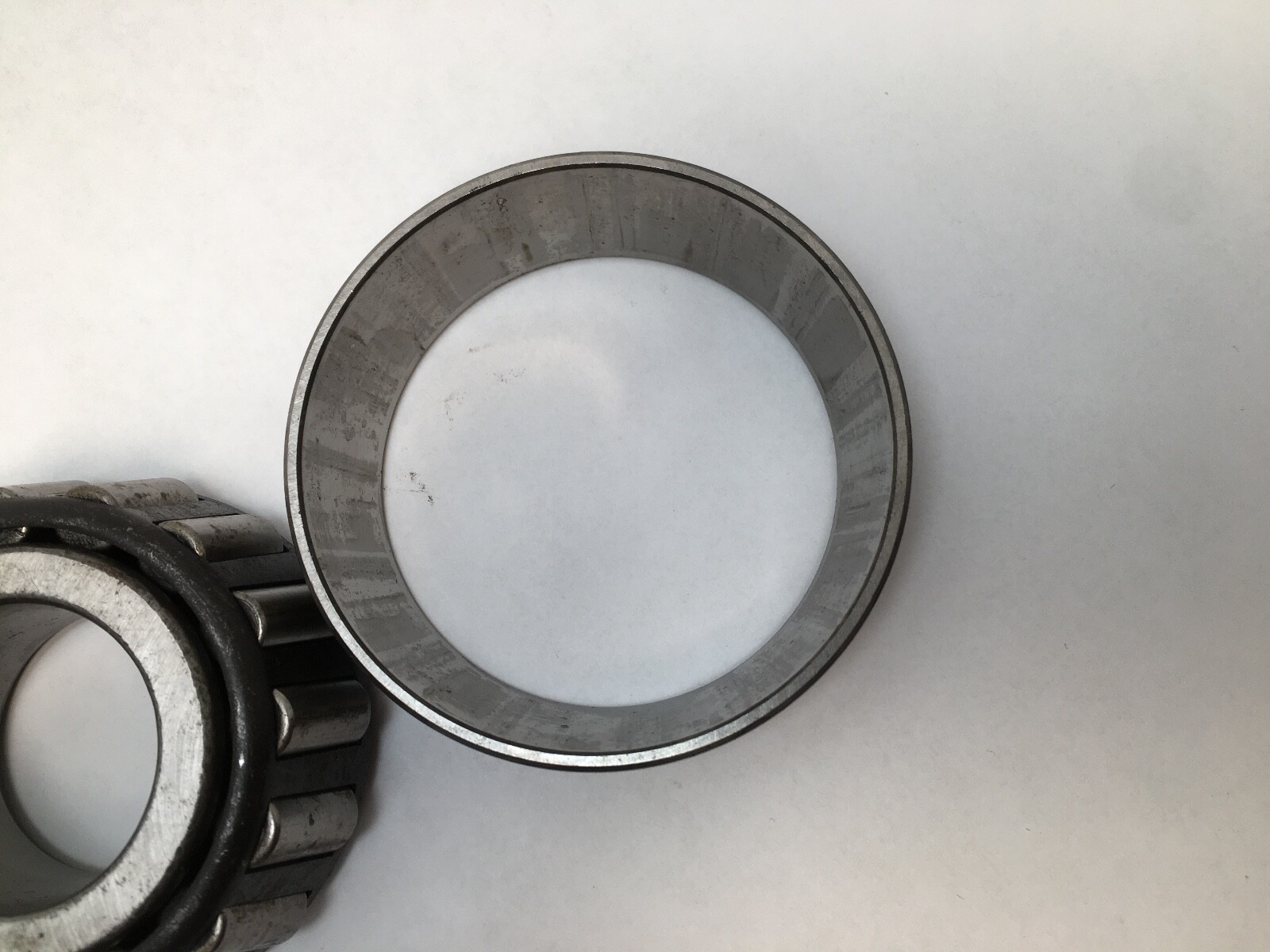

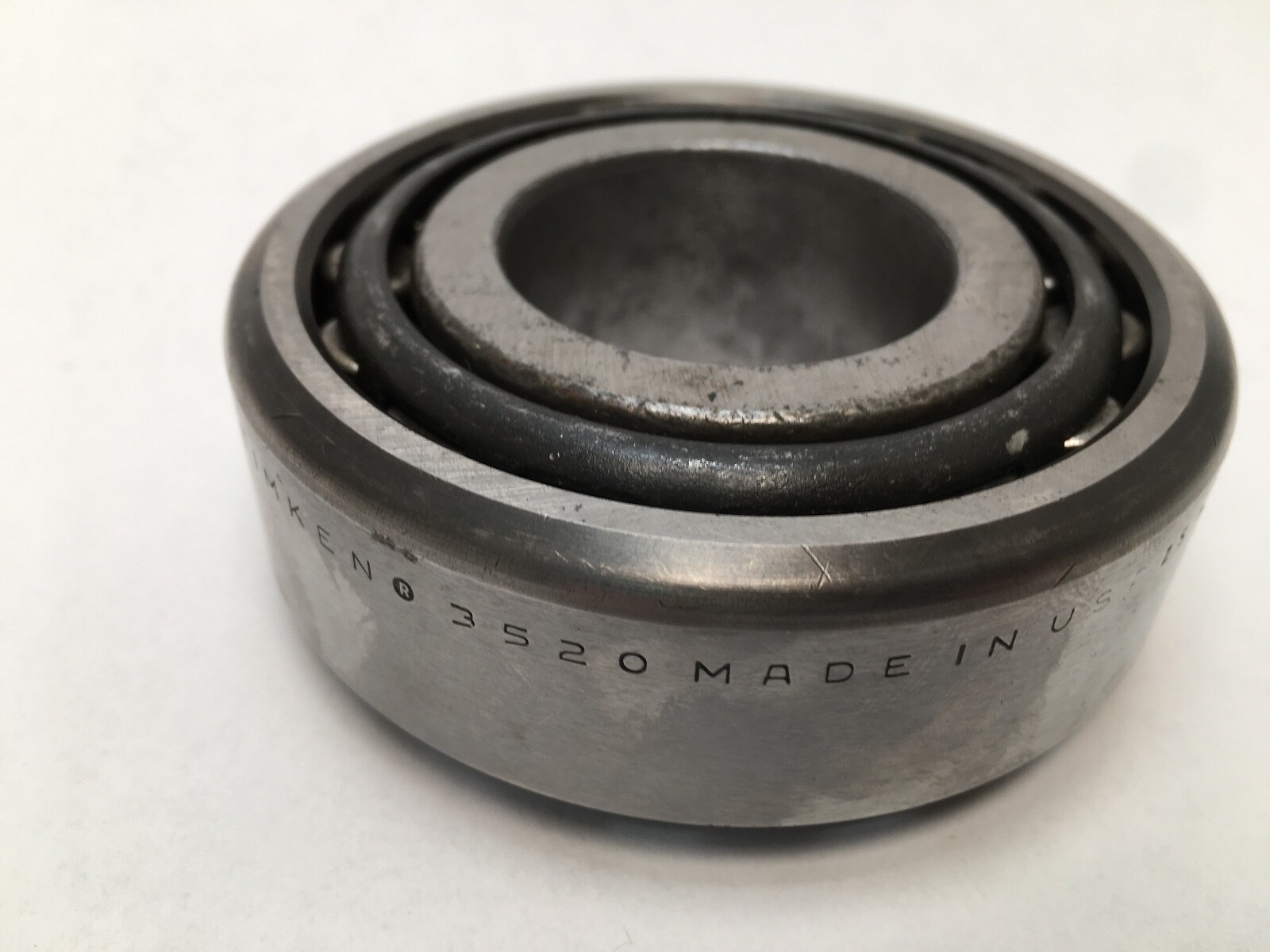

3520 — Timken cup number paired with the 3583 cone: 3.3125 in outside diameter, 0.9375 in outer ring width.
Bore Diameter: 1.5000 in (38.1 mm). Outside Diameter: 3.3125 in (84.138 mm). Cone Width: 1.2160 in (30.886 mm). Cup Width: 0.9375 in (23.813 mm).
Dynamic Load Rating (C1): 113,000 N (25,500 lbf). Dynamic Radial Load Rating (C90): 29,400 N (6,610 lbf). Dynamic Axial Rating (Ca90): 15,400 N (3,460 lbf). Static Load Rating: 134,000 N (30,100 lbf).
K Factor: 1.91. e Factor: 0.31. Y Factor: 1.96.
Item Weight: 2.1 kg (4.6 lb) for the two pieces. Cone Weight: 1.4 kg (3.1 lb). Cup Weight: 0.7 kg (1.5 lb).
Effective Center Location: –0.4 in (–10.2 mm), measured inside the cone backface.
Max Shaft Fillet Radius: 0.140 in (3.600 mm). Max Housing Fillet Radius: 0.130 in (3.30 mm).
Shaft Backing Shoulder Diameter, frontface (da): 1.79 in (45.5 mm). Shaft Backing Shoulder Diameter, backface (db): 2.05 in (52 mm).
Housing Backing Shoulder Diameter, frontface (Da): 3.15 in (80.00 mm). Housing Backing Shoulder Diameter, backface (Db): 2.91 in (73.91 mm).
Cross-references: NTN 4T-3583/3520, SKF 3583/3520, FAG K3583-3520, NSK 3583/3520, Koyo 3583/3520, Fersa 3583/3520, BCA/Bower 3583/3520, PEER 3583/3520. MPN Variants: 3583/3520, 3583-3520, 3583 3520.
Bore Diameter is 1.5000 in (38.1 mm) and Outside Diameter is 3.3125 in (84.138 mm).

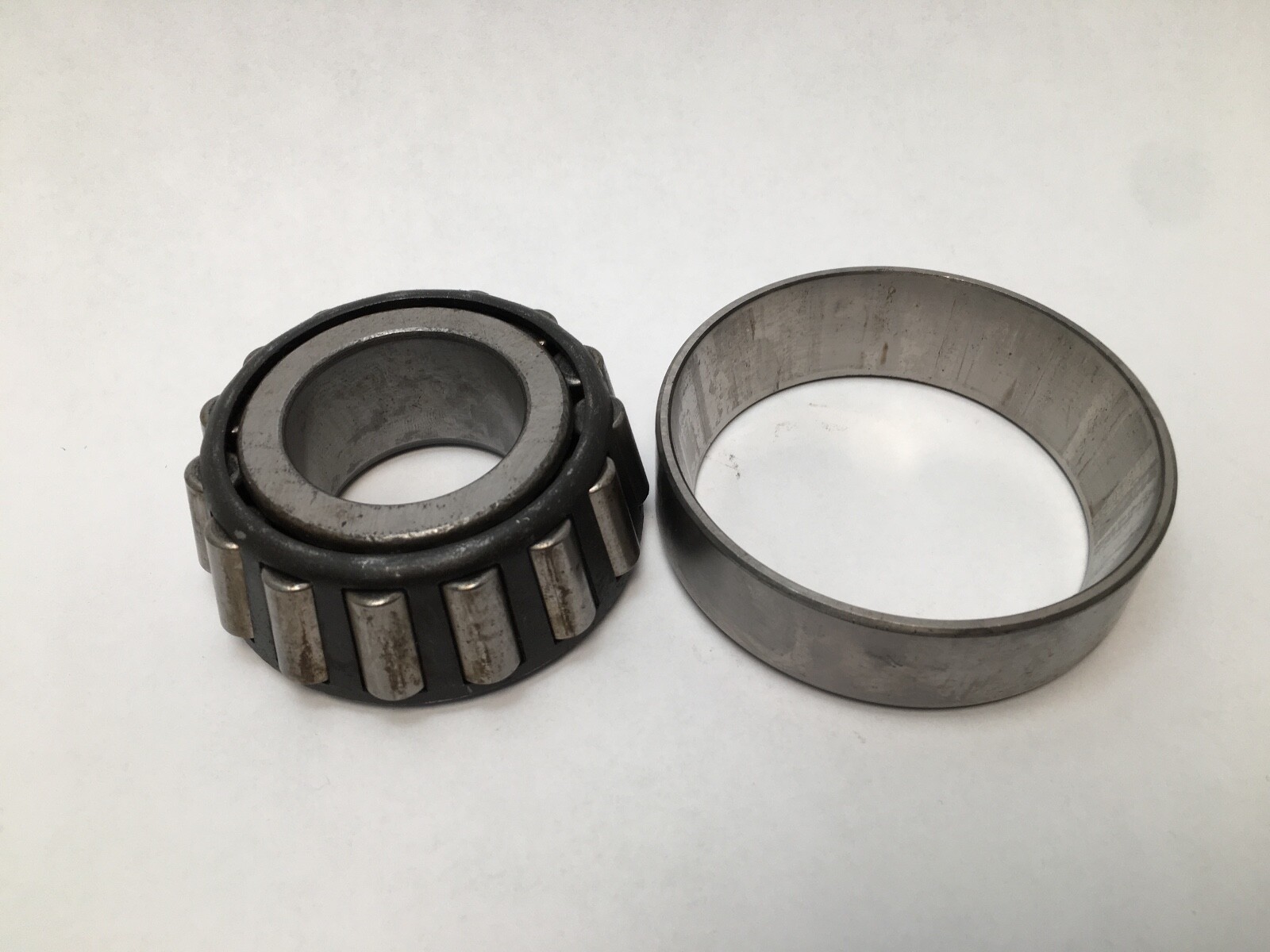

One 3583 cone and one 3520 cup, 2 Pcs. Timken lists the 3520 as the mating cup for the 3583 cone.
Dynamic Load Rating (C1) is 113,000 N, Dynamic Radial Load Rating (C90) is 29,400 N and Static Load Rating is 134,000 N.
