Inch tapered roller bearing set, 1.5000 in bore, 3.3125 in cup OD, cone 3583 with cup 3520, stamped steel cage, case-carburized steel rings and rollers.
List Price
$75.78
8 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 3583/3520 |
| Model | 3583 3520 |
| Bearing Type | Tapered Roller Bearing |
| ID | 1.5000 in |
| OD | 3.3125 in |
| Series | 3500 |
|---|---|
| Base Number | 3583 |
| Industry Terms | Inch tapered roller bearing; cone and cup set; taper bearing assembly |
| Bore Shaft Size | 1.5000 in (38.10 mm) |
| Mpn Variants | 3583/3520; 3583-3520; 3583 3520; 3583; 3520 |
| Compatible With Replaces | Cone 3583; matching cup 3520 |
| Cage Type | Stamped |
| Rolling Elements | Tapered Rollers |
| Cage Material | Stamped steel |
| Number Of Rows | 1 |
| Harmonization Code | 8482.20.00 |
| Cup Part Number | 3520 |
| Cup Width | 0.9375 in |
| Cup Backface To Clear Radius | 0.13 in |
| Part Number | 3583/3520 |
| Cone Part Number | 3583 |
| Cone Width | 1.2160 in |
| Cone Backface To Clear Radius | 0.14 in |
| Cone Frontface Backing Diameter | 1.81 in |
| Cup Frontface Backing Diameter | 3.11 in |
| Cage Cone Frontface Clearance | 0.05 in |
| Cage Cone Backface Clearance | 0.07 in |
| Effective Center Location | -0.4 in |

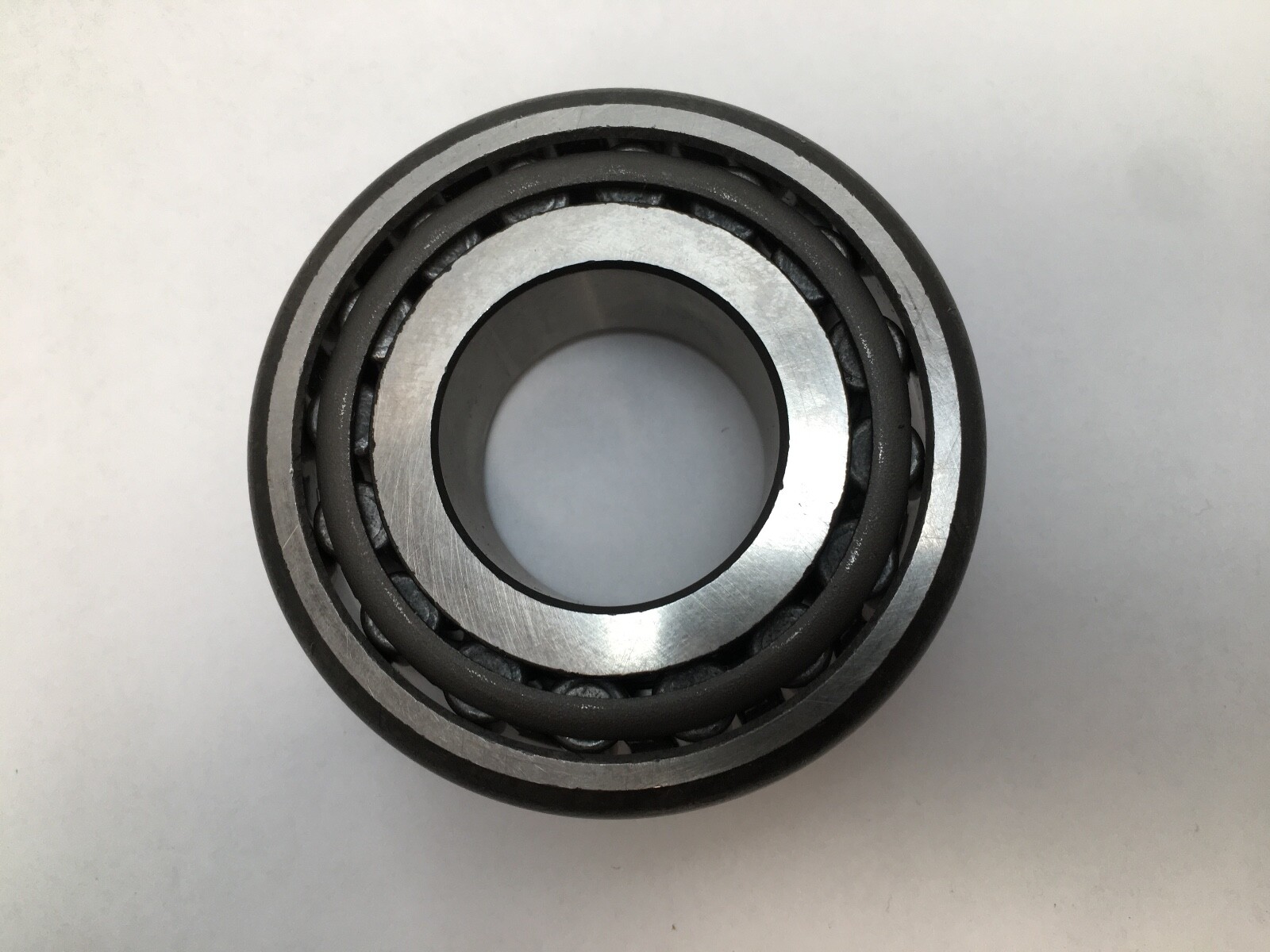

Timken 3583/3520 single-row inch tapered roller bearing set: cone 3583 with matching cup 3520. Unit Quantity: 1 Set (one cone and one cup). Bore Diameter: 1.5000 in (38.10 mm). Outside Diameter: 3.3125 in (84.14 mm). Series: 3500.

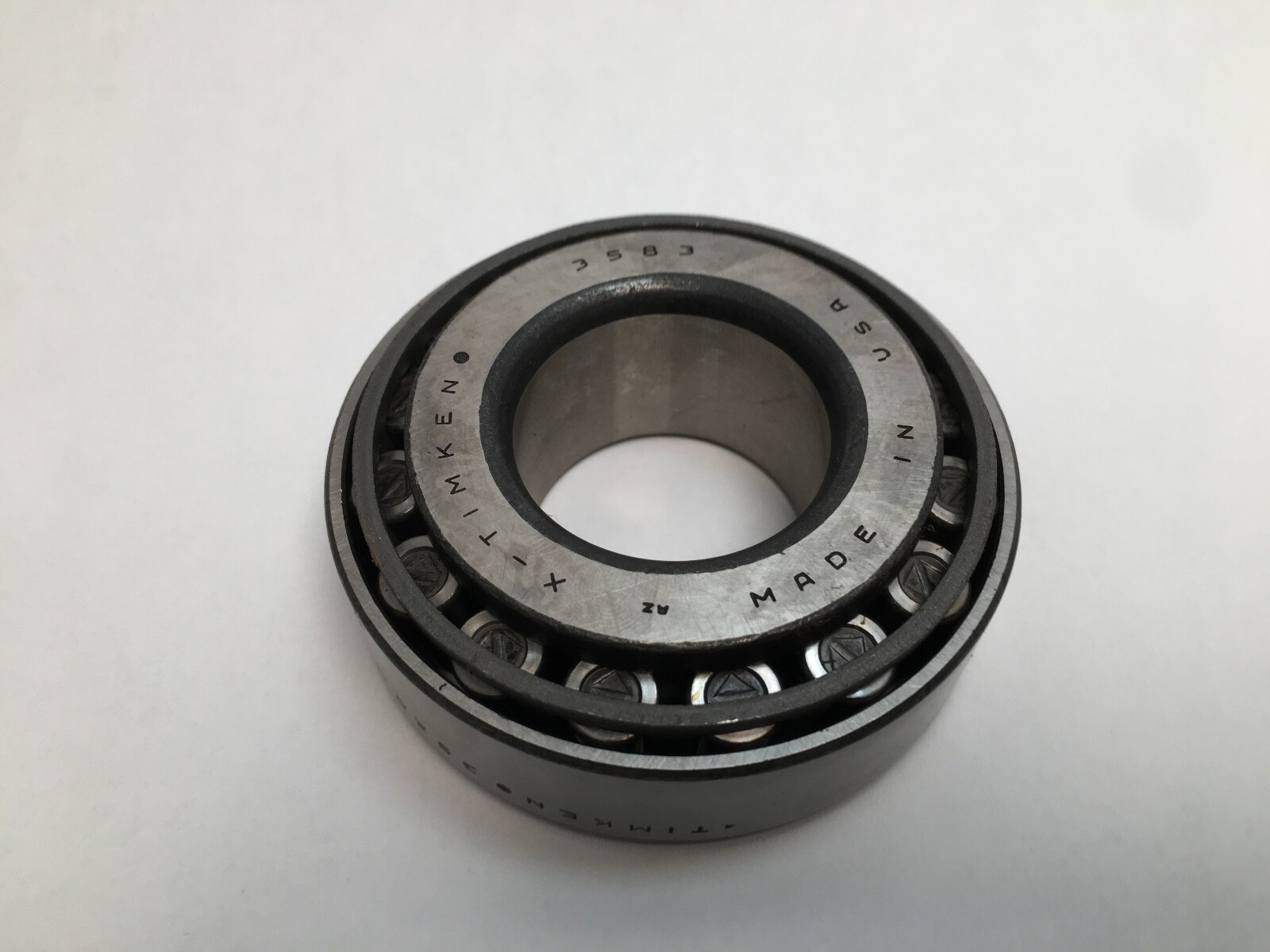

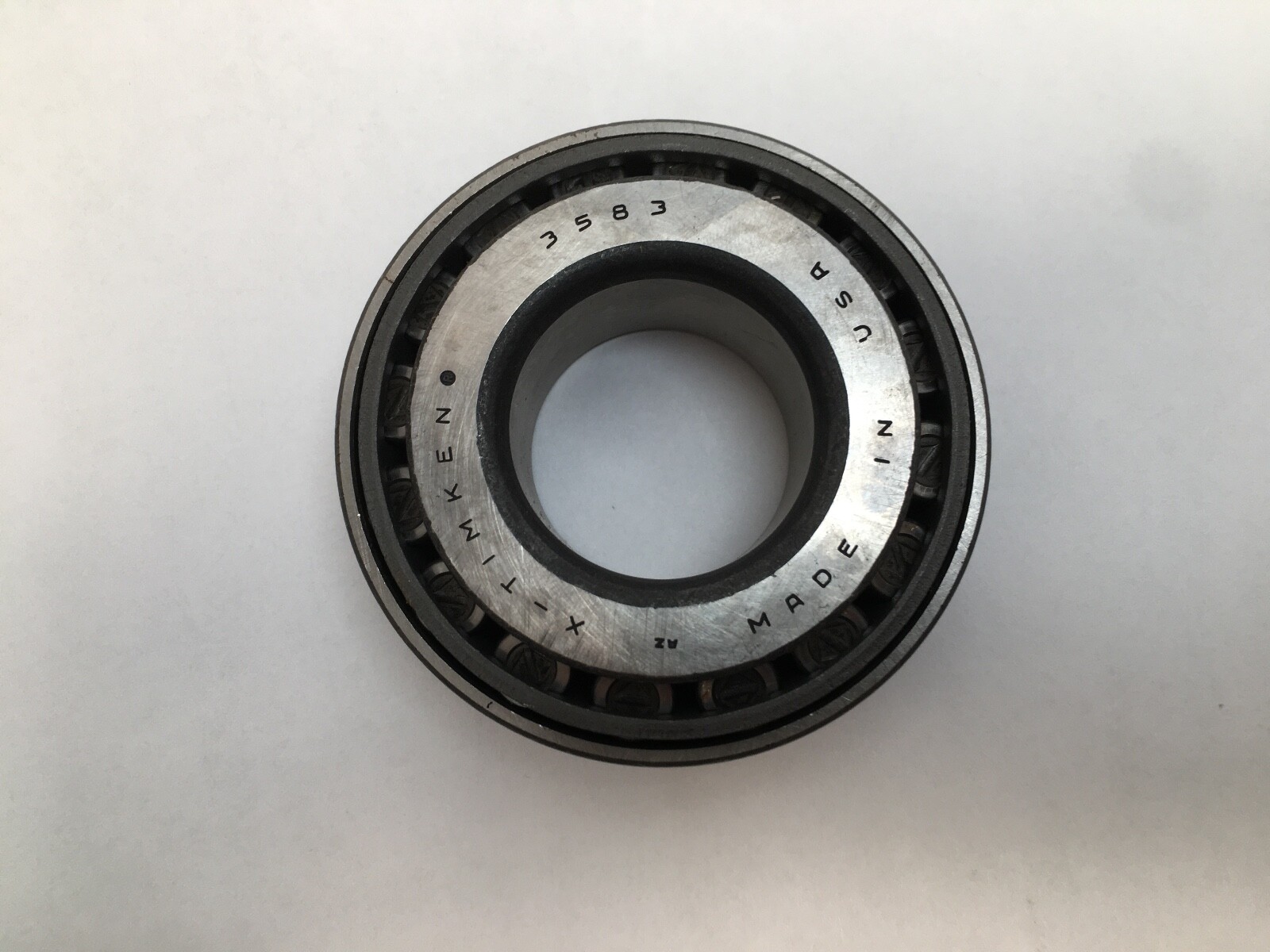

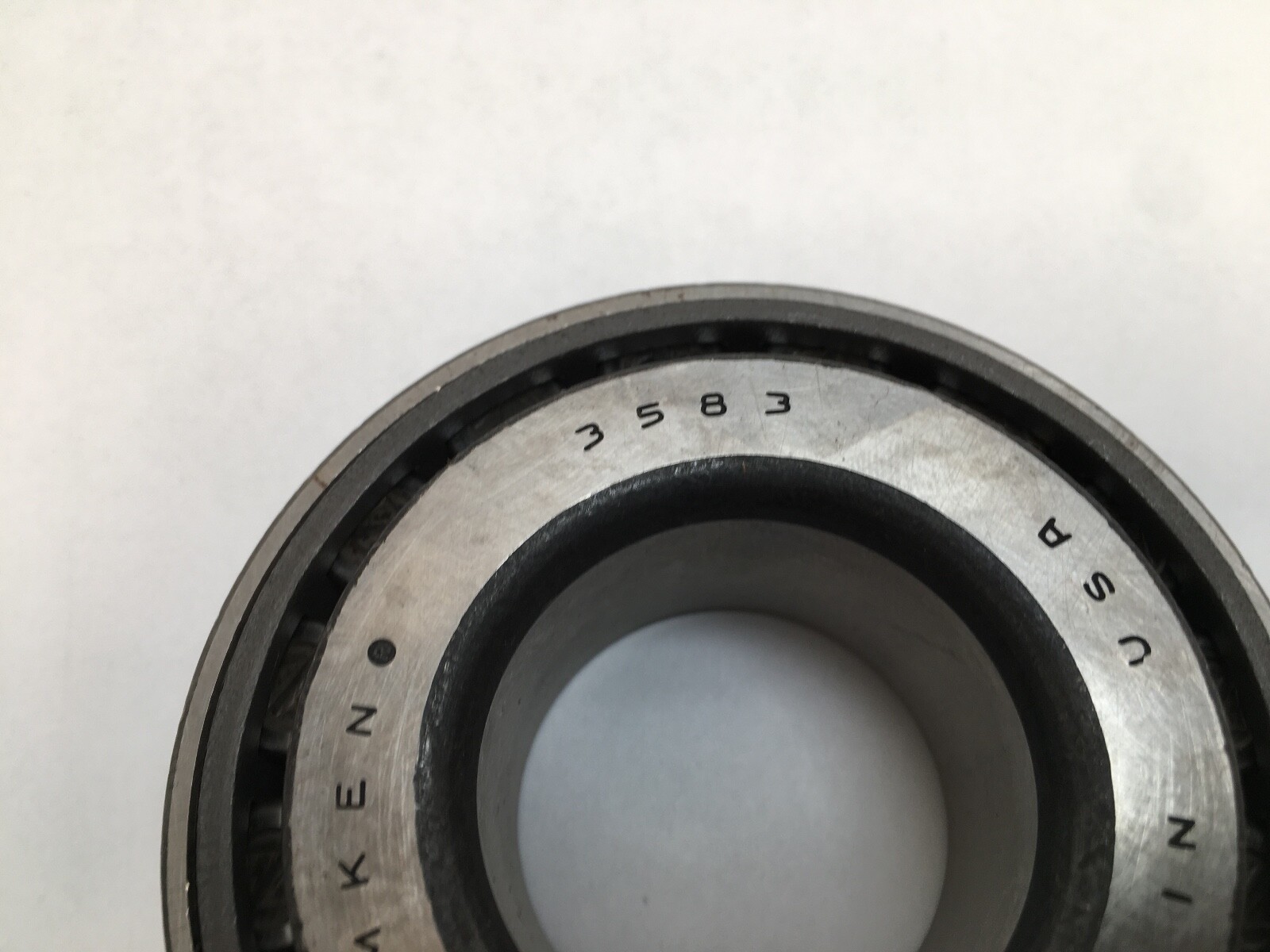

3583 — Timken cone, 3500 series.

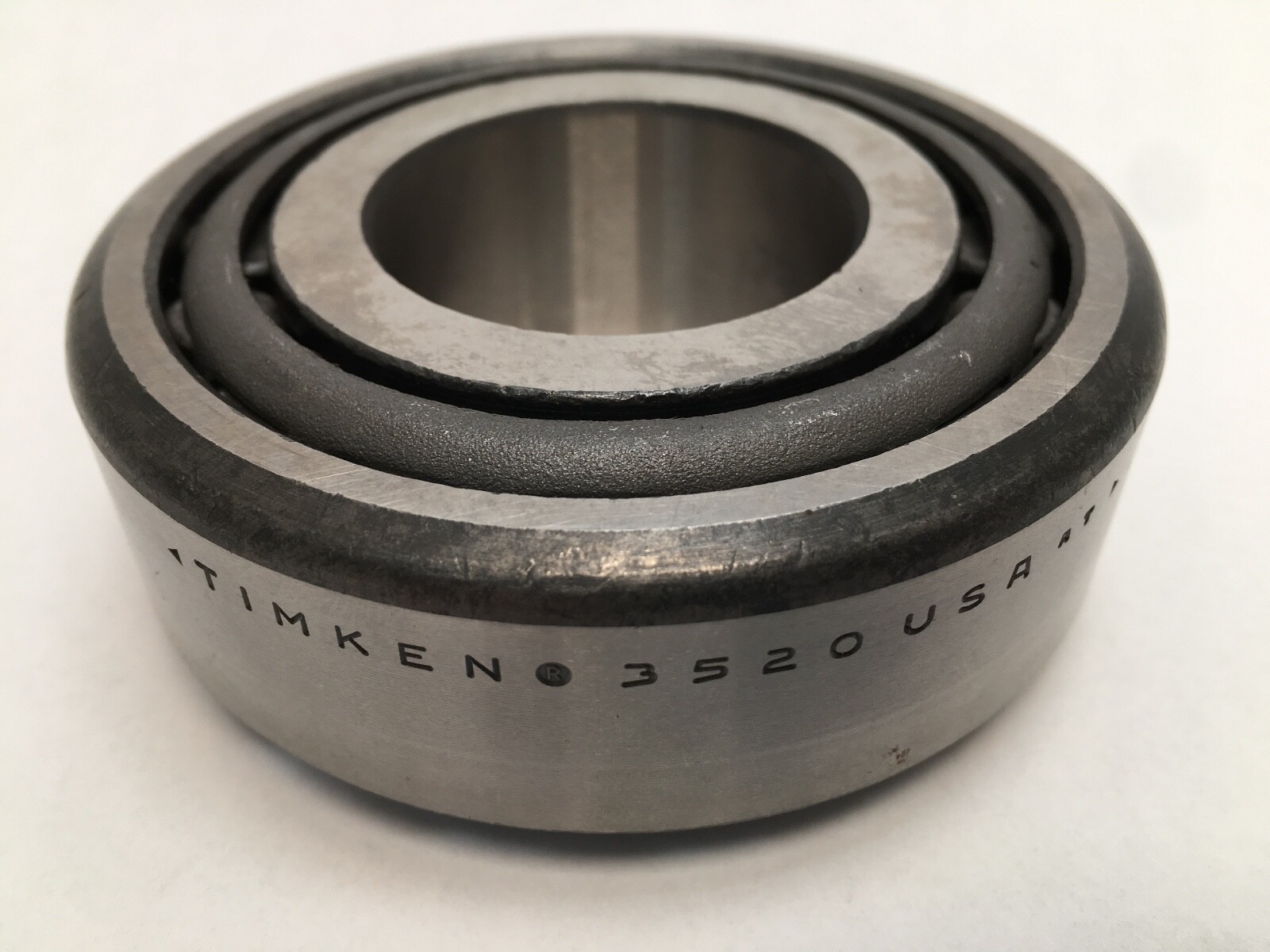

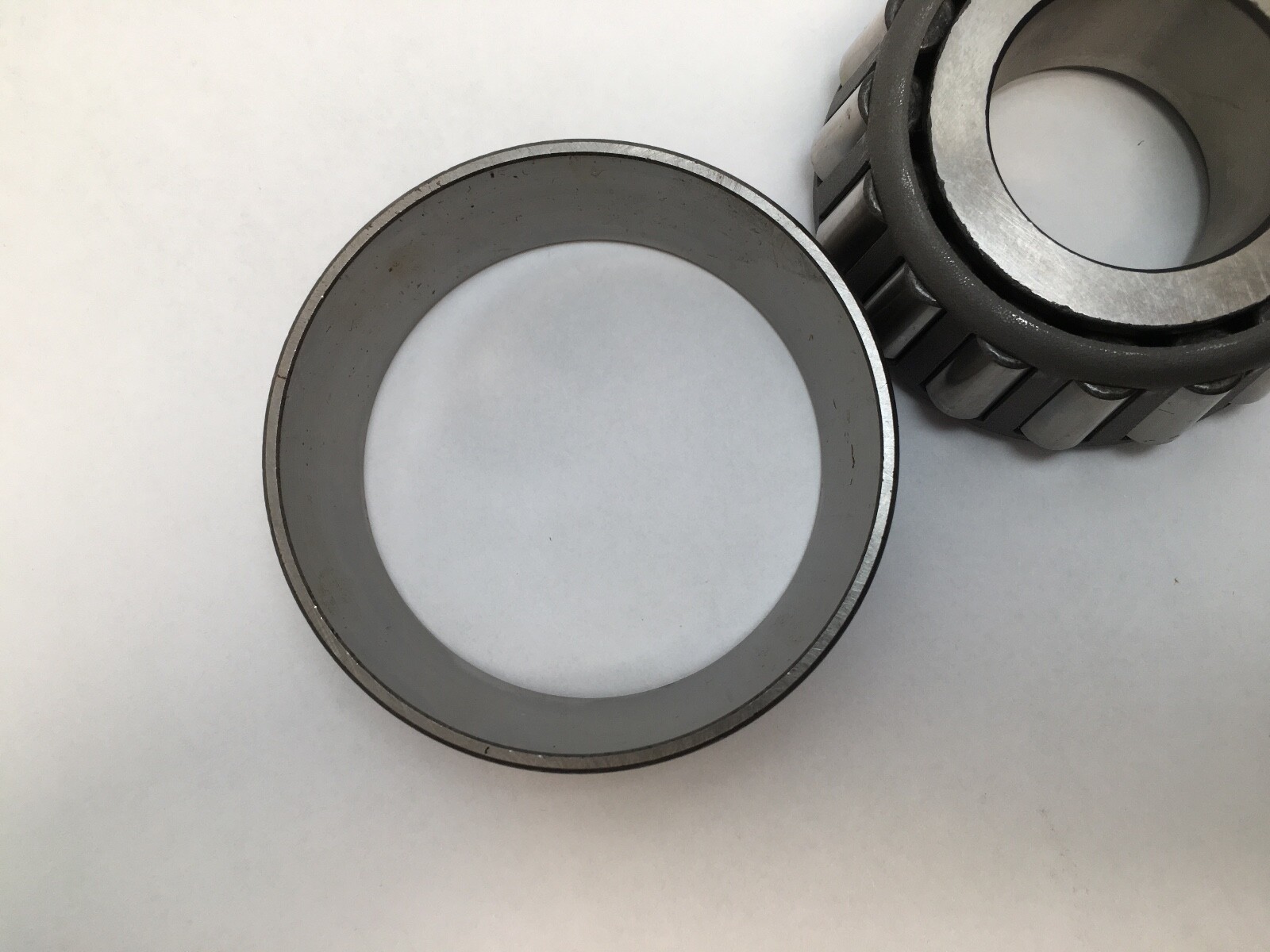

3520 — Timken cup that mates with cone 3583.
Bearing Type: Tapered roller bearing, single row, cone and cup. Number Of Rows: 1. Rolling Elements: Tapered rollers. Cage Type: Stamped. Cage Material: Stamped steel. Bearing Material: Case-carburized steel. Design Units: Imperial. Cone Width: 1.2160 in. Cup Width: 0.9375 in.
Cone Frontface Backing Diameter: 1.81 in. Cup Frontface Backing Diameter: 3.11 in. Cone Backface To-Clear Radius: 0.14 in. Cup Backface To-Clear Radius: 0.13 in. Effective Center Location: -0.4 in. Cage-Cone Frontface Clearance: 0.05 in. Cage-Cone Backface Clearance: 0.07 in.
Cone 3583 with matching cup 3520. Number forms: 3583/3520, 3583-3520, 3583 3520.

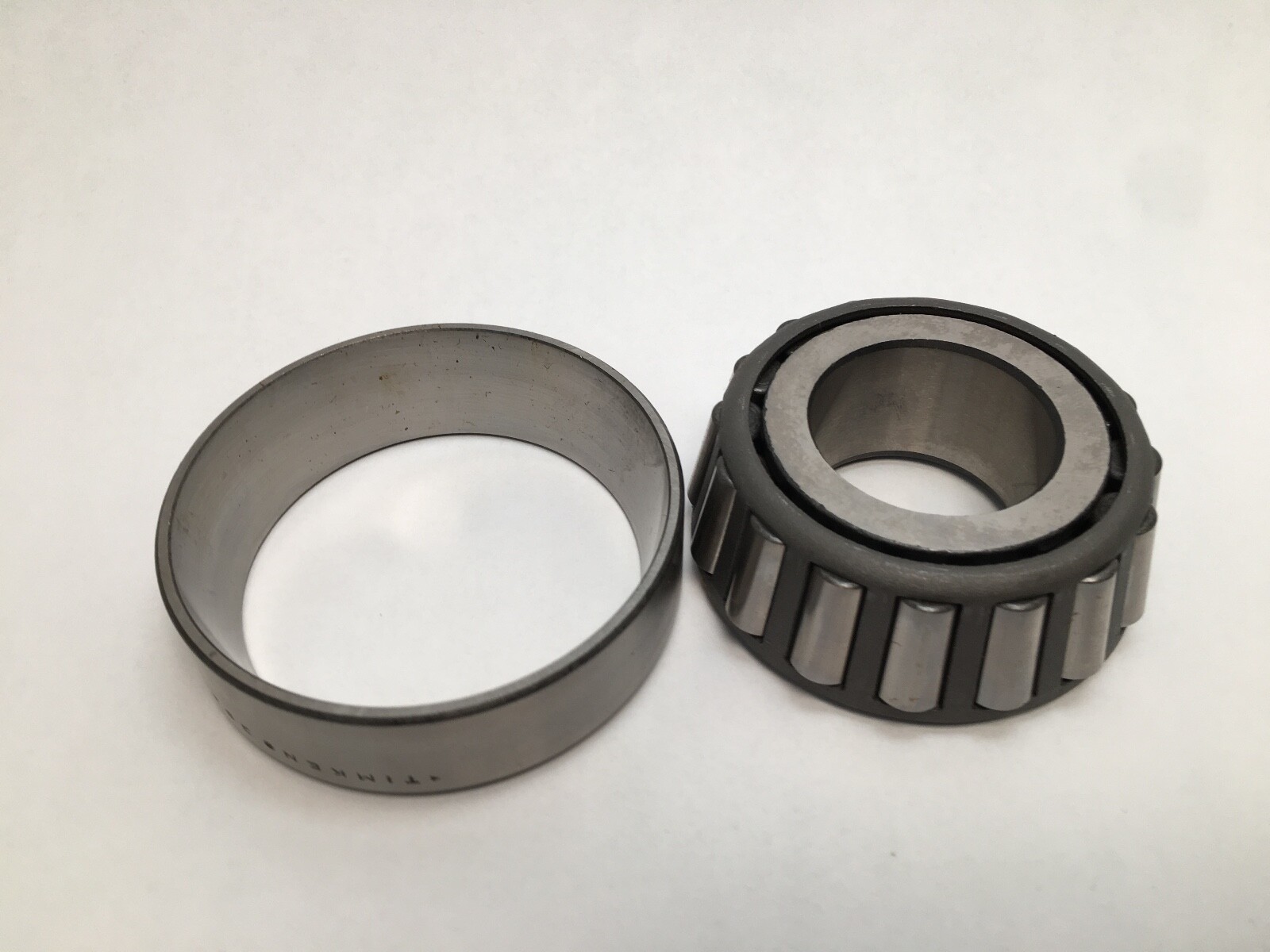

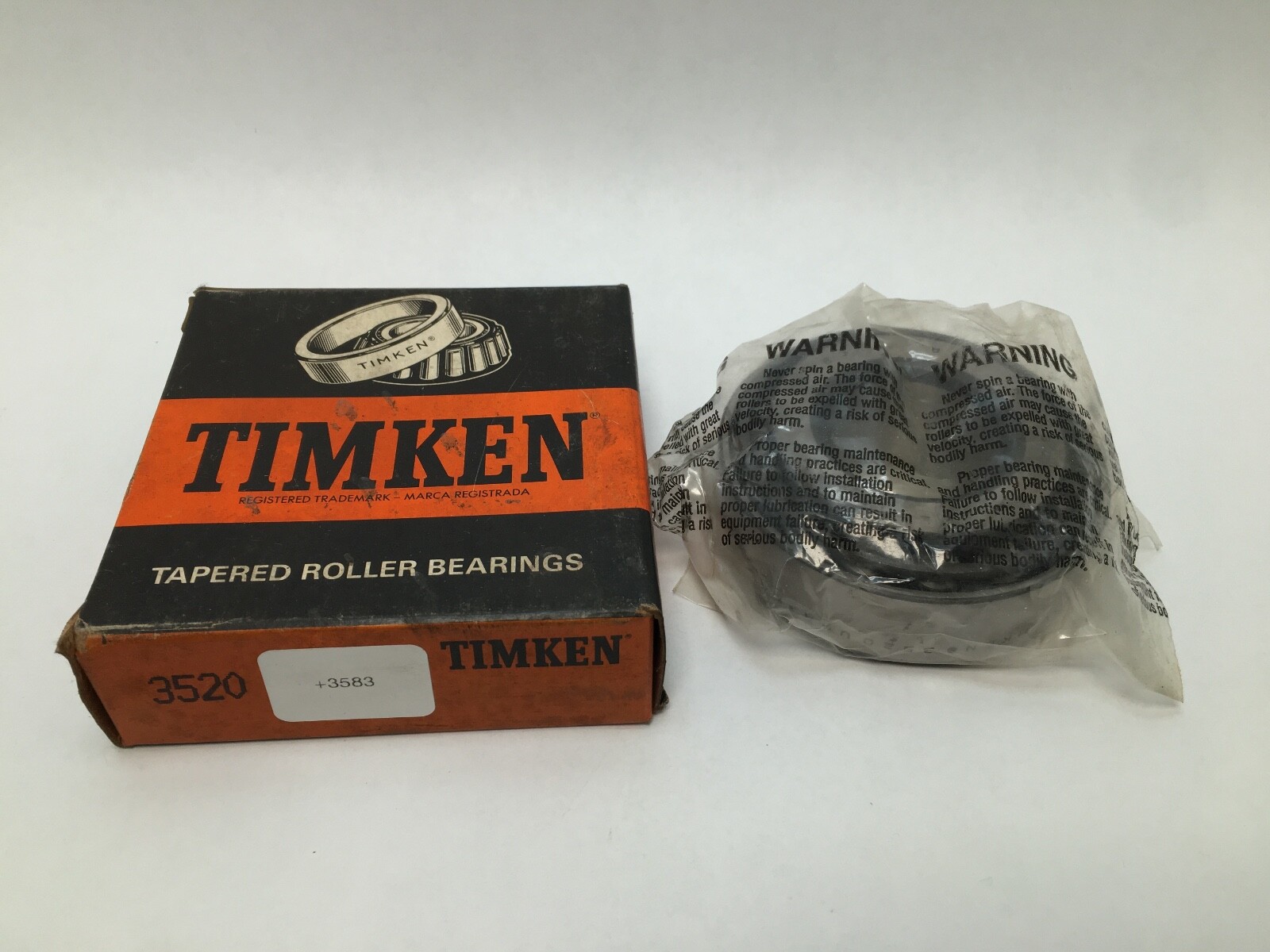

Cone 3583 and cup 3520, sold as one set: Unit Quantity 1 Set.
The bore is 1.5000 in (38.10 mm) and the cup outside diameter is 3.3125 in (84.14 mm).
The cage is stamped steel and the rings and rollers are case-carburized steel.
