Availability:
1 in stock
Matched single-row inch-series taper roller assembly, 0.875 in overall width, one-direction thrust capacity, carburized steel cone, cup and cage.
List Price
$74.39
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 24780/24720 |
| Model | 24780 / 24720 |
| Bearing Type | Tapered Roller Bearing Cone and Cup Assembly, Open |
| ID | 1.625 in |
| OD | 3.000 in |
| Width | 0.875 in |
| Material | Carburized Steel |
|---|---|
| Base Number | 24780/24720 |
| Industry Terms | taper roller bearing set; cone and cup set; tapered roller cone and race; inch series taper bearing; single row taper; Kegelrollenlager |
| Common Misspellings | 24870/24720; 24780/27420; 2478024720; taper roler bearing; tappered roller bearing; cone and cupp |
| Application Types | Wheel hubs; gearbox and transmission shafts; pinion supports; agricultural machinery; trailer and axle hubs; industrial pumps and reducers |
| Bore Shaft Size | 1.6250 in (41.275 mm) - cone bore, straight cylindrical |
| Mpn Variants | 24780/24720; 24780-24720; 24780 24720; 24780/24720 SET; K-24780/24720; 24780+24720 |
| Precision Rating | ANSI/ABMA Class 4 |
| Rolling Elements | Tapered Rollers |
| Number Of Rows | 1 |
| Bore Type | Straight (cylindrical) cone bore |
| Harmonization Code | 8482.20.00 |
| Cup Part Number | 24720 (outer race) |
| Part Number | 24780/24720 |
| Cone Part Number | 24780 (inner ring with roller and cage assembly) |
| Cross Reference 1 | Timken 24780/24720 |
|---|---|
| Cross Reference 2 | NTN 4T-24780/24720 |
| Cross Reference 3 | Koyo 24780/24720 |
| Cross Reference 4 | SKF 24780/24720/Q - width 23.495 mm vs 22.225 mm |
| Cross Reference 5 | 24780/24721 - wider cup, 1.000 in width |
| Cross Reference 6 | 24780-2 - Timken Class 2 precision cone |

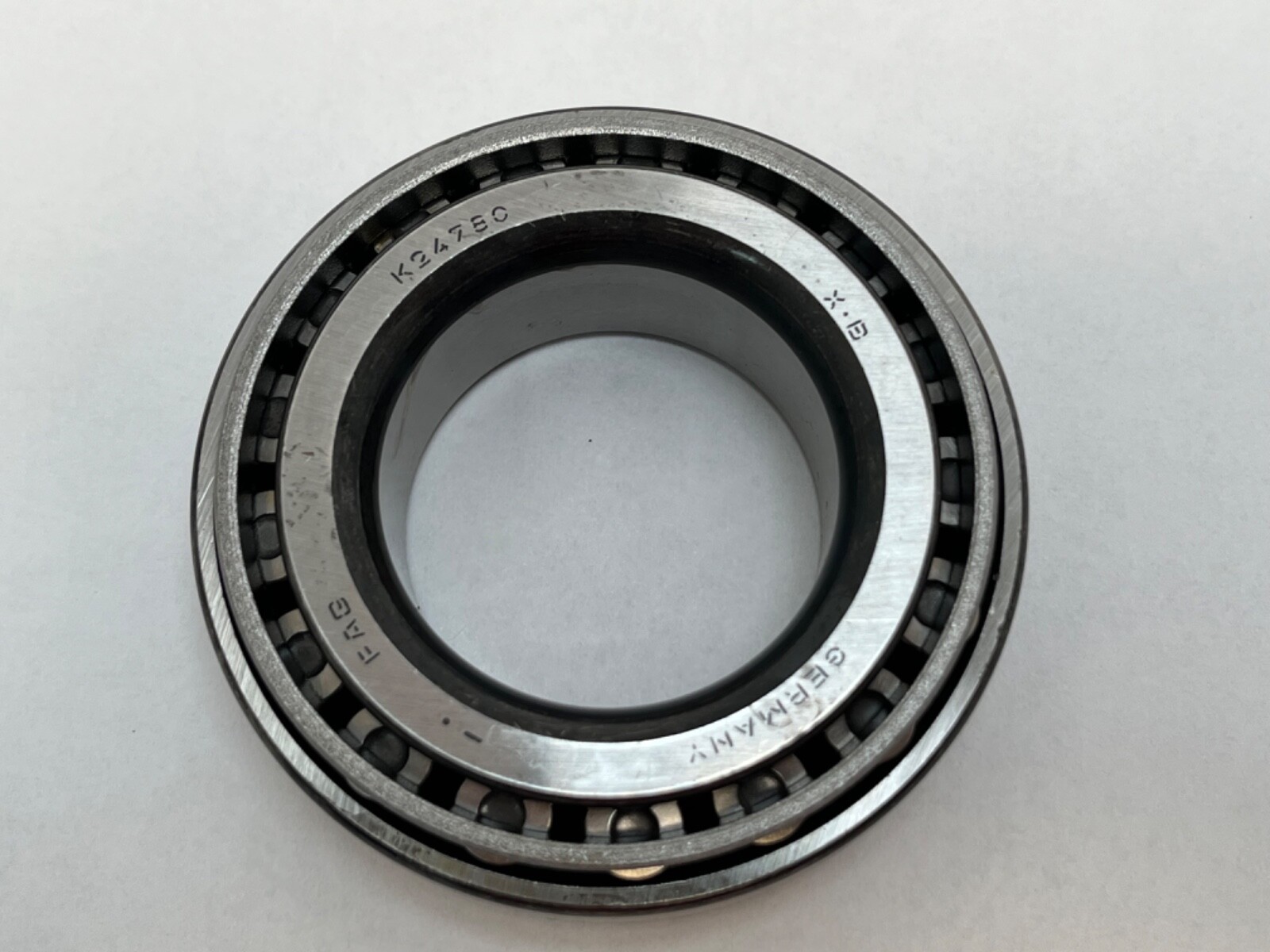

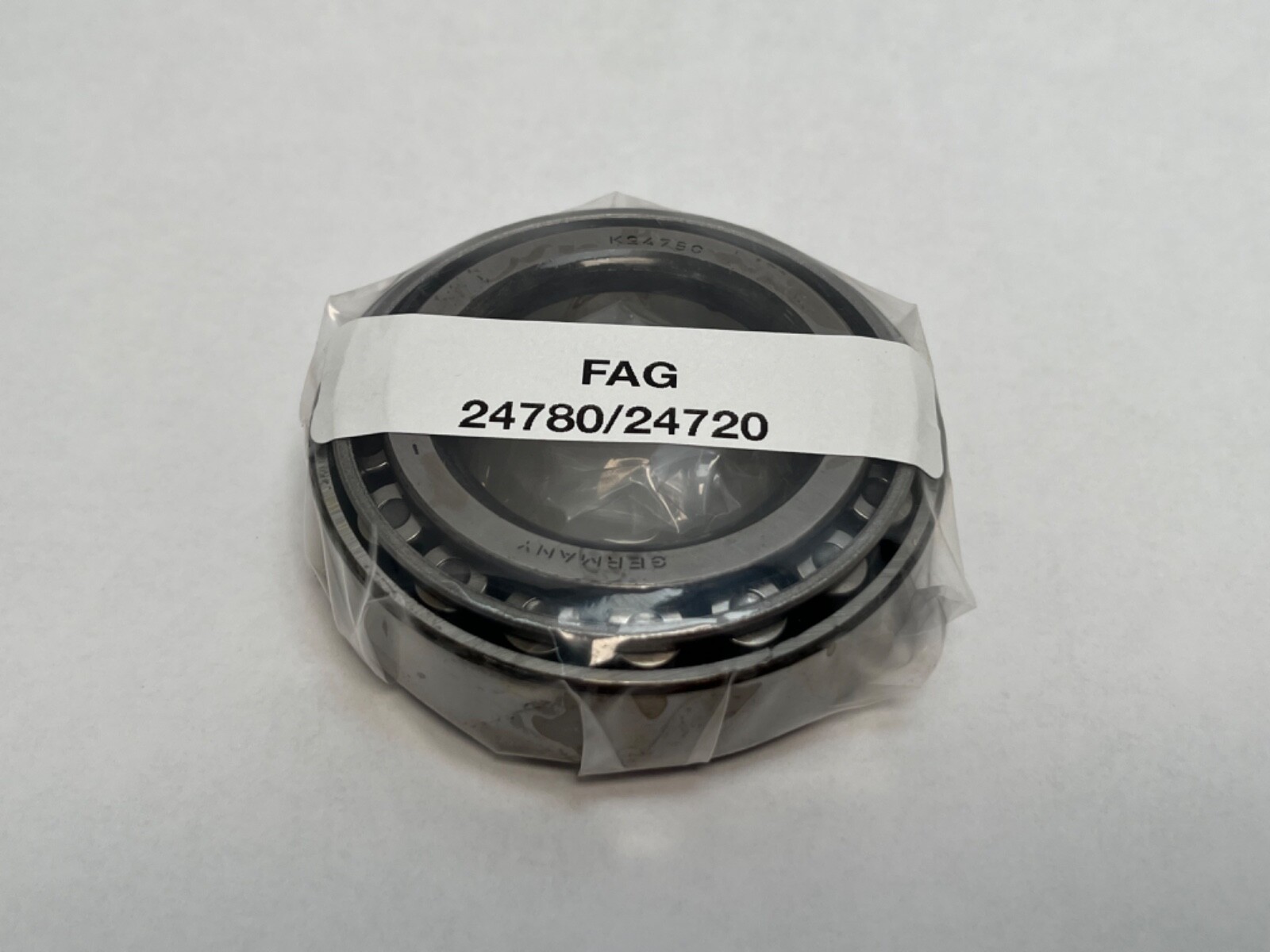

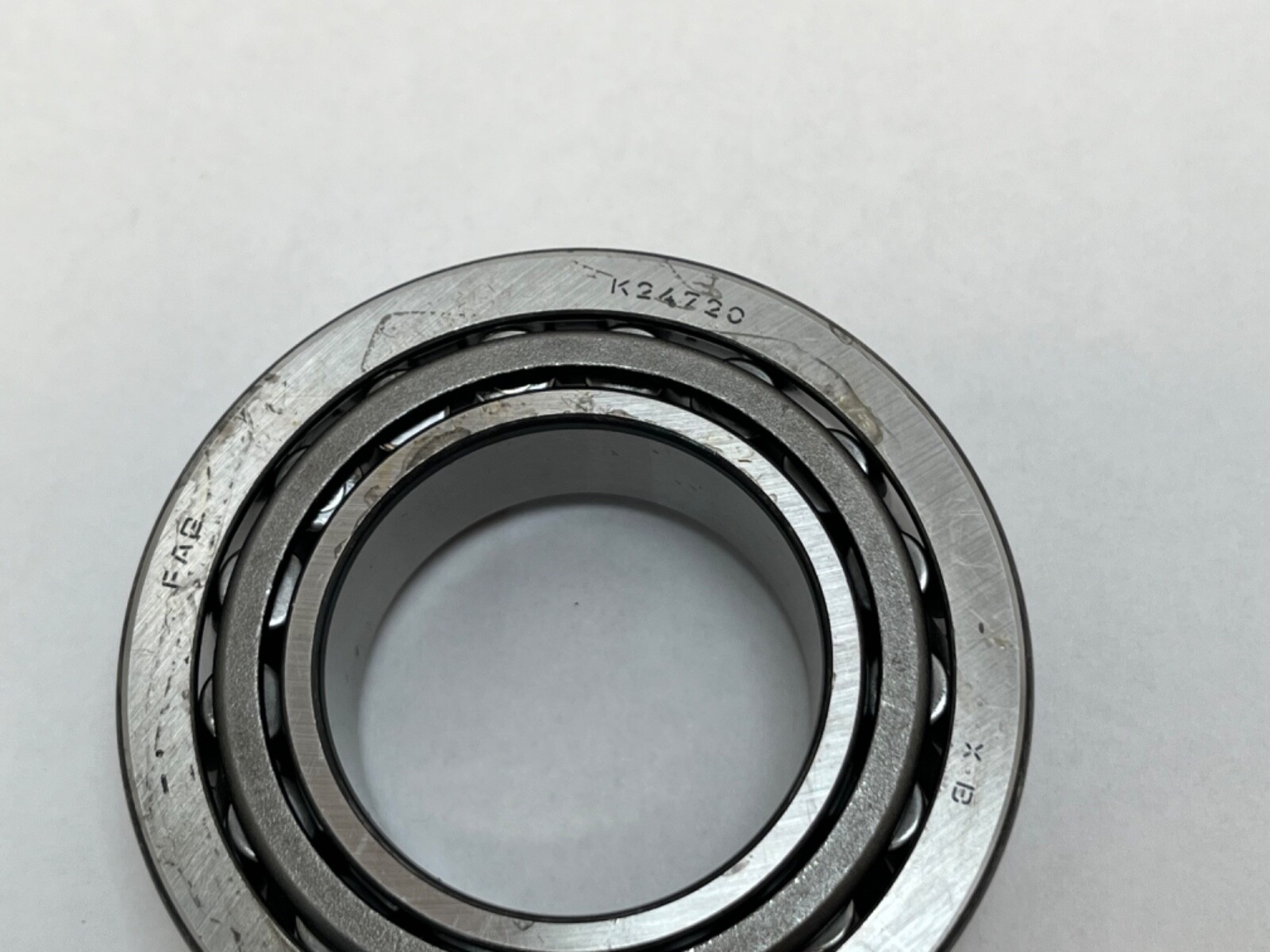

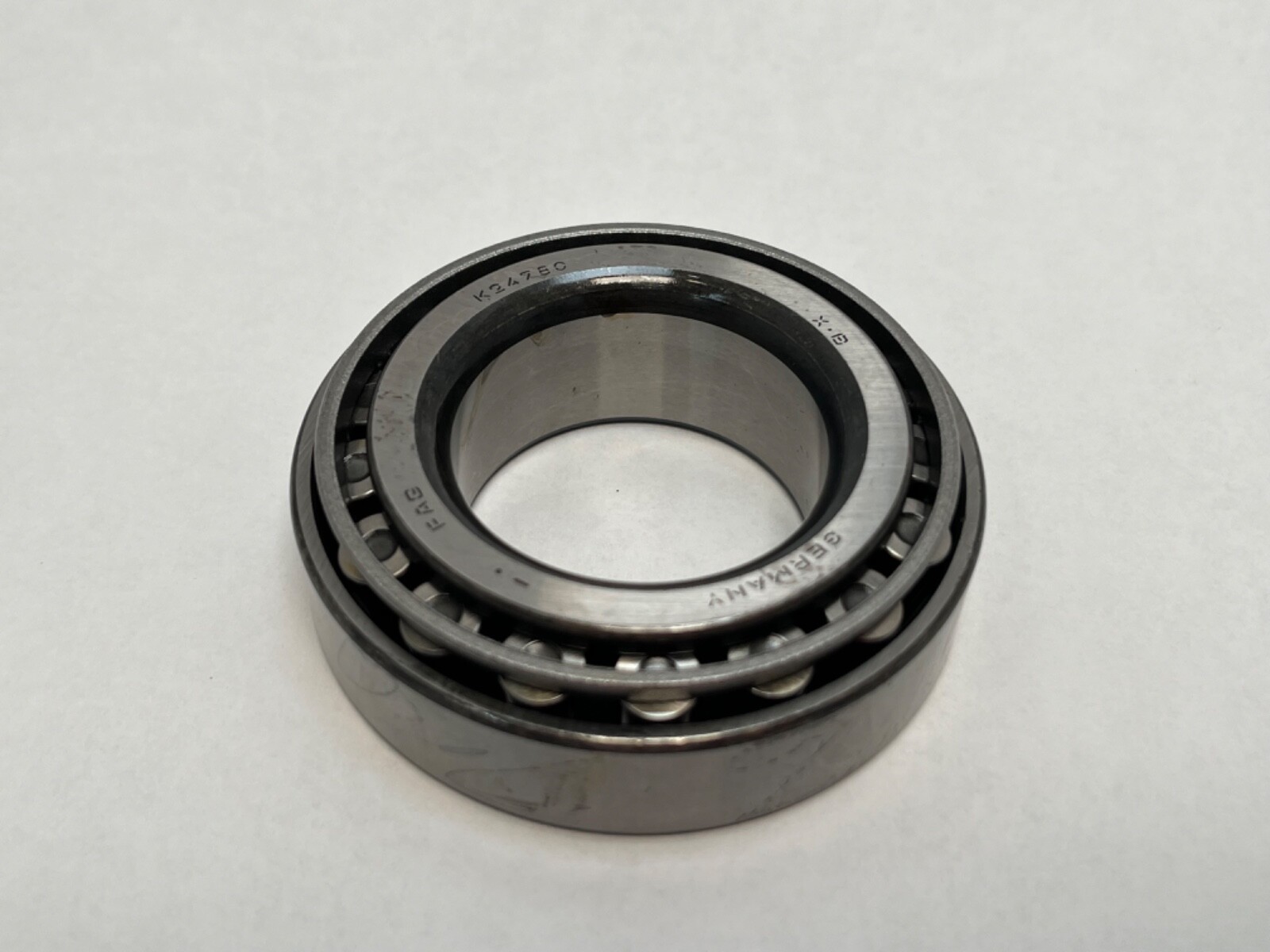

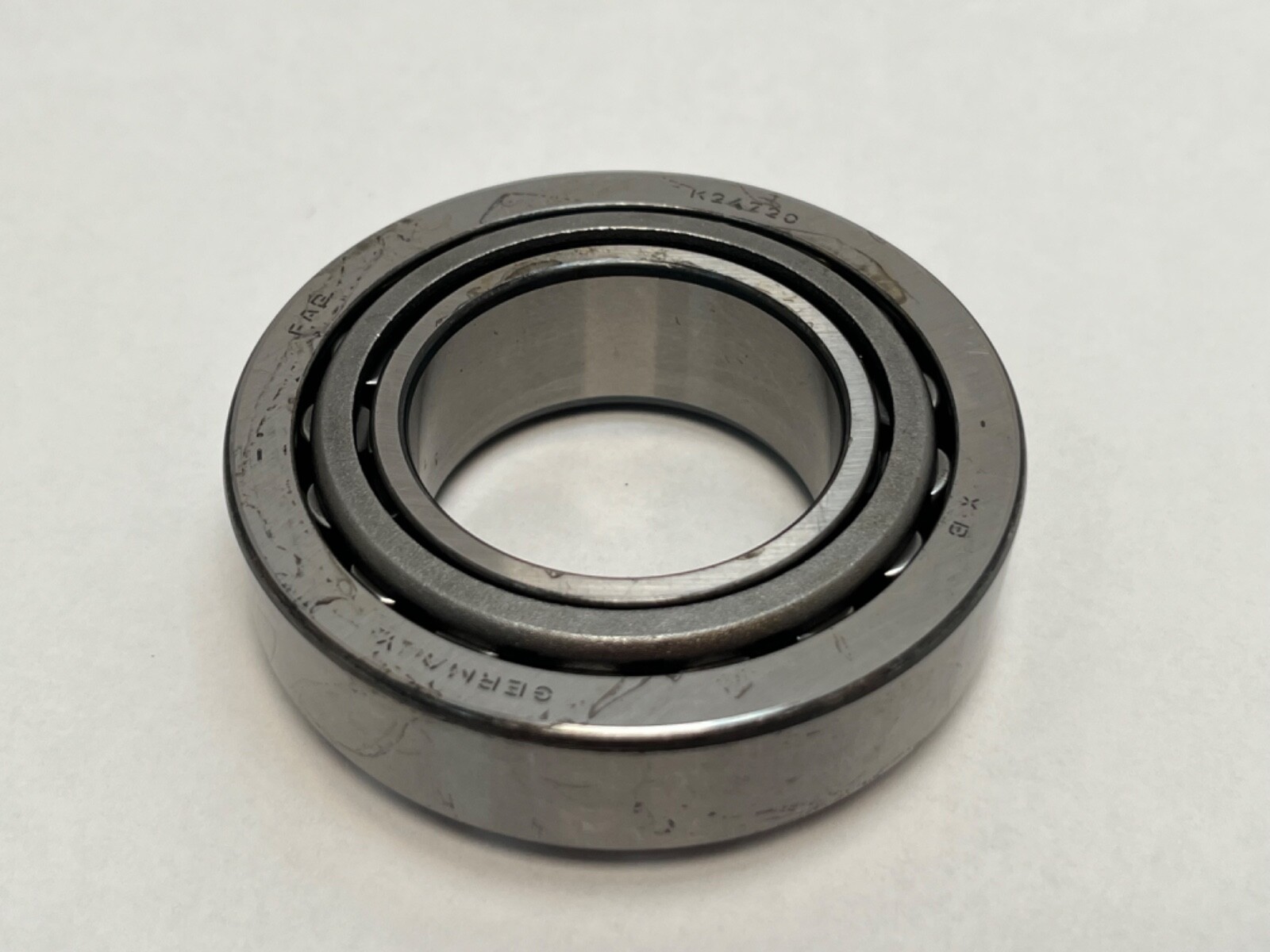

24780/24720 is a complete single-row tapered roller bearing in the inch series, supplied as a matched cone and cup (Unit Quantity: 1 Pc). The 24780 is the cone: the inner ring with its tapered roller complement and cage held captive on it. The 24720 is the cup, the separate outer race. Cone Bore: 1.6250 in (41.275 mm). Cup Outside Diameter: 3.0000 in (76.200 mm). Overall Width: 0.8750 in (22.225 mm).

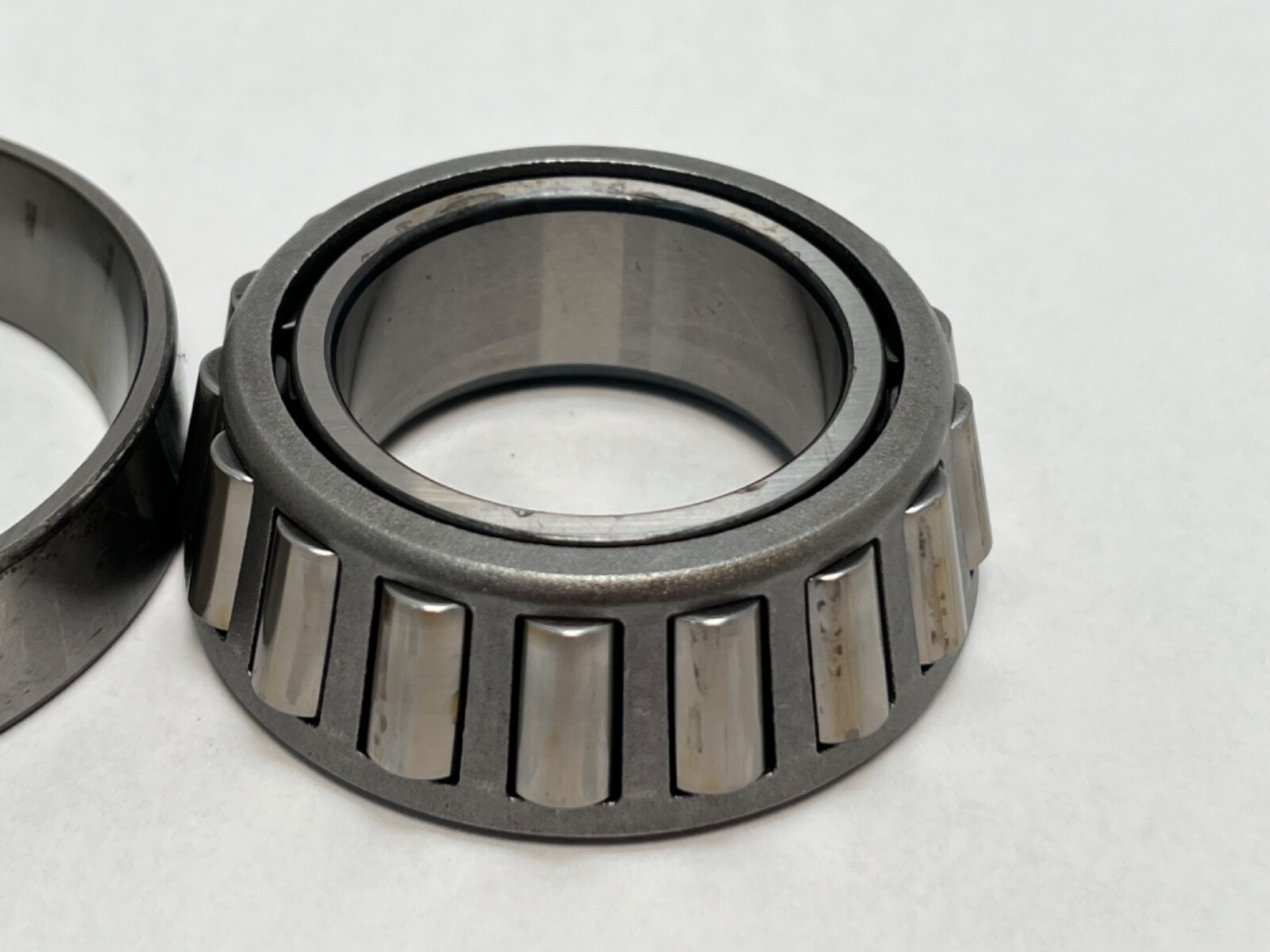

24780 — cone part number, inner ring with roller and cage assembly.

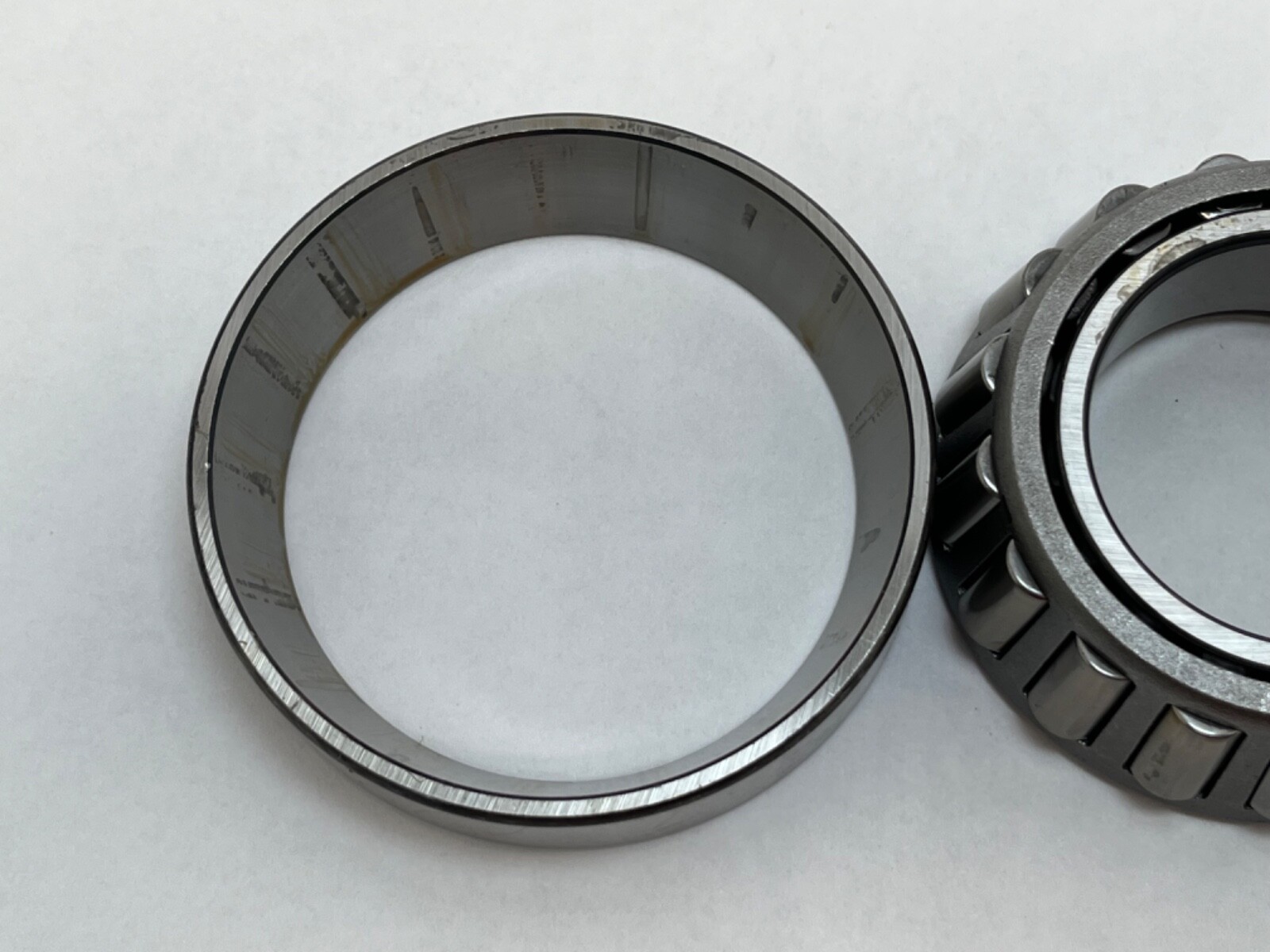

24720 — cup part number, outer race.
24780/24720 — matched inch-series cone and cup pair. Precision Class: standard, ANSI/ABMA Class 4.
Rolling Elements: tapered rollers. Number Of Rows: 1. Seal Type: Open. Precision Class: ANSI/ABMA Class 4. Material: case-carburized alloy steel rings and rollers. Bore Type: straight cylindrical cone bore. Thrust capacity: one direction. Unit Quantity: 1 Pc, one cone and one cup.
Cone Bore: 1.6250 in (41.275 mm). Cup Outside Diameter: 3.0000 in (76.200 mm). Overall Width: 0.8750 in (22.225 mm). The cone and cup separate, so the two halves fit from opposite ends of a housing.
Timken 24780/24720. NTN 4T-24780/24720. Koyo 24780/24720. SKF 24780/24720/Q: listed width 23.495 mm against 22.225 mm. 24780/24721: wider cup, 1.000 in overall width. 24780-2: the same cone in Timken Class 2 precision.
1.6250 in (41.275 mm) cone bore, 3.0000 in (76.200 mm) cup outside diameter, 0.8750 in (22.225 mm) overall width.
One 24780 cone (inner ring with rollers and cage) and one 24720 cup (outer race).
Standard precision, ANSI/ABMA Class 4.
