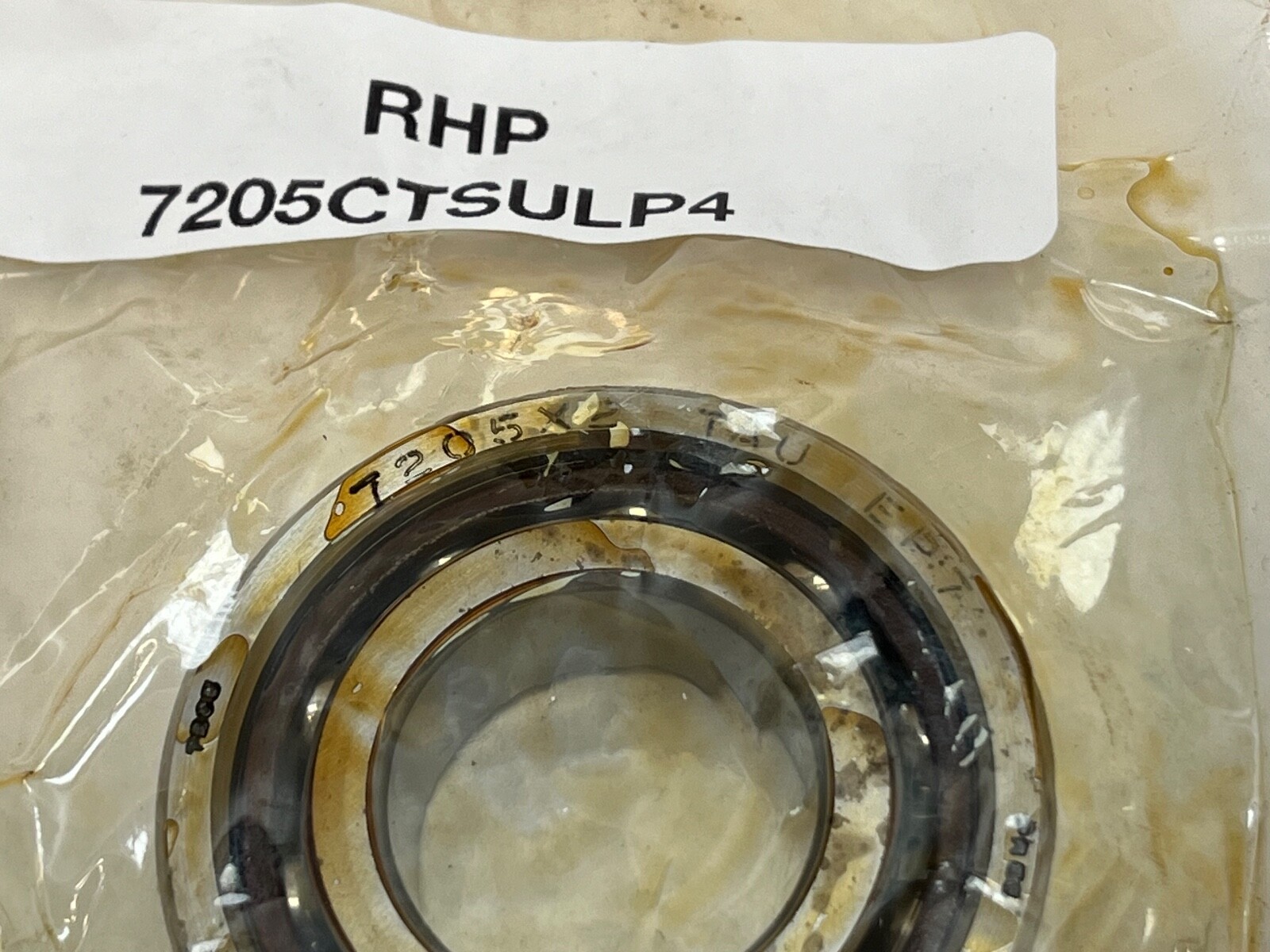

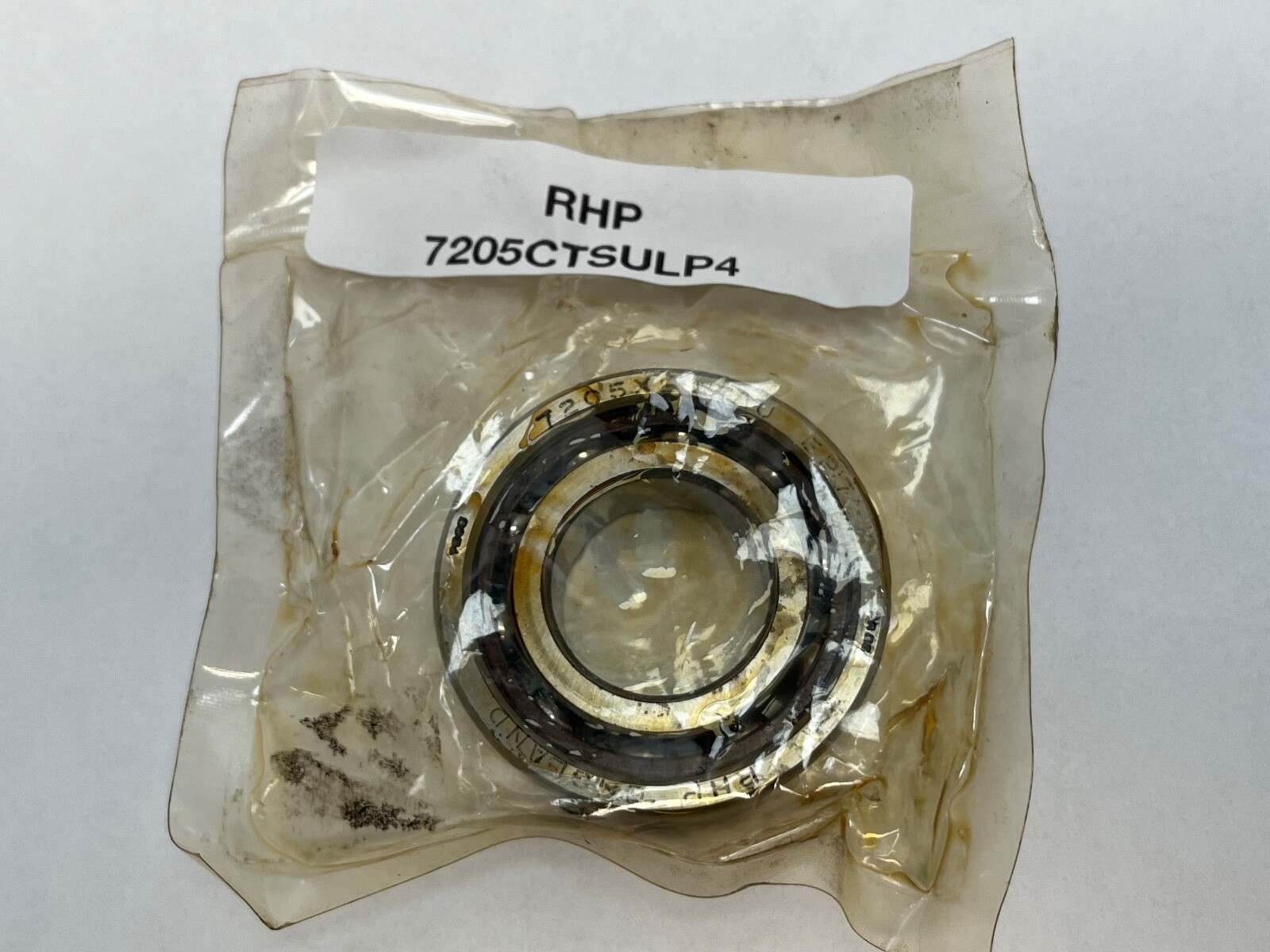

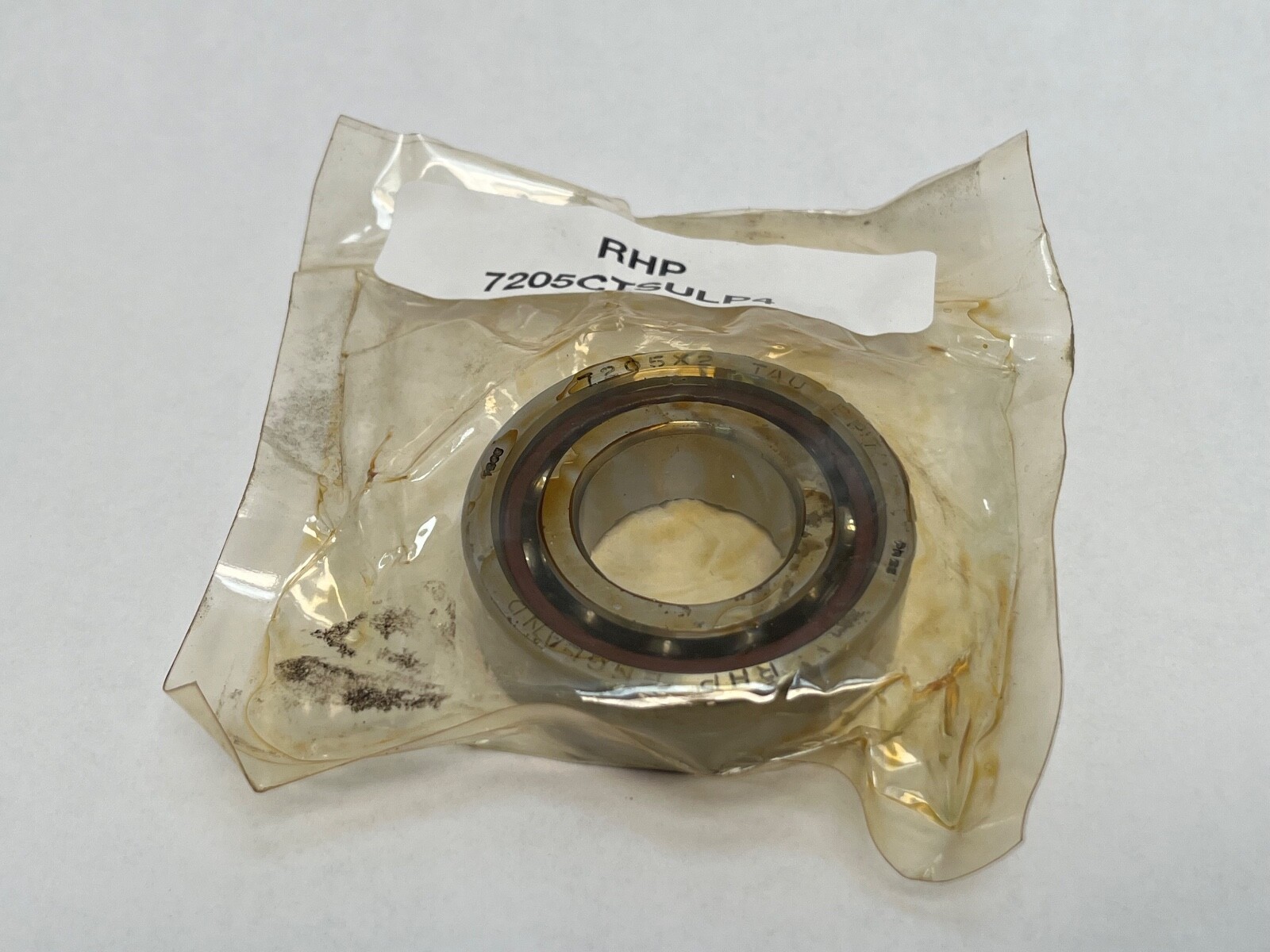

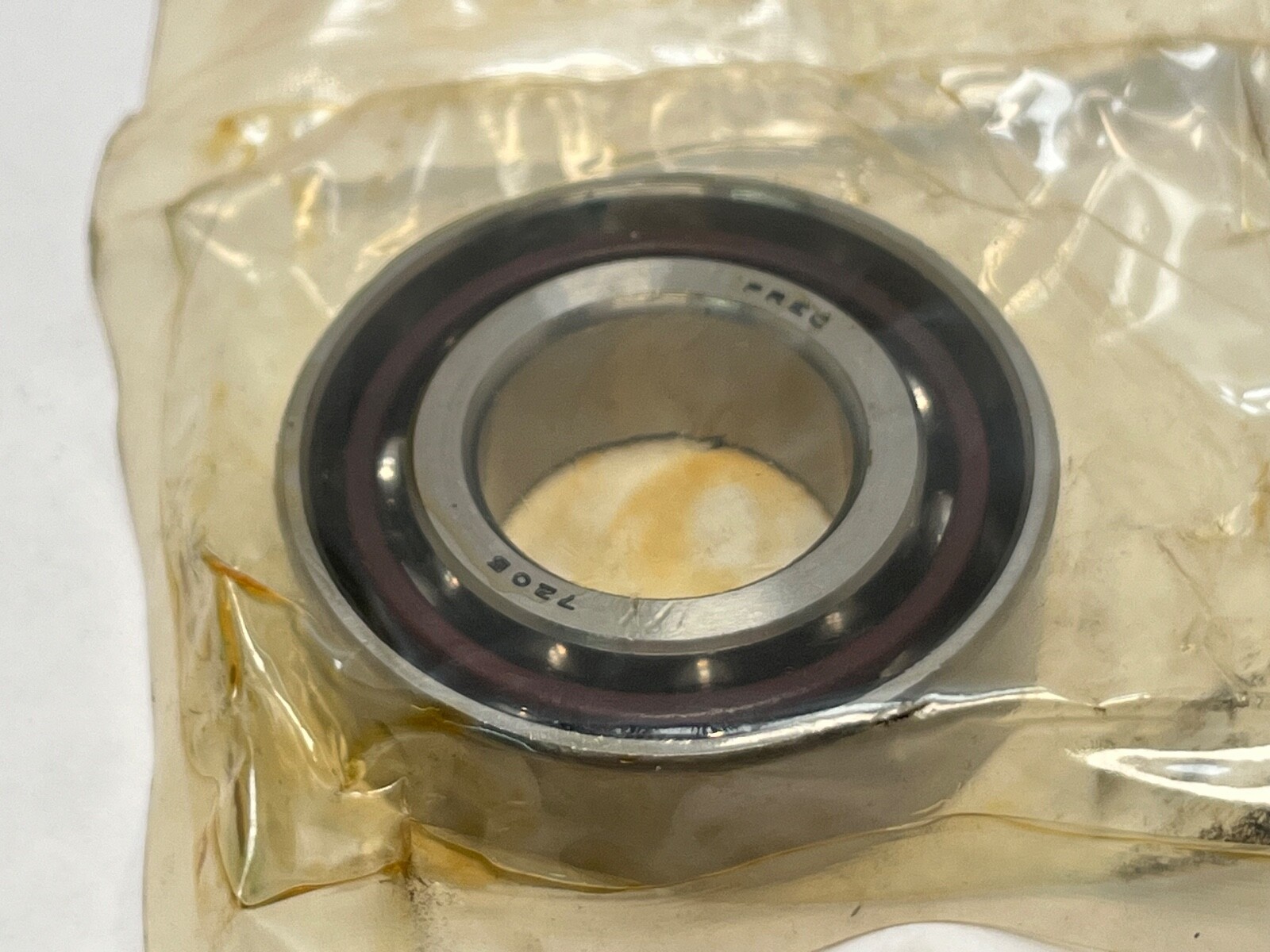

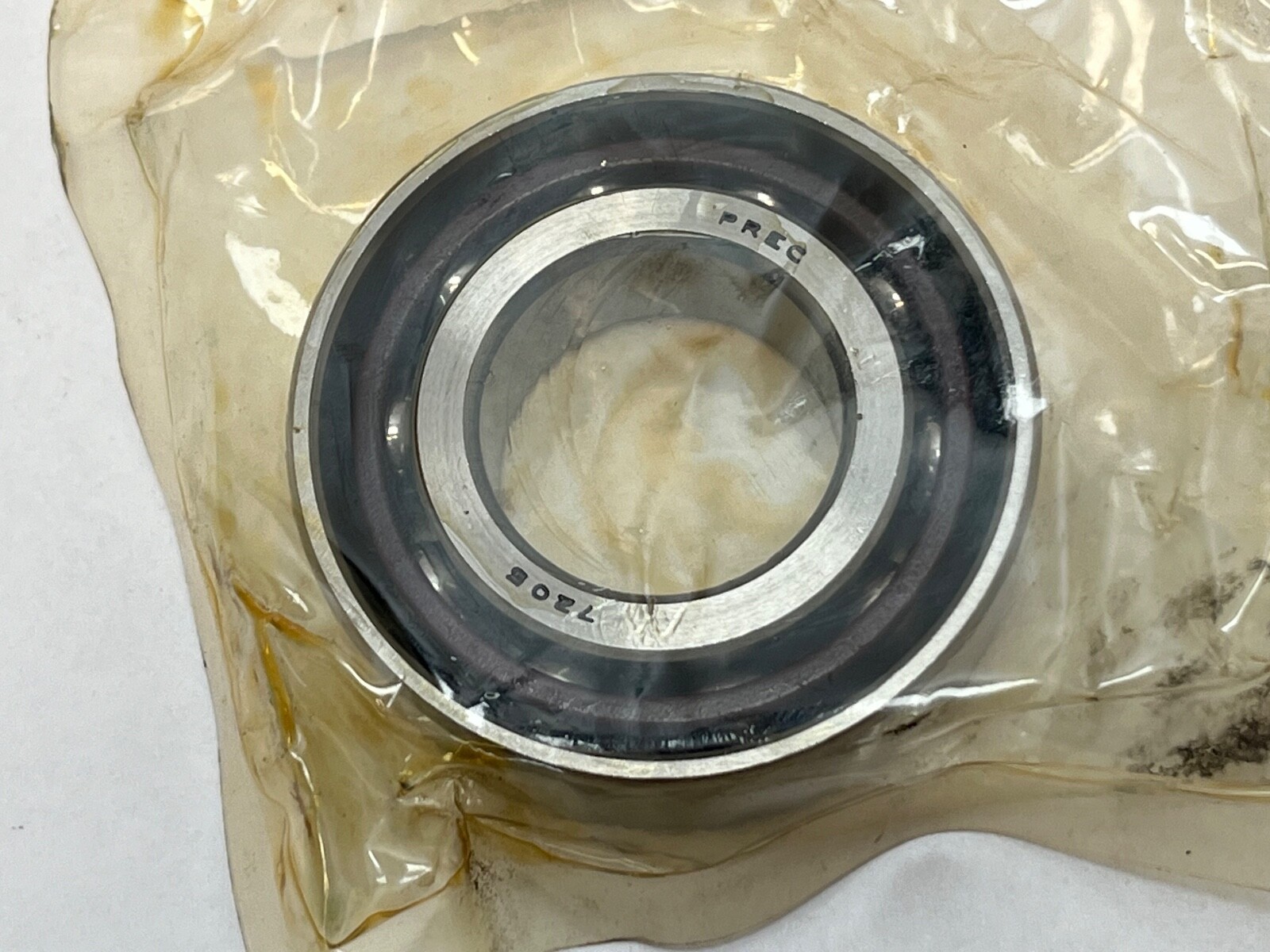

RHP 7205CTSULP4 super precision angular contact ball bearing, 25 x 52 x 15 mm, 15 degree contact angle, P4 / ABEC 7, light preload, phenolic cage.
List Price
$32.09
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7205CTSULP4 |
| Model | 7205 C T SUL P4 / 7205 X2 TA UL EP7 / 2MM205WI CR SUL |
| Bearing Type | Super Precision Angular Contact Ball Bearing |
| ID | 25 mm (0.9843 in) |
| OD | 52 mm (2.0472 in) |
| Width | 15 mm (0.5906 in) |
| Series | 7200 (ISO dimension series 02) |
|---|---|
| Lubricant | Oil/air or grease |
| Preload | Light (L); 78 N pair preload; 36 N/µm stiffness |
| Material | Carbon chrome bearing steel (SAE 52100) |
| Type | Angular Contact Ball Bearing |
| Base Number | 7205 |
| Industry Terms | spindle bearing; machine tool spindle bearing; super precision angular contact ball bearing; precision angular contact bearing |
| Common Misspellings | 7205 CTSUL P4; 7205CTSULP-4; RHP 7205 CT SUL P4 |
| Application Types | Machine tool spindles; high-speed precision spindles; grinding spindles |
| Total Width | 15 mm (0.5906 in) |
| Overall Width | 15 mm (0.5906 in) |
| Bore Shaft Size | 25 mm (0.9843 in) |
| Mpn Variants | 7205CTSULP4; 7205-C-T-SUL-P4; 7205 C T SUL P4; 7205CTRSULP4; 7205X2TAUEP7; 7205X2TAULEP7; 2MM205WICRSUL; 2MM205WI CR SUL |
| Arrangement Configuration | SU - universally matchable single |
| Precision Class | P4 (ABEC 7, ISO Class 4, BS292 EP7) |
| Dynamic Load Rating C1 | 16.6 kN |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | 16.6 kN |
| Static Load Rating | 10.2 kN |
| Precision Rating | P4 (ABEC 7, ISO Class 4, BS292 EP7) |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.128 kg / 0.28 lb |
| Cage Material | Laminated phenolic |
| Limiting Speed | 44,900 rpm (oil/air); 27,800 rpm (grease) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Duty Type | Super Precision |
| Harmonization Code | 8482.10 |
| Contact Angle | 15° |
| Design Units | Metric |
| Bearing Class | Super precision, P4 / ABEC 7 |
| Bearing Material | Carbon chrome bearing steel (SAE 52100) |
| Part Number | 7205CTSULP4 |
| Cross Reference 1 | RHP 7205X2TAULEP7 |
|---|---|
| Cross Reference 2 | Fafnir 2MM205WICRSUL |
RHP 7205CTSULP4 super precision angular contact ball bearing in the ISO 02 dimension series. One bearing, universally matchable single. Bore Diameter: 25 mm. Outside Diameter: 52 mm. Width: 15 mm. Rings and balls are carbon chrome bearing steel to SAE 52100, through hardened and heat treated for dimensional stability.
7 — single row angular contact ball bearing.
0 — ISO 02 dimension series.
05 — 25 mm bore code.
C — 15° contact angle.
T — outer-ring-guided laminated phenolic cage.
SU — universally matchable single; ring faces are ground so that any two bearings of this designation clamp up to the light preload value back-to-back or face-to-face, or run in tandem.
L — light preload.
P4 — ISO Class 4, ABEC 7, BS292 grade EP7.

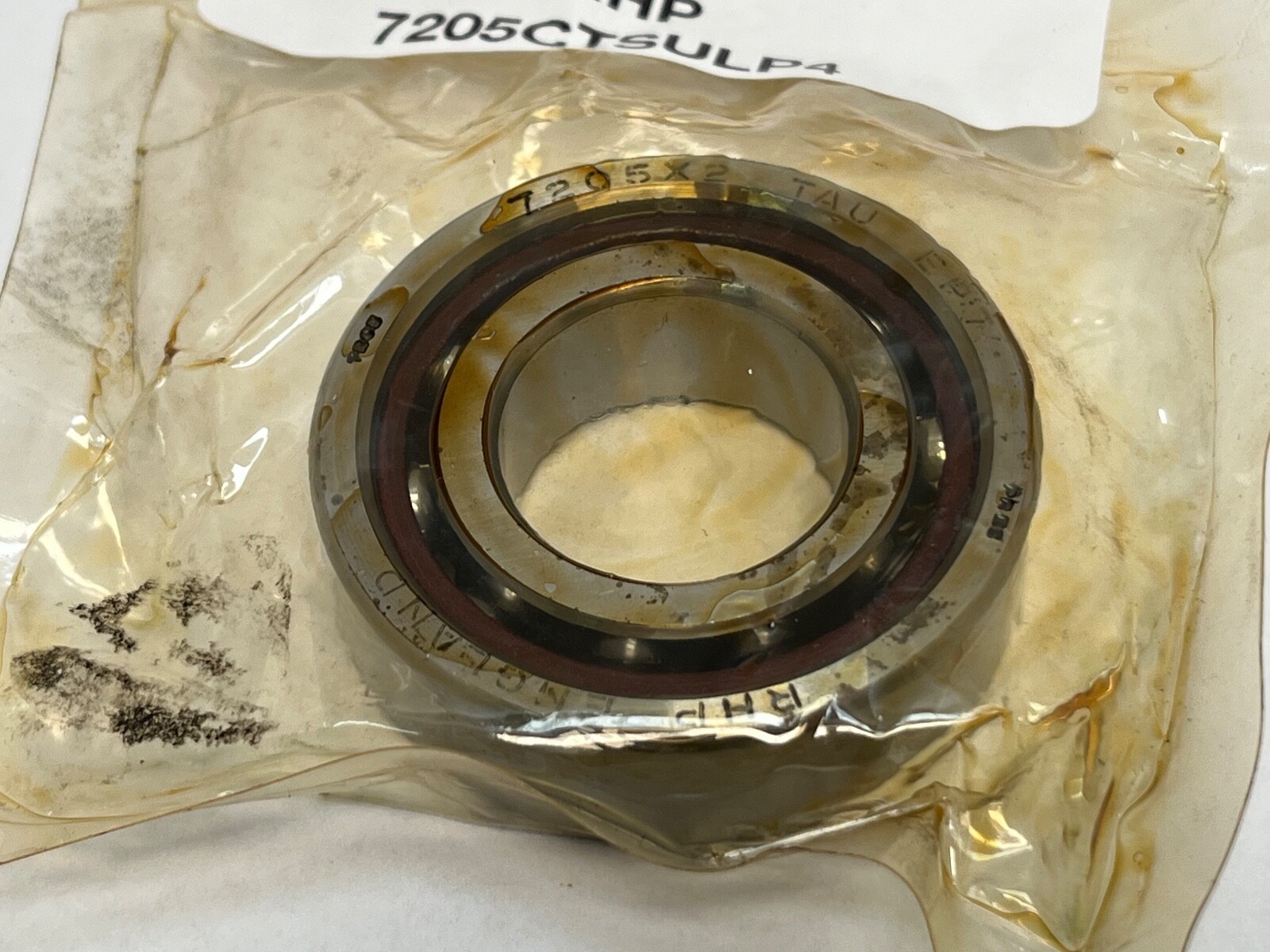

7205X2TAULEP7 — the same bearing in the RHP B-series scheme, where X2 denotes 15°.
2MM205WICRSUL — the same bearing in the Fafnir scheme, where 2MM denotes 15°.
Contact Angle: 15°. Dynamic Load Rating: 16.6 kN. Static Load Rating: 10.2 kN. Limiting Speed: 44,900 rpm oil/air; 27,800 rpm grease, quoted for a single bearing under spring preload. Precision Class: P4 / ABEC 7. Preload: Light (L), 78 N axial preload in a matched pair, axial stiffness 36 N/µm. Cage Material: Laminated phenolic. Cage Type: Machined, outer-ring guided. Maximum Cage Temperature: 120 °C. Closure Type: Open. Unit Quantity: 1 Pc.
Shaft Abutment Diameter: 31 mm. Housing Abutment Diameter: 46 mm minimum, 47 mm maximum. Effective Load Centre: 12.7 mm from the bearing face. Internal Free Volume: 6.2 cm³. Lubrication Jet Pitch Circle Diameter: 35.5 mm. Item Weight: 0.128 kg (0.28 lb).
Cross-references: RHP 7205X2TAULEP7 and Fafnir 2MM205WICRSUL are the carton-printed equivalents of this exact execution. The 7205A5 executions share the 25 x 52 x 15 mm envelope at a 25° contact angle. Paired executions DU, DB, DF and DT and the EL, M and H preload grades are related variants.
15°, shown by the C in the RHP designation, the X2 in 7205X2TAULEP7 and the 2MM in 2MM205WICRSUL.
Dynamic Load Rating 16.6 kN and Static Load Rating 10.2 kN. Limiting Speed 44,900 rpm on oil/air and 27,800 rpm on grease, for a single bearing under spring preload.
SU is a universally matchable single. Any two bearings of this designation clamp up to the light preload value back-to-back or face-to-face, or run in tandem.
