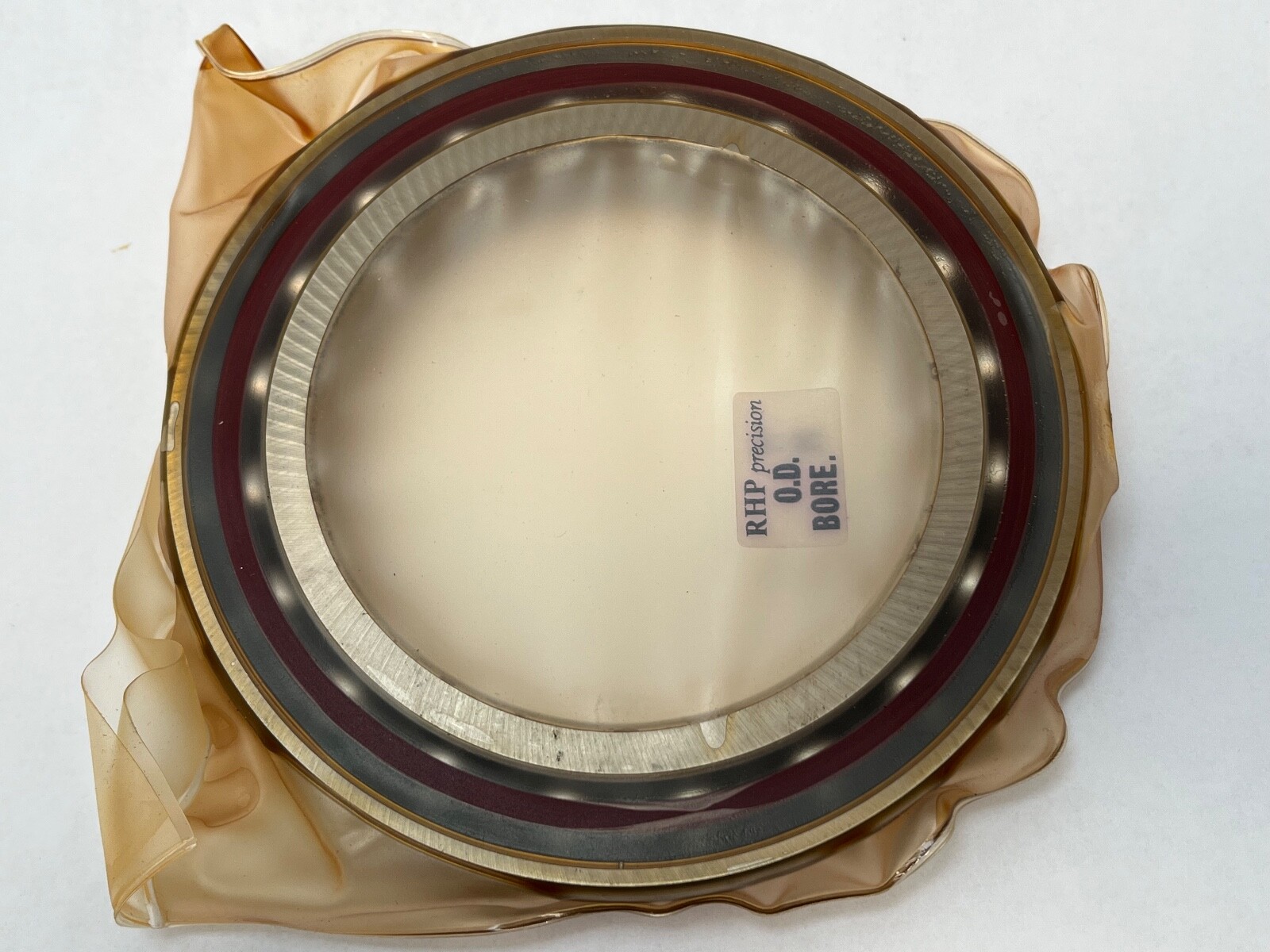

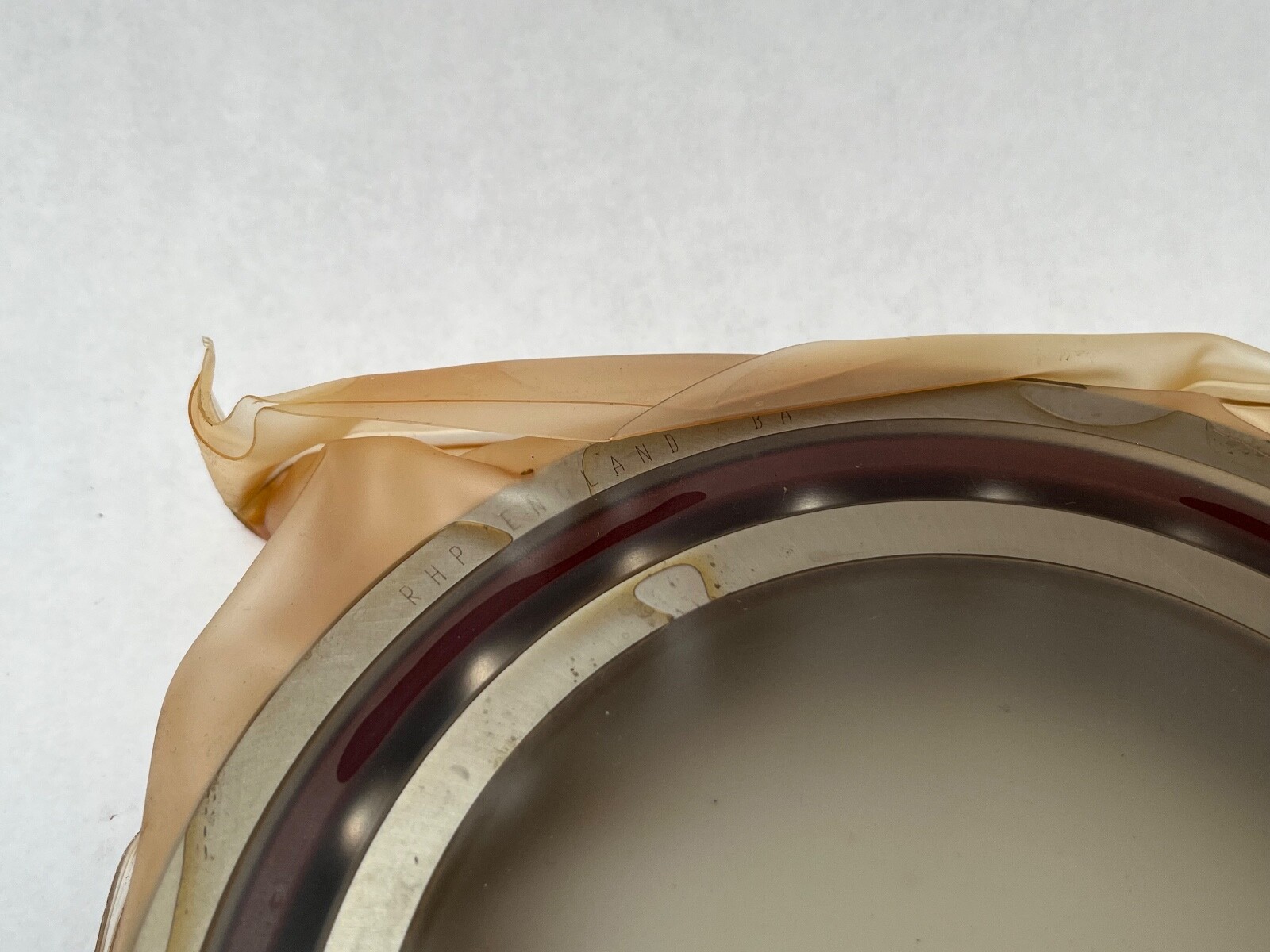

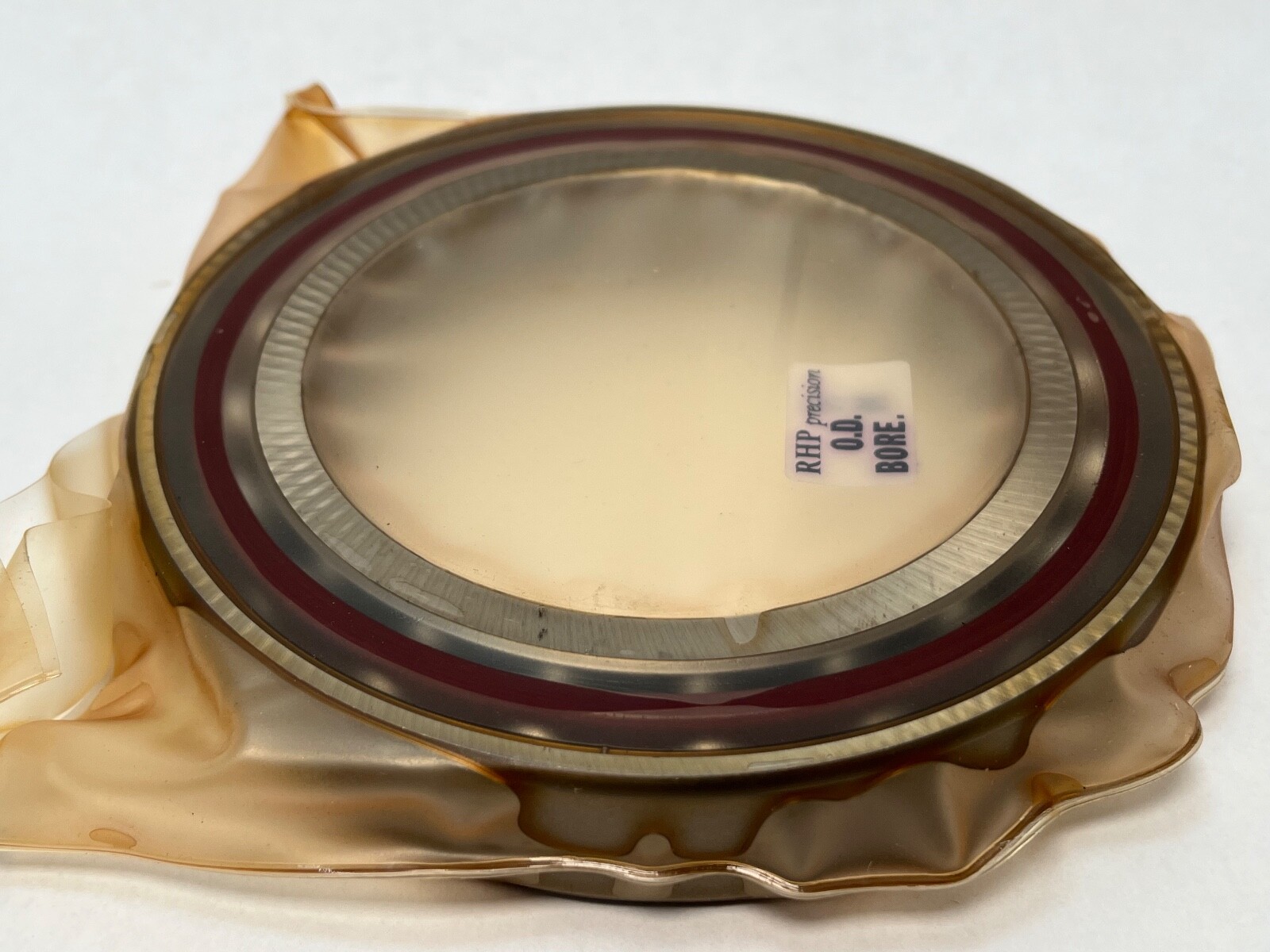

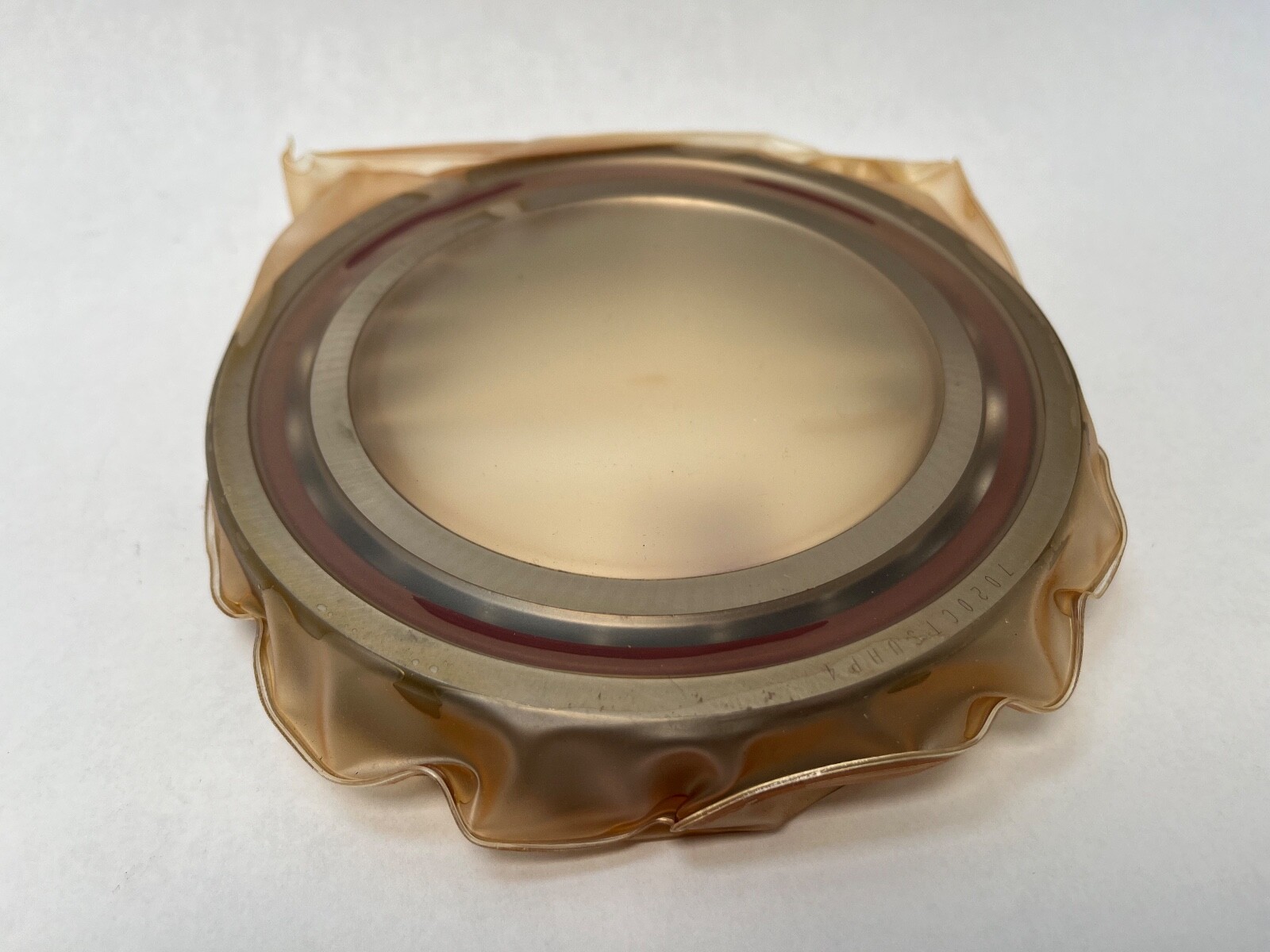

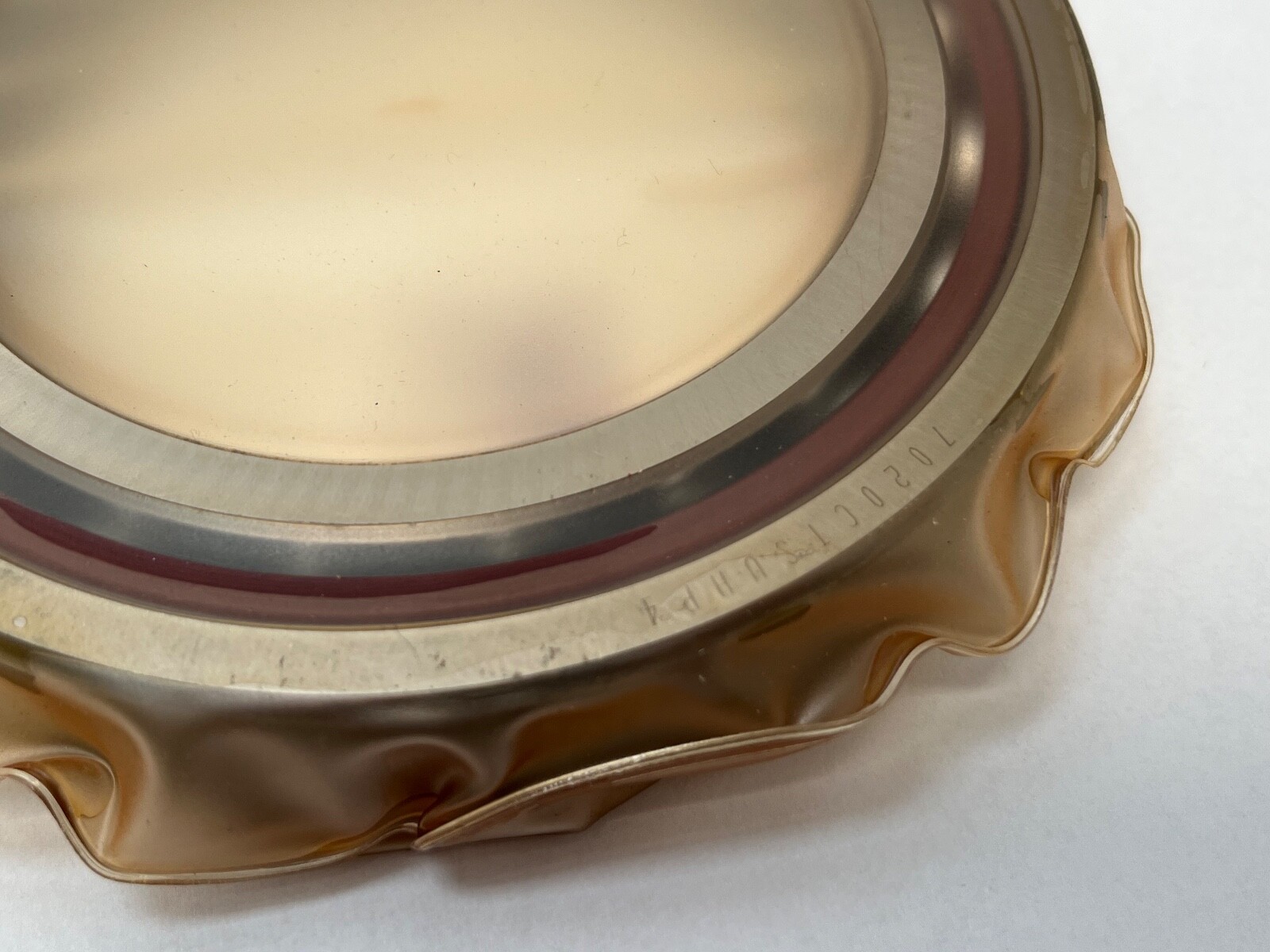

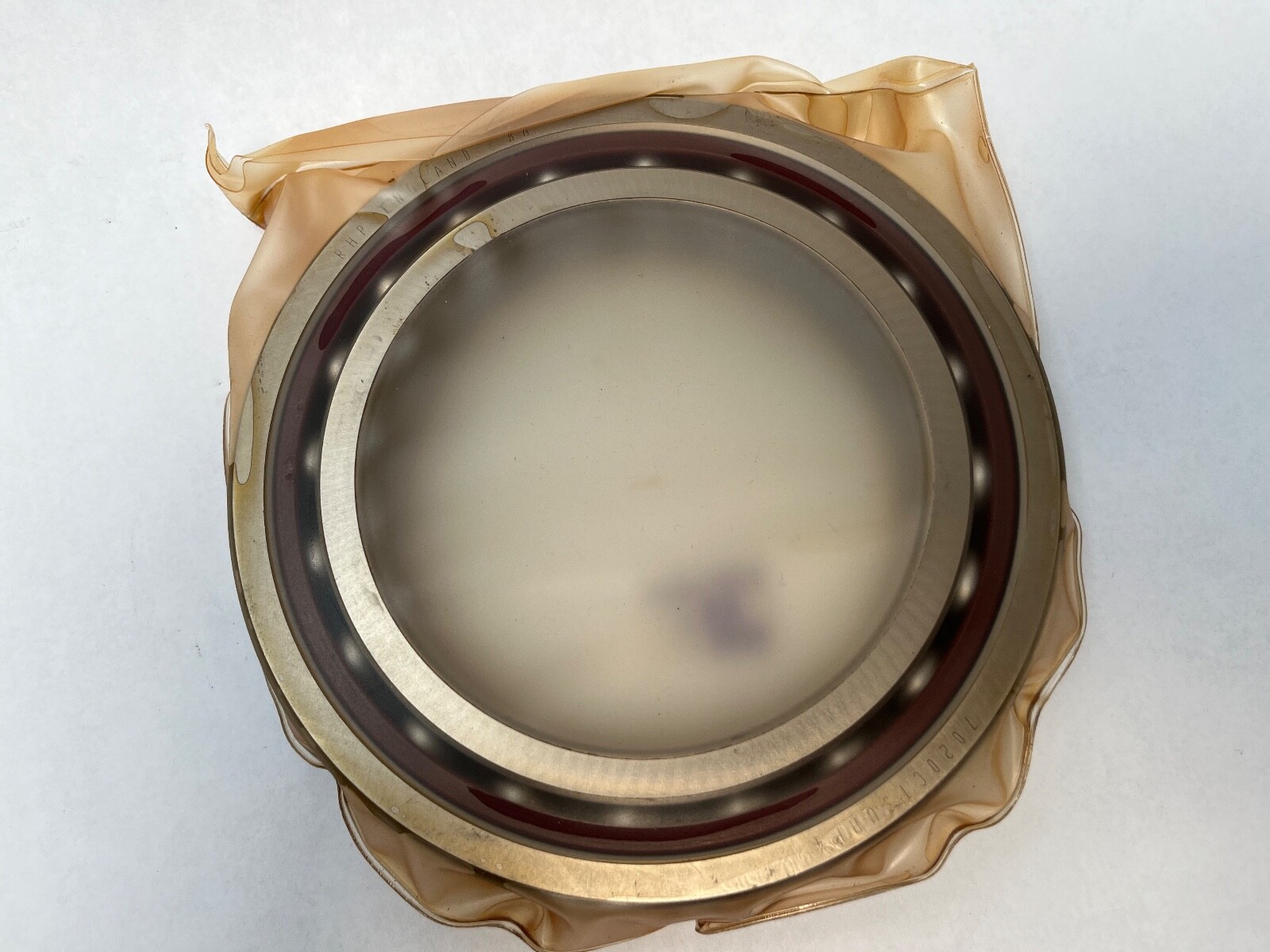

RHP7020CTDUHP4Super Precision Angular Contact Ball Bearing – Straight Bore, 100 mm Bore, 150 mm OD, 24 mm Width, 15° Contact Angle, P4 / ABEC 7, Heavy Preload, Universally Matchable

Condition: New

Availability:

1 in stock

Super precision angular contact ball bearing, 100 x 150 x 24 mm, 15° contact angle, P4 / ABEC 7, heavy preload, phenolic cage, universally matchable.

List Price

$305.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandRHP
MPN7020CTDUHP4
Model7020-C-T-DUH-P4
Bearing TypeSuper Precision Angular Contact Ball Bearing, Open
ID100 mm (3.9370 in)
OD150 mm (5.9055 in)
Width24 mm (0.9449 in)

Technical Specifications

MaterialCarbon chrome bearing steel (SAE 52100)
Series7000 (ISO dimension series 10)
LubricantOil/air or grease
PreloadHeavy
Base Number7020
Industry Termsspindle bearing; machine tool spindle bearing; super precision angular contact ball bearing; heavy preload spindle bearing; 100 mm bore spindle bearing
Common Misspellings7020 CTDUH P4; 7020CTDUHP-4; RHP 7020 CT DUH P4; 7020CTDUHP4 1/2PR
Application TypesMachine tool spindles; boring and milling spindles; heavy-duty precision spindles where stiffness governs
Bore Shaft Size100 mm (3.9370 in)
Mpn Variants7020CTDUHP4; 7020CTDUHP4-1/2PR; 7020-C-T-DUH-P4; 7020 C T DUH P4; 7020C; 7020CTRDUHP4; 2MM9120WICRDUH; 2MM9120WI CR DUH
Precision ClassABEC 7 / P4
Additional AttributesAxial preload 2,550 N; axial stiffness 264 N/um; effective load centre 28.7 mm; shaft abutment 109 mm; housing abutment 141-144 mm; free volume 53.4 cm3; jet PCD 118.6 mm
Cage TypeOuter-ring guided
Dynamic Load Rating75,500 N
Static Load Rating77,000 N
Precision RatingABEC 7 / P4
Rolling ElementsBall
Item Weight1.264 kg (2.787 lb)
Cage MaterialPhenolic
Number Of Rows1
Bore TypeStraight
Snap Ring IncludedNo
Limiting Speed13,400 rpm oil-air; 8,400 rpm grease
Duty TypeSuper Precision
Harmonization Code8482.10.50
Contact Angle15°
Mounting ArrangementDuplex universal, heavy preload
Part Number7020CTDUHP4

Cross-References

Cross Reference 1Fafnir 2MM9120WICRDUH
Cross Reference 2NSK 7020CTRDUHP4
Cross Reference 3FAG B7020-C-T-P4S-UH – tighter P4S class
Cross Reference 4SKF 7020 CDGC/P4A – heavy preload, P4A class
Cross Reference 5RHP 7020A5 – 25° vs 15° contact angle
Seller Part Number: B-DF1#4VTDHT

Product Description

What this part is:

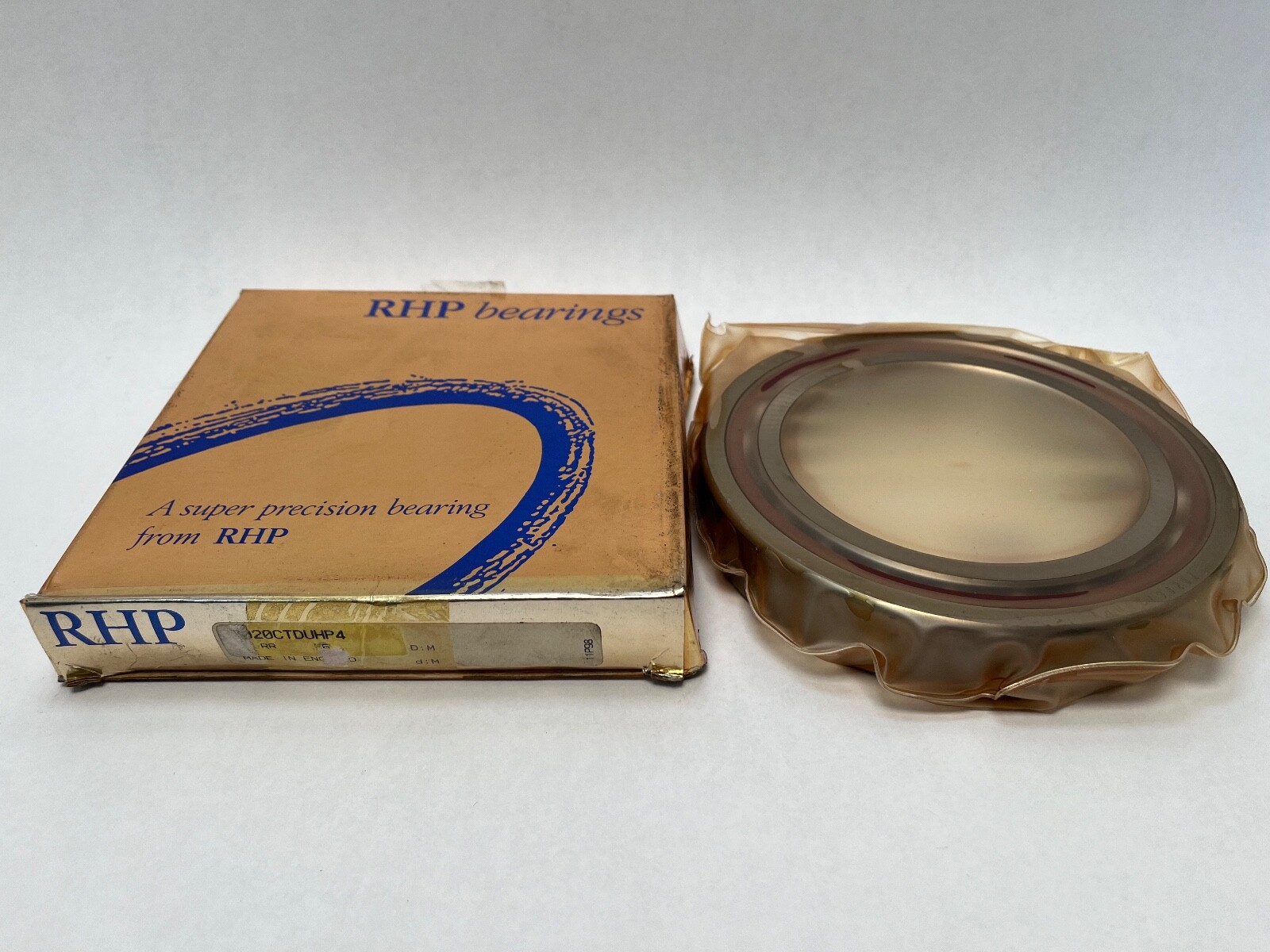

RHP 7020CTDUHP4 super precision angular contact ball bearing, ISO 10 dimension series, 100 mm bore, 150 mm outside diameter, 24 mm width. One bearing: the -1/2PR suffix denotes one half of a DUH duplex universal heavy-preload pair. The carton also carries the Fafnir designation 2MM9120WICRDUH. Rings and balls are carbon chrome bearing steel to SAE 52100.

Decoding the designation:

7020 — single row angular contact ball bearing, ISO 10 dimension series, bore code 20 (100 mm).

C — 15° contact angle.

T — outer-ring-guided laminated phenolic cage.

DU — duplex universal. Inner and outer rings are the same width and the faces are ground at manufacture to the heavy preload value, so two bearings of this designation can be mounted back-to-back, face-to-face or in tandem.

H — heavy preload.

P4 — ISO Class 4, ABEC 7, British Standard BS292 grade EP7.

-1/2PR — one half of a duplex pair; one bearing.

2MM9120WICRDUH — Fafnir designation on the carton: 2MM is 15° contact angle, 9120WI is the ISO 7020 size, CR is the phenolic cage, DUH is duplex universal heavy preload.

Specifications:

Bore Diameter: 100 mm. Outside Diameter: 150 mm. Width: 24 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Heavy, 2,550 N axial preload at 264 N per micrometre axial stiffness. Basic Dynamic Load Rating: 75,500 N. Basic Static Load Rating: 77,000 N. Limiting Speed: 13,400 rpm oil-air and 8,400 rpm grease for a single bearing under spring preload. Cage: laminated phenolic, maximum operating temperature 120°C. Item Weight: 1.264 kg (2.787 lb). Unit Quantity: 1 Pc.

Dimensions and mounting:

Shaft abutment diameter: 109 mm. Housing abutment diameter: 141 mm minimum, 144 mm maximum. Corner radius: 1.5 mm on the bore, 1.0 mm on the outside diameter. Effective load centre: 28.7 mm. Internal free volume: 53.4 cm3. Lubrication jet pitch circle diameter: 118.6 mm.

Compatibility and replacement:

Fafnir 2MM9120WICRDUH is the carton-printed designation of this execution. NSK 7020CTRDUHP4 is the NSK form of the same RHP execution. SKF 7020 CDGC/P4A has the same size, 15° angle and heavy preload (DGC) in the P4A class. FAG B7020-C-T-P4S-UH has the same size, angle, cage and heavy preload in the tighter P4S class. RHP 7020A5 is the 25° contact angle execution in the same size.

Frequently asked questions:

What are the size and contact angle of the RHP 7020CTDUHP4?

Bore 100 mm, outside diameter 150 mm, width 24 mm, contact angle 15°.

What does the -1/2PR suffix mean?

It denotes one half of a DUH duplex universal heavy-preload pair, so this listing is one bearing. The matching half is a second 7020CTDUHP4.

What precision class and preload does it have?

Precision class P4 (ISO Class 4, ABEC 7) with heavy preload (DUH): 2,550 N axial preload, 264 N per micrometre axial stiffness.
