Availability:
2 in stock
Super-precision angular contact ball bearing, 100 x 150 x 24 mm, 25° contact angle, machined phenolic cage, light preload, universally matchable.
List Price
$305.99

2 in stock
On the Shelf & Ready to Ship
Ships same day by 6pm ET

No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7020ETDULP4 |
| Model | 7020E-T-DUL-P4 / 3MM9120WI CR DUL / 7020A 7020A5 7020ACD |
| Bearing Type | Super Precision Angular Contact Ball Bearing, Open |
| ID | 100 mm |
| OD | 150 mm |
| Width | 24 mm |
| Material | Chrome bearing steel |
|---|---|
| Series | 7000 (ISO 70) |
| Lubricant | Oil or grease |
| Preload | Light, 830 N axial |
| Base Number | 7020 |
| Industry Terms | Spindle bearing, super precision bearing, machine tool bearing, universally matchable angular contact, duplex angular contact, 100mm bore angular contact |
| Bore Shaft Size | 100 mm |
| Mpn Variants | 7020ETDULP4, 7020ETDULP4-1/2PR, 7020-E-T-DUL-P4, 7020 E T DUL P4, B7020TADULEP7, 7020E |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | 71,000 N |
| Static Load Rating | 73,500 N |
| Rolling Elements | Ball |
| Item Weight | 1.26 kg (2.79 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 7,600 rpm grease; 11,800 rpm oil-air |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 25° |
| Part Number | 7020ETDULP4 |
| Common Misspellings | RHP 7020 ETDULP4; RHP7020ETDULP4; R.H.P. 7020ETDULP4; Fafnir 3MM 9120 WI DUL; 3MM9120 WI CR DUL |
| Application Types | Machine tool spindles; Precision spindle assemblies; High-speed precision rotating equipment |
| Cross Reference 1 | Fafnir 3MM9120WI CR DUL |
|---|---|
| Cross Reference 2 | NSK 7020A5TRDULP4 |
| Cross Reference 3 | SKF 7020 ACDGA/P4A |
| Cross Reference 4 | NSK 7020CTRDULP4 - 15 deg vs 25 deg |

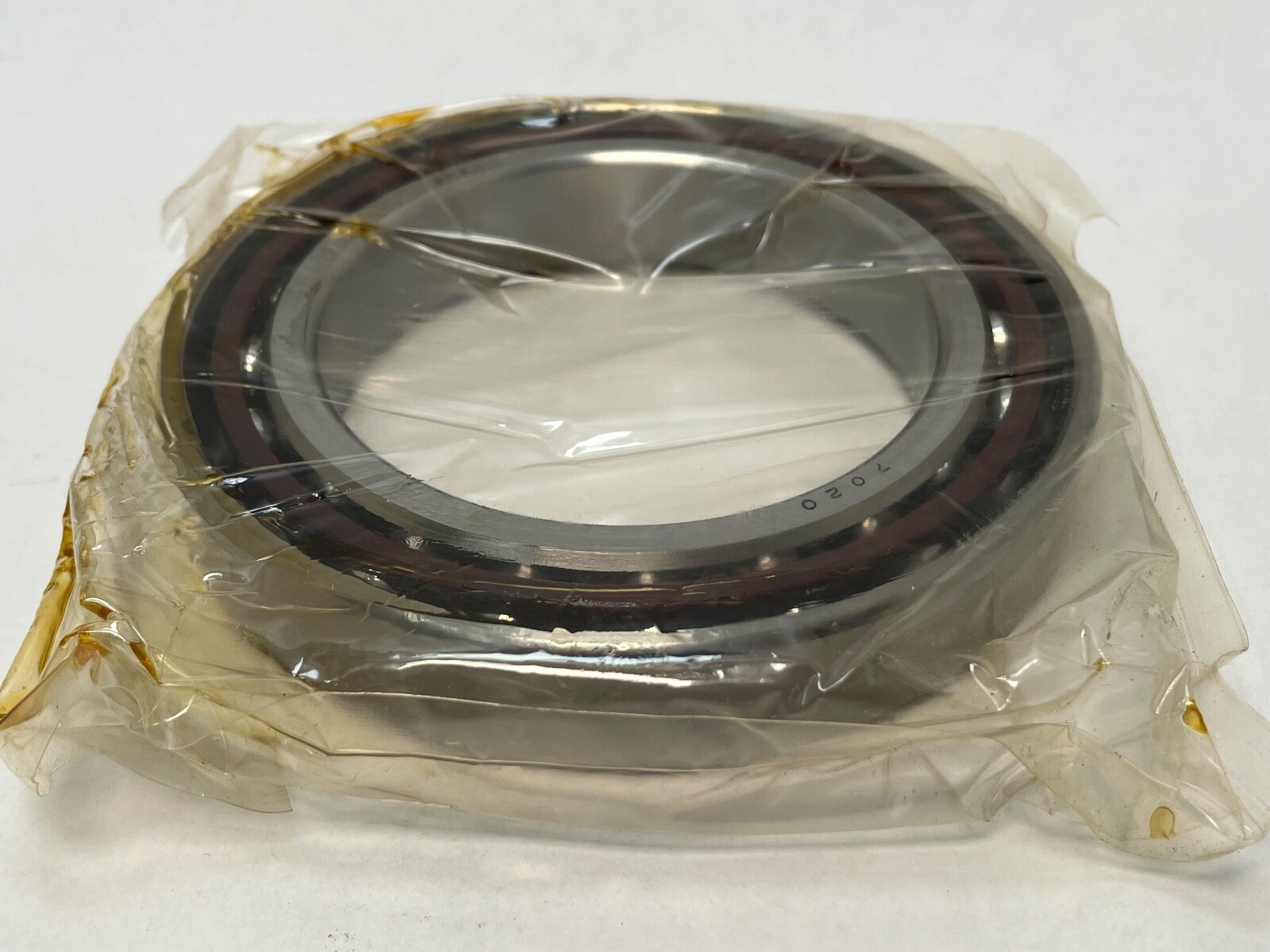

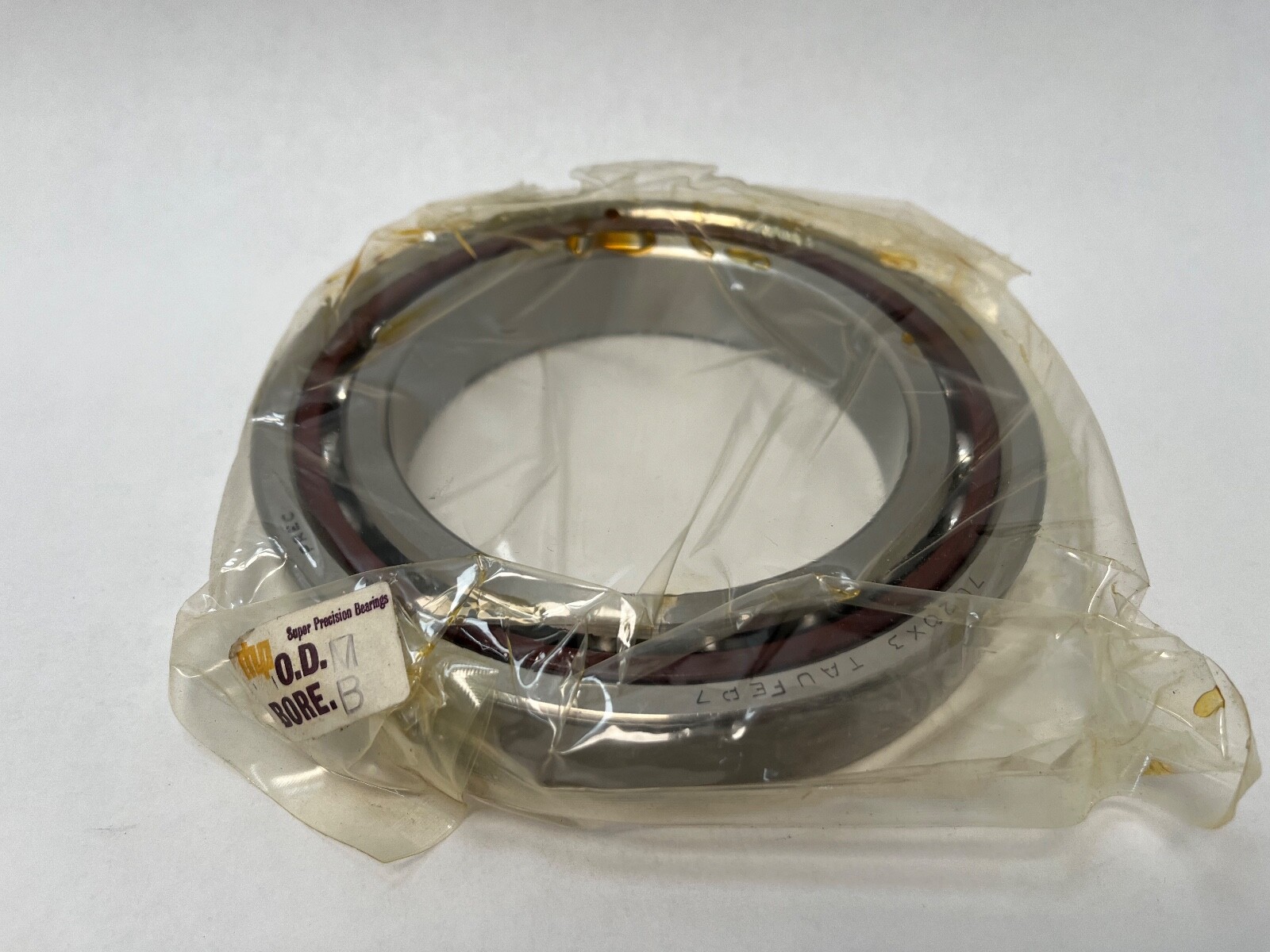

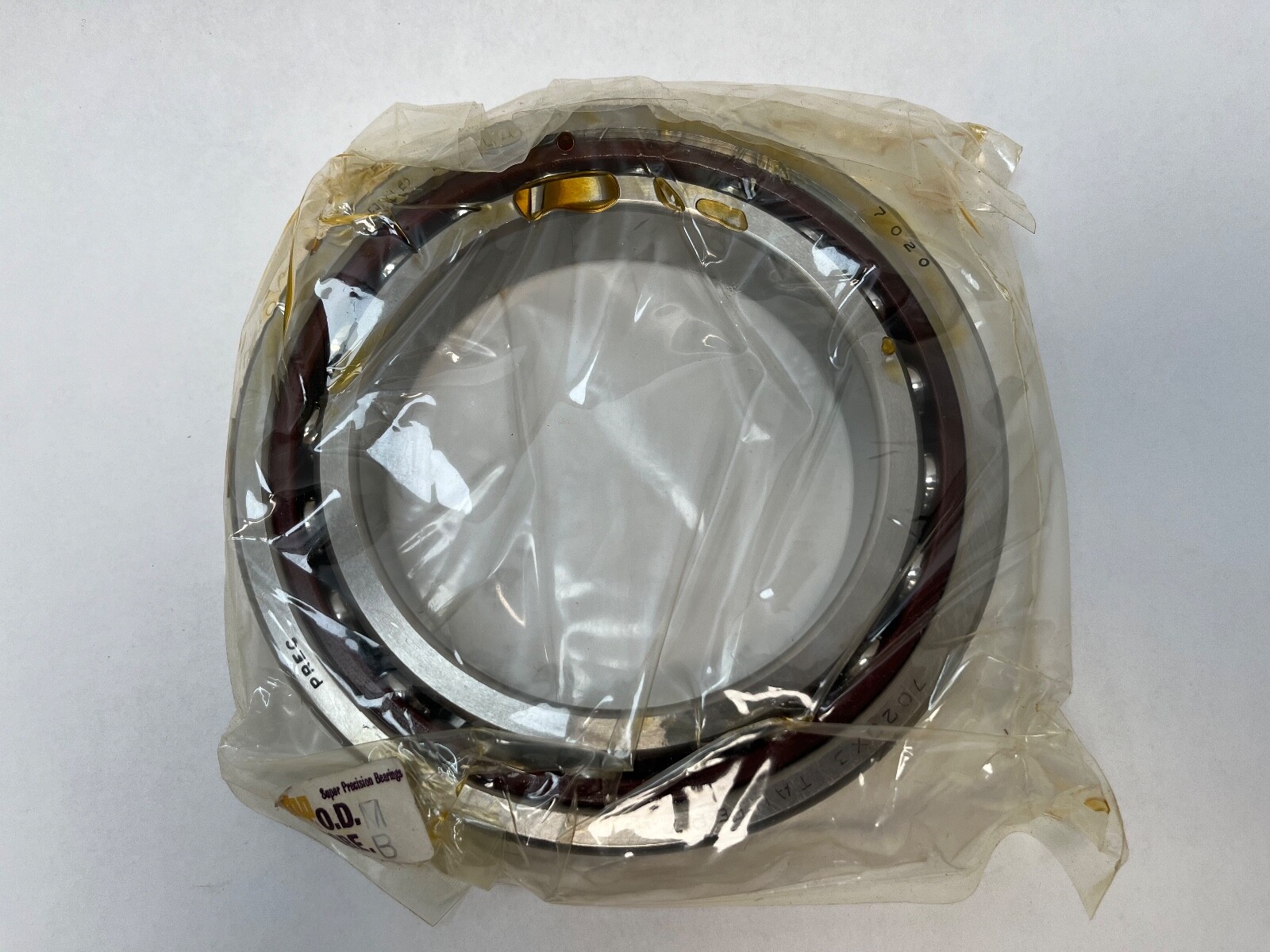

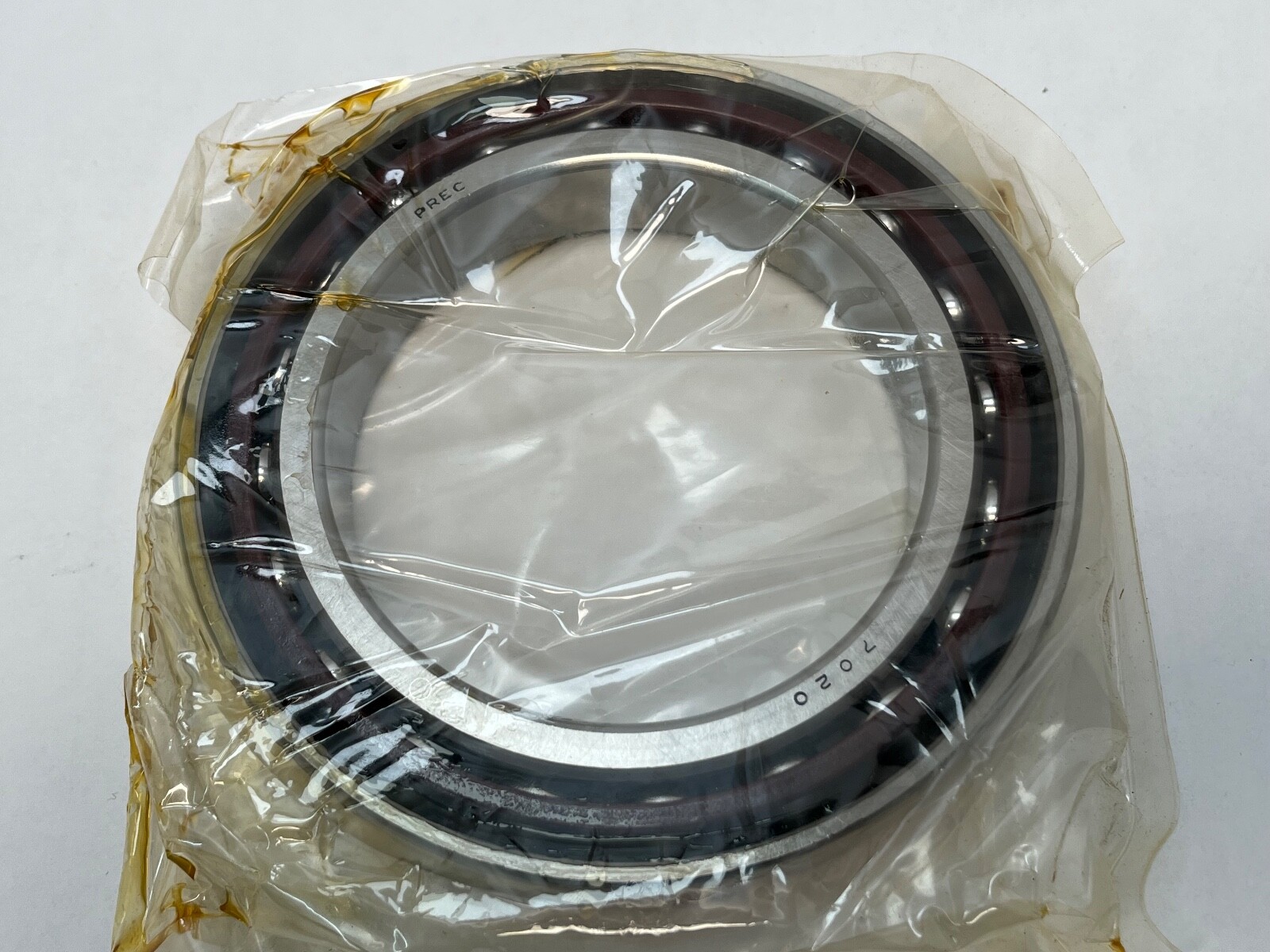

RHP 7020ETDULP4 is a single super-precision angular contact ball bearing, 100 mm bore, 150 mm outside diameter and 24 mm width. It is one bearing from a universally matchable light-preload pair (-1/2PR on the carton). Unit Quantity: 1 Pc.
7020 — ISO 70 dimension series, 100 mm bore.
E — 25° contact angle in the RHP scheme.
T — machined laminated phenolic cage.
DUL — universally matchable duplex ground to light preload.
P4 — ABEC 7 precision class.
-1/2PR — one bearing of a pair.

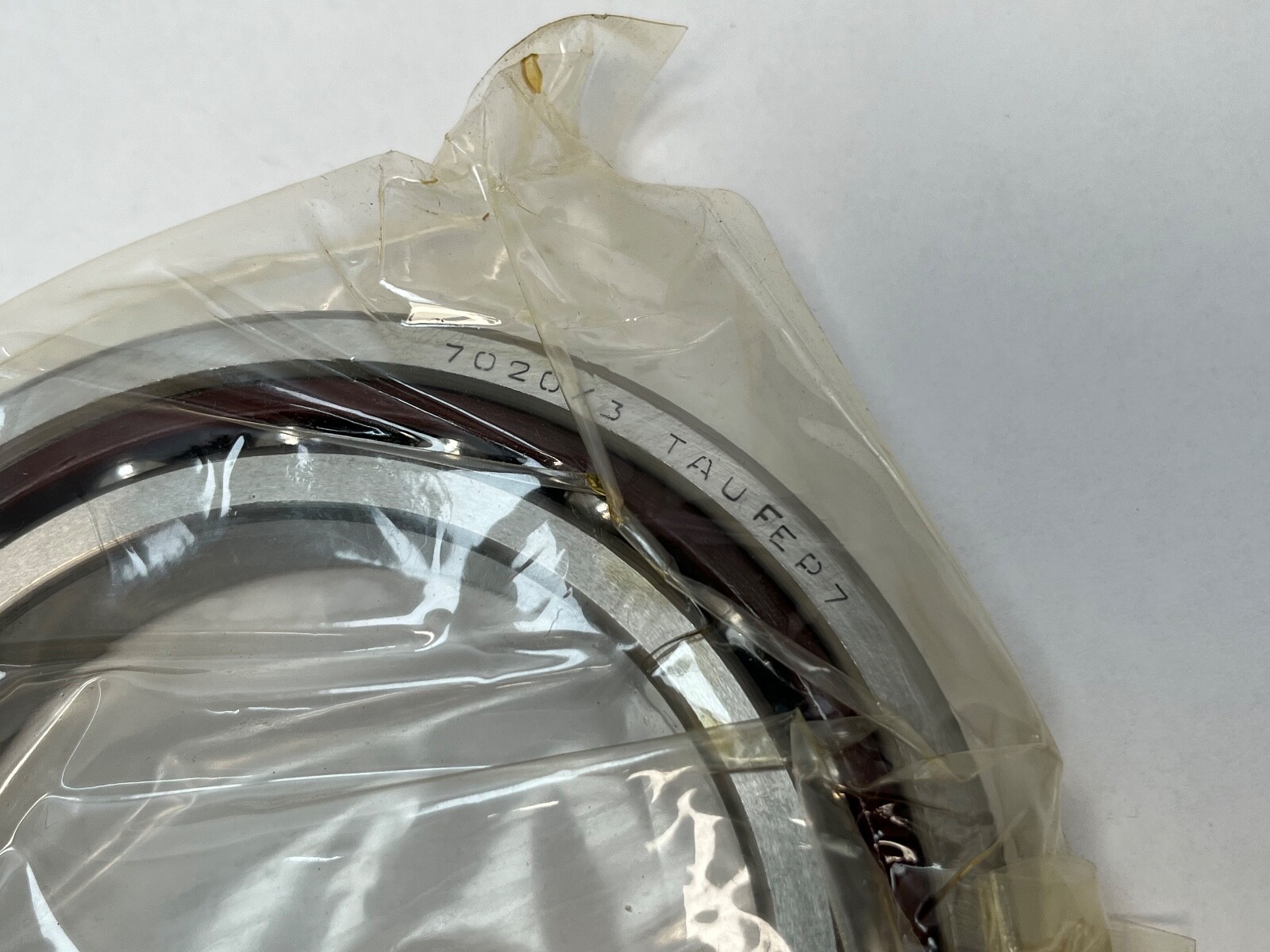

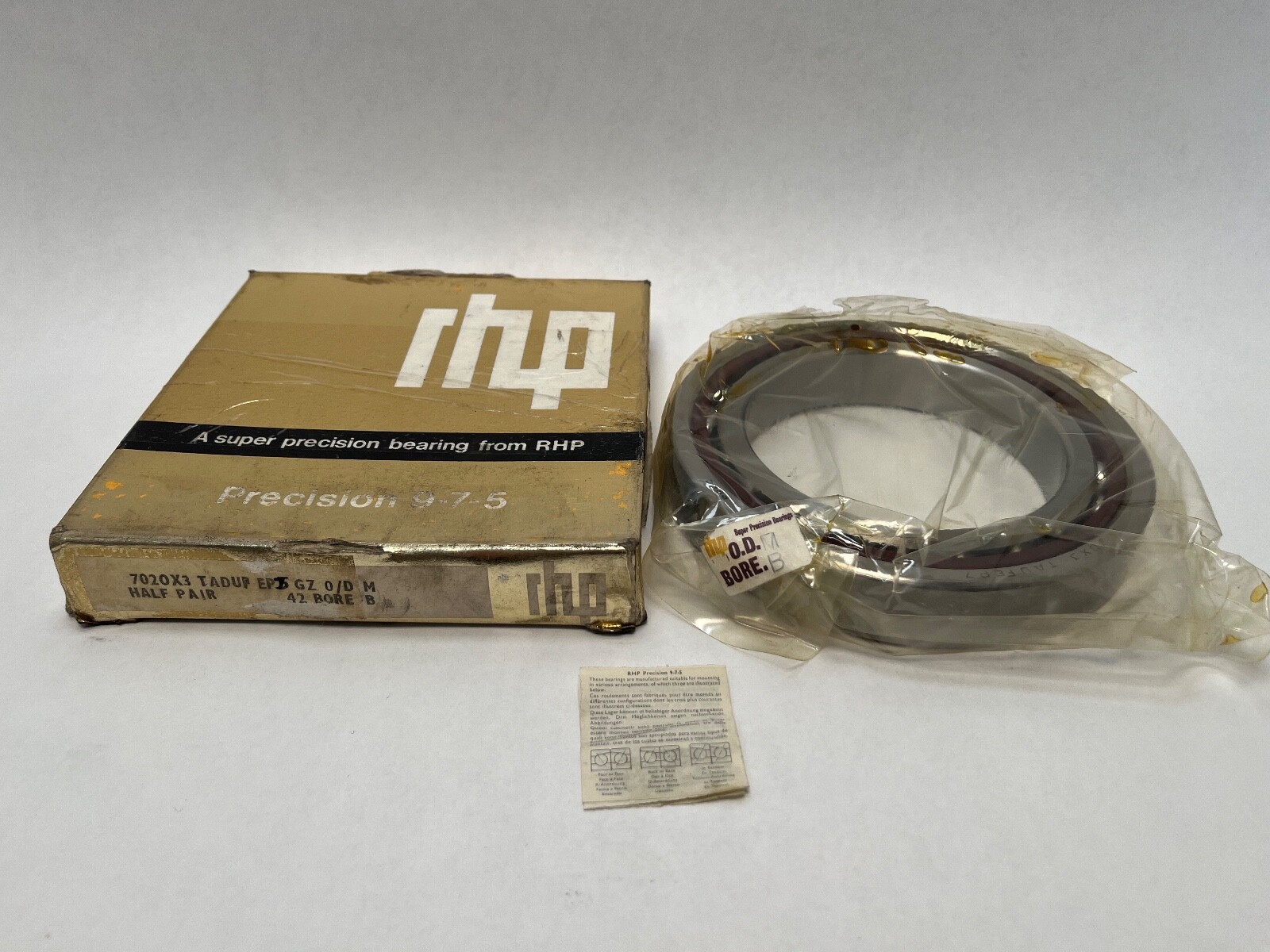

B7020TADULEP7 — the RHP B-series number carried on the carton; EP7 is the P4 class code.
3MM9120WI CR DUL — the Fafnir designation carried on the carton; the 3MM prefix is a 25° angle.
Bore Diameter: 100 mm. Outside Diameter: 150 mm. Width: 24 mm. Contact Angle: 25°. Number Of Rows: 1. Rolling Elements: Ball. Closure Type: Open. Cage Material: Phenolic. Material: Chrome bearing steel. Dynamic Load Rating (Cr): 71,000 N. Static Load Rating (C0r): 73,500 N. Limiting Speed: 7,600 rpm grease; 11,800 rpm oil-air. Preload: Light, 830 N axial. Precision Class: ABEC 7 / P4. Item Weight: 1.26 kg (2.79 lb). Series: 7000 (ISO 70). Unit Quantity: 1 Pc.
Straight bore, 100 x 150 x 24 mm. Shaft abutment diameter d1: 109 mm minimum. Housing abutment diameter D1: 141 mm maximum. Housing abutment diameter D2: 144 mm maximum. Maximum shaft fillet radius: 1.5 mm. Maximum housing fillet radius: 1.0 mm. Universally matchable ground faces allow back-to-back, face-to-face or tandem stacking. Harmonization Code: 8482.10.50.28.
Cross-references: Fafnir 3MM9120WI CR DUL; NSK 7020A5TRDULP4; SKF 7020 ACDGA/P4A; NSK 7020CTRDULP4 (15° contact angle).
Bore 100 mm, outside diameter 150 mm, width 24 mm.
Dynamic radial load rating 71,000 N and static radial load rating 73,500 N.
25° contact angle (E) and light preload of 830 N axial (DUL), universally matchable.
