RHP7020ETDULP4Super Precision Angular Contact Ball Bearing – Straight Bore, 100 mm ID, 150 mm OD, 24 mm Width, Open, 25° Contact Angle, Light Preload

Condition: New

Availability:

1 in stock

Matched duplex pair of super-precision angular contact ball bearings, 100 x 150 x 24 mm each, 25° contact angle, light preload, ABEC 7. Sold as 2 Pcs.

Same day shipment

List Price

$611.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandRHP
MPN7020ETDULP4
Model7020E-T-DUL-P4 / 3MM9120WI CR DUL / 7020A 7020A5 7020ACD
Bearing TypeAngular Contact Ball Bearing, Open
ID100 mm
OD150 mm
Width24 mm

Technical Specifications

MaterialBearing Steel
Series7000 (ISO 70)
PreloadLight
Base Number7020
Industry Termssuper precision spindle bearing set, matched pair angular contact, machine tool bearing, ABEC 7 duplex
Common Misspellings7020 ETDULP4, RHP 7020ETDUL P4, Ransome Hoffmann Pollard, 7020ETDULP-4
Application TypesMachine tool spindles, milling spindles, precision gearboxes, rotary tables
Bore Shaft Size100 mm (3.937 in)
Mpn Variants7020ETDULP4, 7020-E-T-DUL-P4, 7020 E T DUL P4, B7020TADULEP7, 7020E, 7020ETDUL
Precision ClassABEC 7 / P4
Rolling ElementsBall
Cage MaterialPhenolic
Number Of Rows1 per bearing
Bore TypeStraight
Snap Ring IncludedWithout Snap Ring
Harmonization Code8482.10.50
Contact Angle25°
Part Number7020ETDULP4
Total Width48 mm (stacked pair)

Cross-References

Cross Reference 1RHP B7020TADULEP7
Cross Reference 2Fafnir 3MM9120WI CR DUL
Cross Reference 3NSK 7020A5TRDULP4
Cross Reference 4SKF 7020 ACD/P4ADGA
Cross Reference 5FAG B7020E.T.P4S.UL
Cross Reference 6RHP 7020CTDULP4 - 15 deg vs 25 deg
Seller Part Number: B-CB2#TWHM3N

Product Description

What this part is:

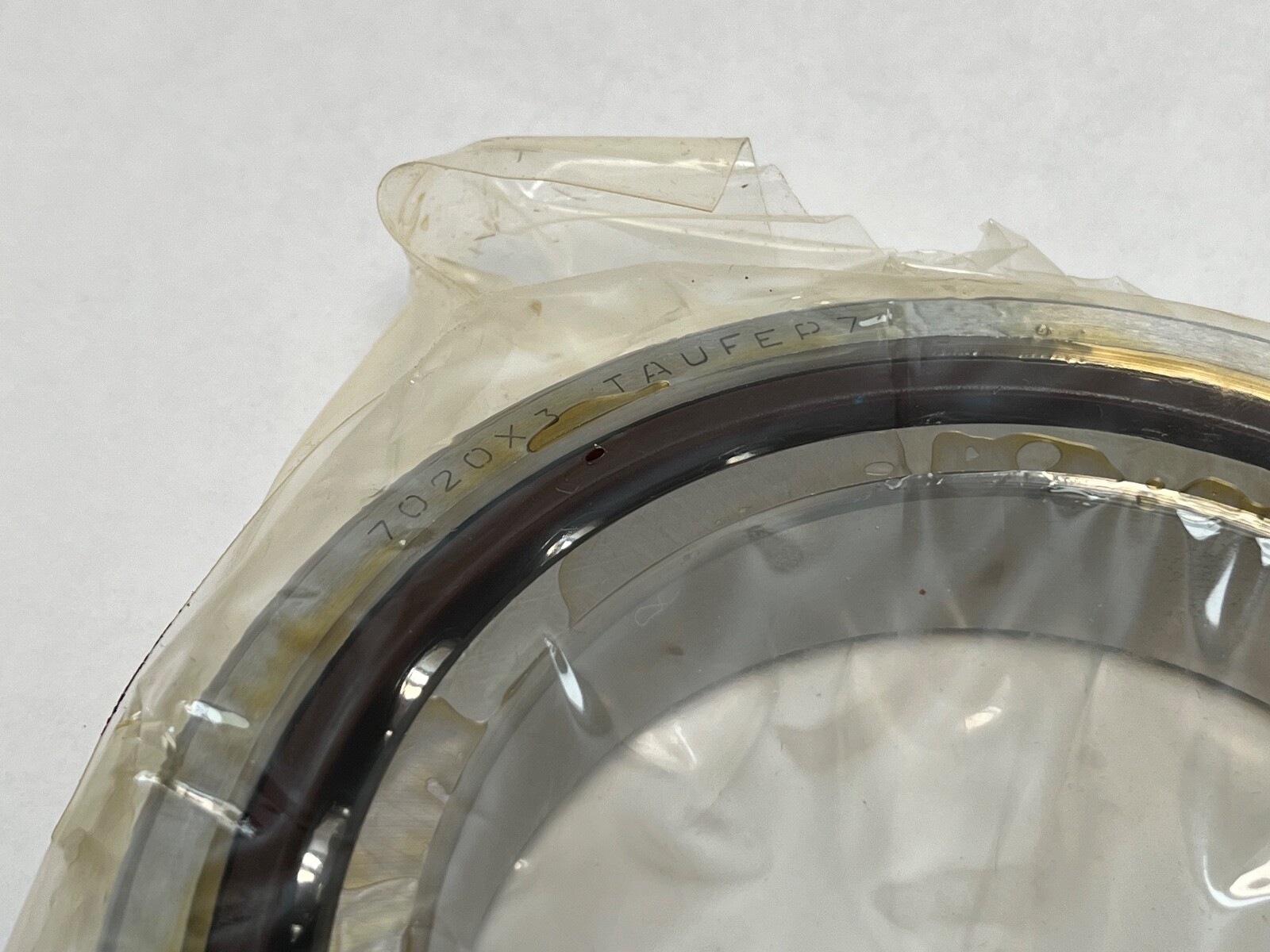

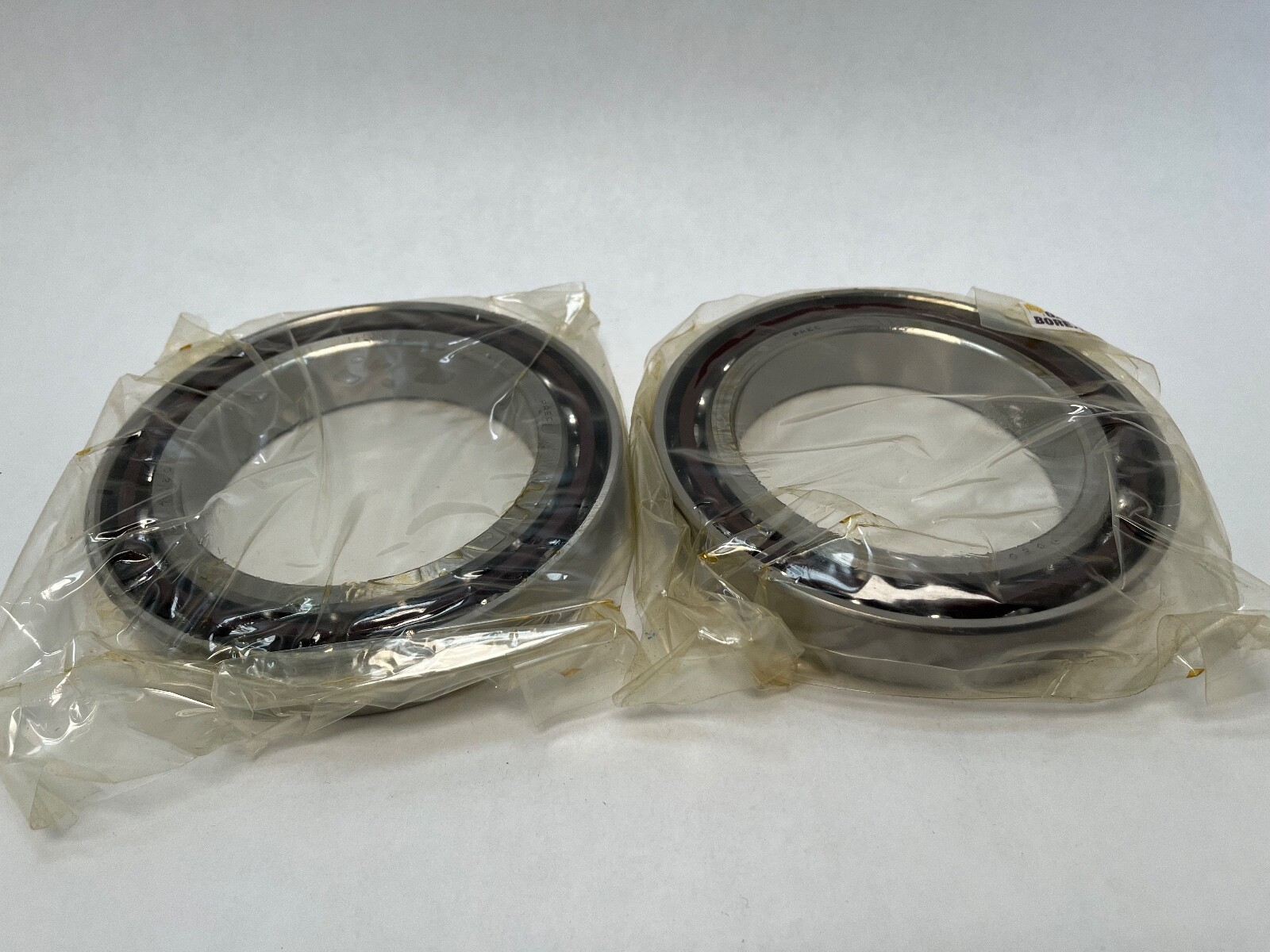

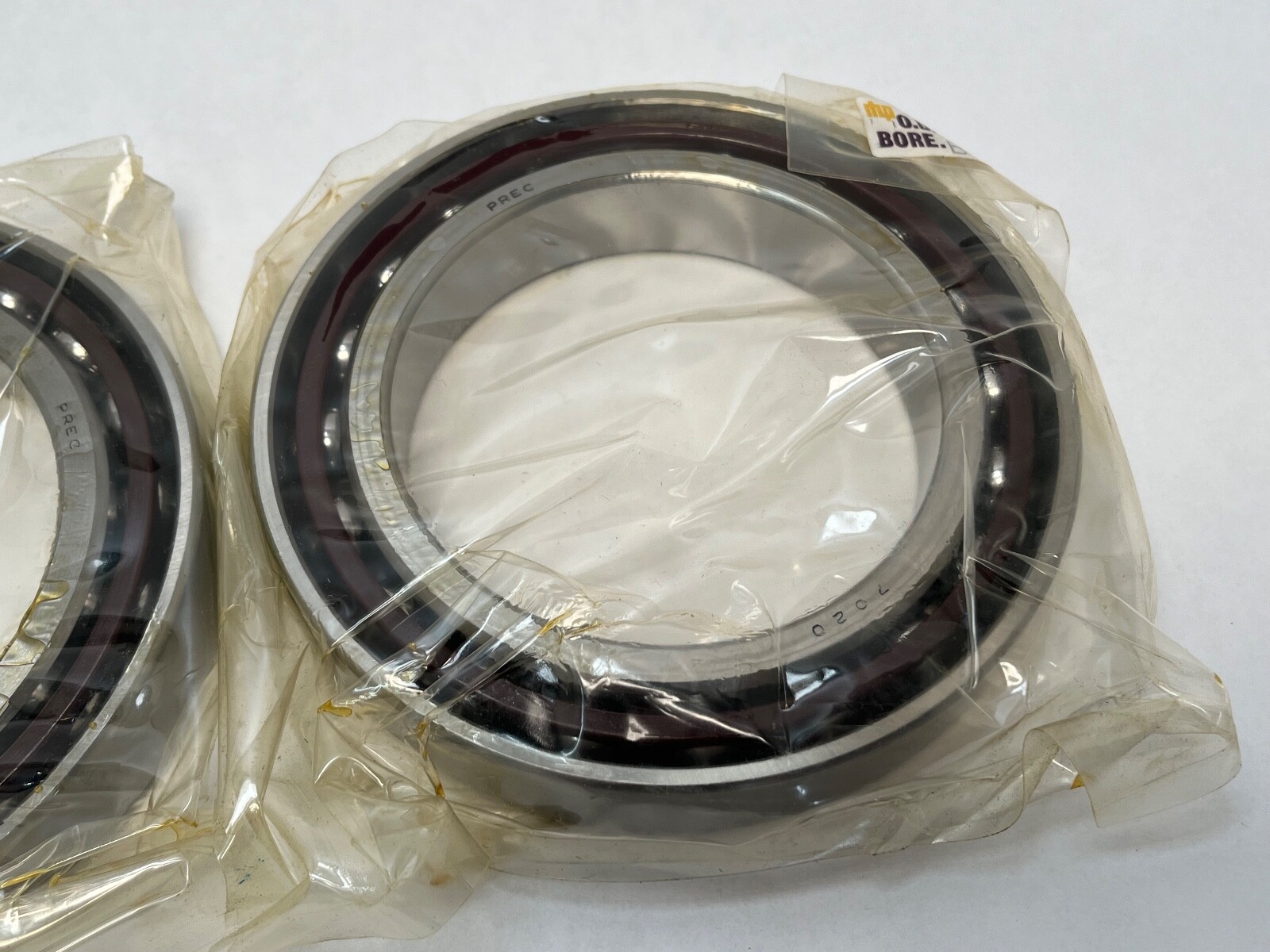

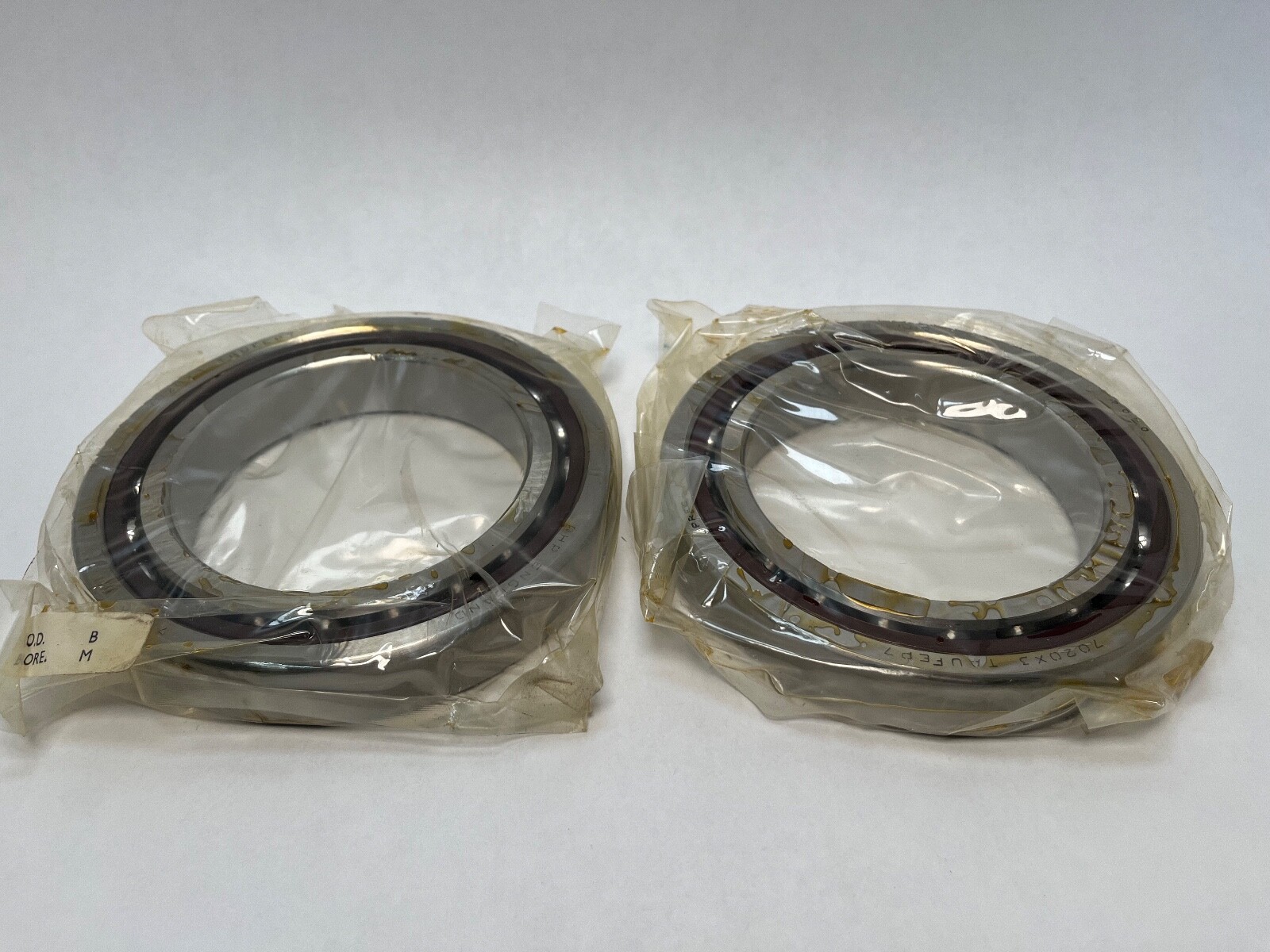

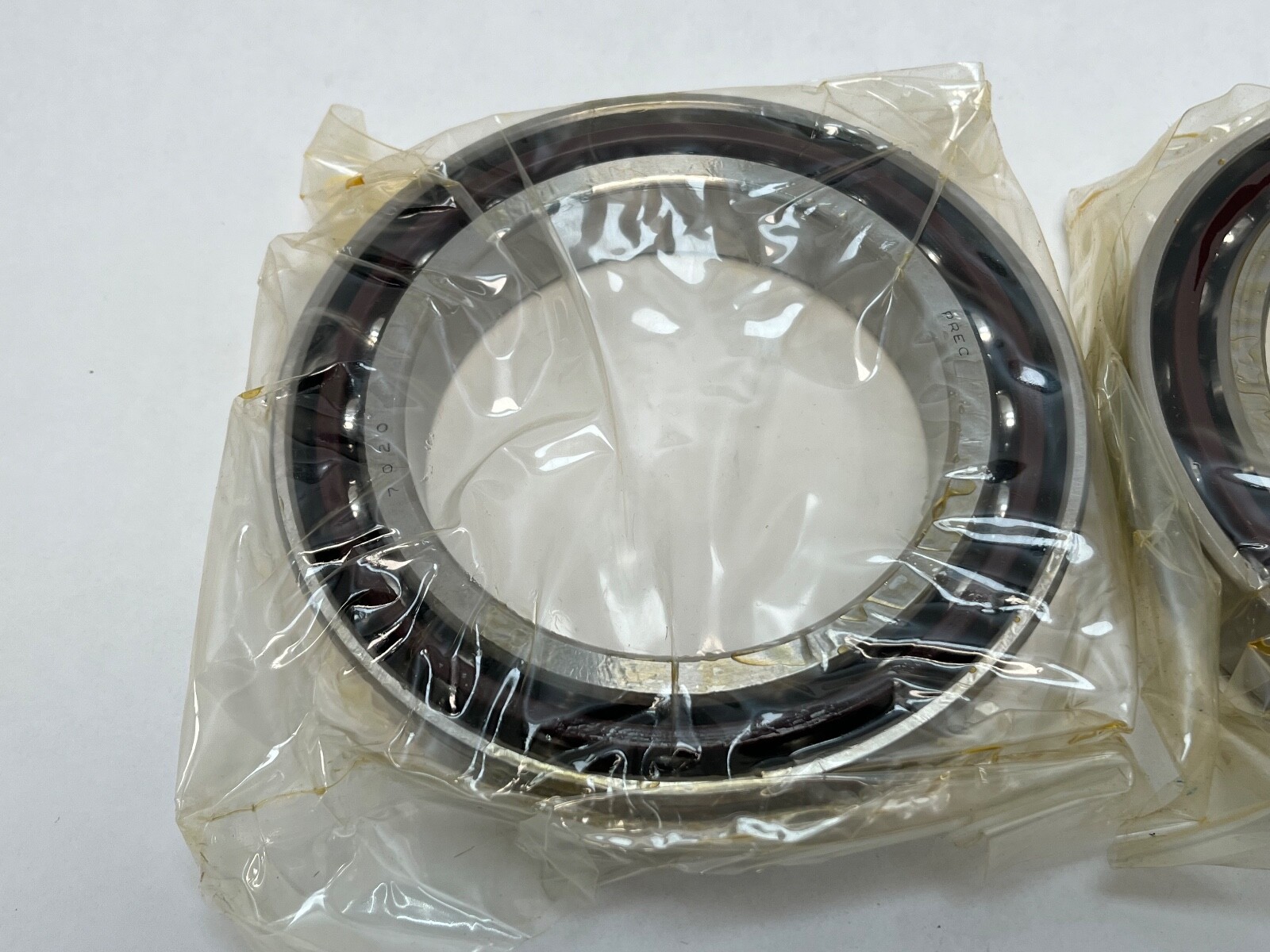

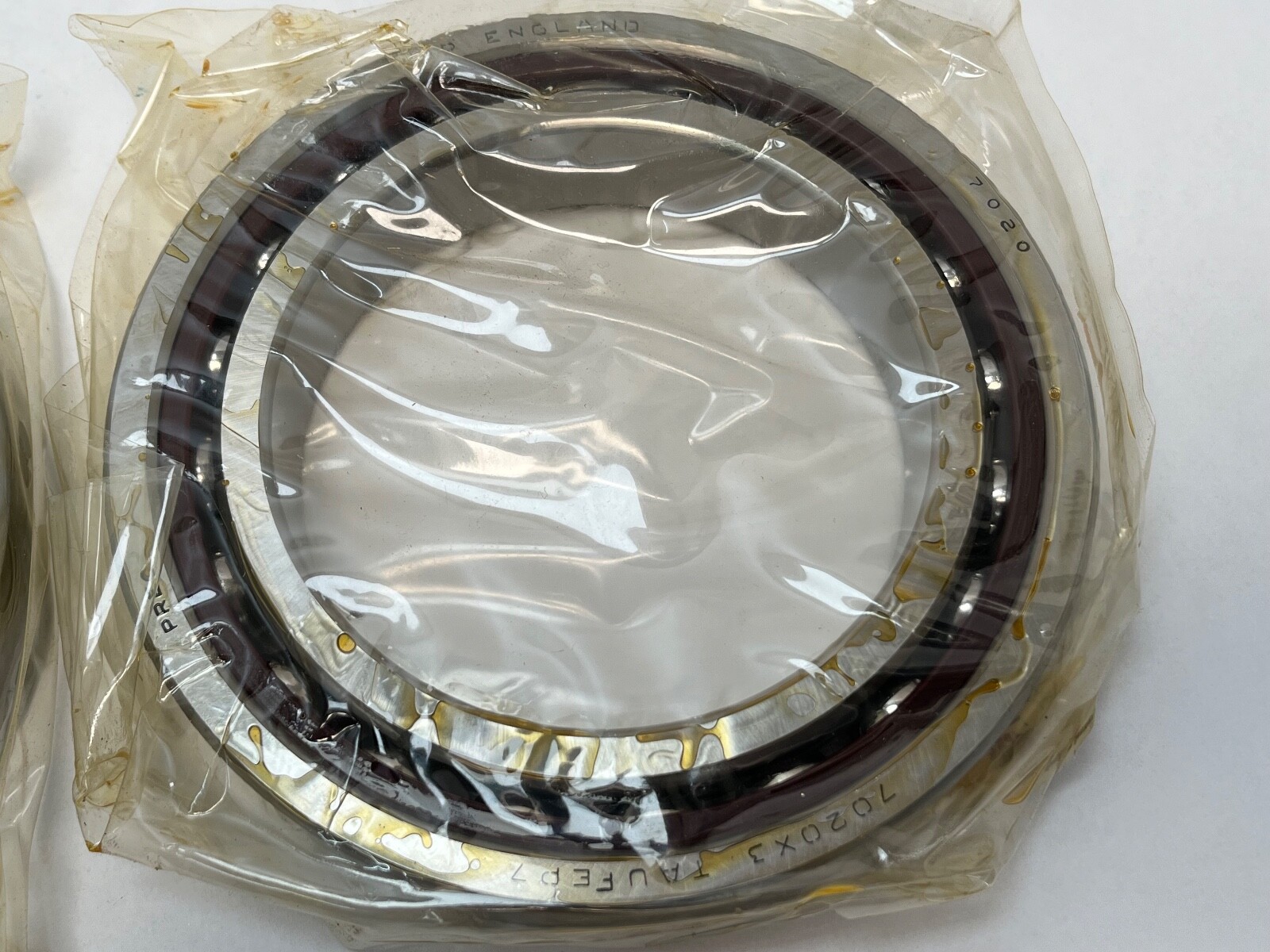

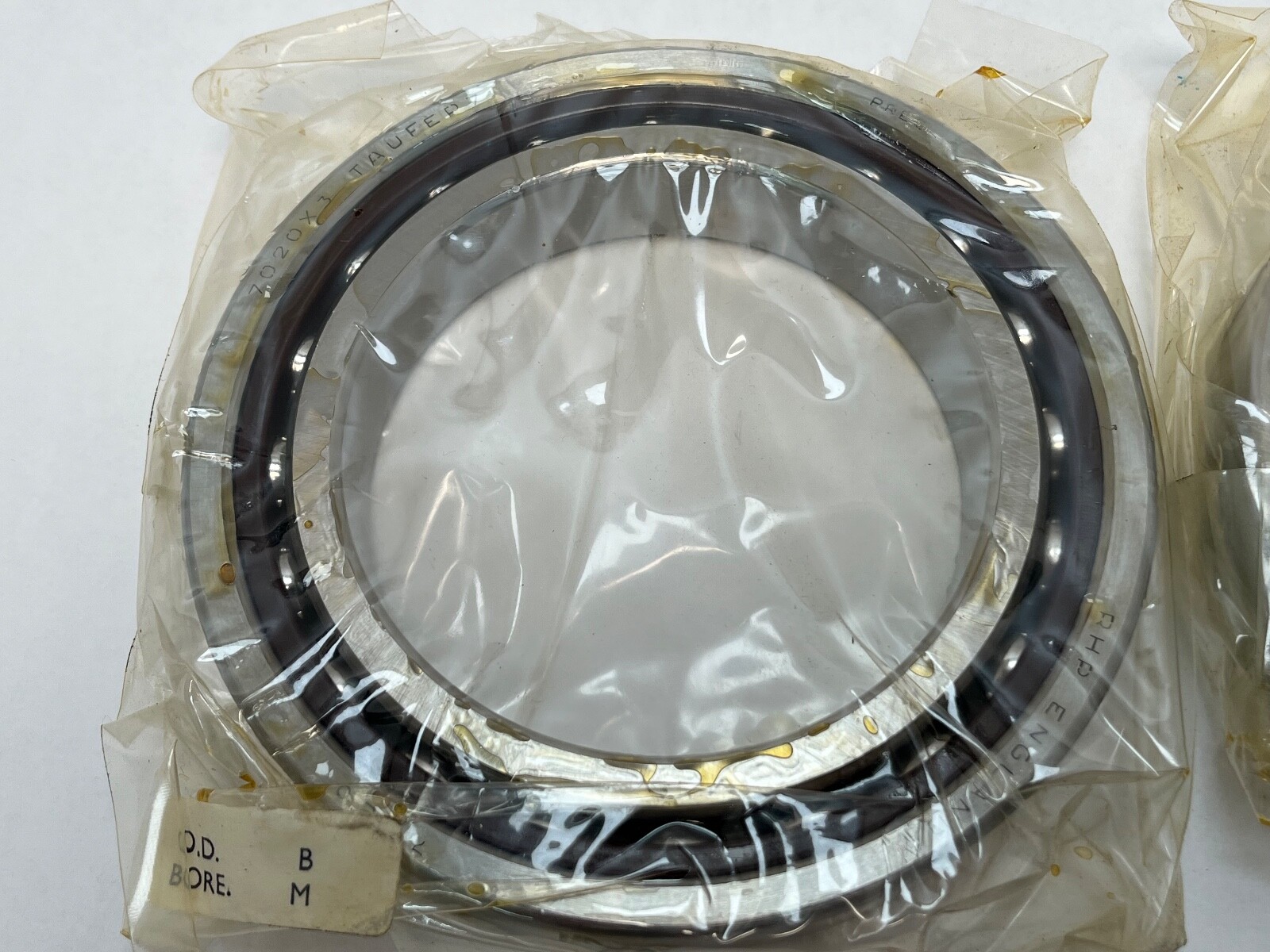

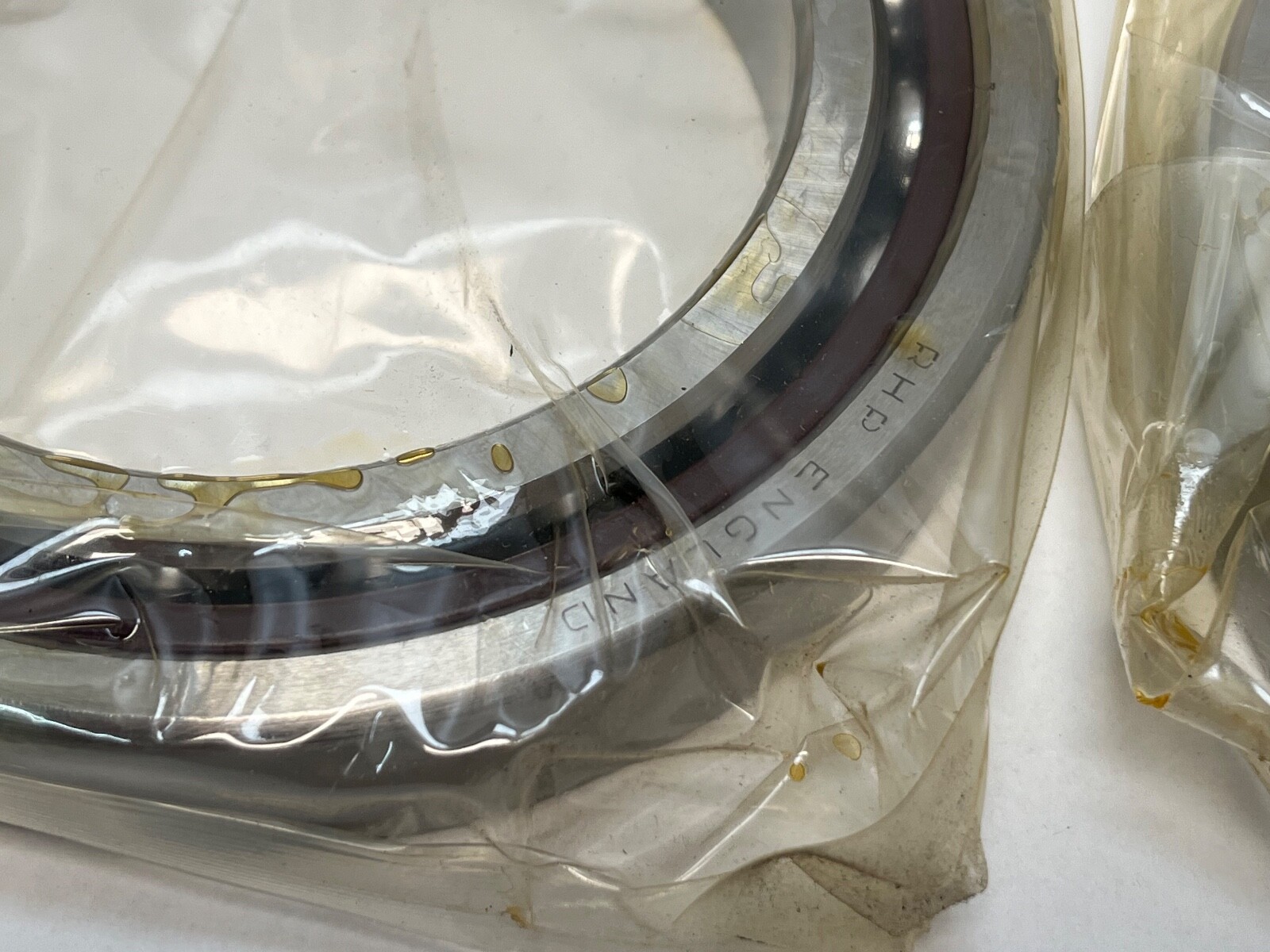

RHP 7020ETDULP4 is a matched duplex pair of super-precision single-row angular contact ball bearings. Each bearing is 100 mm bore, 150 mm outside diameter and 24 mm width; total stack width is 48 mm. Both faces are open and the cage is phenolic. Unit Quantity: 2 Pcs.

Decoding the designation:

7020 — ISO 70 dimension series, 100 mm bore.

E — 25° contact angle in the RHP scheme.

T — phenolic cage.

DU — duplex, ground as a matched set.

L — light preload.

P4 — ABEC 7 precision class.

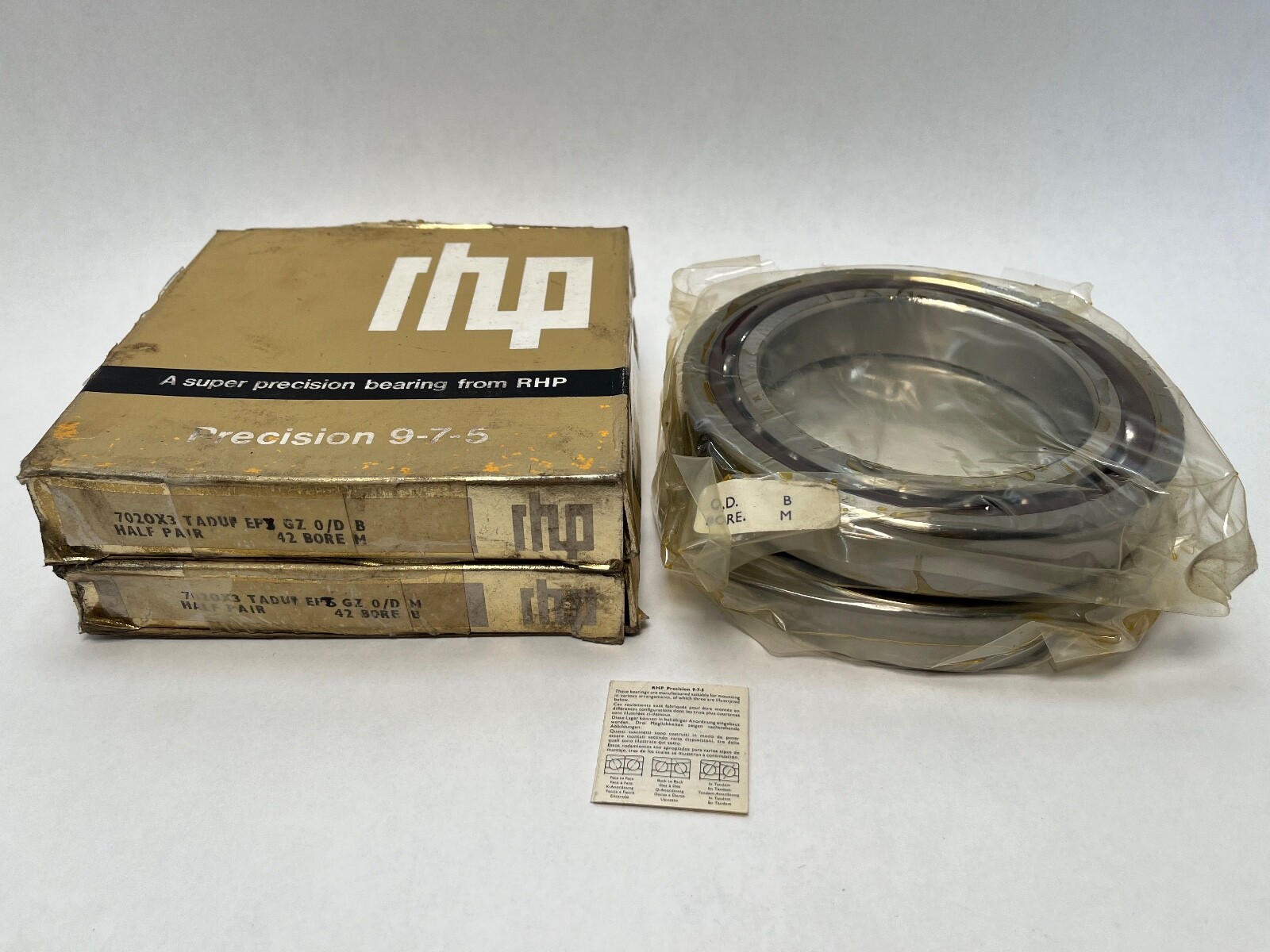

B7020TADULEP7 — the RHP B-series number carried on the carton and in the title; EP7 is the P4 class code.

Specifications:

Bore Diameter: 100 mm. Outside Diameter: 150 mm. Width: 24 mm per bearing. Total Width: 48 mm (stacked pair). Contact Angle: 25°. Number Of Rows: 1 per bearing. Rolling Elements: Ball. Closure Type: Open. Cage Material: Phenolic. Dynamic Load Rating (Cr): 71,000 N per bearing. Static Load Rating (C0r): 73,500 N per bearing. Limiting Speed: 7,600 rpm grease; 11,800 rpm oil-air, single bearing. Limiting Speed as a light-preload pair: 9,440 rpm oil-air. Axial Stiffness: 299 N/µm (light-preload pair). Preload: Light, 830 N axial. Precision Class: ABEC 7 / P4. Item Weight: 1.26 kg (2.79 lb) per bearing. Series: 7000 (ISO 70). Unit Quantity: 2 Pcs.

Dimensions and mounting:

Straight bore, 100 x 150 x 24 mm per bearing. Shaft abutment diameter d1: 109 mm minimum. Housing abutment diameter D1: 141 mm maximum. Housing abutment diameter D2: 144 mm maximum. Matched duplex pair; each bearing carries thrust in one direction. Harmonization Code: 8482.10.50.

Compatibility and replacement:

Cross-references: RHP B7020TADULEP7; Fafnir 3MM9120WI CR DUL; NSK 7020A5TRDULP4; SKF 7020 ACD/P4ADGA; FAG B7020E.T.P4S.UL; RHP 7020CTDULP4 (15° contact angle).

Frequently asked questions:

What are the dimensions of RHP 7020ETDULP4?

Bore 100 mm, outside diameter 150 mm, width 24 mm per bearing, 48 mm stacked.

What are the load ratings?

Dynamic radial load rating 71,000 N and static radial load rating 73,500 N per bearing.

What contact angle and preload does it have?

25° contact angle (E) and light preload of 830 N axial (L), matched duplex (DU).
