SNR22216EAKB33J30Double-Row Spherical Roller Bearing – 1:12 Tapered Bore, 80 mm ID x 140 mm OD x 33 mm Width, Open, C3 Internal Clearance, W33 Lubrication Groove

Product Description

What this part is

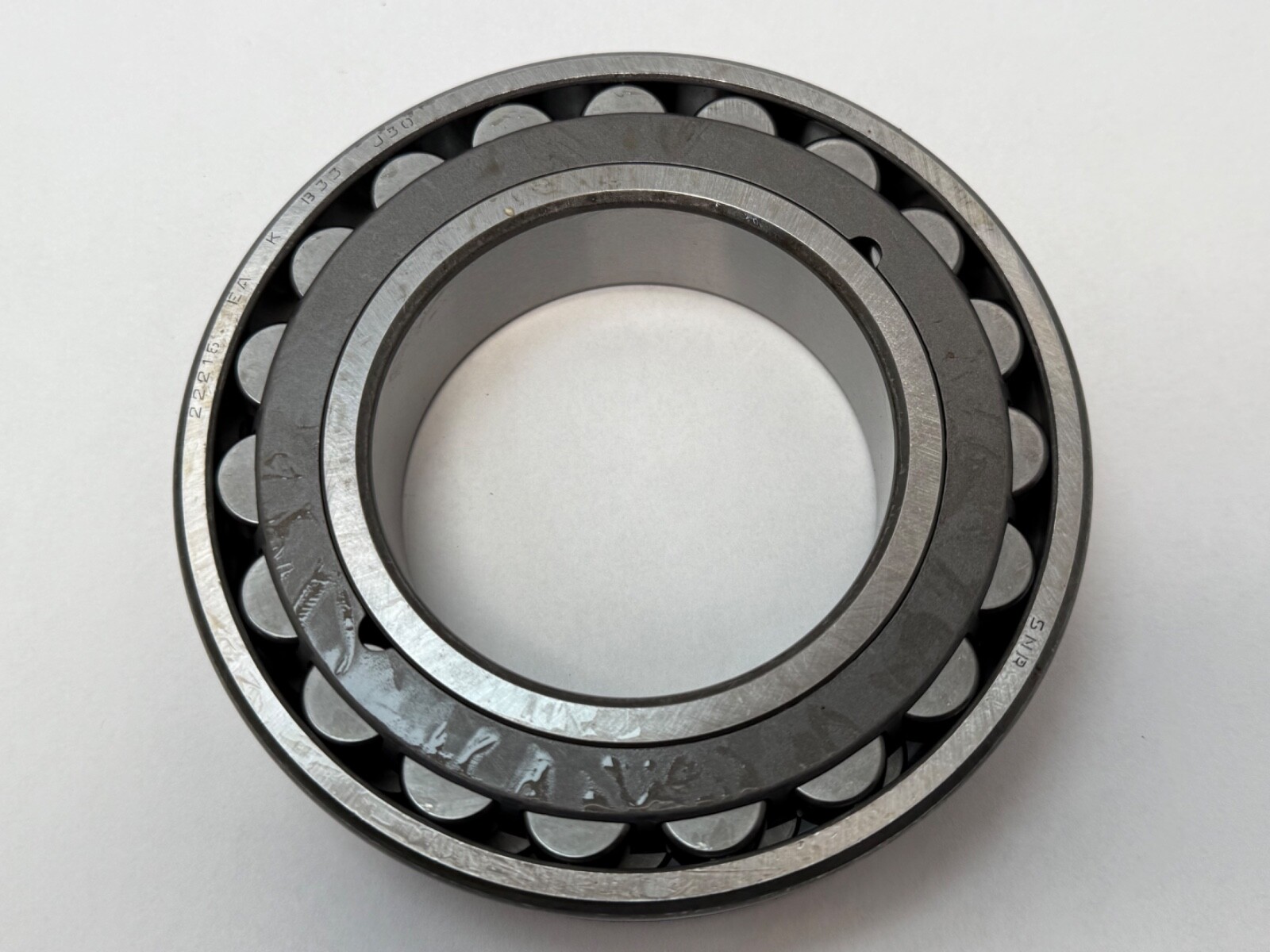

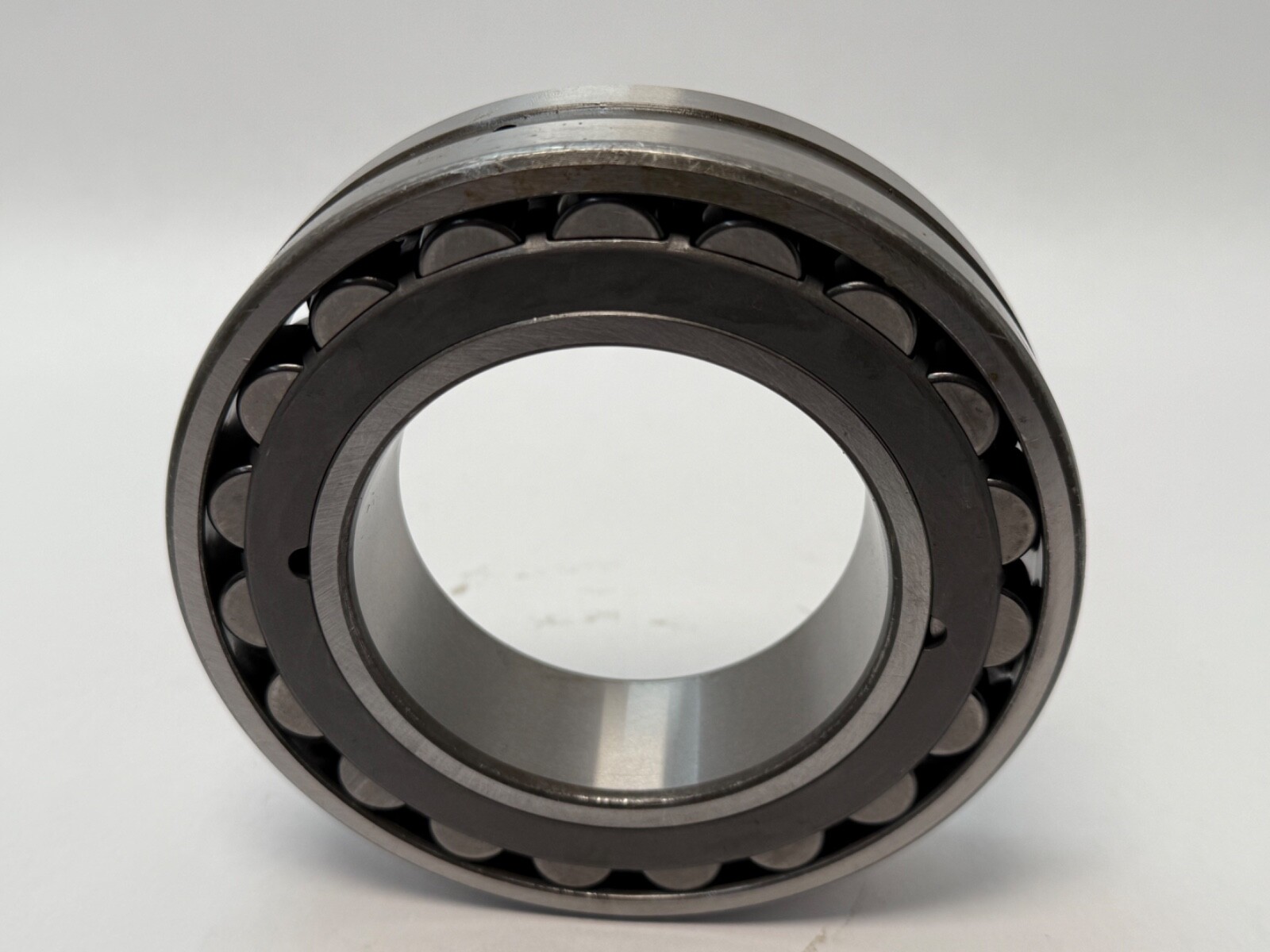

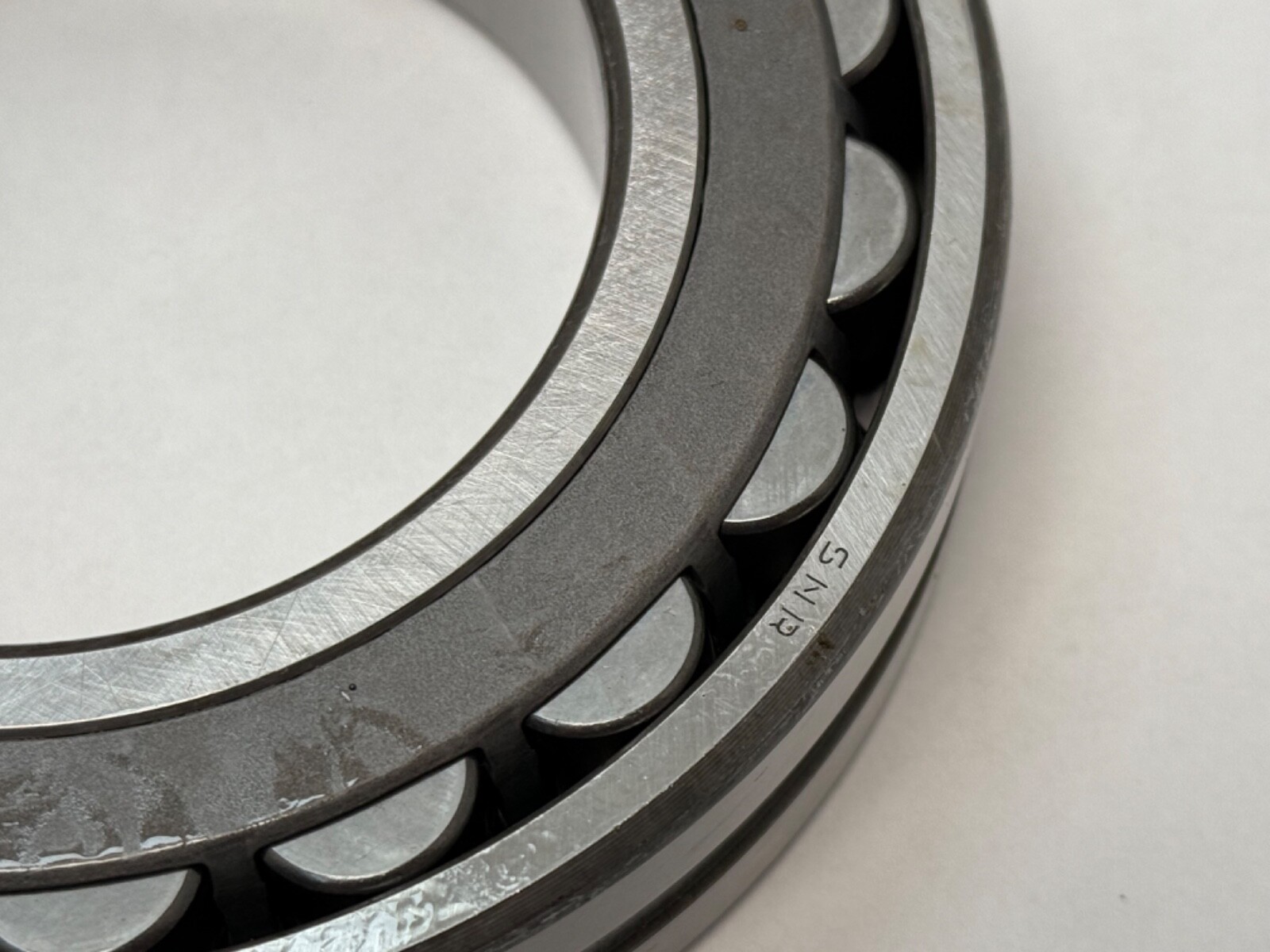

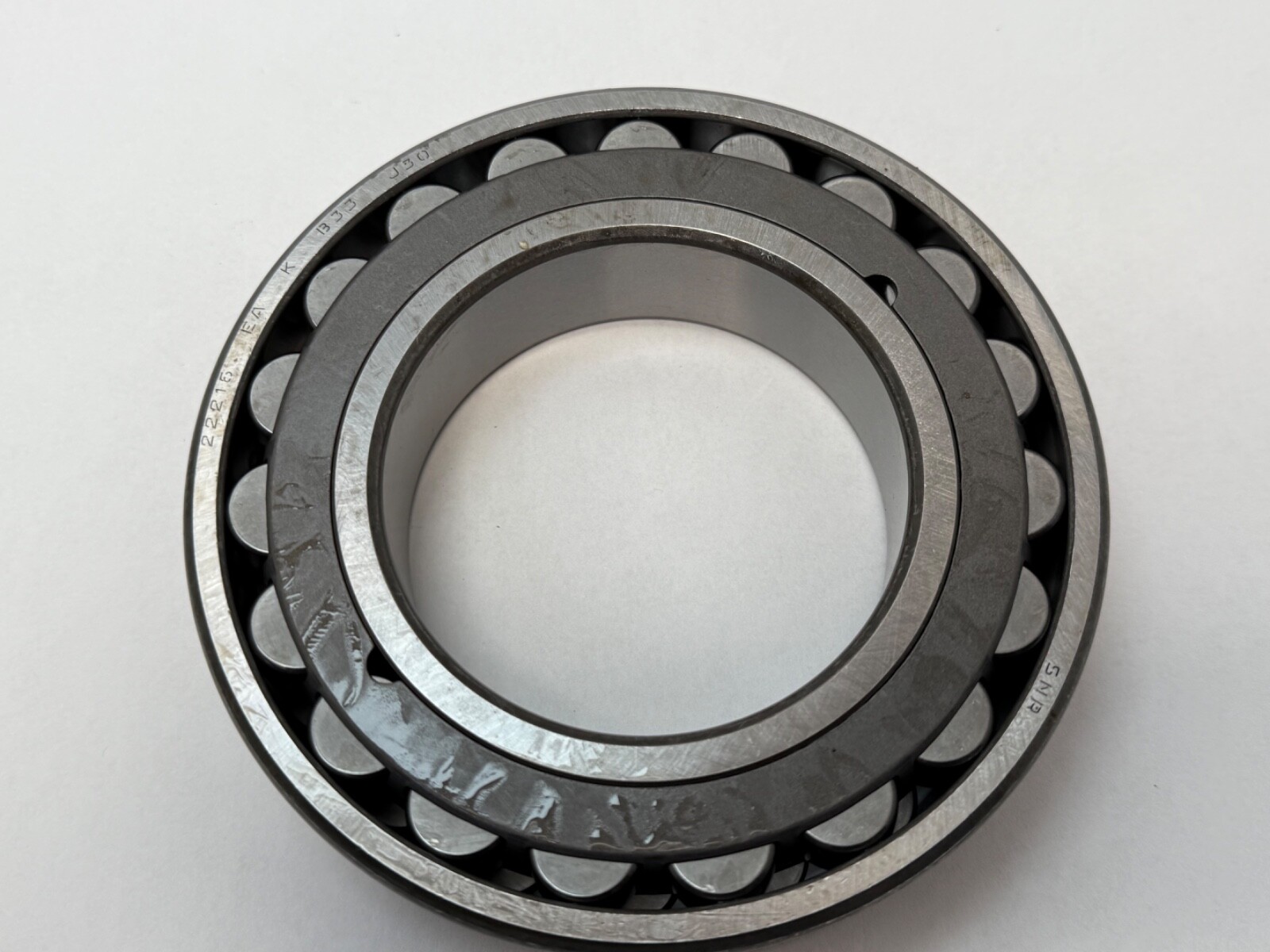

SNR 22216EAKB33J30 double-row spherical roller bearing. Manufacturer Part Number: 22216.EAK.W33.C3. Bearing Type: Spherical Roller Bearing. Series: 22200. Number Of Rows: 2. Rolling Elements: Spherical Roller. Bore: 80 mm. Outside Diameter: 140 mm. Overall Width: 33 mm. Bore Type: Tapered 1:12. Item Weight: 2.05 kg (4.52 lb). Country of Origin: France. GTIN: 3413520083465.

Decoding the designation

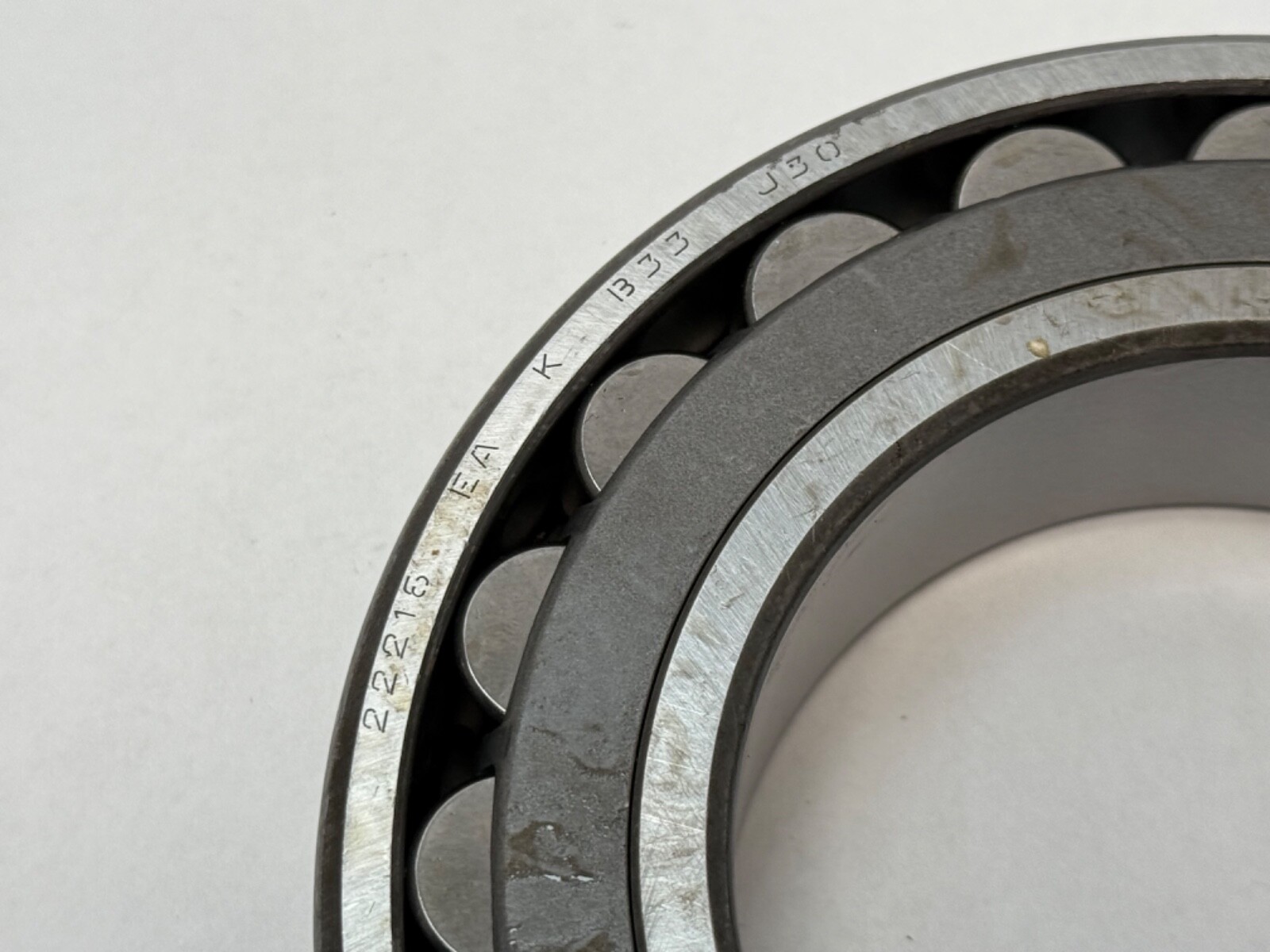

EA is the Ultage high-capacity design with a drawn pressed steel cage. K is a 1:12 tapered bore. B33 is an annular groove machined into the outer ring outside diameter with three radial feed holes, the SNR form of the W33 lubrication feature. J30 is C3 internal clearance, greater than normal. Searchable forms of the part number: 22216EAKB33J30, 22216 EA K B33 J30, 22216.EAK.W33.C3, 22216EAKW33C3, 22216EK, 22216CCK, 22216CKJ, 22216CCKJ, 22216CK, 22216E.

What these specs mean in practice

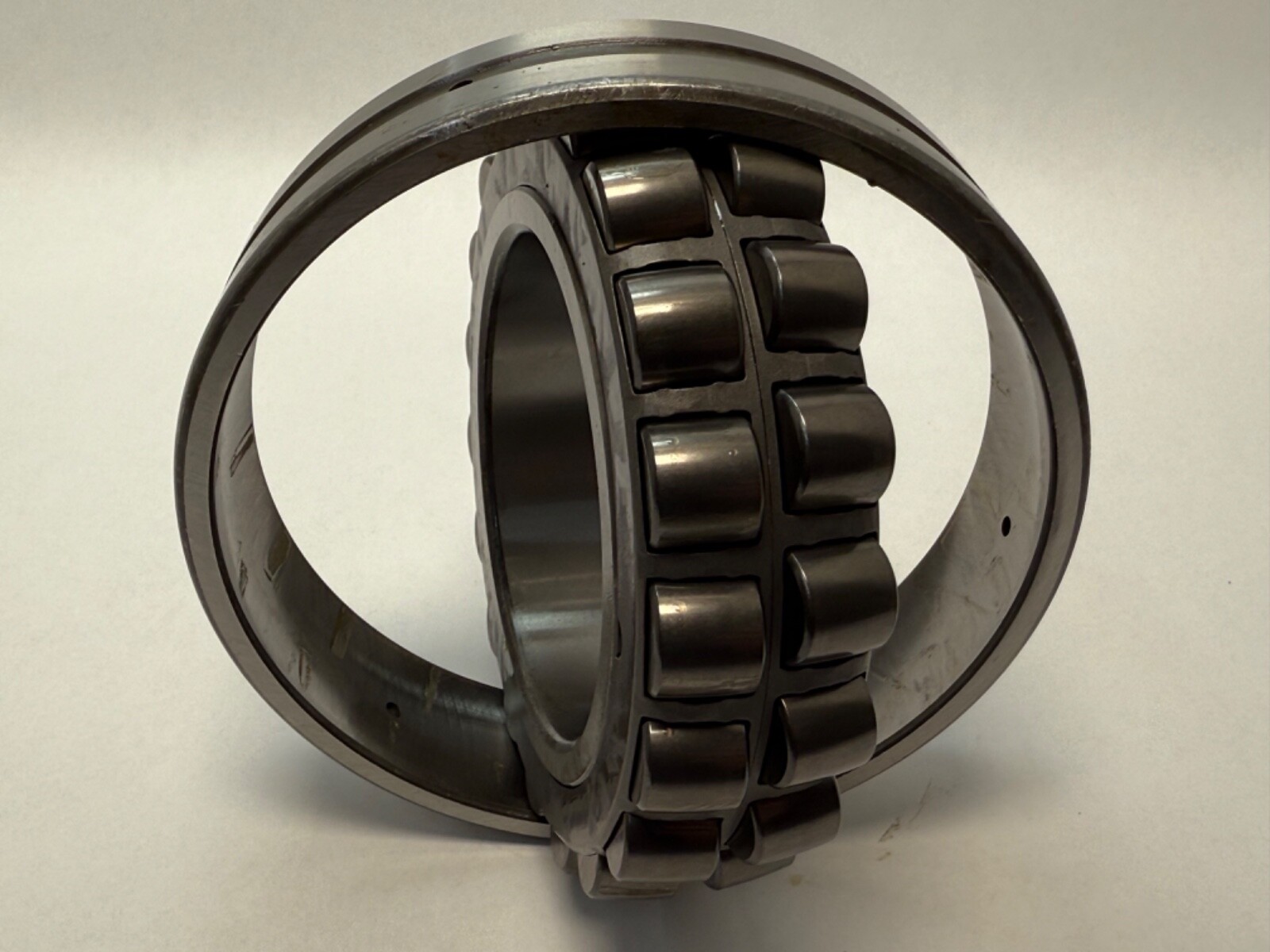

Dynamic Load Rating: 278 kN. Static Load Rating: 287 kN. Limiting Speed: 3,700 r/min on grease, 4,600 r/min on oil. Internal Clearance: C3. Precision Class: P0, ABEC 1. Cage Material: Pressed Steel. Cage Type: Pressed. Bearing Material: Chrome bearing steel. Closure Type: Open. Operating Temperature Range: -30 to +200 °C. Maximum Permissible Misalignment: 1.5°. Two rows of spherical rollers run on a common sphered outer raceway, so the bearing carries heavy radial load together with thrust in either axial direction, and the inner ring and roller set swivel inside the outer ring to absorb shaft deflection under load and angular error between two housings. On a double-row spherical roller the static rating sits above the dynamic rating because the load is shared across two rows of long rollers in simultaneous contact. C3 clearance leaves working room for the interference fit on the sleeve and for the temperature difference between inner and outer ring under heavy load.

Bore form and mounting hardware

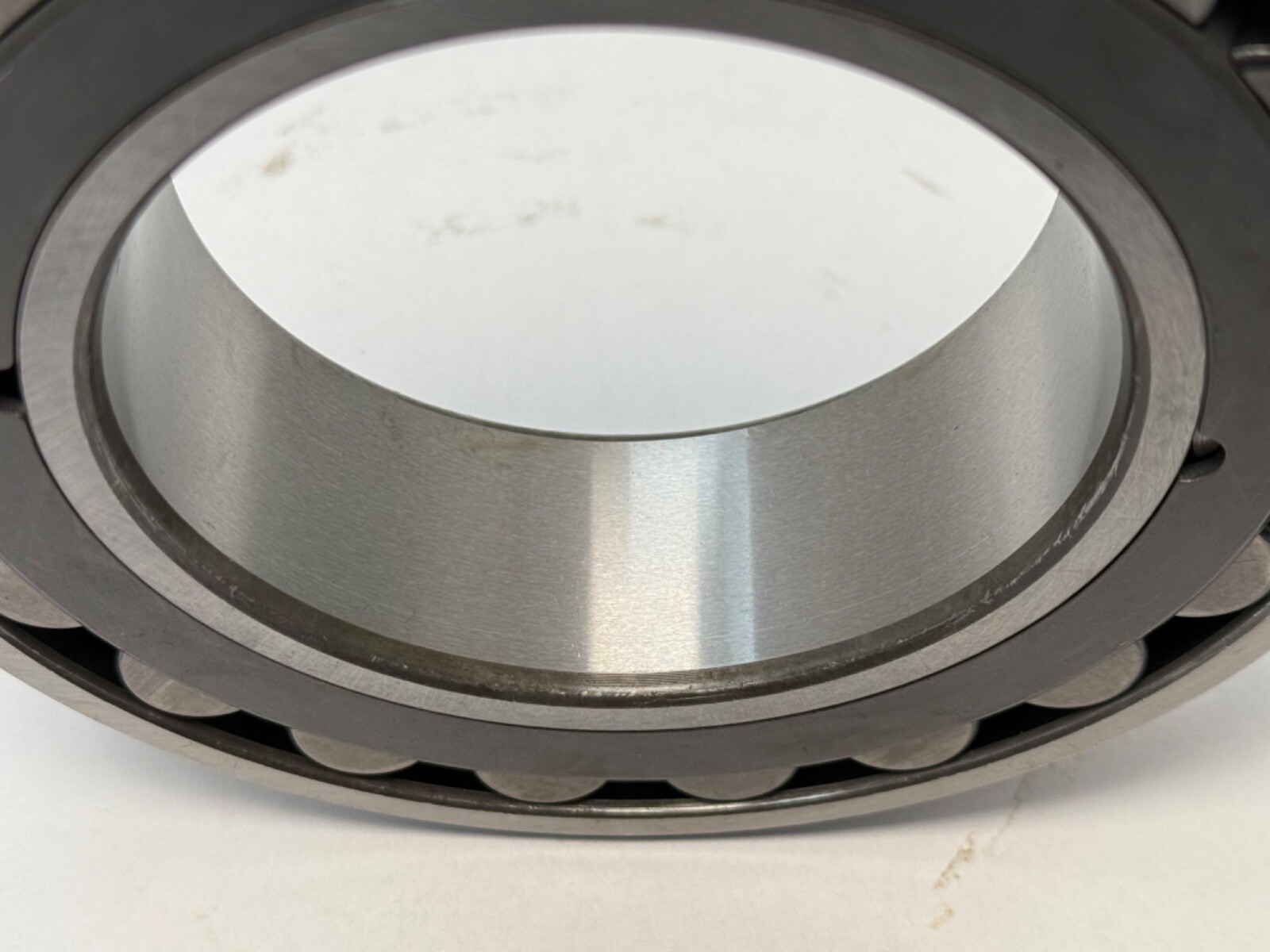

The 1:12 tapered bore sets radial internal clearance by how far the inner ring is driven up the taper, so running clearance is adjusted at assembly rather than fixed by the shaft tolerance. Mounts on an H316 adapter sleeve, which has a 70 mm cylindrical shaft seat and an 80 mm tapered outside diameter matching this bore, secured by a KM16 locknut and an MB16 lockwasher. Related parts: H316 adapter sleeve, KM16 locknut, MB16 lockwasher.

Lubrication feature

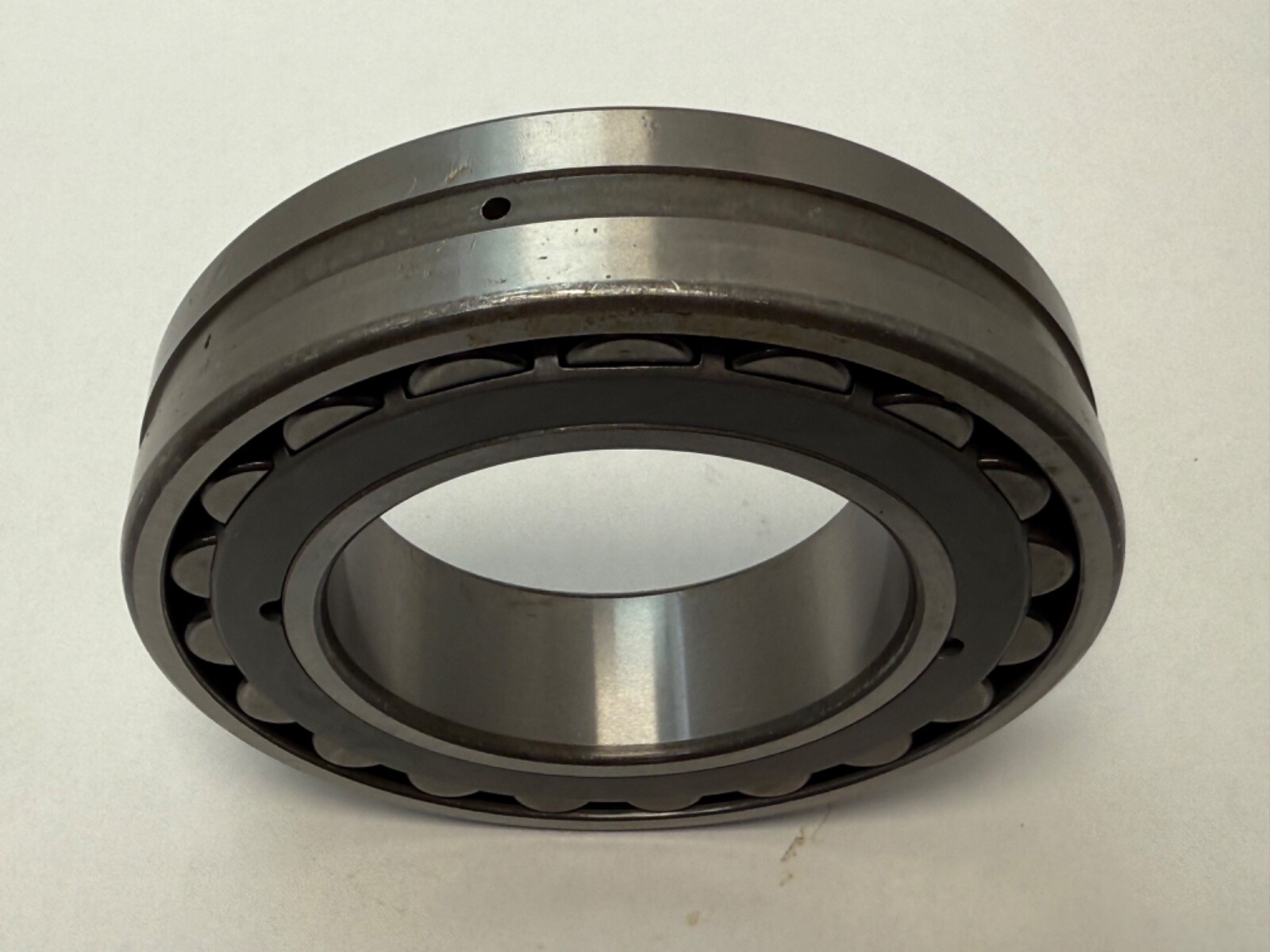

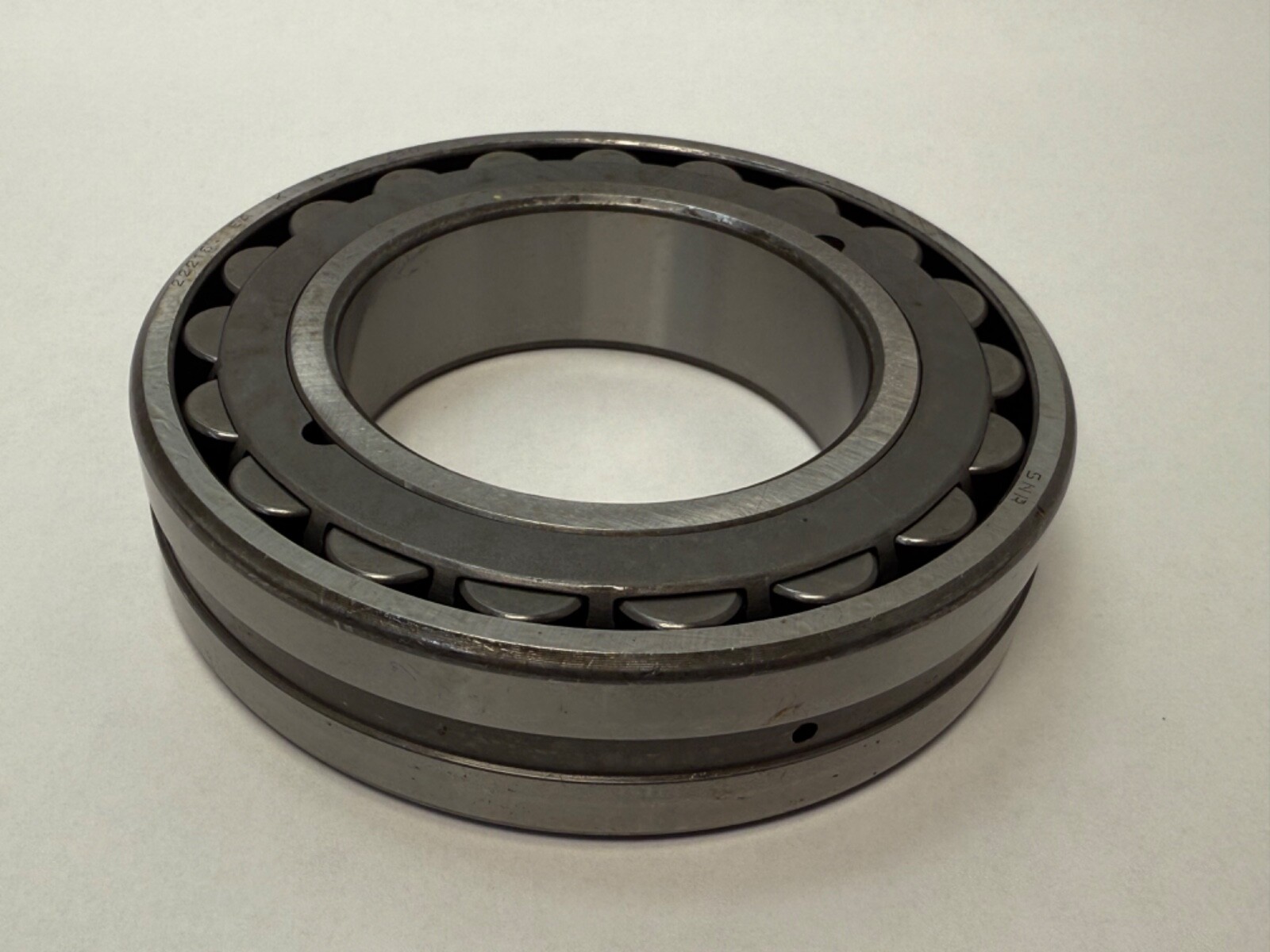

Lubricant: grease or oil. The W33 groove distributes lubricant circumferentially around the outer ring and its three radial holes carry it inward to the rolling elements, so the bearing takes fresh lubricant in service from a grease gun, a single-point lubricator, a centralised grease line or a circulating-oil supply. The rings are dimensionally stabilised for running temperatures to +200 °C.

Quantity and configuration

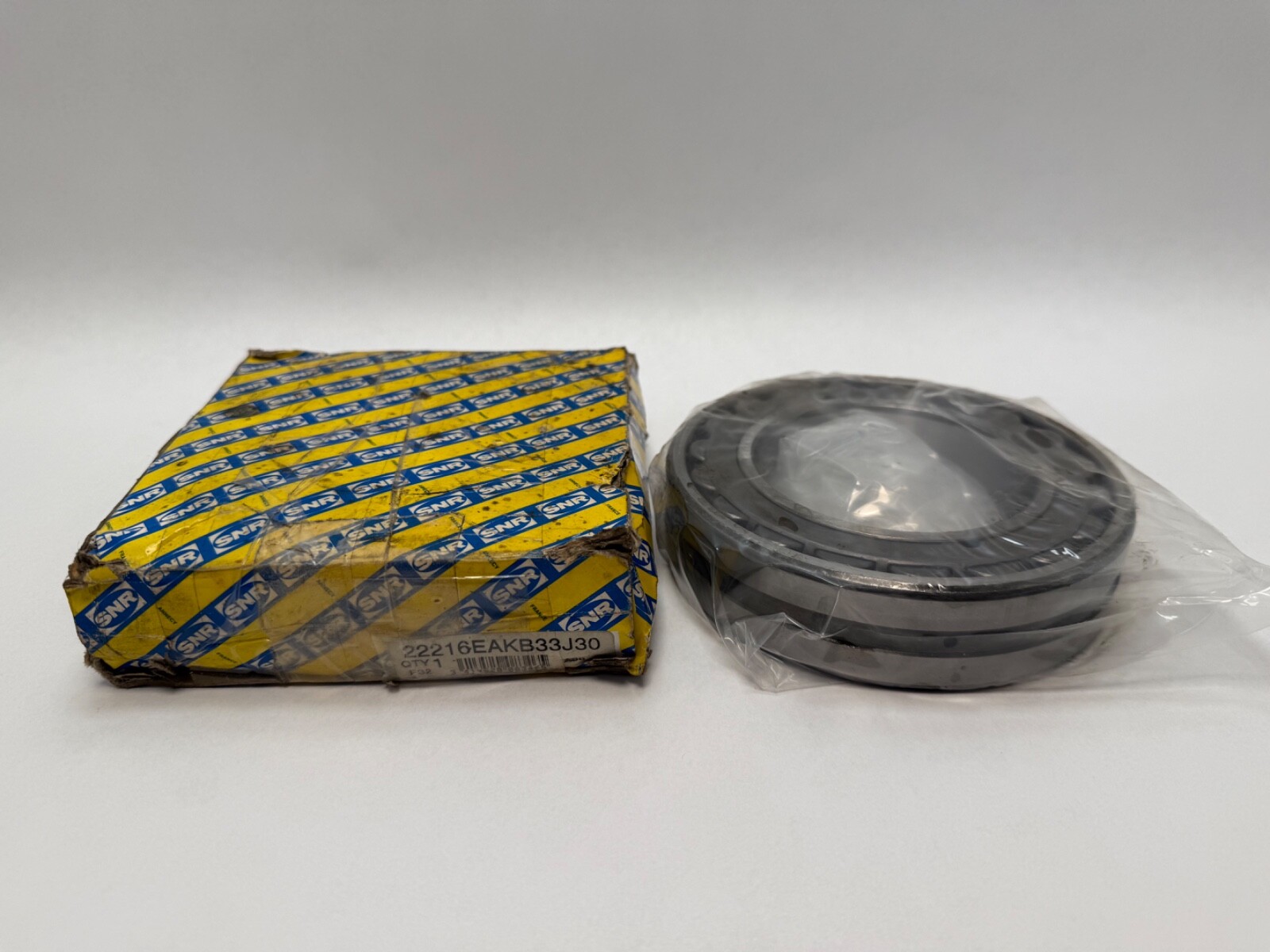

Unit Quantity: 1 Pc. One complete double-row spherical roller bearing, tapered bore, open on both faces. Condition: new old stock, open box, carton marked made in France.

Interchange guidance

Same-envelope tapered-bore equivalents at C3 clearance: SKF 22216 EK/C3, FAG 22216-E1-K-C3, Timken 22216K C3, NTN 22216EAKD1C3, NSK 22216EAKE4C3, Koyo 22216RHRKC3. Harmonization Code: 84823000. Design Units: Metric.
