Availability:
1 in stock

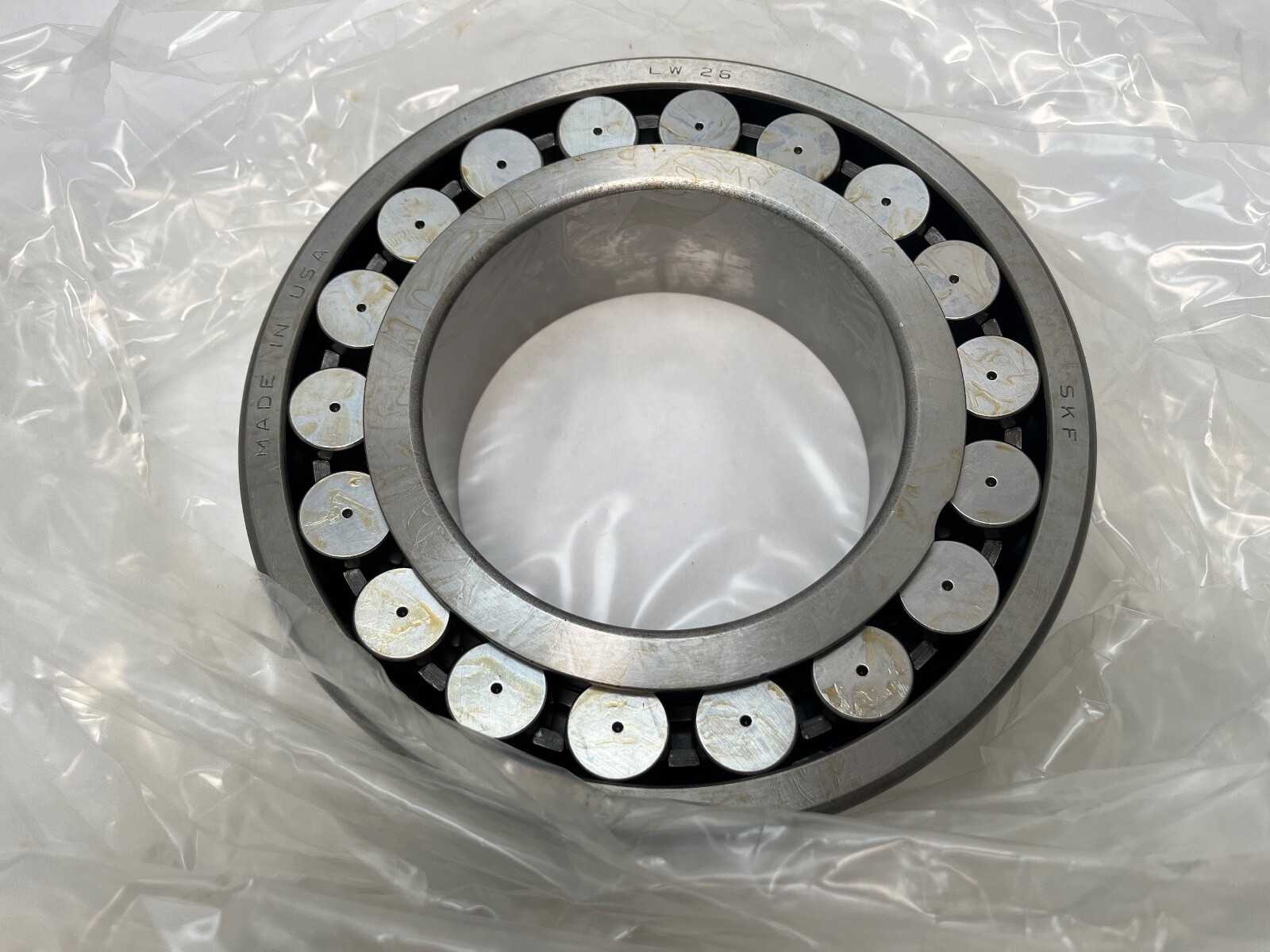

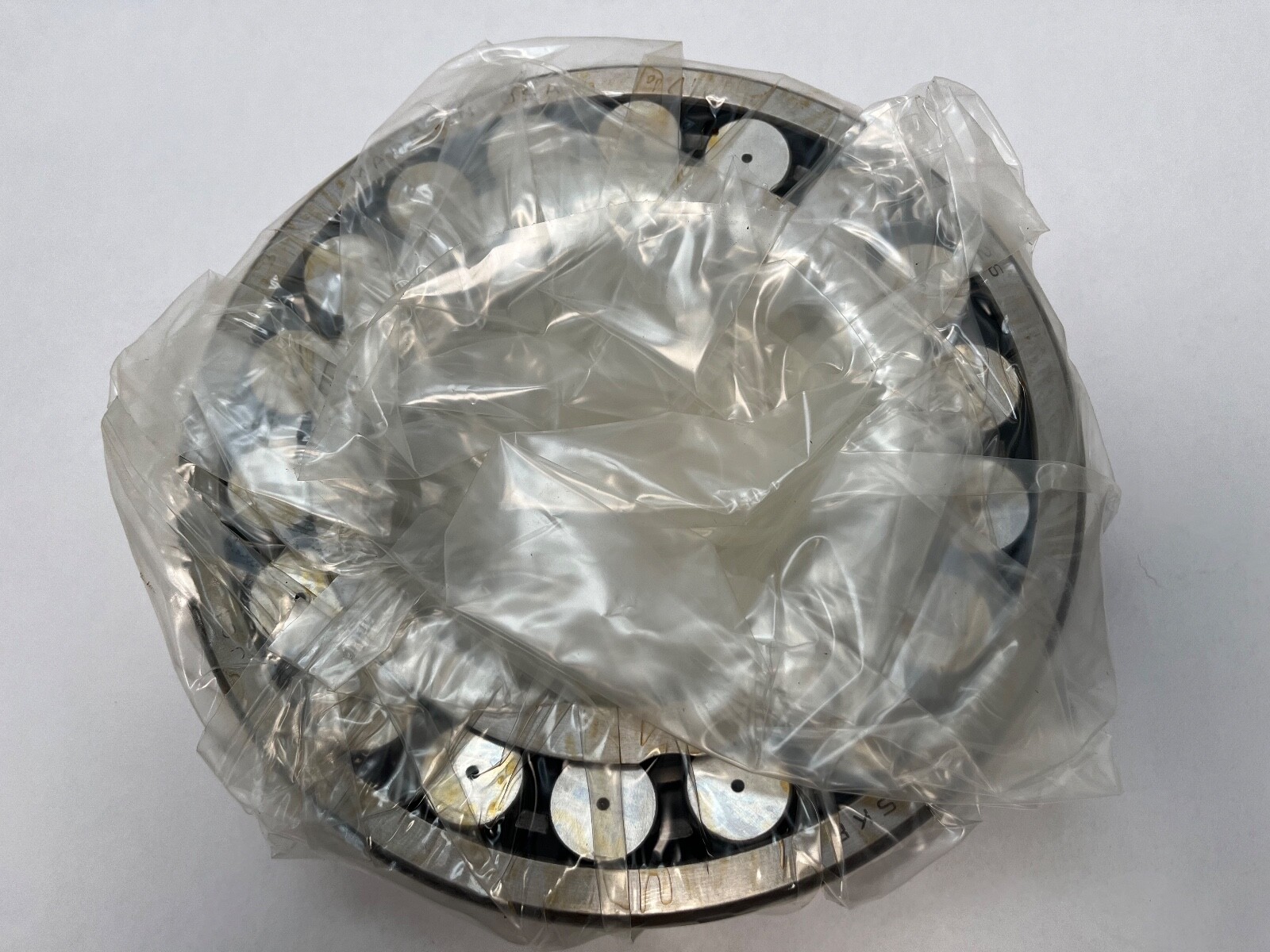

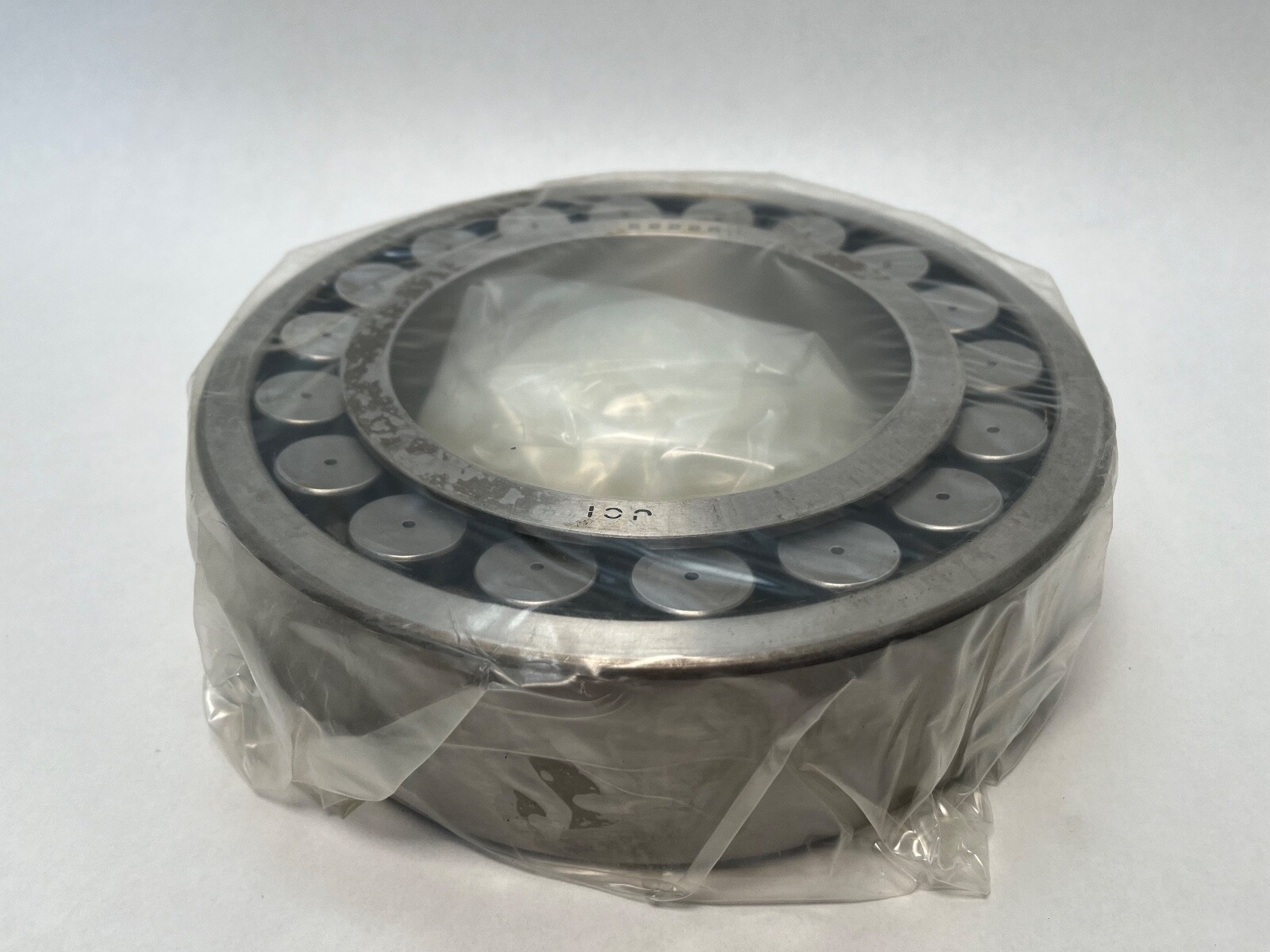

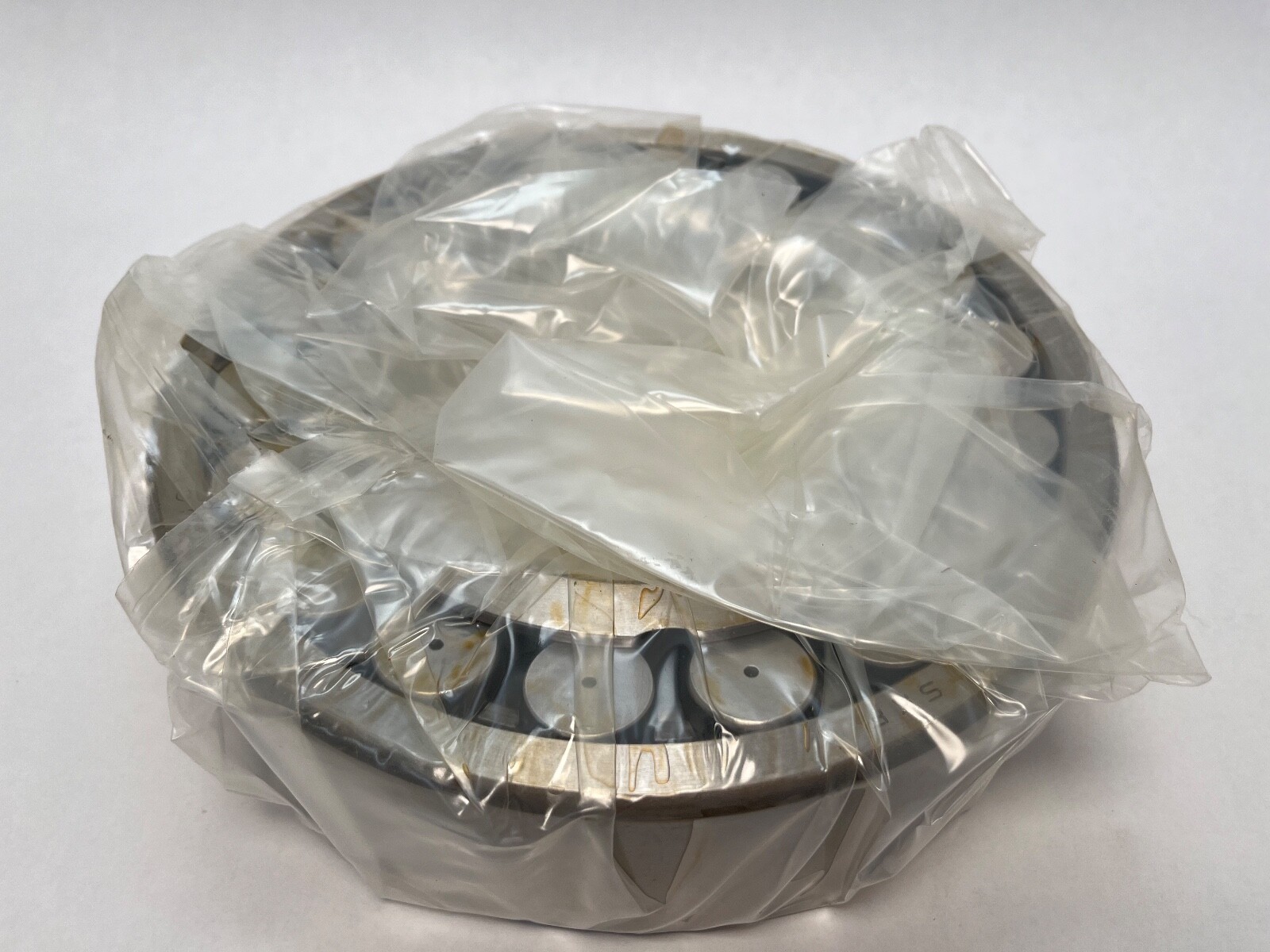

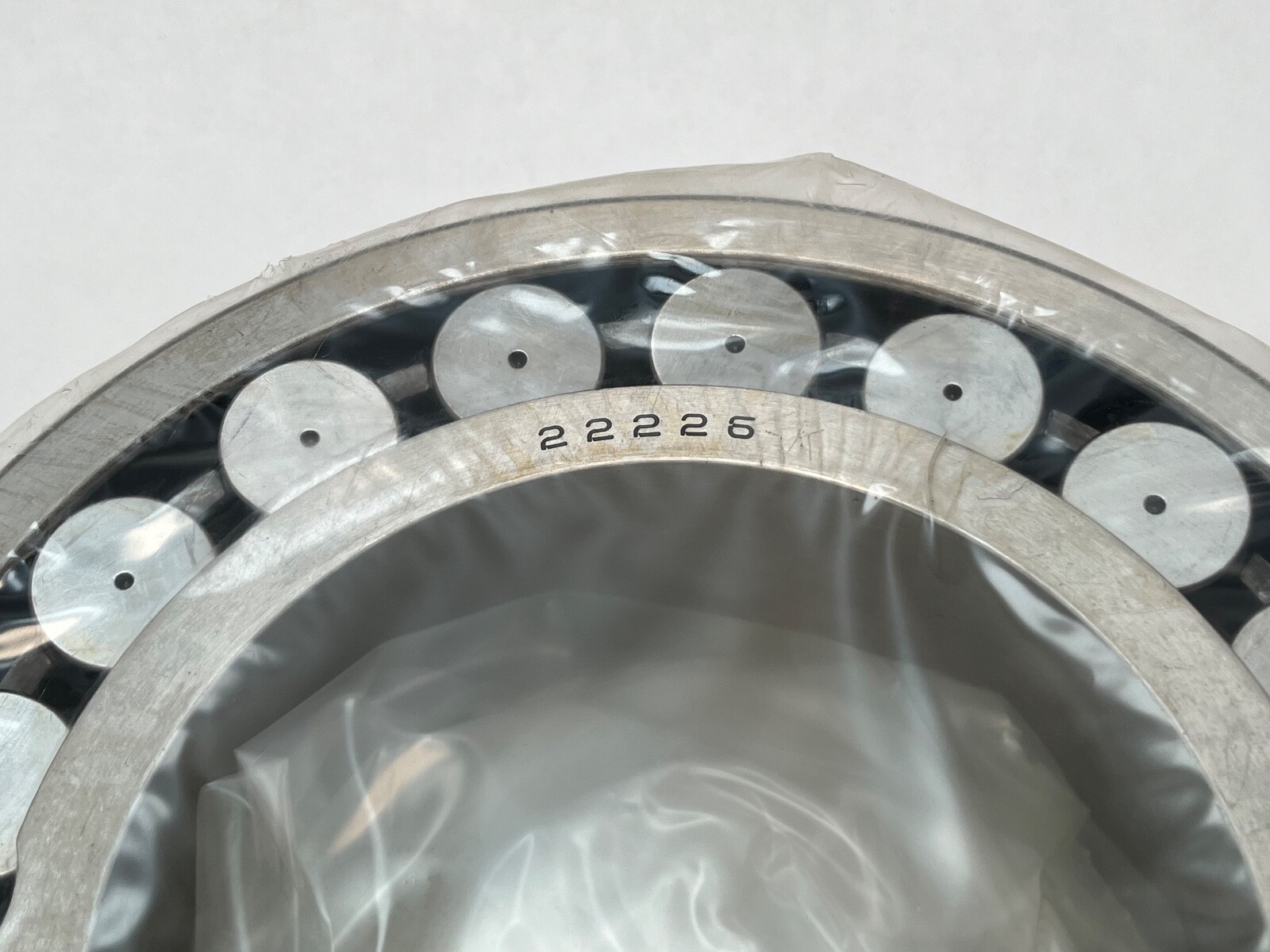

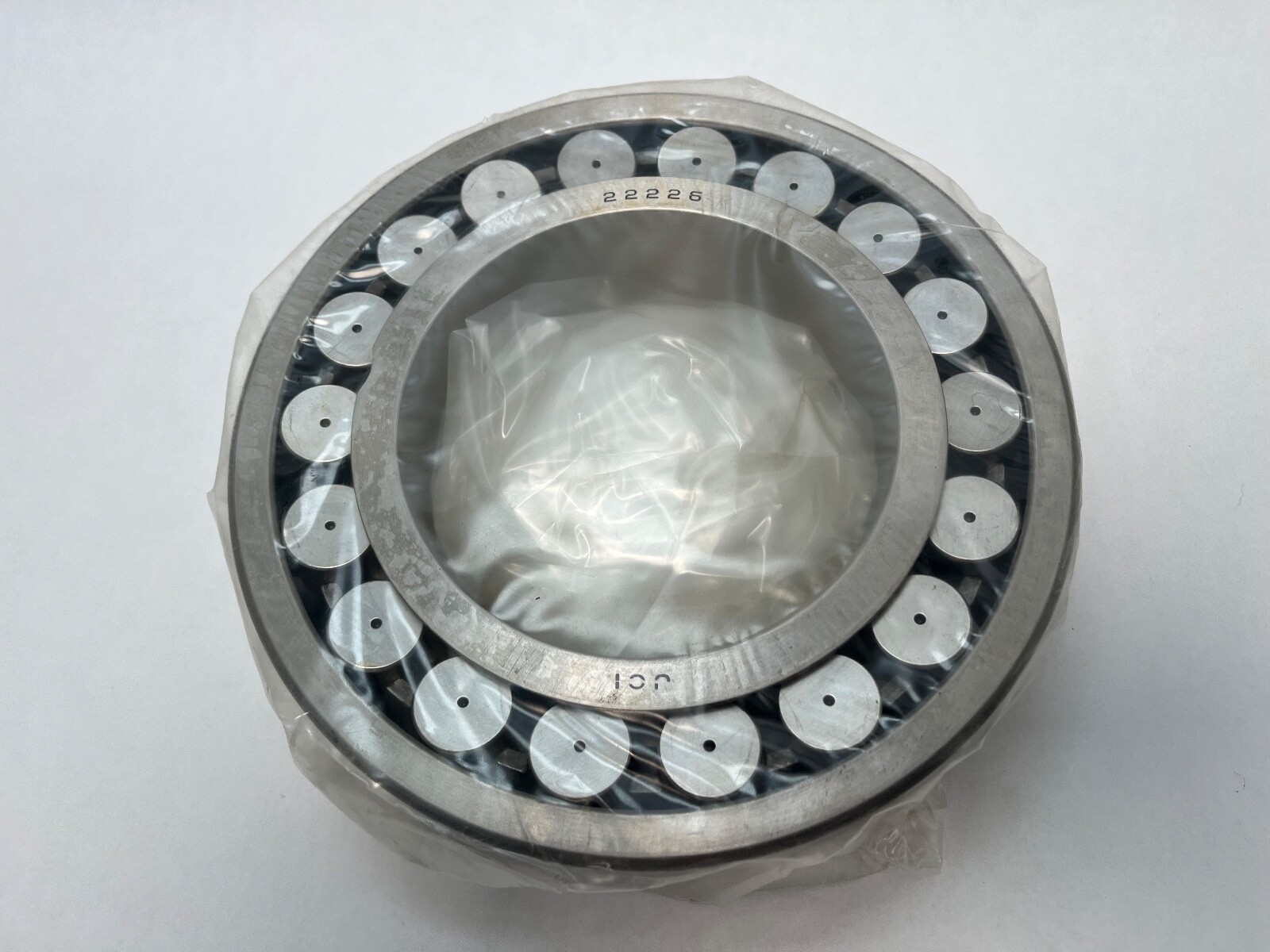

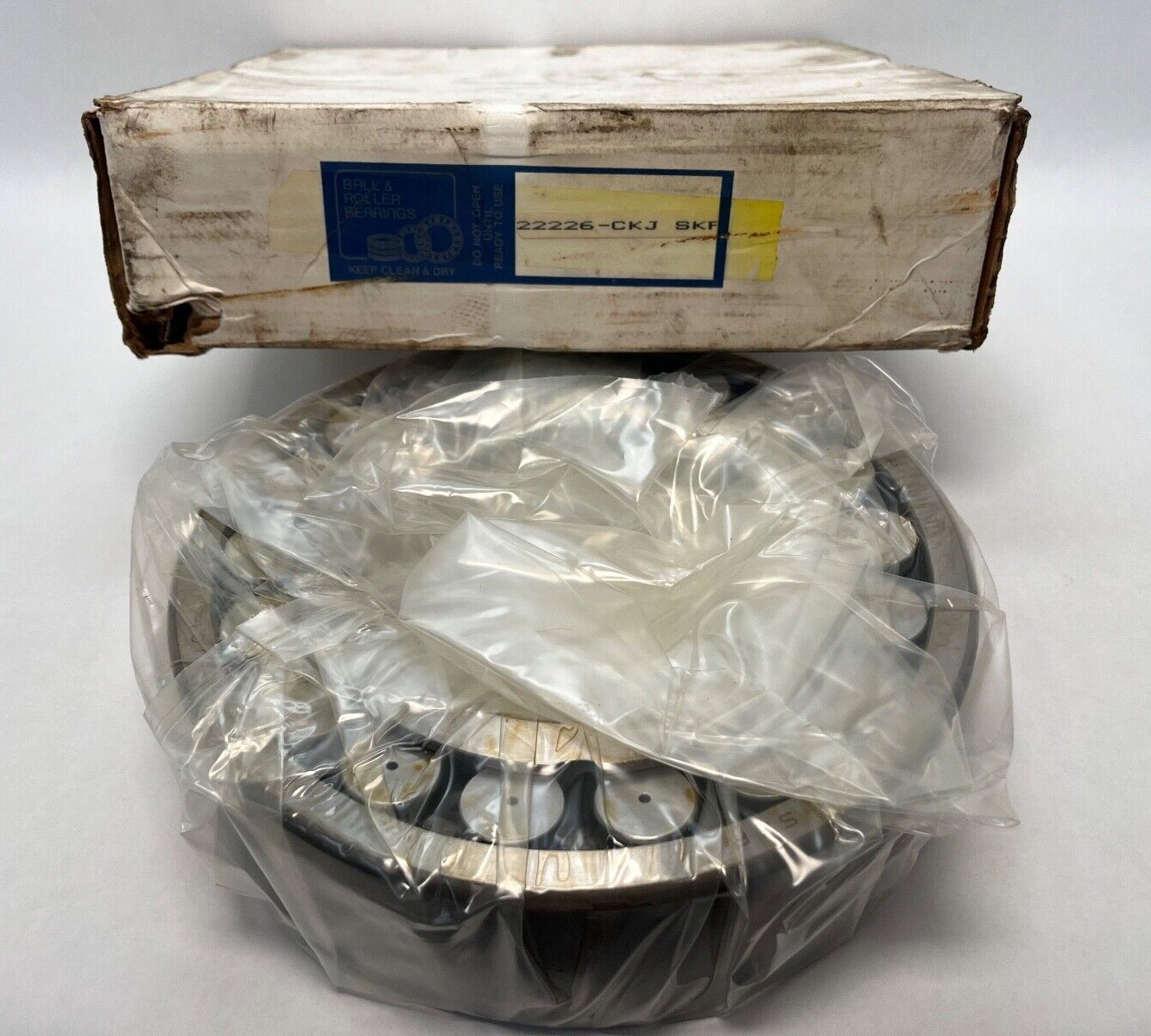

SKF 22226-CKJ spherical roller bearing, 130 x 230 x 64 mm, 1:12 tapered bore, pressed steel cage, CN clearance. Mounts on an H326 adapter sleeve.
List Price
$328.89
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| Model | 22226 C K J 22226E 22226 CC K J |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 130 mm |
| OD | 230 mm |
| Width | 64 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Base Number | 22226 |
| Mpn Variants | 22226-CKJ; 22226 CKJ; 22226CKJ; 22226-C-K-J; 22226 C K J; 22226CCKJ |
| Additional Attributes | Internal design: SKF C; Adapter sleeve: H326; Current SKF execution: 22226 EK |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Tapered, 1:12 |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Harmonization Code | 8482.30.00 |
| Cross Reference 1 | SKF 22226 EK – current E design, higher ratings |
|---|---|
| Cross Reference 2 | FAG 22226-E1-K – E1 design, same envelope |
| Cross Reference 3 | NSK 22226EAKE4 – EA design, same envelope |
| Cross Reference 4 | NTN 22226BK – B design, same envelope |
| Cross Reference 5 | Timken 22226KEJW33 – EJ design, W33 groove |
| Cross Reference 6 | Koyo 22226RHK – RH design, same envelope |
SKF 22226-CKJ double-row spherical roller bearing with a tapered bore. Bearing type: Spherical Roller Bearing. Bore Diameter: 130 mm. Outside Diameter: 230 mm. Overall Width: 64 mm. Number Of Rows: 2. The bearing is self-aligning and carries heavy radial loads with axial load in both directions.
222 — ISO dimension series 22, the wide light-section spherical roller range.
26 — bore code; 26 x 5 = 130 mm bore.
C — SKF C internal design, symmetrical rollers with a flangeless inner ring.
K — tapered bore, taper 1:12.
J — pressed steel cage.
Bore Type: Tapered, 1:12. Cage Material: Pressed steel. Internal Clearance: CN. Seal type: Open. Closure Type: Open. The 1:12 taper mounts on an adapter sleeve or withdrawal sleeve, and drive-up on the taper sets the mounted clearance. Harmonization Code: 8482.30.00.
Mounts on an SKF H326 adapter sleeve (115 mm shaft seat) with its KM locknut and MB lock washer.
SKF lists 22226 EK as the current tapered-bore execution on this 130 x 230 x 64 mm envelope. Same-envelope tapered-bore spherical roller bearings: FAG 22226-E1-K, NSK 22226EAKE4, NTN 22226BK, Timken 22226KEJW33, Koyo 22226RHK. Current E-design bearings carry higher load ratings than the C design.
